HDMI-ARC
Using HDMI-ARC, enjoy The Nines with your TV with no additional cables or remotes using the included HDMI cable.
MID-CENTURY MAGNIFICENT

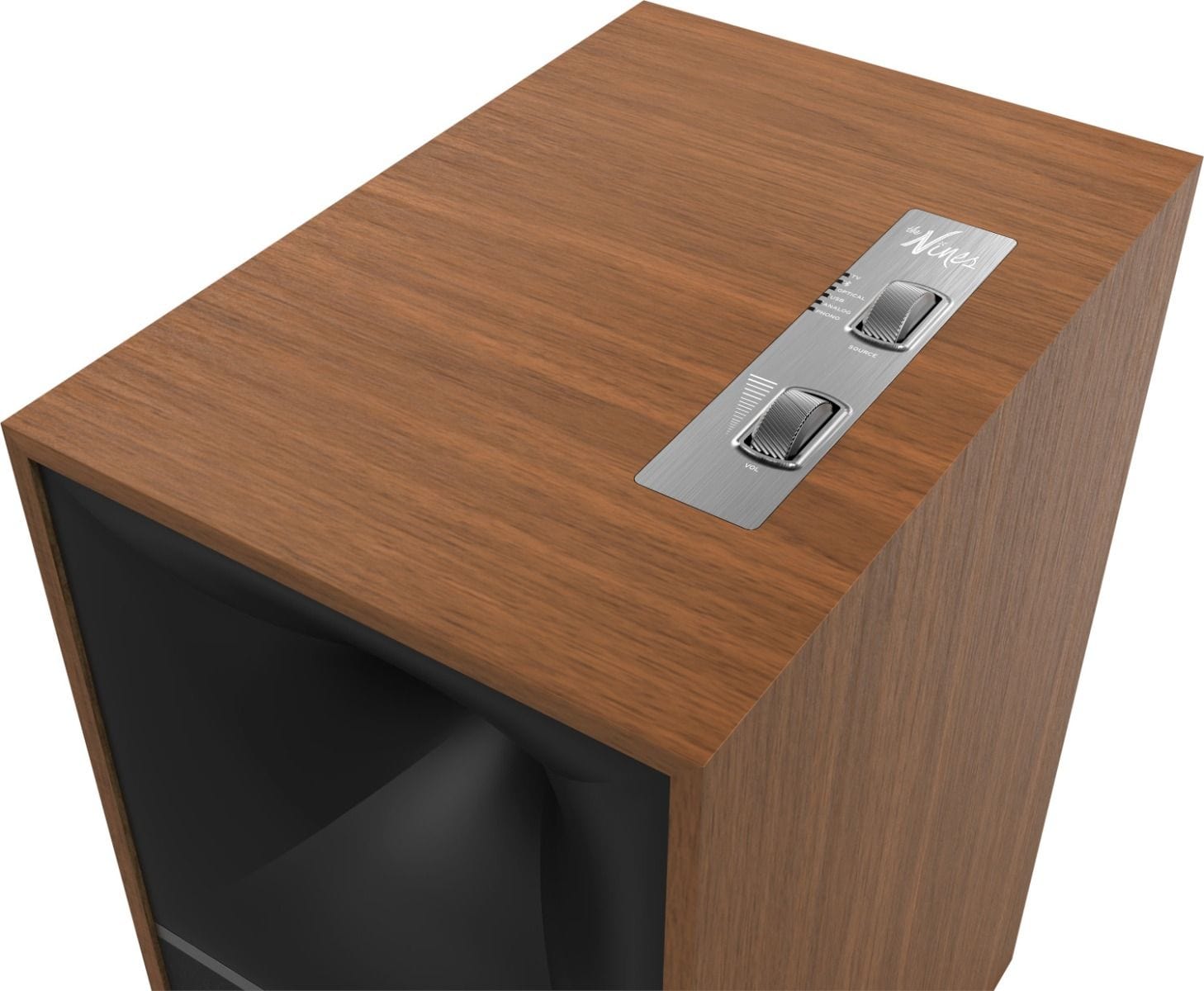

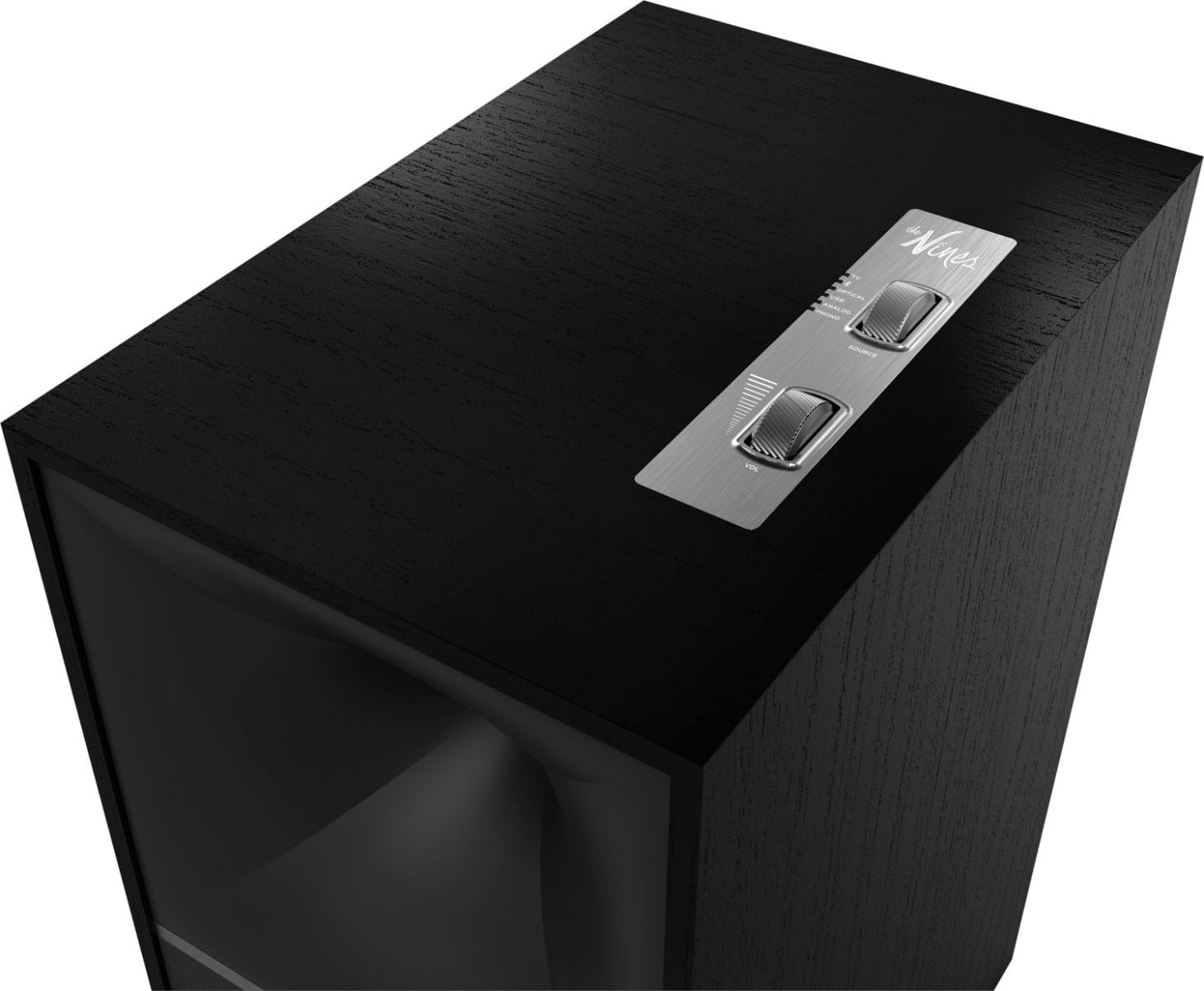

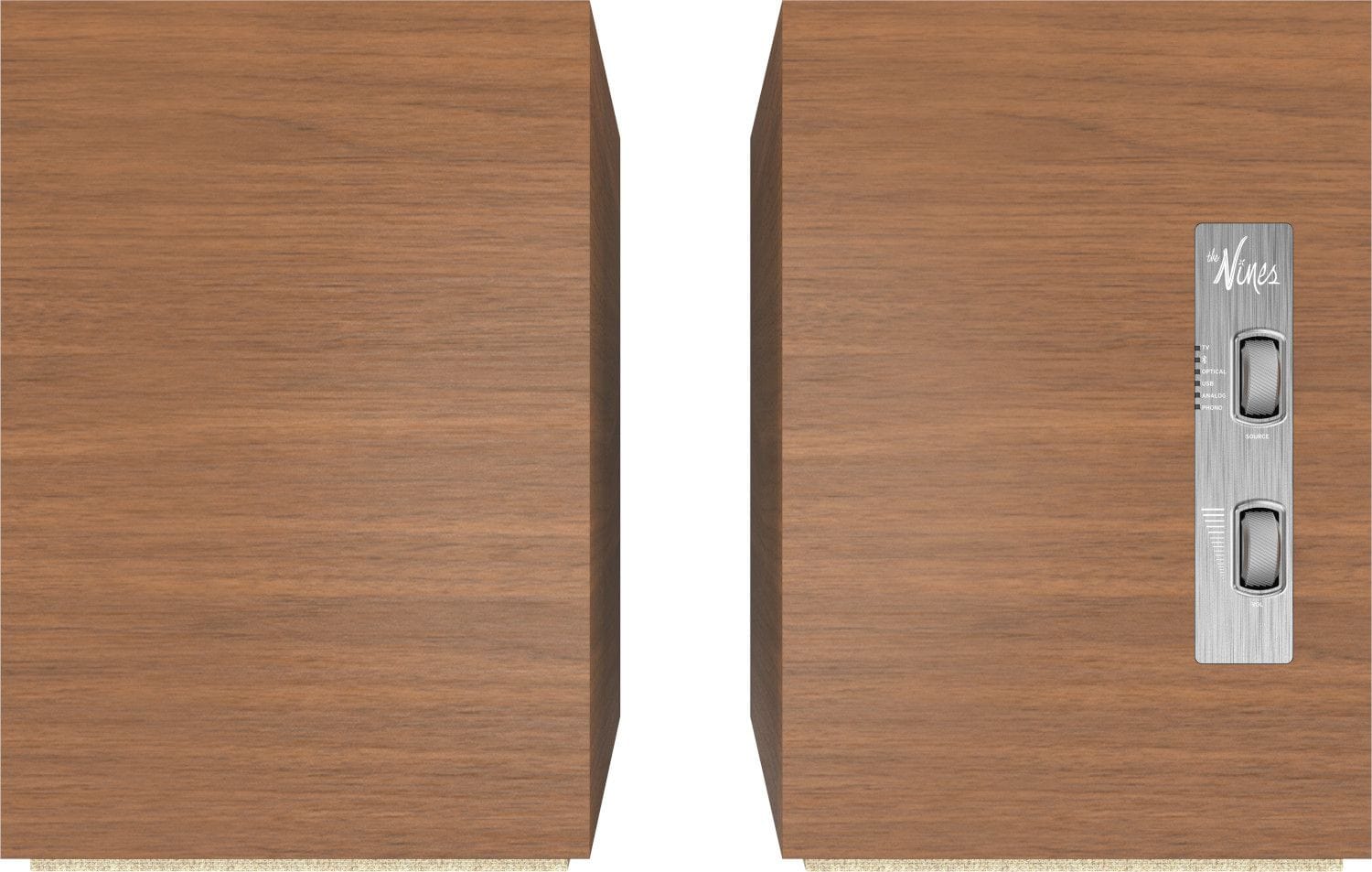

Incorporating luxury materials such as real wood veneer and tactile switches and knobs,
the Klipsch Heritage Wireless series of powered audio systems blends the acoustics and
classic design legacy of Paul W. Klipsch with the latest technologies available today.
EXPERIENCE TRUE HIGH FIDELITY — NO RECEIVER NECESSARY

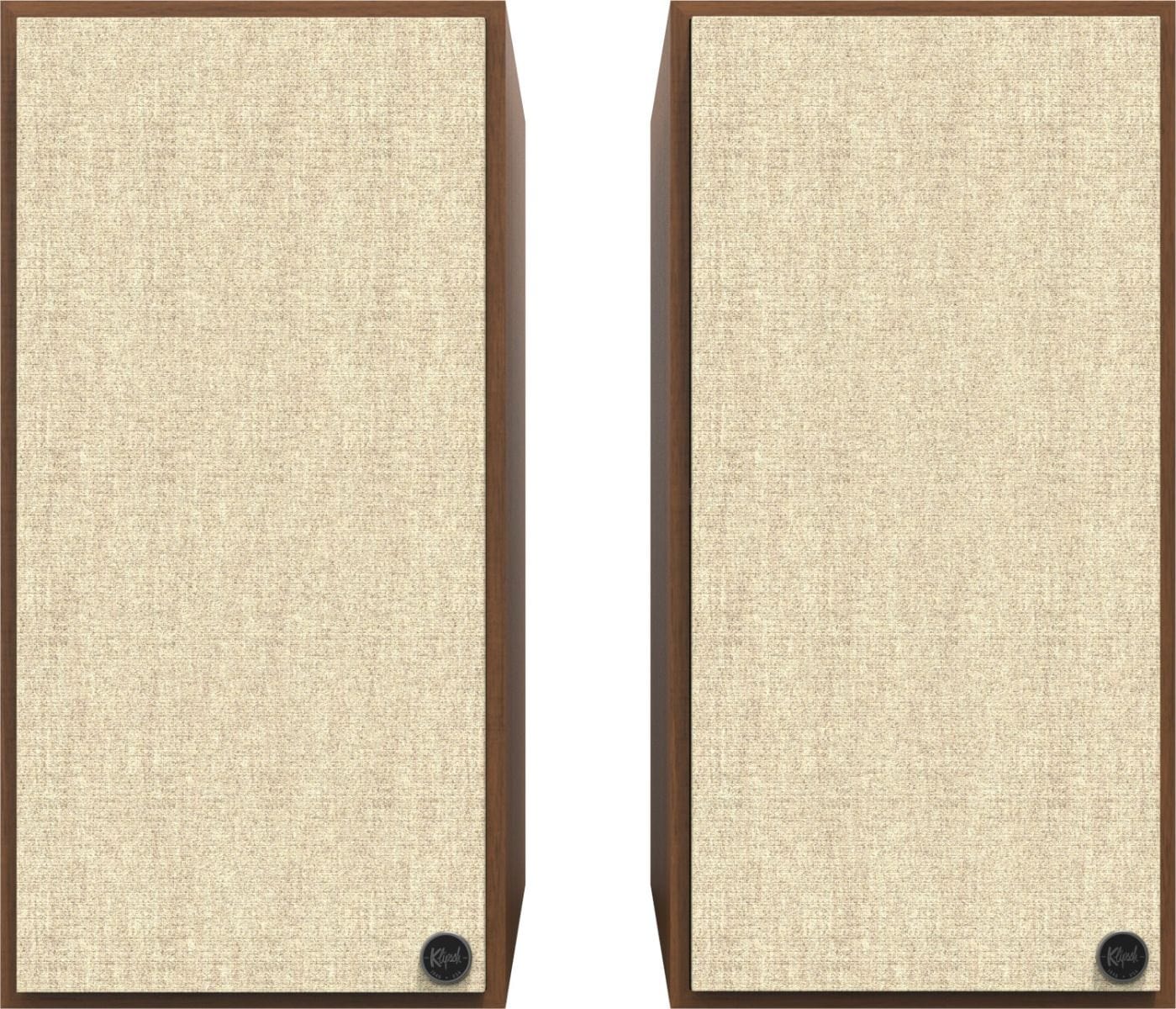

The Nines powered monitors deliver room-filling sound without taking up much space
thanks to a built-in amplifier that is custom-engineered for these high performance
speakers, maximizing output and sound quality
HIGH EFFICIENCY AMPLIFICATION
The Nines incorporate individual ultra-low noise amplifiers that are custom designed to
maximize system performance and eliminate the need for external amplification. World
class Klipsch engineers picked and tuned the components to be an absolute perfect
match throughout, making the system sound incredibly immersive and complete. The
Nines are also bi-amped resulting in improved clarity and output.
PRECISE, CLEAR & HIGHLY EFFICIENT SOUND, PROPRIETARY TO KLIPSCH

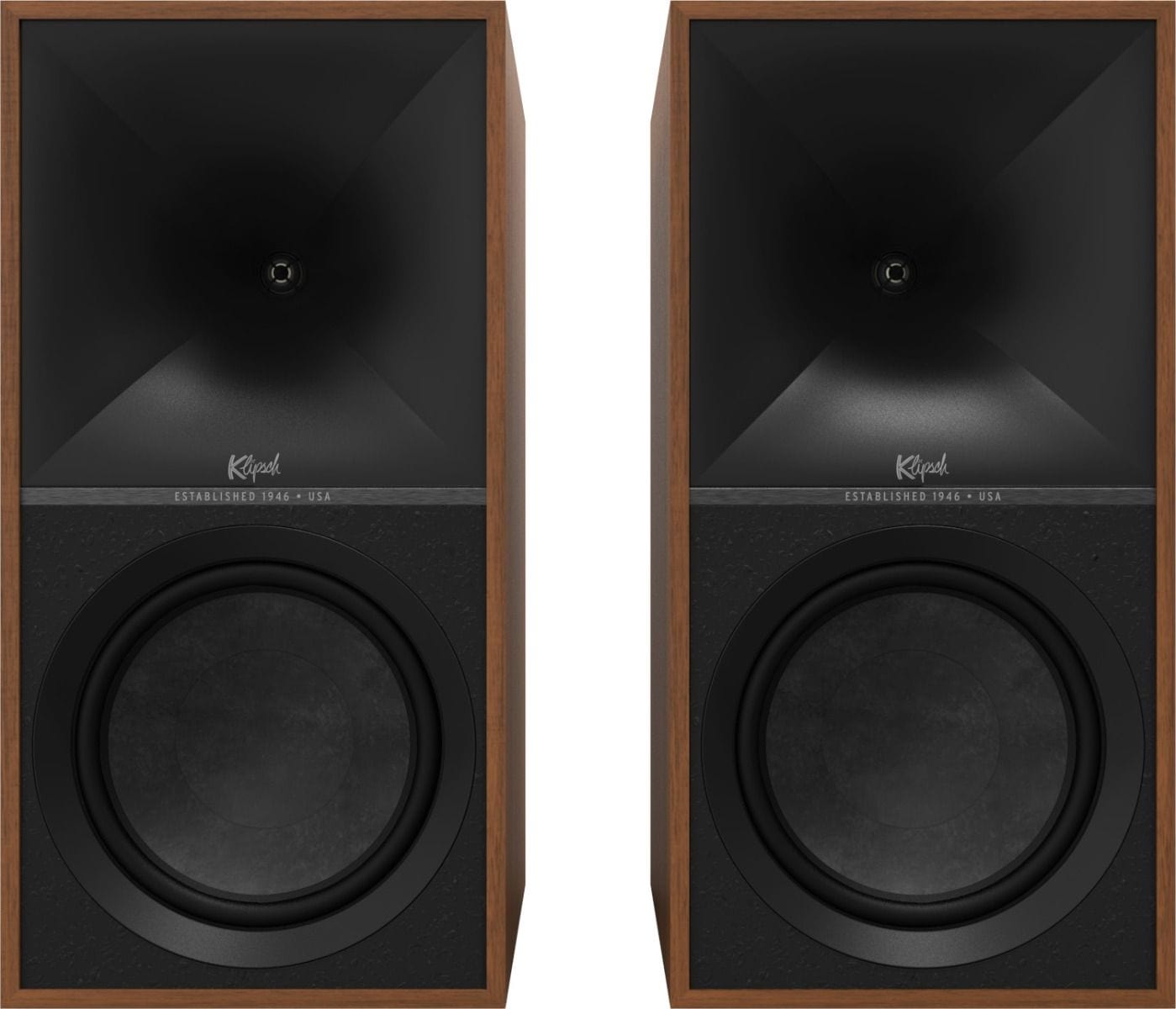

The Nines feature 1” titanium tweeters on Tractrix® horns, a proprietary technology that
has been the driving force behind the stunningly precise Klipsch acoustics. Each powered monitor also features a 8.0” long-throw woofer and is ported to provide enhanced bass.
THE MOST VERSATILE SPEAKERS ON THE PLANET
Whether you are connecting to a turntable, television, computer, or smart phone, The
Nines provide the solution. The Nines come equipped with an integrated phono pre-amp,
Bluetooth® 5, HDMI-ARC, digital optical, analog RCA and USB inputs, allowing you to enjoy superior stereo sound from a beautifully crafted stereo system.
DYNAMIC BASS EQ
As the human ear perceives frequencies differently with variations in output, The Nines
will dynamically match the ear’s ability to hear lower frequencies. Typically, only available
with audio/video receivers, dynamic volume is a first for Klipsch powered monitors. What
you get is powerful bass whether the listening volume is low, cranked up or somewhere
in between.
192KHZ / 24-BIT DECODING TO SUPPORT HIGH RESOLUTION AUDIO TRACKS
The Nines powered monitors also feature 192kHz / 24-bit decoding for flawless
reproduction of high-resolution audio tracks from your PC or streaming source.
ADD A SUBWOOFER
The Nines include a subwoofer output so you can easily add a powered subwoofer.
S P E C I F I C AT I O N S
SYSTEM DESCRIPTION Powered Monitor (pair)
FREQUENCY RESPONSE 34-25kHz +/- 3dB
DYNAMIC BASS EXTENSION 22Hz @ 35% Volume
MAX OUTPUT 115 dB (1M Stereo Pair)
TOTAL SYSTEM POWER 240W Total System Power (480W Peak) 100W LF, 20W HF
HIGH FREQUENCY DRIVER 1” (2.5cm) Titanium LTS vented tweeter with Tractrix® horn
LOW FREQUENCY DRIVER 8” (20.32cm) high-excursion fiber-composite cone woofer
ENCLOSURE MATERIAL MDF with genuine wood veneer
ENCLOSURE TYPE Bass-reflex via rear-firing port
BLUETOOTH® SPECIFICATIONS VERSION: Bluetooth 5.0
A2DP Codecs: SBC, AAC, aptX, aptX HD

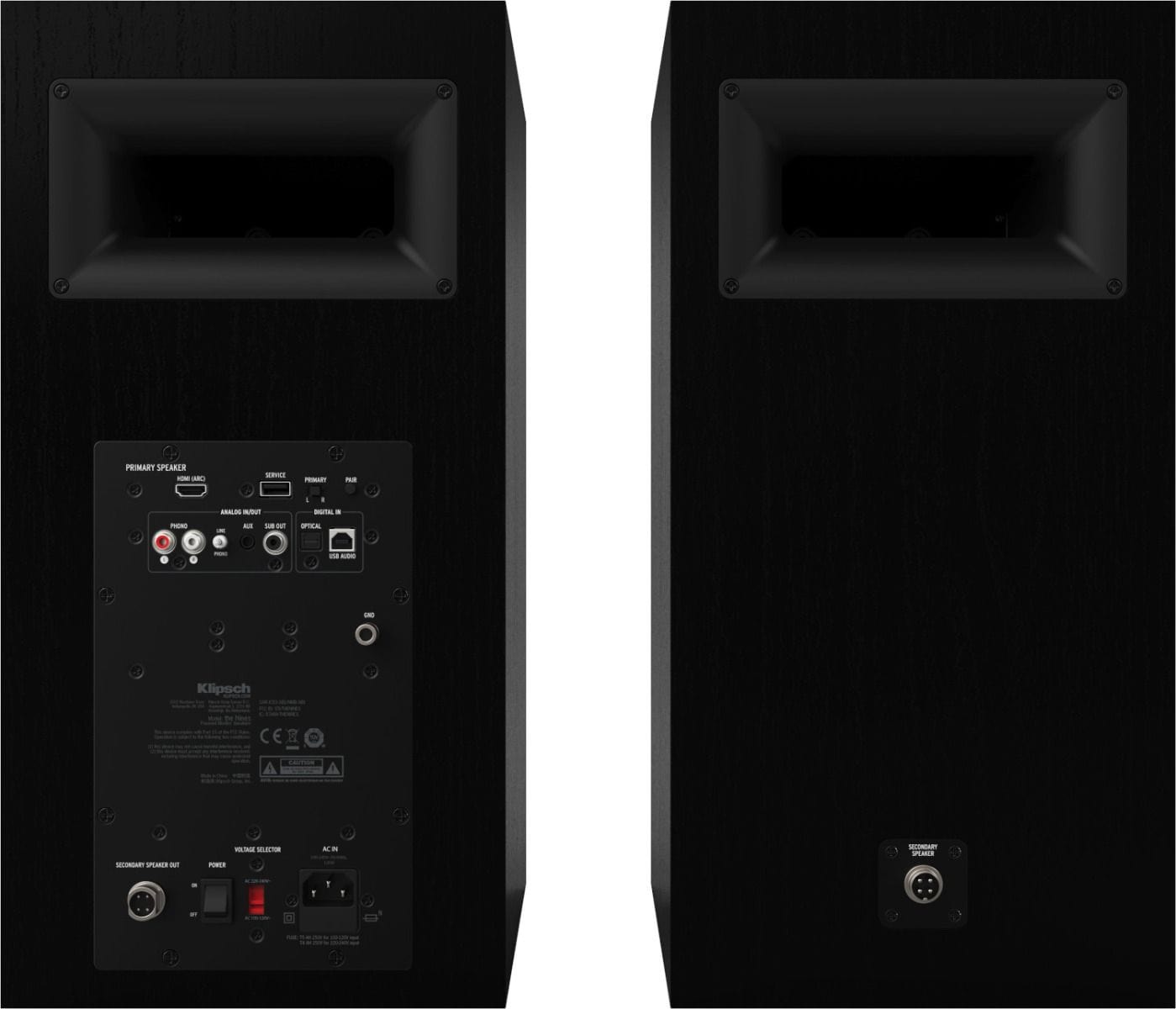

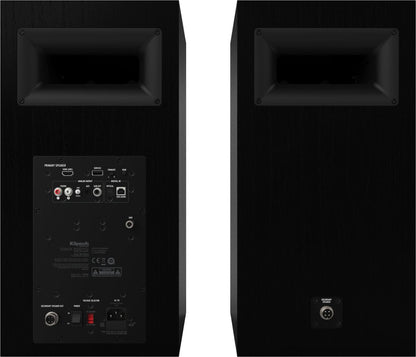

INPUTS
• HDMI-ARC with CEC
• Bluetooth® 5.0 wireless technology
• Phono/Line analog (with switch and ground screw terminal)
• 3.5mm analog mini jack
• USB digital
• Optical digital
OUTPUTS Single RCA line level output for connection to subwoofer
HEIGHT, WIDTH, DEPTH 19.13” (485.8mm) x 9.5” (241.3mm) x 13.38” (339.7mm)
WEIGHT Primary: 28.4 lbs (12.88kg) - Secondary: 27.0 lbs (12.25kg)
FINISH Walnut / Black
VOLTAGE 100V-240V 50/60Hz internal power supply with region specific
power cords
INCLUDED ACCESSORIES
• Region-Specific power cord (2.0m)
• Remote control (with 2 x AAA batteries)
• 4-conductor speaker cable (4m)
• 4-conductor speaker cable extension (2m)
• USB Type-B to USB Type-A cable (1.5m)
• HDMI Cable (1.5m)
