REL T/5x

  • Sale
  • Regular price $1,699.00
Tax included.


Surprisingly Deep. Beautifully Discreet. Pure REL Performance.
T/5x delivers expressive, room-filling bass from a compact cabinet that blends effortlessly into any space visually discreet, sonically transformative.

  • Natural, controlled bass from a 125-watt Class A/B amplifier
  • Fast, agile performance from an 8" FibreAlloy™ driver
  • Reduced resonance through a rigid laminated-plywood cabinet
  • Low-distortion output supported by internal bracing

Designed for Elegance

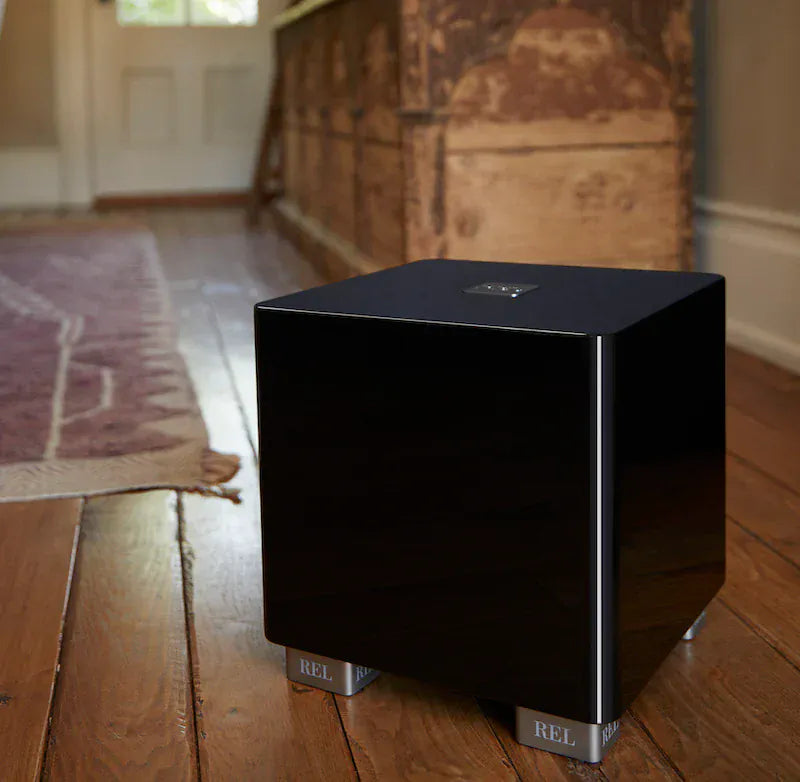

Perfect for small and medium rooms, T/5x seats perfectly into any décor. Floor-firing is part of its secret; bass energy strikes the floor and spreads uniformly throughout the space making it perform like a larger model. For those picky about style, the hidden bonus is this design eliminates even the grill, rendering it the purest of forms.

Slightly larger in volume than its predecessor, it actually appears to be smaller due subtle design changes to minimize it’s visual presence. Finally, 5 hand polished coats of lacquer in your choice of High Gloss White or Piano Black add luster to the softly rounded cabinetry.

Designed for Elegance

Many don’t realize the intense linkage between performance and design here at REL. Performance is everything to us and so it drives physical design revisions. Our engineers, recognizing the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases. Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and familiar with no unnecessary adornment.

Technical Specifications
Type

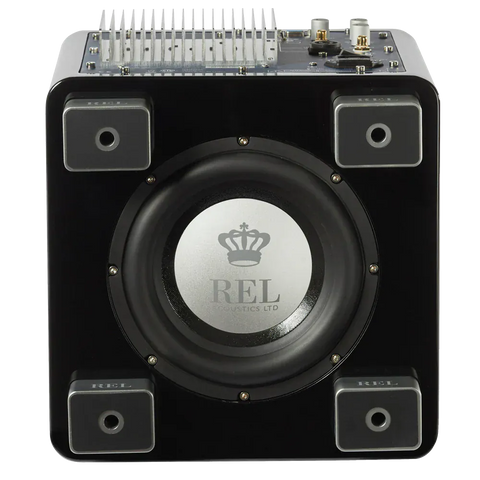

Closed Box, down-firing driver

Active Driver Size & Material

8 in. (200mm) long-throw, FibreAlloy™ cone, inverted alloy centre cap, steel chassis

Passive Radiator Size & Material

N/A

Low Frequency Extension

-6dB at 32 Hz Low Frequency

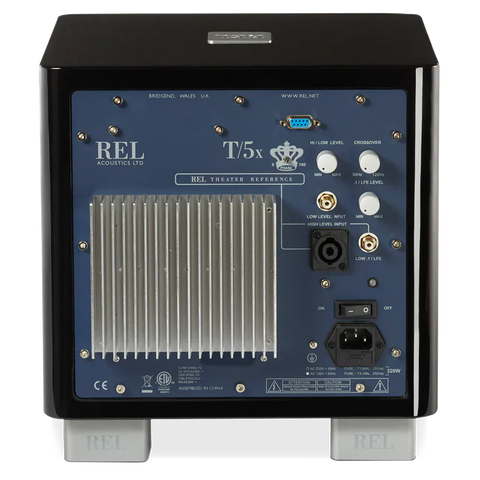

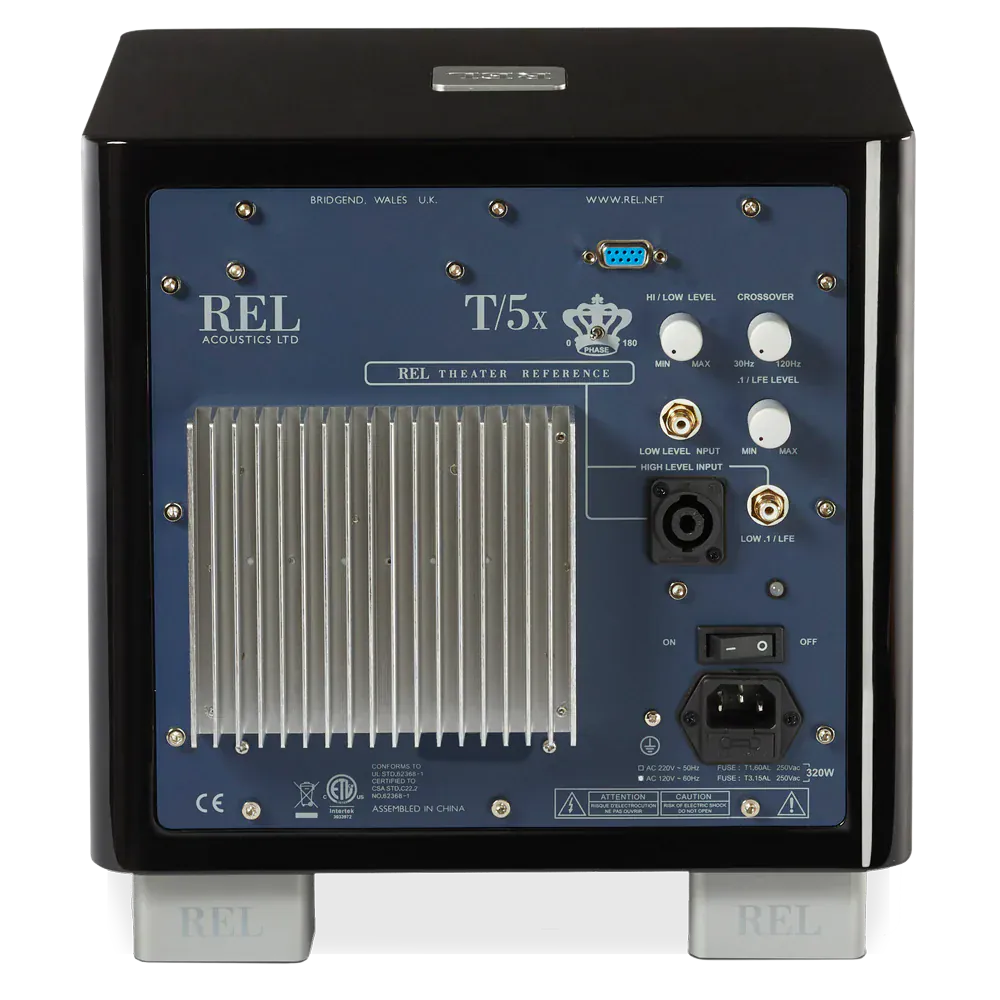

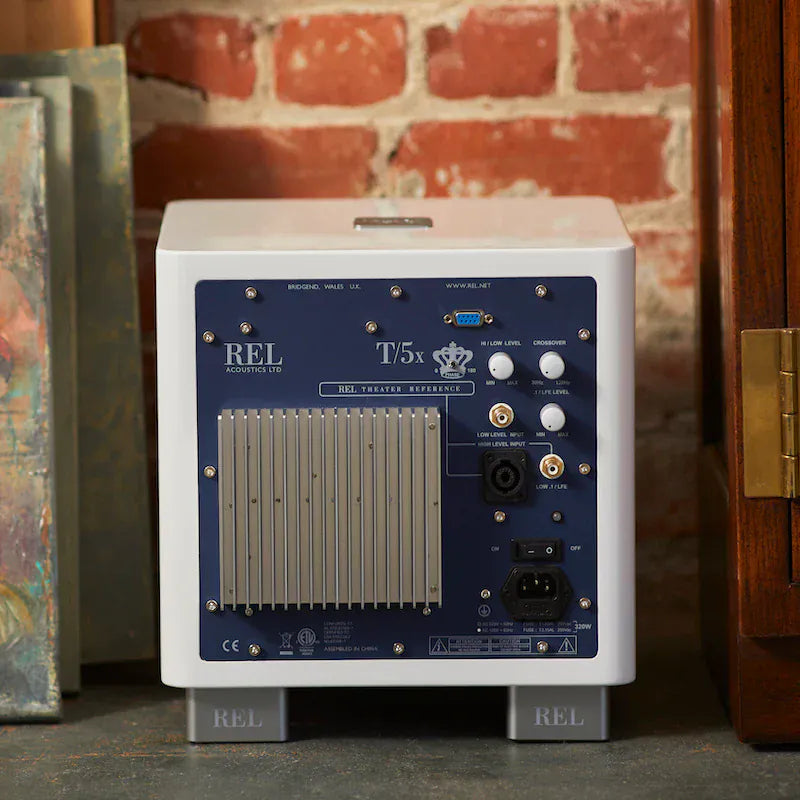

Input Connectors

High Level Neutrik Speakon, Low Level (1) RCA, (1) LFE RCA

Output Connectors

N/A

Power Output

125 watts (RMS)

Amplifier Type

Class A/B

Wireless Capability

REL Arrow (sold separately)

Dual Parametric Filter

N/A

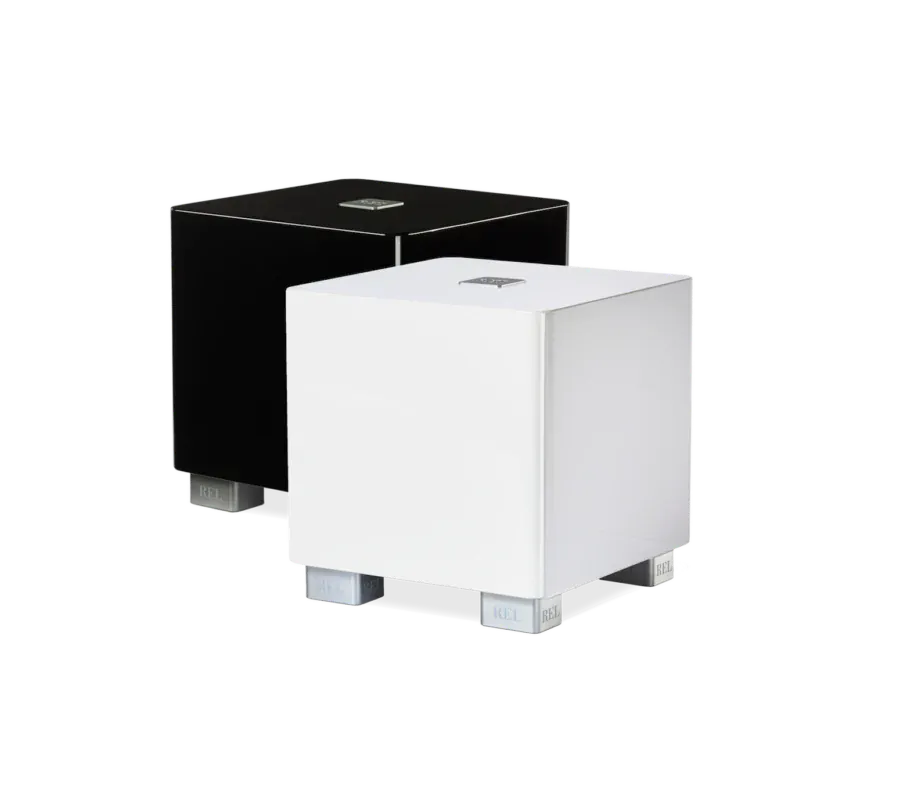

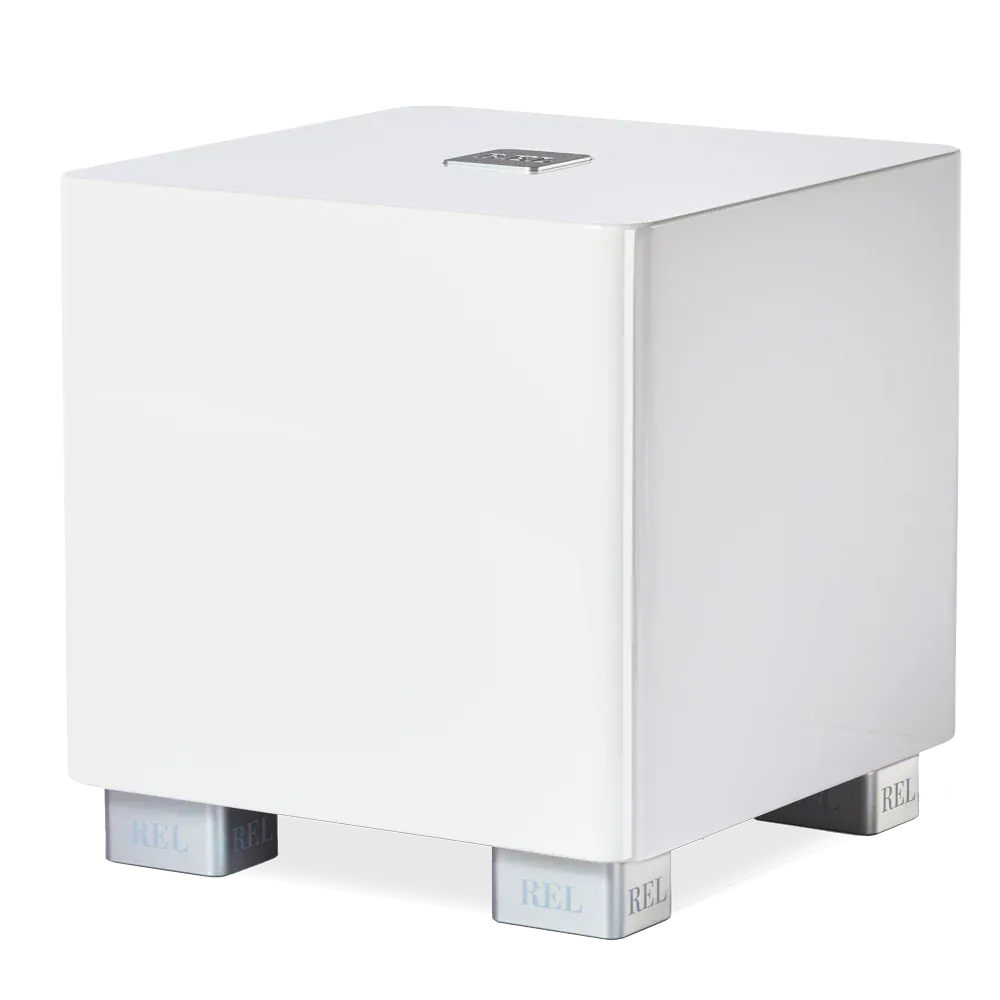

Finish

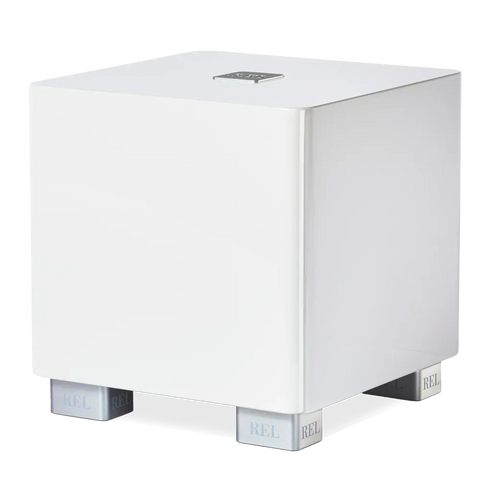

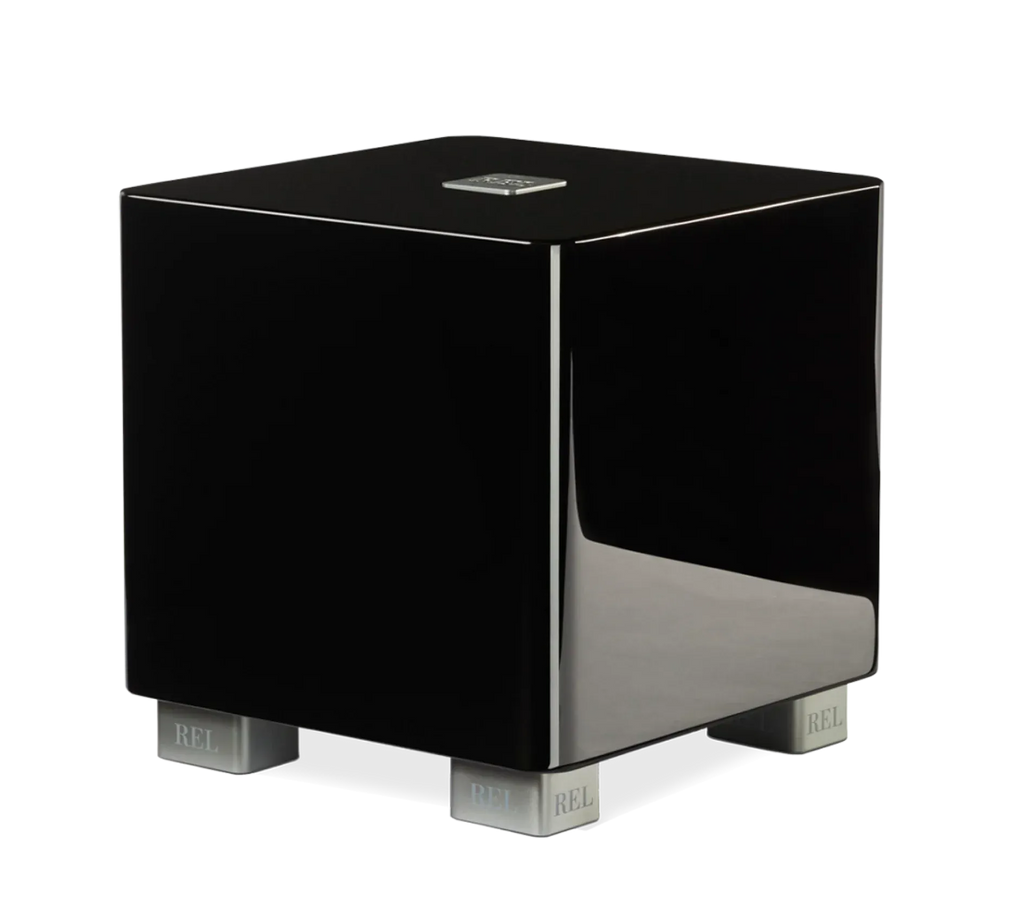

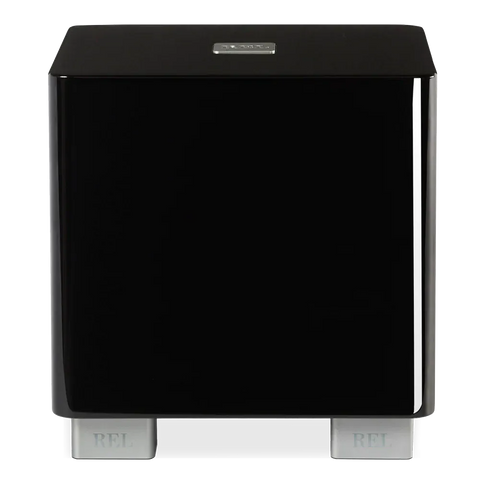

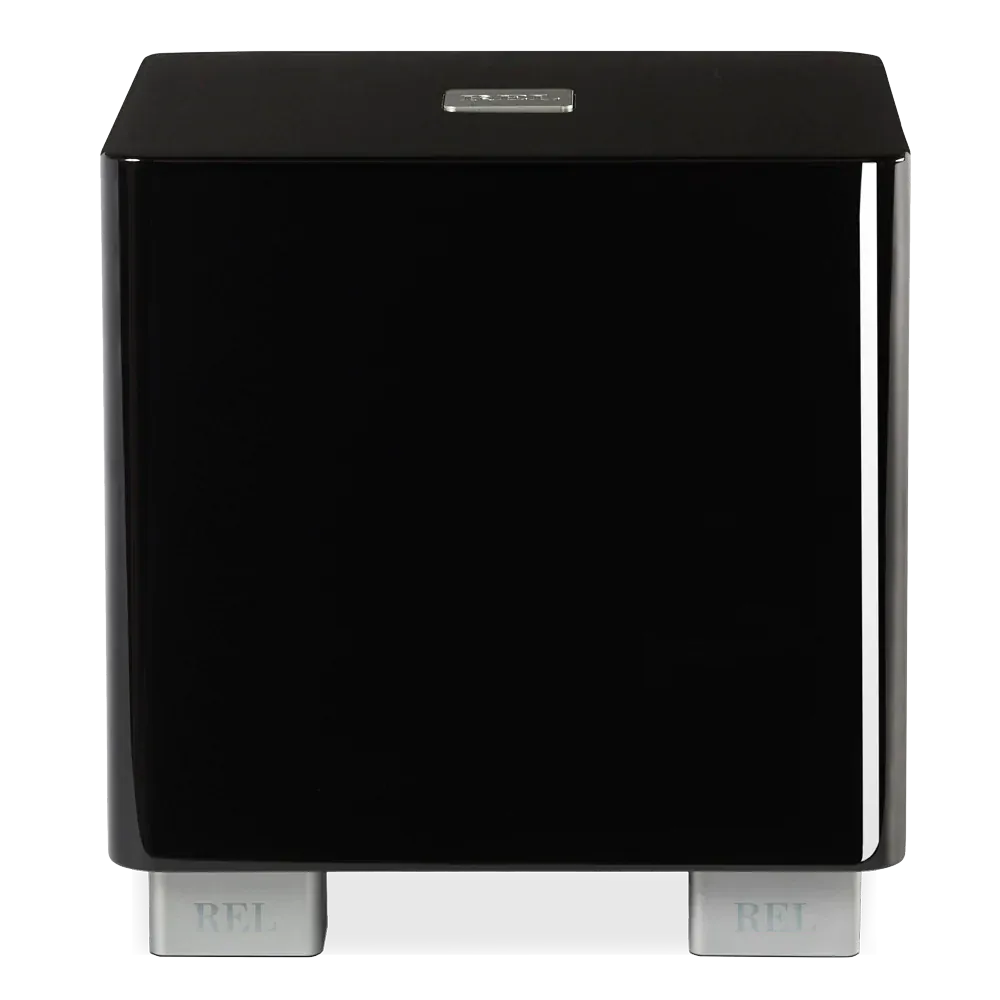

Piano Black Lacquer, Gloss White Lacquer 5 coats

Protection System
Fully Electronic Set Safe

Yes

D.C. Fault

Yes

Output Short

Yes

Mains Input Voltage

220-240 volts, 110-120 volts for certain markets

Fuses

1.6 Amp semi delay 230 volts operation, 3.15 Amp semi delay 115 volts operation

Supplied Accessories
Mains Lead

Yes

Neutrik Speakon

Yes (10 Meters Nominal)

Interconnect

-

User Manual

Yes
