Radio is thriving, with polls showing that for many people radio is still their favourite daytime entertainment. R1S takes this timeless medium to a new level, and with Wi-Fi and Bluetooth also built in, R1S is not just a radio, but more a complete musical solution that’s small enough to fit easily into your home, but capable enough to provide day long entertainment.
- Striking and natural sound quality
- Spotify Connect, Deezer and Amazon Music
- New generation Bluetooth 5 receiver
- SmartRadio with Internet/DAB/DAB+/FM tuners
- Comprehensive dual alarms and sleep function
- Dedicated podcast source

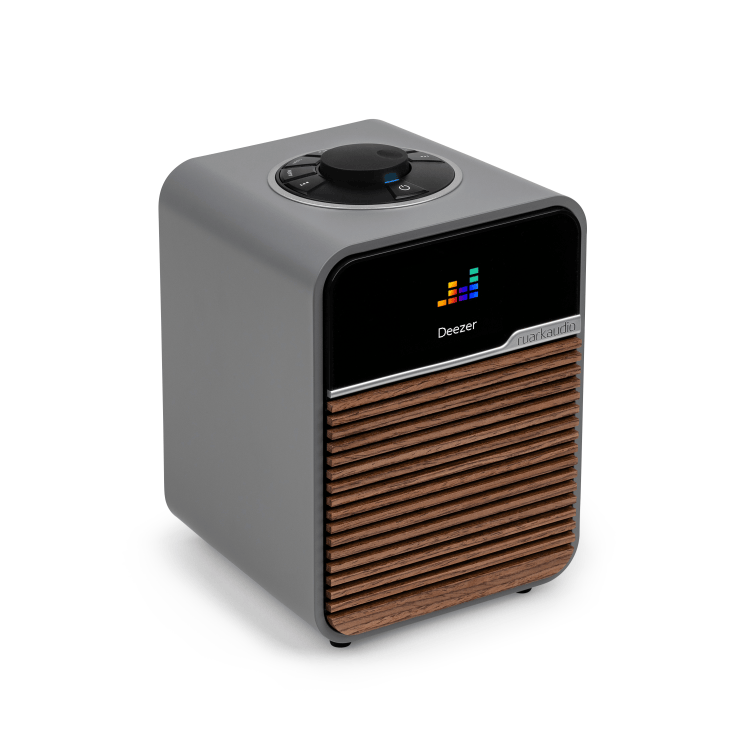

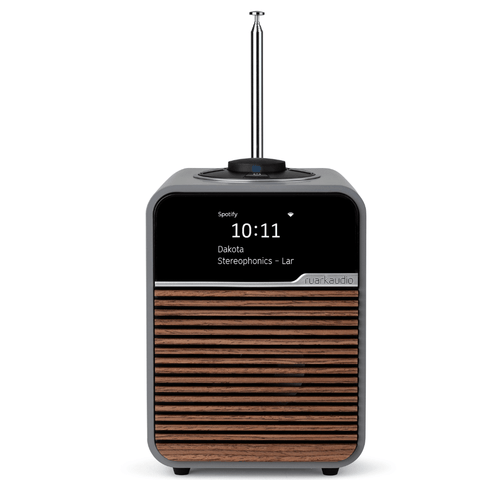

Beautiful from every angle
R1S grabs attention with its flawless look and sound. With tactile curves, a choice of three finishes and composite hand-crafted grille, R1S exudes fresh contemporary design. The grille material is created from sustainable woods, which are carefully spliced, coloured, and recomposed to closely mimic the rich tones of slow growing hardwoods, without the ecological impact. The cabinet and grille blend perfectly with our trademark RotoDial controller and new colour display, to create a feel that captures the extra technical capabilities of R1S.
Specifications
Audio
- Frequency response (typical in-room)
- 55Hz - 20kHz
- Speaker unit
- Ruark 75mm NS+ full range driver
- Amplifier
- 9W nominal Class AB
- Enhancements
- Adjustable bass and treble (-6dB to +6dB),
Switchable loudness EQ - Cabinet type
- Bass reflex

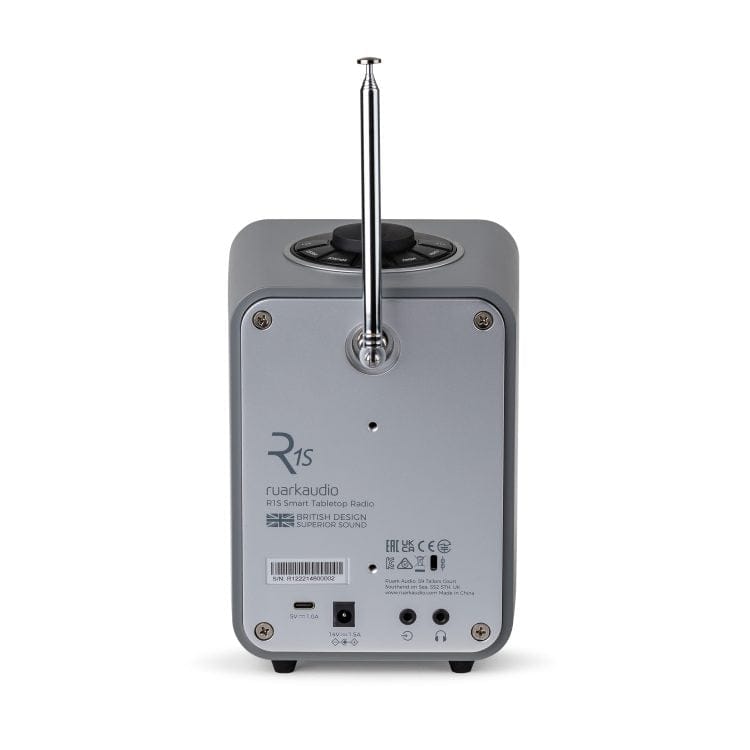

Connectivity
- Aerial connector
- 75Ω F-type connector
- Bluetooth (version & codecs)
- V5.2, SBC
- Built-in music streaming services
- Spotify Connect, Deezer, Amazon Music
- Headphone output
- 3.5mm jack socket
- Line in
- Stereo 3.5mm jack input
- Podcast source
- Yes
- Radio
- Internet Radio, DAB/DAB+/FM with RDS (87.5-108MHz)
- USB-C port
- 5V 1A (5W) charging,
MP3 48kHz 320kbps playback (FAT32 format only) - Wi-Fi
- 802.11b/g/n, WPS 2, WEP, WPA, WPA2
- Supported audio formats
- MP3 up to 48kHz 320 kbps
Features
- Adjustable input levels
- Line in
- Alarms
- 2 × daily, weekdays, weekends and custom
- App control
- Oktiv (iOS and Android)
- Auto standby
- Adjustable power saving mode
- Daylight Saving Time (DST)
- Configurable daylight savings
- Display
- Colour TFT with auto dimming
- Presets
- 8 presets per mode
- Real-Time Clock (RTC)
- With internal battery backup
- Remote control
- Optional compact IR remote
- Security slot
- Kensington compatible
- Sleep function
- Yes
- Snooze function
- Yes
- Software updates
- Over-the-air, LAN and USB
- User interface languages
- EN, DA, DE, ES, FR, IT, NL, NO, PL, SV
General specifications
- Standard finishes
- Mid Grey Lacquer cabinet with Walnut grille,
Light Cream Lacquer cabinet with Walnut grille,
Charcoal Lacquer cabinet with Walnut grille - Product dimensions (cabinet)
- H170 × W130 × D130mm
- Product dimensions (max – inc. feet, controls and cables etc.)
- H185 × W130 × D160mm
- Product weight
- 1.4kg
- Product power input
- 12-14VDC 1.5A
- Power inlet connector
- 5.5 × 2.1mm DC jack socket
- AC power adaptor
- 100-240VAC, 50-60Hz input, 14VDC 1.5A output (1.8m lead)
- Power consumption
- 1.7W standby 3W typical
In the box
- R1S
- Universal AC power adaptor
- Quick Start Guide
- Telescopic aerial and spanner
Carton
- Carton dimensions
- H270 × W185 × D210mm
- Packaged weight
- 2.1kg
