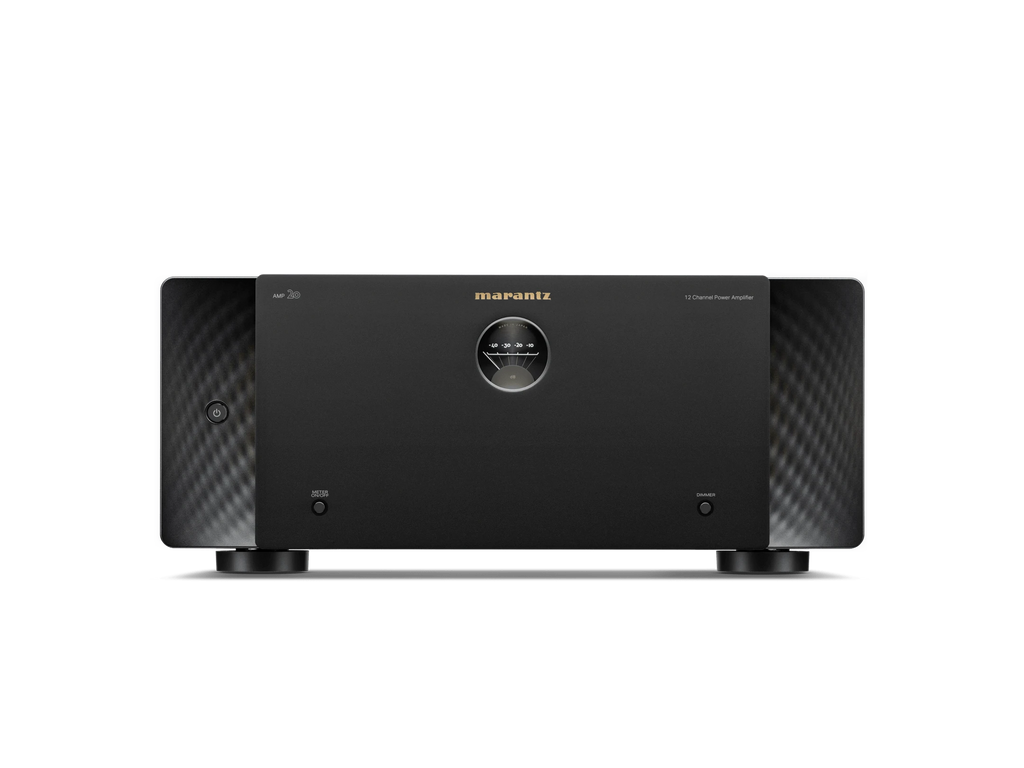

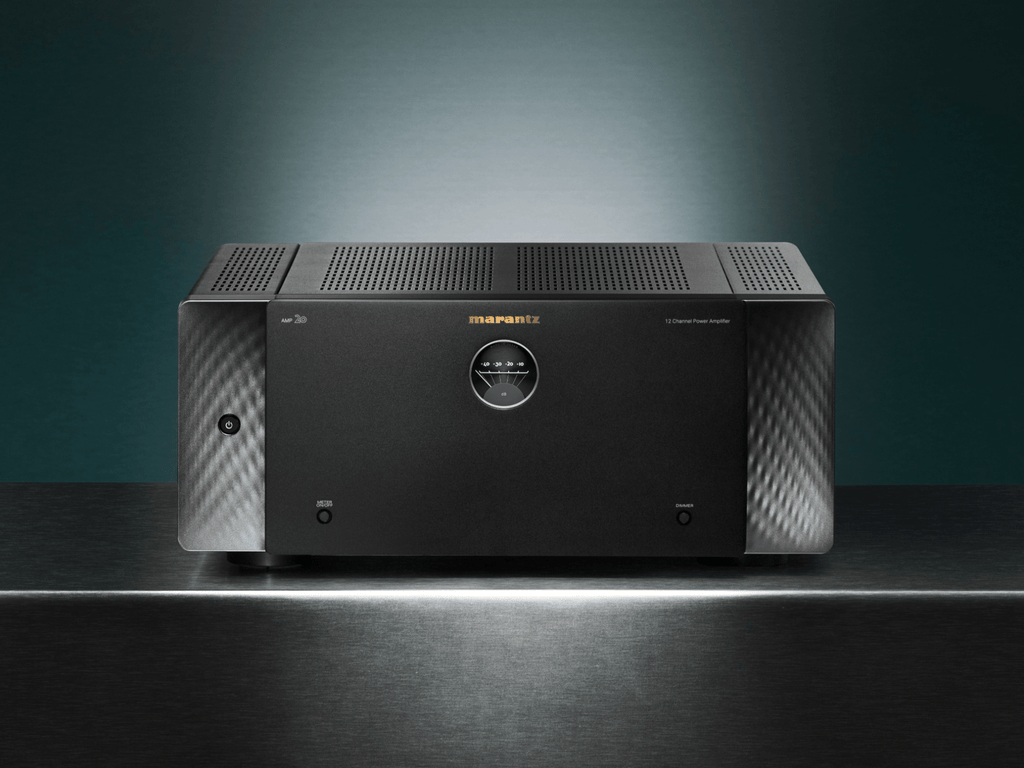

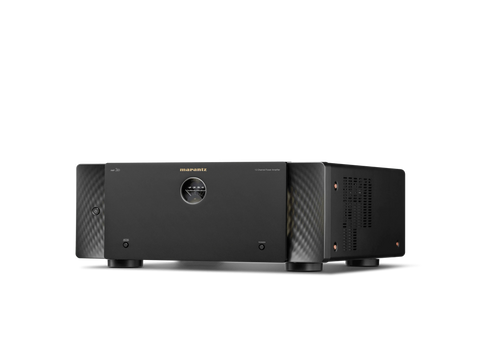

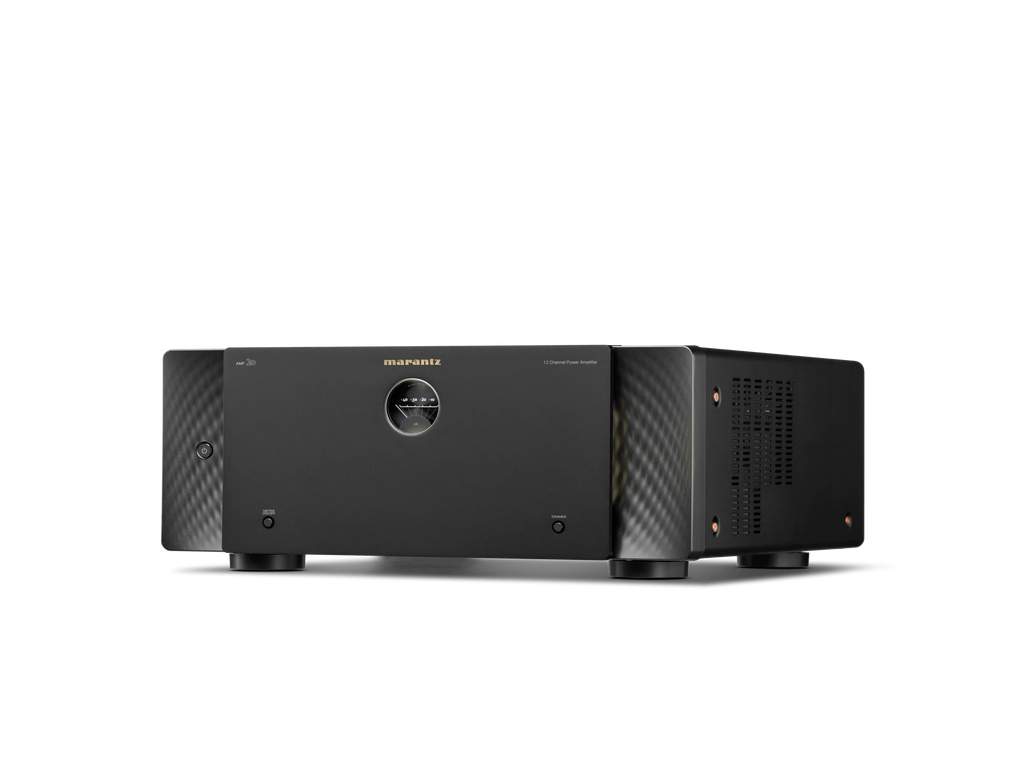

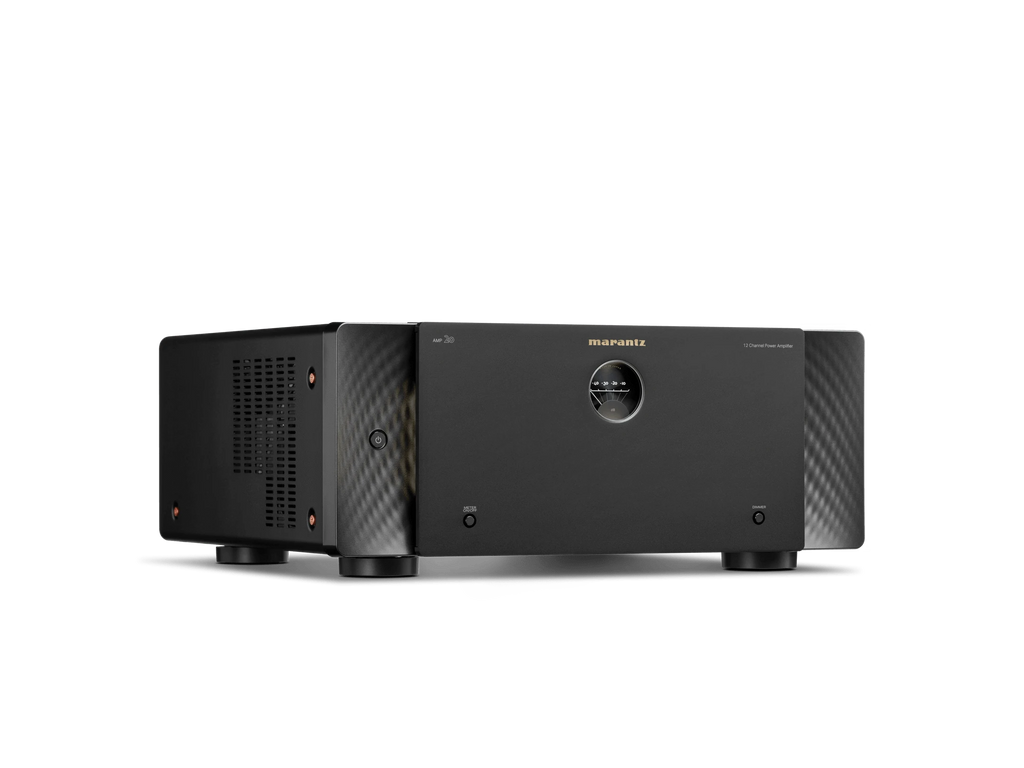

AMP 20 combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance. When paired with AV 20, the results are unforgettable.
AMP 20’s custom-developed Class D amplification and refined HDAM-SA2 technology create the most incredible theatrical experience possible in your home.
Our Marantz Sound Master meticulously tuned AMP 20 for amazing performance with careful parts selection to create outstanding sound in your home.
AMP 20 gives you 12 channels of commanding power in a single enclosure, each rated at 200 watts to perform at extraordinarily high levels with no loss in fidelity.
Make sure you get the best possible performance from your AMP 20 by combining it with other Marantz products – such as the AV 20.
Details & Specifications

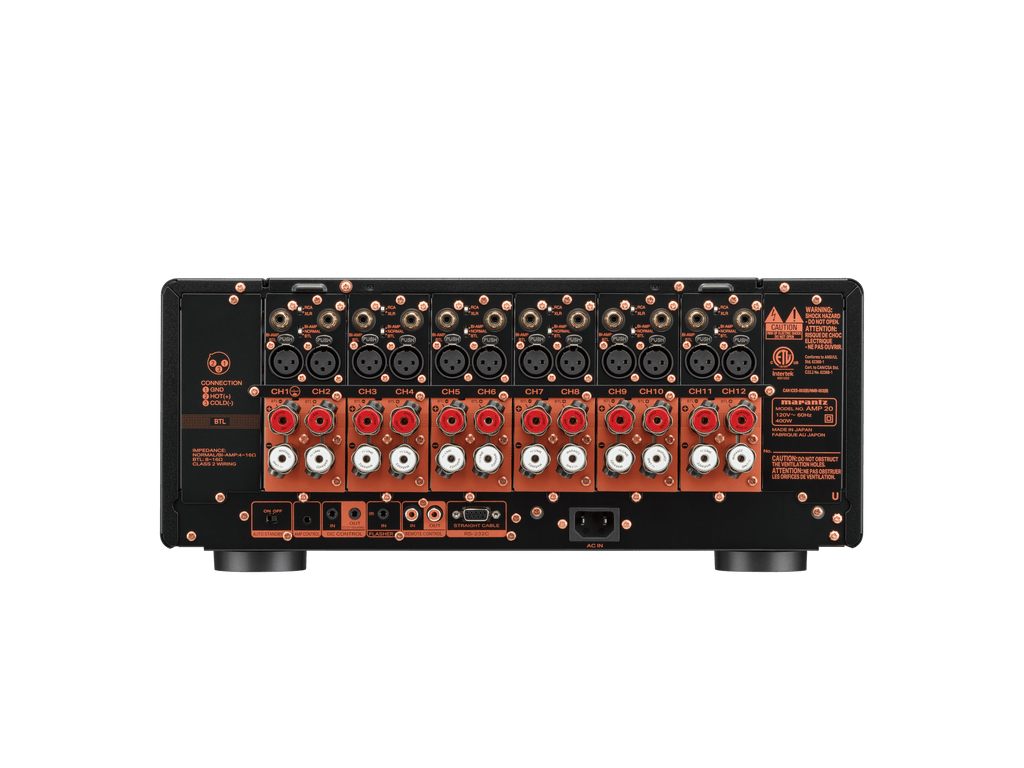

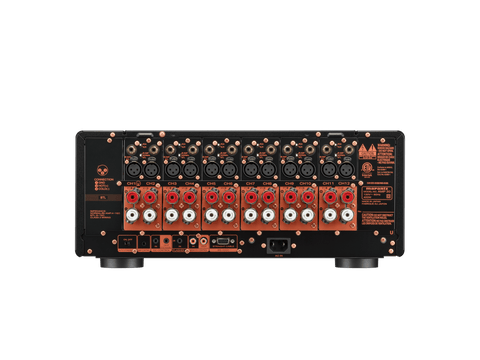

Inputs Outputs
-
Main Amplifier in Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
-
Speaker Terminal SPKT-1+
-
Number of Speaker Terminals 12
-
Bi-Amp Drive /BTL Drive Yes / Yes
-
Level Meter Yes
-
Chassis Copper Plated
Multi-Room CI
-
RS232 Control Yes
-
IR Flasher In Yes
-
Marantz Remote Bus Yes
-
DC Trigger Input/ Output 1 / 1
Specifications
-
Number of poweramps 12
-
Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
-
Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
-
Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
