Elevated Listening Begins Here

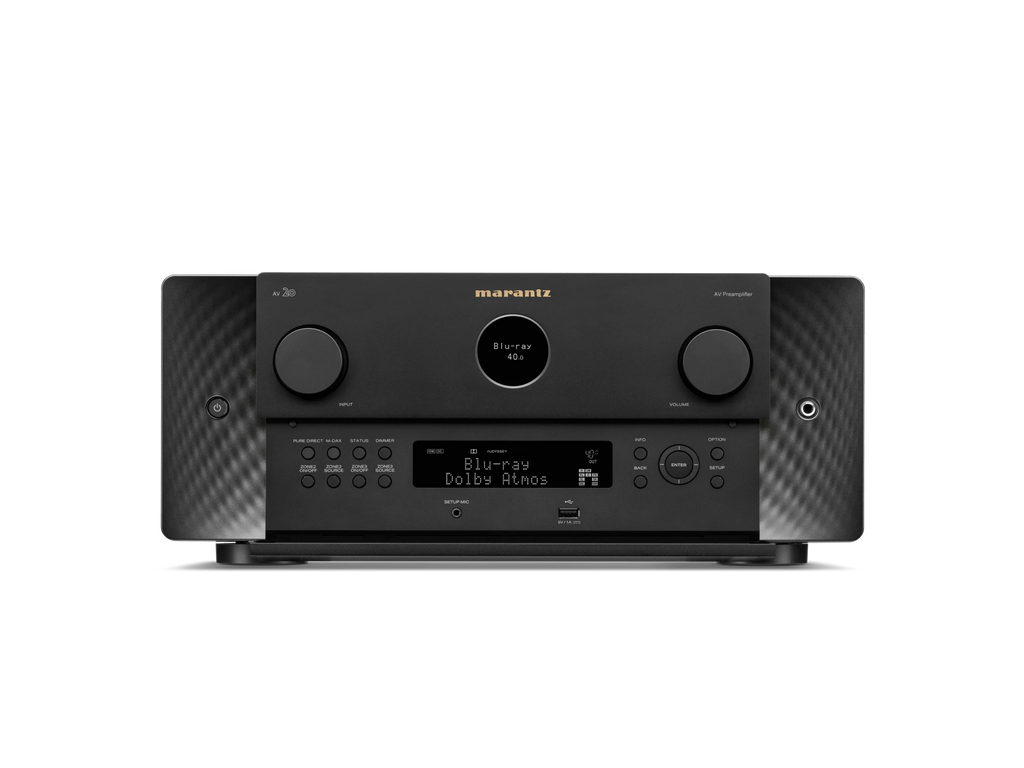

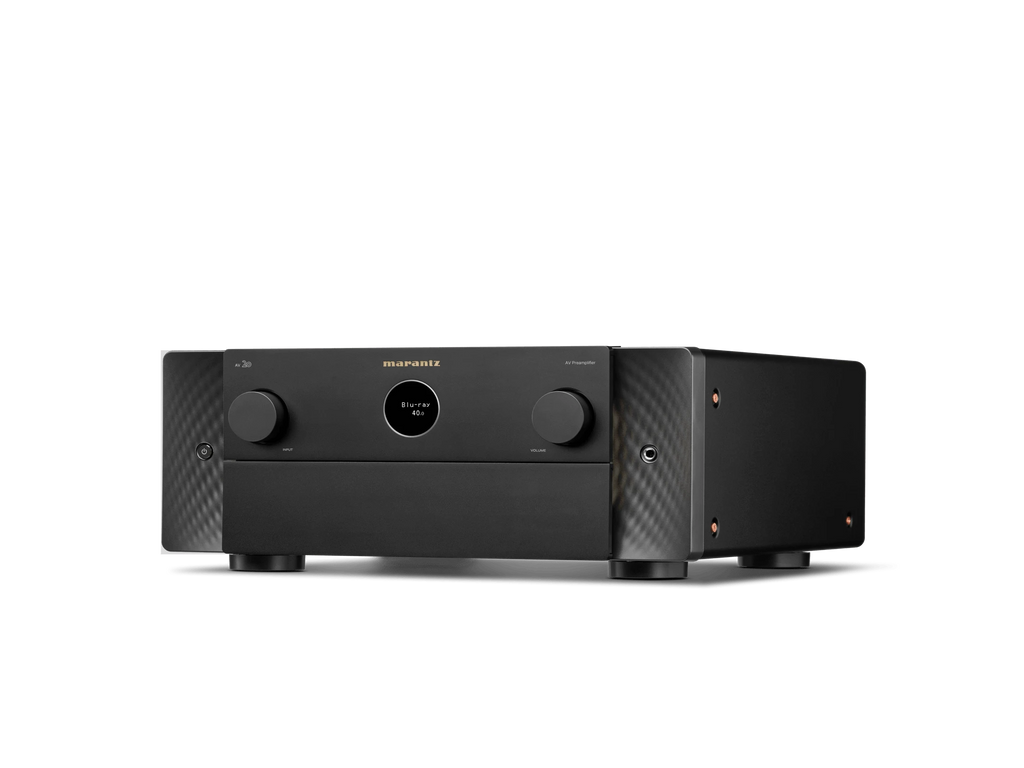

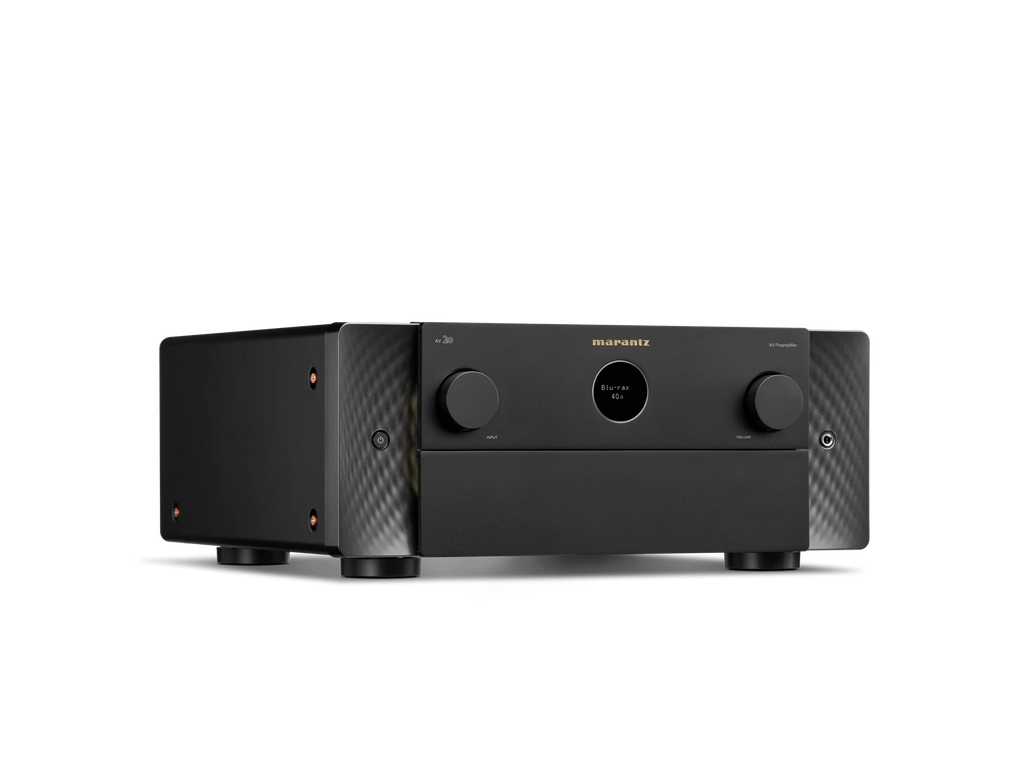

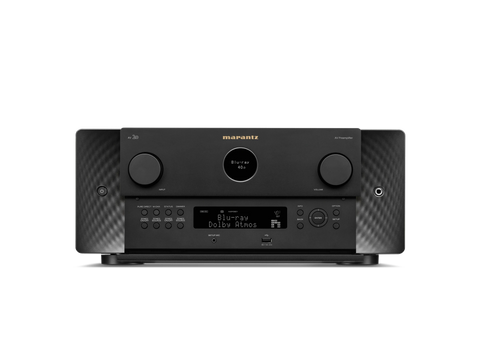

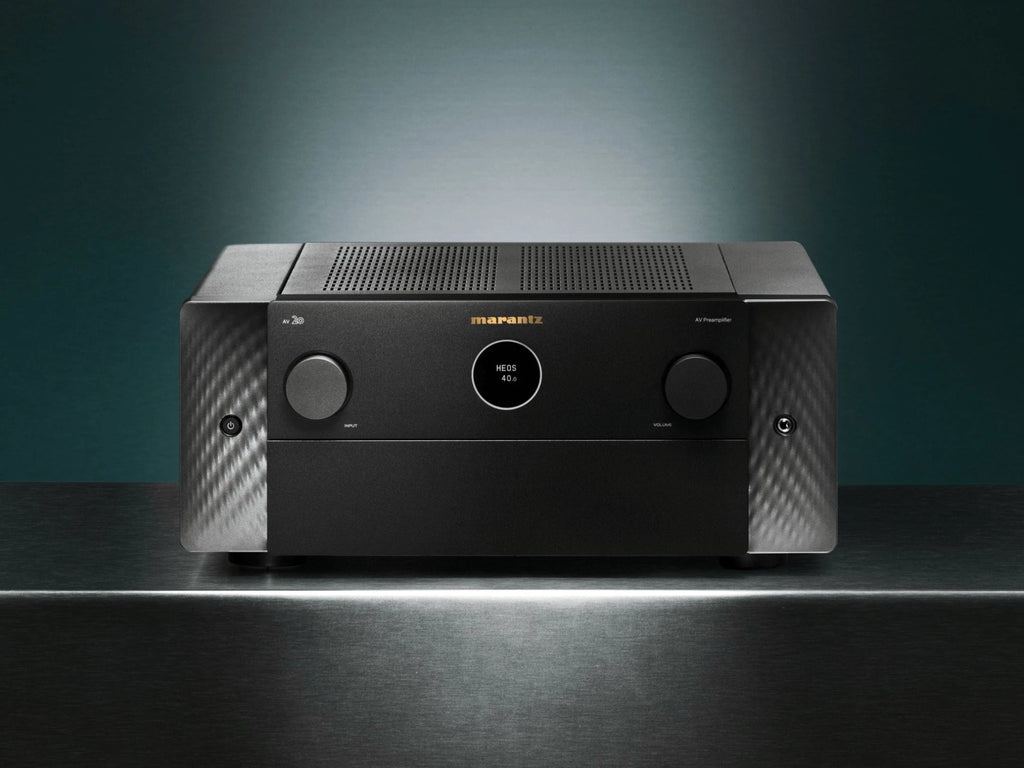

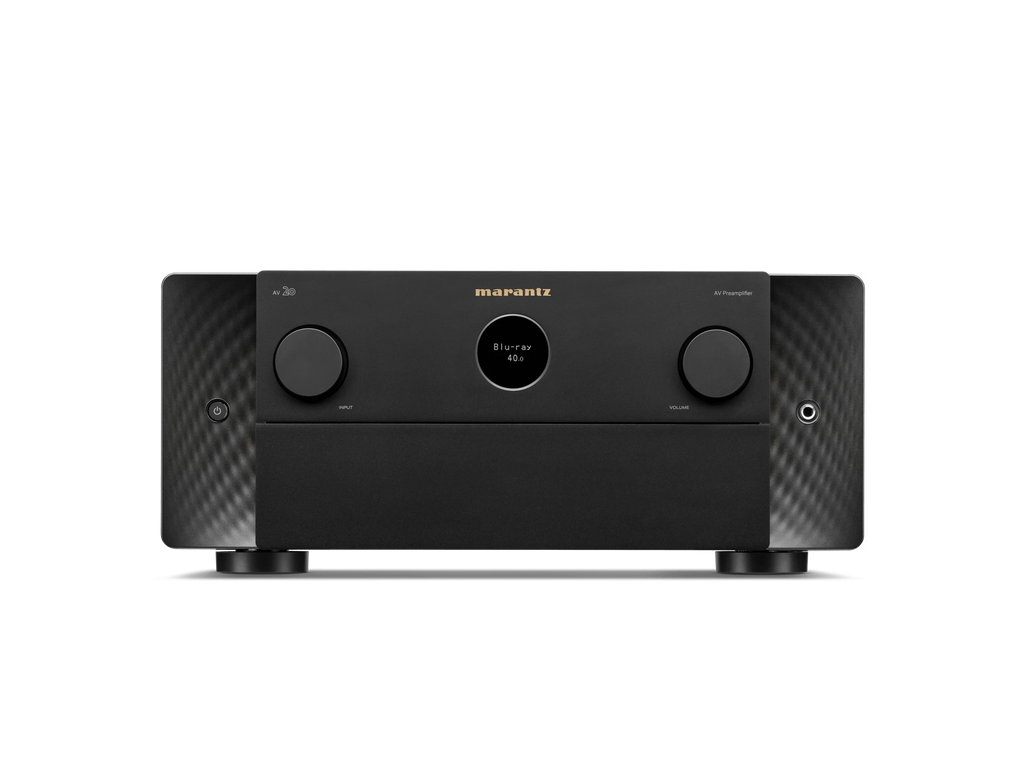

When it comes to home theater, Marantz AV Separates bring your movies to life. AV 20 bears all the cinematic performance and feature-rich innovation we’re renowned for, expertly engineered with a timeless design.
AV 20 is engineered to create the most memorable home theater experiences possible.
Our Marantz Sound Master meticulously tuned AV 20 for amazing performance with careful parts selection to create outstanding sound in your home.
Comprehensive connectivity options and extensive optimization ability ensures AV 20 will always deliver the perfect results to suit your home theater.
Make sure you get the best possible performance from your AV 20 by combining it with other Marantz products – such as the AMP 20.
Details & Specifications
Multichannel Surround
-
DTS DTS-HD, DTS:X, DTS:X Pro,
DTS Virtual:X, DTS Neural:X (13ch)
-
Dolby Dolby TrueHD, Dolby Atmos,
Dolby Atmos Height Virtualization,
Dolby Atmos Music, Dolby Surround
-
IMAX IMAX Enhanced
-
Auro 3D / 360 Reality Audio / MPEG H Yes / Yes / Yes
-
Multichannel Stereo Yes
-
Max Number of Processing (Pre-amp) Channels 13.4
Sound Enhancements
-
Copper-Plated Chassis / Toroidial Power Transformer Yes / Yes
-
Current Feedback Topology / Hyper Dynamic Amplifier Modules (HDAM) Yes / Yes (SA3, monolithic)
-
Pure Direct / Gold-Plated RCA Terminals Yes / Yes
-
Clock Jitter Reducer Yes
-
Dirac Live upgradability Yes
-
Compressed Audio Enhancer: MDAX2 Yes
-
Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC Yes / Yes / Yes
-
Audyssey MultEQ XT32
Network
-
Wi-Fi / Bluetooth / Ethernet Yes / Yes / Yes
-
HEOS Multi-Room and Streaming Yes
-
Bluetooth Retransmit for Bluetooth Headphones Yes
-
Apple HomePod Yes
-
Lossy formats MP3, WMA, AAC
-
Lossless formats FLAC, FLAC HD 192/24,
ALAC, ALAC 192/24,
WAV, WAV 192/24
-
DSD Audio Streaming Yes (2.8/5.6MHz)
-
Gapless Playback FLAC, ALAC, WAV, DSD
-
TuneIn / AirPlay 2 / Spotify Yes / Yes / Yes
-
Roon-Ready Yes
-
Other Streaming Services* Amazon Music / TIDAL /
Deezer / Napster / Soundcloud
-
Compatible with Remote App for Smartphones Marantz AVR Remote
-
Compatible with Remote App for Tablets Android / iOS / Amazon Kindle
HDMI
-
Total HDMI Inputs 7 (rear)
-
HDCP2.3 Support Yes
-
HDMI Outputs: Main / Zone 2 / 1
-
HDMI Scaling 1080P/4K to 8K
-
GUI Overlay on HDMI Yes
-
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
-
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out 7 / 2 (up to 40Gbps)
-
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
-
Enhanced ARC Yes
-
ALLM (Auto Low Latency Mode) Pass-Through for Gaming Yes
-
Variable Refresh Rate / Quick Frame Transport Yes / Yes
-
HDMI Pass-Though in Standby Mode Yes
-
DSD Audio Capability Yes
-
Auto LipSync Yes

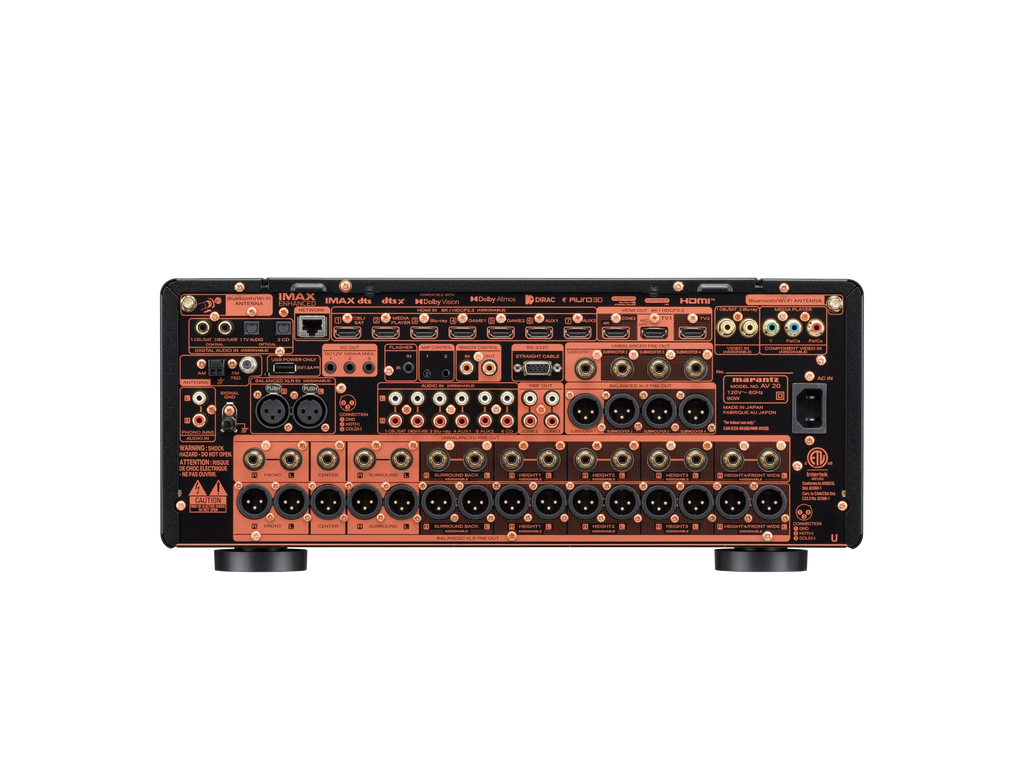

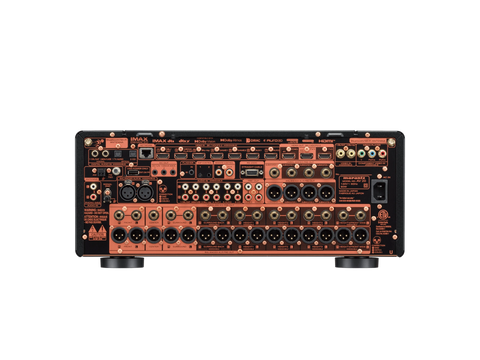

Inputs Outputs
-
Composite In / Out 2 / 0
-
Component In / Out 1 / 0
-
HDMI In / Out 7 / 3
-
Multi-Room Video Out: Video / HDMI No / Yes
-
Analogue In 6 (1x XLR)
-
Phono (MM) In Yes
-
Digital In: Optical / Coaxial 2 / 2
-
Multi-Room Out: analog / digital 2 / 0
-
Multichannel Pre-Amp Out Yes (15.4 RCA, 15.4 XLR)
-
Subwoofer Out 4 (independent) RCA, XLR
-
Speaker A / B assignable pre out
-
Bi-amp drive assignable pre out
-
Front USB Input / USB Audio Yes / Yes
-
USB Power Supply (Rear) Yes
-
AM/FM Tuner Yes
Multi-Room CI
-
HEOS Multi-Room Integrated Yes
-
HEOS Link Compatibility: IR/ IP Yes / Yes
-
Multi-Room Zones 3
-
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue Yes (2 ch) / Yes (2 ch) / Yes / Yes
-
Zone Audio Output: Speaker / Pre-Out No / Yes
-
Zone HDMI Output from HDMI Source Yes
-
IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
-
IR Flasher In / Marantz Remote Bus Yes / Yes
-
DC Trigger Output 3
-
HDMI Diagnostics Yes
Others
-
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
Dirac Live (upgrade)
-
Front Display 2-Line FLD, Port Hole OLED
-
Graphic User Interface - GUI Modern HD GUI
-
GUI Languages 3
-
Setup Assistant / Smart Select Yes / Yes
-
Firmware Update by Network / USB Yes / Yes
-
Variable Cross Over / Optimized Bass Redirection / Bass Sync Yes / Yes / Yes
-
Auto Power Off / Sleep Timer Yes / Yes
