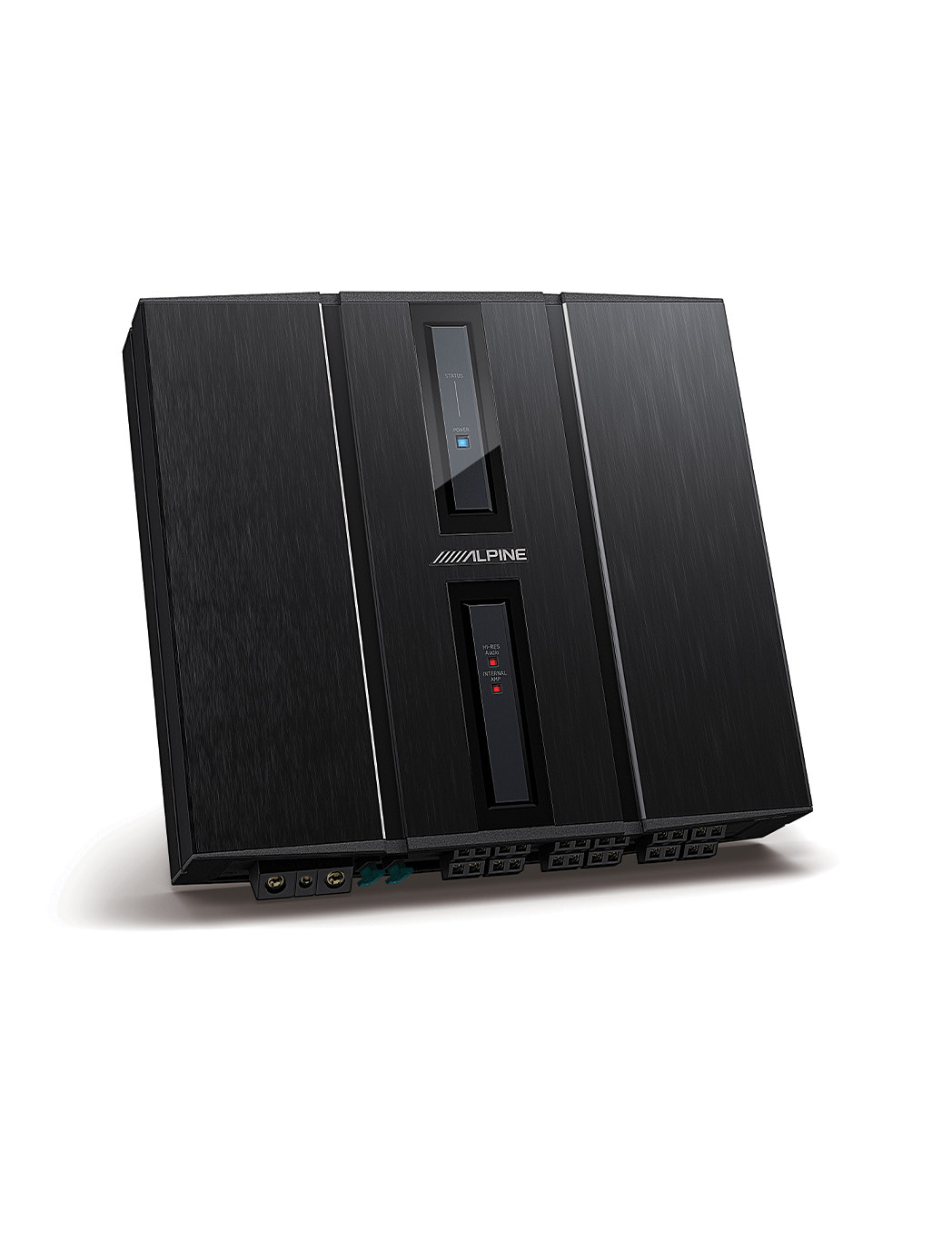

Alpine Status HDP-D90 DSP

This DSP amplifier uses many components and technologies of the AlpineF#1Status processor for audiophile sound quality and is very flexible with tons of different input and output capabilities. It runs an internal sampling rate of 192kHz / 24bit and features a 14-Ch 31-band P-EQ, 3-Way X- Overs, and 12-Ch digital time correction with 7mm steps adjustment.

Frequency response

• 20 - 40 kHz (Hi-res)
• Hi-Resolution 192kHz / 32Bit Playback​

 Power handling

• Inputs - 2ch RCA, 12Ch High Level
• Outputs - 10Ch RCA,
• Output - 12 Ch High Level (50Wx8 + 80Wx4)​
• 31 Band P-EQ/G-EQ
• Matrix Input Summing​
• Bluetooth Audio
• Sampling Rate = Internal: 192kHz / 64Bit
• S/N: >110db, THD:<0.001​
• Optical
• Coaxial

 Design

• Optional Controller

 Dimension

• 278 mm x 256 mm x 58 mm
