Chord 2YU – SoundHub

Chord 2YU

  • Sale
  • Regular price $1,195.00
Tax included.


The 2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler.



2yu is a digital interface that connects with 2go to create a network bridge for use with a DAC, DAC-equipped device or the Hugo M Scaler. 2yu connects directly to 2go to add TOSLINK optical S/PDIF, coaxial and BNC (both 75 ohms) digital outputs, plus a cleverly integrated USB-A output.

2yu boasts 2,000 MIPS (million instructions per second) of processing power, an integrated sample rate converter, plus a low-jitter audio phase lock loop. Highly flexible in its potential applications, 2go with 2yu is also ideal for installers wishing to create a discreet remote Roon streaming solution: the duo can be wired into an Ethernet port to provide streaming to a system in any room.

Like 2go, 2yu is also hand-made in the UK using aircraft-grade aluminium and the same high-quality manufacturing processes inherent in all Chord Electronics products. Like the Hugo 2, 2yu features four polychromatic spherical controls governing output selection, power, mute and dim functions.

Compatibility:

In order for 2yu to inherit streaming/music transport capabilities or function as an audio interface, a connection with 2go is required.

Power supply:

Micro USB (5v 1amp minimum required) – through 2go

PCM and DSD support:

44.1kHz – 768kHZ | DSD 64 to DSD 256 (Dependant on output)

Sample rate converter:

Integrated, automatic downsampling is provided if a higher sample rate is being played than the output can support.

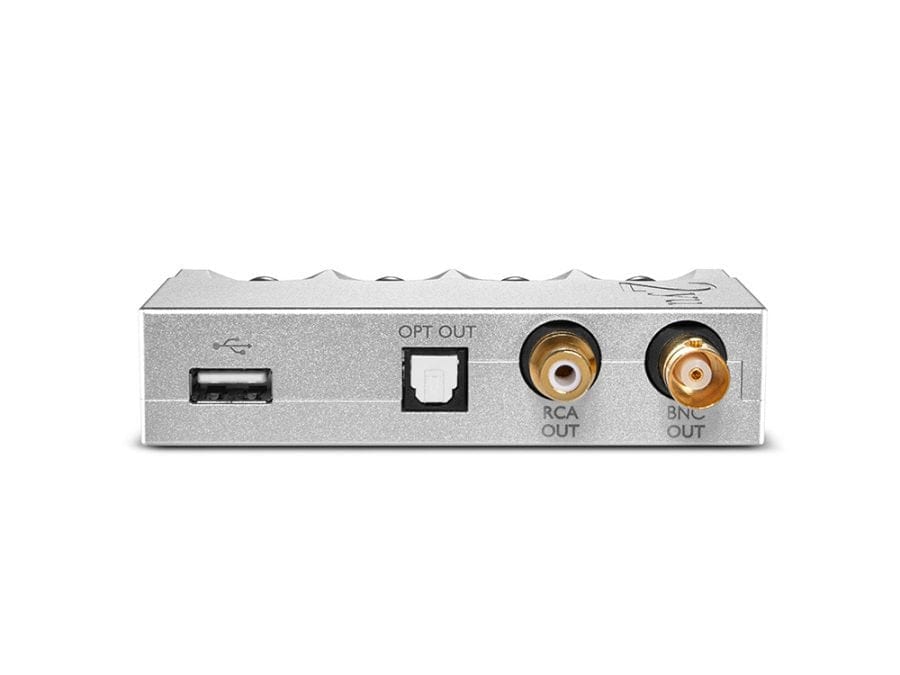

Digital audio outputs:

USB Type-A (44.1kHz – 768kHz / DSD 256)

BNC Coax (44.1kHz – 384kHz /DSD 64)

RCA Coax (44.1kHz – 384kHz /DSD 64)

Optical (44.1kHz – 192kHz / DSD 64)

Processing power:

2000MIPS

Weight with 2go:

361g

Dimensions with 2go:

115mm (H) x 100mm (W) x 22mm (D)
