Supports CD, Super Audio CD, and your own high-res compilations on CD or DVD R/RW
Pristine audio
Unique Denon technologies come together to deliver outstanding sound clarity.
Faithful, detailed playback
Advanced AL32 data interpolation algorithms and digital filtering reveal more detail from the original recording.
Details & Specifications
General
-
Unit (W x H x D) 434 x 135 x 384mm
17.09 x 5.31x 15.12
-
Cabinet Size 434 x 135 x 374
-
Net weight 9.0kg (19.84 lbs)
-
Packaging Dimensions (W x H x D mm) 543 x 250 x 515
-
Packaging gross weight 11.7kg (25.79 lbs)
-
Power Consumption 24W
-
at Standby 0.1W
-
Front (Center) Panel Aluminum
-
Function button Aluminum
-
Open / Close button Aluminum
-
Power button Aluminum
Specifications
-
Frequency Response SACD:2Hz - 50kHz (-3dB)
CD:2Hz - 20kHz (-0.5dB)
-
Harmonic distortion SACD: 0.0010%
CD: 0.0016%
-
Signal-to-Noise Ratio SACD: 119dB
CD: 117dB
-
Dynamic Range SACD: 112dB
CD: 101dB
-
Line Output Level 2.0Vrms (10kohm)
Digital Audio
-
DAC Circuit TI Advanced Current Segment
PCM1795(192k/32bit) ×1
-
Digital Filter Fixed
-
Digital Processing Advanced AL32 Processing Plus
-
DAC Master Clock Design (Not Support Network Playback) Yes
Disc
-
Mechanism TD-505 FOR DM
-
Disc Type SACD/CD/CD-R/CD-RW
DVD-R/+R/-RW/+RW
-
SACD Yes (Stereo Layer/Multi-D/M)
-
Super Audio CD Text Yes
-
Playability of files recorded on CD-R/RW :
-
MP3 / WMA / AAC Yes / Yes / Yes
-
WAV Yes (~48kHz/24bit)
-
FLAC Yes (~48kHz/24bit)
-
ALAC Yes (~48kHz/24bit)
-
AIFF Yes (~48kHz/24bit)
-
Playability of files recorded on DVD R/RW :
-
MP3 / WMA / AAC Yes / Yes / Yes
-
WAV Yes (~192kHz/24bit)
-
FLAC Yes (~192kHz/24bit)
-
ALAC Yes (~96kHz/24bit)
-
AIFF Yes (~196kHz/24bit)
-
DSD (DIFF / DSF Yes (~5.6MHz)
-
Firmware Update Yes (FE/BE, MCU)

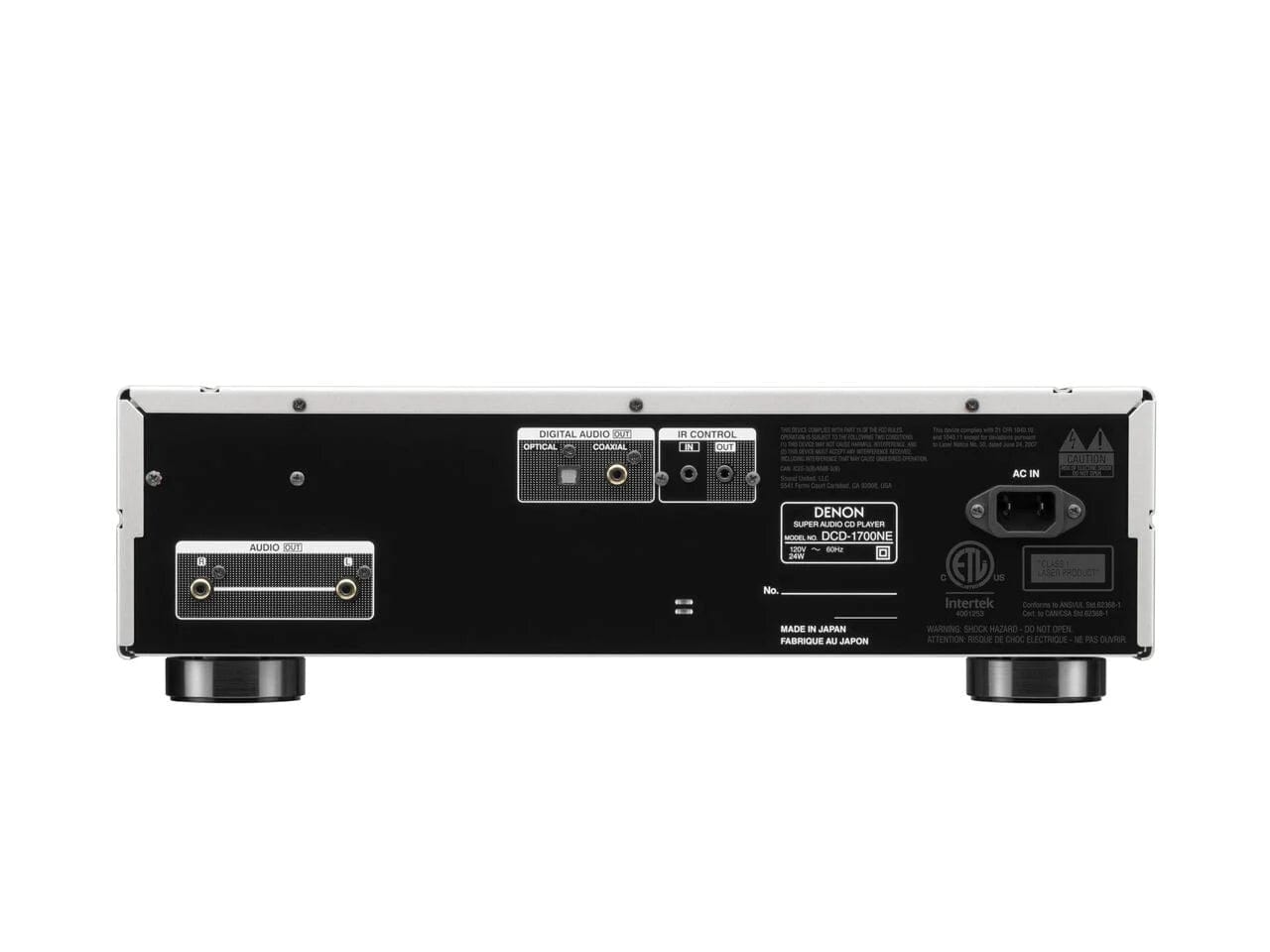

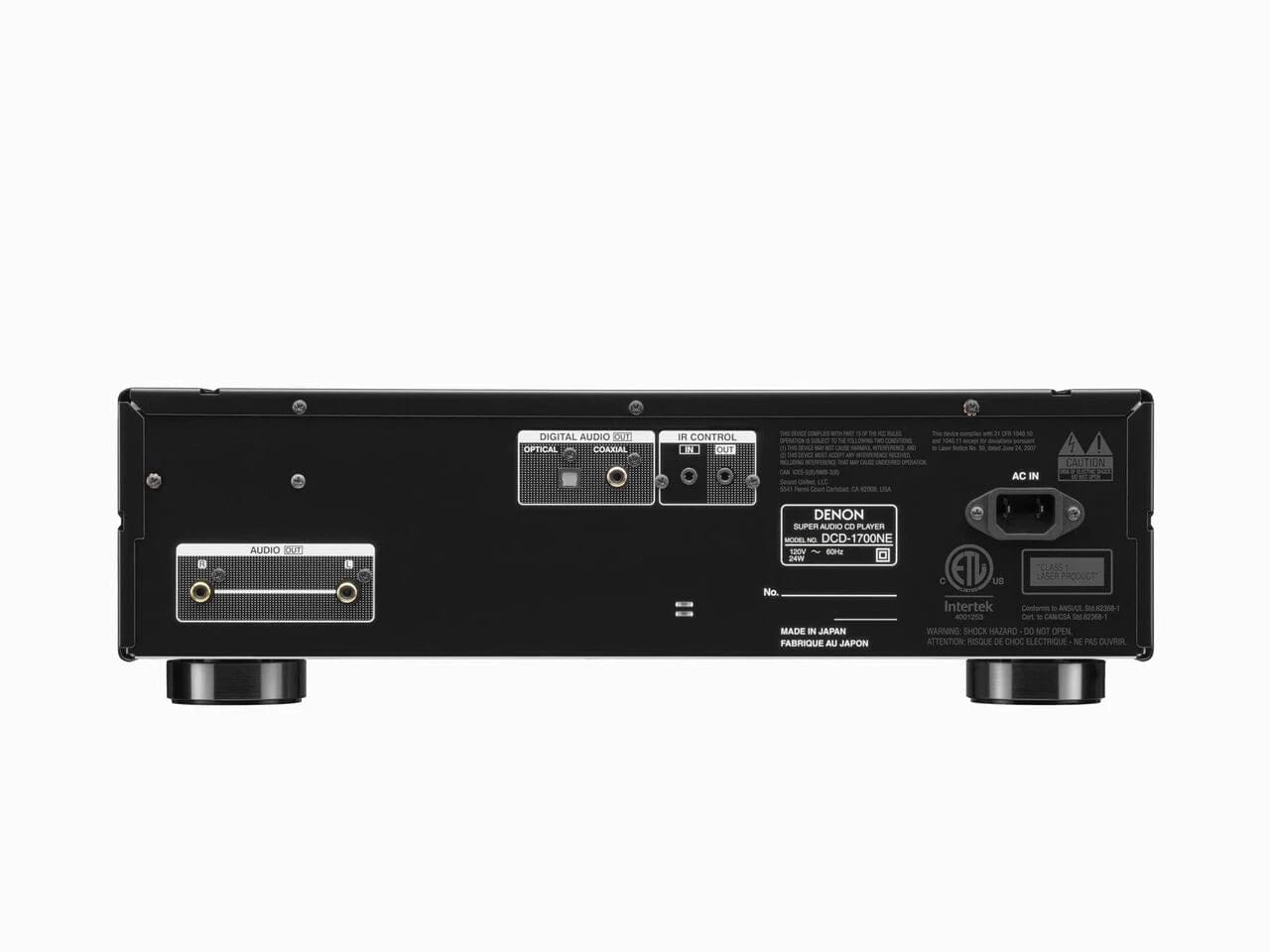

Inputs Outputs
-
Fixed Analog Output (RCA) Cinch x 1 (Gold Plated)
-
Optical input / output (Maximum Support) 0 / 1
-
Coaxial input / output (Maximum Support) 0 / 1
Controls
-
Remote Controller System Remote
(Amp and CD Player Control)
-
On-Product Buttons Power
Disc Layer
Pure Direct
Play/Pause
Stop
Fwd/Rev
Open/Close
-
LED POWER: 1 Green
-
Front Panel Display Single Line
-
Dimmer for Front Display Bright / Dim / Dark / Off
-
Control with App via Network Player (Use Remote Control Bus) Yes
Other
-
Pure Direct Mode Yes
-
Last Function Memory Yes
-
Remote Control Bus Terminal Yes
-

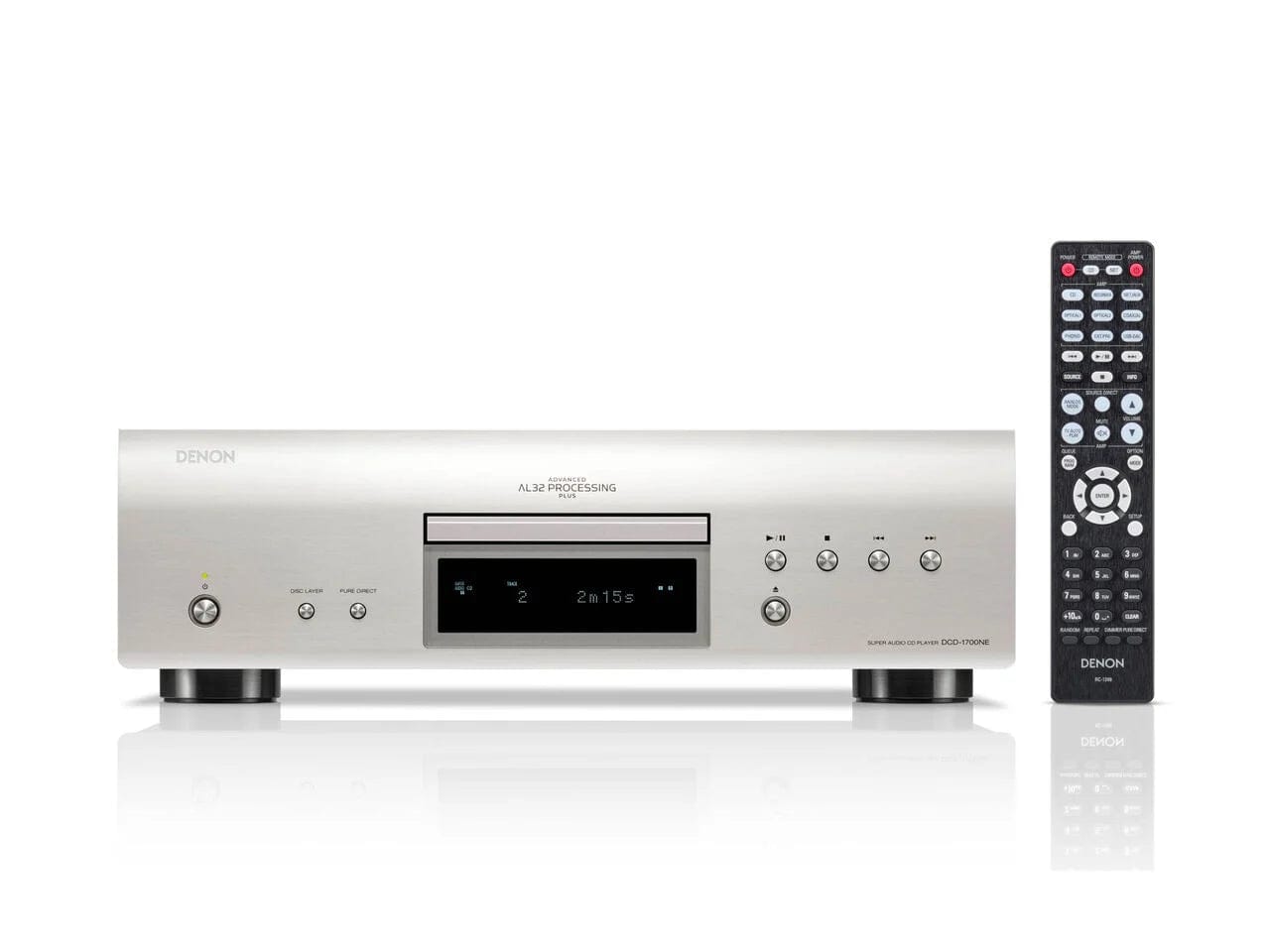

Remote Control Yes
(controllable PMA-1700NE)
-
Battery Yes (AAA x2)
-
Power Cord Yes
-
Other Stereo RCA Cable x1
-
Timer Play (Need external audio timer) Yes
-
Auto Standby Mode Yes
