Advanced processing ensures faithful sonic reproduction that honors the artist’s vision.
Solid build, pure sound
Play all of your digital audio, including SACD/CD and DSD (2.8MHz/5.6MHz), DVD-R/RW and DVD+R/RW files up to 192kHz/24-bit and CD-R/RW content.
Sonic Innovation
For the Past 110 Years
For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.
Details & Specifications
Disc
- Mechanism Denon original SACD mechanism
- Disc Type SACD/CD/CD-R/CD-RW, DVD-R/+R/-RW/+RW
- SACD Yes (Stereo Layer/Multi-D/M)
- Super Audio CD Text Yes
Playability of files recorded on CD-R/RW
- MP3 / WMA / AAC Yes / Yes / Yes
- WAV, FLAC ALAC, AIFF Yes (~48kHz/24bit)
Playability of files recorded on DVD R/RW
- MP3 / WMA / AAC Yes / Yes / Yes
- WAV, FLAC Yes (~192kHz/24bit)
- ALAC Yes (~96kHz/24bit)
- AIFF Yes (~192kHz/24bit)
- DSD (DIFF / DSF) Yes (~5.6MHz)
- Firmware Update Yes (FE/BE, MCU)

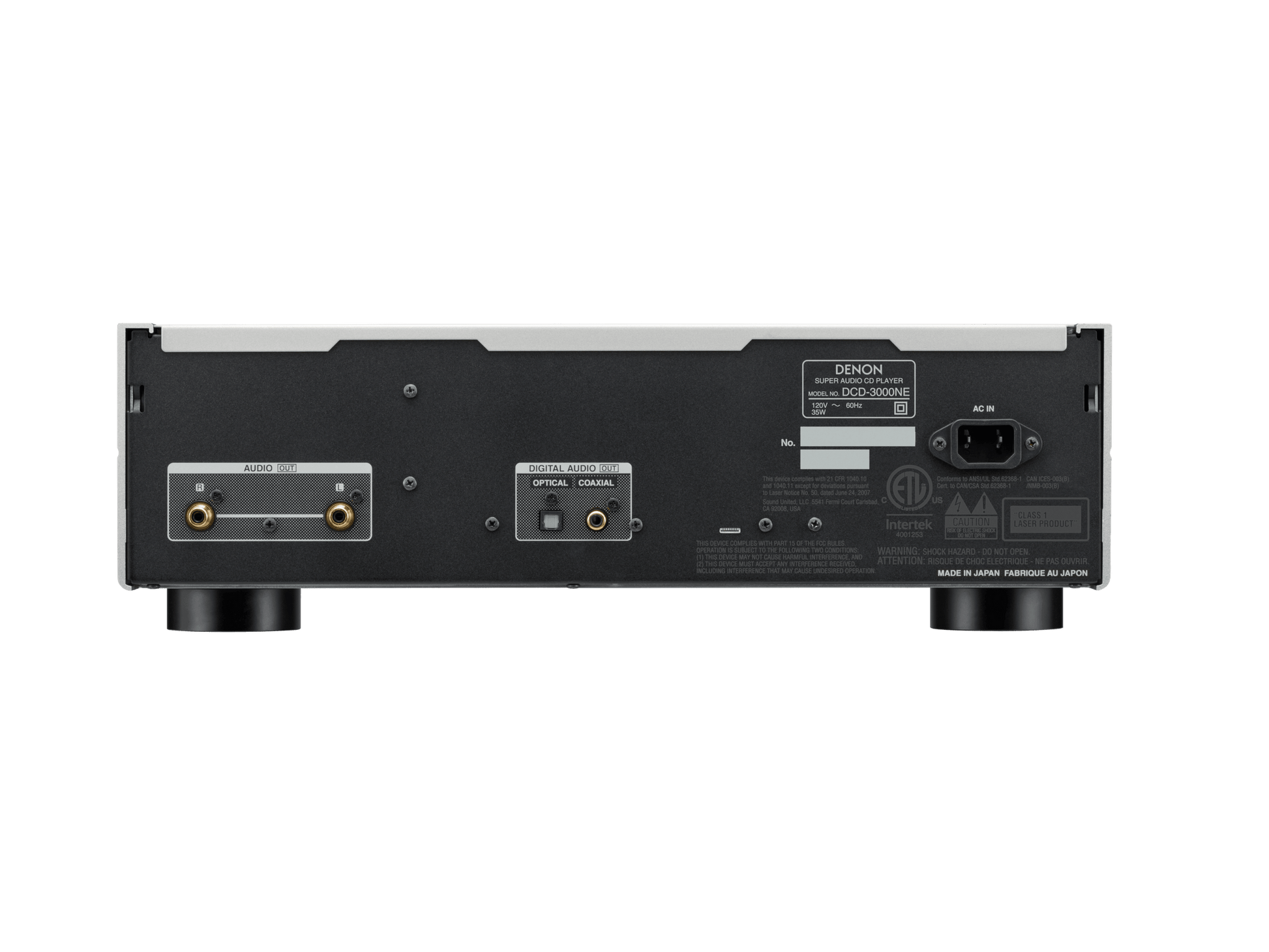

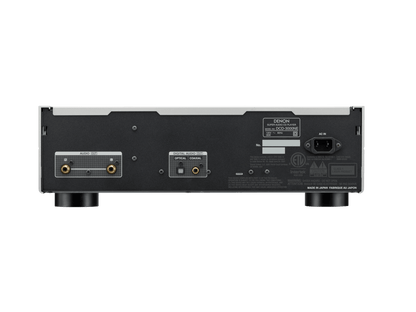

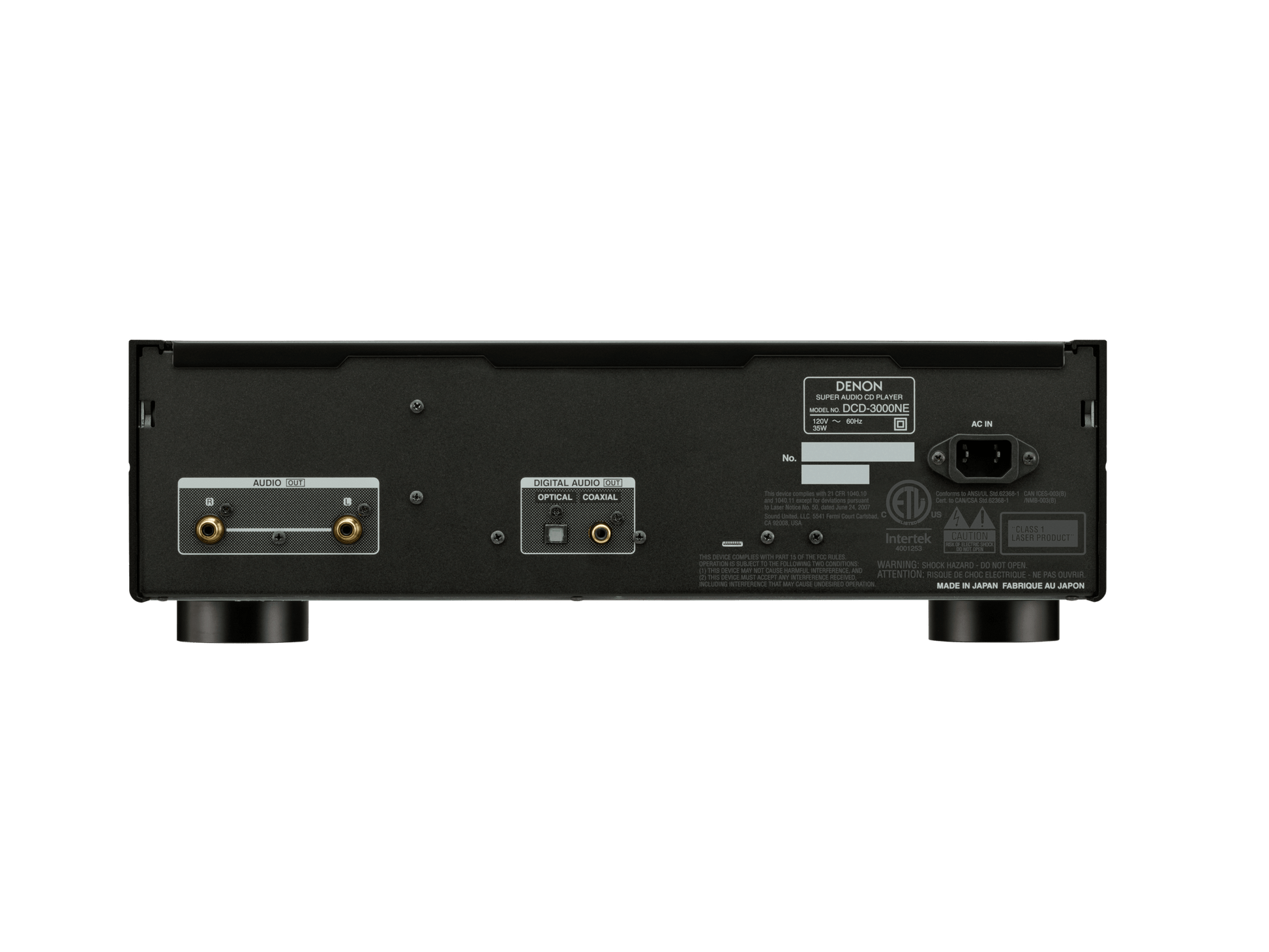

Inputs/Outputs
- Fixed Analog Output (RCA) Cinch × 1 (Machining Brass)
- Optical input/output (Maximum Support) 0 / 1
- Coaxial input/output (Maximum Support) 0 / 1
Others
- Last Function Memory Yes
- Auto Standby Mode Yes
- Power Consumption 35W / <0.3W (at Standby)

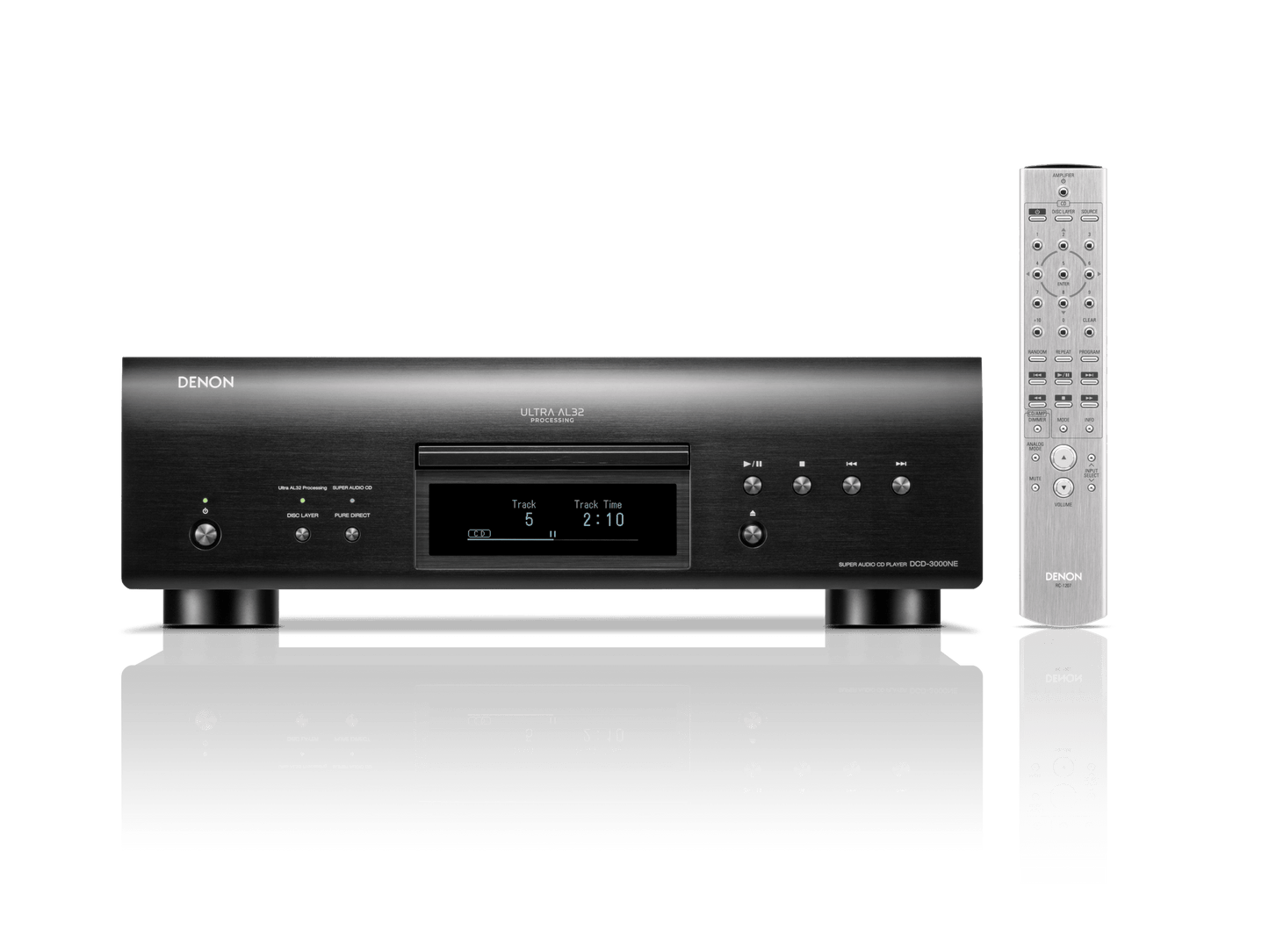

- Accessories Quick Start Guide, Remote Controller (Aluminum top / compatible with PMA-3000NE), Battery (AAA×2), Stereo RCA Cable, Power Cord
Audio (Lineout)
- Frequency Response SACD: 2Hz-50kHz (-3dB), CD: 2Hz-20kHz (-0.5dB)
- Harmonic Distortion SACD: 0.0005%, CD: 0.0015%
- Signal-to-Noise Ratio SACD: 122dB, CD: 122dB
- Dynamic Range SACD: 115dB, CD: 101dB
- Line Output Level 2.2Vrms (10kohm)
Audio (Digital)
- DAC Circuit ES9018K2M × 4 (PCM 384kHz/32bit, DSD 11.2MHz)
- Digital Filter Fixed
- Digital Processing ULTRA AL32 Processing
- DAC Master Clock Design (Not Support Network Playback) Yes
Audio (Analog)
- Output Circuit Full discrete differential amplifier
- Power Transformer EI Transformer
- PURE DIRECT Yes
General
- Power Consumption 35W / <0.3W (at Standby)
- Unit Dimensions (W × H × D) 434 × 138 × 405mm
- Cabinet Size (W × H × D) 434 × 138 × 395mm
- Net Weight 16.8 kg
- Packaging Dimensions (W × H × D) 560 × 270 × 540mm
- Packaging Gross Weight 19.4 kg
- Panel Color Premium Silver / Black
- Front (Center) Panel Aluminum
