Fill your entire home with stellar sound. With HEOS®, you can pair all of your Denon devices on your network to create a captivating audio experience.
- Seamless multi-room audio
- Vivid & spacious sound
- Full voice control
Start filling your home with sound.
Sonic Innovation
For the Past 110 Years
For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.
Features
-
Network audio streaming Yes
-
Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes
-
Amazon Prime Music* / Pandora* Yes / Yes
-
AirPlay 2 Yes
-
Roon Tested Yes
-
Internet Radio tunein
-
HEOS Multiroom and Streaming Yes
-
Voice Control - Works with Amazon Alexa Yes
-
Wi-Fi / Wired LAN Yes / Yes
-
Wi-Fi sharing / WPS Yes / Yes
-
Bluetooth / Bluetooth HP transmission Yes / Yes
-
DAC operation mode: USB B type / Coax / Optical Yes / Yes / 2
-
Asynchronous mode rear USB Yes
-
Bit-perfect transmission Yes
-
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2 Yes / Yes / Yes
-
Ground isolator for DAC Mode operation Yes
-
Alpha Processing Ultra AL32 Processing
-
USB Audio (Front) / Made for iPod / Made for iPhone Yes / No / No
-
USB-A: FLAC / WAV / AIFF / ALAC / DSD Yes
-
DSD-Audio network streaming Yes
-
Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes
-
Lossless formats: DSD / FLAC HD 192/24 / ALAC 192/24 / WAV 192/24 Yes / Yes / Yes /Yes
-
Gapless Playback Yes (FLAC, WAV, DSD)
-
Remote APP: iDevice / Android Yes / Yes
-
App control AMP via Network Player Yes
-
Power Transformer: Toroidal / El No / Yes
-
High Grade Audio Components Yes
-
Customized Components Yes
-
Symmetric circuit layout Yes
Other
-
Extra metal plate for chassis strengthing Yes
-
Headphone: Standard / Buffer / Current feedback Yes / No / No
-
Display 3 line OELD
-
Display: Dimmer / Off Yes / Yes

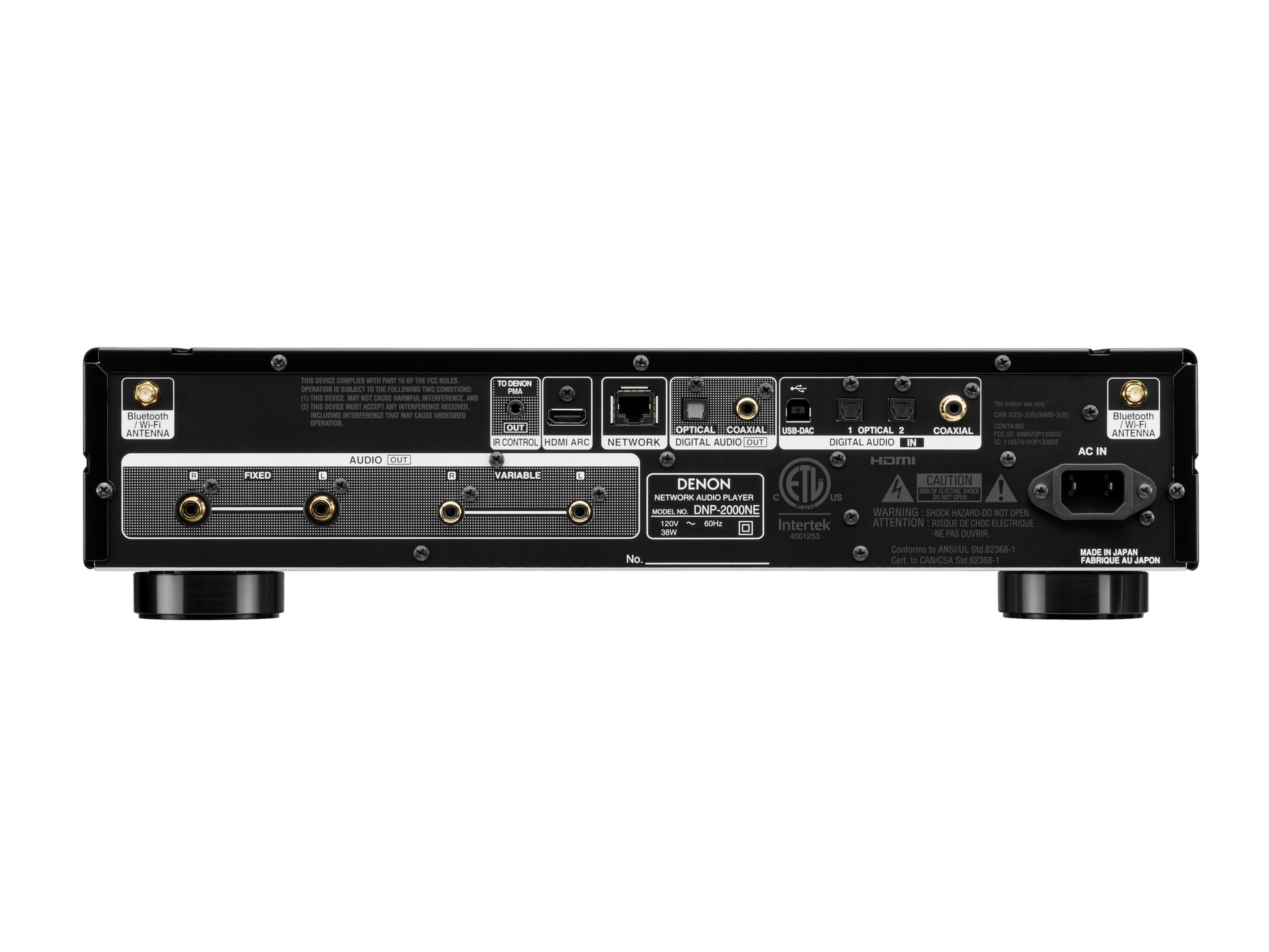

Inputs/Outputs
-
USB type B input for PC (back) Yes
-
Sample Rate USB In up to DSD11.2
-
Analogue Out 1x Cinch
-
Variable Out 1x Cinch
-
Ethernet port Yes
-
HDMI: ARC input for TV Yes
-
Digital Inputs: Coaxial / Optical 1 / 2
-
Digital Outputs: Coaxial / Optical 1 / 1
-
Sample Rate digital In 192 kHz / 24-bit
-
Jitter Reducer Yes
-
Remote Control Bus in / out No / Yes
-
IP control Yes
Specifications
-
DAC IC 4x ES9018K2M, ESS
Mono-Mode
-
Dual Clock Yes
-
Digital Filter Ultra AL32 Processing
-
Noise Shaper ES9018K2M
-
Frequency response DSD:2Hz - 50kHz
PCM(44.1kHz):2Hz - 20kHz
-
Dynamic range in dB DSD: 112dB
PCM: 118dB
-
Signal-to-noise ratio in dB DSD: 120dB
PCM: 118dB
-
Total harmonic distortion DSD: 0.0006%
PCM: 0.0008% (24bit)
-
Headphone amp Yes
General
-
Available colors: Premium Silver / Black Yes / Yes
-
Metal Front Panel Yes
-
Remote Control RC-1248
-
Power Consumption in W (less than) 38W
-
Standby Consumption in W (less than) 0.2W
-
Detachable Power Cable (less than) 2W
-
Maximum Dimensions (W x D x H) in mm 434 x 421 x 107
-
Weight in kg 9.7kg
-
Carton Maximum Dimensions (W x D x H) in mm 548 x 520 x 210
-
Carton Weight (inc. product) in kg 12.0kg
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in Inches
( Antenna:Vertical :(W x D x H) in Inches)
【 w/o Antenna :(W x D x H) in Inches】 17.1 x 16.6 x 4.2
(17.1 x 16.6 x 6.7)
【17.1 x 15.5 x 4.2】
-
Carton Maximum Dimensions (W x D x H) in Inches 21.6 x 20.5 x 8.3
-
Weight in LBS 21.38 lbs
-
Carton Weight (inc. product) in LBS 26.46 lbs
