Enjoy your hi-res audio files, vinyl collections, movies, and games with Denon® Hi-Fi sound.
Geared for 8K
Enjoy amazing video quality from the latest 8K technology.
Multichannel Surround
-
Max. number of processing (preamp) channels 2.2
Sound Enhancements
-
Discrete Power Amplifier Yes
-
Pure Direct Yes
-
Gold Plated RCA Terminals Yes
-
Compressed Audio Restorer Yes
Network
-
Media Server Yes
-
HEOS Wireless Multi-Room Technology Yes
-
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
-
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
-
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
-
Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
-
DSD Audio Streaming Yes (2.8/5.6MHz)
-
FLAC HD 192/24 Yes
-
WAV 192/24 Yes
-
ALAC 192/24 Yes
-
Gapless playback Yes (FLAC, WAV, ALAC ,DSD)
-
AirPlay Audio Streaming Yes (AirPlay2)
-
Internet Radio Yes (TuneIn)
-
Spotify Connect Yes (connect)
-
Pandora Yes
-
SiriusXM Yes
-
Other Streaming Services Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
-
Roon Tested Yes
-
HEOS App Control Yes
-
Compatible with Remote APP for Smart Phones Denon AVR Remote
-
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
-
Ethernet Ports Yes
-
Wi-Fi Yes
-
Bluetooth Yes
HDMI
-
HDMI Inputs: Back, Front 6 / No
-
HDCP2.3 support Yes
-
HDMI Outputs: Main, Zone 1 / No
-
HDMI to HDMI Scaling 1080P/4K to 8K
-
HDMI 2.1: 8K/60 Hz AB / 4K/120 Hz AB Yes / Yes
-
8K/60Hz AB / 4K/120Hz AB Pass-Through In/Out 3/1 (up to 40Gbps)
-
HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue Yes / Yes / Yes / Yes / No
-
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / No / Yes / Yes
-
ALLM (Auto Low Latency Mode) Pass-Through for Gaming Yes
-
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / No
-
3D Signal Pass-Through Yes
-
8K Signal Pass-Through, Scaling, GUI Overlay Yes / Yes / Yes
-
4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
-
HDMI Pass-Though in Standby Mode Yes
-
CEC Yes
-
Audio Return Channel ARC, eARC
-
Auto LipSync Yes
Multi-room / CI
-
Multi-Room Zones 2
-
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
-
Zone Audio Output: Speaker / Pre-Out No / Yes
-
IP Control / RS232 Control / Web Control / App Control Yes / No /Yes / Yes
-
Remote In/Out Yes / No
-
HDMI Diagnostics Yes
Others
-

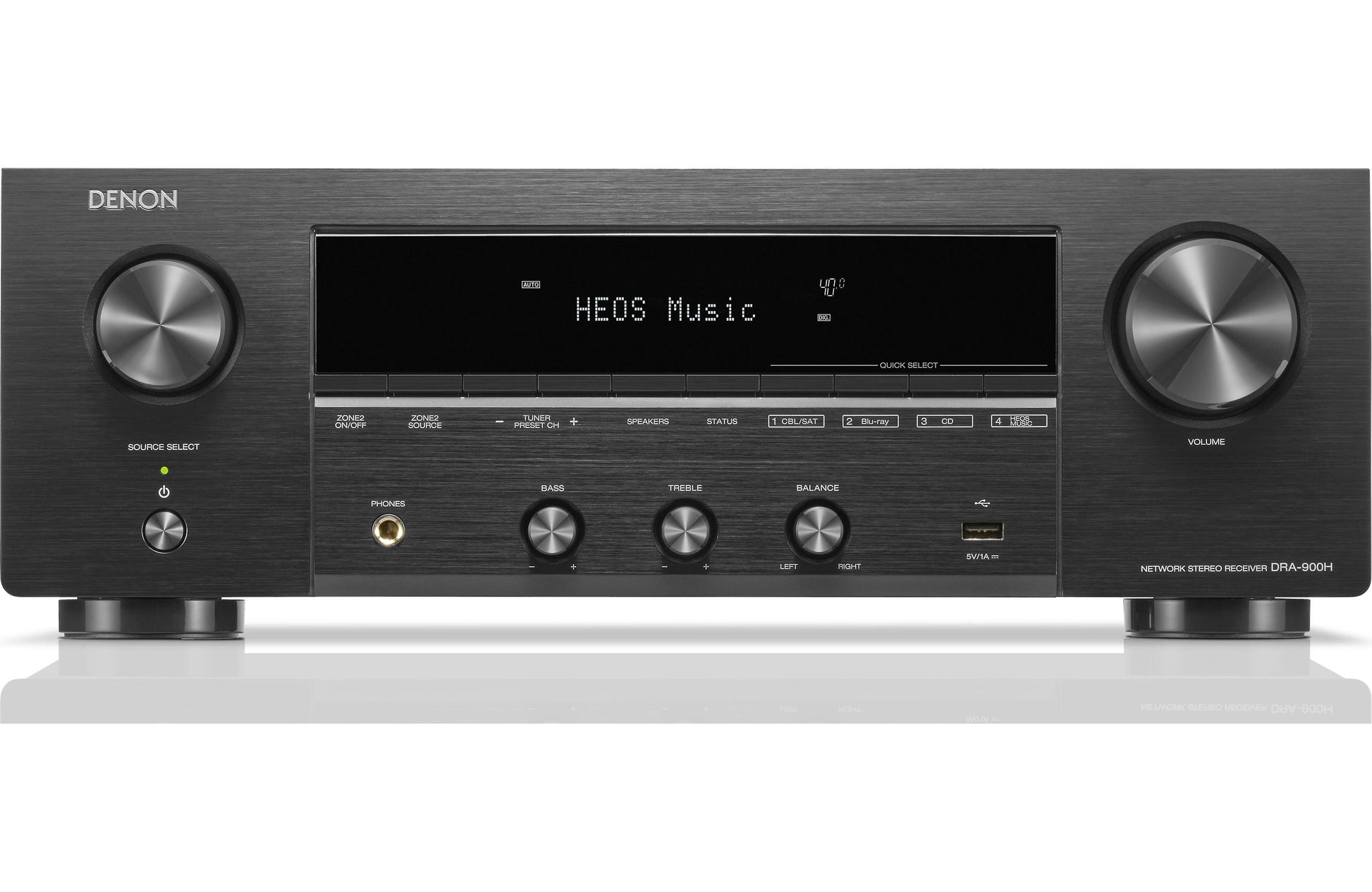

Front Display 1 Line FLD
-
Graphic User Interface - GUI HD GUI
-
GUI Languages 3
-
Setup Assistent Yes
-
Quick Select Plus, Quick Select Yes / No
-
Firmware Update by Network / USB Yes / Yes
-
ECO Mode Yes
-
Auto Power Off Yes
-
Sleep Timer Yes

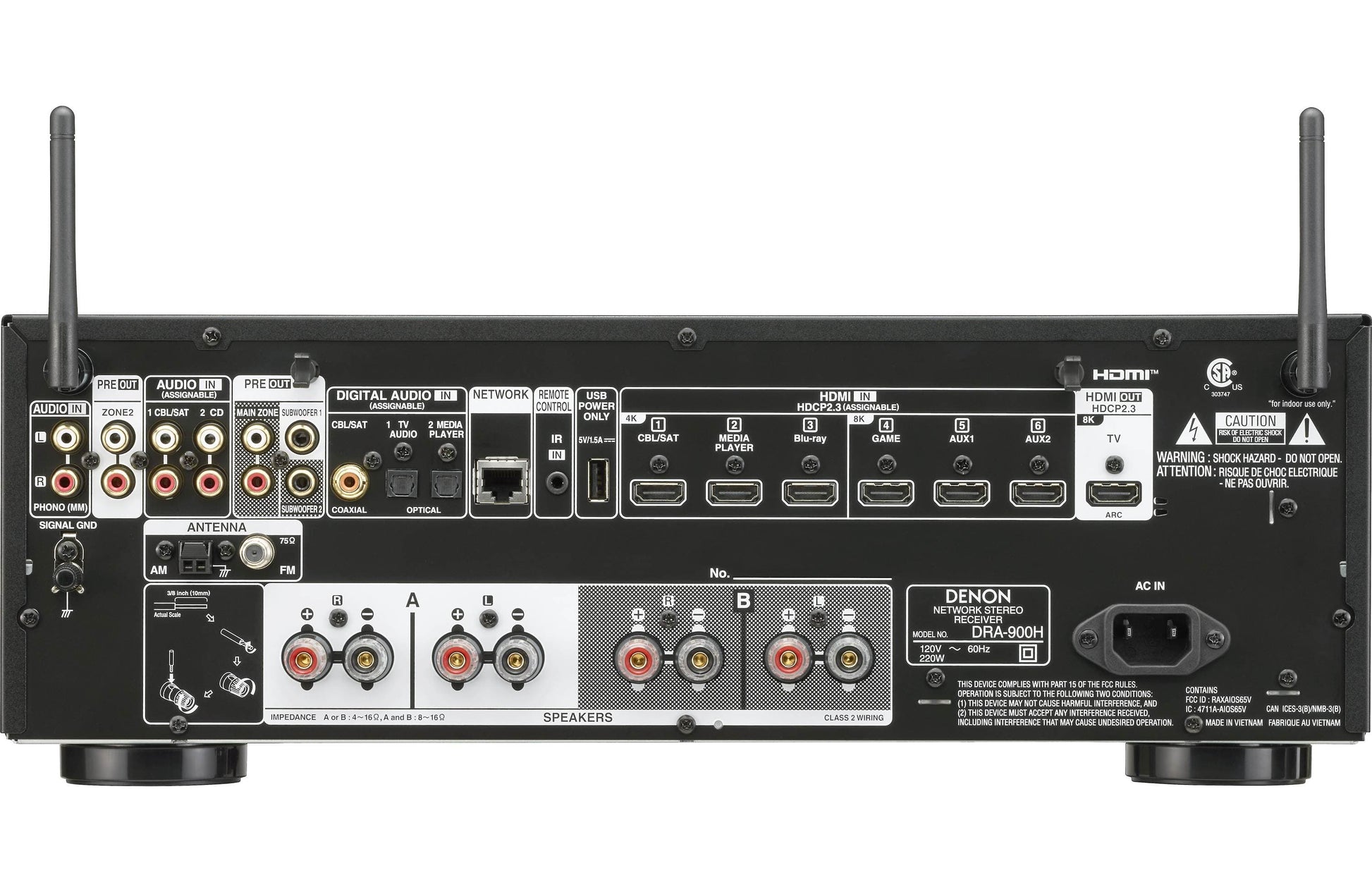

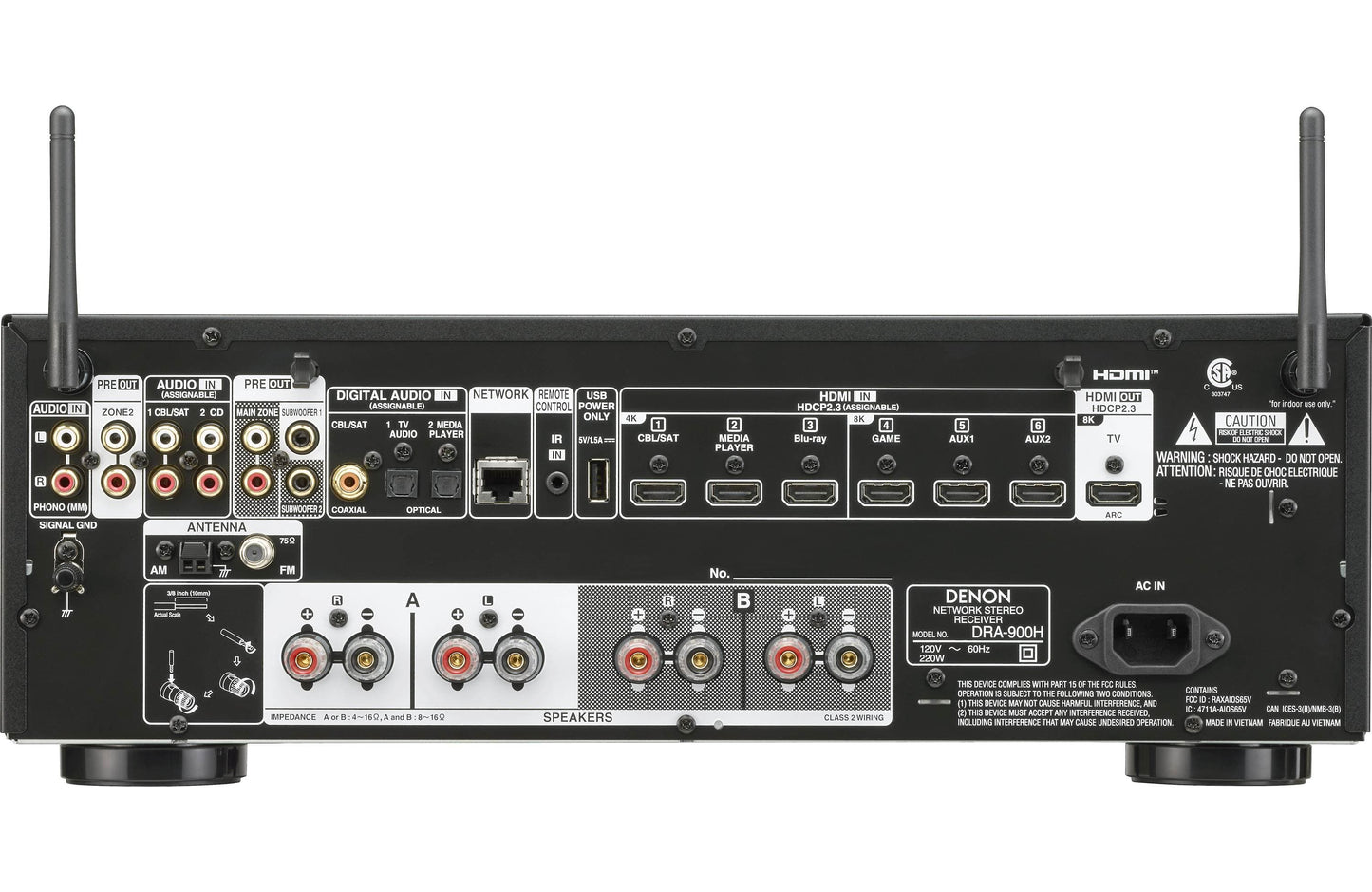

Inputs Outputs
-
VIDEO
-
HDMI In/Out 6 / 1
-
AUDIO
-
Analog In, Out 2 / No
-
Phono (MM) In Yes
-
Digital in: Optical/Coaxial 2 / 1
-
Multi-Room Out: Analog/Digital 1 / No
-
Multichannel Pre-out Yes (2.2)
-
Subwoofer Out 2
-
OTHER
-
Speaker Terminal: Gold-Plated Screw / Regular Screw Yes / No
-
Number of Speaker Terminals 4
-
Speaker A / B Yes
-
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes
-
USB Audio / Made for iPod / Made for iPhone Yes / No / No
-
USB Power Supply on Rear Panel Yes
-
AM/FM Tuner Yes
Specifications
-
Number of Power Amps 2
-
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 100 W
-
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 120 W
-
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 175 W
General
-

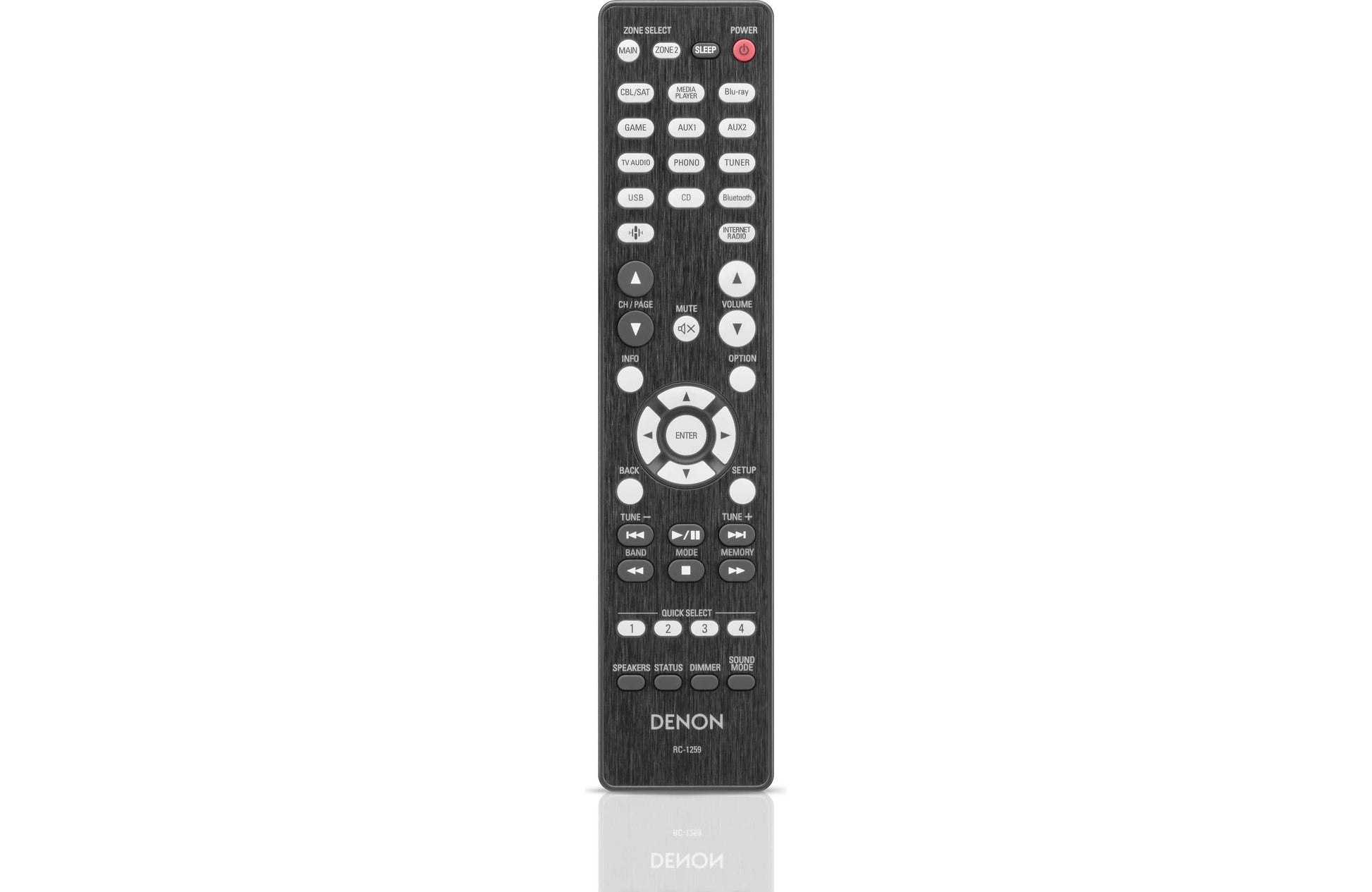

System Remote Control RC-1259
-
Power Consumption in W 220W
-
Power Consumption No-Sound (ECO On / Off) in W 23W/32W
-
Standby Consumption in W 0.1
-
CEC Standby Consumption in W 0.5
-
Network Standby Consumption in W Less than 2.0
-
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】
17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5)
-
Weight in LBS 18.3
-
Weight in LBS (Packaging) 23.1
-
Power Supply AC 120 V, 60 Hz
-
Speaker Impedance 4–16Ω/ohms
-
Pre-Amplifier Section
-
Input Sensitivity 200 mV
-
Frequency Response 10 Hz–100 kHz — +1, –3dB (Direct mode)
-
S/N Ratio 98dB (IHF-A weighted, Direct mode)
-
FM section
-
Tuning Frequency Range 87.5–107.9 MHz
-
AM section
-
Tuning Frequency Range 520 kHz–1710 kHz
-
What's in the Box Main unit, remote control, batteries, AM/FM antennas, quick start guide, AC cord
