Power any loudspeaker in any room of the home, such as in-ceiling, in-wall, outdoor, or bookshelf speakers. Stream music and access HEOS. Group Denon Home Amp with any other HEOS-enabled devices for whole-home audio.
Music at your command
Stream from all your favorite music streaming services or local sources.
Enhance your TV audio
Easily connect the Denon Home Amp to your TV through the HDMI eARC input.
Amplifier
-
Power Amplifier Rated output & THD (8ohm) 100 W+100 W (8 Ω/ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
-
Power Amplifier Rated output & THD (4ohm) 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.1%)
-
Frequency Response 20 Hz to 20 kHz : ±1.5 dB
-
Connected loudspeaker Impedance 4 – 16 Ω/ohms

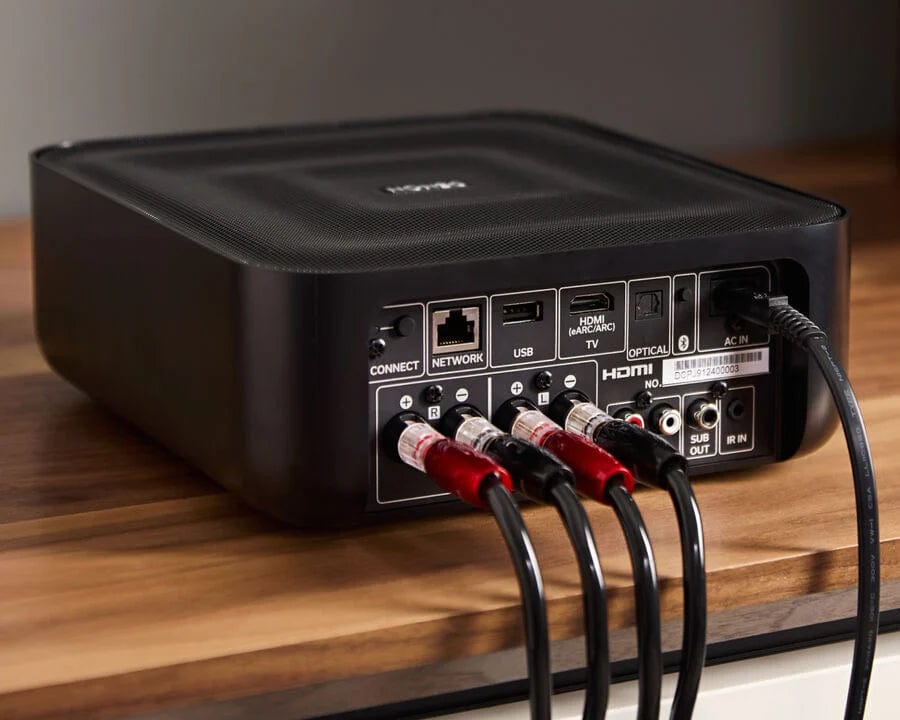

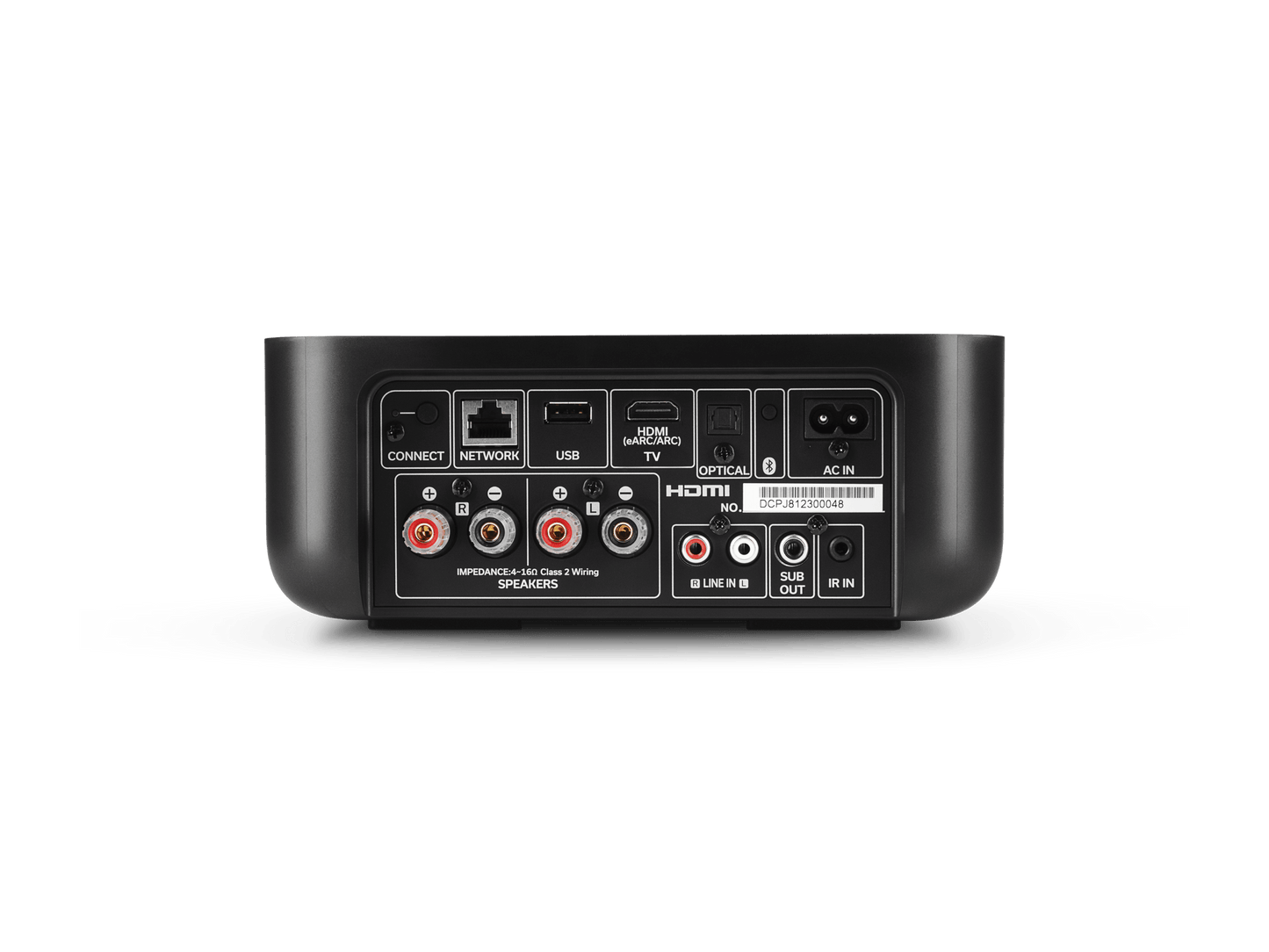

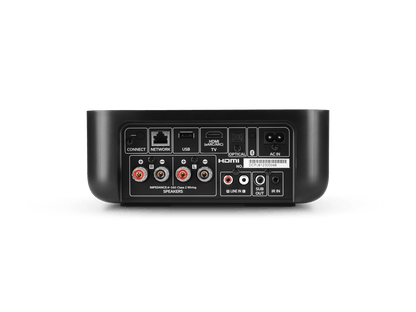

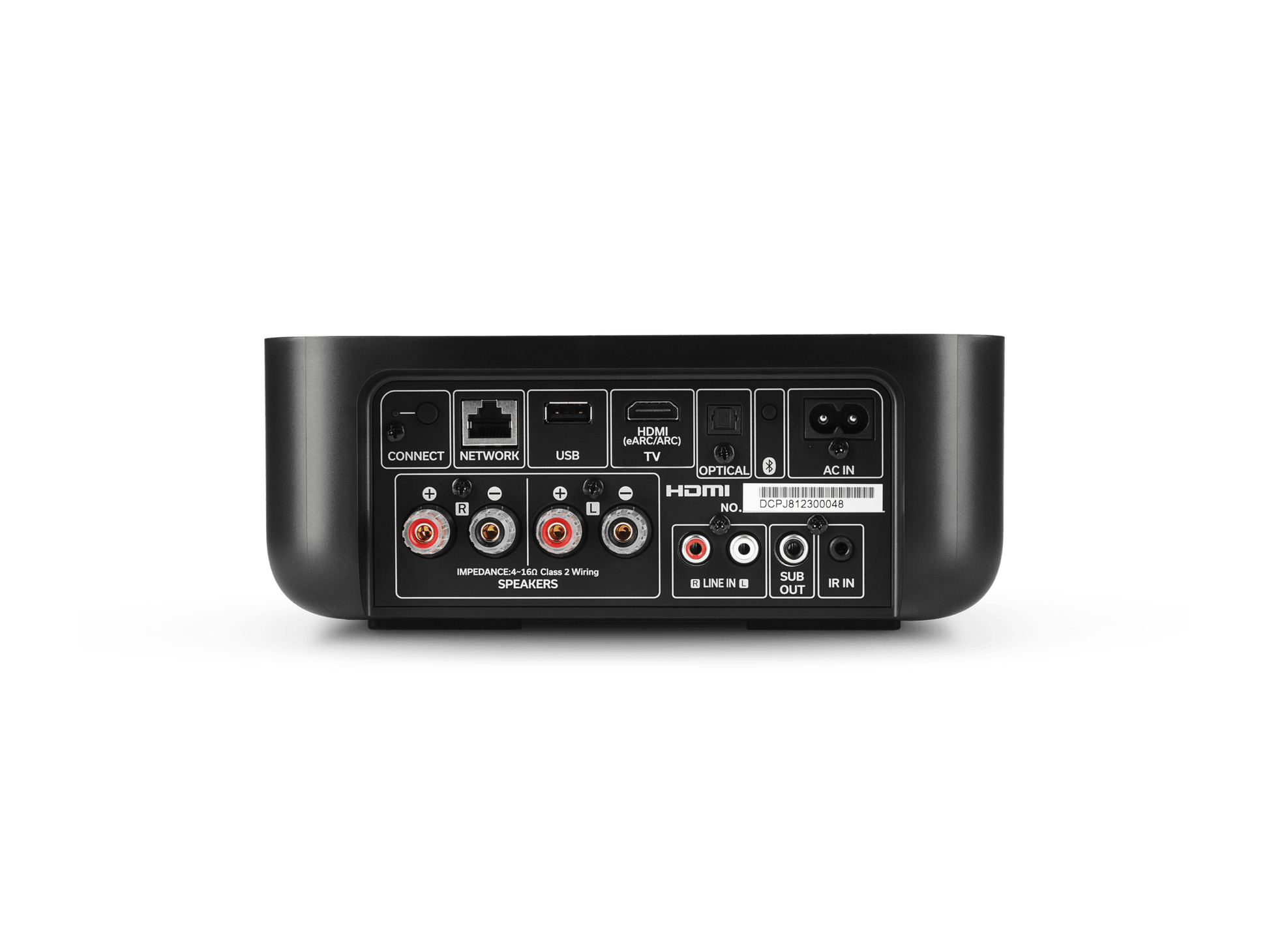

Audio Inputs / Outputs
-
Loudspeaker Binding Posts 4-way binding posts
-
Digital Inputs HDMI (eARC), TOSLINK
-
Analog Inputs RCA L/R
-
Subwoofer Out RCA Mono
Audio Options
-
Channel Assignments Stereo (Default), Dual Mono
-
Volume Limit 80-100%
-
Balance -15dB to +15dB
-
Adjustable High Pass / Low Pass Filters 40-250 Hz / 40-120 Hz
-
EQ Bass, Treble -5dB to +5dB
-
Sound Modes Stereo, Direct, Virtual, Denon Dialog Enhancer, Night Mode
-
TV Sound Grouping Yes
Audio Format Support
-
Decoding Dolby Digital +, Dolby Digital, LPCM, DSD
-
Stereo PCM / Multi-channel PCM Yes / Yes
-
Stereo File Formats (HEOS network share or USB) WMA: up to and including 192 kbps AAC & MP3: up to and including 320 kbps WAV, ALAC, FLAC: up to and including 24-bit/192kHz DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
-
Bluetooth Receive BT 4.2
-
AirPlay Airplay 2
-
Spotify Spotify Connect
Music Services and Sources
-
Music Services Supported (HEOS, subject to change and local availability) Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
-
Music stored on mobile device Yes (iOS, Android or Kindle Fire)
-
NAS (Network Attached Storage) Network share, DLNA
-
USB Storage Device Playback Yes (FAT32, NTFS formatted drives)
Networking & Control
-
Wired Connectivity Ethernet
-
Wireless Connectivity Dual band, 802.11 a/b/g/n/ac
-
IR Input 3.5mm
-
IR Learning Yes
-
Control System Compatibility via TCP/IP Crestron, Control4, AMX
-
HEOS App iOS, Android, Kindle Fire
General
-
Product Color Black
-

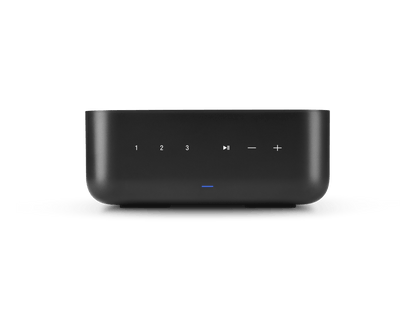

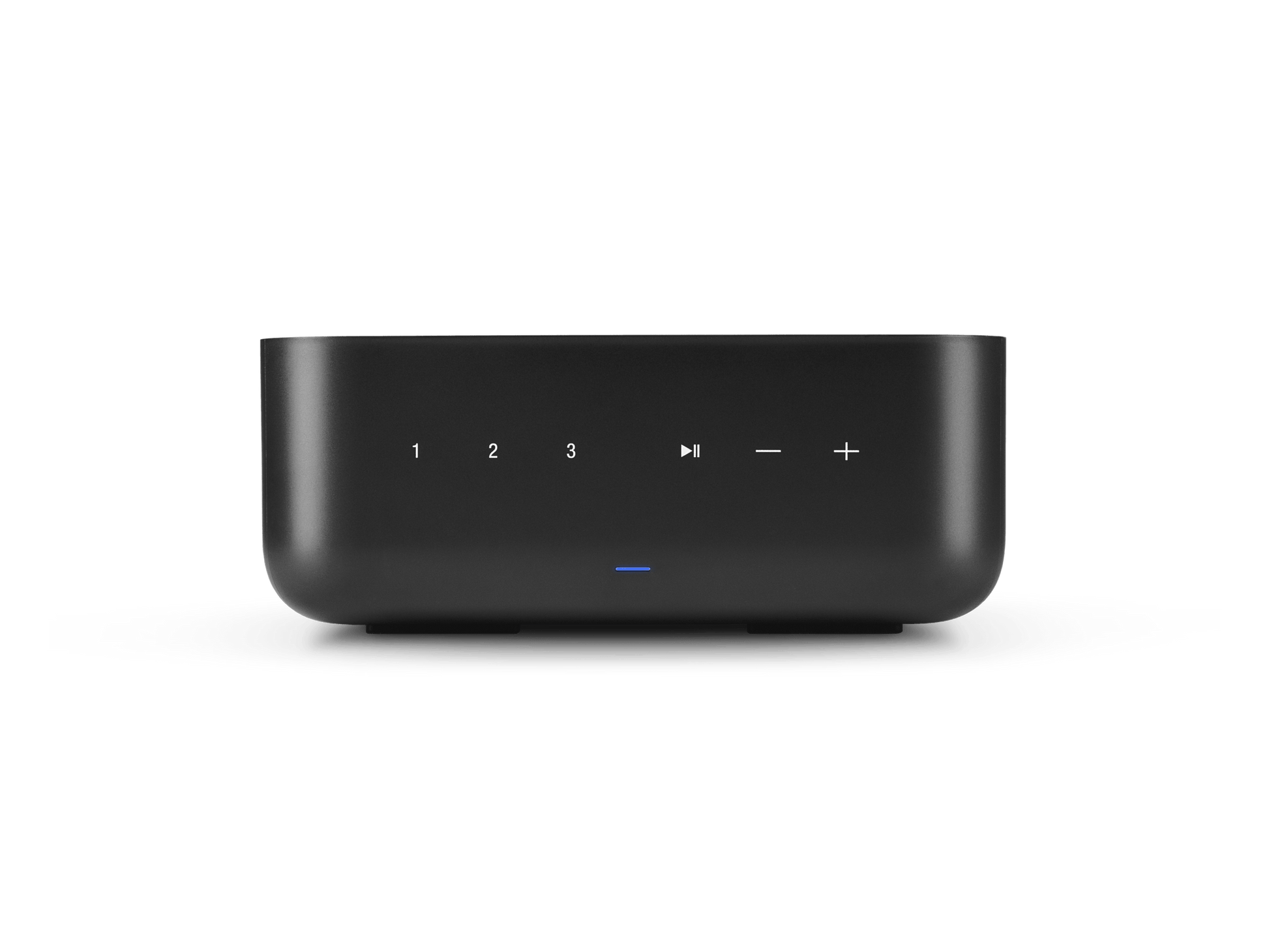

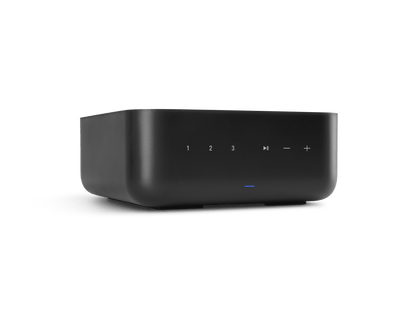

User Interface Volume up/down, Play / Pause, Quick Select 1/2/3, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
-
Dimensions (H x W x D) Inches 3.4 x 8.54 x 9.21 Inches
-
Dimensions (H x W x D) mm 86.2 x 217 x 234mm
-
Weight (lbs) 4.5 pounds
-
Weight (kg) 2 KG
