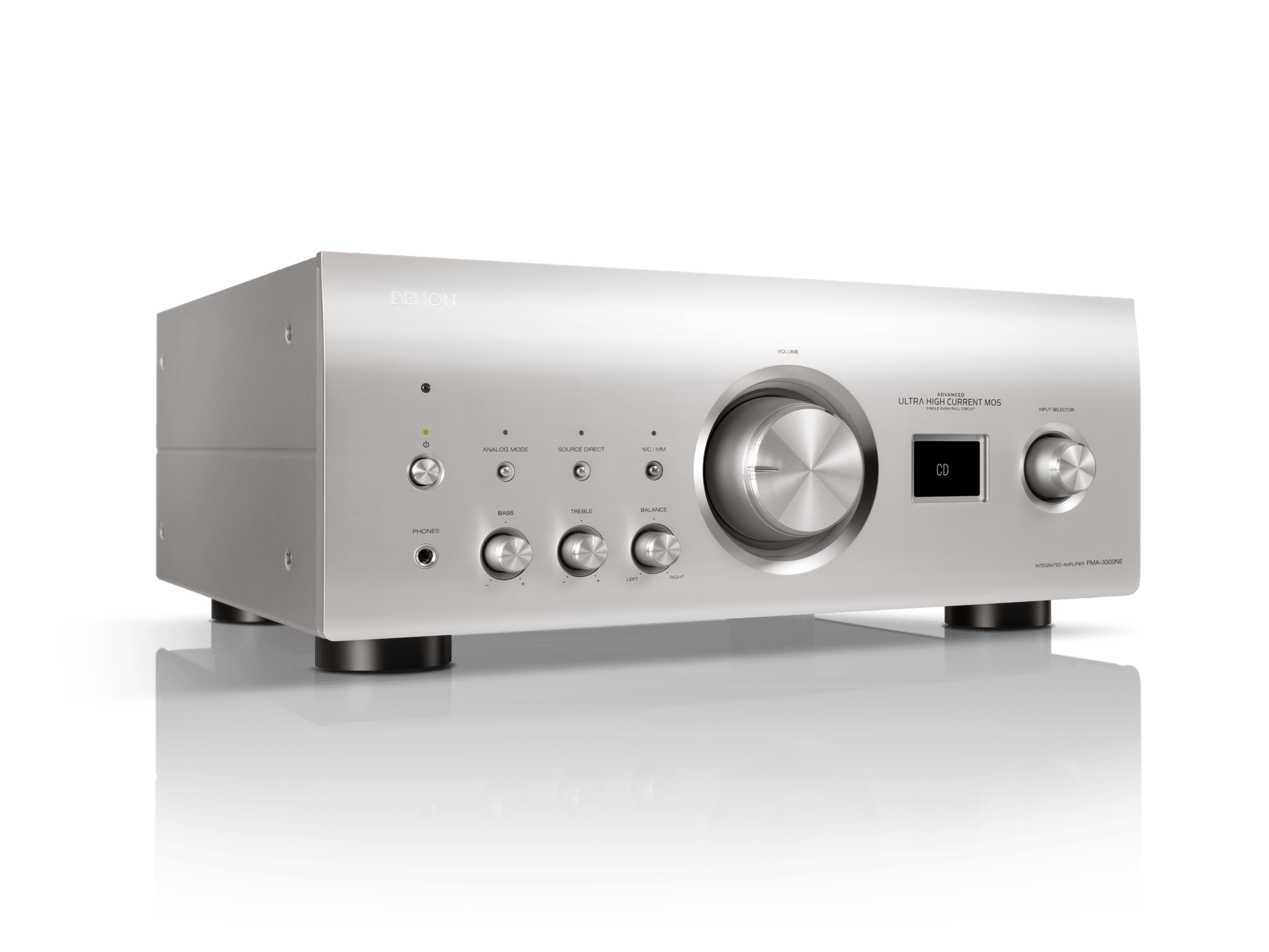

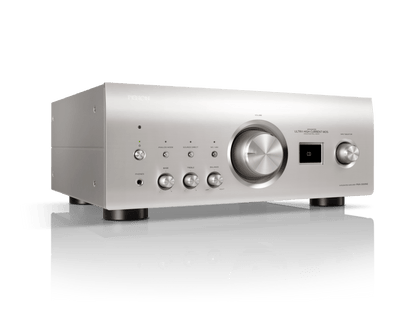

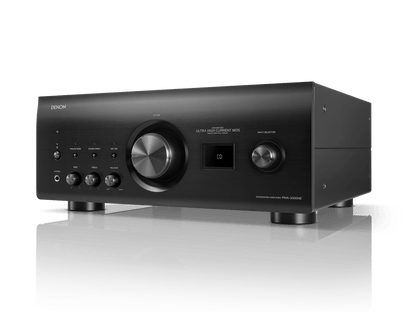

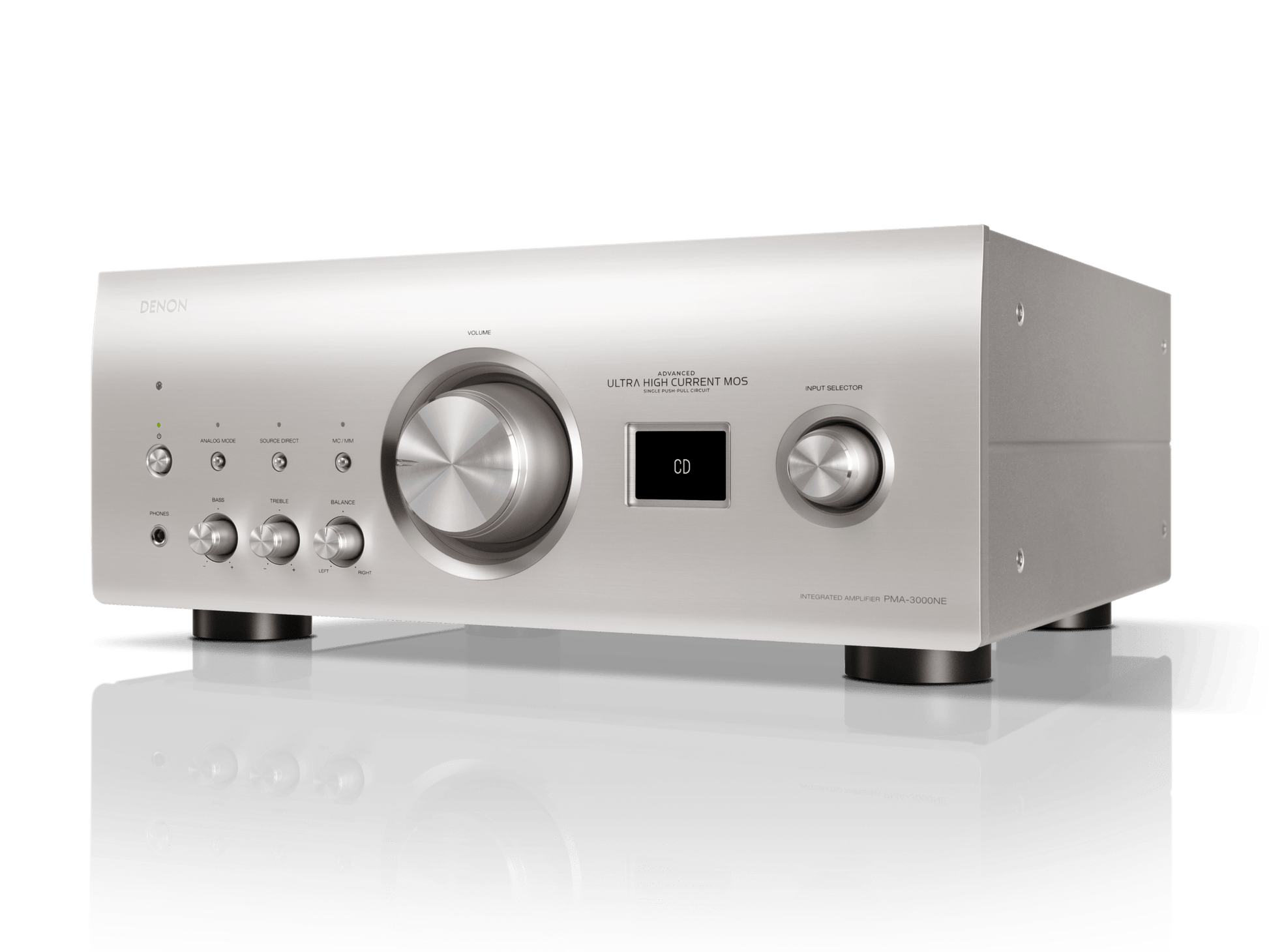

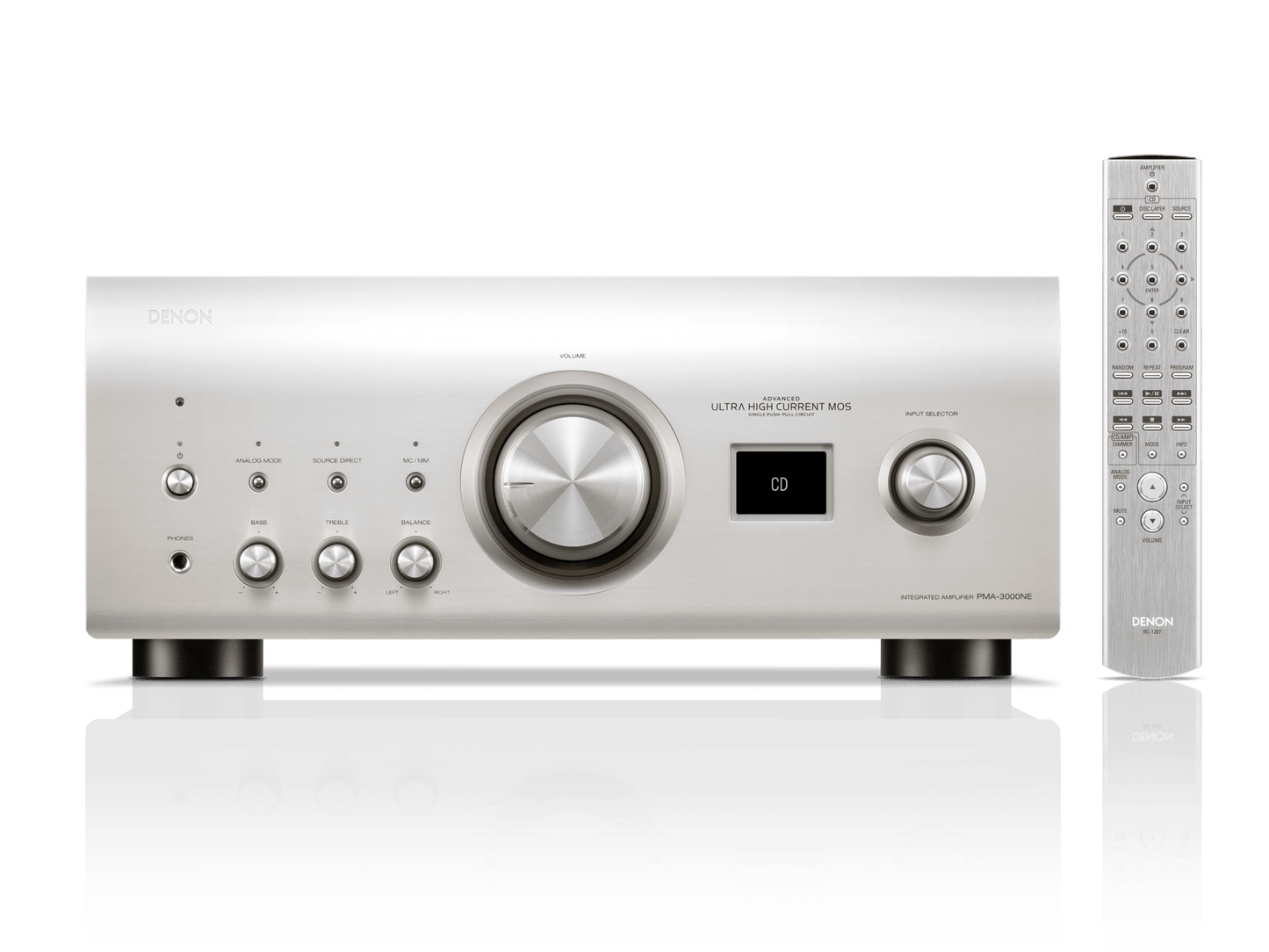

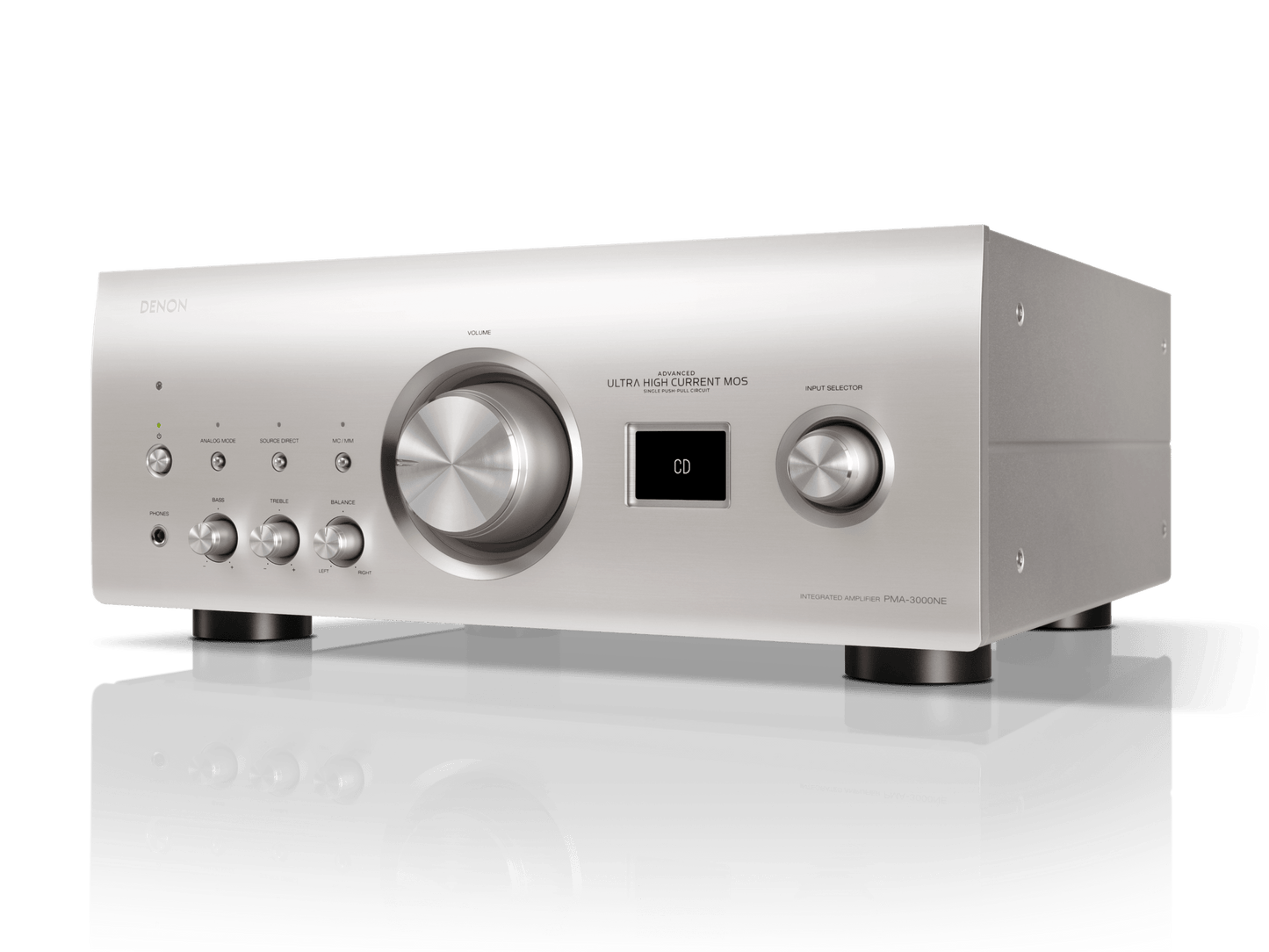

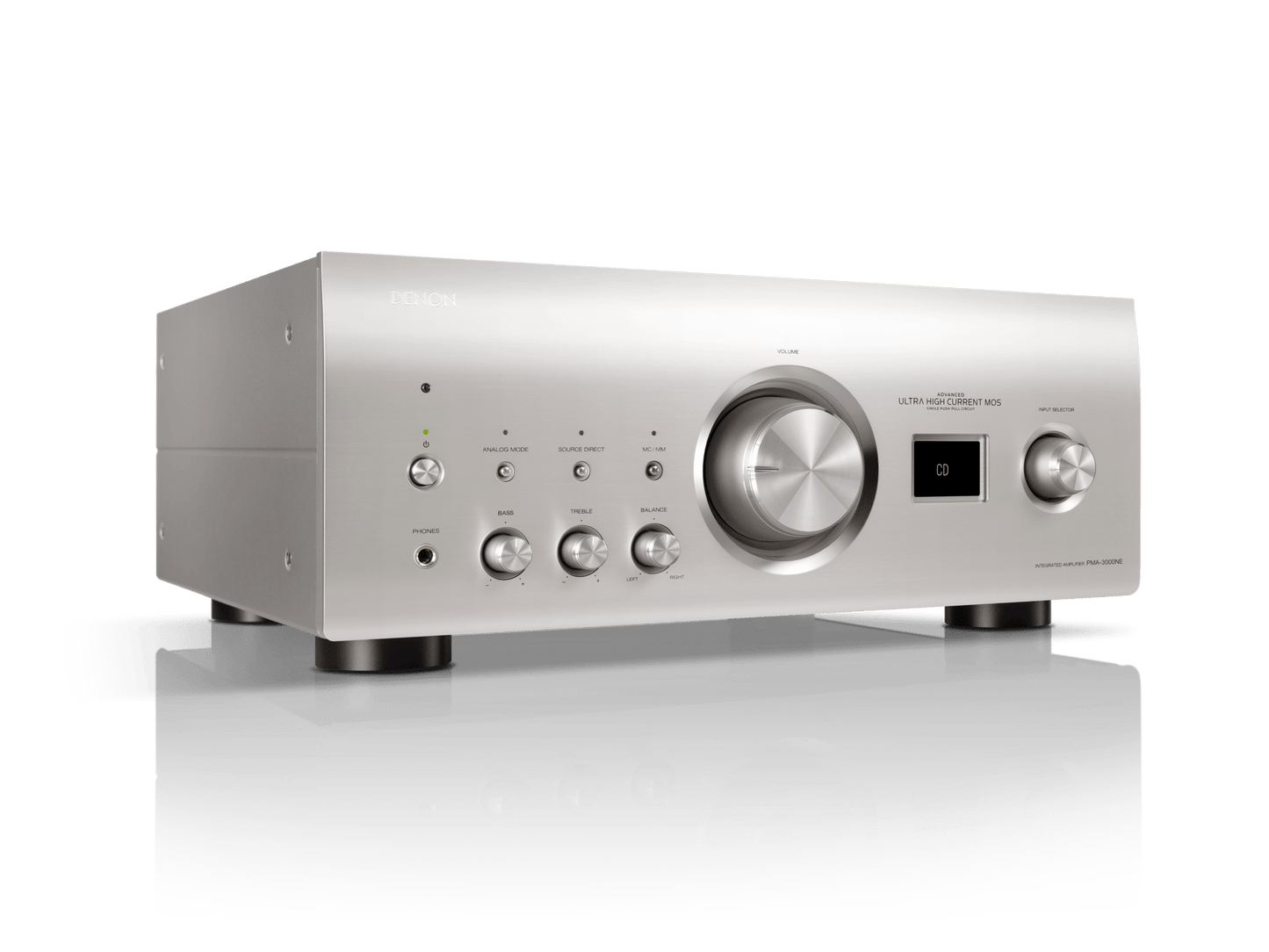

Denon PMA-3000NE
Denon PMA-3000NE
Regular price
$7,999.00 NZD
Regular price
Sale price
$7,999.00 NZD
Taxes included.
The Denon PMA-3000NE delivers 160W per channel at 4 ohms and 80W per channel at 8 ohms, driving even the most demanding speaker to deliver superior sound in any scenario. Designed and manufactured at Denon facilities in Shirakawa, Japan.
- 2 channels
- 160 watts per channel
- MM/MC phono stage
- Ultra AL32 Processing
- Optical, coaxial, and USB digital connections
- Analog mode
Audio excellence, redefined
With an advanced push-pull amplifier, sophisticated digital processing, and a robust phono stage, the PMA-3000NE delivers all of your favorite music with clarity and precision.
Drives even the most demanding speakers
A push-pull amplifier, delivering 80W/channel into 8 ohms and 160W/channel into 4 ohms, effortlessly accommodates a range of speaker types and impedances.
Seamlessly integrate high-resolution digital audio
Digital connections, including optical, coaxial, and USB-B, support up to 384kHz/32- bit. Ultra AL32 Processing waveform interpolation produces smooth, high-resolution sound.
Unlock your vinyl collection’s full potential
The PMA-3000NE's phono stage supports both MM and MC cartridges, for the most faithful sonic reproduction regardless of cartridge type.
Sonic Innovation
For the Past 110 Years
For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.
Details & Specifications
General
- Unit (W × H × D) 434 × 182 × 443 mm
- Net Weight 24.6 kg / 54.2 lbs

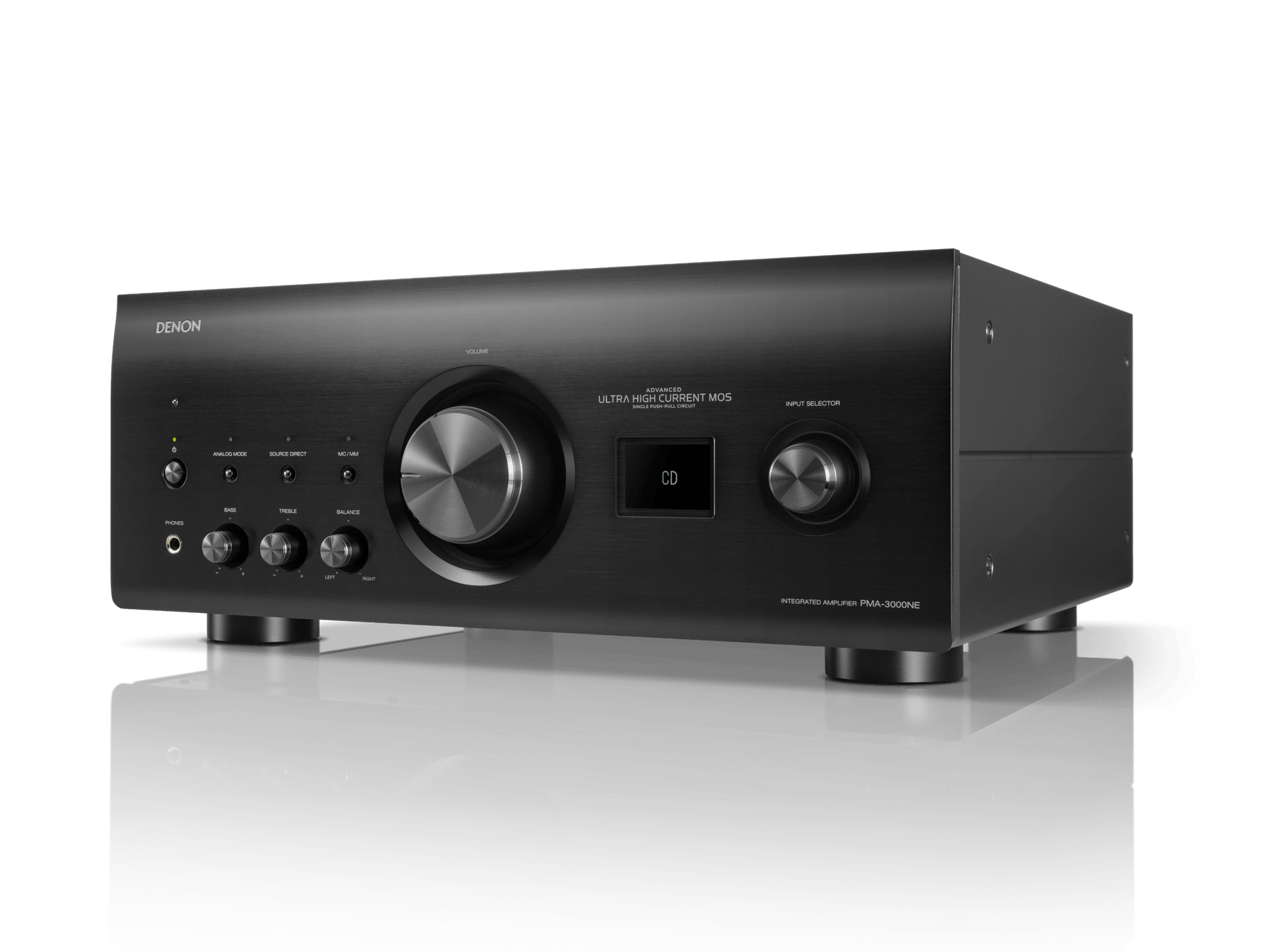

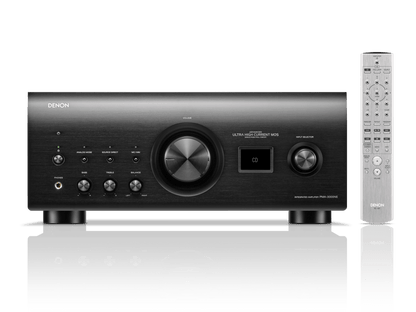

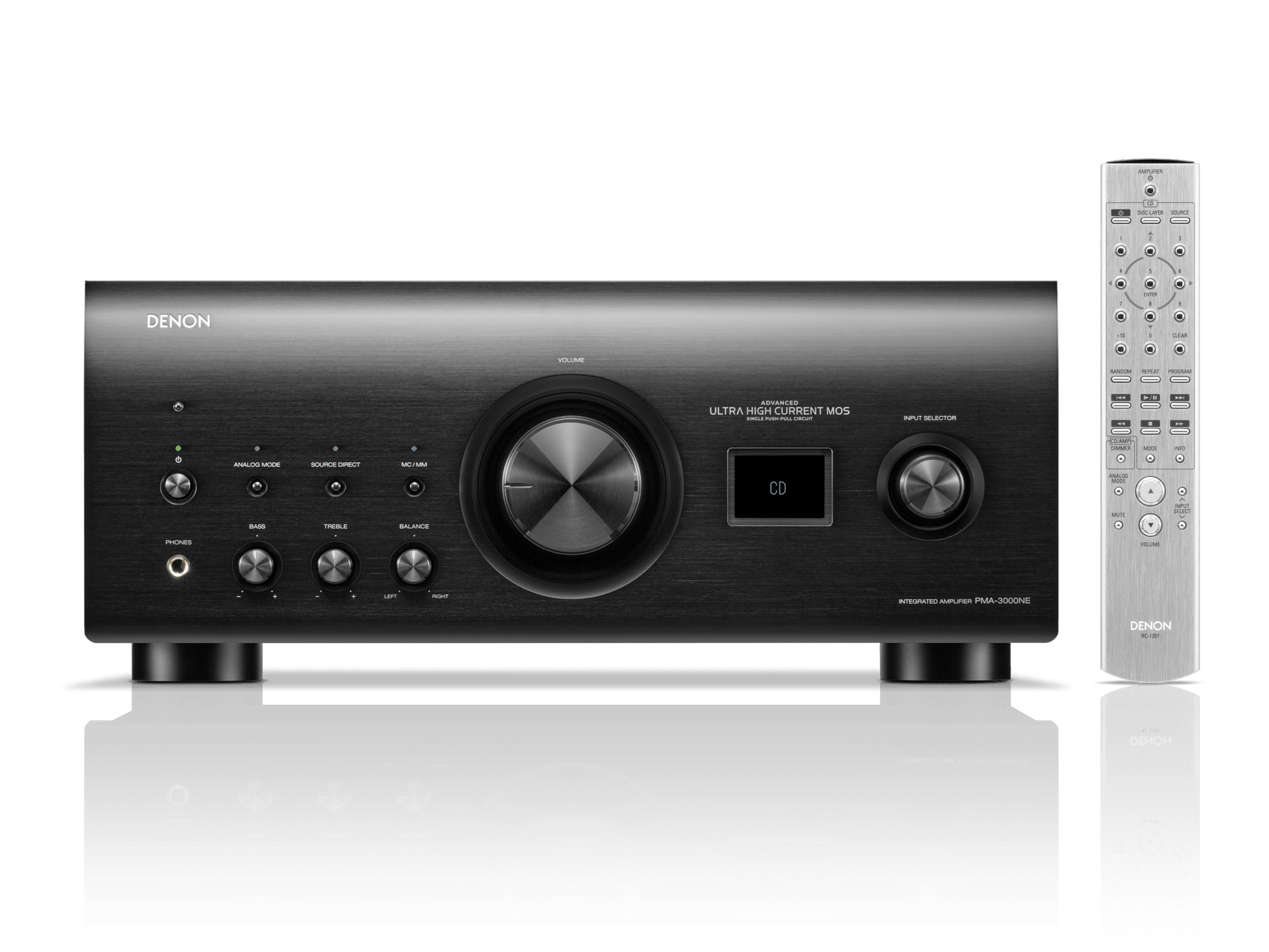

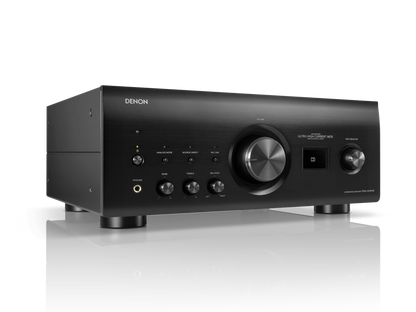

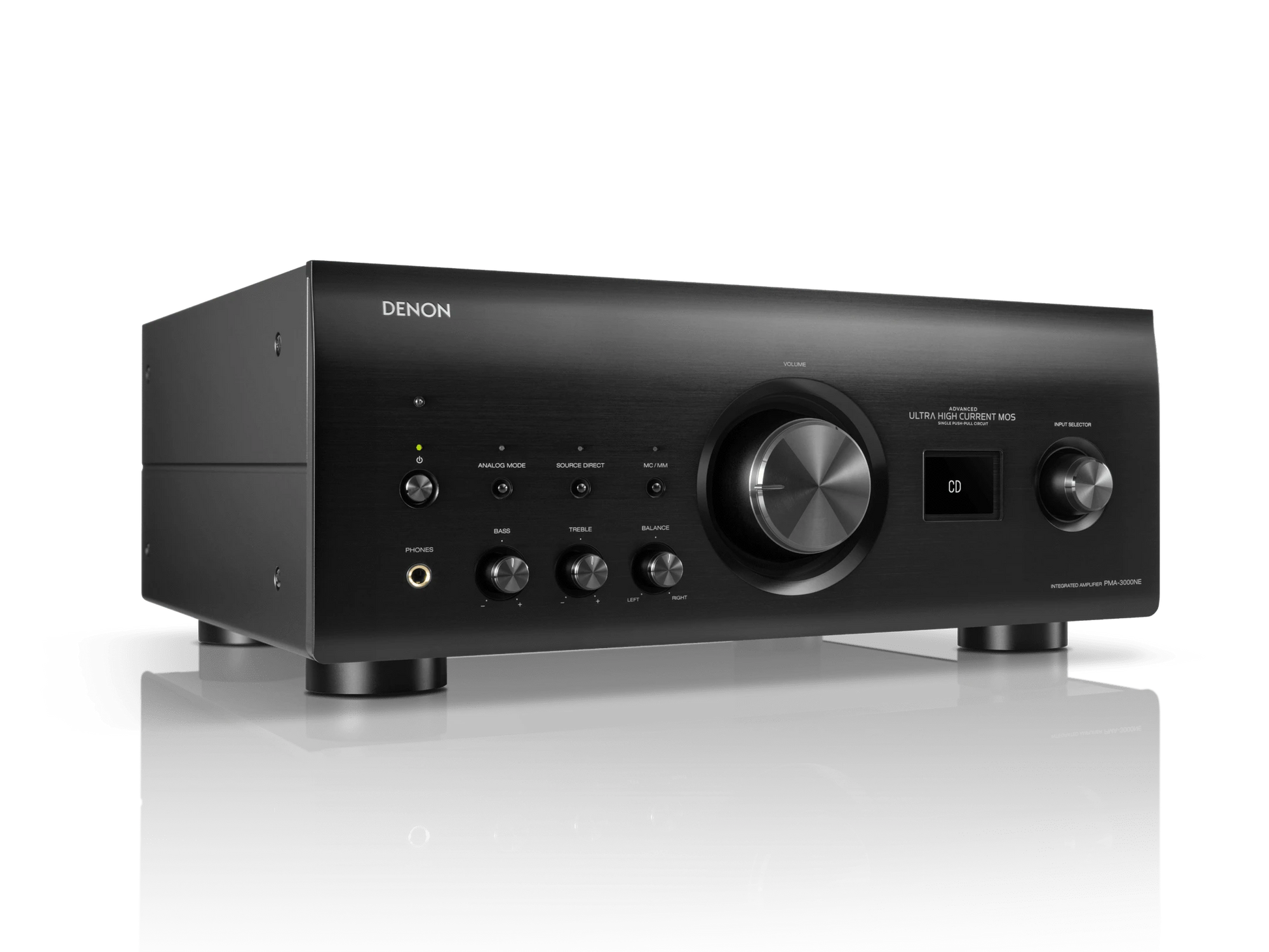

- Panel Cover Silver, Black
Specifications
- Rated Output Power 80W + 80W
(8 ohm,20 Hz-20 kHz,THD 0.07%)
160W + 160W
(4 ohm, 1 kHz, THD 0.7%) - Total Harmonic distortion 0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz - Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
MC: 200 μV / 100 ohm - Input Sensitivity:CD/LINE/RECORDER 135 mV / 19 kohm
- Input Sensitivity: Power Amp input 1.0V / 15 kohm (EXT. PRE)
- Signal to Noise Ratio PHONO (MM): 89 dB
PHONO (MC): 74 dB
CD: 107 dB - Power Consumption 400W
- Power Consumption at Standby 0.2W TV autoplay off
0.4W TV autoplay on
Audio Features
- Power Amplifier Circuit New UHC-MOS
Single Push Pull (7) - Preamplifier Circuit Variable Gain Preamplifier (OP AMP)
- Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
- Source Direct Yes
- Analog Amp Mode Yes (button on front panel)
- DAC Circuit ES9018K2M × 4
- Digital Processing Ultra AL32 Processing
- DAC Master Clock Design Yes
- Asyncronous mode (for USB-B input) Yes

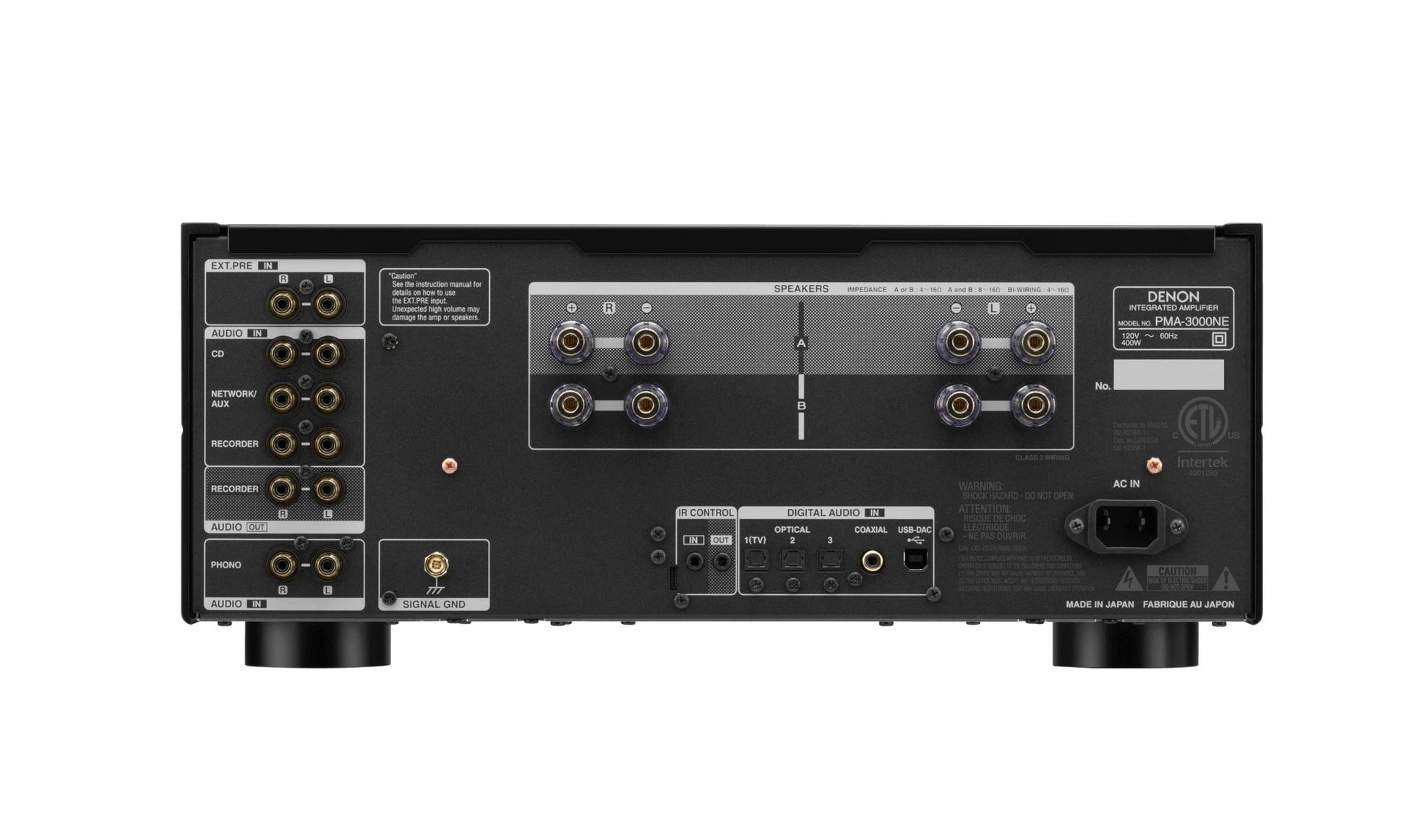

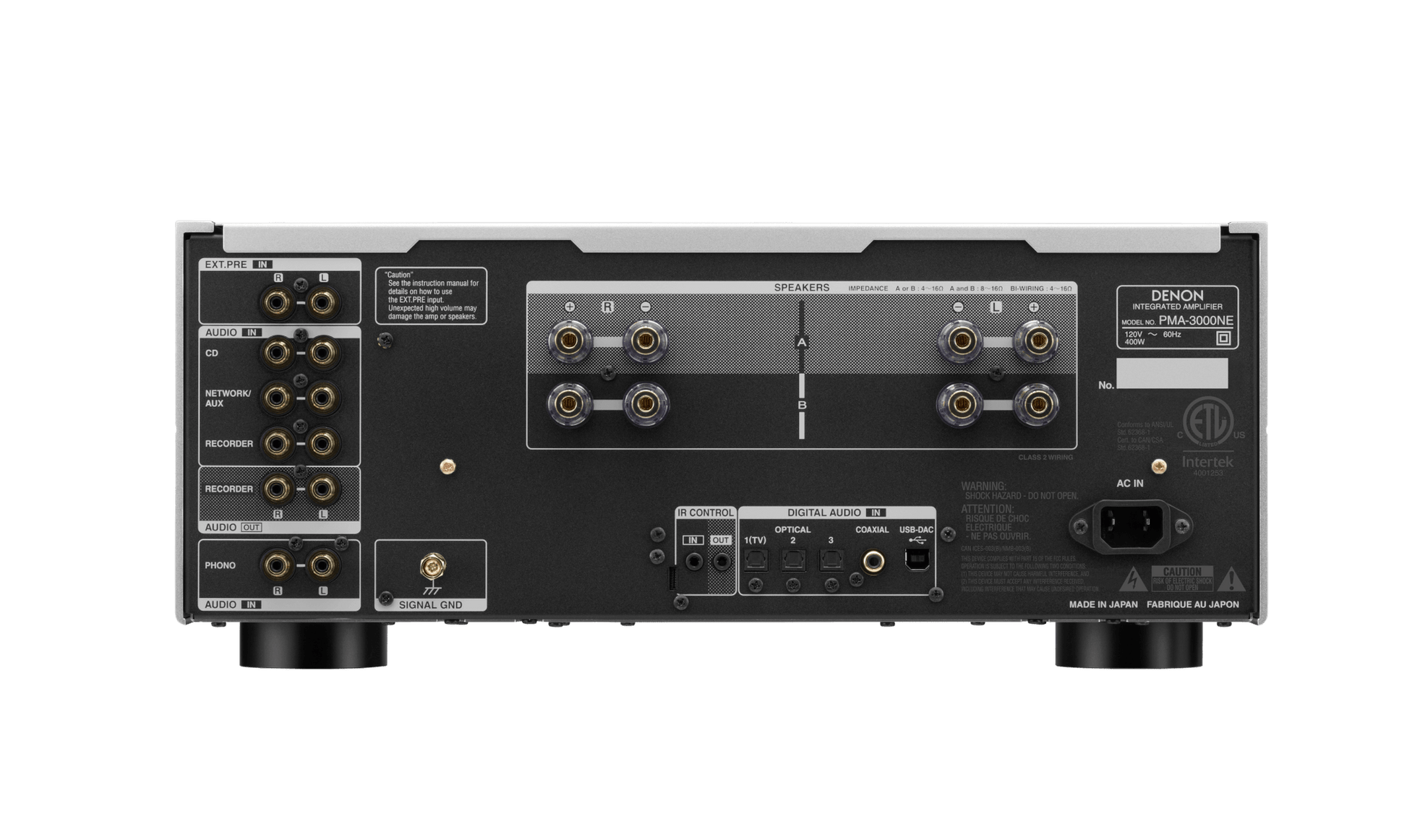

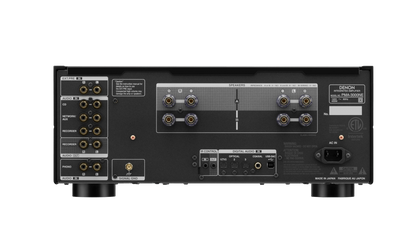

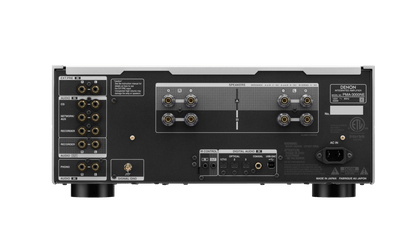

Connectivity
- Phono Input Yes (MM / MC)
*default = MM - Analog Input (include Phono) / REC Out (RCA) 4/1 (Gold Plated)
(Brass Machining type for all CD/PHONO/AUX/RECORDER) - Optical input / output
(Maximum Support) 3 / 0 (192 kHz/24-bit) - Coaxial input / output
(Maximum Support) 1 / 0 (192 kHz/24-bit) - Speaker Terminal AVR-A1H type Gold Plated w/Cover
- Headphone Output 1

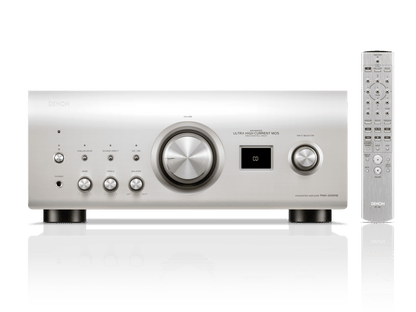

(Turns off the speaker automatically when headphone is inserted) - Remote Control Yes
- Remote Control Bus Terminal Yes (mini)
- Wi-Fi No
- HEOS No
- USB B (USB DAC) 1 (Rear)
- PCM Sample Rate / Resolution ~384 kHz/32-bit
- DSD Audio Streaming ~11.2MHz
