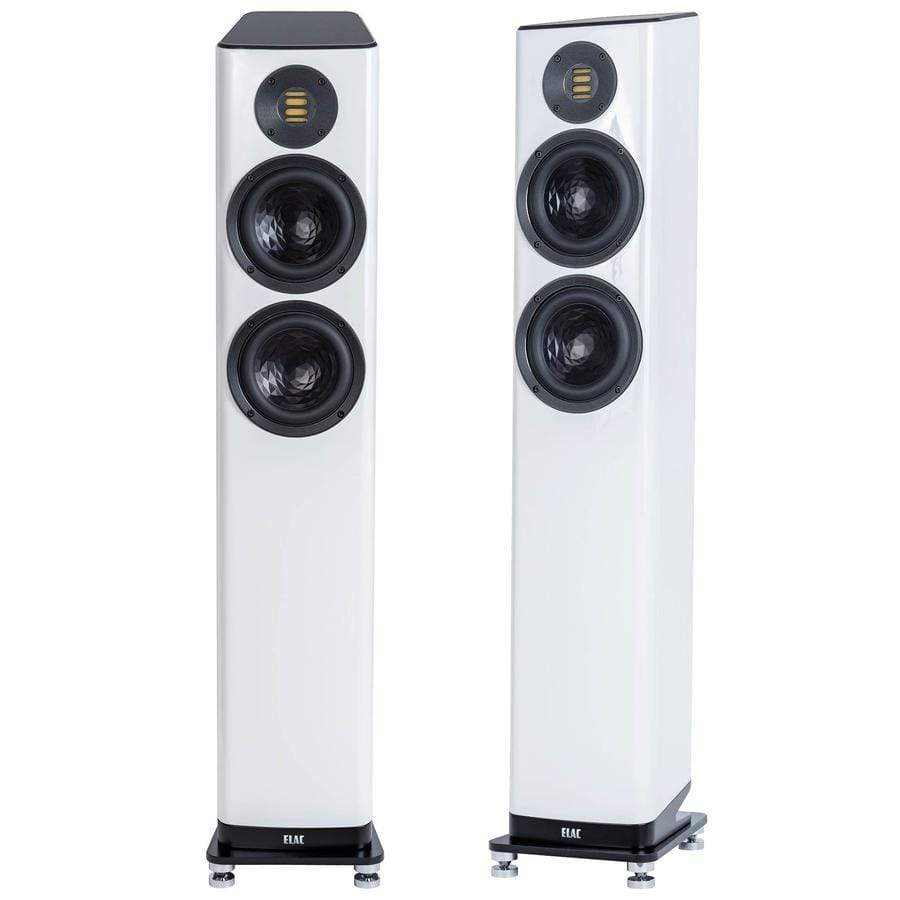

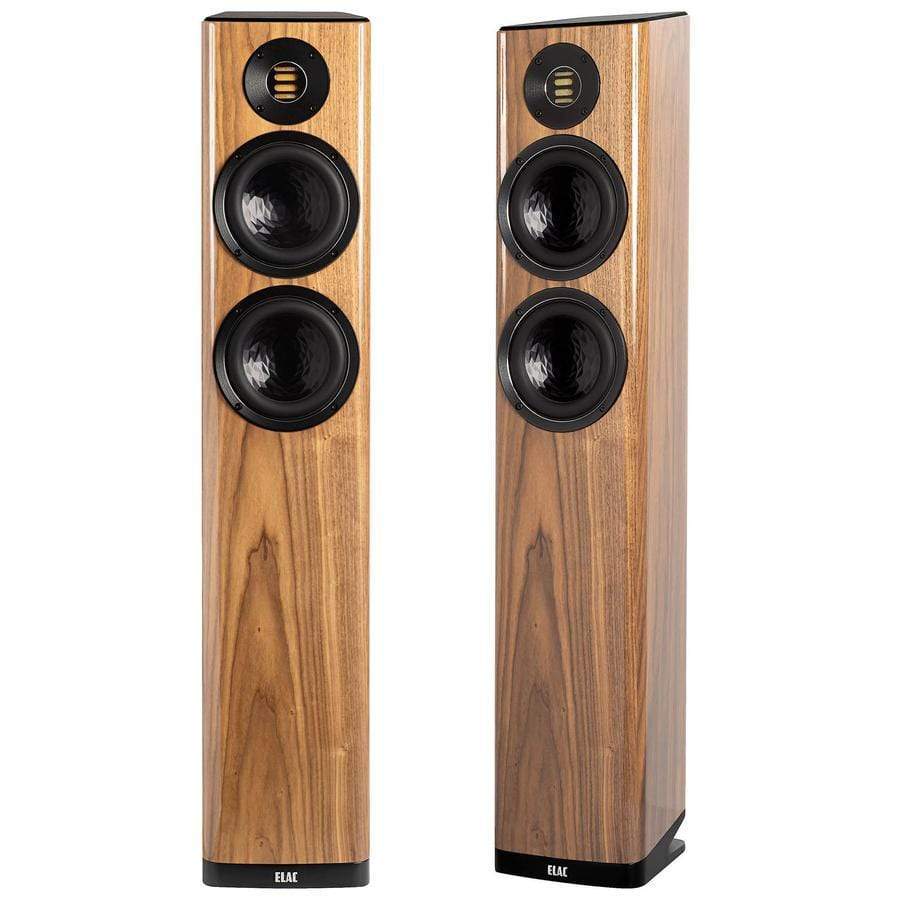

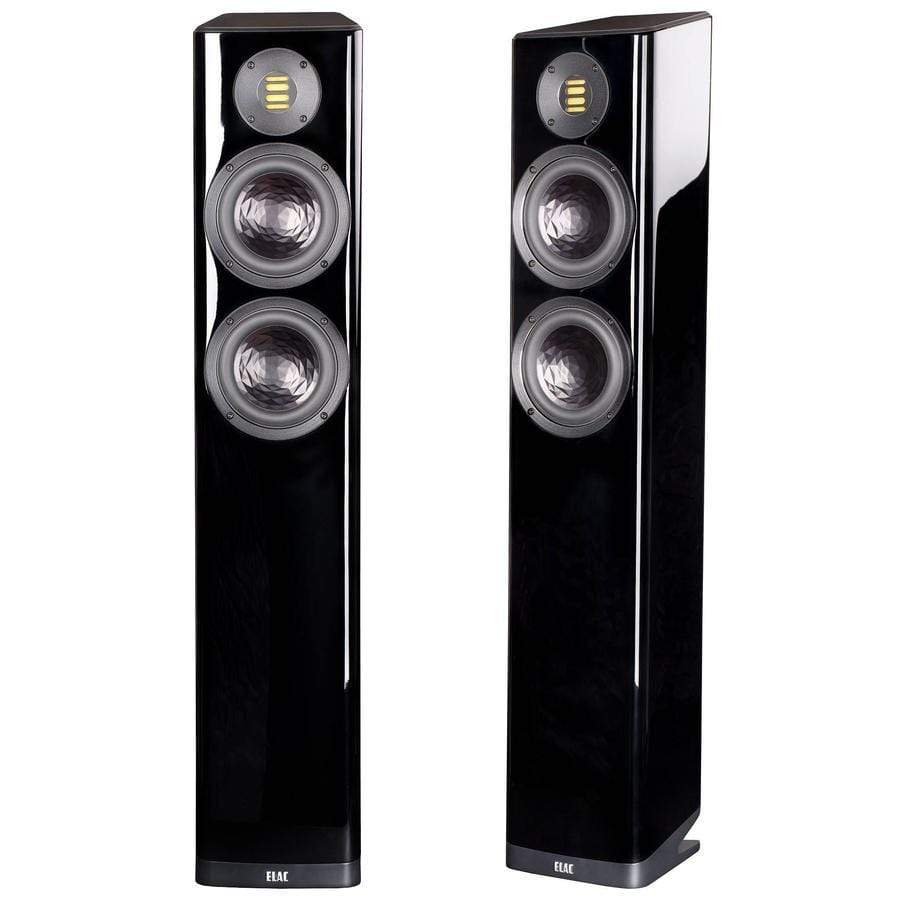

The VELA Floorstanding Speaker
A complex design: high-class lacquered and wooden veneered cabinets, which have a trapezoid shape and are angled rearward, combined with aluminum and glass.
The design catches eyes but conduces acoustics, too. The sound of VELA shows it´s family background to successful series 400.
But the advantages are distinct. The angling of the cabinet in combination with the new wave-guide of the JET tweeter improves the definition of stereo and multi-channel audio in modern furnishing. But there are more than the obvious changes. For example the
optimized drivers are able to reproduce high-energy transients more precisely.
Type: 2 ½-Way, bass reflex
Woofer: 2 x 150 mm Ø, AS XR cone
Midrange: 150 mm
Tweeter: JET 5
Magnetic shielding: No
Crossover frequency: 450 | 2400 Hz
Frequency range (IEC 268-5): 30 – 50000 Hz
Sensitivity: 88 dB at 2,83 V/m
Suitable for amplifiers from… to: 4 – 8 Ω
Recommended amplifier power: 40 – 300 W/channel
Nominal | Peak power handling: 130 W | 170 W
Nominal | Minimum impedance: 4 Ω | 3,5 Ω at 200 Hz
Finishes: Black High Gloss, White High Gloss, Walnut High Gloss
Accessories included: Plate with Spikes and Washer
Optional accessory: Speaker grilles
Height x Width x Depth: 1000 x 229 x 266 mm
Weight: 19,1 kg
Form Supports Function
The convex shaped baffle and the big radius’s of the cabinet promote the acoustics because influences of cabinet to frequency response are reduced.
Close to Action
The bottom plate is made of aluminum and is featured with a down-firing bass reflex port which gives advantages in positioning the speaker.
Thanks to it’s flexible connections the Vela series offers the ability of using bi-wiring and bi-amping.
