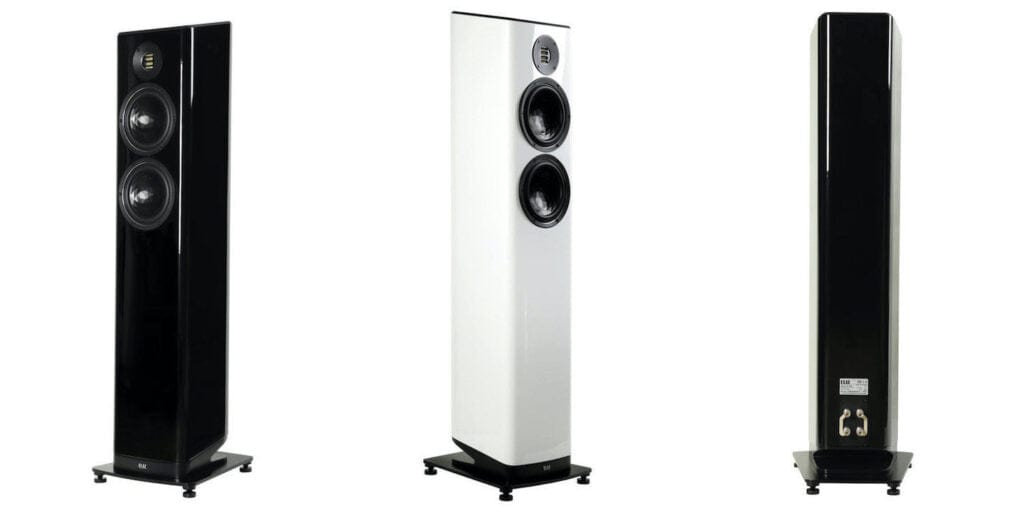

A complex design: high-class lacquered and wooden veneered cabinets, which have a trapezoid shape and are angled rearward, combined with aluminum and glass.
The design catches eyes but conduces acoustics, too. The sound of VELA shows its family background to successful series 400.
But the advantages are distinct. The angling of the cabinet in combination with the new wave-guide of the JET tweeter improves the definition of stereo and multi-channel audio in modern furnishing. But there are more than the obvious changes. For example the optimized drivers are able to reproduce high-energy transients more precisely.
Form Supports Function
The convex shaped baffle and the big radius’s of the cabinet promote the acoustics because influences of cabinet to frequency response are reduced.
Close to Action
The bottom plate is made of aluminum and is featured with a down-firing bass reflex port which gives advantages in positioning the speaker.
Flexible Connectivity
Thanks to it’s flexible connections the Vela series offers the ability of using bi-wiring and bi-amping.
Product Specifications
- Height x Width x Depth:
- 1142 x 276 x 332 mm
- Weight:
- 27.1kg
- Type:
- 2 1/2-way, bass reflex
- Woofer:
- 2 x 180 mm Ø, AS-XR Cone
- Midrange:
- 180 mm Ø, AS-XR Cone
- Tweeter:
- JET 6
- Magnetic Shielding:
- No
- Crossover Frequency:
- 450 | 2550 Hz
- Frequency Range (IEC 268-5):
- 28-50000 hZ
- Sensitivity:
- 88.5 dB at 2.83 V/m
- Suitable for amplifiers from… to:
- 4 – 8 Ω
- Recommended Amplifier Power:
- 40 – 400 W/channel
- Nominal | Peak Power Handling:
- 150 W | 220 W
- Nominal Impedance:
- 4 Ω | 3.4Ω at 180 Hz

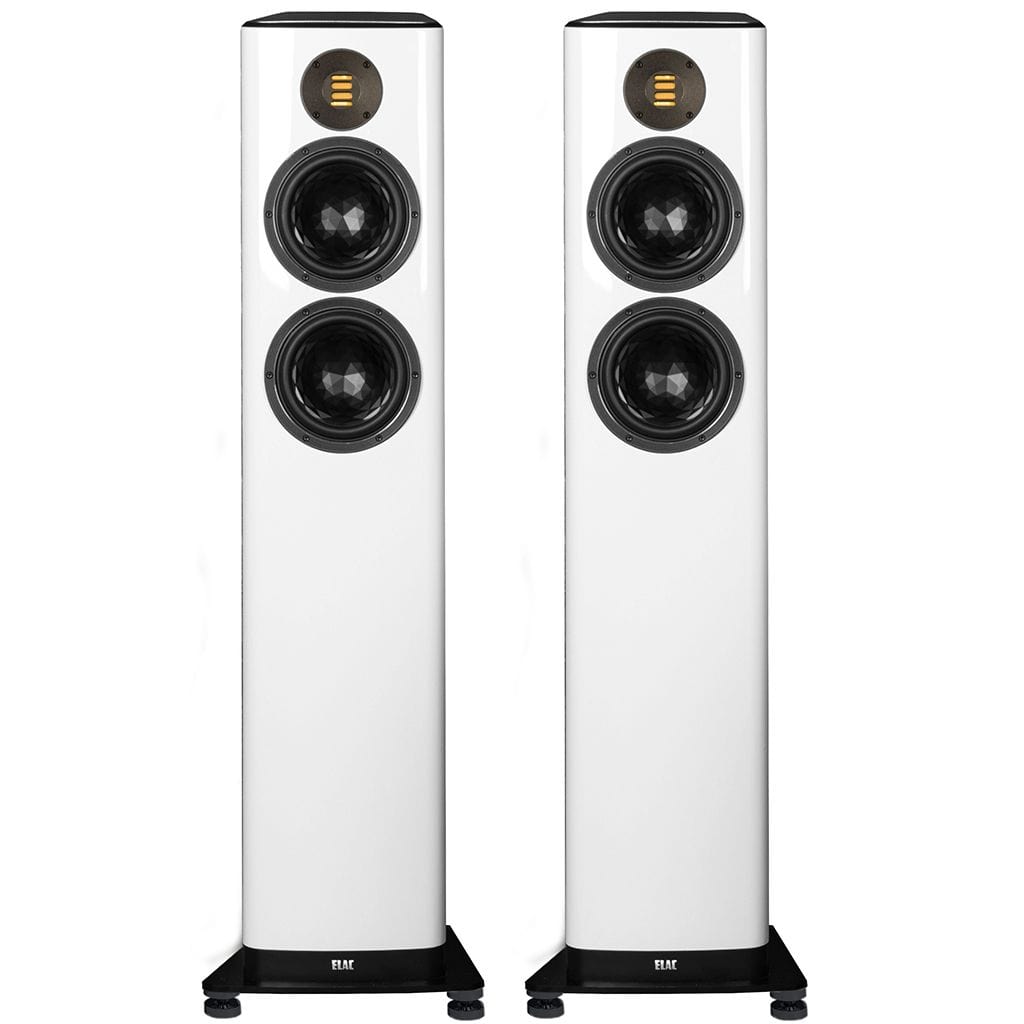

- Finishes:
- Black High Gloss, White High Gloss
