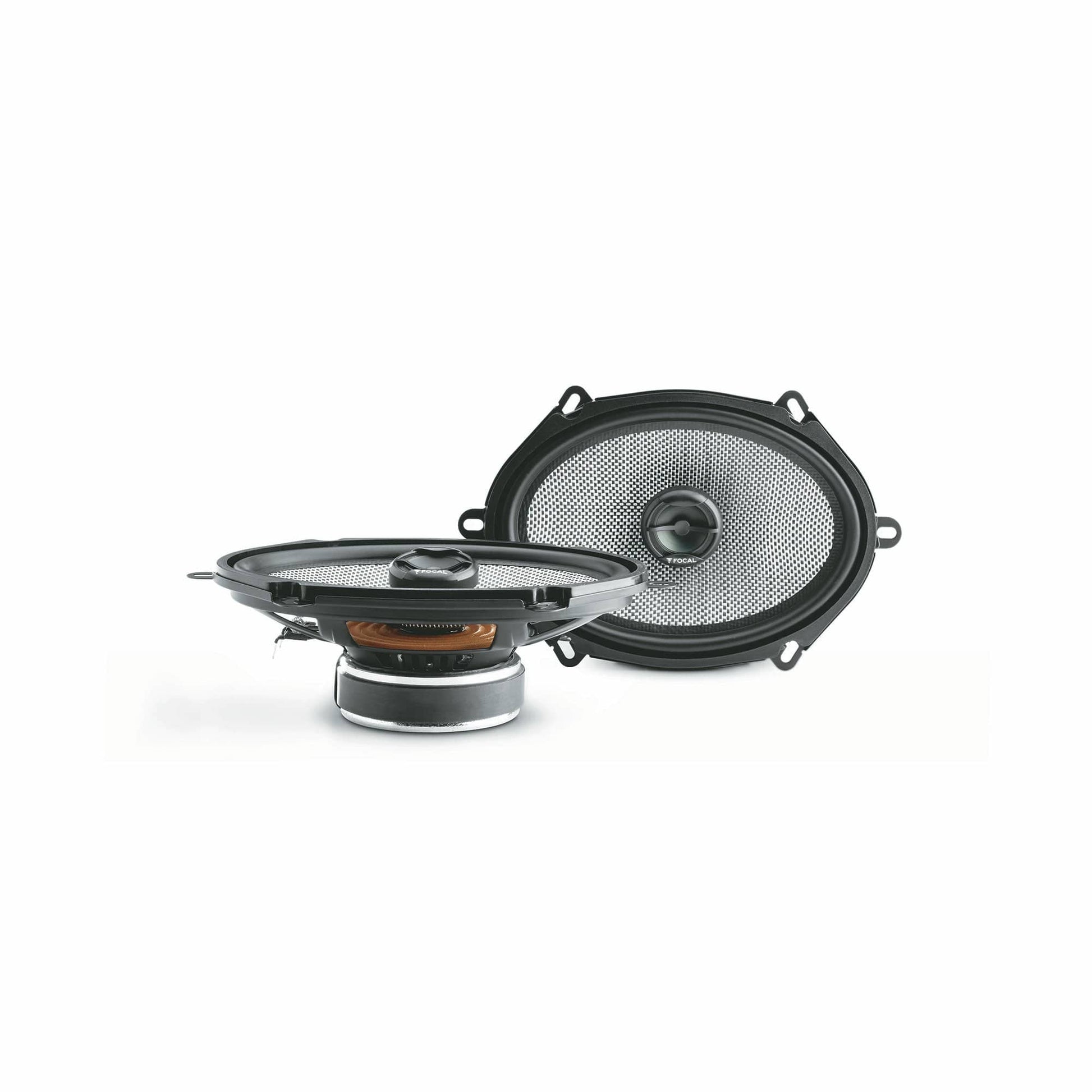

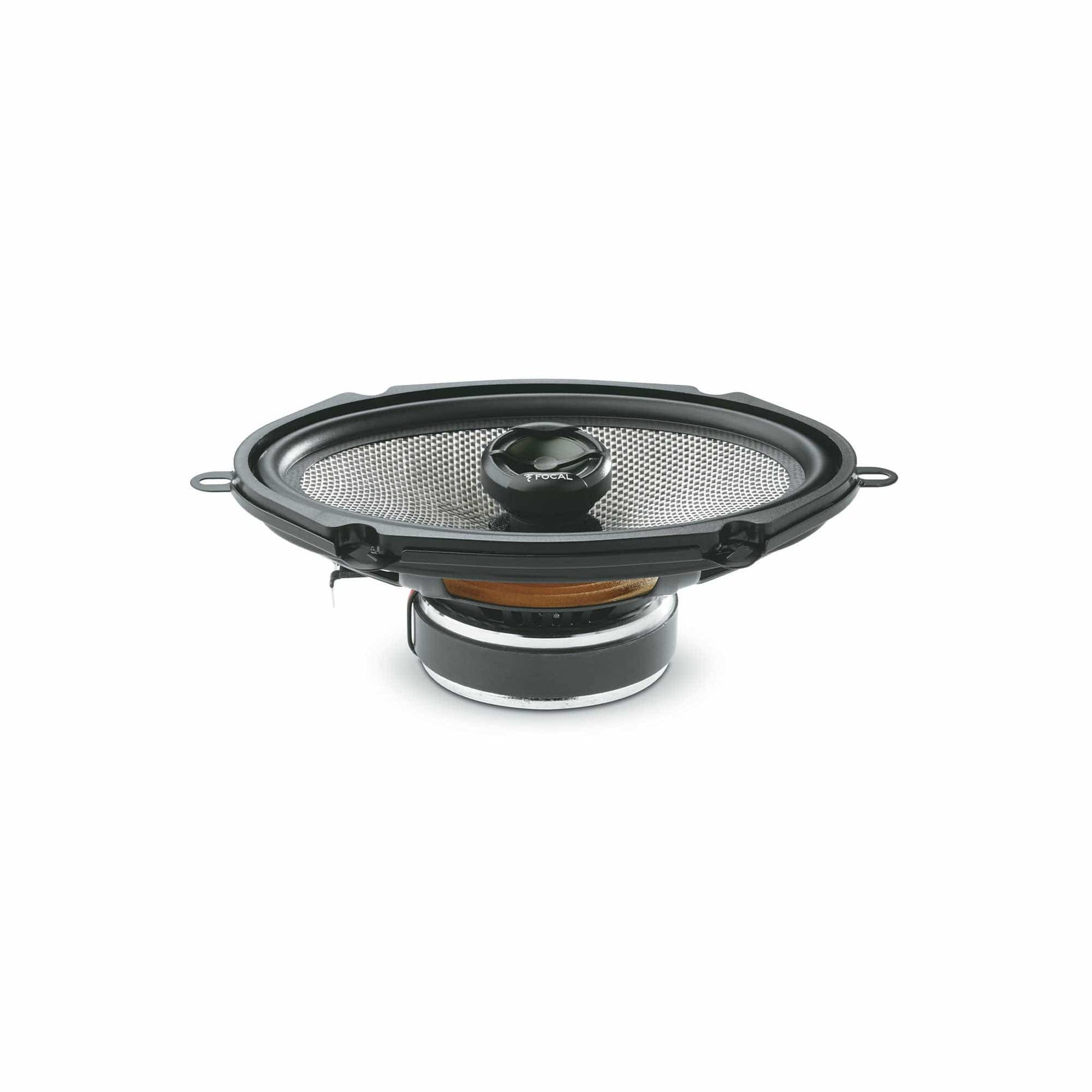

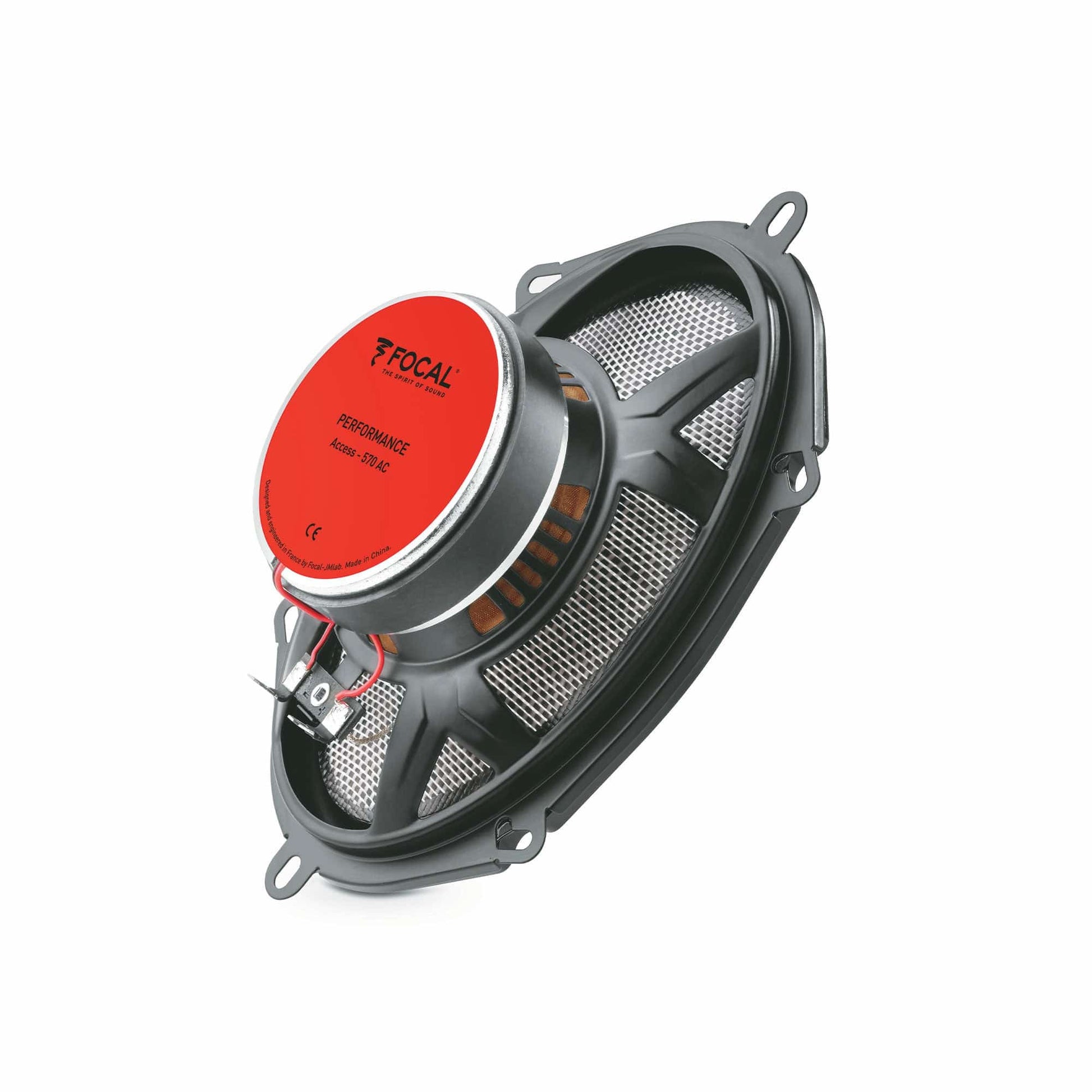

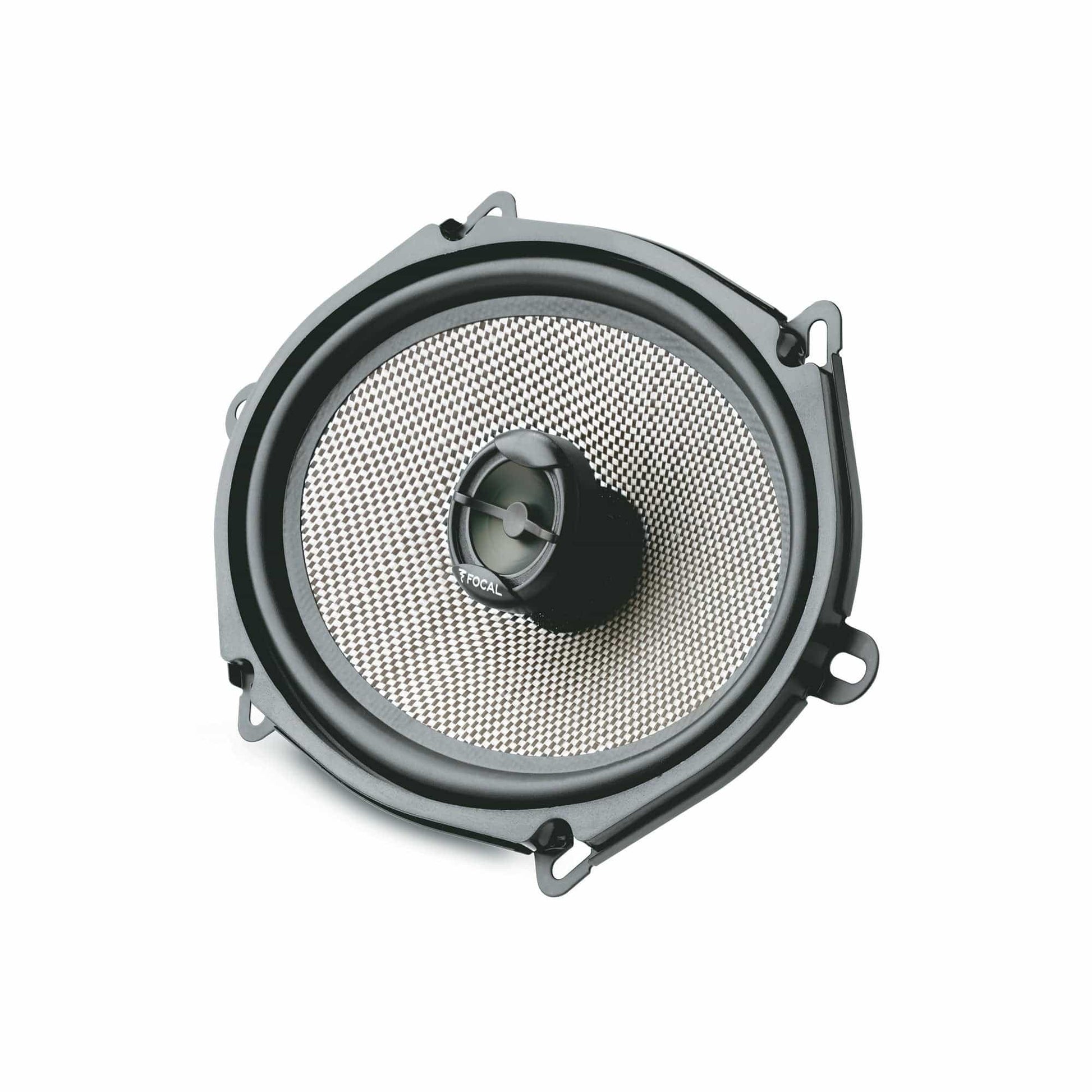

570 AC
2-way coaxial kit 13.5 x 18 cm
The 570 AC coaxial kit is specially designed to replace original audio systems in Ford®, Jeep®, Dodge®, Jaguar® and Mazda® cars. Installation is simplified thanks to its 13.5 x 18 cm dimensions, specially designed for these vehicles. What's more, the integrated crossover simplifies speaker connection: just plug in your car radio and enjoy Focal sound.
PERFORMANCE
Like all Access kits, the 570 AC benefits from technologies that are the source of quality sound: DFS® diaphragm, optimized coil for high power handling, high-efficiency motor, rotatable tweeters...
SOUND SPATIALIZATION
The aluminum inverted dome tweeters contribute to excellent spatialization of sound within the cabin. Combined with the woofers, the system delivers plenty of dynamics, with defined treble and impactful bass.
Specifications
- Product type : 2-way coaxial kit
- Membrane :
DFS - Tweeter :
130x180 mm - Filter : Integrated
- Frequency response (+/- 3dB) :
65Hz - 20kHz - Maximum power : 120 watts
- Maximum SPL (peak@1m) :
88.65 DECIBEL - Motor : Ferrite
- Nominal Impedance : 4 Ω
- Nominal power : 60 W RMS
- Sensitivity : 88.65 dB
- Surround material : Butyl
