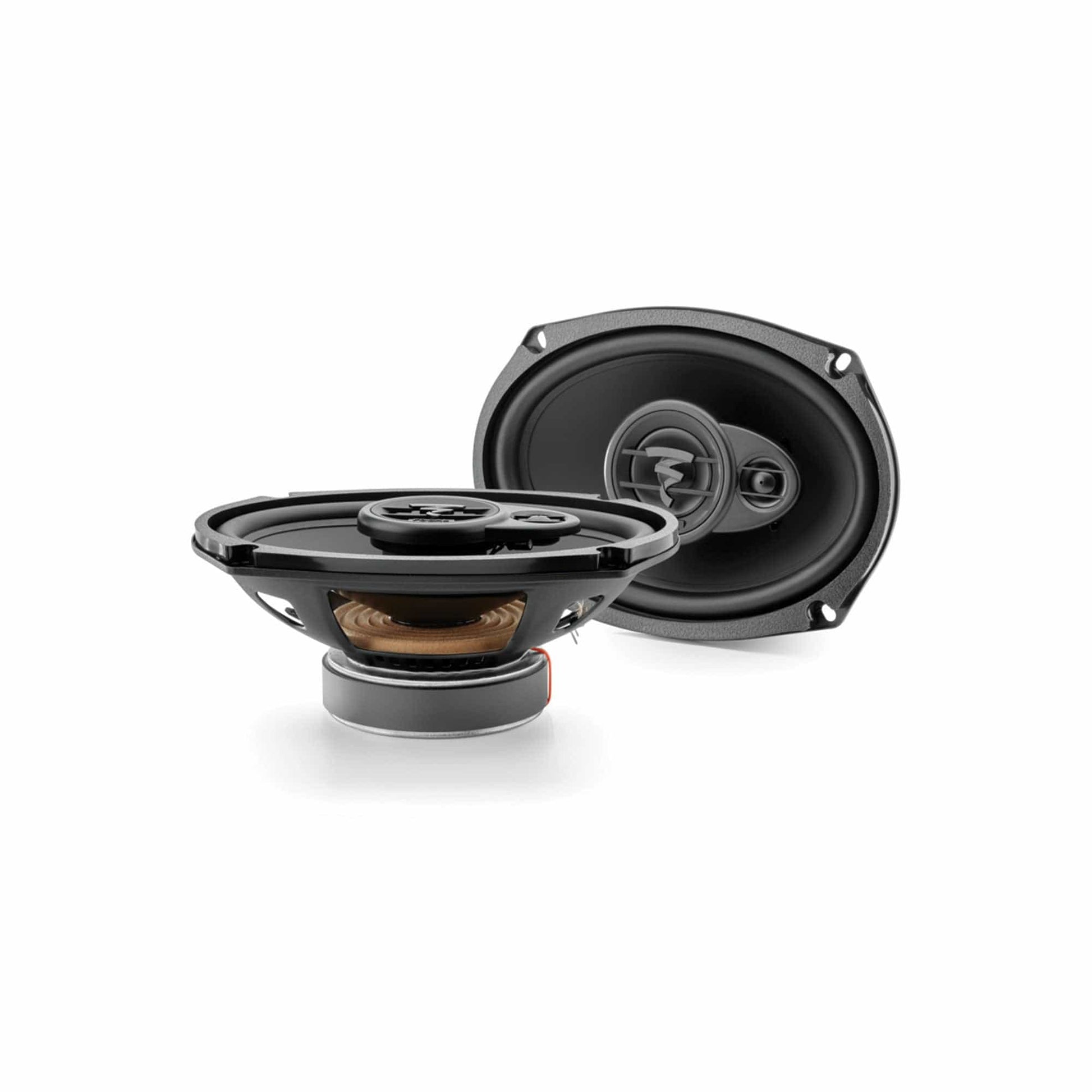

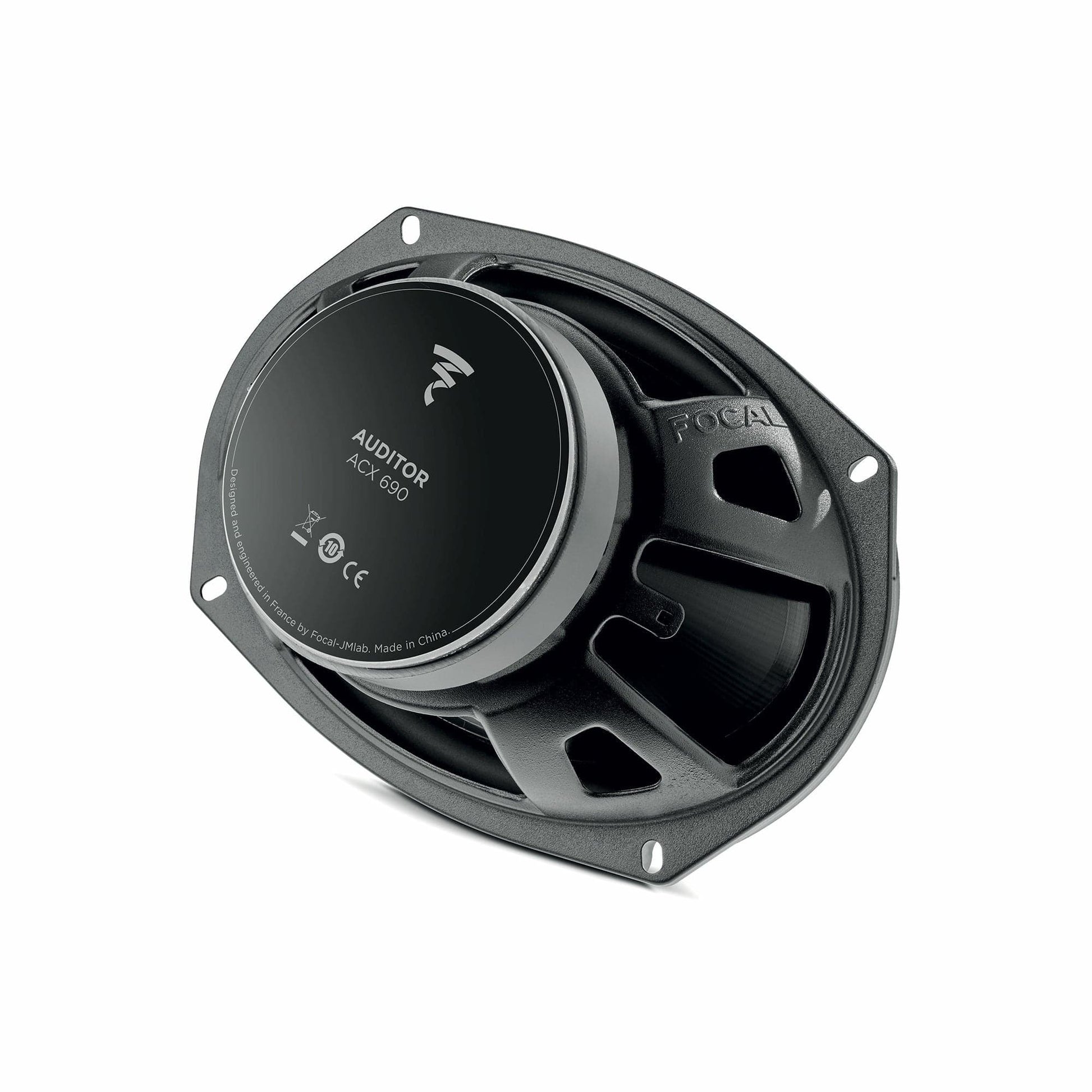

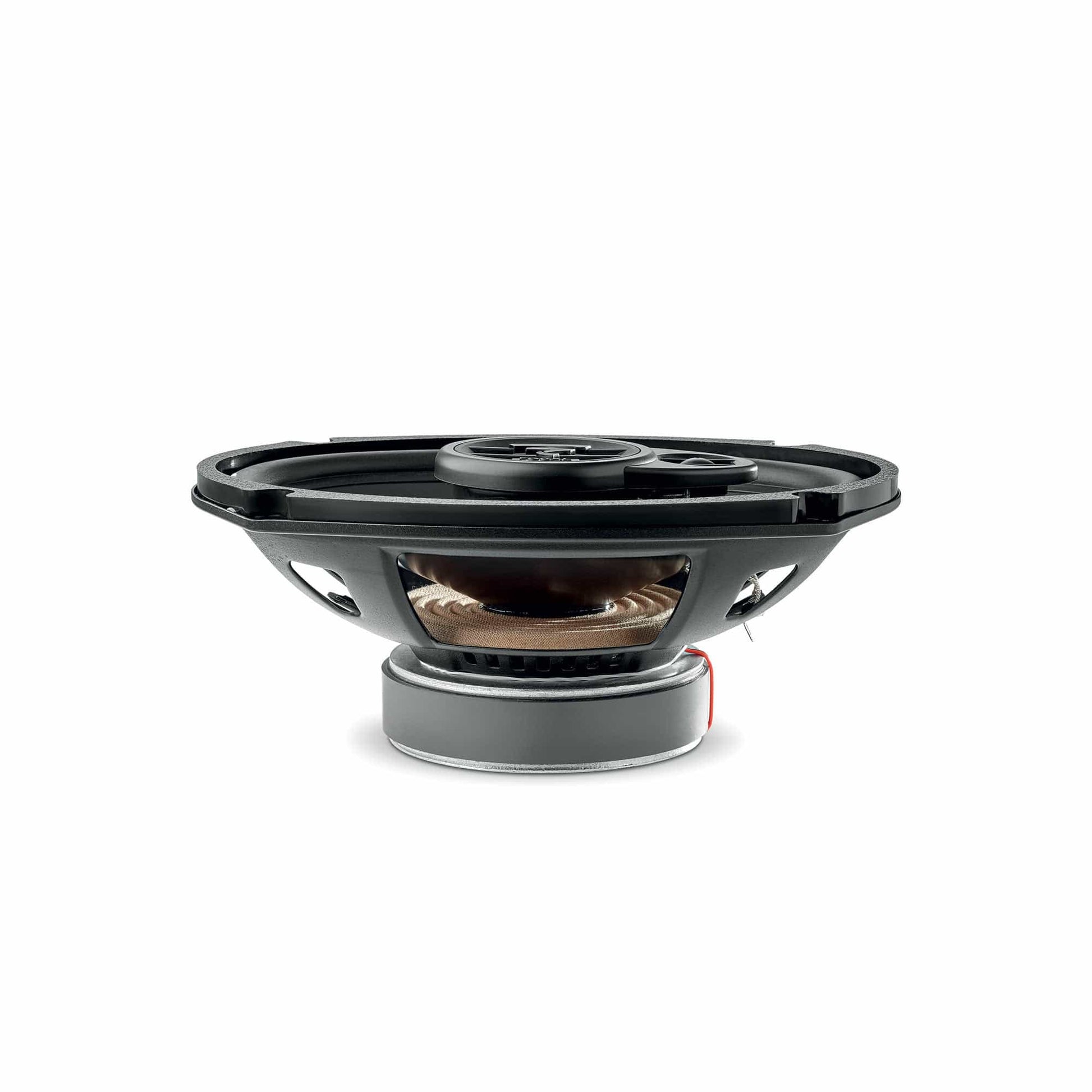

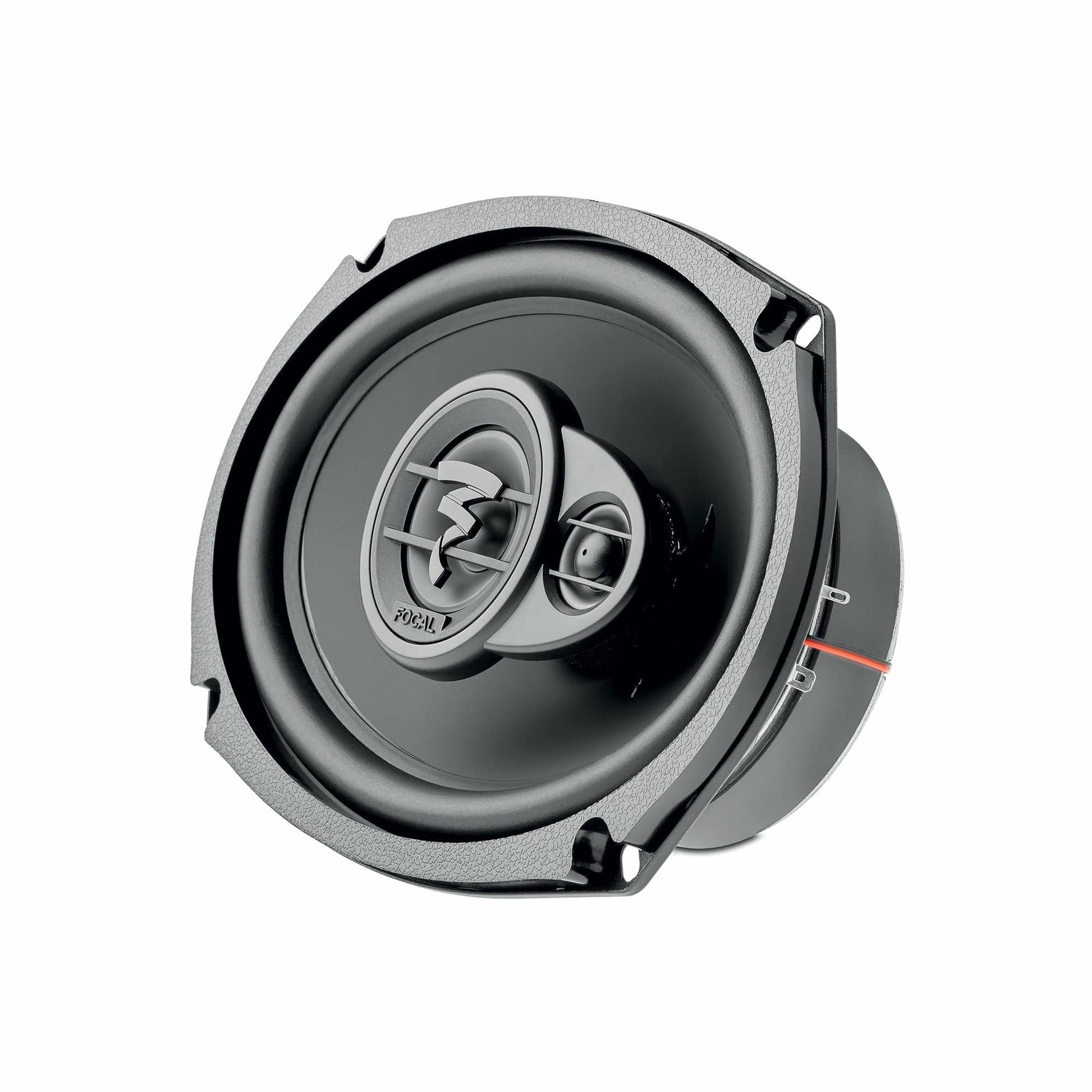

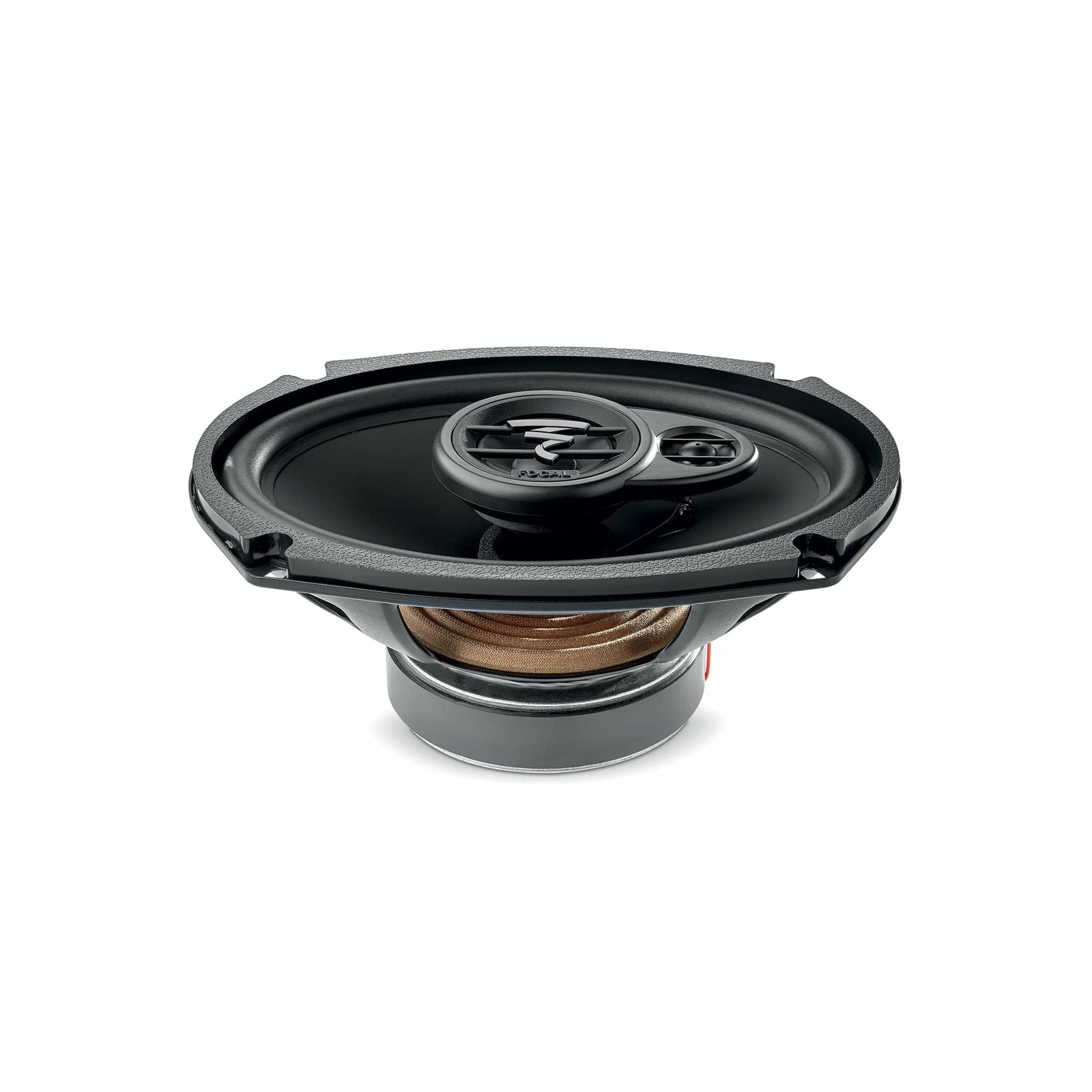

ACX 690
3-way elliptical coaxial kit
ELLIPTICAL PROFILE
Like all Auditor kits, ACX 690 features a woofer with a polypropylene membrane for neutral, dynamic sound. Its dimensions (16.4 × 23.5 cm) and elliptical profile enlarge the sound diffusion surface for enhanced performance.
FOCAL KNOW-HOW
The adjustable inverted dome mylar tweeter delivers precise treble and an enhanced soundstage. Its black lacquered finish makes it easy to integrate into contemporary interiors.
AMPLIFICATION
ACX 690 can be combined with an external amplifier or the vehicle's original amplifier. Its high power handling and high sensitivity ensure first-rate performance in its kit category.
Specifications
- Product type : Elliptical 3-way coaxial kit
- Membrane :
Polypropylène - Tweeter :
164x235 mm - Filter : Integrated
- Frequency response (+/- 3dB) :
50Hz - 20kHz - Maximum power : 160 watts
- Motor : Ferrite
- Nominal Impedance : 4 Ω
- Nominal power : 80 W RMS
- Sensitivity : 92 dB
- Surround material : Butyl
- Weight : 1800 g / 3.97 lb
- Depth behind surface (Mounting depth) : 78 mm / 3.07 in
