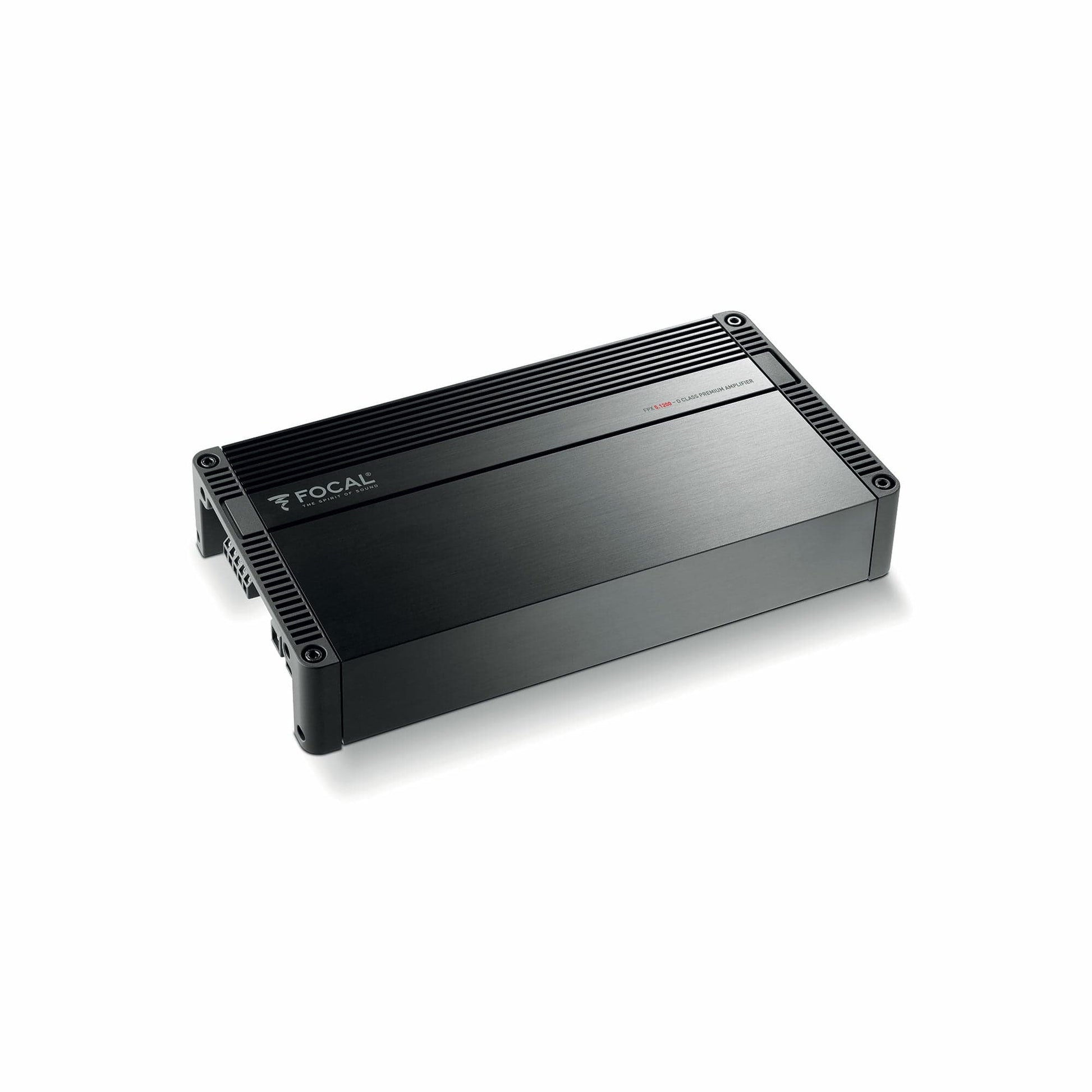

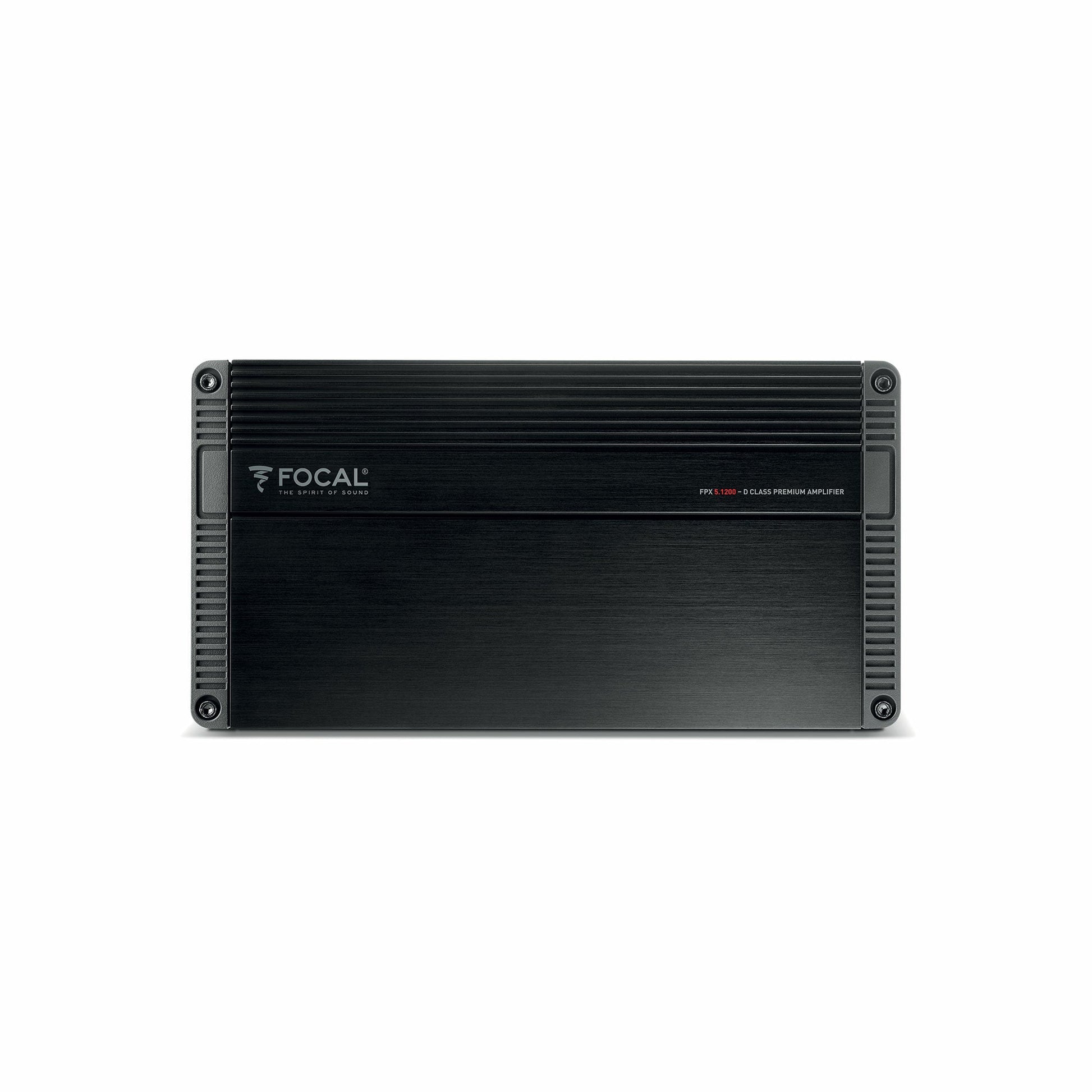

Focal FPX 5.1200 5 Channel Amplifier – SoundHub

Focal FPX 5.1200 5 Channel Amplifier

  • Sale
  • Regular price $1,399.00
Tax included.


FPX 5.1200

5-channel amplifier

Class D, FPX 5.1200 is a 5-channel amplifier delivering a maximum power of 4 x 120 watts and 1 x 720 watts at 2 ohms. Discreet, it combines high efficiency and compactness. A remote remote control allows you to manage the bass level from the driving position for optimal comfort of use and tailor-made listening.

VERSATILITY

Thanks to an input selector (2/4/6 channels) that duplicates the channels, FPX 5.1200 will always deliver 5 channels of output (front speaker, rear speaker, subwoofer), even if the car radio has only one or two stereo line outputs.

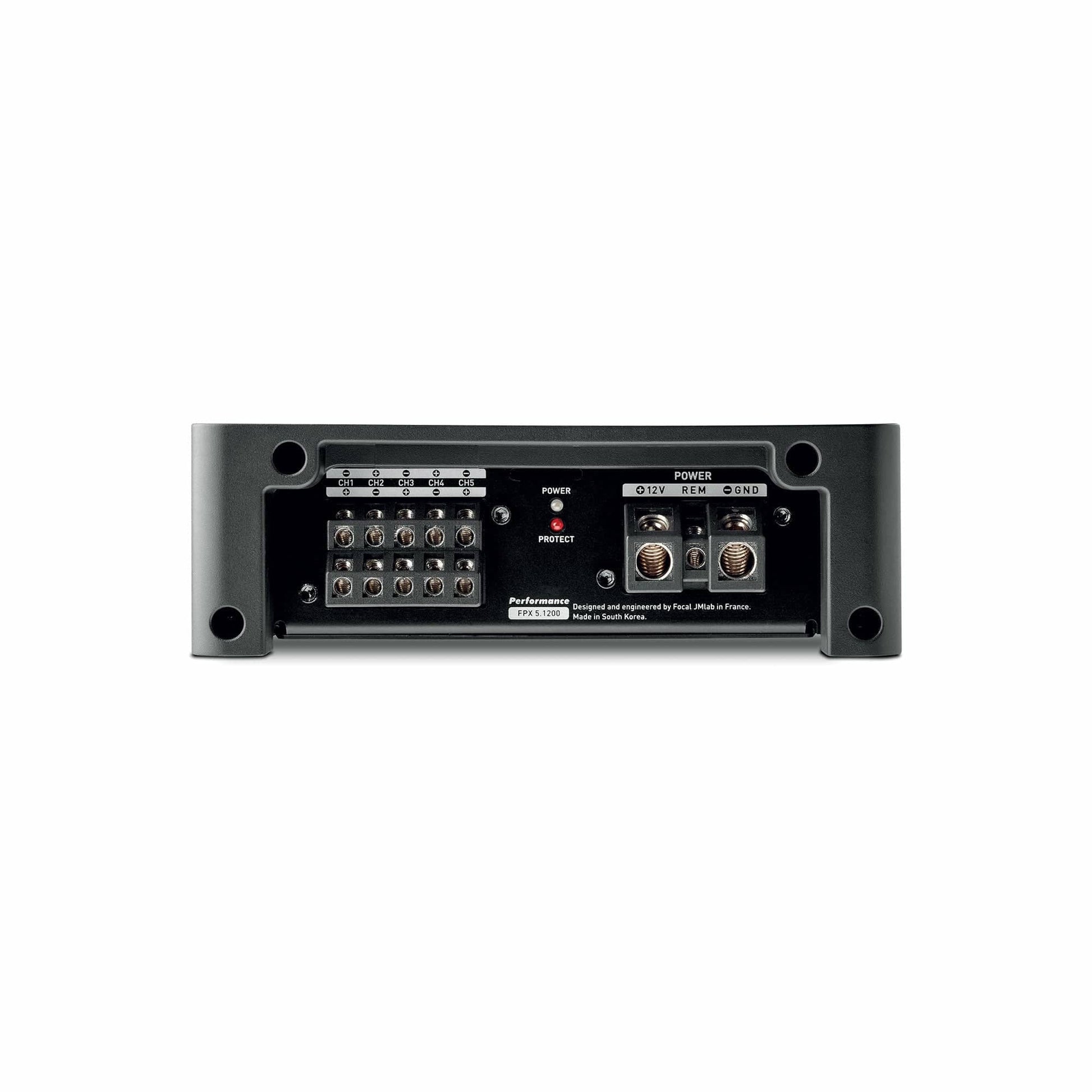

SIMPLE, POWERFUL INSTALLATION

The installation of your audio system is greatly simplified, with only one amplifier to hide and only one power supply, all in a reduced volume. Using Class D technology, this product reduces heat dissipation requirements, without sacrificing musicality and power.

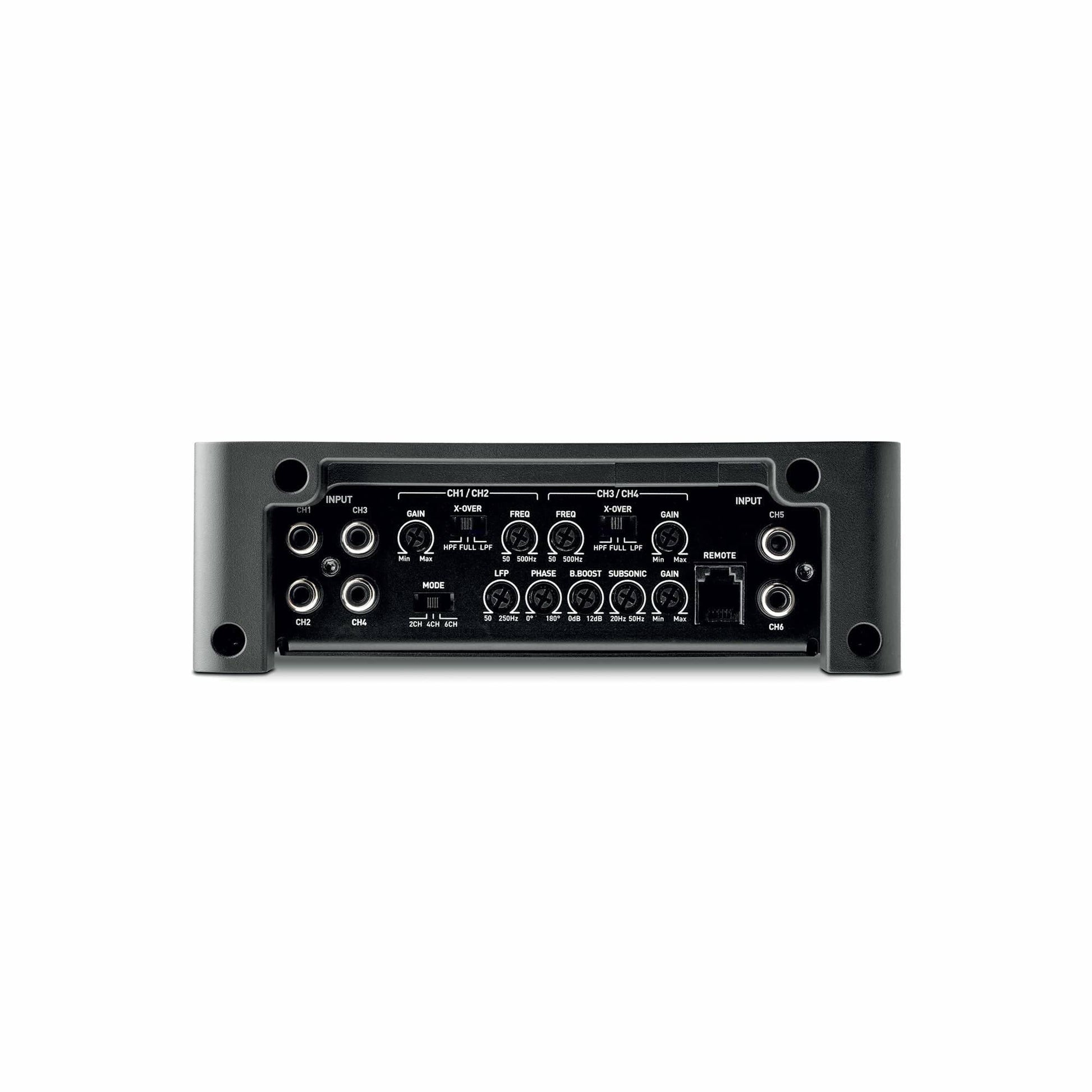

COMPREHENSIVE SETTINGS

To perfectly match the subwoofer to the rest of the system, the bass channel features an active low-pass filter, a bass EQ, a phase correction and a subsonic filter (particularly useful for eliminating frequencies too low for a small subwoofer).

AUDIO SPECIFICATIONS
CEA power (4 ohms) 4x75 Wrms +
1x420Wrms
Max. power (2 ohms) 4x120Wrms +
1x720Wrms
Power max (channels 1
to 4 bridged at 4 ohms) +
channel 5 at 2 ohms
2x240Wrms +
1x720Wrms
Bandwidth (-3dB) 10Hz - 20kHz
THD 0.03%
SNR (1W/A) > 75dB

GENERAL FEATURES
Subsonic filter 10Hz-50Hz
(24dB/oct)
High-pass/low-pass filter 50Hz – 500Hz
Bass boost 0 to 12dB linear
Phase 0 to 180° linear
Full-range function ✓
Mirror mode ✓
Standby current (A) 1,7
Protections Short circuit/low impe-
dance/reverse polarity/
dC/voltage drop/overheat
protection
Dimensions
(LxWxH)
(337x175x57mm)
Weight (kg) 9lbs (4.1kg)
Operating voltage range 8.3 to 16V
