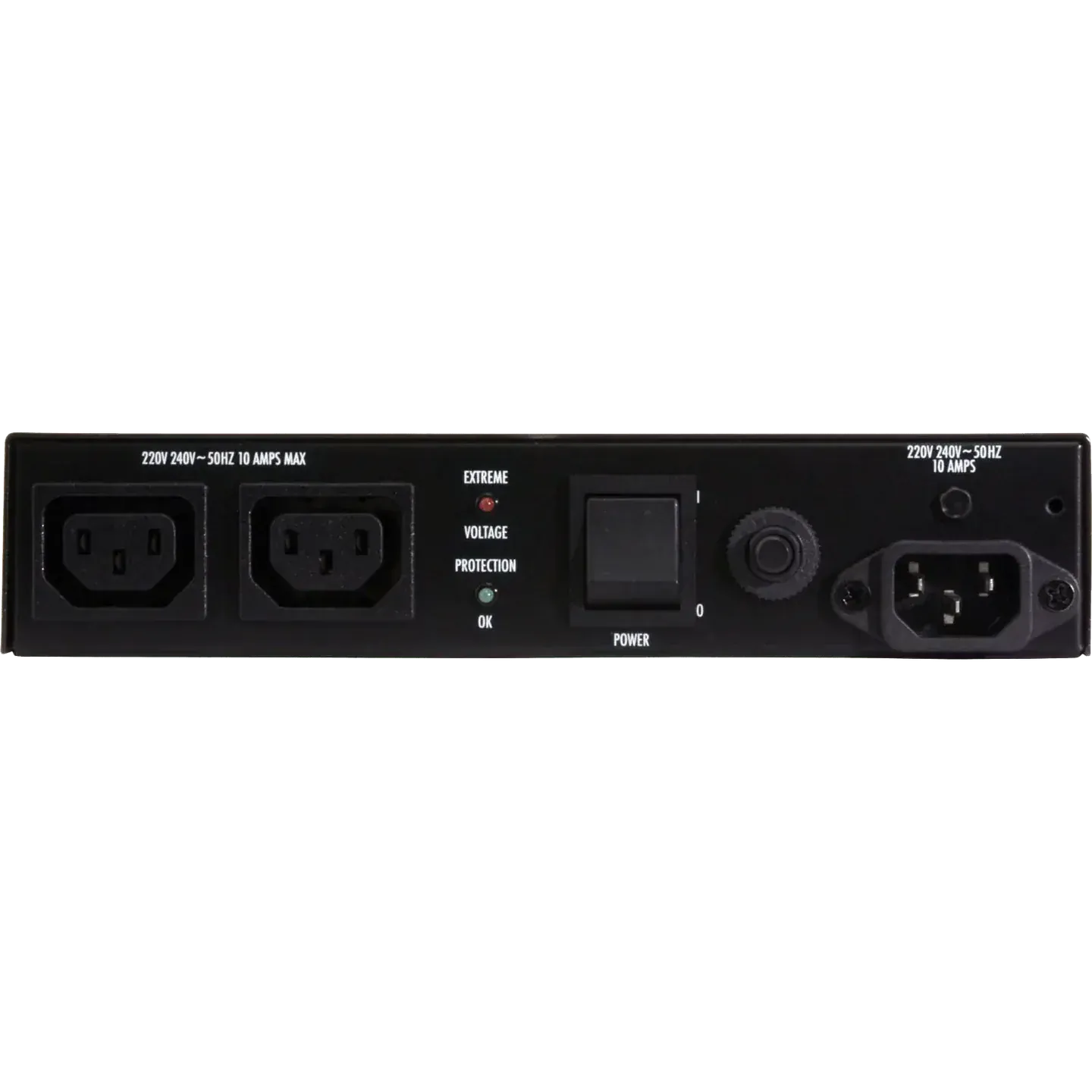

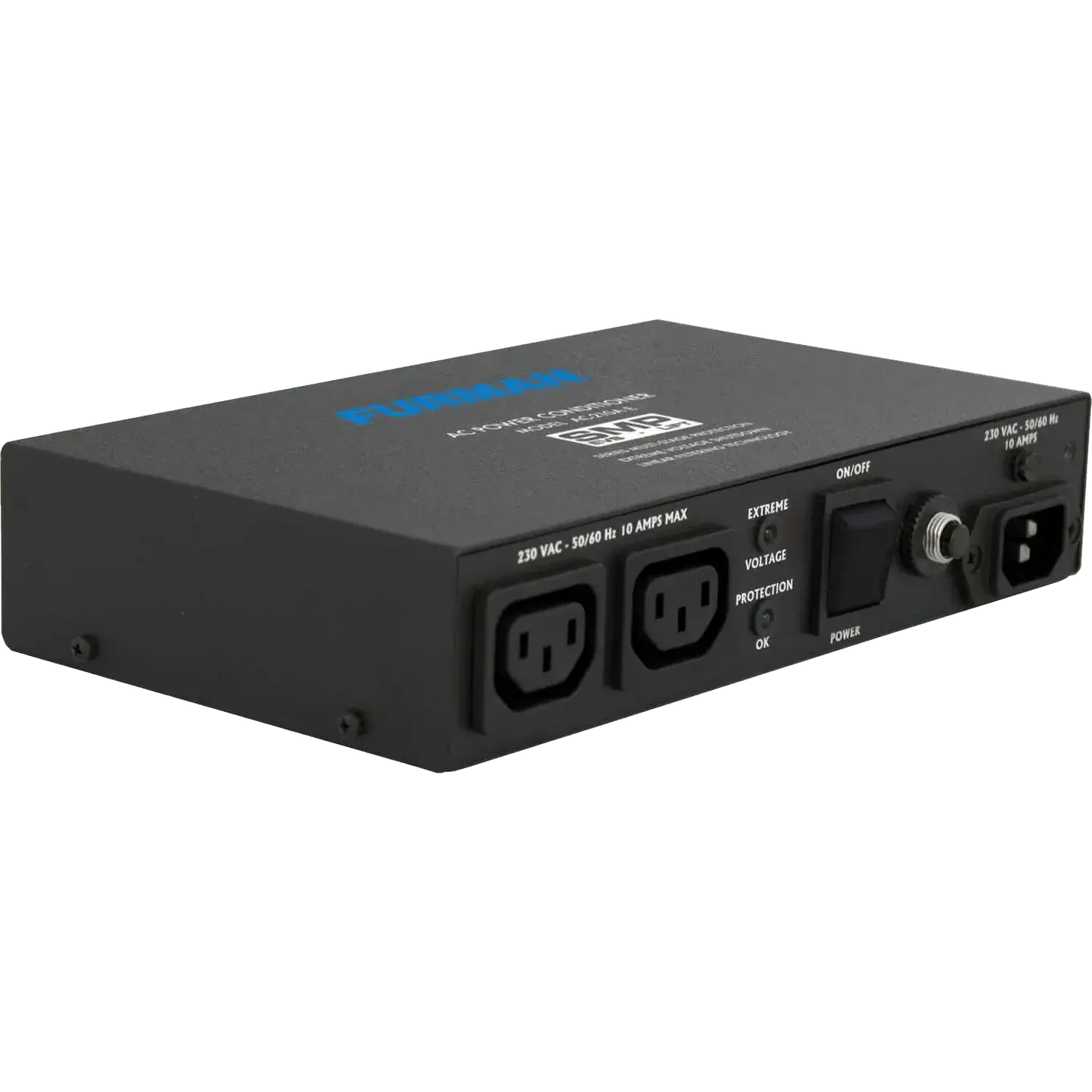

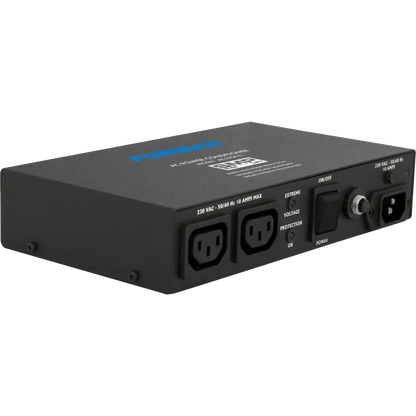

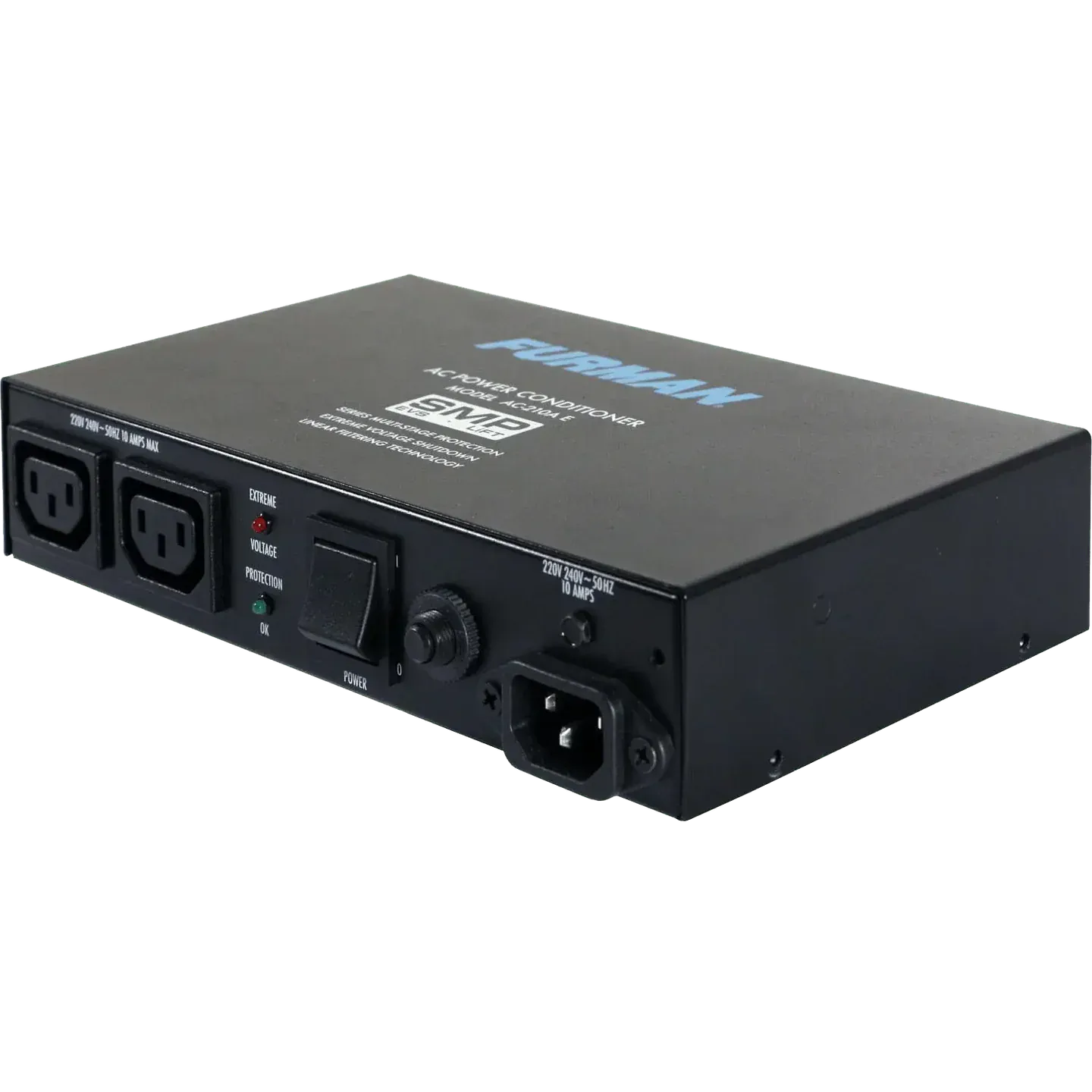

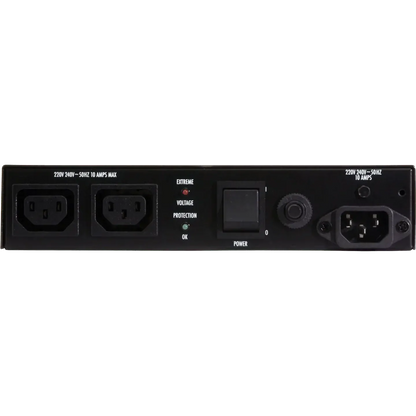

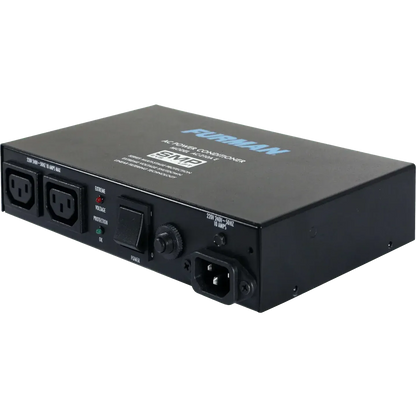

Furman AC-210A E Compact Power Conditioner
Furman AC-210A E Compact Power Conditioner
SMP (Series Multi-Stage Protection Plus)
Furman SMP surge suppression virtually eliminates service calls. Traditional surge suppression circuits sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system and repair of your surge suppressor. Not so with SMP. With Furman SMP, damaging transient voltages are safely absorbed, clamped, and dissipated – no sacrificed parts, no service calls, no downtime.
Unique to Furman SMP is its unparalleled clamping voltage, even when tested beyond the grueling specifications of the USA/CIDA A-1-1 test. While other designs offer clamping voltages well above 300VAC peak (far beyond long-accepted professional standards), SMP clamps at 376VAC peak, 275 VAC RMS even when tested with multiple 6000VAC – 3000 Amp surges! This unprecedented level of protection is only available with Furman SMP technology.
LiFT (Linear Filtering Technology)
Unfortunately, traditional AC filter/conditioners have been designed for unrealistic laboratory conditions. Prior technologies could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destroyed digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman SMP with LiFT takes another approach, ensuring optimal performance through linear filtering and no leakage to ground.
E.V.S. (Extreme Voltage Shutdown)
Furman trusted overvoltage circuitry protects against all-too-frequent accidental connections to extreme voltage by shutting off the incoming power until the overvoltage condition is corrected.
Compact Chassis Design
At only 1.75”H x 5”W x 8.5”D, and weighing in at only 3 lbs., the compact, low-profile design of the AC-210A E makes it ideal for mounting to the back of a flat-screen television, or anywhere that discretely located, remote power protection and purification are needed.
EXPLORE THE AC-210A E POWER CONDITIONER
SMP TECHNOLOGY
Provides the highest level of surge & spike protection available
LiFT
Linear AC power filtering to ensure clean power for unequaled audio & video clarity
Auto-Reset EVS Circuitry
Linear AC power filtering to ensure clean power for unequaled audio & video clarity
Zero Ground Contamination
Protects critical video circuits
10 Amp Rating
10 amp rating featuring circuit breaker for added protection
LED Indicators
Provides information on power quality and operational status of unit
Sleek Design
Compact chassis design easily attaches to any flat screen television mount or any other remote location
Technical Specifications
Line Voltage
240 Volts
AC Current Capacity
- Input: 10 Amp capacity required
- Output: 10 Amp RMS (both outlets combined)
AC Noise Attenuation (Transverse/Differential Mode)
- >40dB @ 100kHz
- >50dB @ 500kHz
- (Linear attenuation curve from 0.05 to 100 ohms line impedance)
Transient Voltage Surge Suppression
- 230VAC – Series Multi-Stage Protection
- Non-Sacrificial with Zero Ground Contamination
- 376V peak clamping @ 6000V/3000A Input
Extreme Voltage Shutdown
275 VAC (Auto-Reset)
