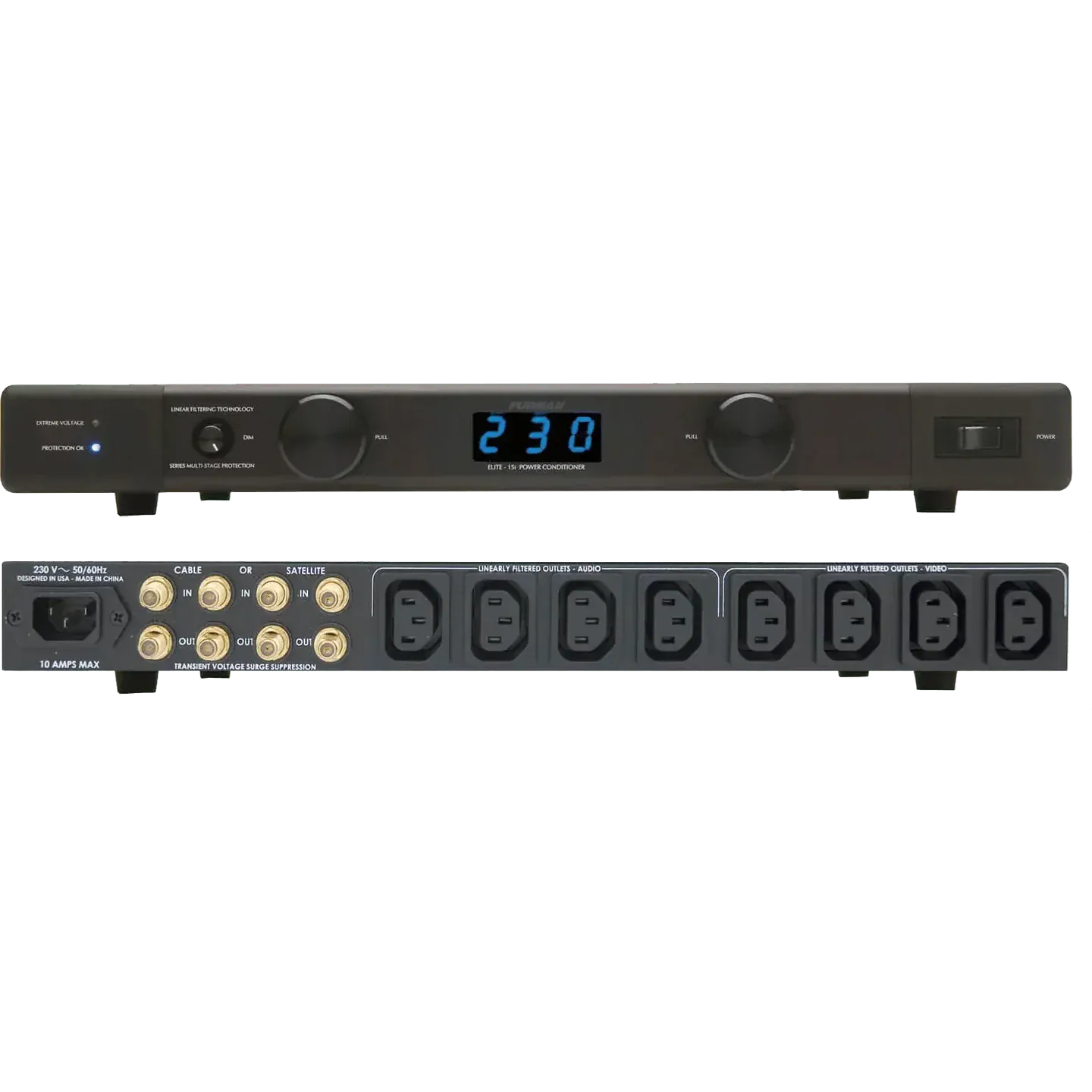

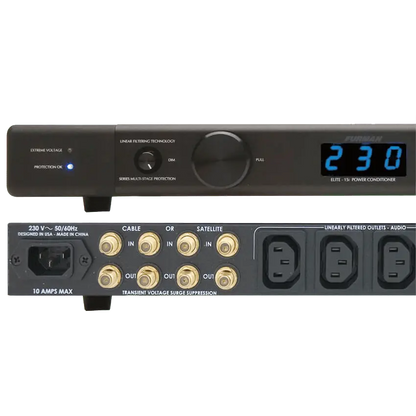

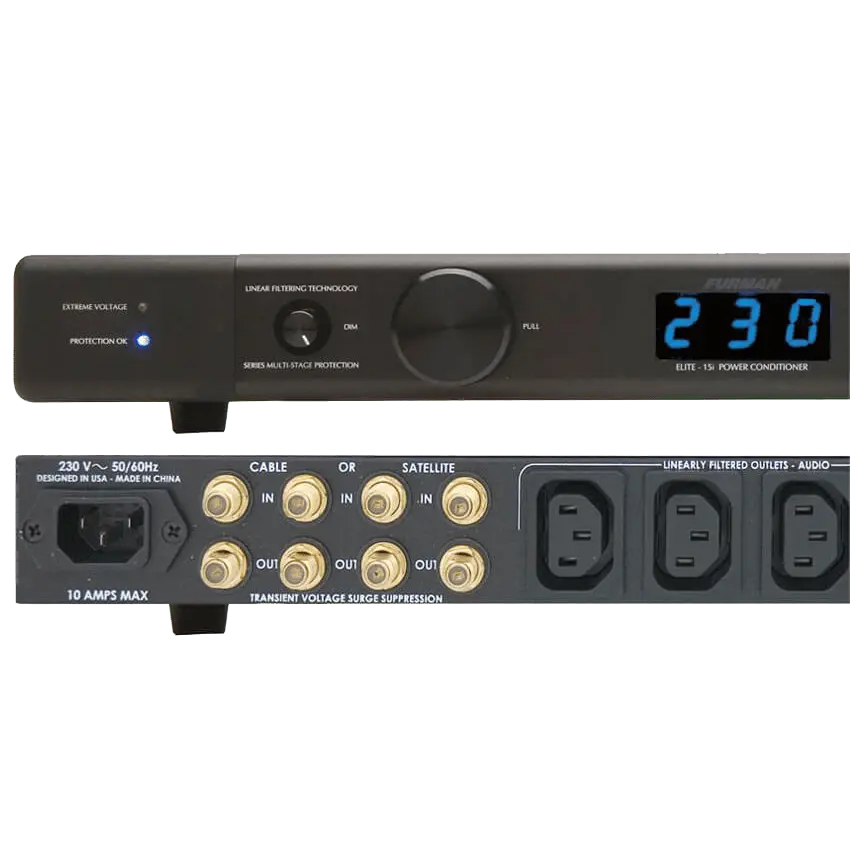

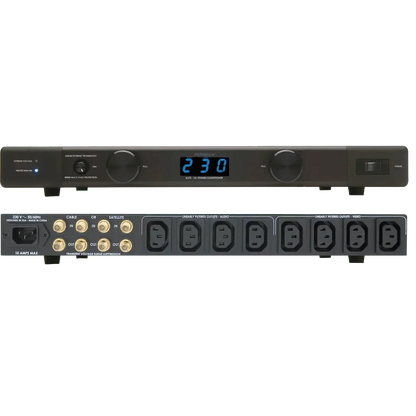

Furman ELITE-10 E I Power Conditioner
Furman ELITE-10 E I Power Conditioner
The extreme AC demands encountered in the professional audio/video arena have required technological developments far in excess of typical home theater/audiophile power products. In studios, live sound, and broadcast facilities, breakdown is unacceptable. Equipment failure or poor performance is costly. The same is true of today’s home theater. The solution-based technology, extensive engineering expertise, and robust build quality have answered the challenge of today’s corrupted power lines, leading to the creation of the Elite-10 E i.
Today’s power lines are plagued with RF and EMI noise. When connecting sensitive equipment to a home power outlet, AC noise couples into the system's critical components. This noise masks low-level signals and cripples performance. Low-level content is critical because it relays the crucial harmonics and ambience in audio, as well as the depth and clarity in video. With exclusive Linear Filtering Technology, televisions, projectors, DVD players, amplifiers, and processors are fed linearly-filtered AC power. This dramatically reduces noise, ensuring consistent peak operation regardless of load conditions or the time of day. For the first time, you will see and hear your theater or audio system as it should be—uncompromised.
Another critical feature is the exclusive Series Multi-Stage Protection. This virtually maintenance-free surge suppression assures the highest level of AC protection possible, without sacrificing itself when the offending surge is severe—no damaged equipment, no service calls, no downtime. The digital AC voltage meter allows precise measurement of the incoming AC line voltage, a valuable asset when monitoring systems connected to today’s potentially poor power grids.
Further, the famous retractable front panel LED lamps allow easy viewing of either a rack or cabinet full of equipment, even when your theater lights are off.
When employing the Elite-10 E i, you will notice far clearer, stunningly focused sound and visual images from your system. Video presentation will be crisp and colors true with greater gray and black scale definition, as well as noticeably improved depth and clarity. Many of the technological advances previously available only in the flagship Reference Conditioners are cornerstones of the Elite series. Now everyone can reap the benefits of unrivaled power purification and unequalled surge protection.
EXPLORE THE ELITE-10 E I POWER CONDITIONER
Enhanced Clarity
Linear Filtering technology for unequaled audio and video clarity
Multi-Stage AC Surge Protection
Series Multi-Stage Protection provides virtually mainenance-free AC surge suppression
LED Cabinet Illumination
Retractable LED lamps illuminate a cabinet or rack full of equipment
Zero Ground Contamination
Zero ground contamination circuitry protects critical digital components
Technical Specifications
Line Voltage
240 Volts
AC Current Capacity
Input: 10 Amp capacity required
Output: 10 Amps RMS (maximum, all outlets combined – continuous)
Linear Noise Attenuation
Transverse (Differential) Mode:
>40 dB from 10Khz. – 100 kHz.
>80 dB from 100 Khz. – 1GHz.
(Linear attenuation curve from 0.05 – 100 ohms line impedance)
Transient Voltage Surge Suppression
230VAC Line (Series Multi-Stage Protection, non-sacrificial with zero ground contamination, 266V peak clamping @ 6000V 3000A input)
Cable / Satellite
Less than .1dB line loss
Outlets
4 (Linearly filtered outlets)
4 (Linearly filtered outlets with additional ultrasonic filtering for video components)
Dimensions
54.6mm H x 431.79mm W x 374.65mm D (Standard 1 RU height without feet)
Weight
5 kg
Power Consumption
2 Watts for display and control circuits independent of actual load
