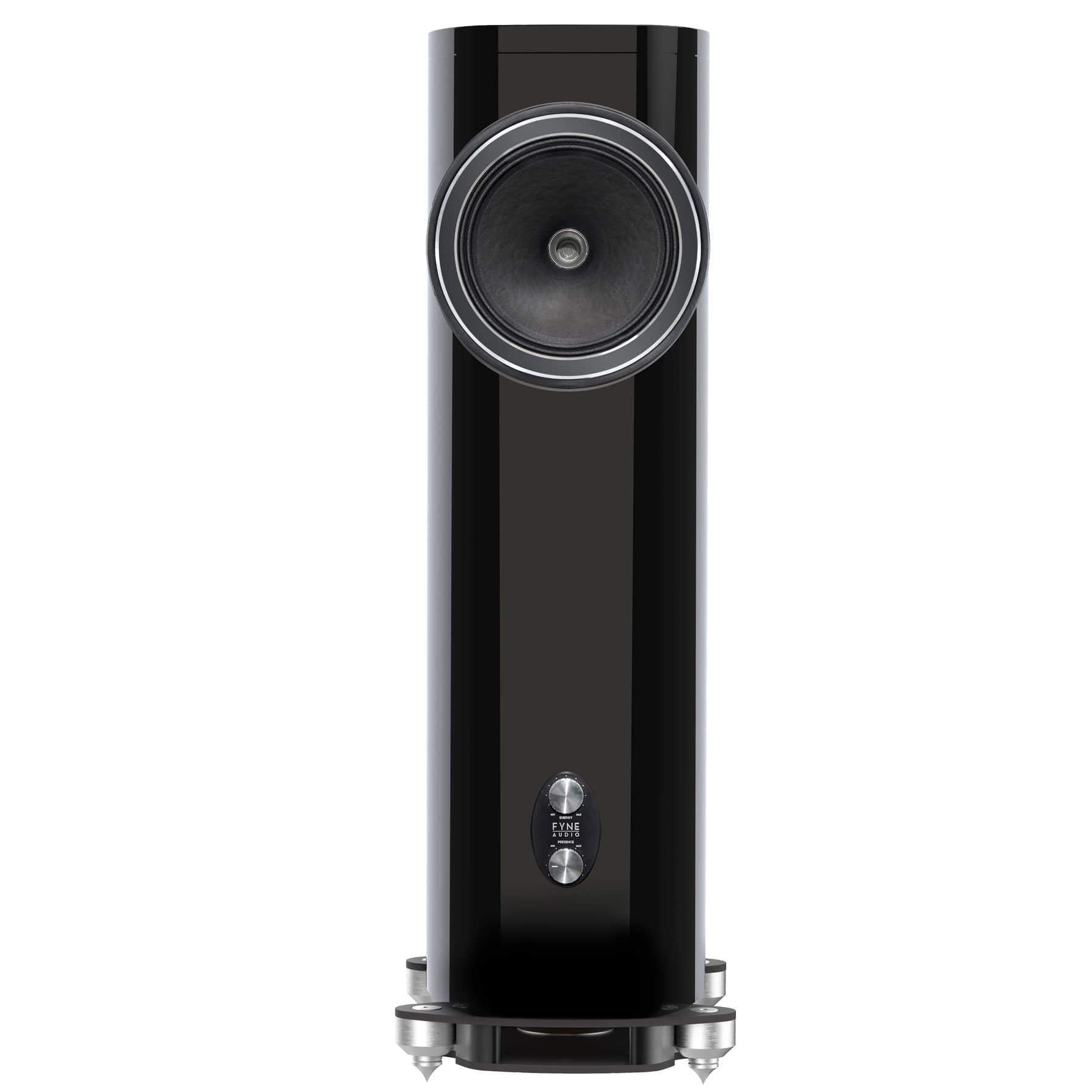

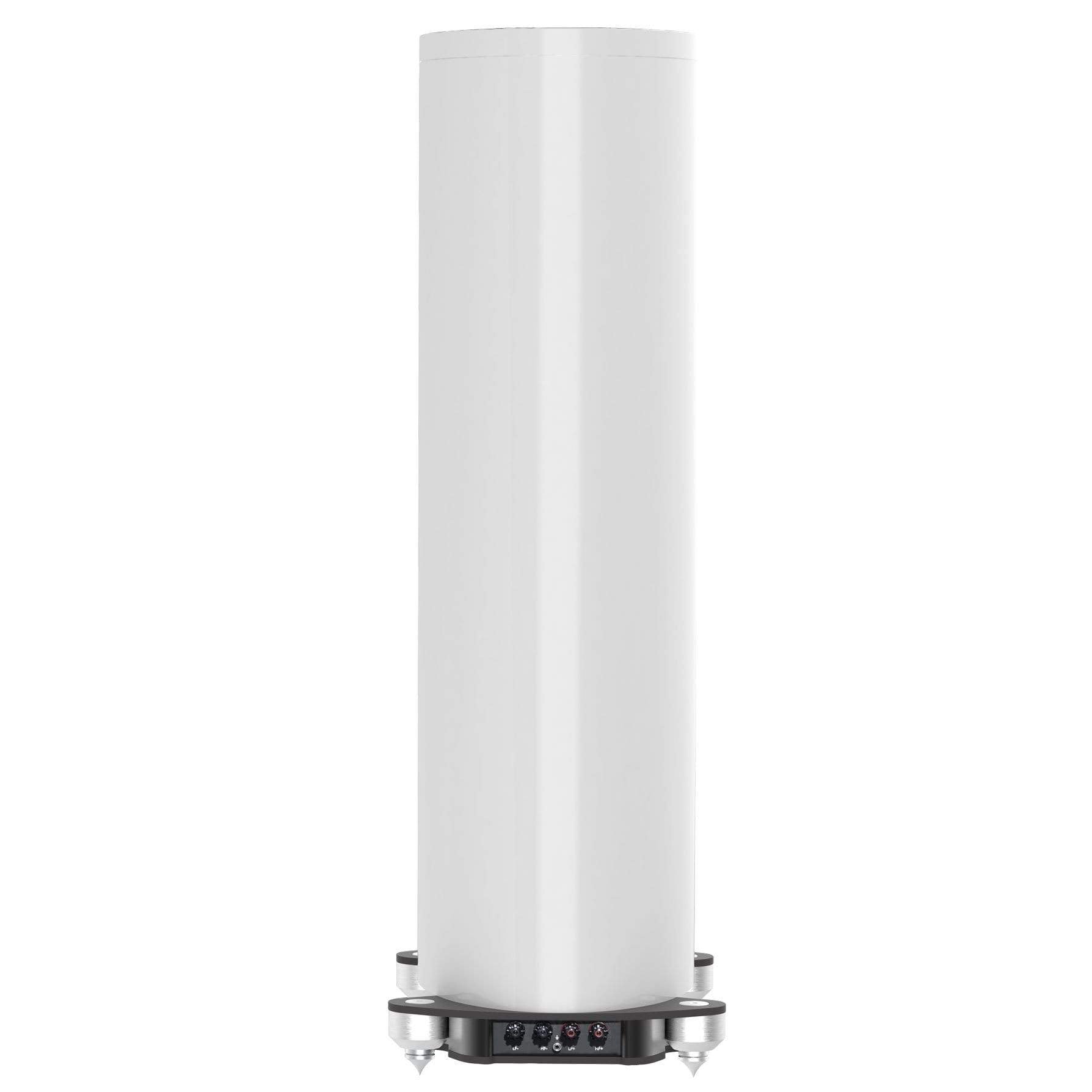

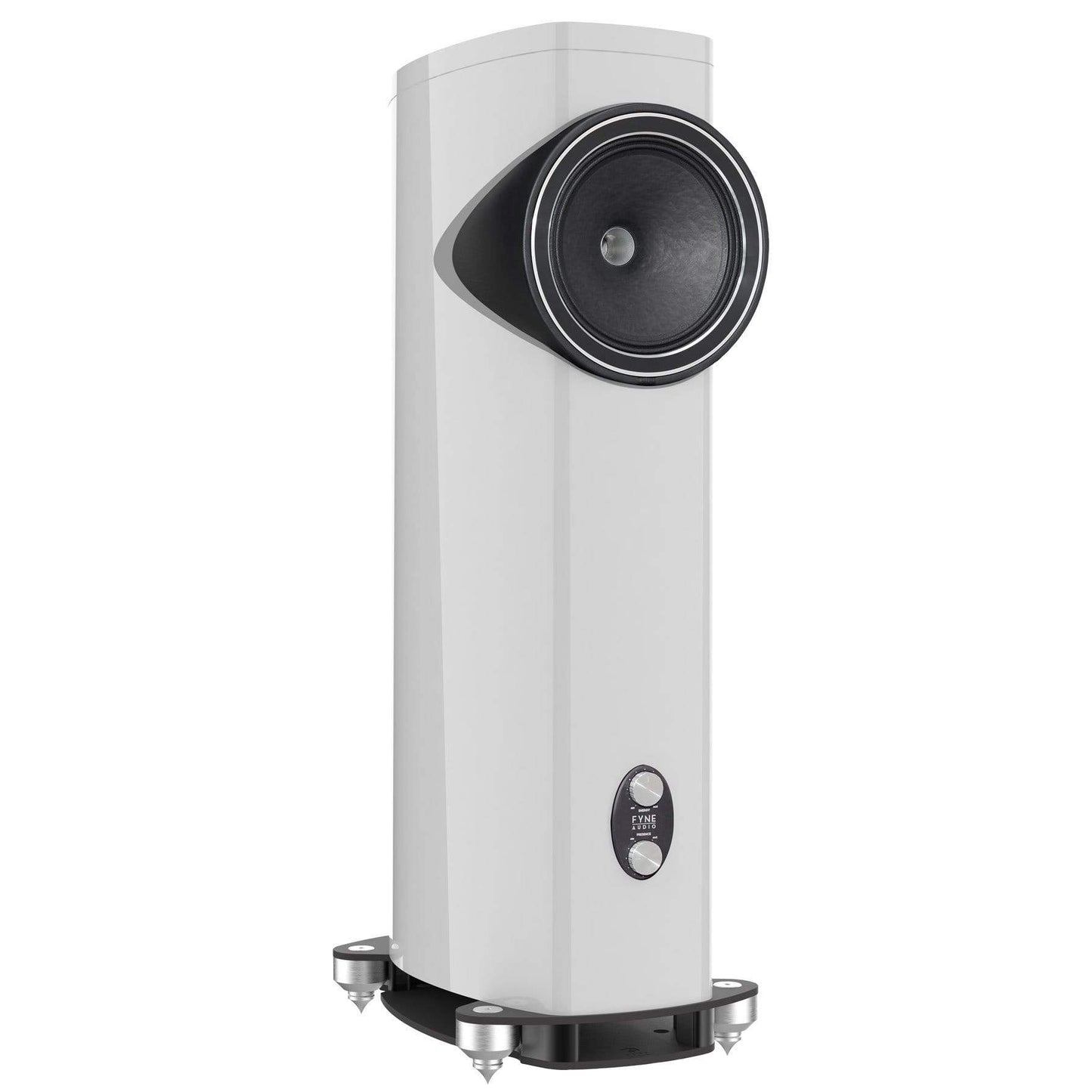

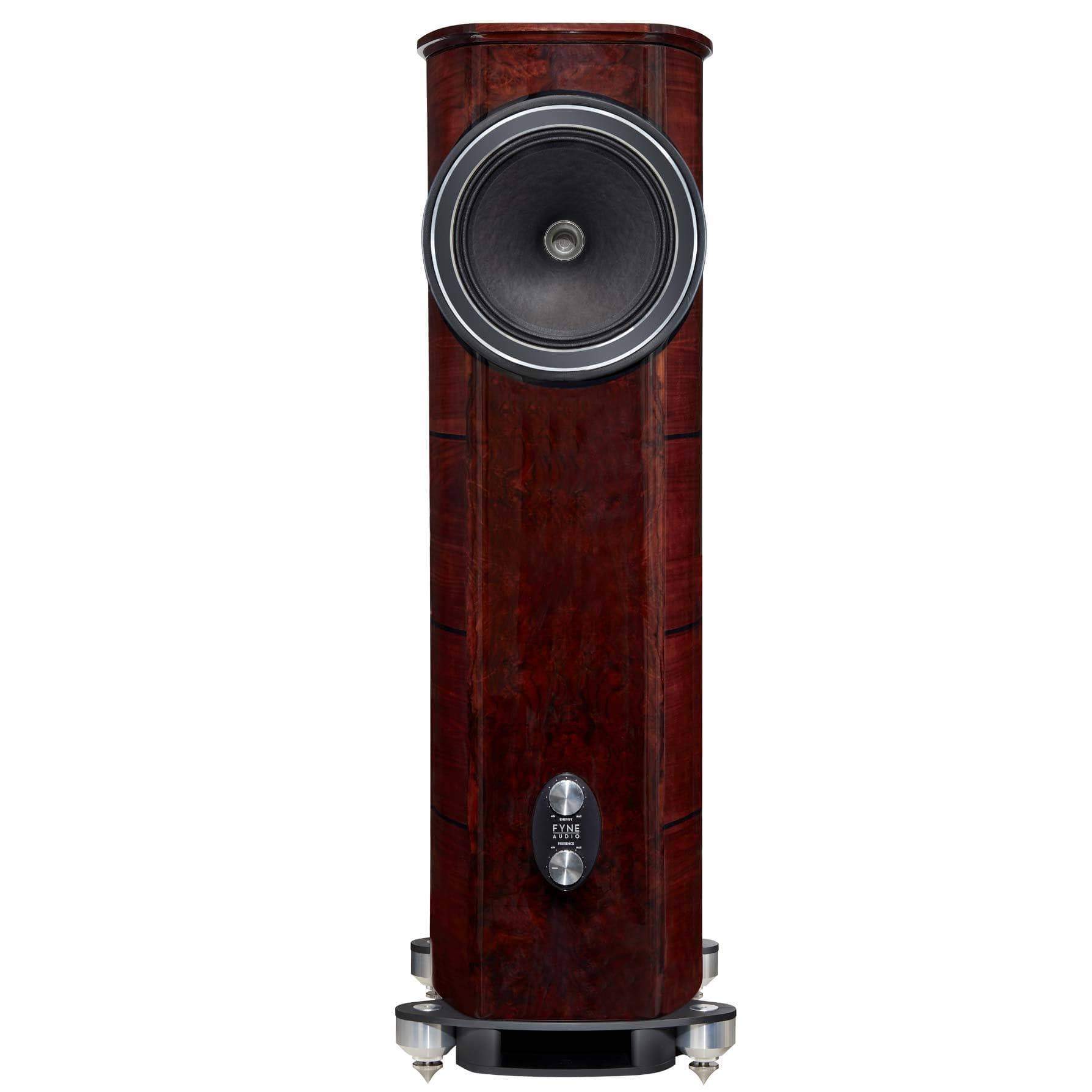

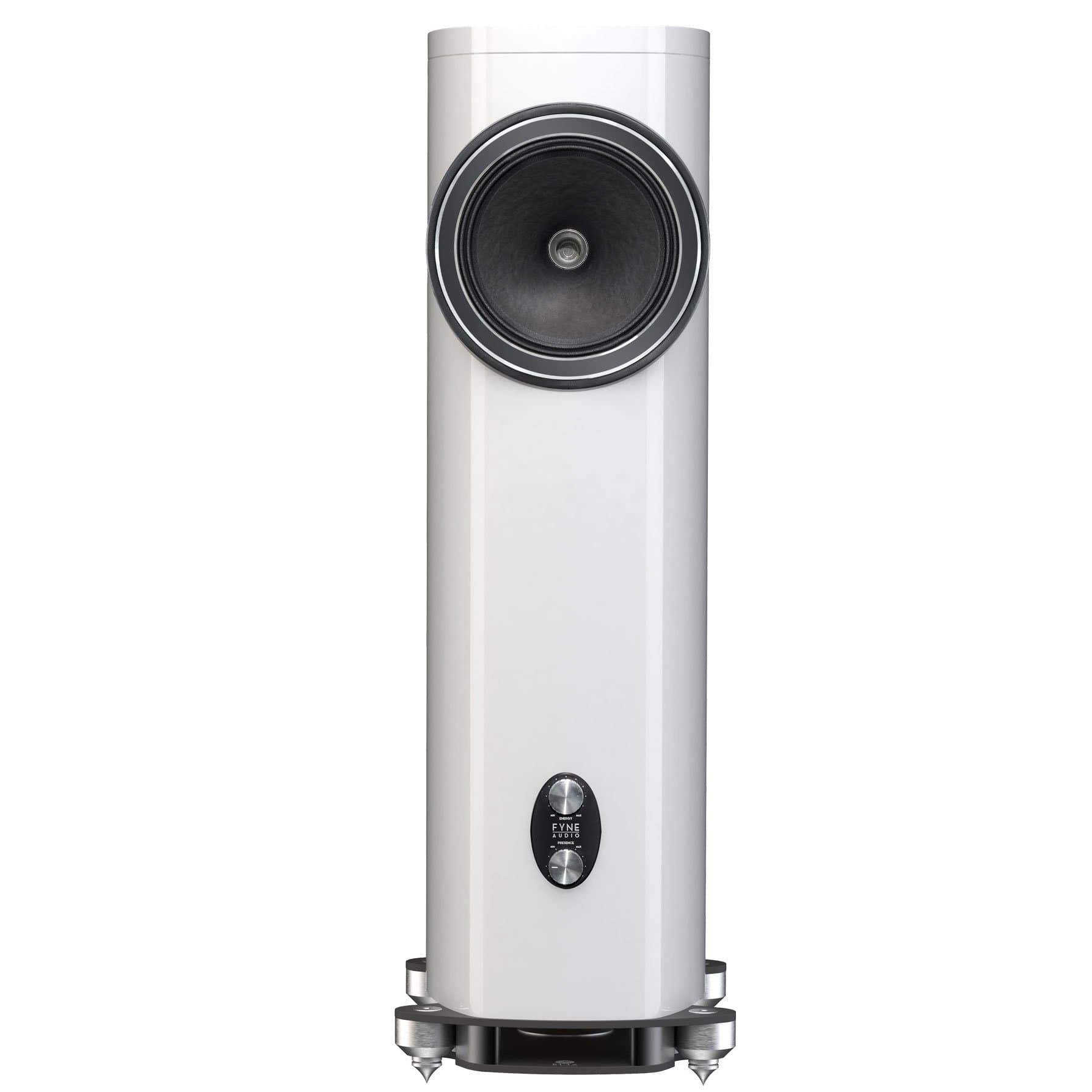

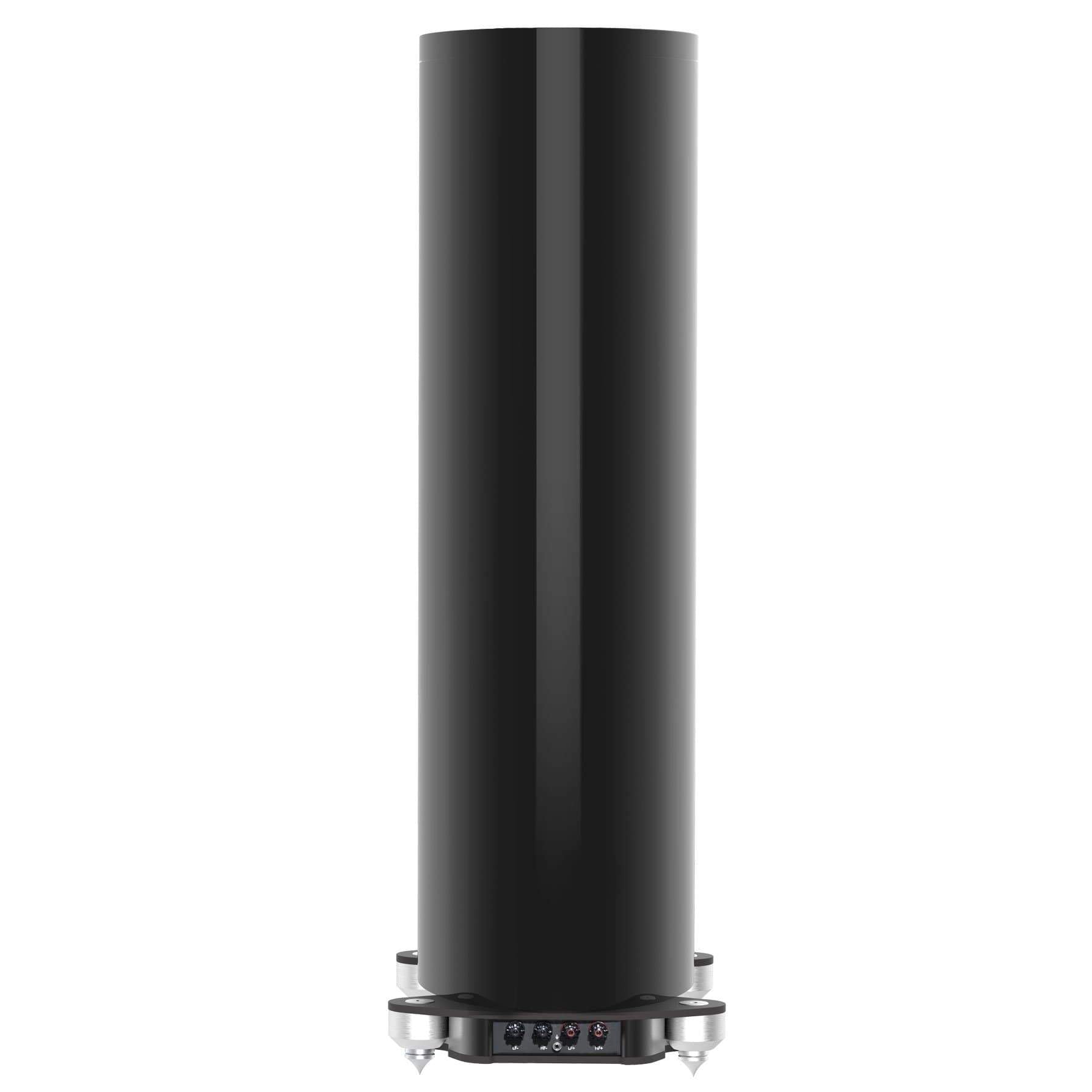

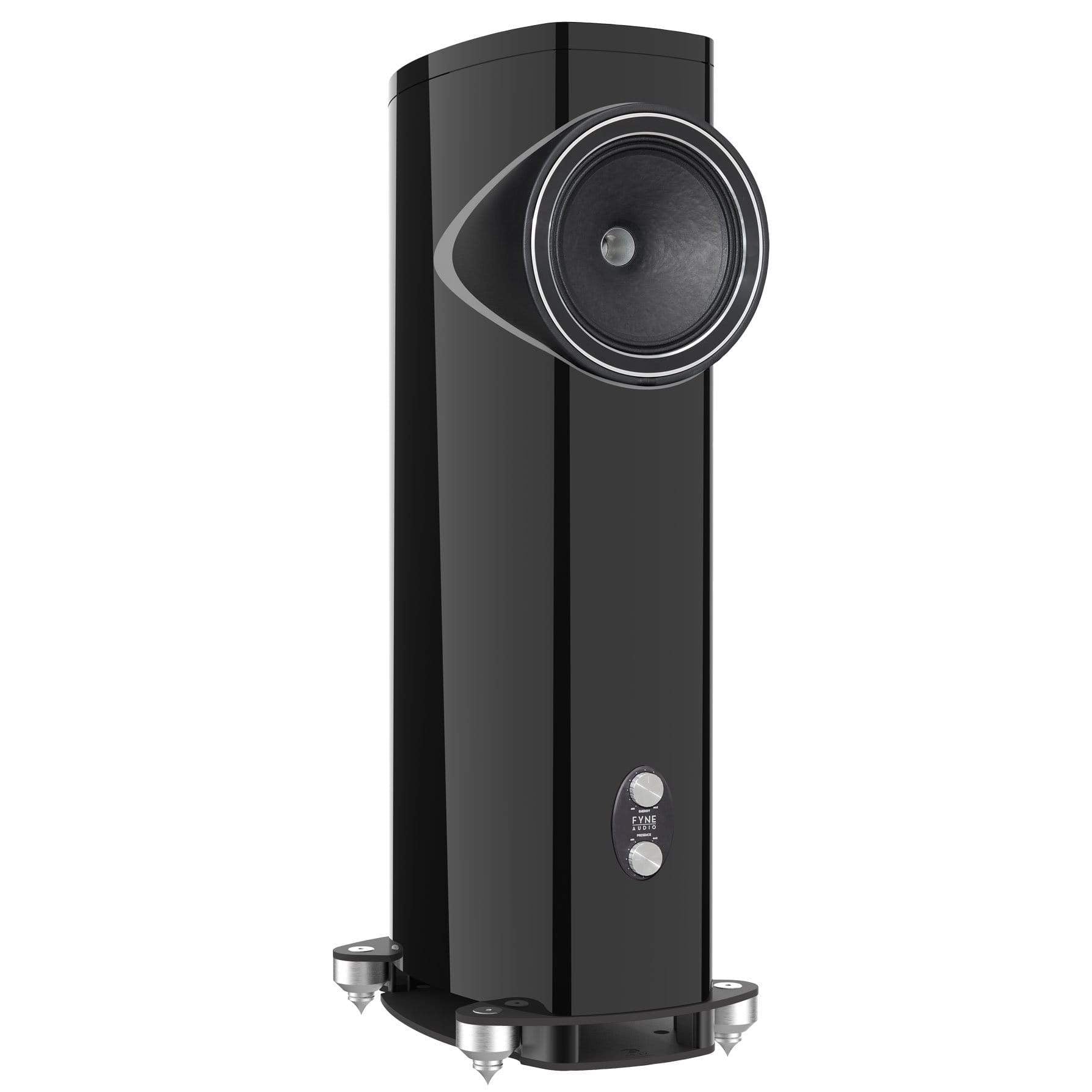

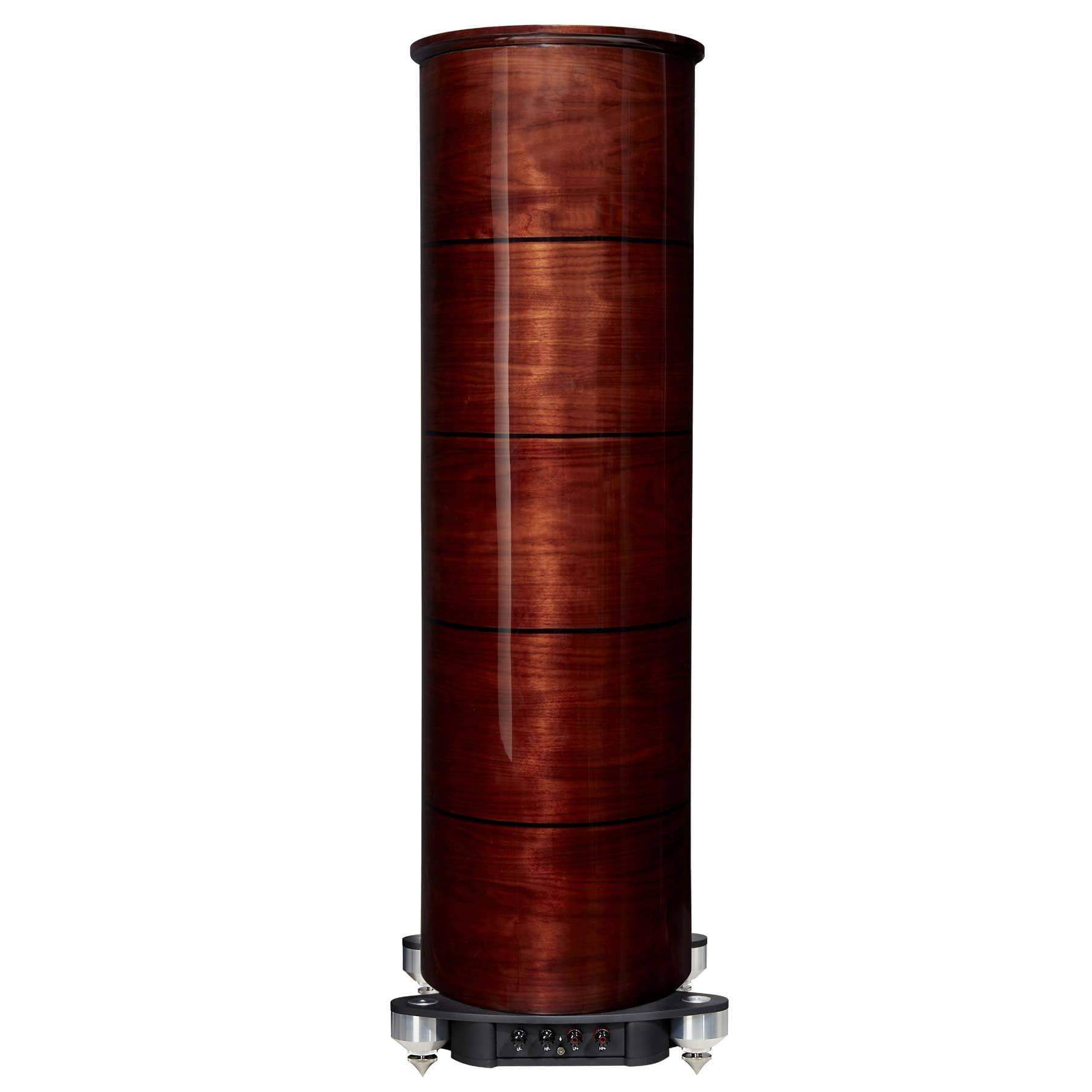

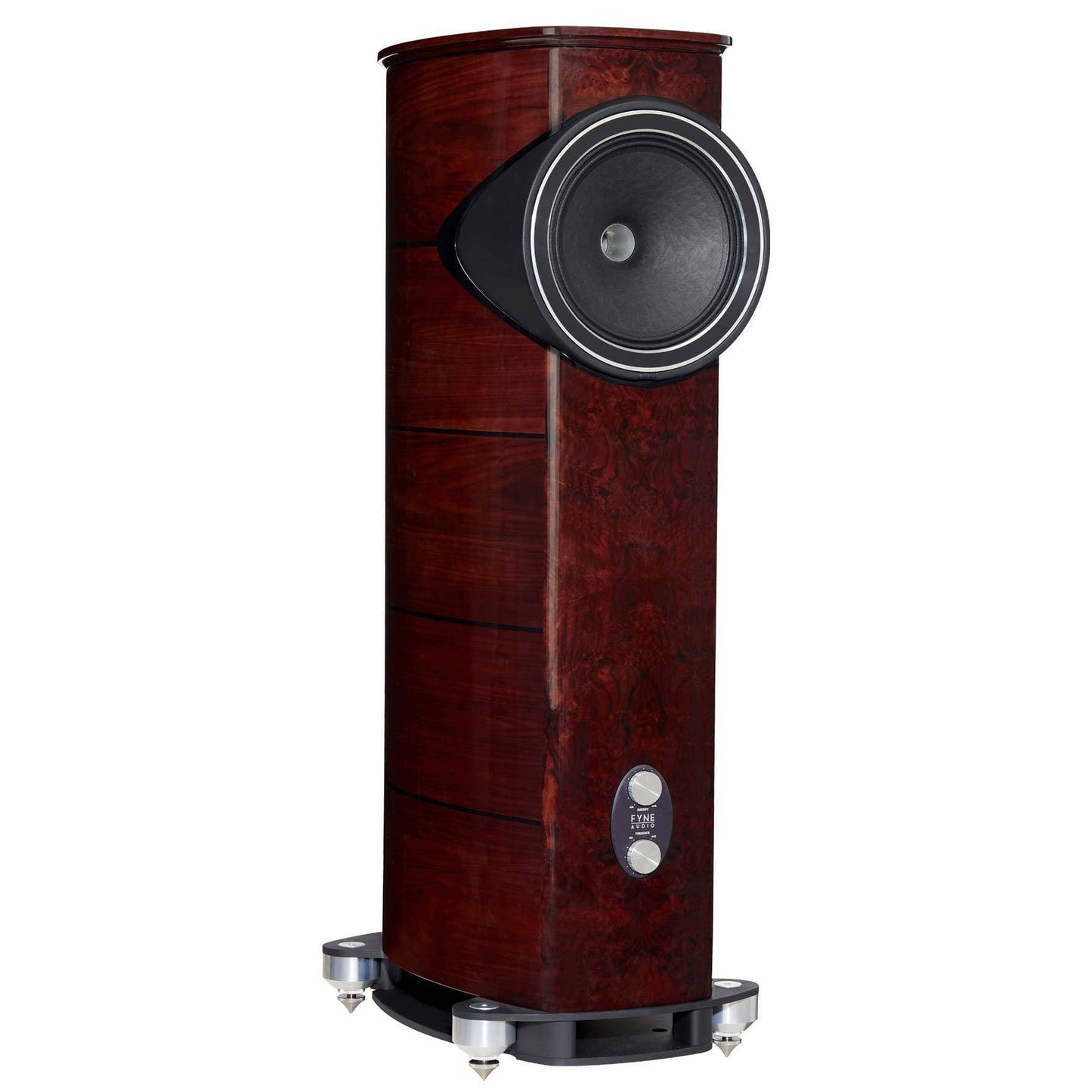

The epic F1-12 is Fyne Audio’s flagship loudspeaker, embodying the brand’s philosophy, expertise and engineering excellence into a truly outstanding design. The imposing twin cavity cabinet is supported on a 20kg machined aluminium plinth that houses Fyne’s state of the art BassTrax LF diffuser. At its heart, the F1-12 boats Fyne’s largest IsoFlare driver to date. This seamlessly mates a 300mm (12″) multi-fibre cone LF unit with a 75mm titanium dome compression tweeter to create a point source, time aligned transducer delivering pure isotropic radiation across the entire audio spectrum. Breathtakingly dynamic and revealing yet with smoothly extended HF, the F1-12 delivers music with ultimate realism and listener engagement. Designed, hand crafted and hand finished at Fyne Audio’s UK manufacturing facility in stunning real walnut veneer with burr walnut inlay or a contemporary high gloss black or white, the F1-12 represents the pinnacle of UK loudspeaker design.
SPECIFICATIONS
- System Type 2 way, downwards firing port, with BassTrax Tractrix diffuser*
- Recommended amplifier power (Watt RMS) 20 – 350
- Continuous power handling (Watt RMS) 175
- Sensitivity (2.83 Volt @ 1m) 96dB
- Nominal impedance 8 Ohm
- Frequency response (-6dB typical in room) 26Hz – 26kHz
- Drive unit complement 1 x 300mm IsoFlare point source driver, multi-fibre bass / midrange cone, with 75mm titanium dome compression tweeter, neodymium magnet system
- Crossover frequency – 750Hz
- Crossover type Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated
- Dimensions – HxWxD 1350 x 450 x 680mm
- Weight – 93kg each
