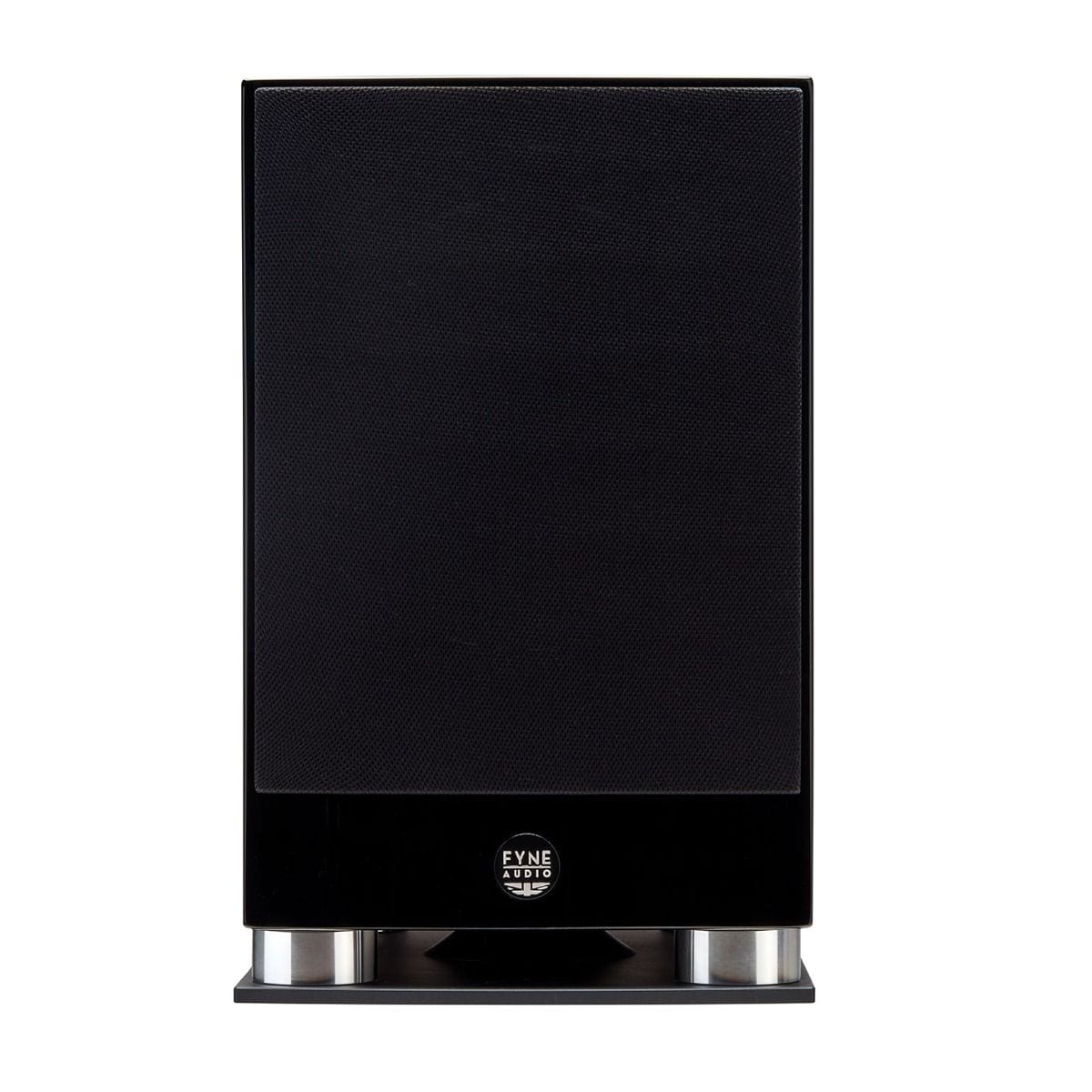

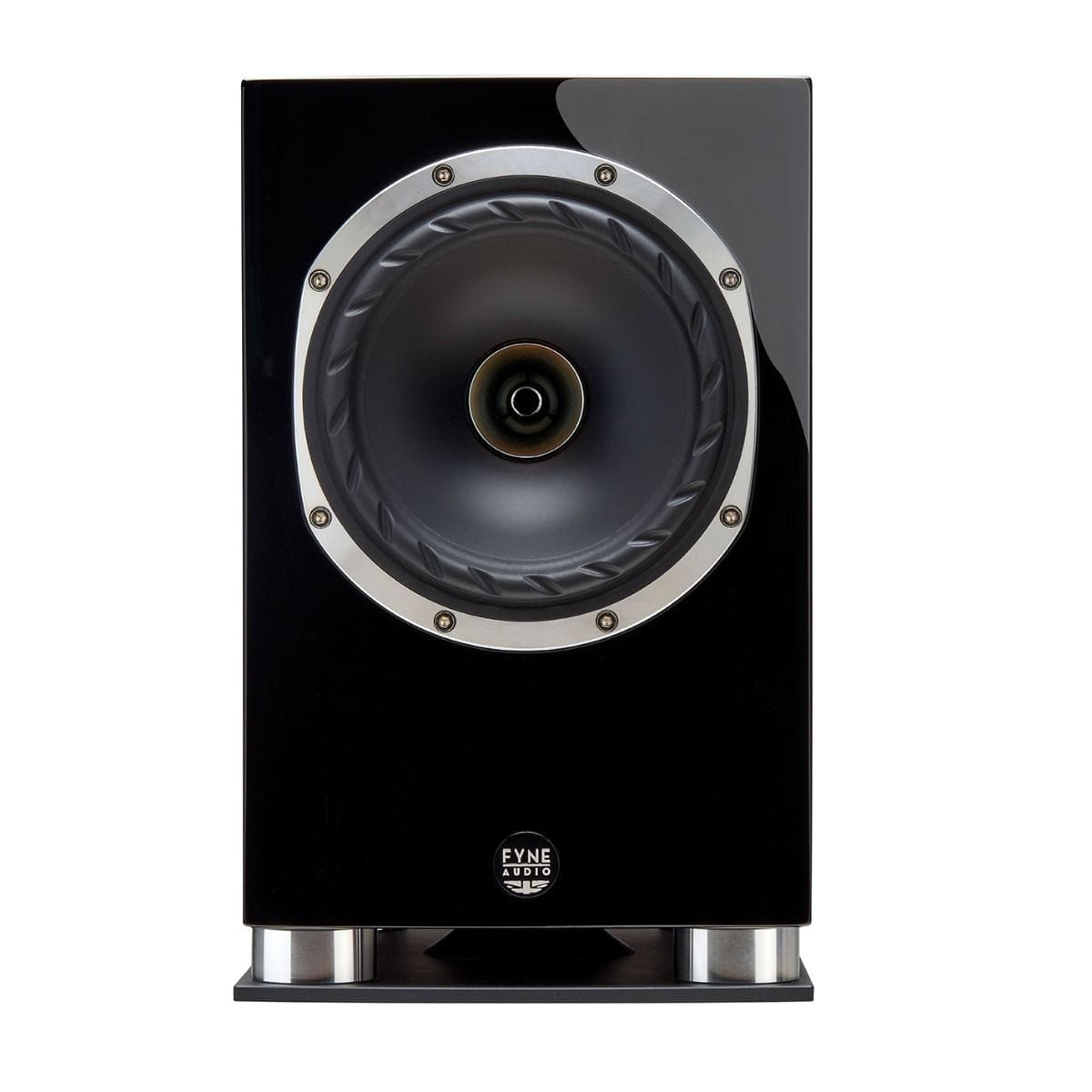

Compact and perfectly formed in the UK, the F500SP is the smallest loudspeaker in the UK built Special Production series. Heralding from the award-winning F500, the SP version adds a unique Special Production IsoFlare driver, tuned crossover and premium BassTrax port system, all derived from the prestigious F700 series. This stand-mount loudspeaker’s 6” (150mm) SP IsoFlare driver delivers full-range, point source reproduction across the entire audio spectrum for outstanding detail and class-leading imaging. The multi-fibre cone has exceptional bass reproduction thanks to its innovative twin-magnet motor system and FyneFlute roll surround that reduces cone resonances at the driver termination. The LF output is channeled through a downfiring port onto Fyne’s premium BassTrax Tractrix diffuser system, giving a smooth bass response and easy room integration. The bi-wire connection panel features a fifth terminal to ground the driver chassis and eliminate amp or cable born RF interference. With enhanced details including anodised aluminium plinth, diamond-cut aluminium driver trim and a deep gloss walnut veneer finish option, the F500SP is Fyne Audio’s most affordable premium UK-made loudspeaker.
System Type
2 way, downwards firing port, with BassTraxTM Tractrix diffuser*
Recommended amplifier power (Watt RMS)
30 - 120
Continuous power handling (Watt RMS)
60
Sensitivity (2.83 Volt @ 1m)
90dB
Nominal impedance
8 Ohm
Frequency response (-6dB typical in room)
42Hz - 34kHz
Drive unit complement
1 x 150mm IsoFlare™ point source driver Multi-fibre bass / midrange cone, FyneFlute™ surround with 25mm magnesium dome compression tweeter, neodymium magnet system
Crossover frequency
1.7kHz
Crossover type
Bi-wired passive low loss, 2nd order low pass, 1st order high pass.
Dimensions - HxWxD
323 x 200 x 320mm (12.7 x 7.9 x 12.6”)
Weight - Each
8.1kg (17.6lbs)
Finishes

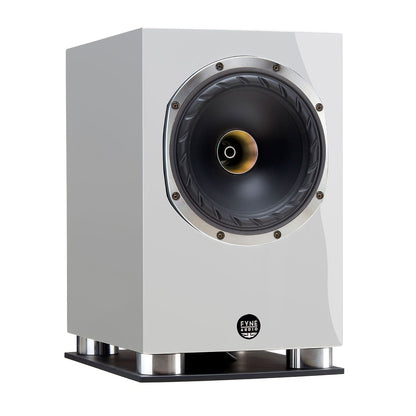

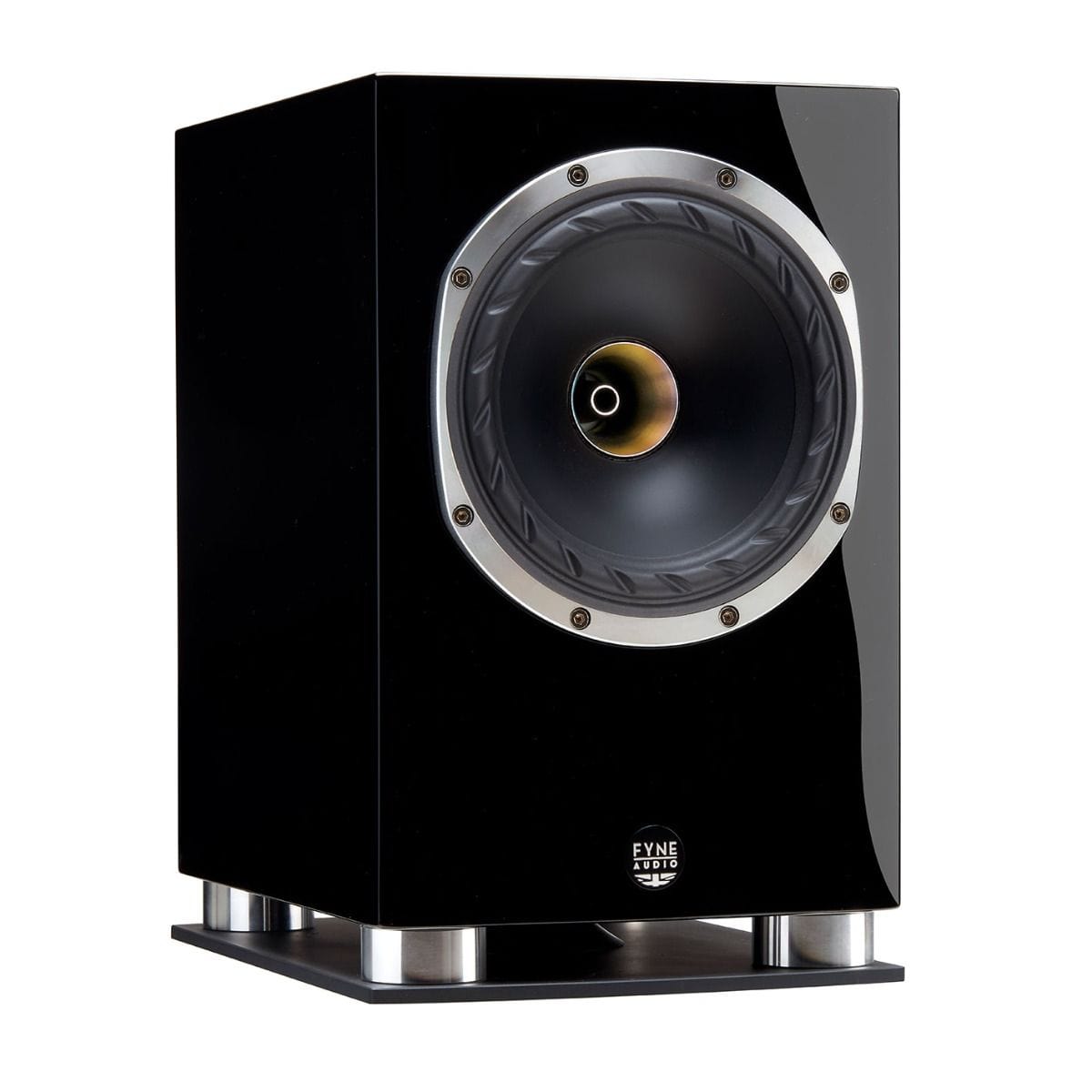

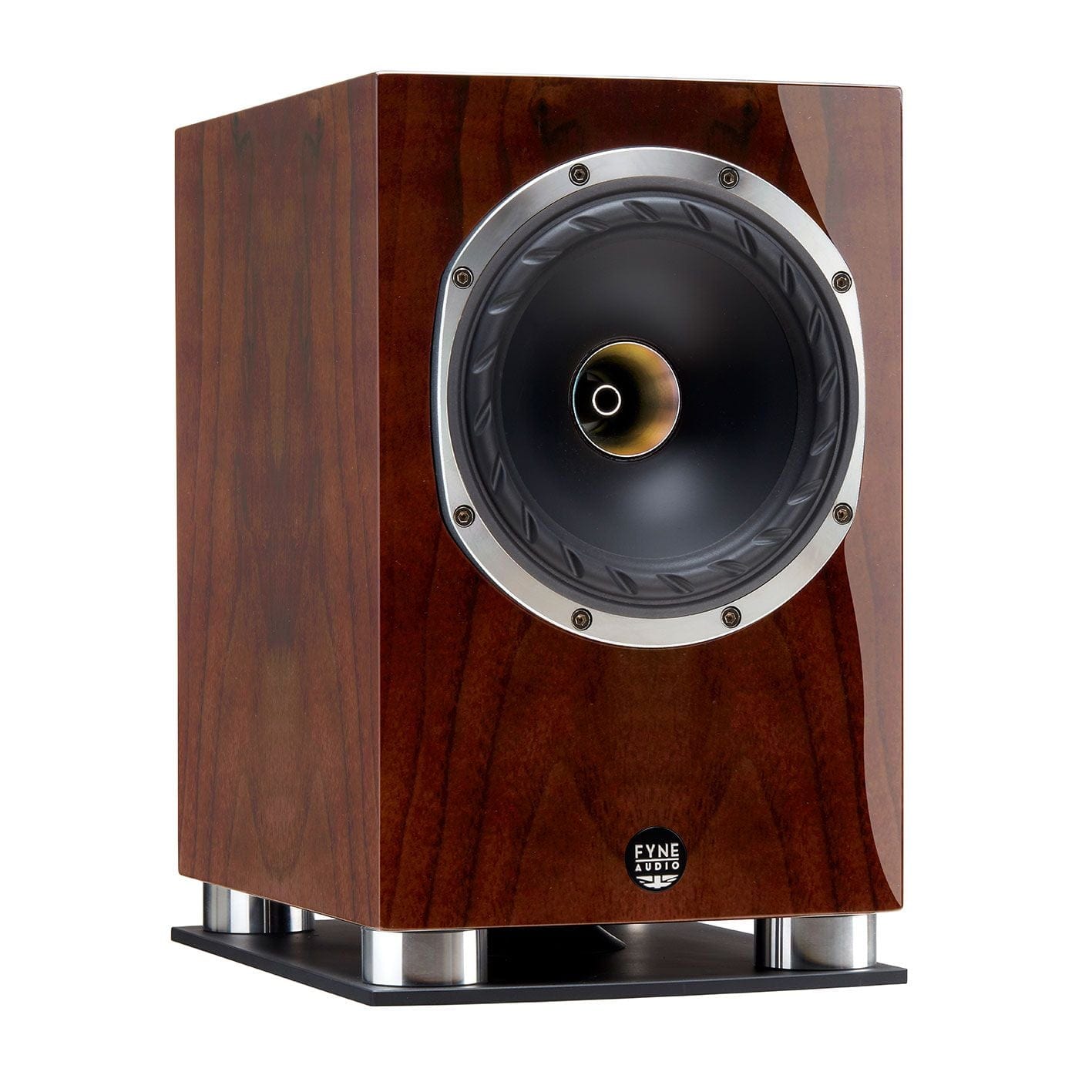

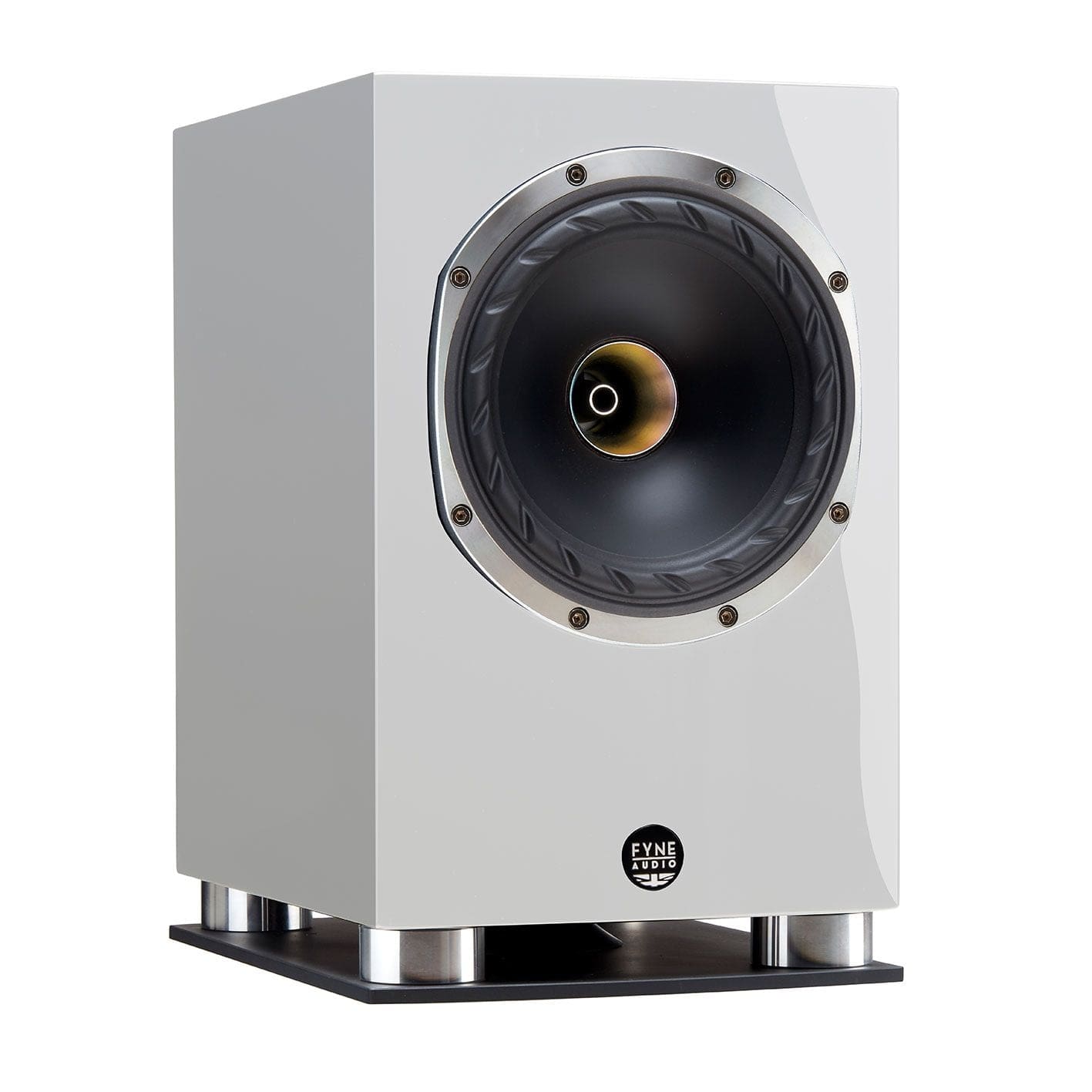

Piano Gloss Walnut / Piano Gloss Black / Piano Gloss White
