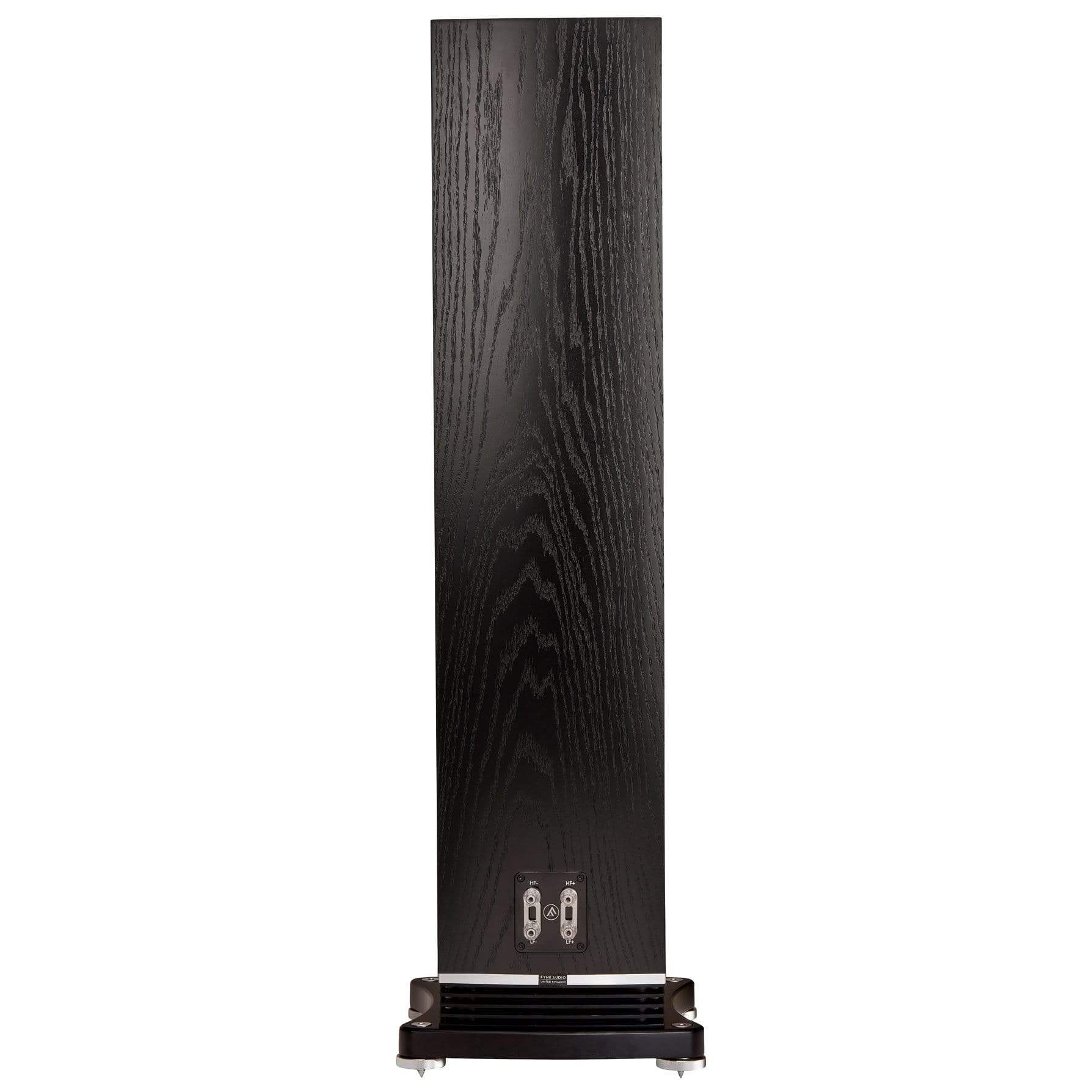

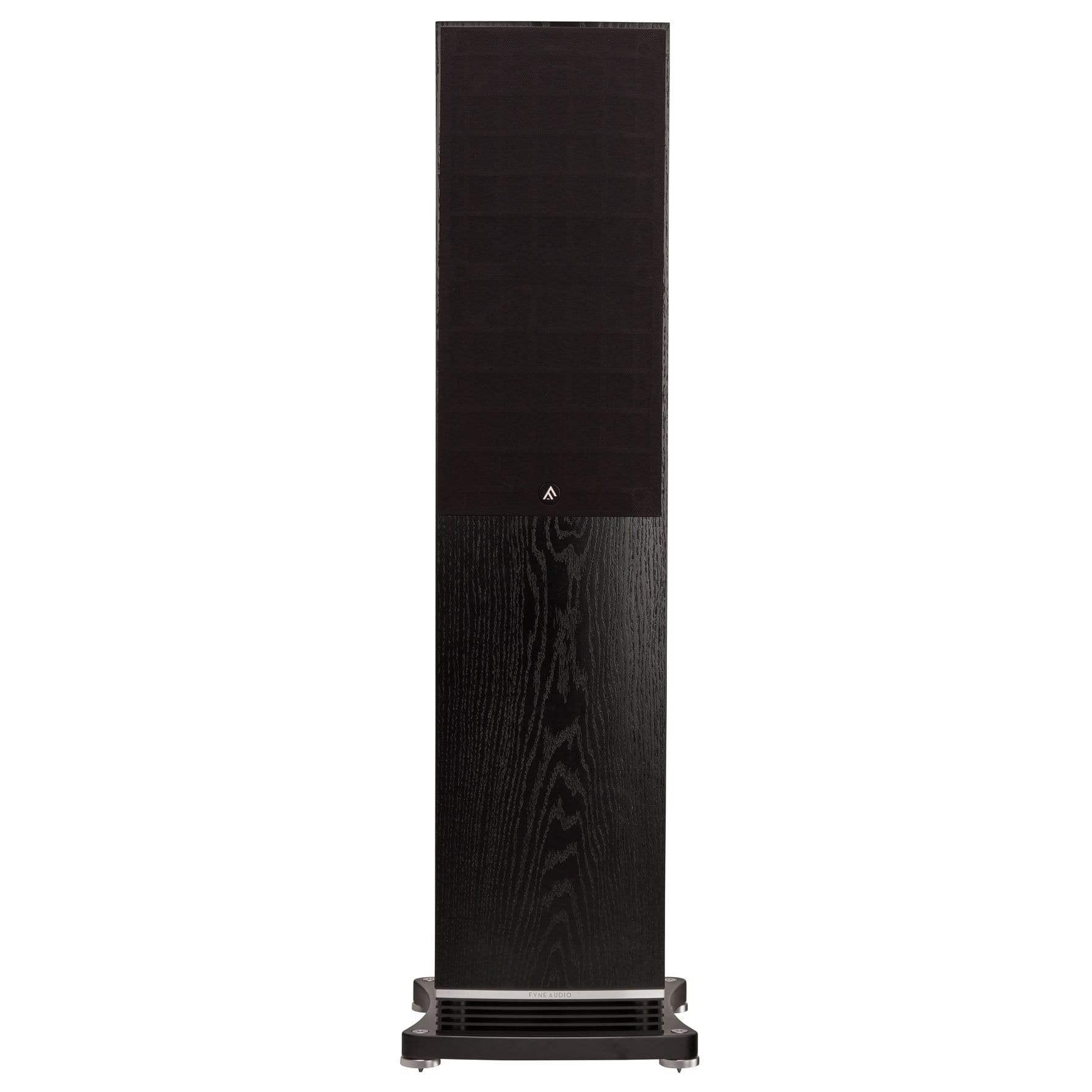

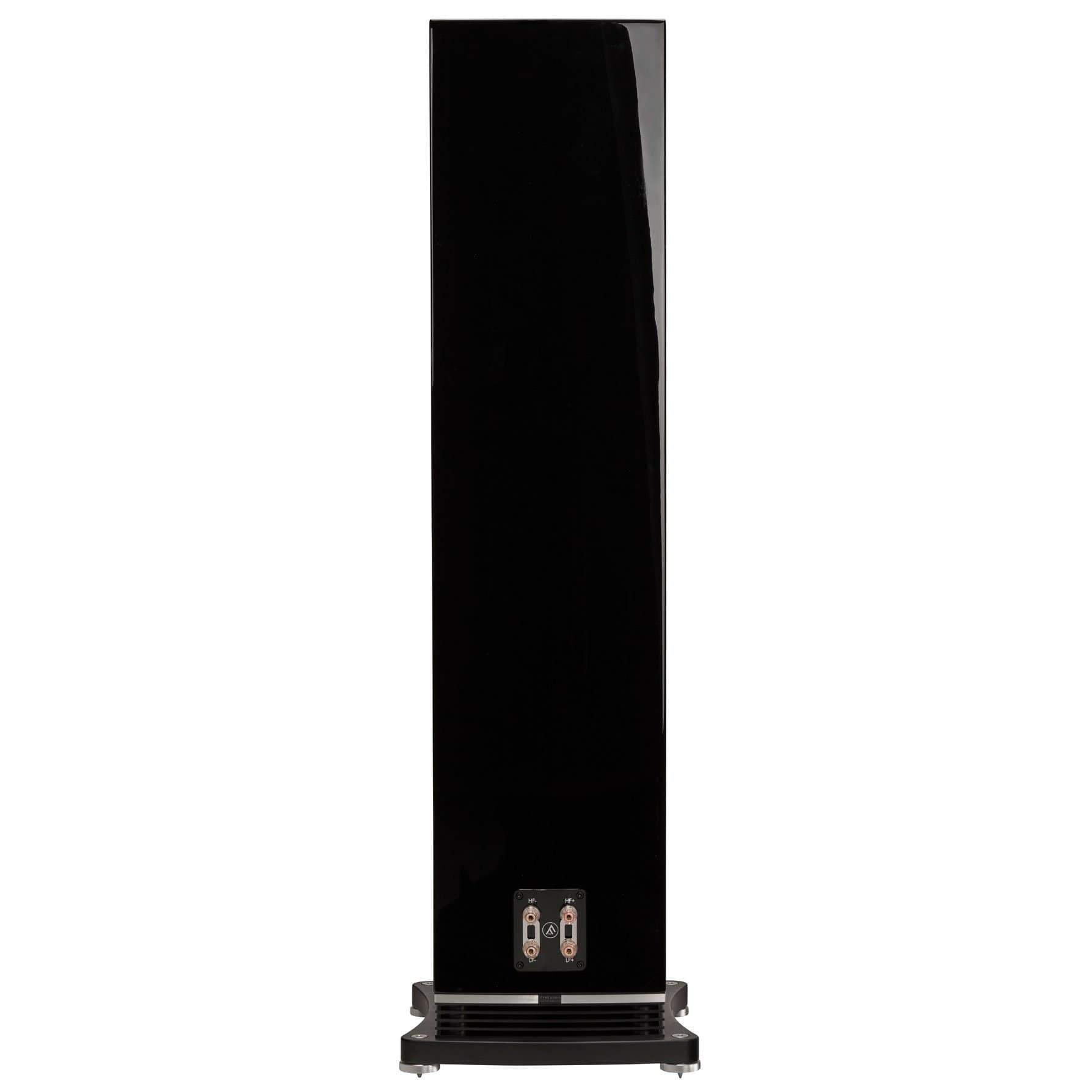

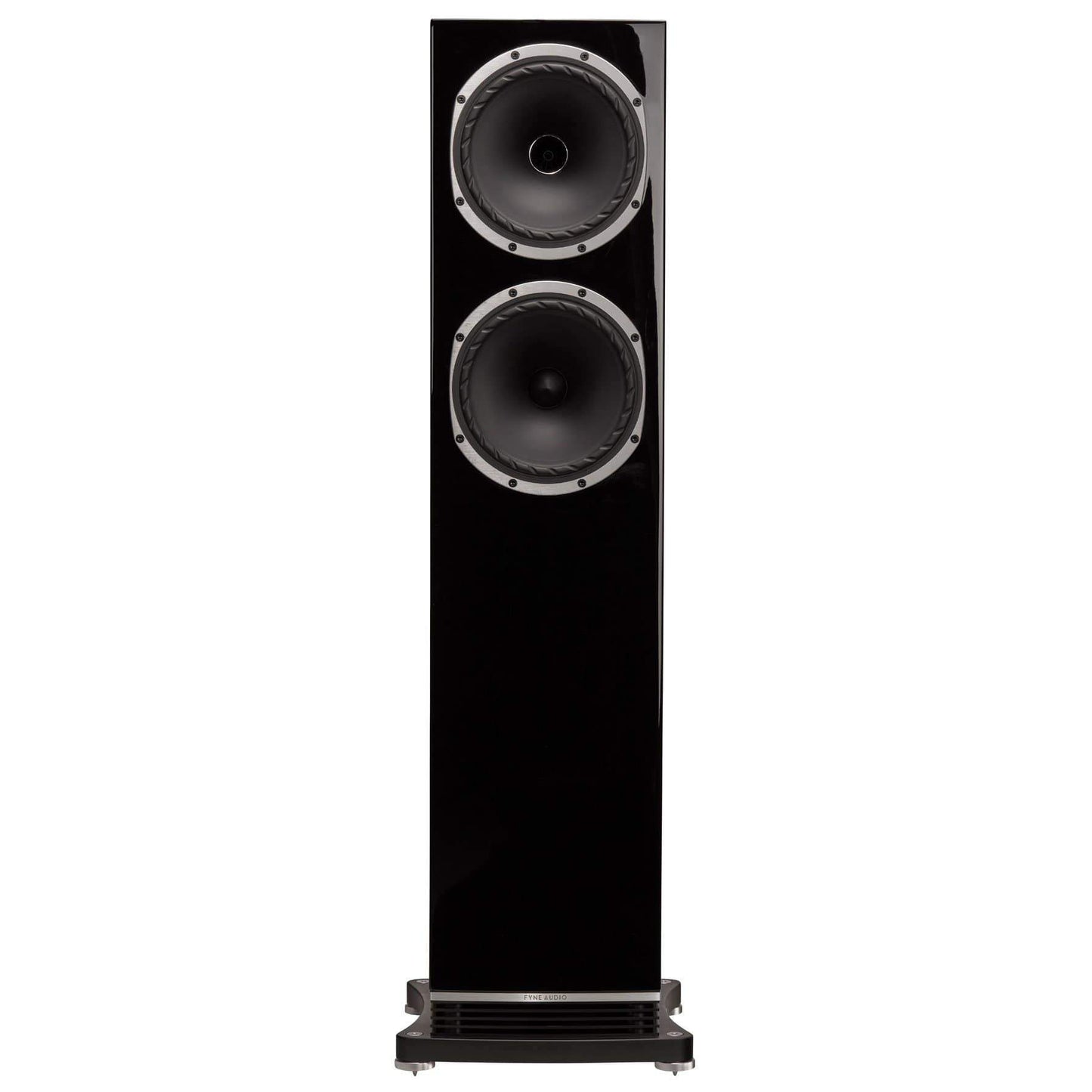

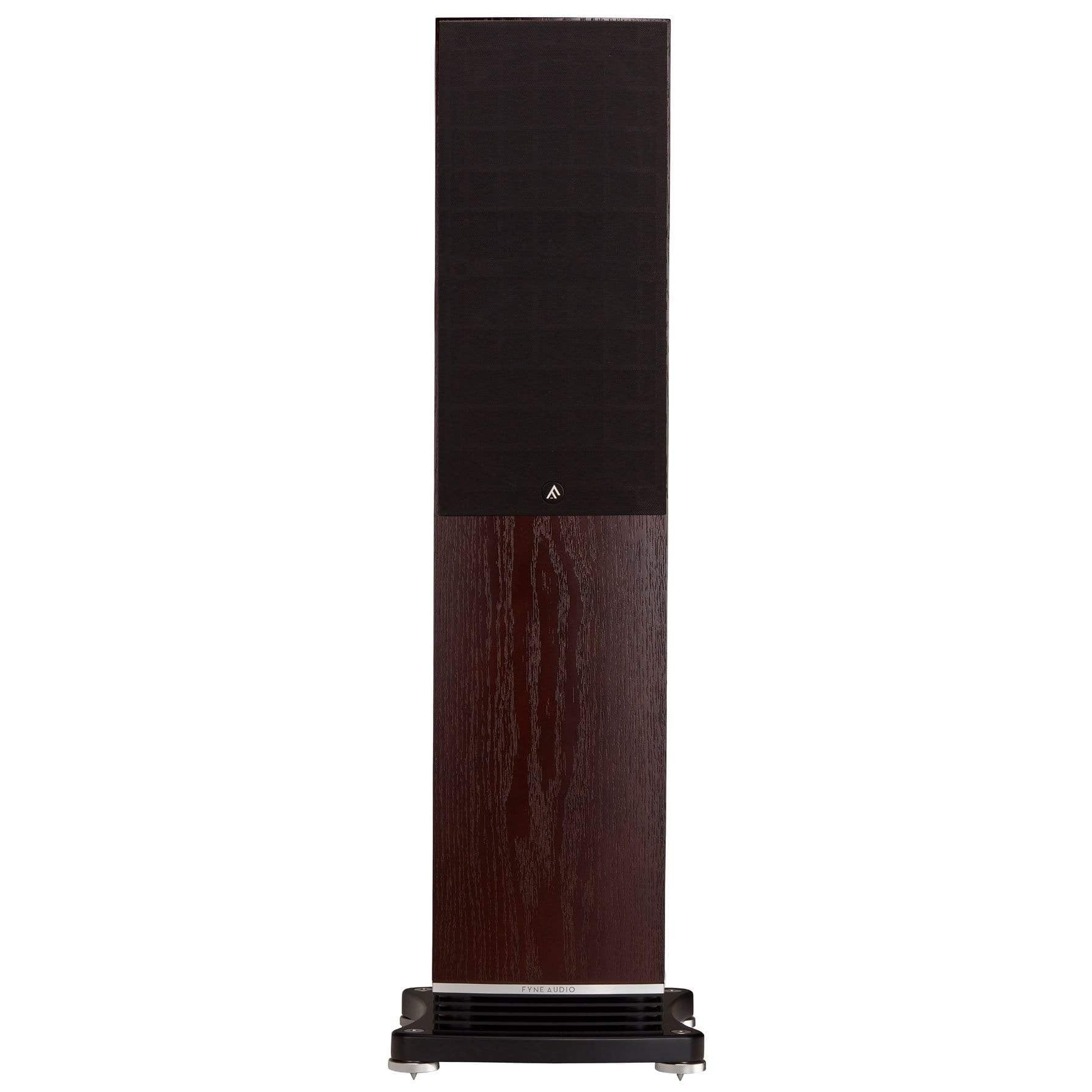

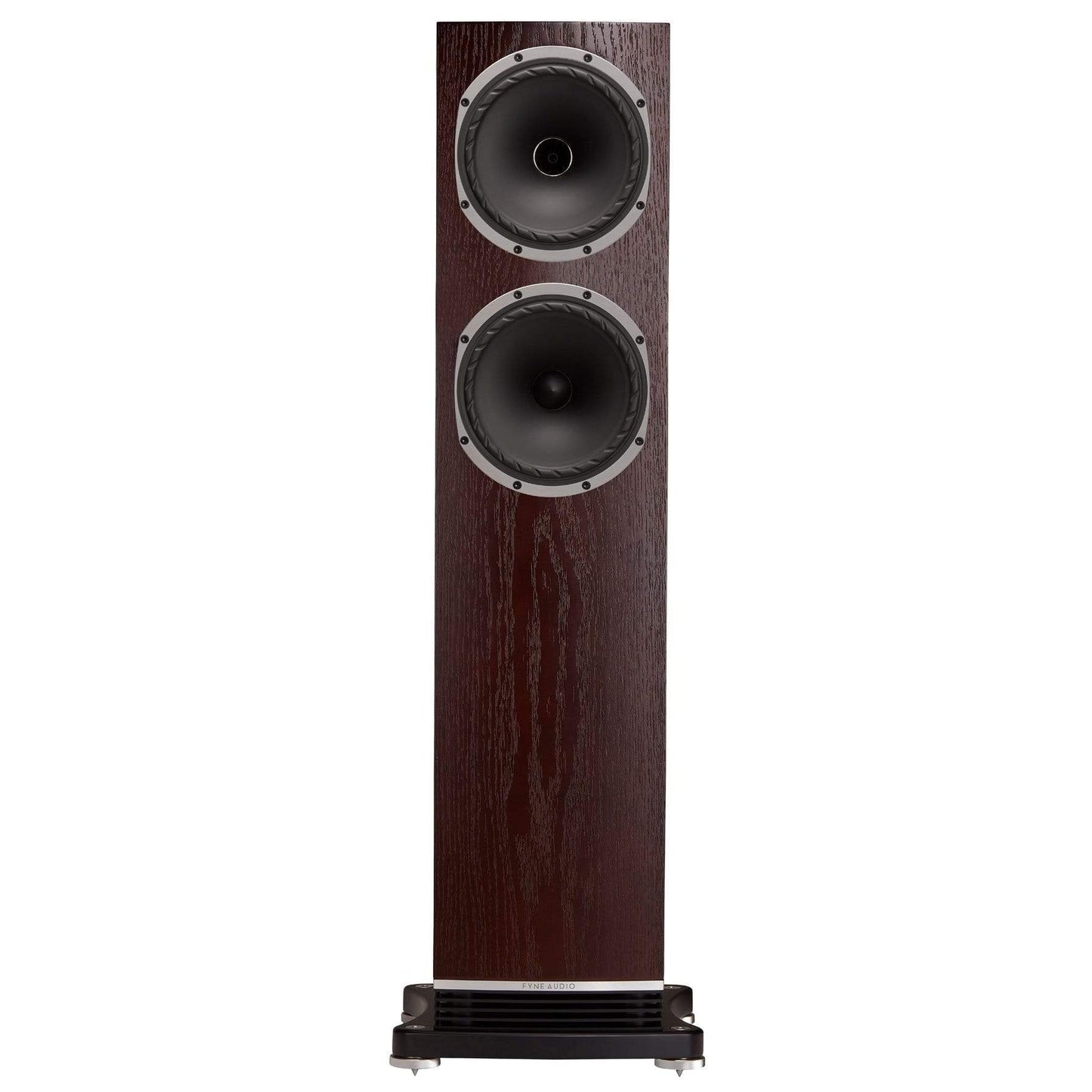

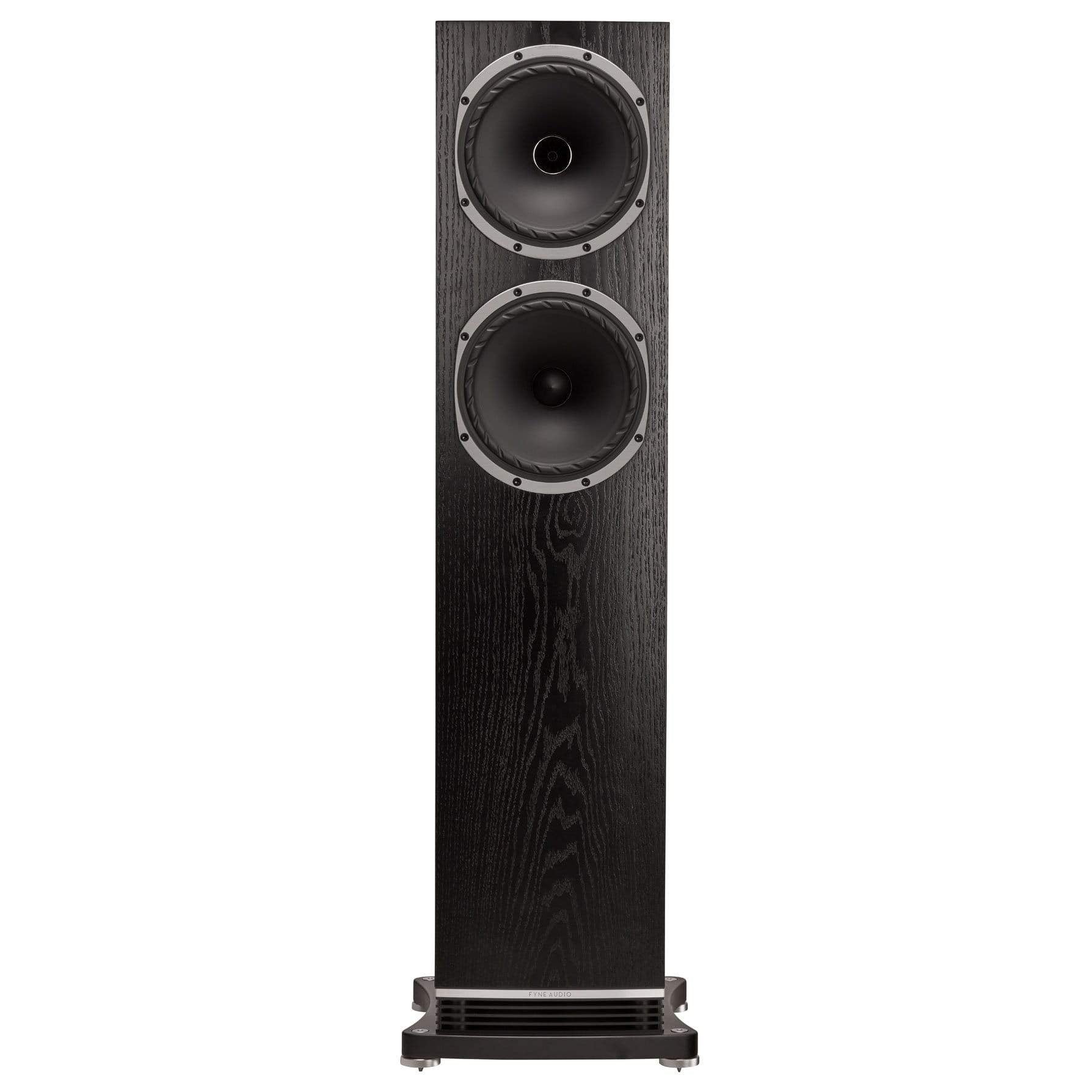

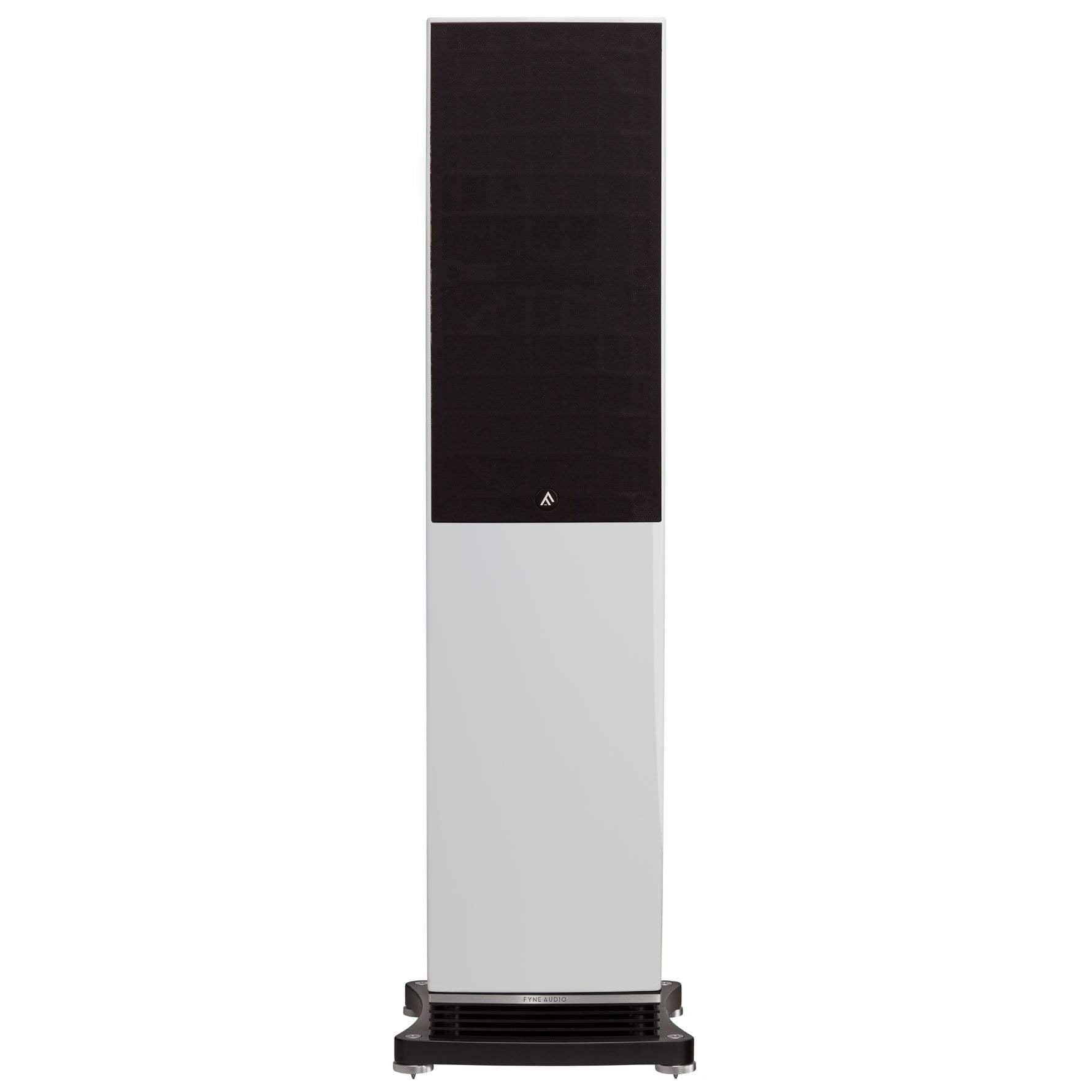

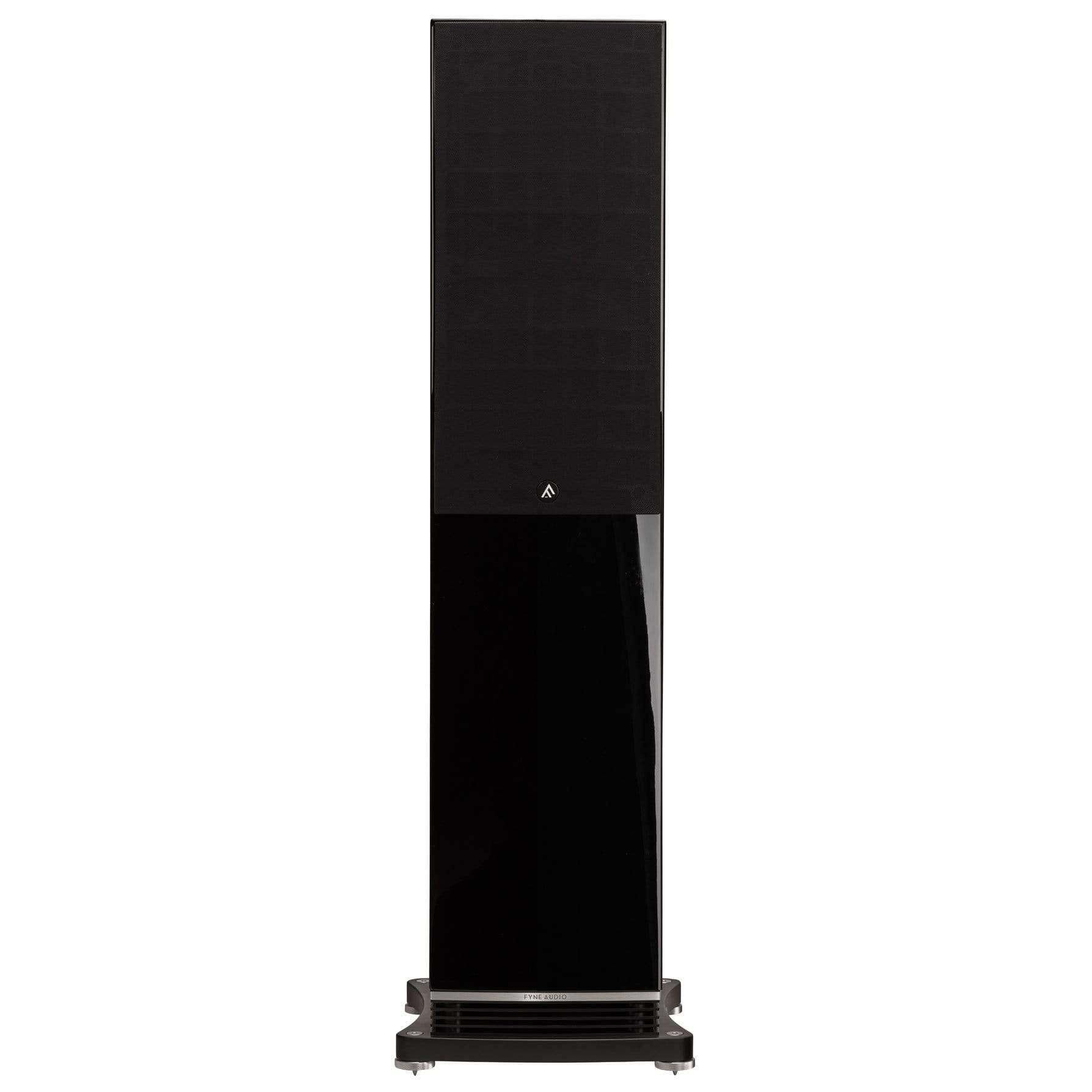

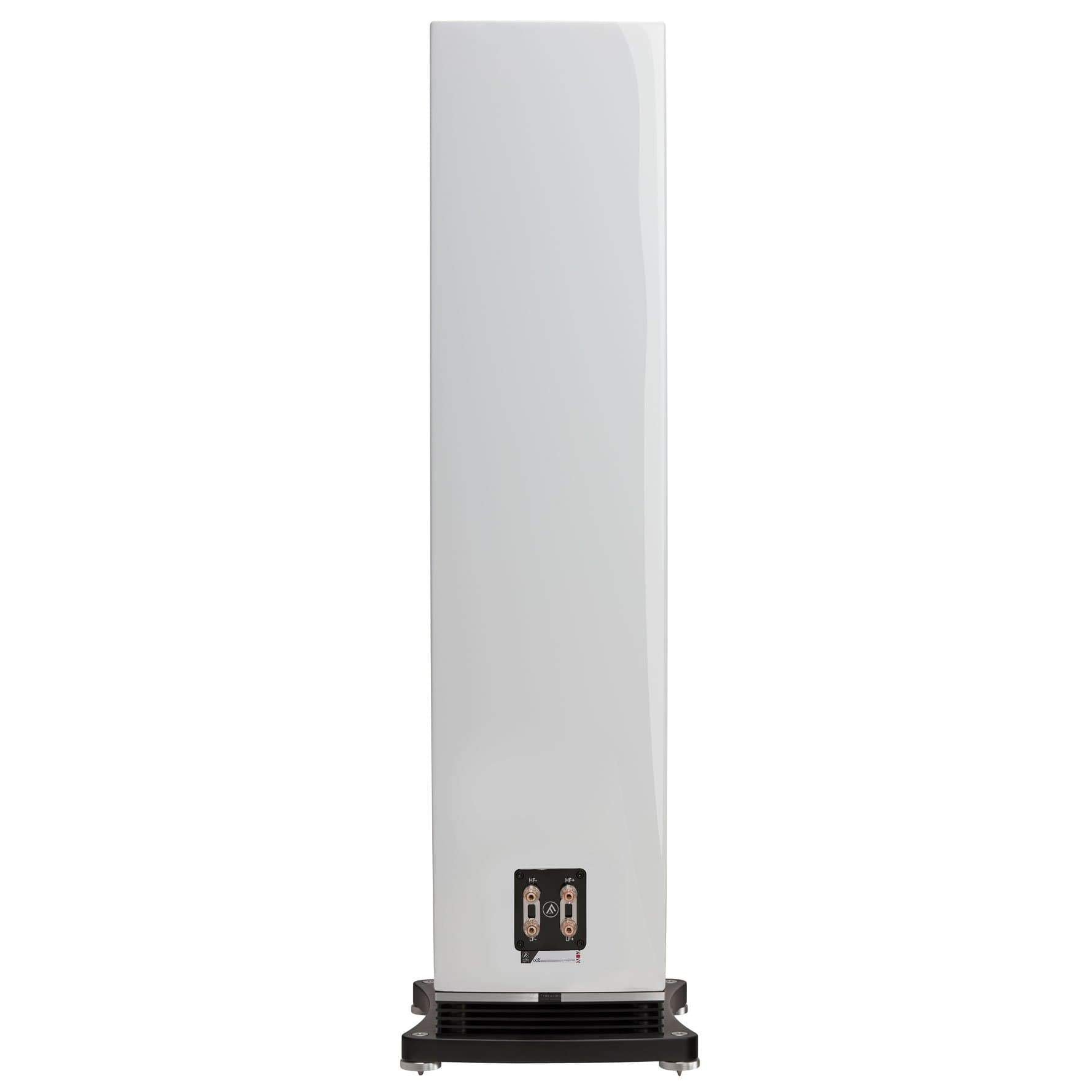

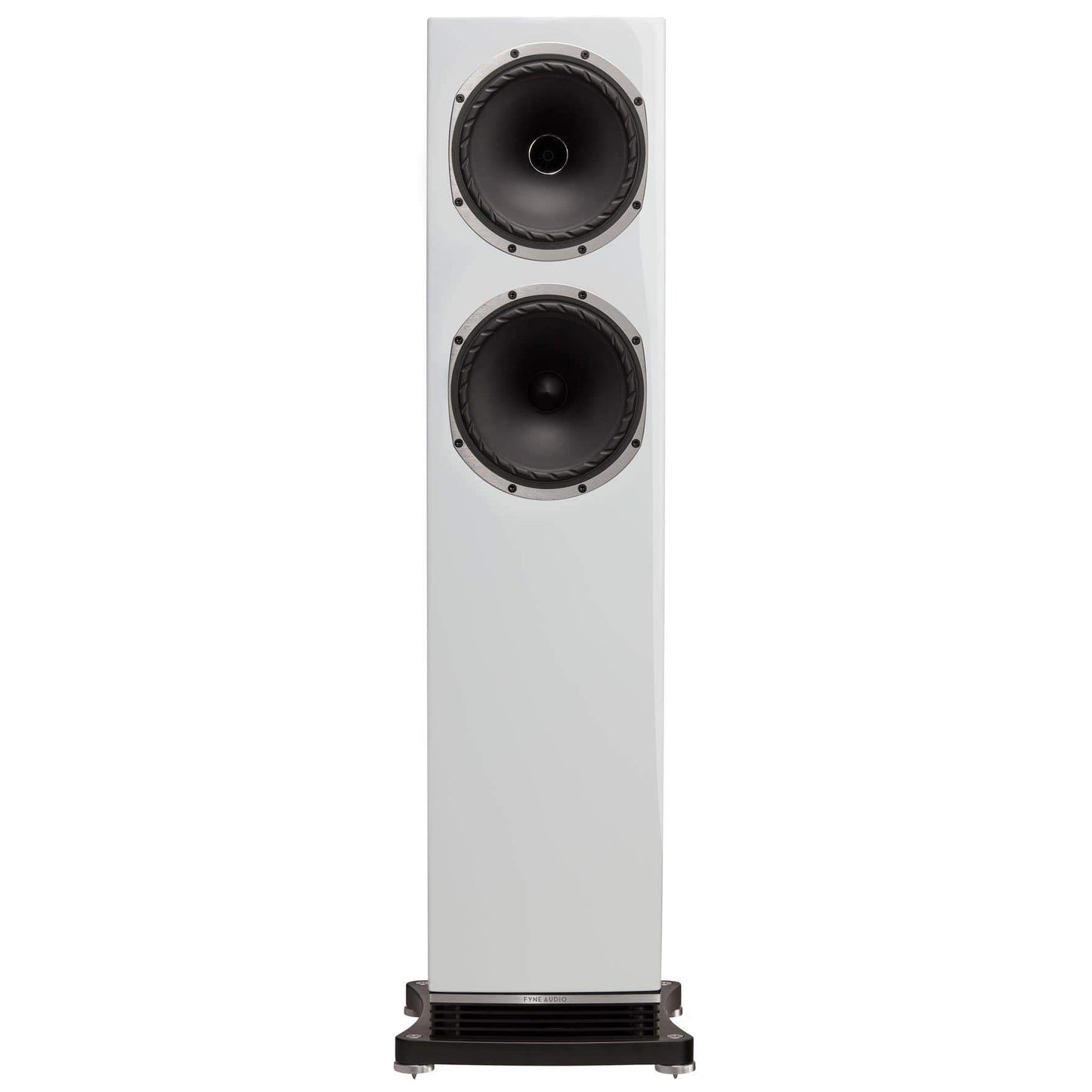

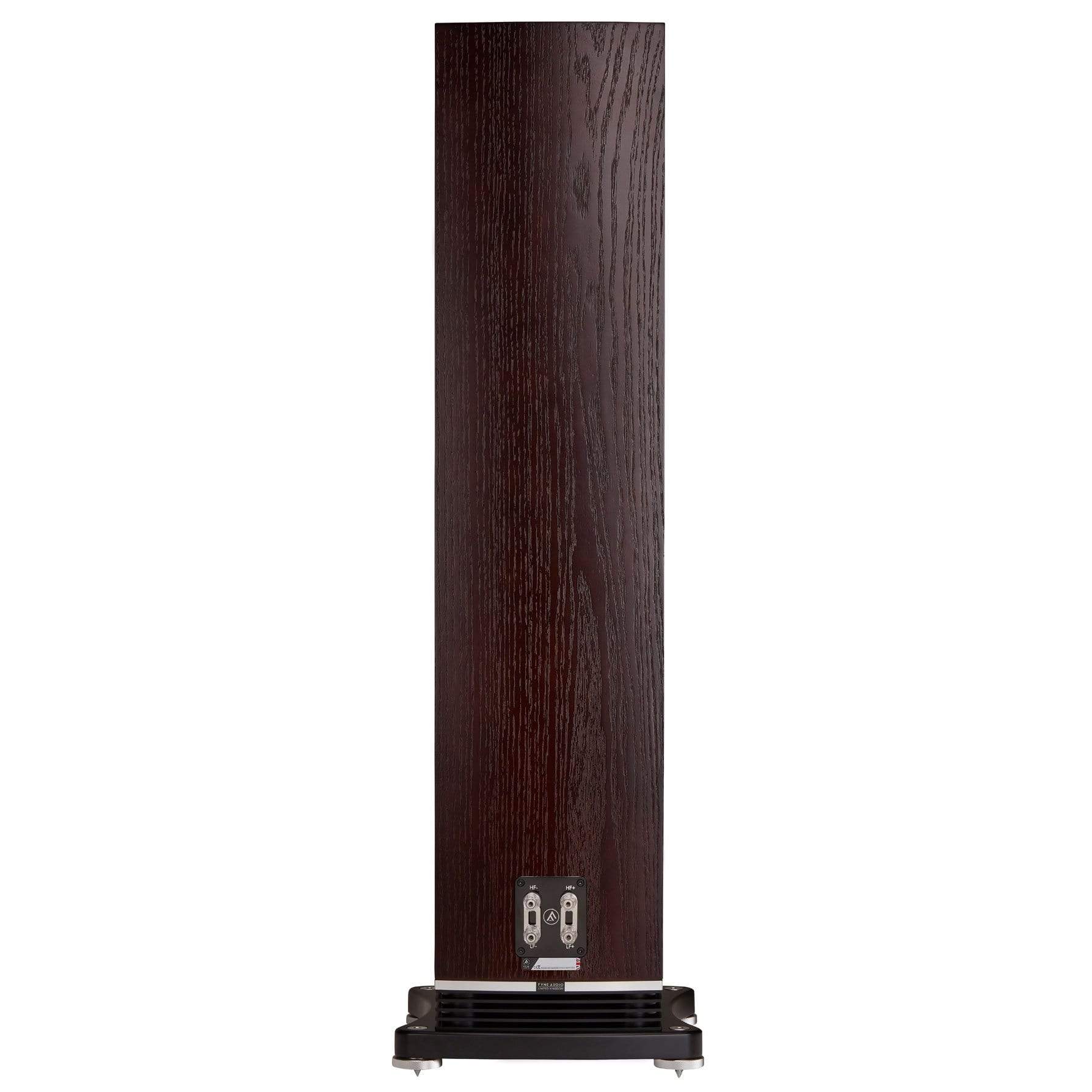

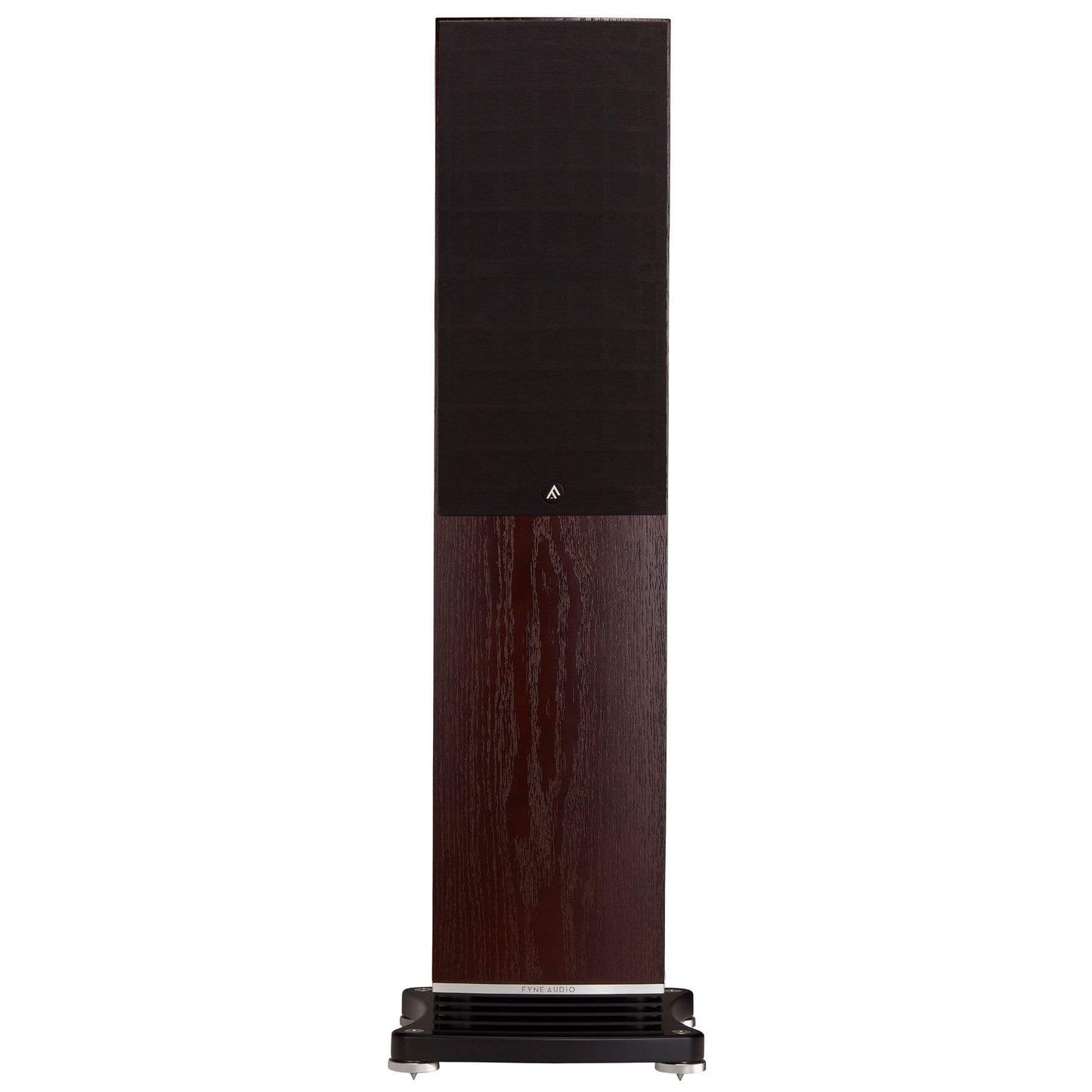

The F502 floorstanding loudspeaker delivers the series’ signature clarity and articulation along with visceral bass. The system will suit larger listening environments but is capable of revealing a huge dynamic range even when played at low volumes in smaller rooms. Isotropic energy radiation, with point source constant directivity, is provided by a 200mm (8″) proprietary IsoFlareTM driver for outstanding stereo imaging, even off axis. A matched 200mm (8″) bass driver is also fitted to the 64-litre cabinet ensuring a breath-taking musical or home theatre experience. Ideal for medium to large-sized rooms, the F502 is supplied with a dedicated plinth incorporating our BassTraxTM Tractrix diffuser system, which integrates bass energy uniformly into the room. The luxuriously finished, contemporary styled cabinet is available in a choice of dark oak or black oak real wood veneer and piano gloss black or white. Enhancing its aesthetic appeal, it has a gently curved front and rear baffle which additionally benefits the acoustic performance by reducing colouration effects.
SPECIFICATIONS
System Type: 2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser. Twin cavity coupled reflex
Recommended amplifier power (Watt RMS): 40w – 180w Continuous power handling (Watt RMS): 90w
Sensitivity (2.83 Volt @ 1m): 91dB Nominal impedance: 8 Ohm Frequency response (-6dB typical in room): 30Hz – 34kHz
Drive unit complement: 1 x 200mm IsoFlareTM, multi-fibre bass/ mid, with 25mm titanium, dome compression tweeter. 1 x 200mm multi-fibre bass
Crossover frequency: 250Hz & 1.7kHz Crossover type: 2nd order low pass, 1st order high pass
Dimensions – HxWxD: 1114 x 250 x 380mm Weight – Each: 25.5kg
