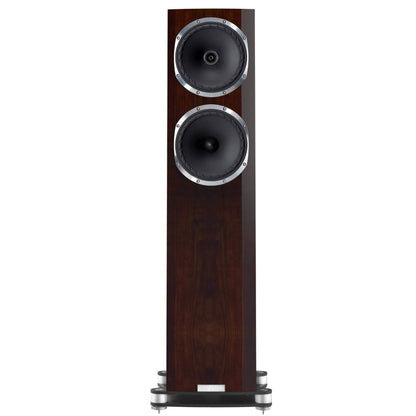

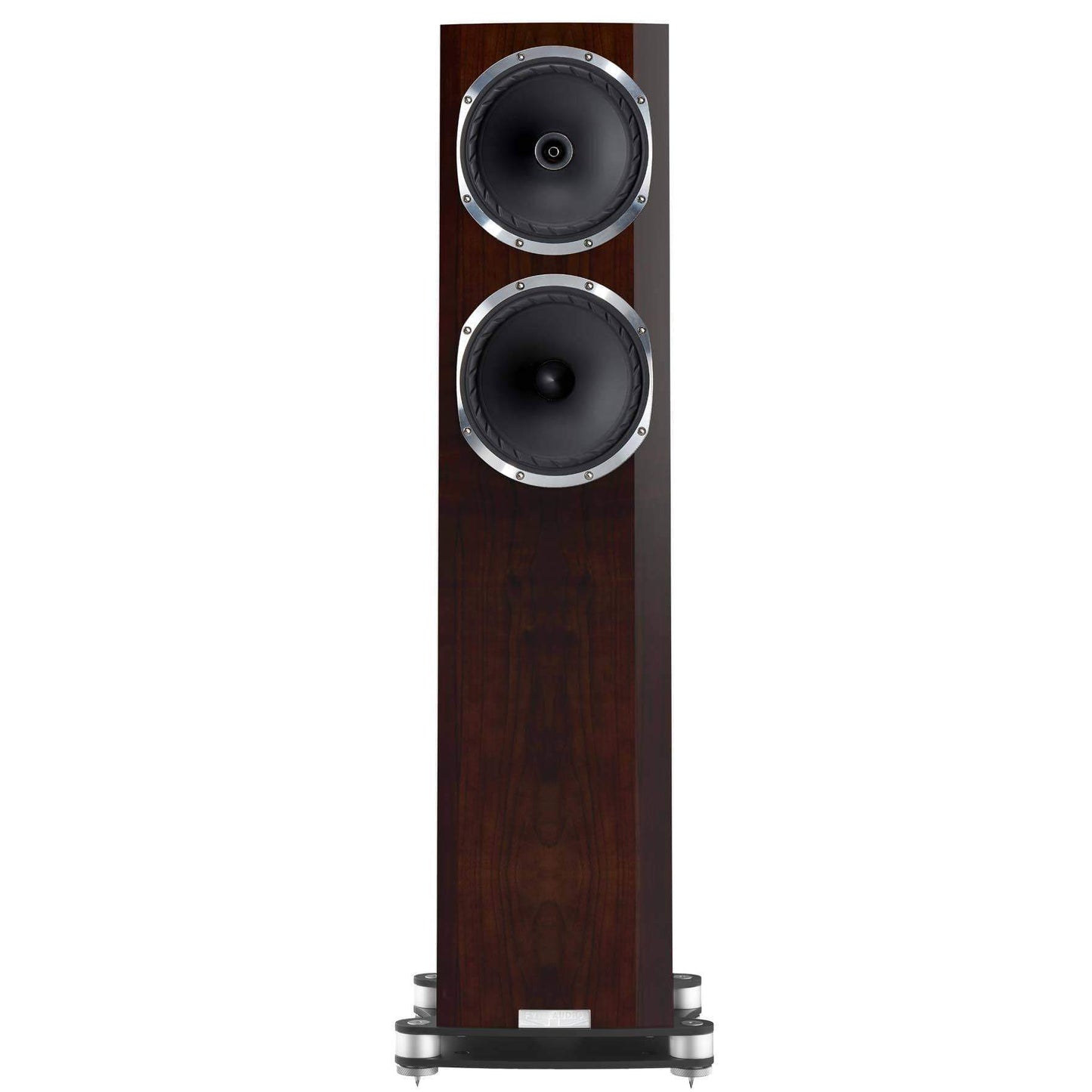

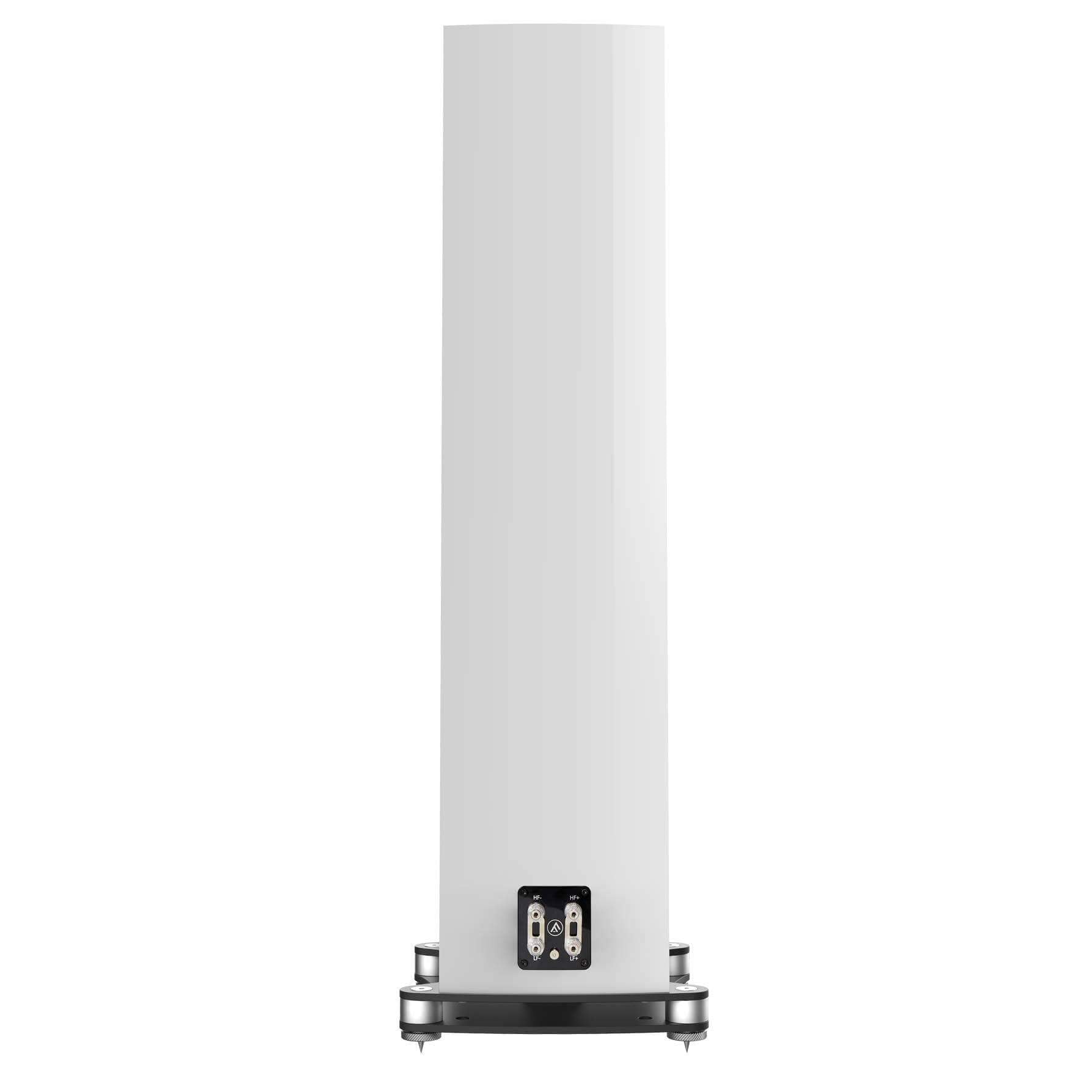

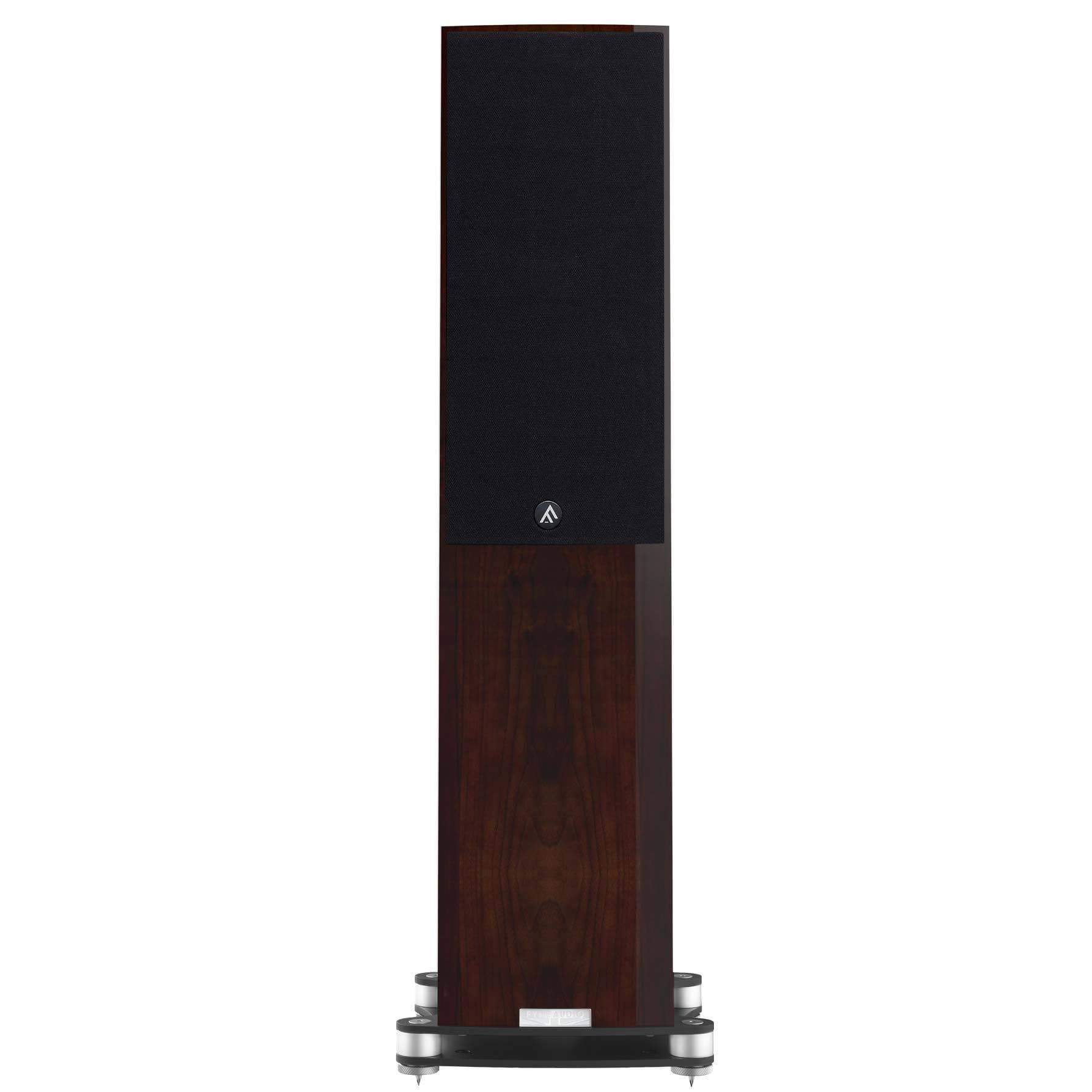

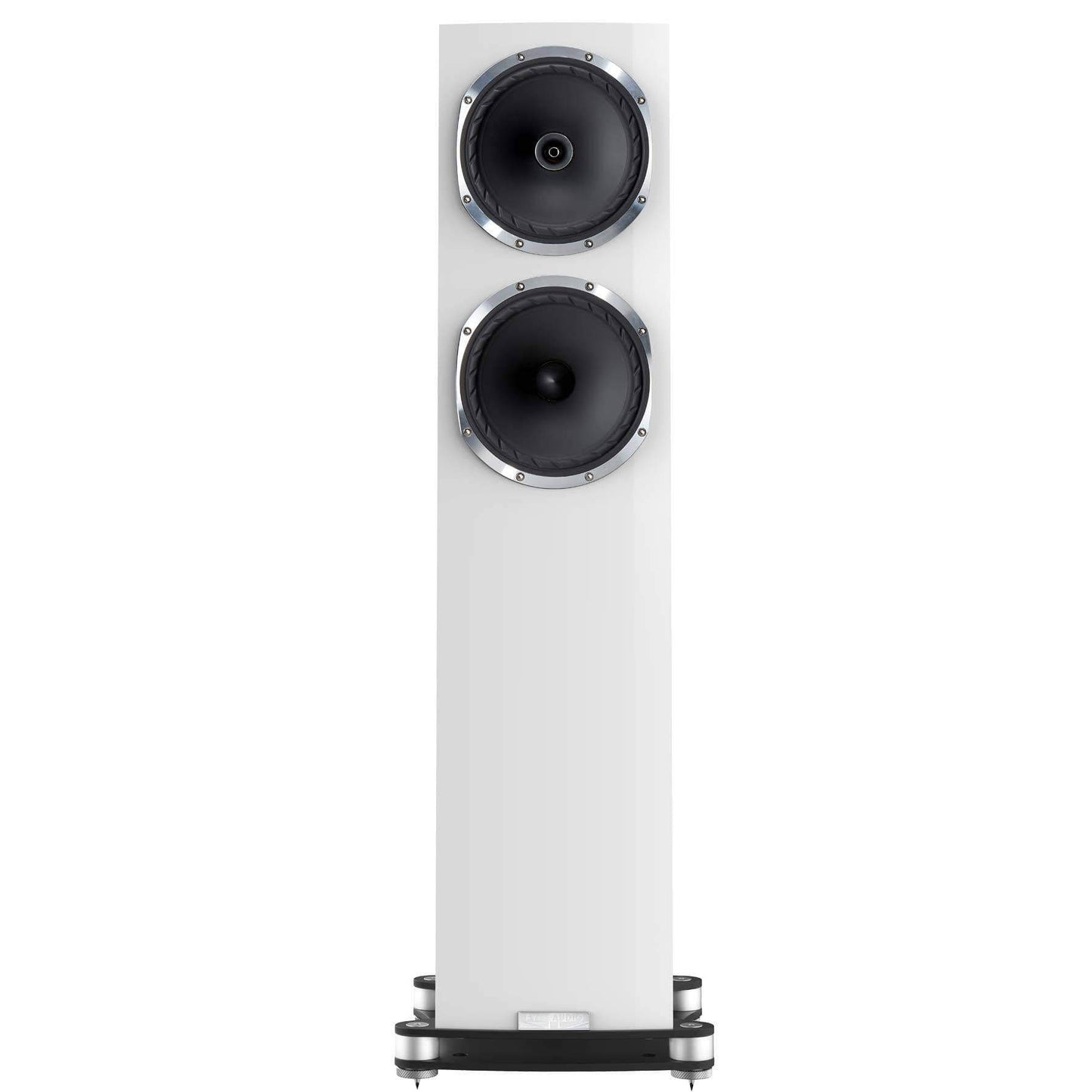

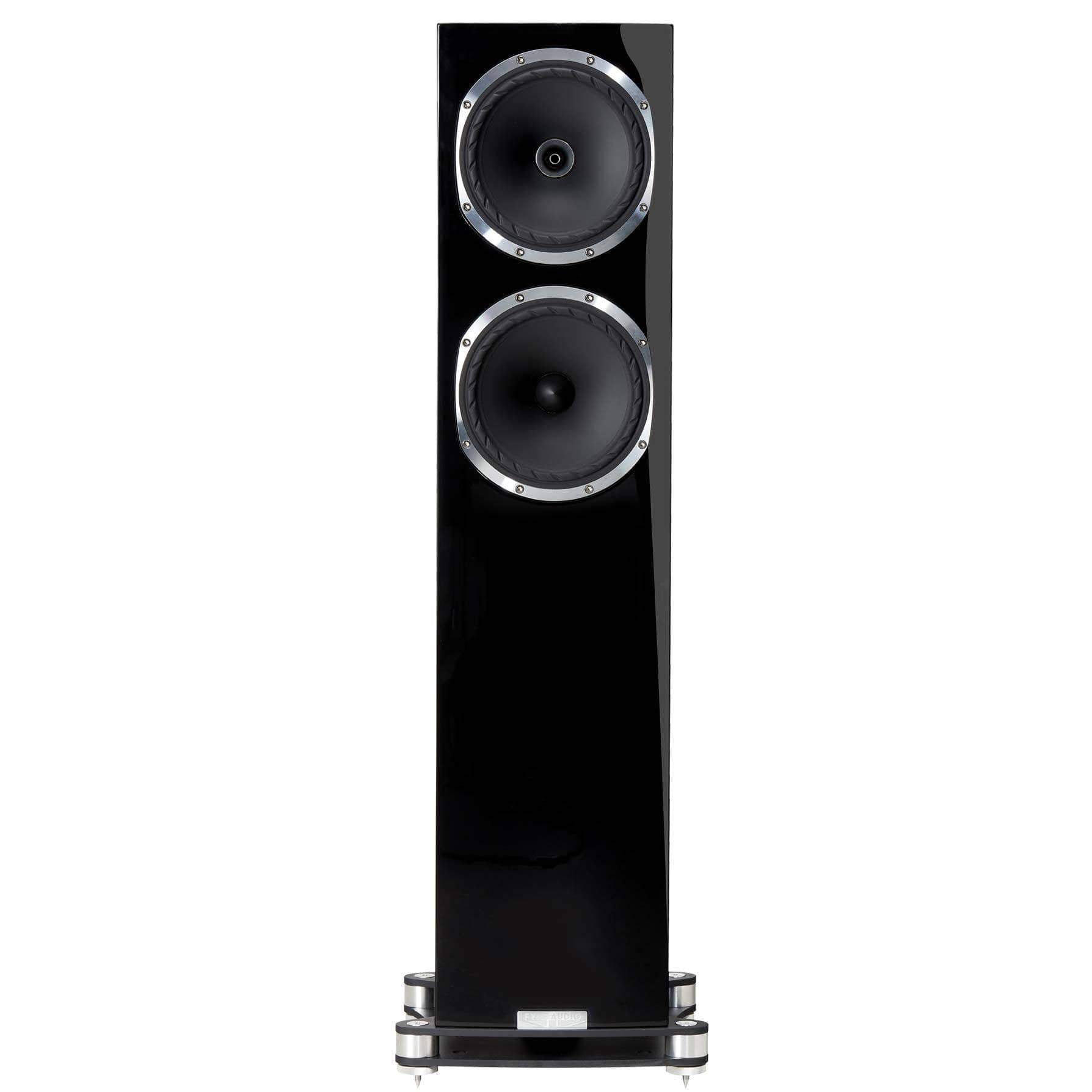

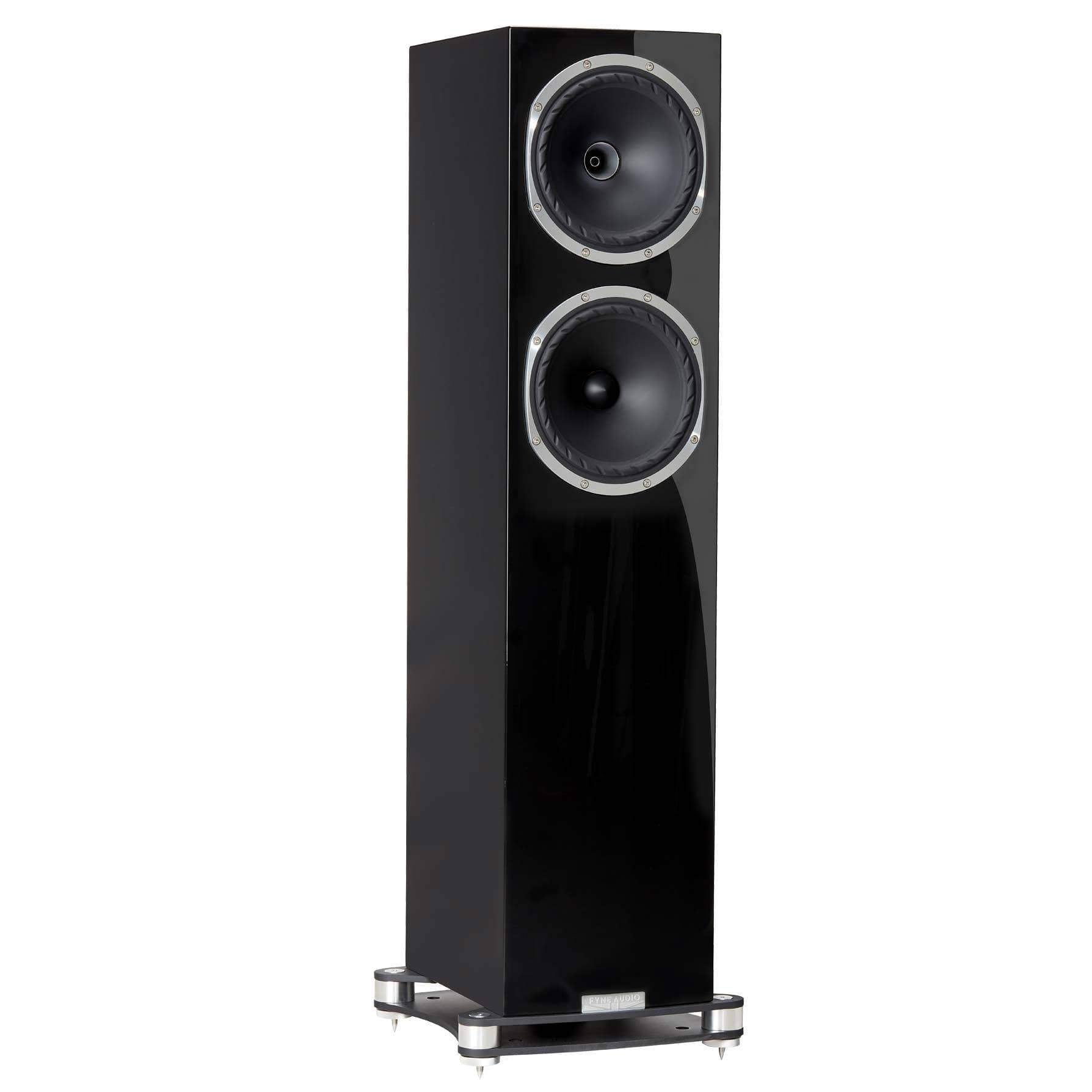

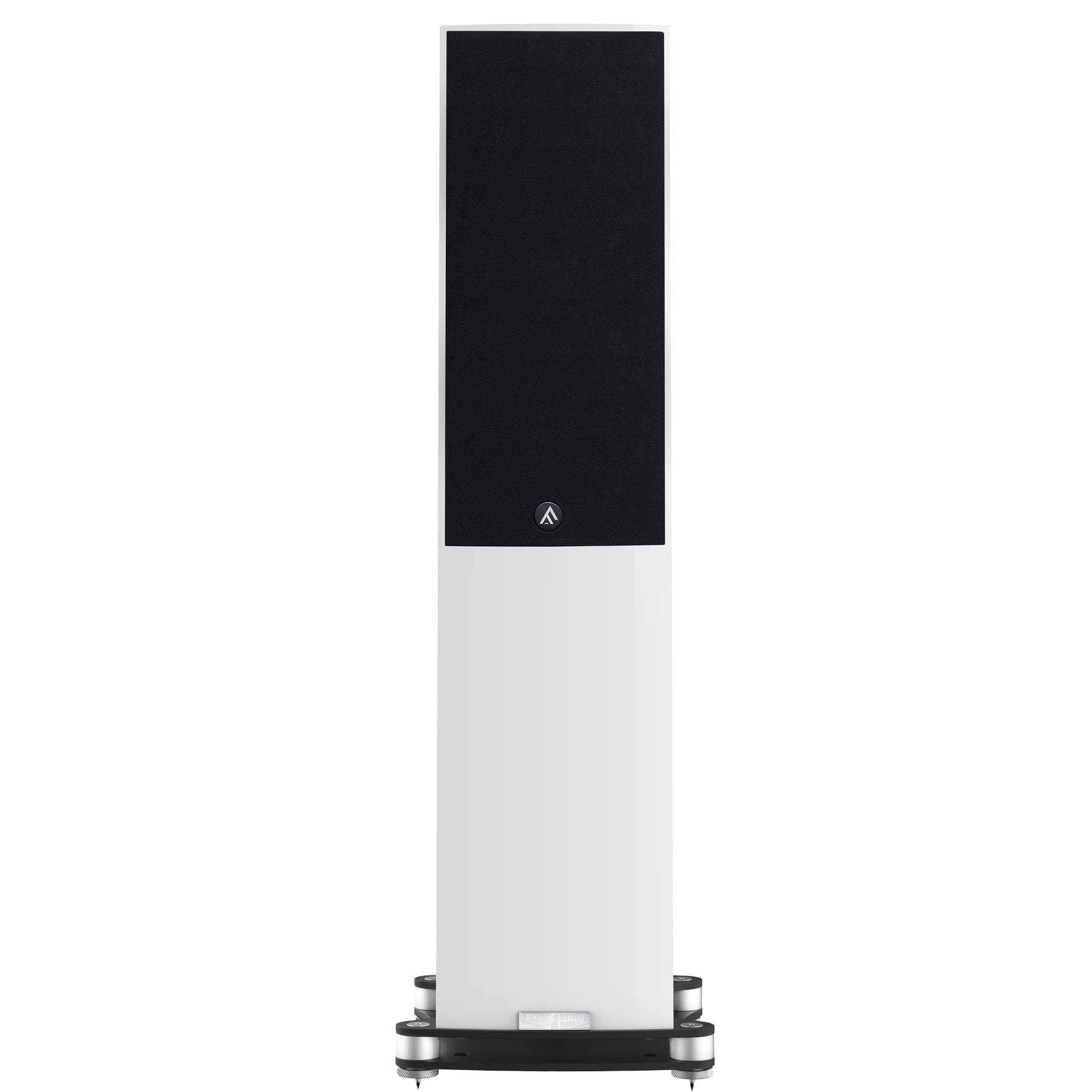

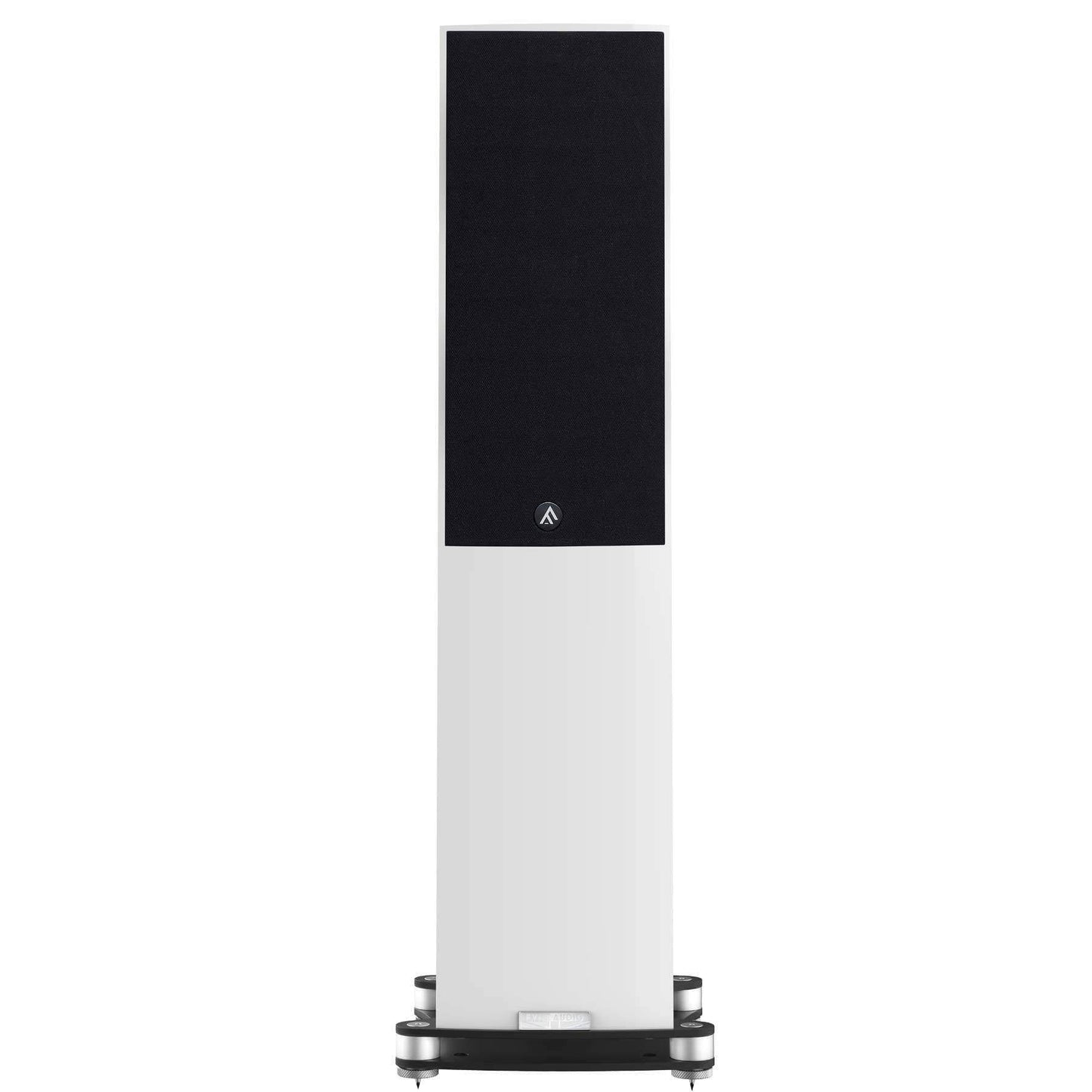

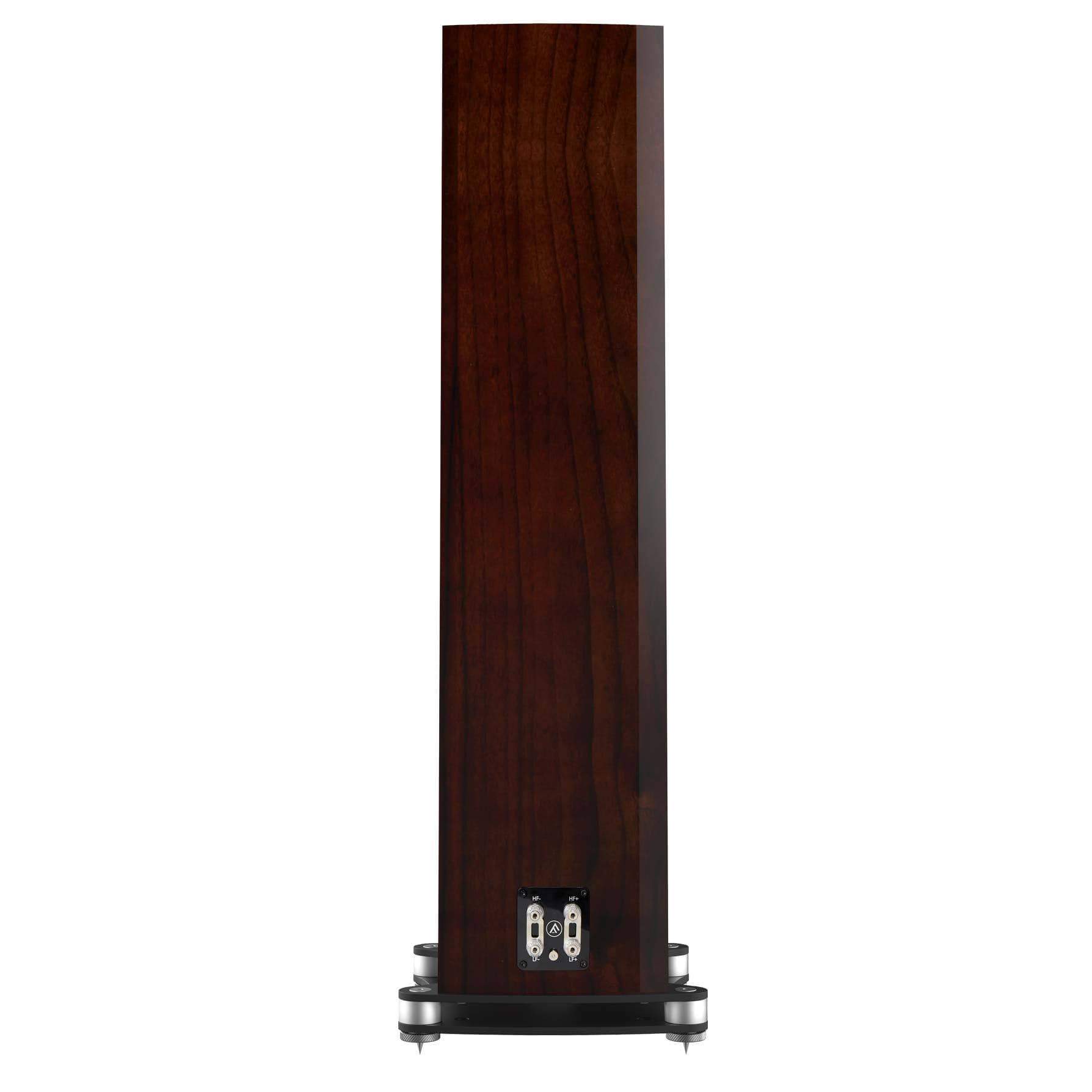

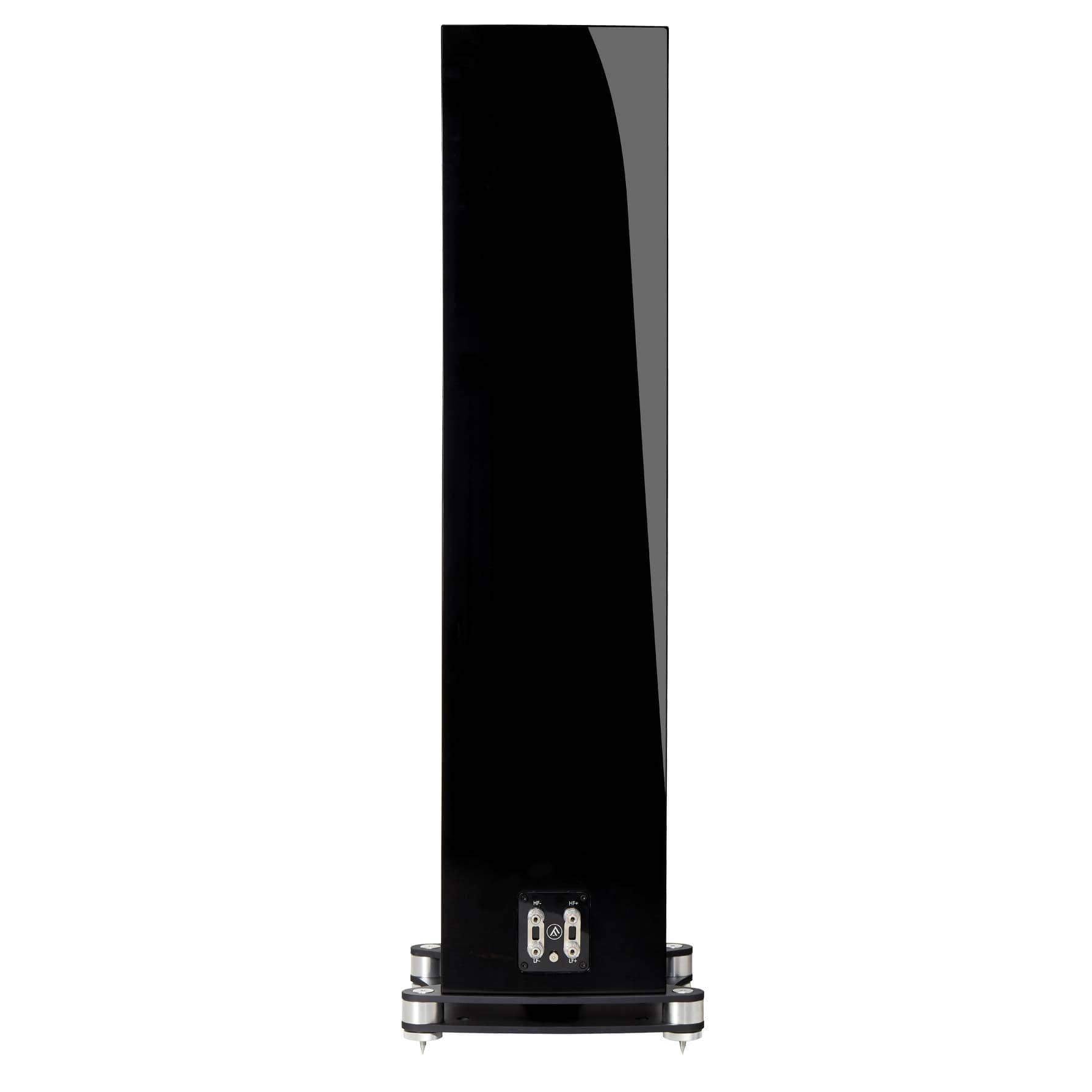

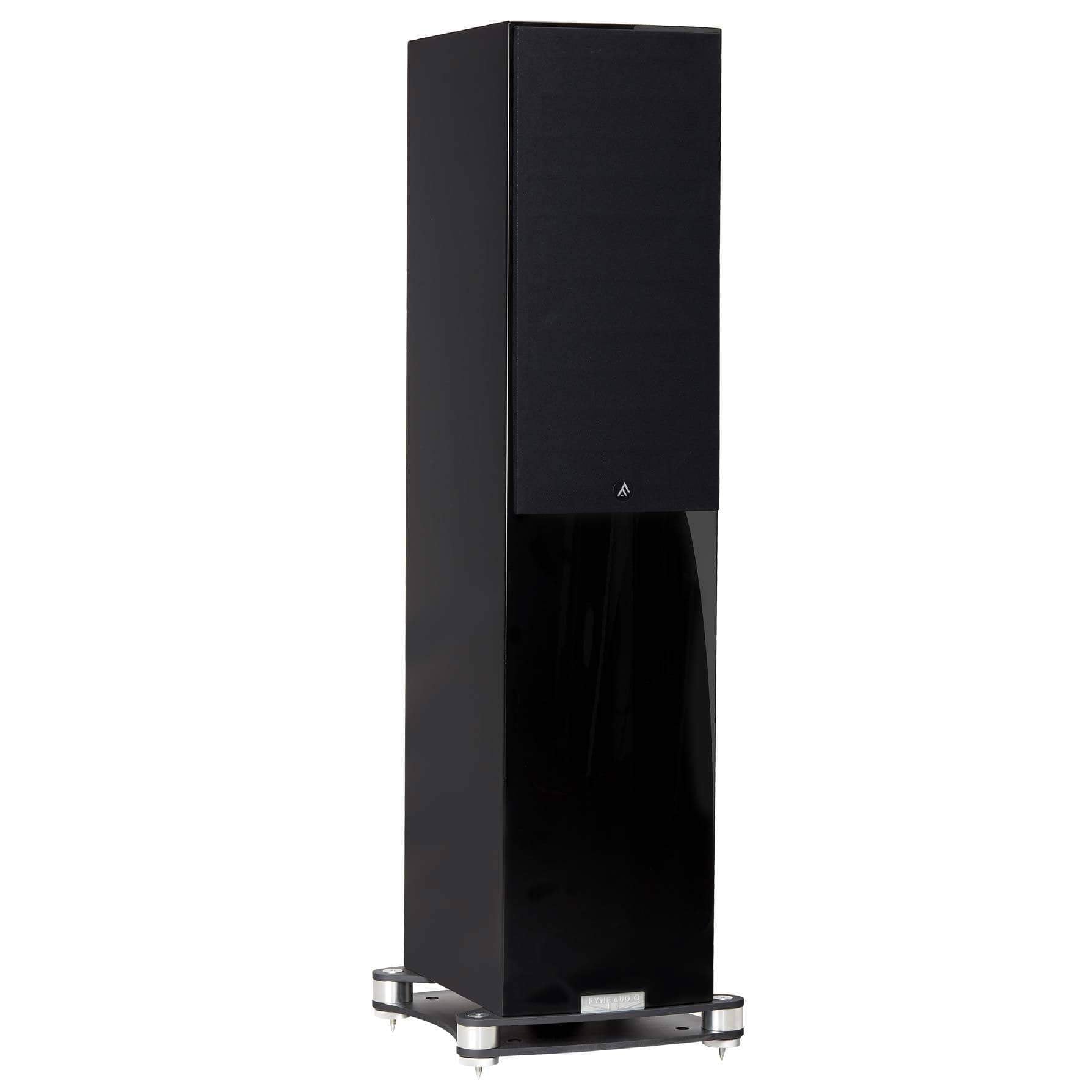

Improving on the F502, the UK built SP edition uses the premium 200mm (8″) IsoFlareTM driver and 200mm (8″) bass/mid driver from the F702, featuring rigid multi-fibre cones and FyneFluteTM roll surrounds. The IsoFlare’s 25mm magnesium compression tweeter has a unique HF wave guide pole piece delivering an incredibly even, full-range frequency response and outstanding musical imaging. The F502SP also benefits from the F700’s advanced crossover components and aluminium sandwich type plinth with BassTrax tractrix profile bass diffuser, re-engineered to precisely tune the F502SP’s more compact cabinet. The SP is available in high-gloss black and high gloss white as standard, or in a new, luxurious deep gloss lacquered walnut veneer with diamond machine cut finish on the aluminium chassis.
SPECIFICATIONS
System Type 2 1⁄2 way, downwards firing port, with BassTraxTM Tractrix diffuser*, twin cavity loading system
Recommended amplifier 30w – 200w
Continuous power 100 handling (Watt RMS)
Peak power handling 400 (Watt RMS)
Sensitivity (2.83 Volt @ 1m) 92dB
Nominal impedance 8 Ohm
Frequency response 30Hz- 34kHz (-6dB typical in room)
Drive unit complement 1 x 200mm IsoFlareTM point source driver, multi-fibre bass/ midrange cone, FyneFluteTM surround with 25mm magnesium dome compression tweeter, neodymium magnet system
1 x 200mm multi-fibre bass/ midrange cone, FyneFluteTM surround
Crossover frequency 250Hz & 1.7kHz
Crossover type Bi-wired passive low loss, 2nd order low pass, 1st order high pass
Cabinet construction High density fibre board with extensive internal bracing
Dimensions – HxWxD 1110 x 338 x 380mm incl. plinth, terminals & grille
