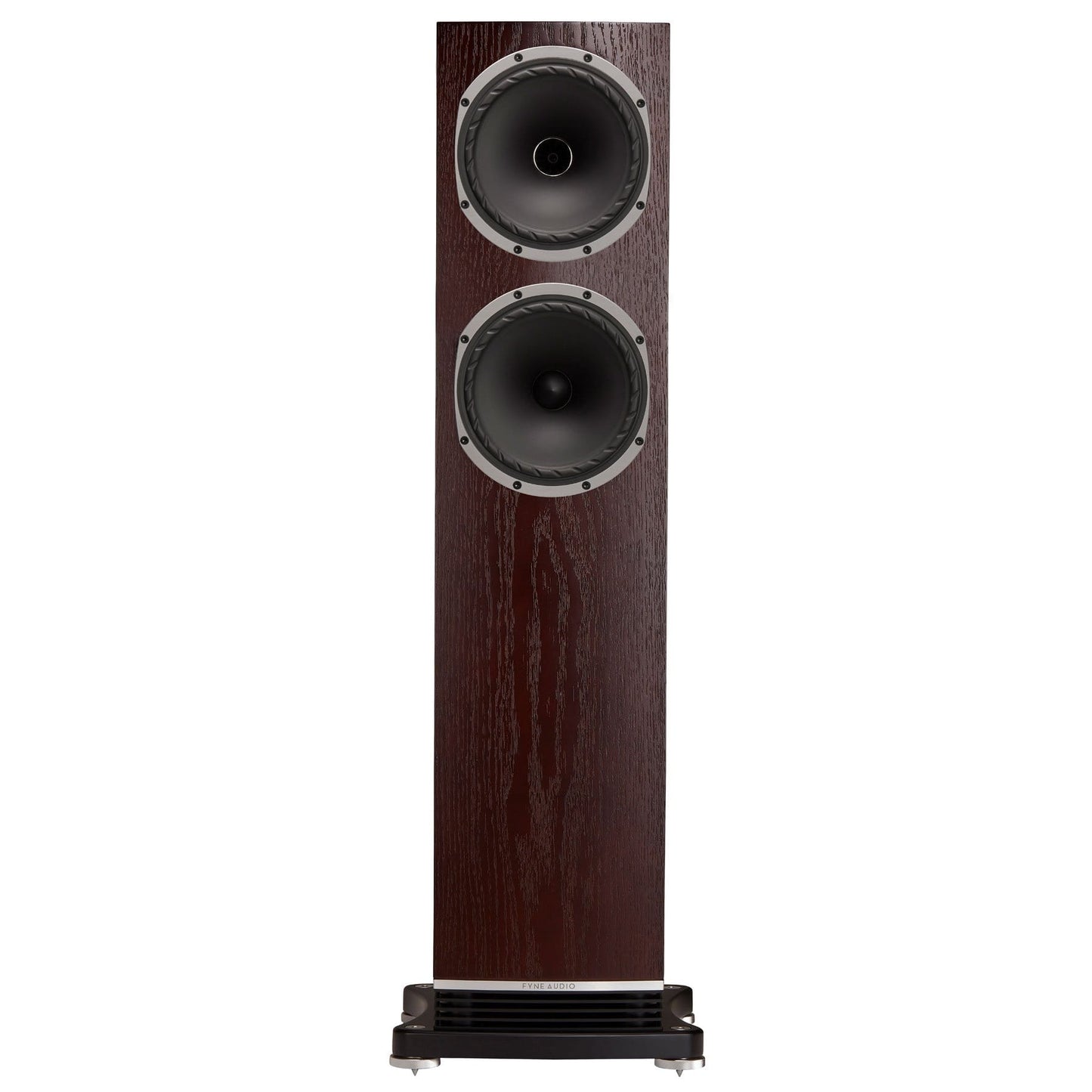

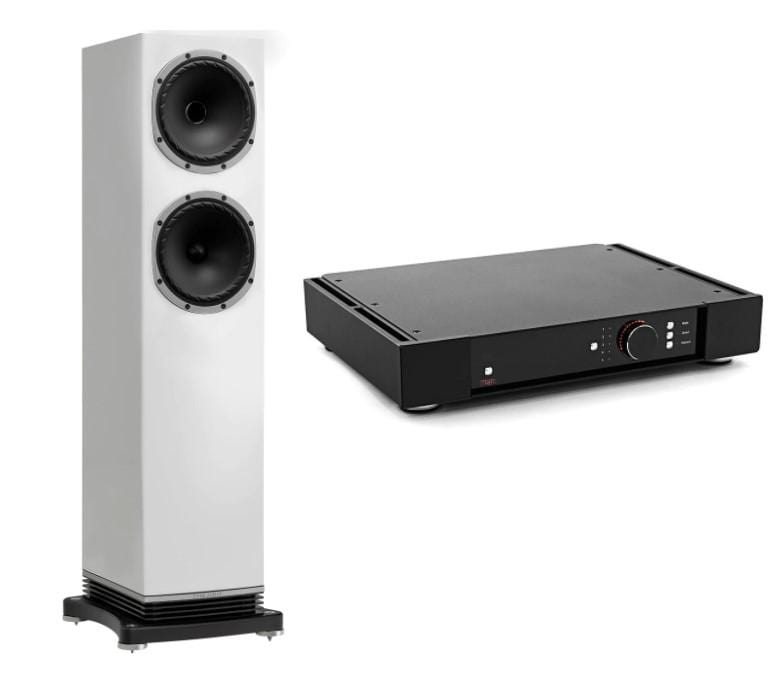

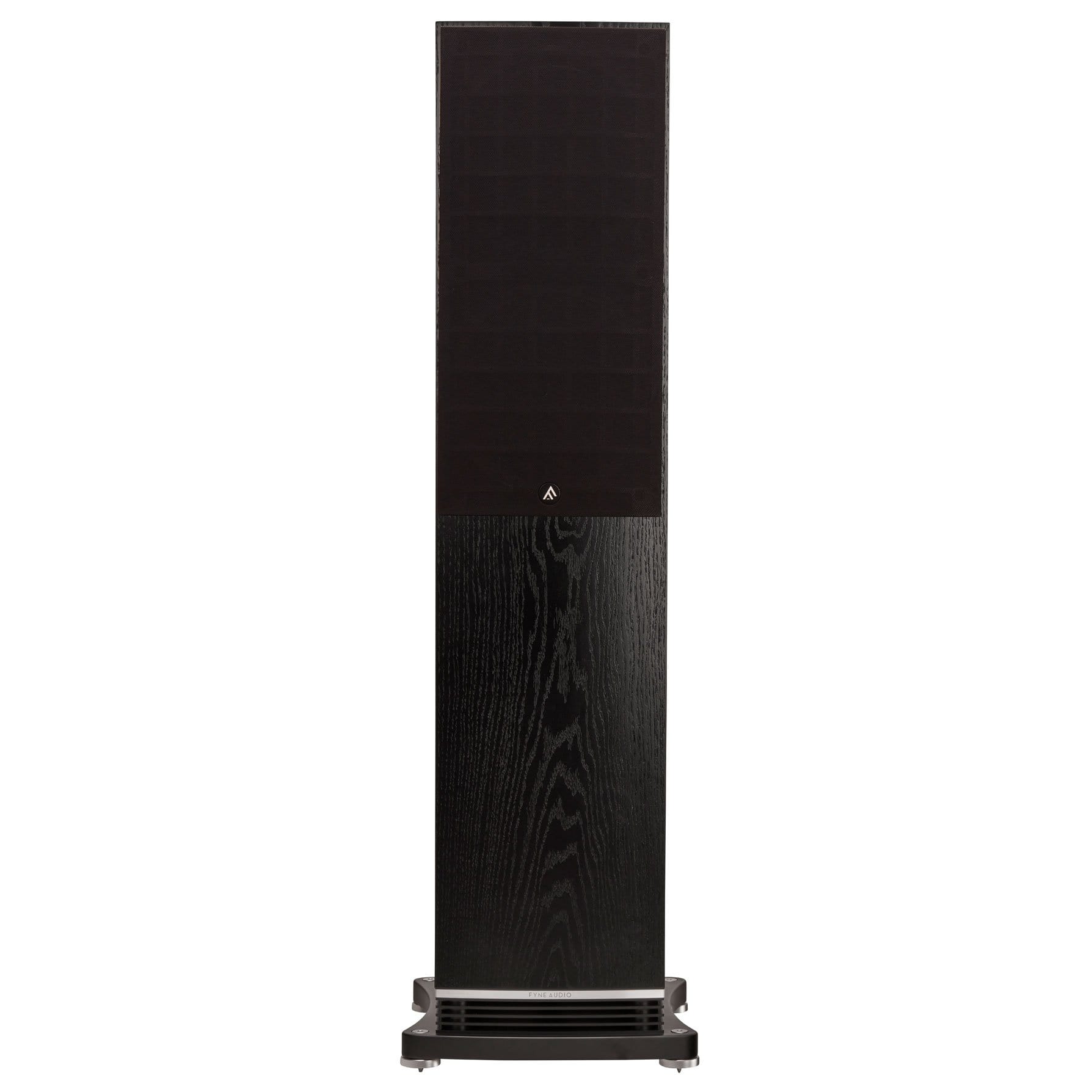

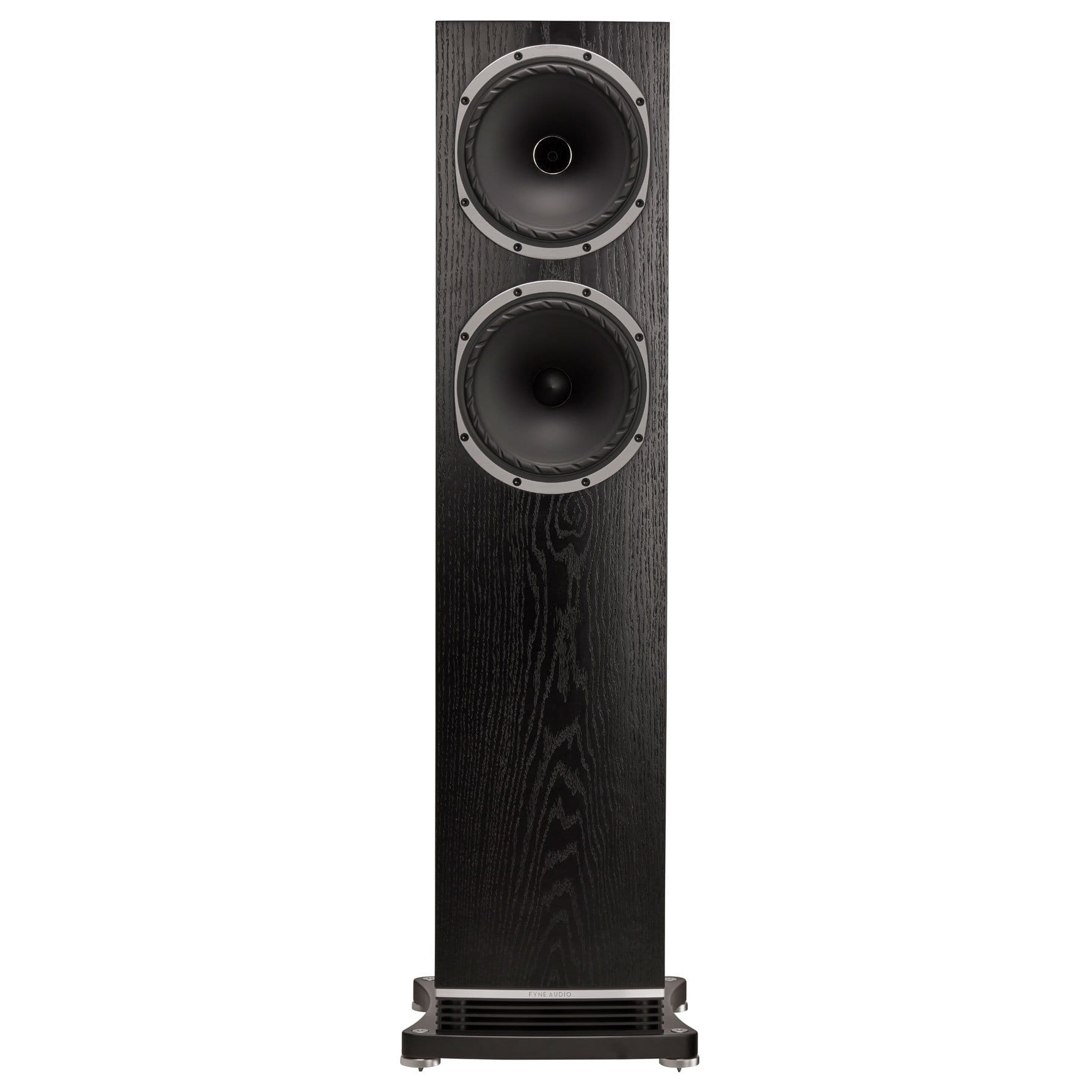

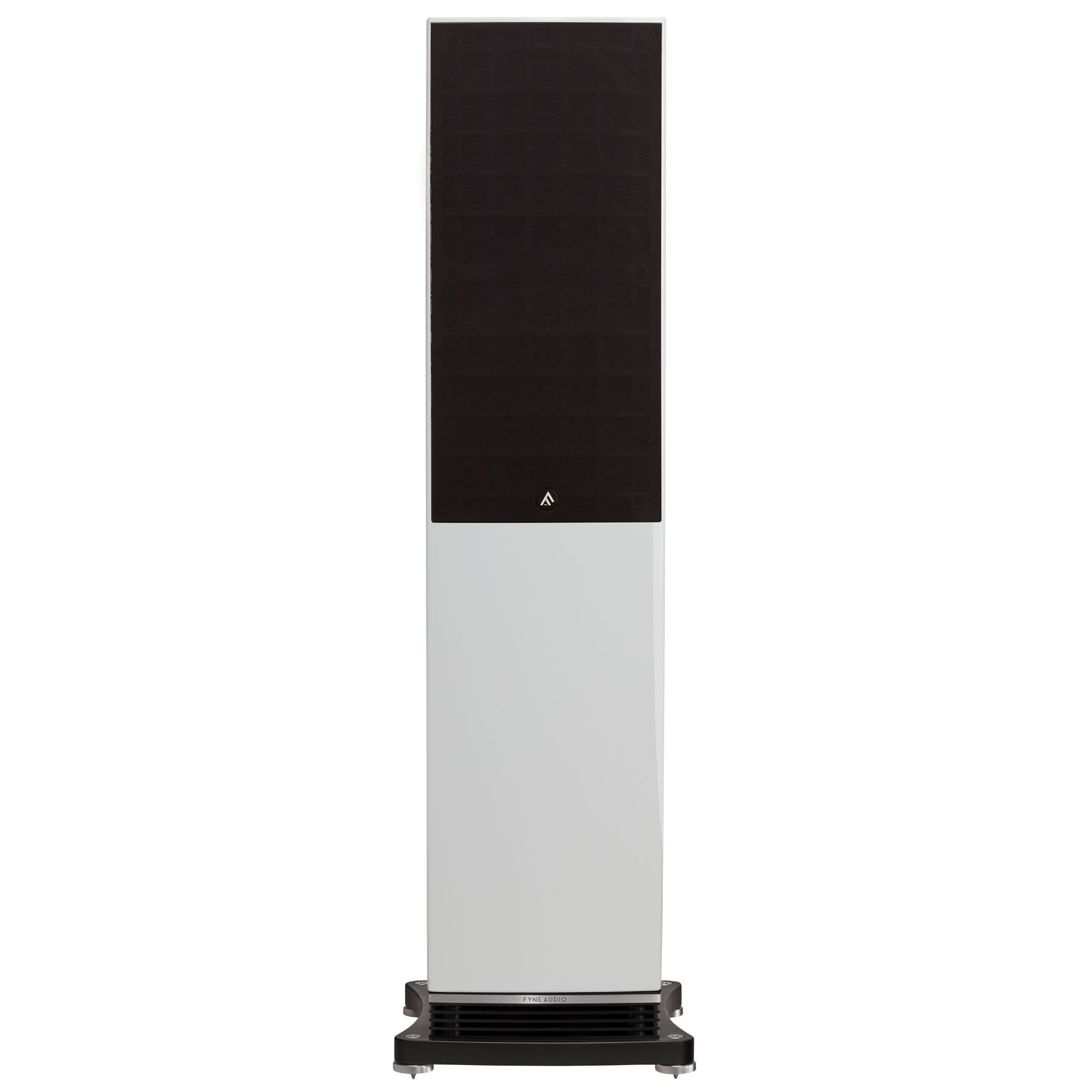

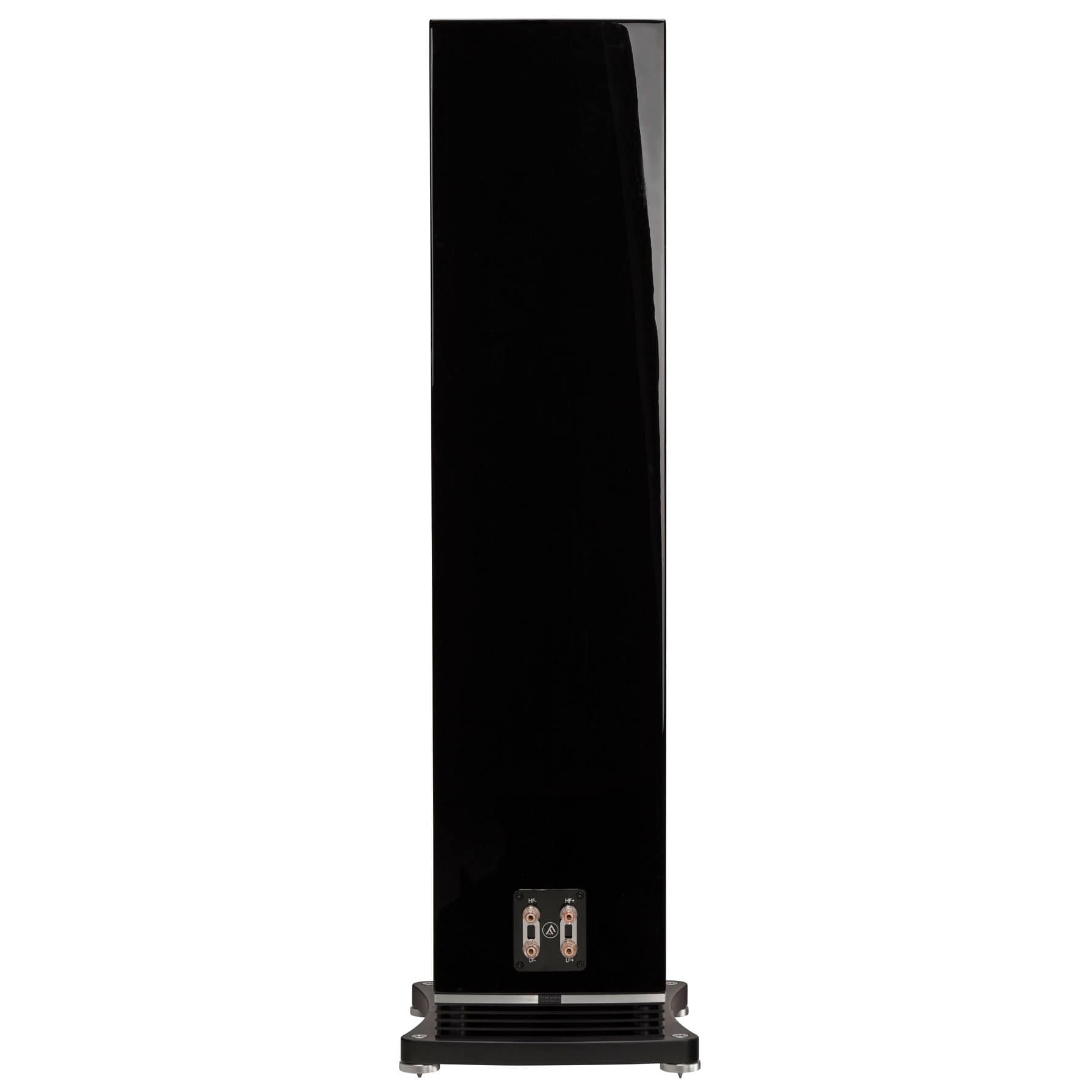

FYNE AUDIO F502 FLOORSTANDING SPEAKERS

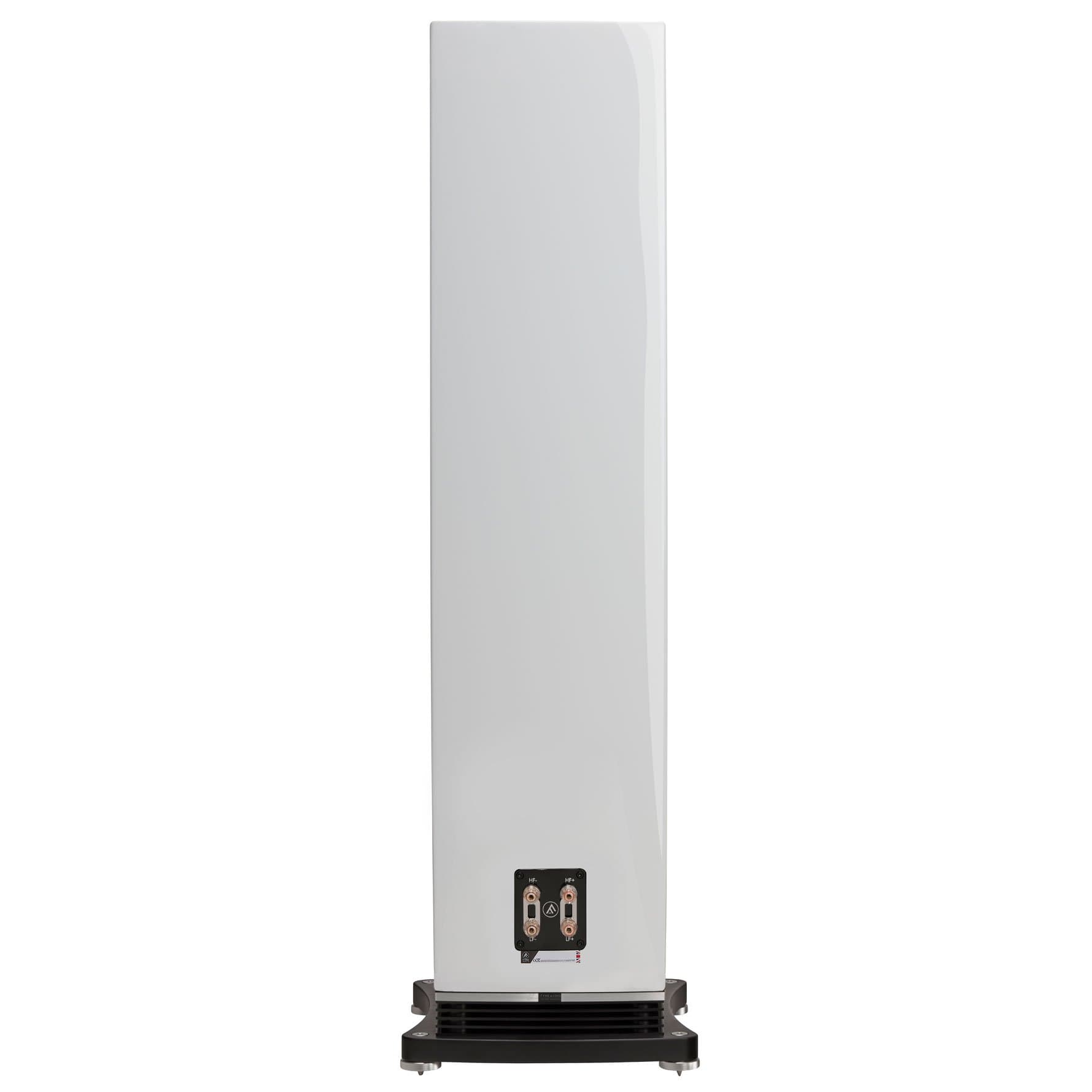

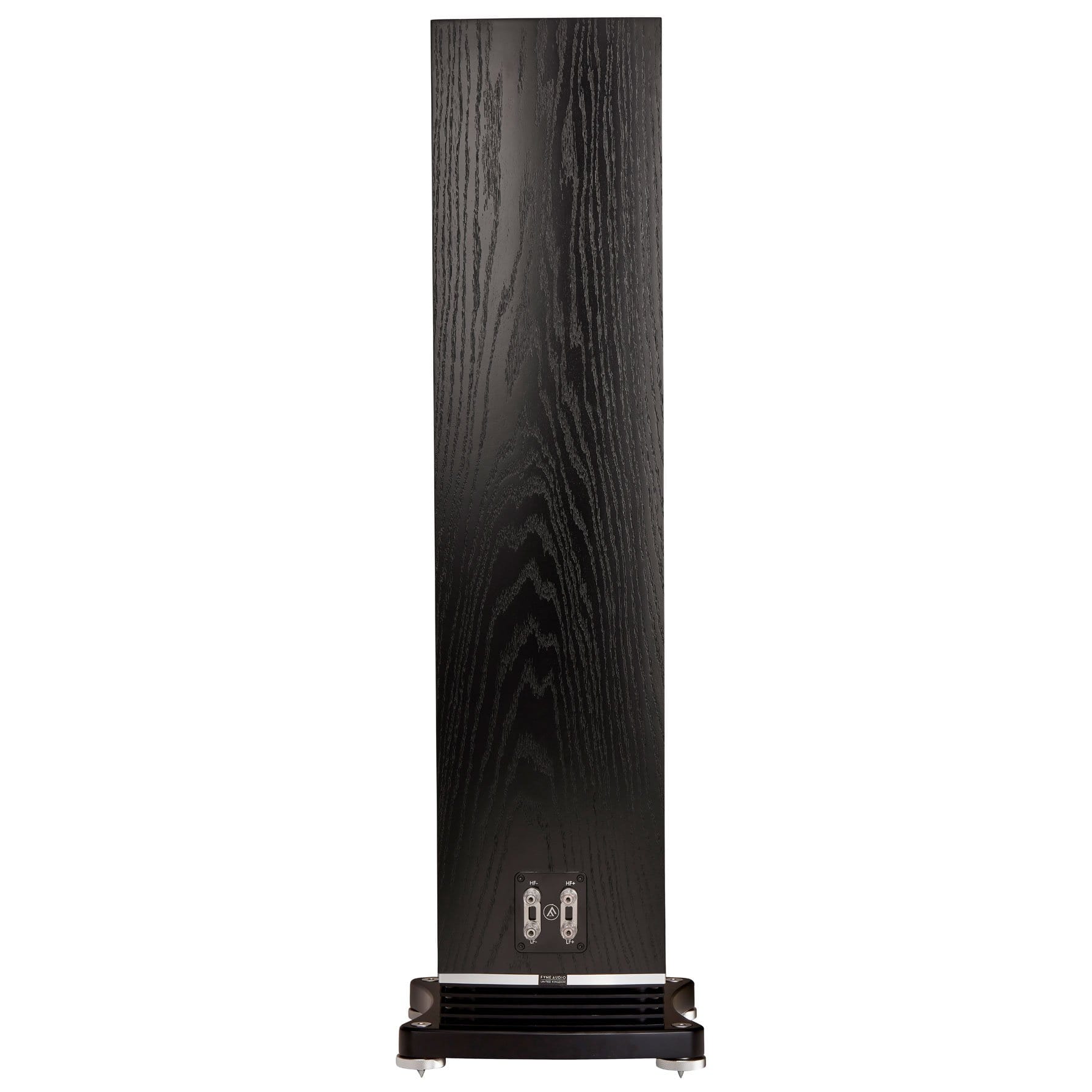

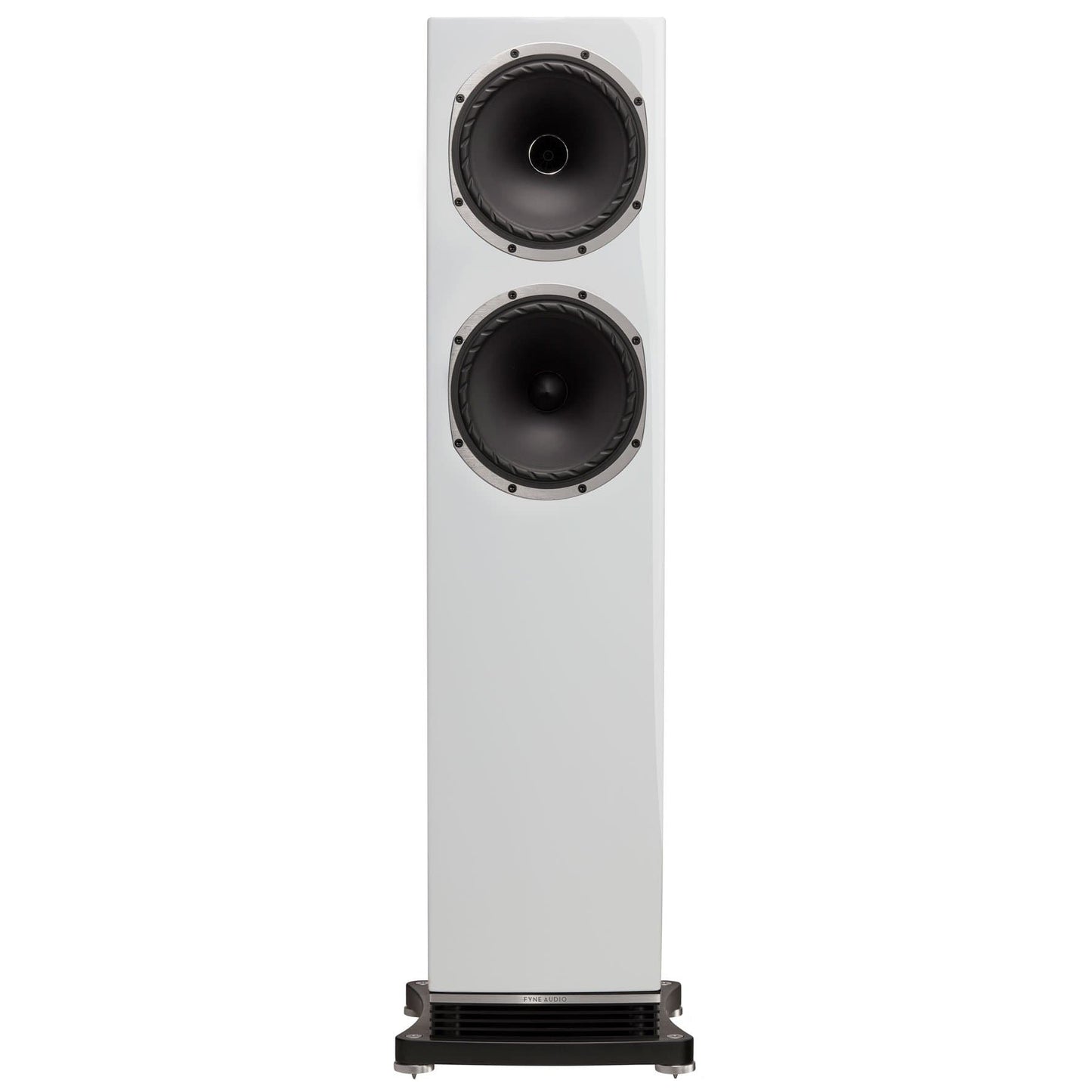

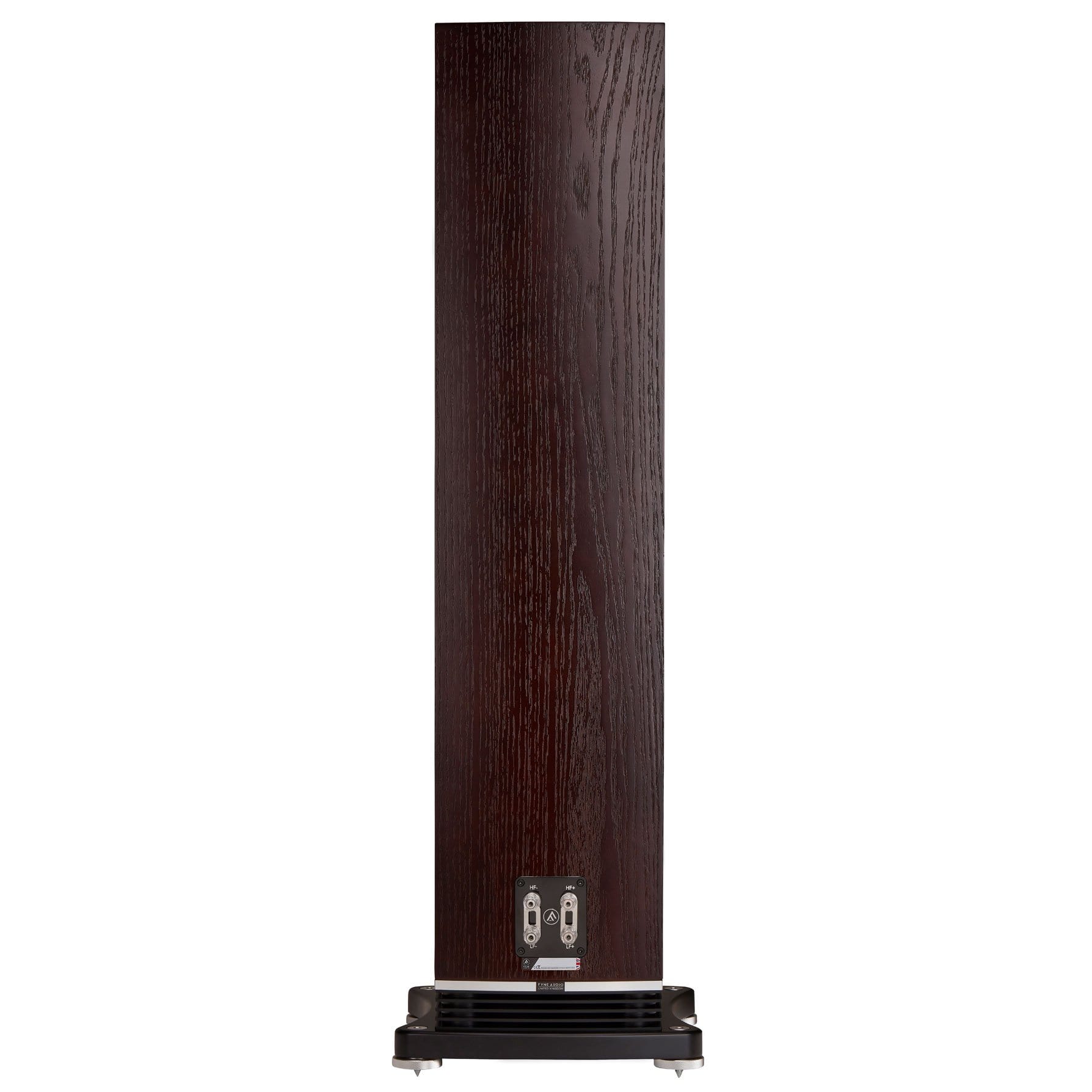

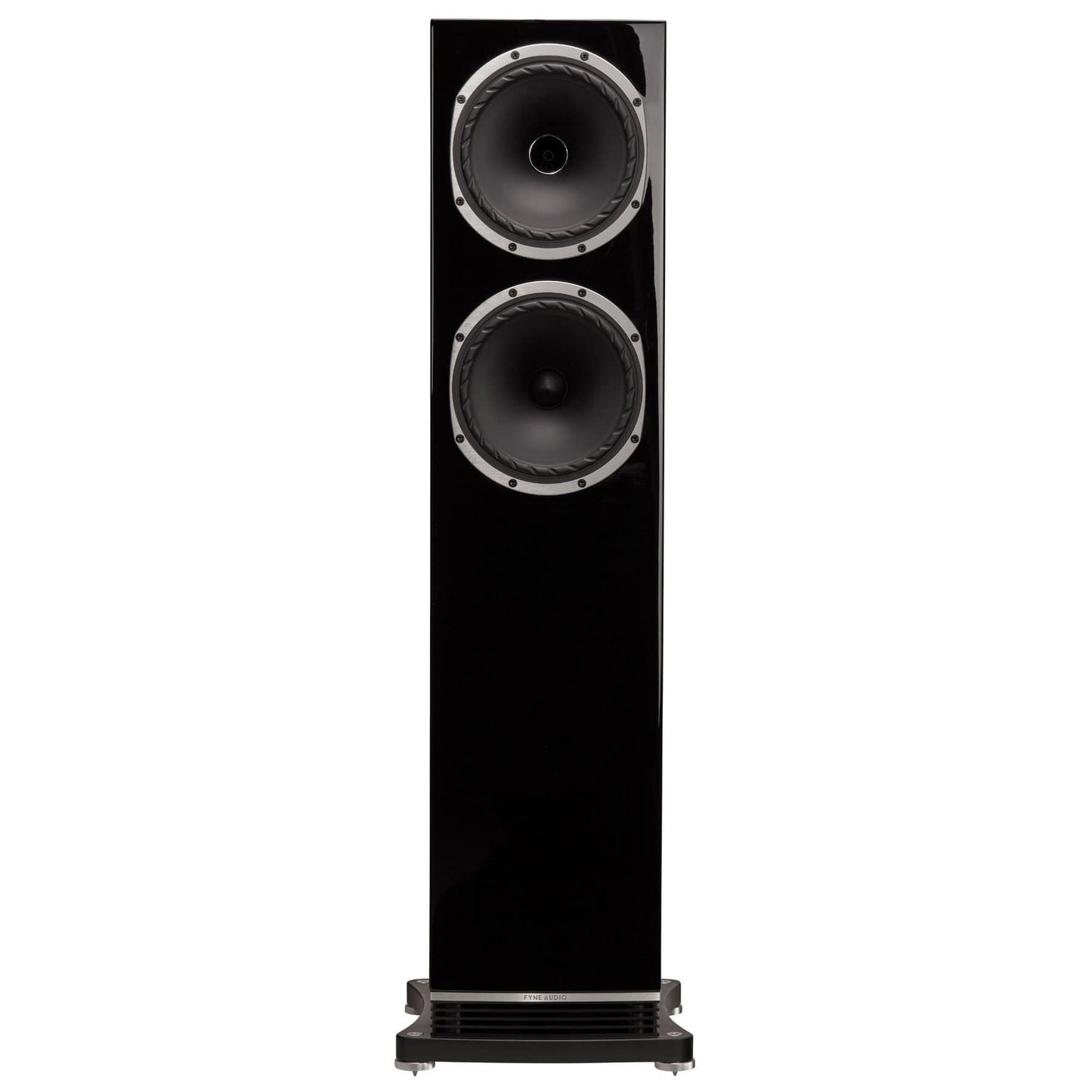

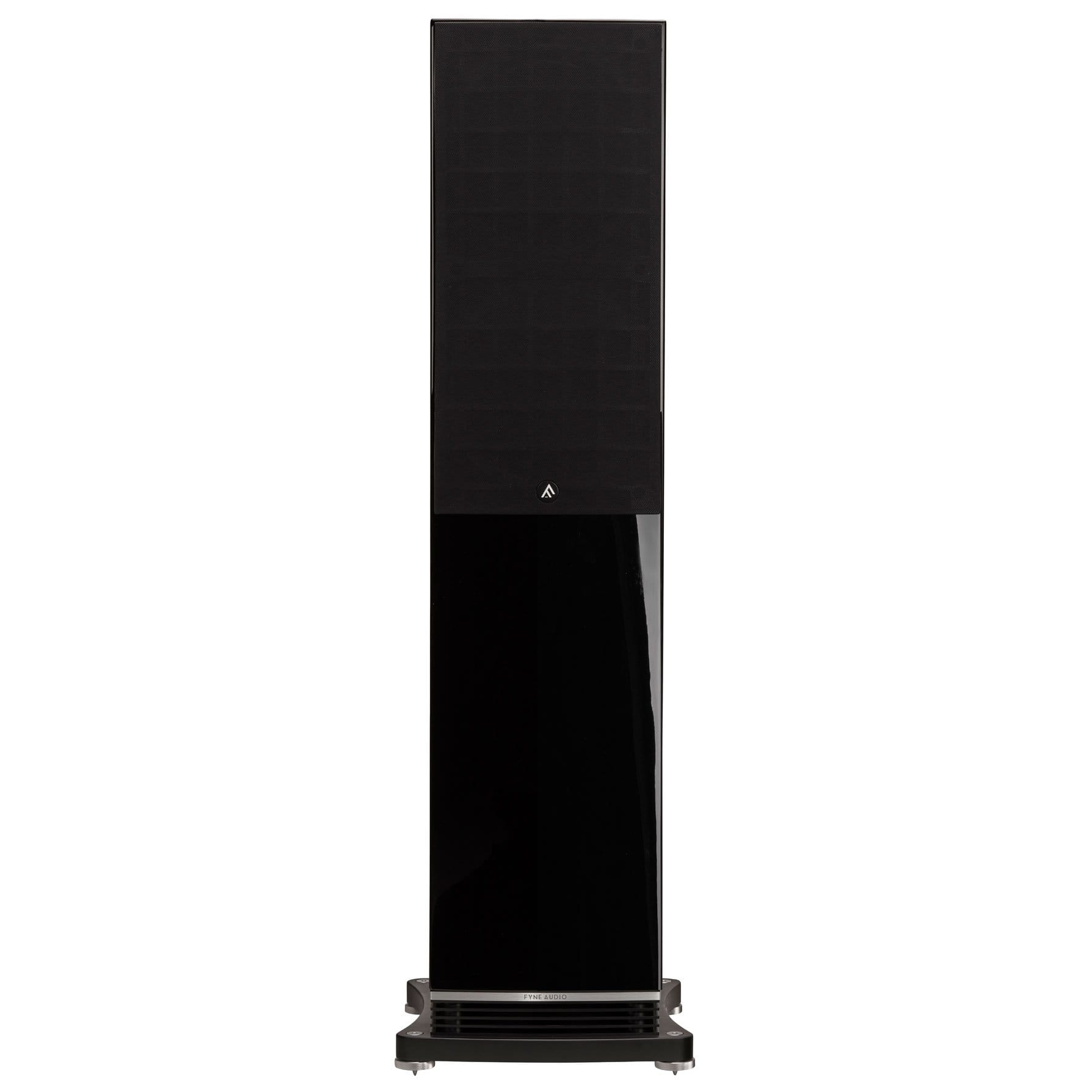

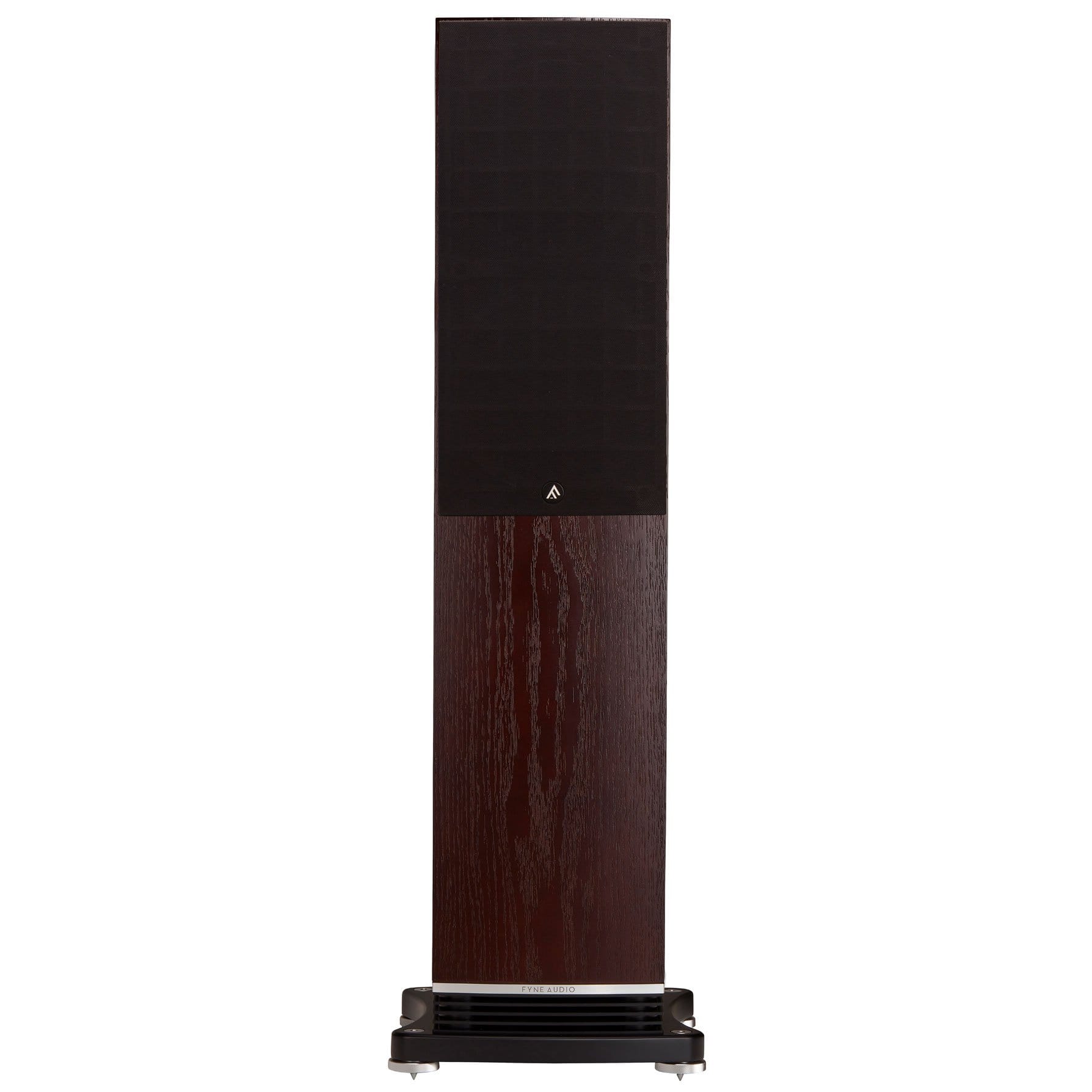

The F502 floorstanding loudspeaker delivers the series’ signature clarity and articulation along with visceral bass. The system will suit larger listening environments but is capable of revealing a huge dynamic range even when played at low volumes in smaller rooms. Isotropic energy radiation, with point source constant directivity, is provided by a 200mm (8″) proprietary IsoFlareTM driver for outstanding stereo imaging, even off axis. A matched 200mm (8″) bass driver is also fitted to the 64-litre cabinet ensuring a breath-taking musical or home theatre experience. Ideal for medium to large-sized rooms, the F502 is supplied with a dedicated plinth incorporating our BassTraxTM Tractrix diffuser system, which integrates bass energy uniformly into the room. The luxuriously finished, contemporary styled cabinet is available in a choice of dark oak or black oak real wood veneer and piano gloss black or white. Enhancing its aesthetic appeal, it has a gently curved front and rear baffle which additionally benefits the acoustic performance by reducing colouration effects.
System Type: 2 ½ way, downwards firing port, with BassTraxTM Tractrix diffuser. Twin cavity coupled reflex
Recommended amplifier power (Watt RMS): 40w – 180w
Continuous power handling (Watt RMS): 90w
Sensitivity (2.83 Volt @ 1m): 91dB
Nominal impedance: 8 Ohm
Frequency response (-6dB typical in room): 30Hz – 34kHz
Drive unit complement:
1 x 200mm IsoFlareTM, multi-fibre bass/ mid, with 25mm titanium, dome compression tweeter.
1 x 200mm multi-fibre bass
Crossover frequency: 250Hz & 1.7kHz
Crossover type: 2nd order low pass, 1st order high pass
Dimensions – HxWxD: 1114 x 250 x 380mm
Weight – Each: 25.5kg

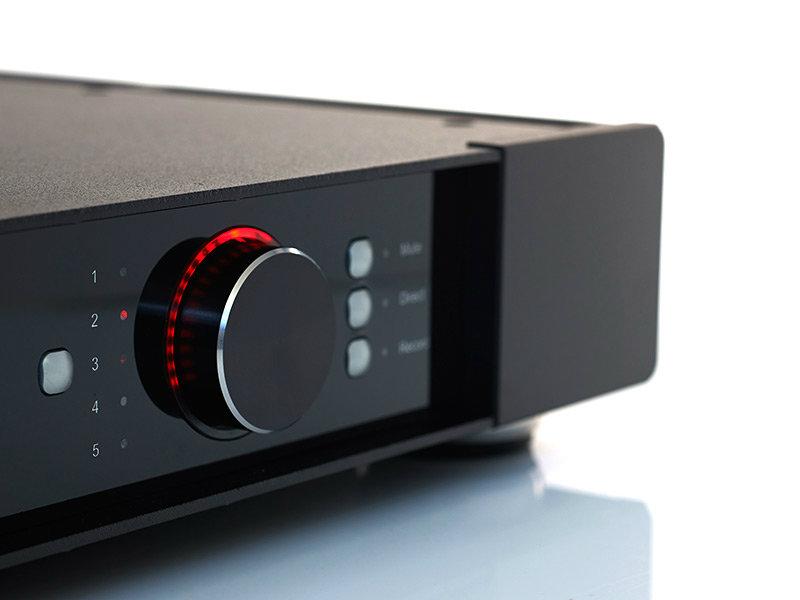

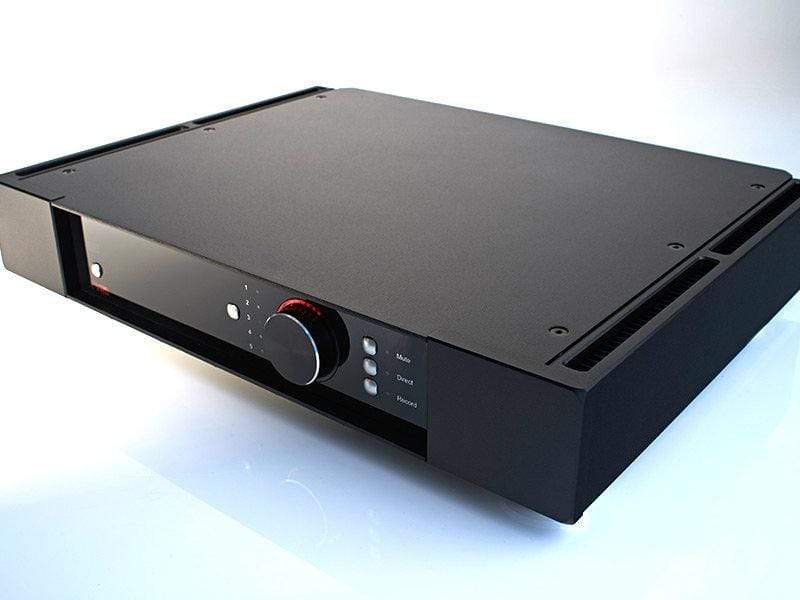

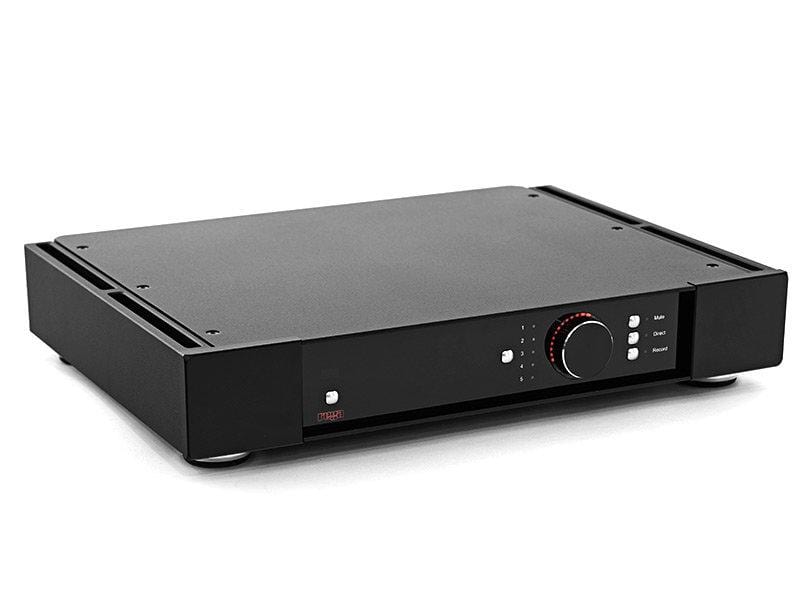

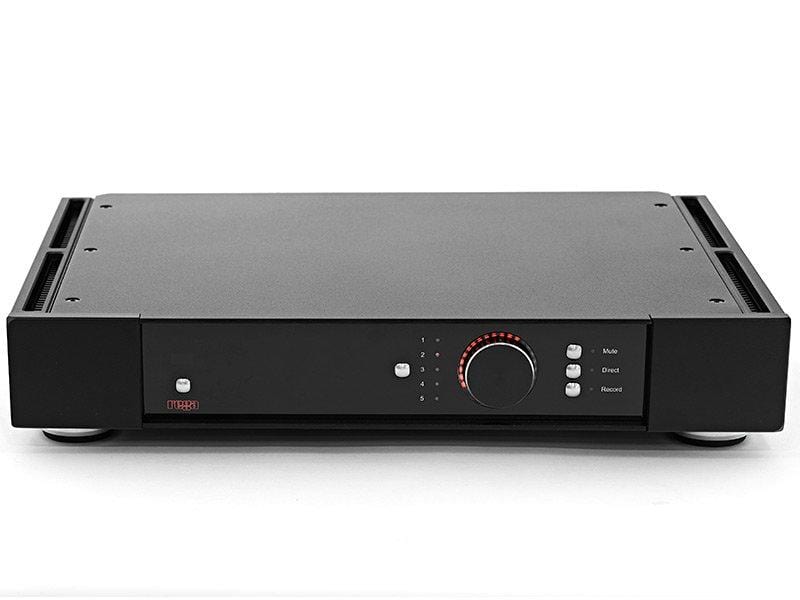

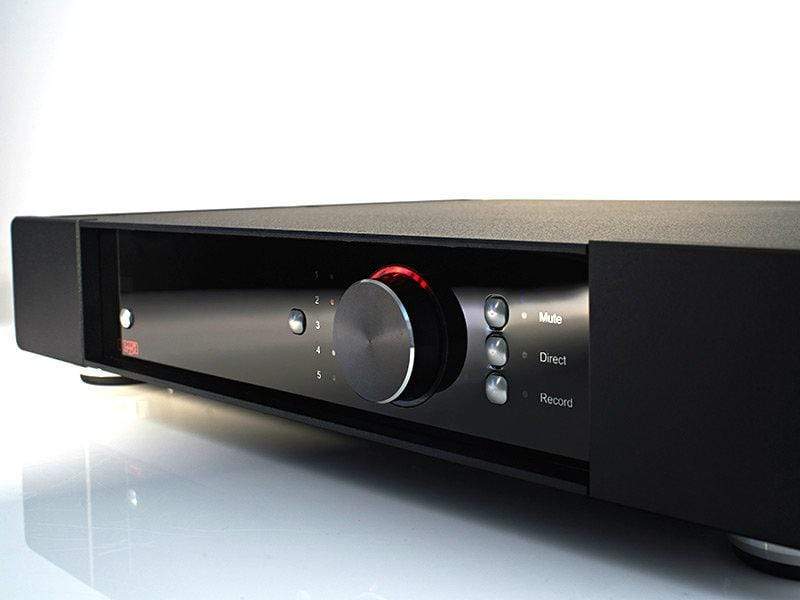

The Elicit-R has been designed and engineered to the highest standard. The Elicit-R will deliver the best possible audio performance whilst remaining simple to use and easy to setup. Our recent development work in amplifier design circuitry has allowed us to further advance the Elicit-R performance by using new and improved power amplifier circuits.
The Elicit-R held the title of What Hi-Fi? Best Stereo amplifier for three years in a row.
The Perfect Blend of Power and Control
Combined with FET discrete line level pre-amplifiers and a programmable stepped attenuator volume control, the Elicit-R promises greater levels of performance and control over the delivery of power. The Elicit-R is supplied with the new Solaris system remote handset offering full control over this and all of the current range of electronics.
The output amplifier used in the Elicit-R was born after extensive research by our engineers to develop a low source Class A driver stage, based around a complementary pair of Darlington output transistors, forming an emulated Class A driver stage.
The Elicit-R includes a high quality, built in, moving magnet phono stage designed to maximise the potential of your vinyl system. A simple switch on the rear panel allows the same input to be switched to a secondary set at line level. This input is specially configured to offer further isolation and reduce noise. This makes it ideally suited for connection of more sensitive products such as an external MM or MC phono stage.
If your system is not vinyl based, the same socket allows this line input to be used with any line level product (such as a CD player or DAC), ensuring maximised connectivity via the back panel. These features, coupled with Polypropylene capacitors throughout the signal path, improved power supplies and increased output power to 105 watts per channel, all housed in a brand new custom designed case, combine to give the best performance Elicit to date.
- 105 W per channel into 8 Ω
- 5 line inputs (4+ Switchable MM)
- Integrated high spec MM phono stage
- Solaris system remote
- Direct input
- Record out
- Pre-amp out
- DC protection and thermal cut out
- Lifetime warranty against manufacture defects
- Power Output
105 W per channel into 8 Ω
127 W per channel into 6 Ω
- Input Sensitivity
105 W into 8 Ω
- Line Inputs (Input 1 switch set to line)
196 mV load 10 k
- Phono (Input 1 switch set to phono)
2 mV load 47 k in parallel with 220 pF
- Record Output
196 mV for rated inputs
- Pre-amp Output
760 mV for rated inputs
- Dimensions (W x H x D)
432 x 82 x 340 mm
