- Bliss Headphone Amp
The Holo Audio Bliss is here! This has taken a long time and tremendous R&D to deliver a head-amp that does everything well. Enough power for any headphone! And delivering our intoxicating sound signature that Holo Audio is known for.
General info:

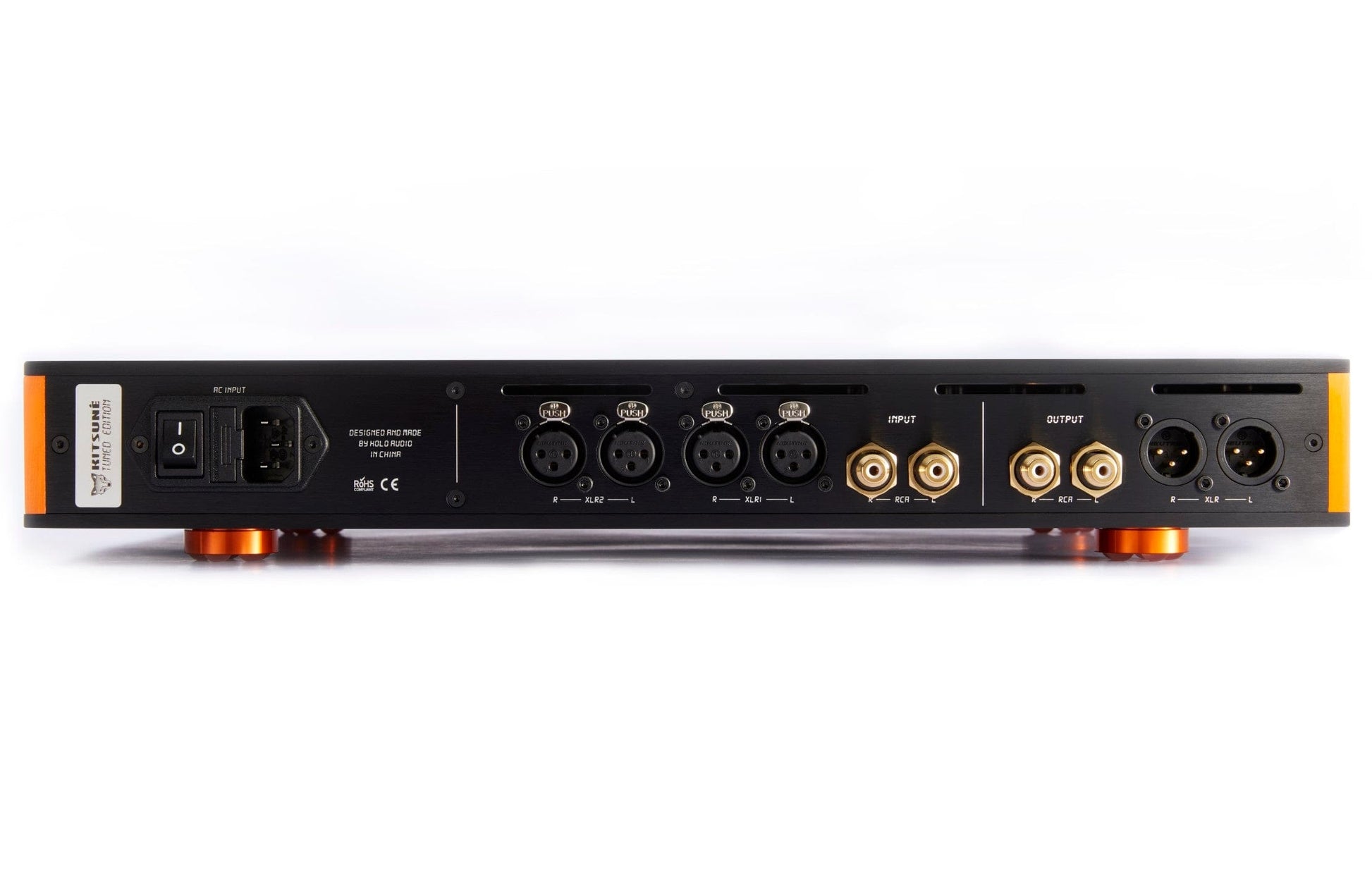

LINE IN:
Single-ended RCA input (QTY 3)
Maximum amplitude 8.4Vrms
Input impedance 6.2KΩ
Balanced XLR input (QTY 2)
Maximum amplitude 16.8Vpp
Input impedance 12.4KΩ
HEADPHONE
OUTPUT:
4P XLR Output
Low impedance mode (LO-Z): Output impedance 0Ω, power 12Wrms@32Ω
High impedance mode (HI-Z): output impedance 15Ω, power 2.5Wrms@150Ω
4.4mm Pentaconn Output
Low impedance mode (LO-Z): output impedance 2Ω, power 12Wrms@32Ω
High impedance mode (HI-Z): output impedance 17Ω, power 2.5Wrms@150Ω
6.35mm TRS Output
Low impedance mode (LO-Z): output impedance 1Ω, power 3Wrms@32Ω
High impedance mode (HI-Z): output impedance 8.5Ω, power 0.6Wrms@150Ω
LINE OUT:
Single-ended RCA Output
Maximum amplitude 10Vrms
Output impedance 20Ω
Balanced XLR Output
Maximum amplitude20Vrms
Output impedance 40Ω
PHYSICAL
CHARACTERISTICS:
Size 430x300x55mm / 16.93×11.81×2.17inches (W x L x H, Dimensions do not include protruding parts) additional 12 mm for machined feet
Weight 10kg / 22.05lbs
CONFIGURATION
Power Input (configurable, see label on bottom of unit for specified input)
220-230V 50/60Hz – Use Fuse Type 2A SB 5x20mm (when internal switches are set@220v)
110-115V 50/60Hz – Use Fuse Type 4A SB 5x20mm (when internal switches are set@110v)
Power consumption
50w
ACCESSORIES:
Included Accessories
AC Power Cable x1 (Applicable to North America only)

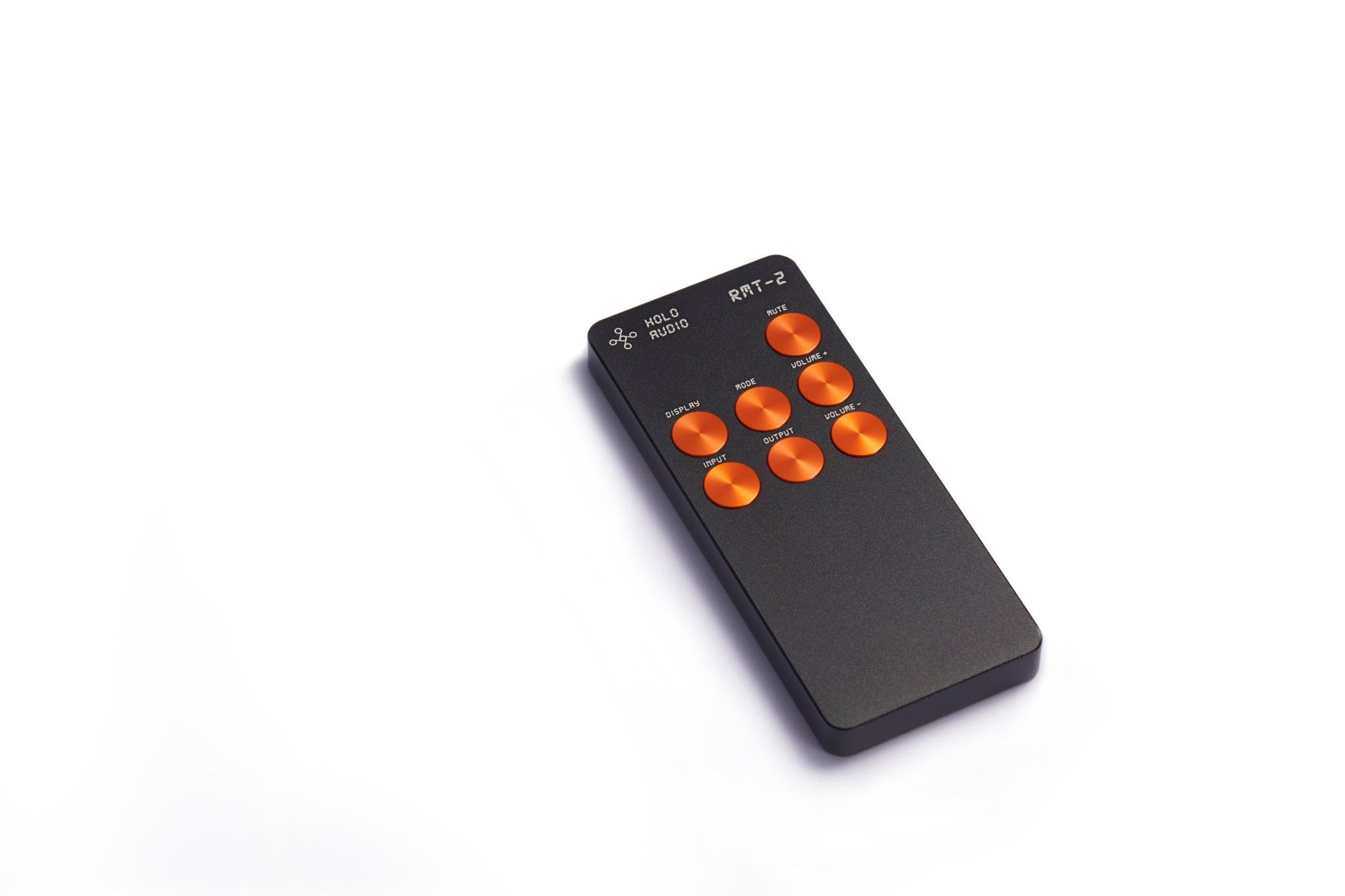

Remote Control x1 (only with KTE model)
1. 100VA DUAL O-type(not Toroid) FLATWIRE (NOT roundwire) 6N Copper custom hand made audio transformers. Only KTE Model
2. All copper wire is replaced with 1.5mm pure occ silver wire. Only KTE model

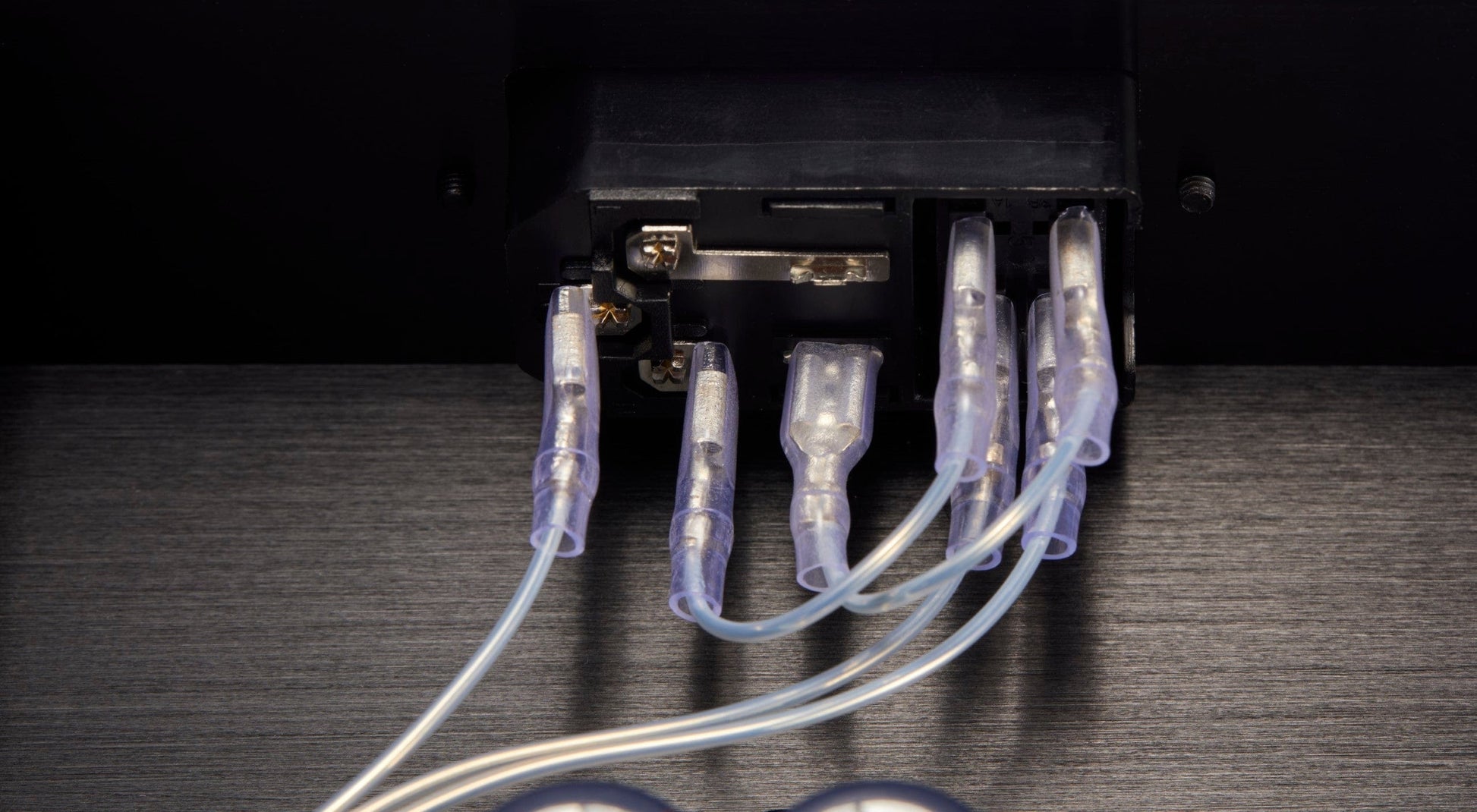

3. Replaced IEC inlet connectors with pure silver/rhodium plated faston connectors at the IEC inlet. Only KTE model.
4. Fuse is upgraded with world class Red Nano fuse with gold/silver and graphene and quartz filtering materials. Only KTE Model

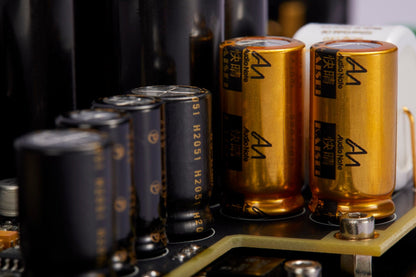

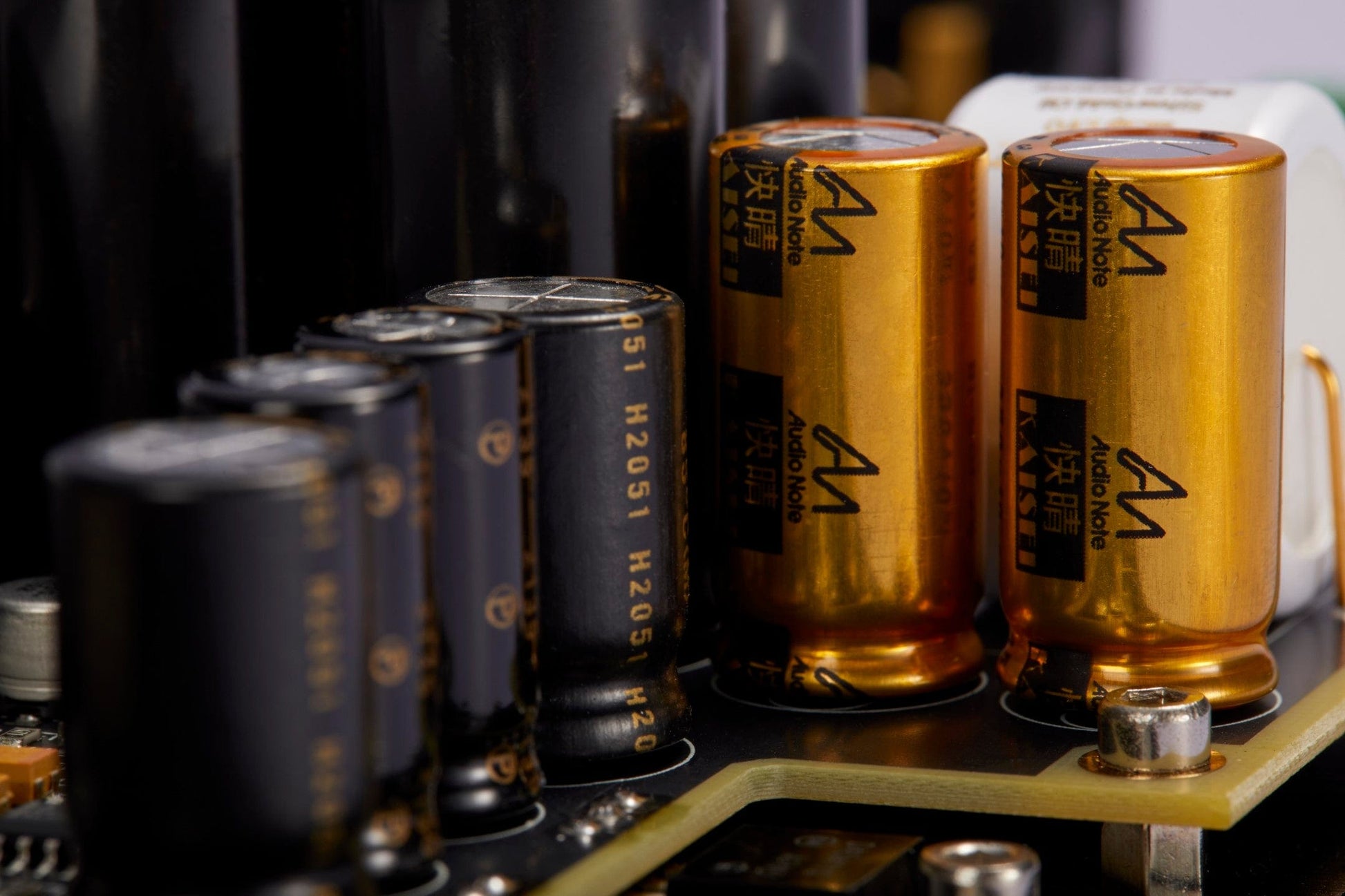

5. Standard caps are upgraded with Audio Note Kasei capacitors. Only KTE Model

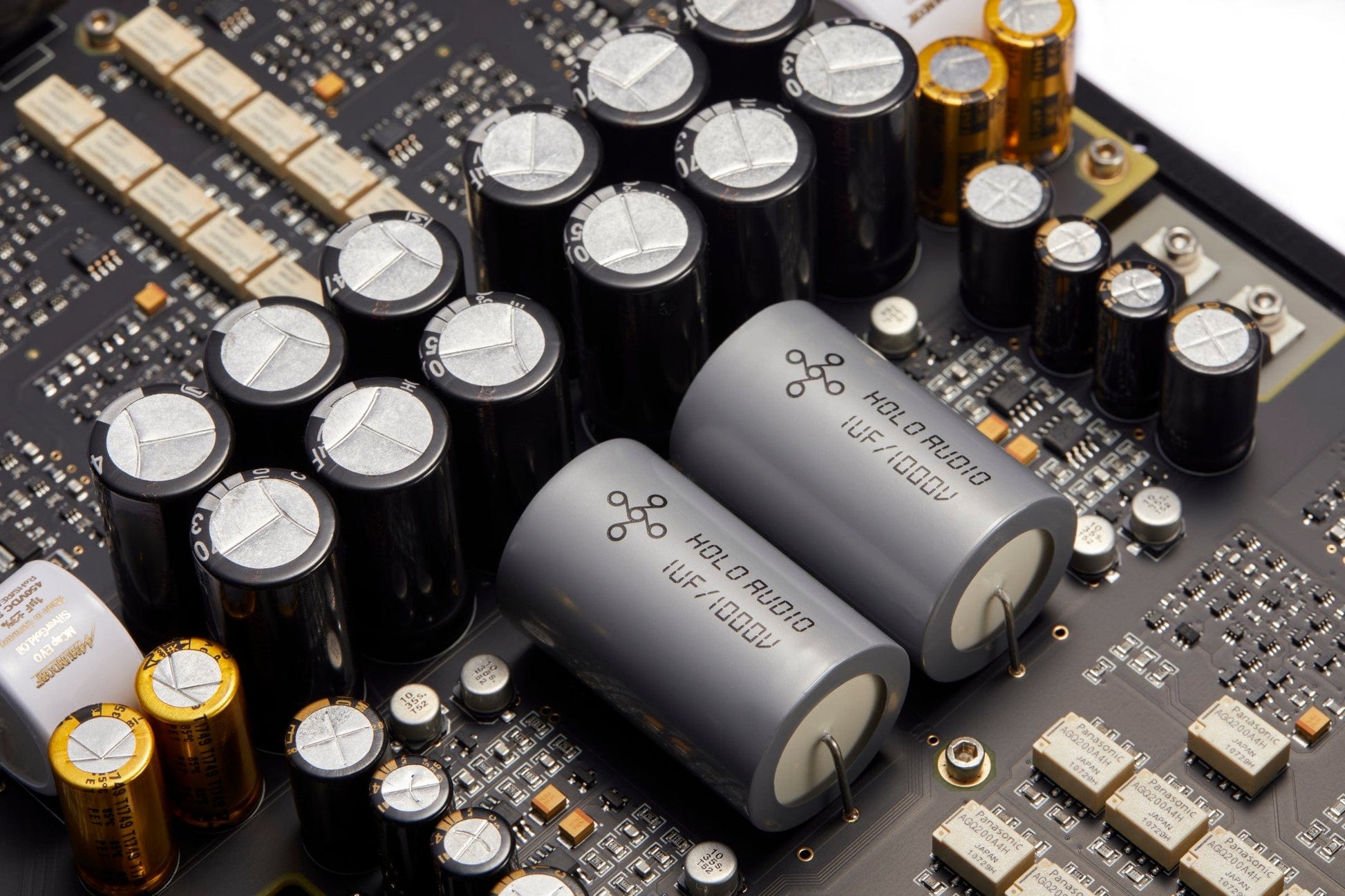

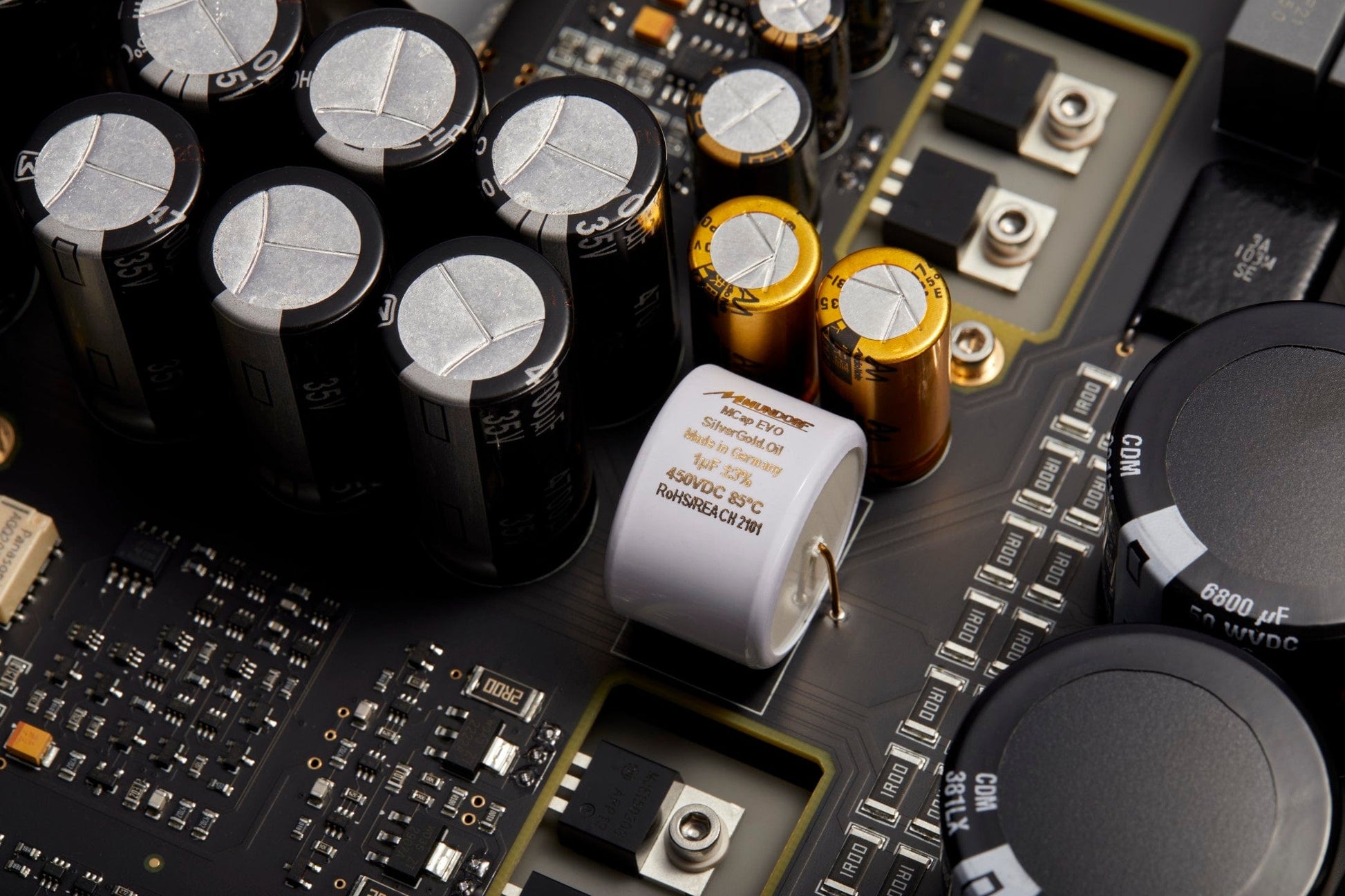

6. Custom made HoloAudio 1000V 1uF caps / Mundorf evo silver/gold caps (both are standard in all models of bliss)

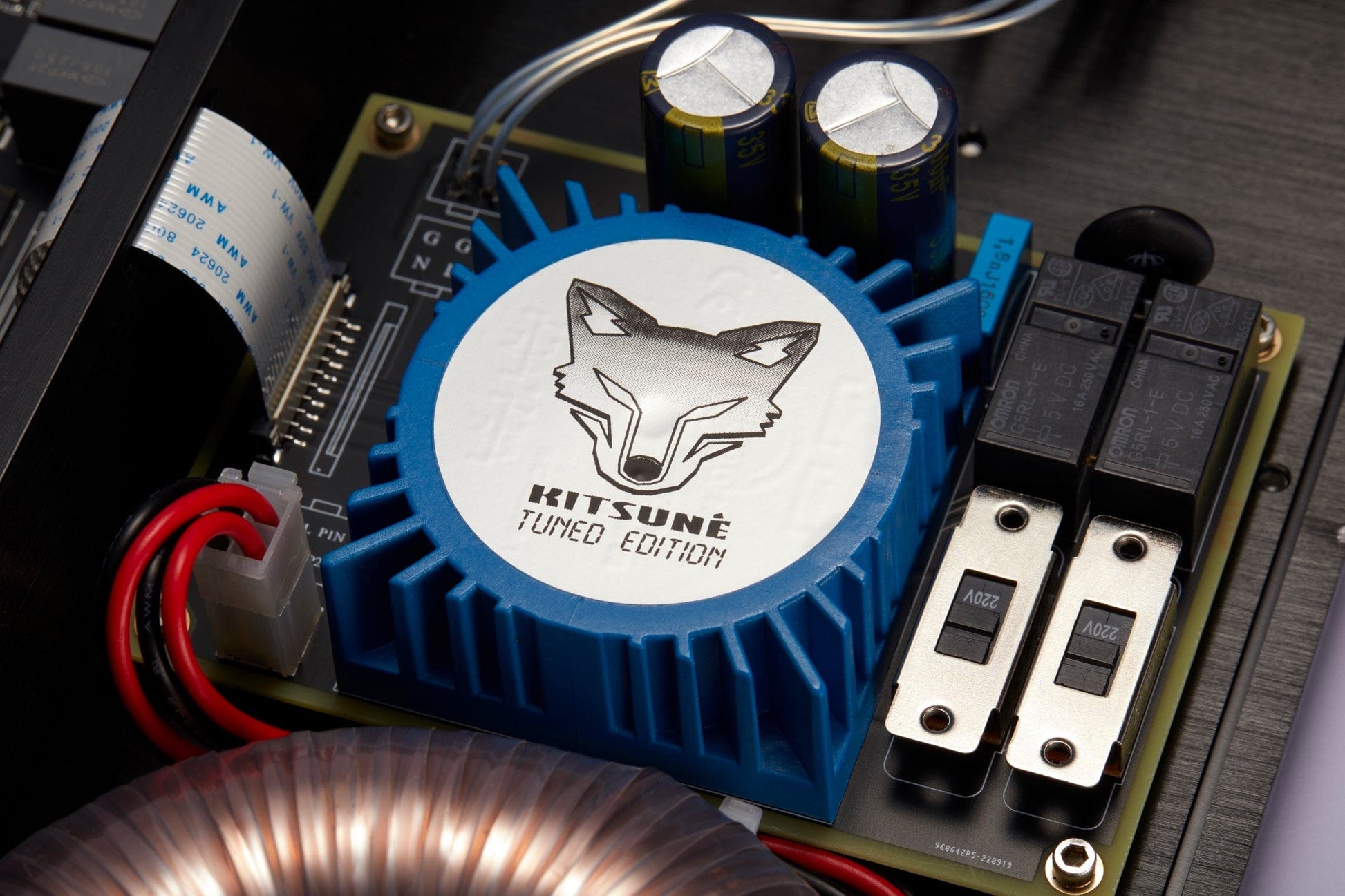

7. Special Kitsune Tuned Edition branding inside and out (pure copper Kitsune fox emblem on top panel) + remote control / KitsuneHiFi VIP service, english support and manuals/software
