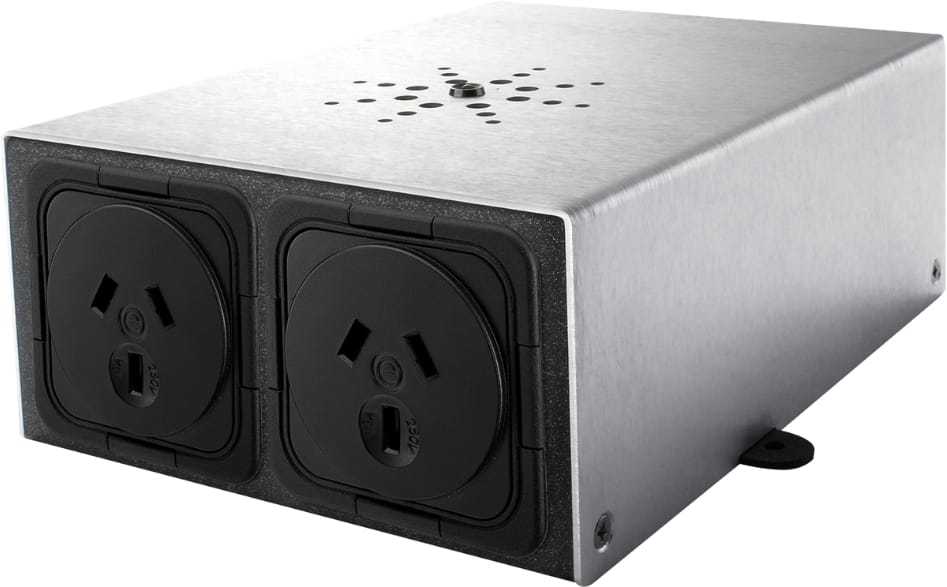

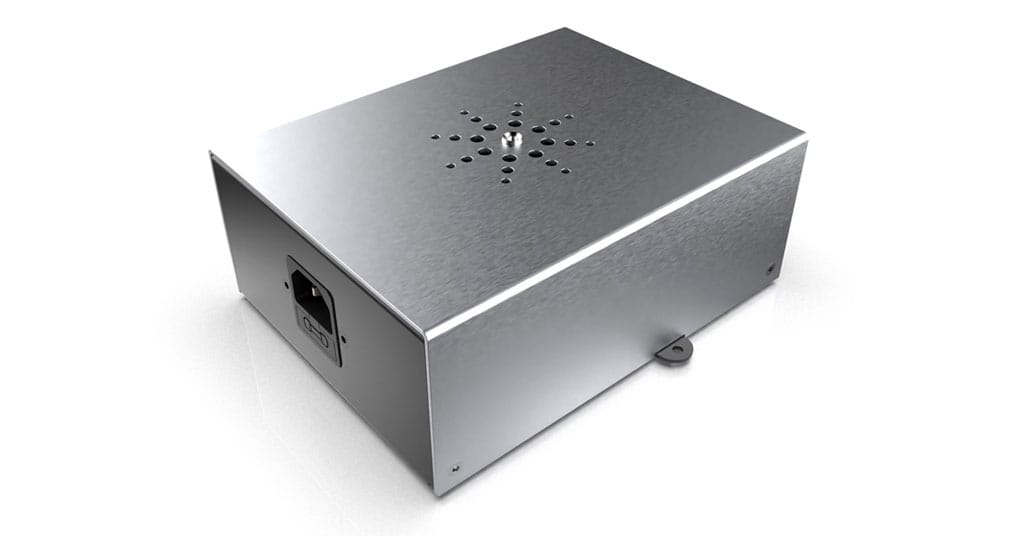

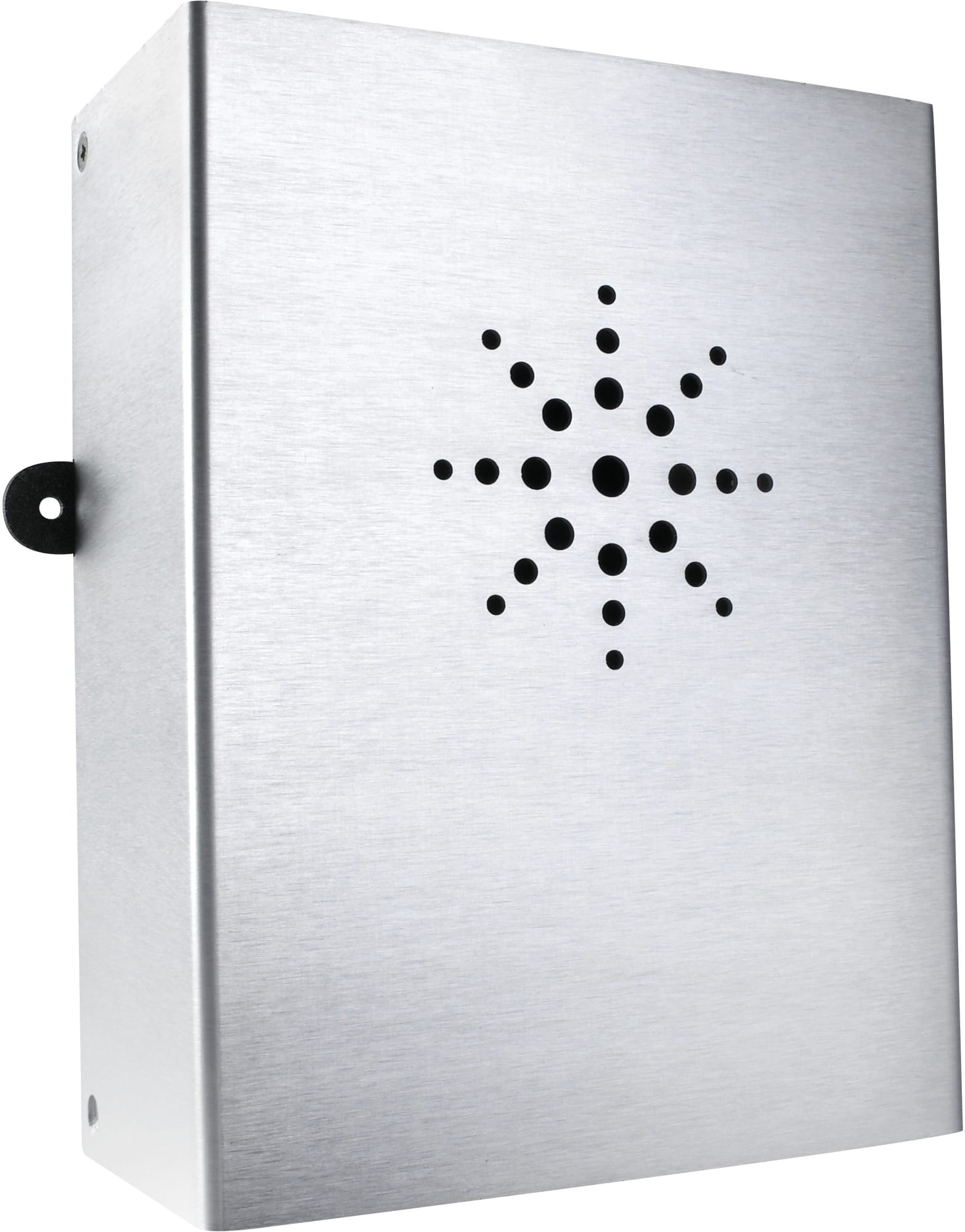

IsoTek EVO3 Mini Mira Compact Power Conditioner
IsoTek EVO3 Mini Mira Compact Power Conditioner
- Suitable also for home theater systems
- Improves sound and picture quality
- RFI reduction 30dB audio, 40dB visual
- Dual power cleaning circuits removes Common and Differential Mode mains noise
- 2 independent outlets stop Differential Mode cross contamination
- 22’500A instantaneous protection
- Fully star-earthed network
- Multi-strand 6n OFC silver-plated internal wiring with FEP dielectric
- Can be wall mounted
- Use with standard IEC C13 power cable
- Provides up to 2’300 watts (10A/230V) or 1’150 watts (10A/115V) of clean power, ensuring optimal energy delivery for your equipment
Design
EVO3 Mini Mira features two power cleaning circuits, one which is dedicated for projectors, LCD, LED, OLED, QLED or older CRT screens (basically with all types of TVs), the second which can be used for all other electronics from set top boxes to DVD or content storage devices. It is a compact box measuring 170mm in length and 130mm in width and 65mm high, making it easy to position either behind cabinets or ceiling mounted next or close to projectors.
The EVO3 Mini Mira ensures class-leading power cleaning of both Common Mode and Differential Mode mains noise. Two independent circuits prevent cross-contamination of connected equipment. The internal wiring is of the highest standard; pure 6n oxygen free copper conductor strands with silver-plating offer low resistance and high amperage. A PTFE dielectric is used to protect the conductors as well as giving the ultimate internal power delivering system. Furthermore, 22’500A of instantaneous protection is provided, safeguarding valuable equipment via IsoTek’s unique sequential and repeatable protection system.
The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.
Specifications
| NUMBER OF OUTLETS | 2 |
| TYPE OF OUTLETS | UK, EU, US, AU & CH |
| MAINS INLET | 10A IEC C14 |
| MAINS VOLTAGE | 100-240V / 50-60Hz |
| VISUAL OUTLET - 230V | x1 (10A 2'300W total) |
| VISUAL OUTLET - 115V | x1 (10A 1'150W total) |
| COMPONENT OUTLET - 230V | x1 (10A 2'300W total) |
| COMPONENT OUTLET - 115V | x1 (10A 1'150W total) |
| SURGE PROTECTION | 22'500A |
| DIMENSIONS (W x H x D) | 130 x 65 x 170mm |
| WEIGHT | 0.9Kg |
