THE ORIGINAL HERITAGE BOOKSHELF
Now available for the first time ever – the Klipsch Rebellion, Paul
W. Klipsch’s original bookshelf loudspeaker design, engineered
for low distortion and high performance. Envisioned as a center
speaker between two Klipschorns in a three-channel stereo array,
the Rebellion was called the H8 when it was introduced in 1958
as a smaller version of the legendary Heresy (which debuted the
previous year). Now it’s back, better than ever, to claim its place
in history as the original Heritage Series bookshelf speaker.
LEGENDARY AMERICAN SOUND SINCE 1946

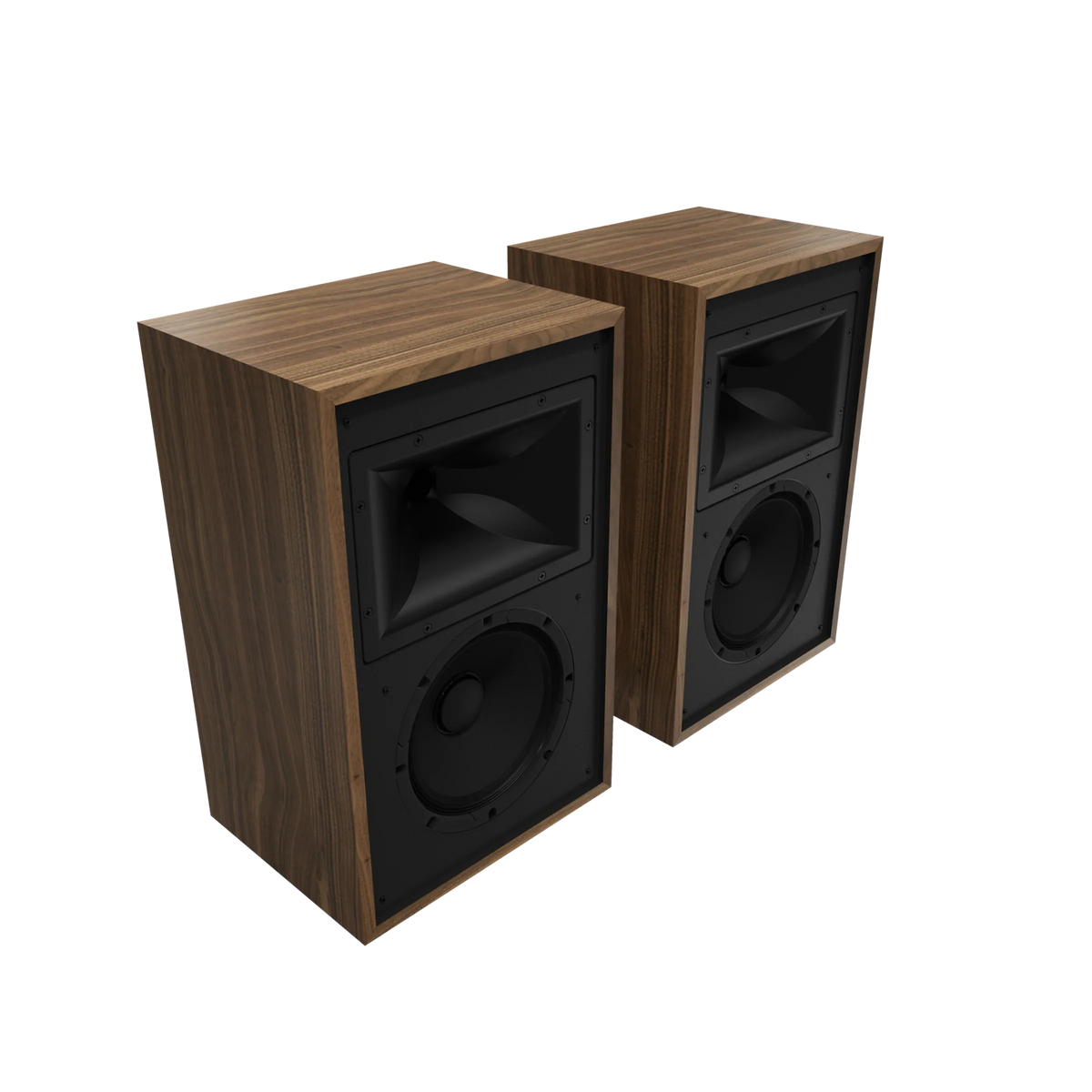

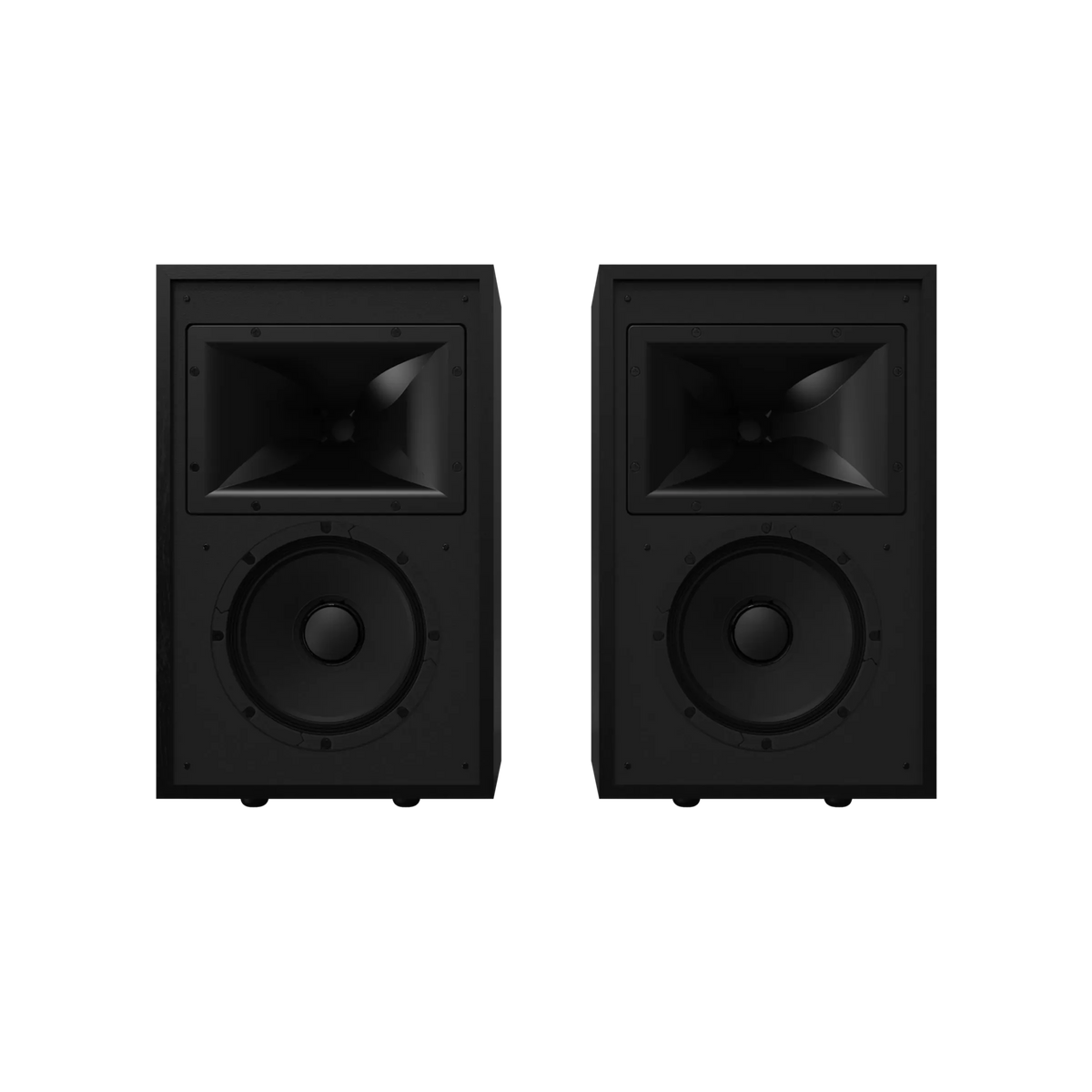

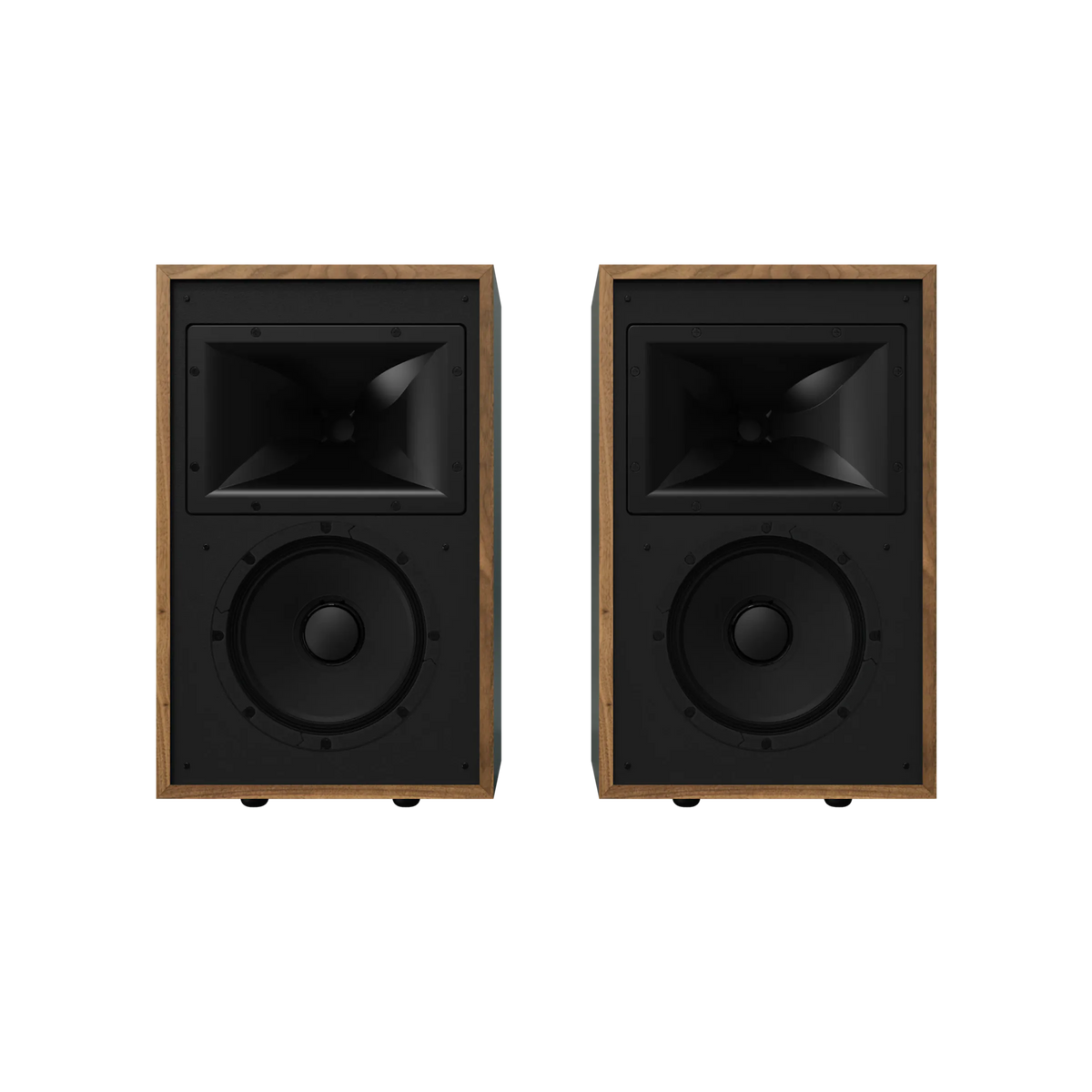

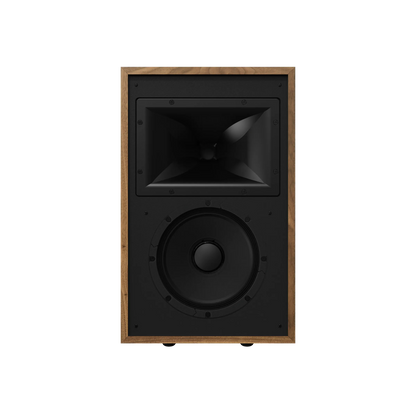

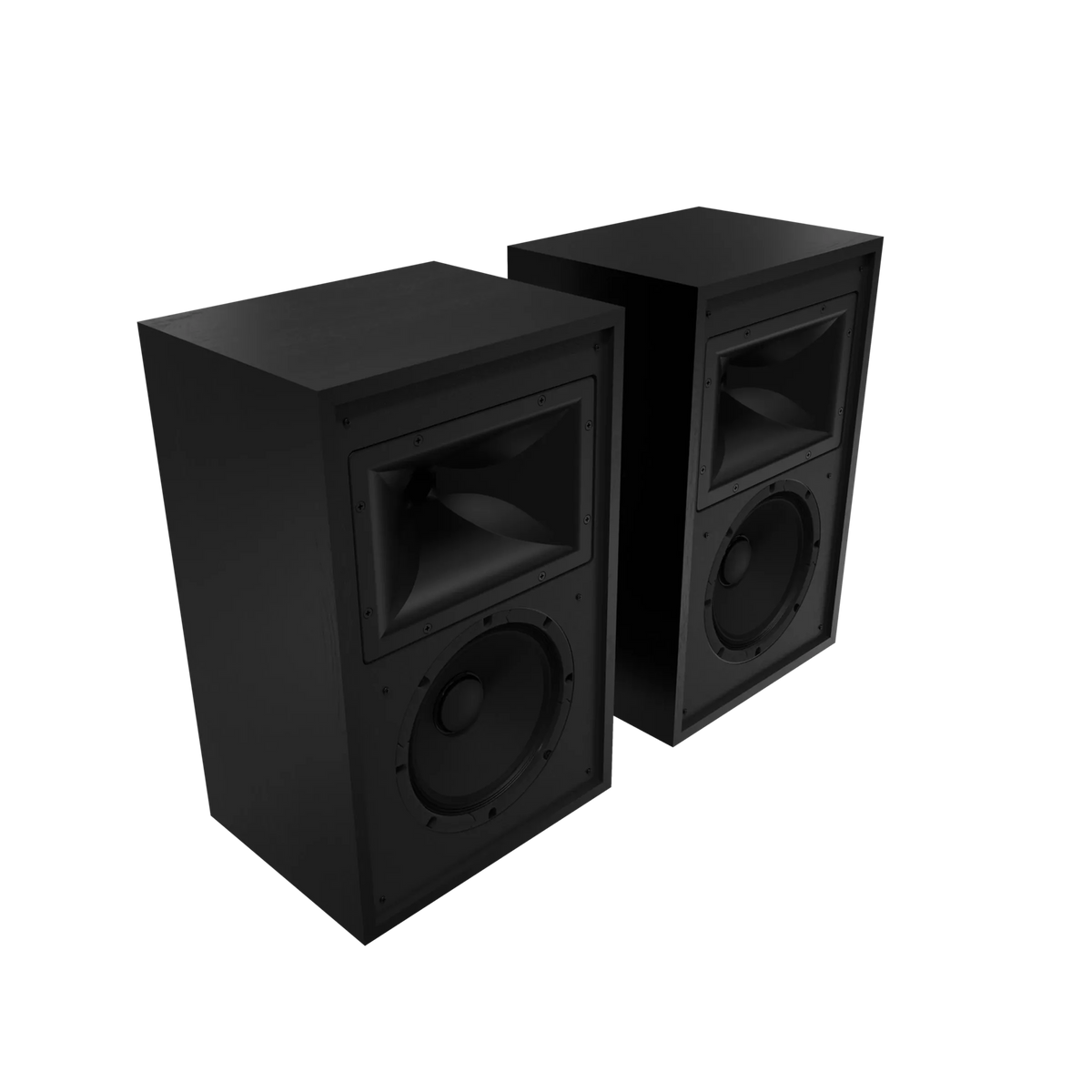

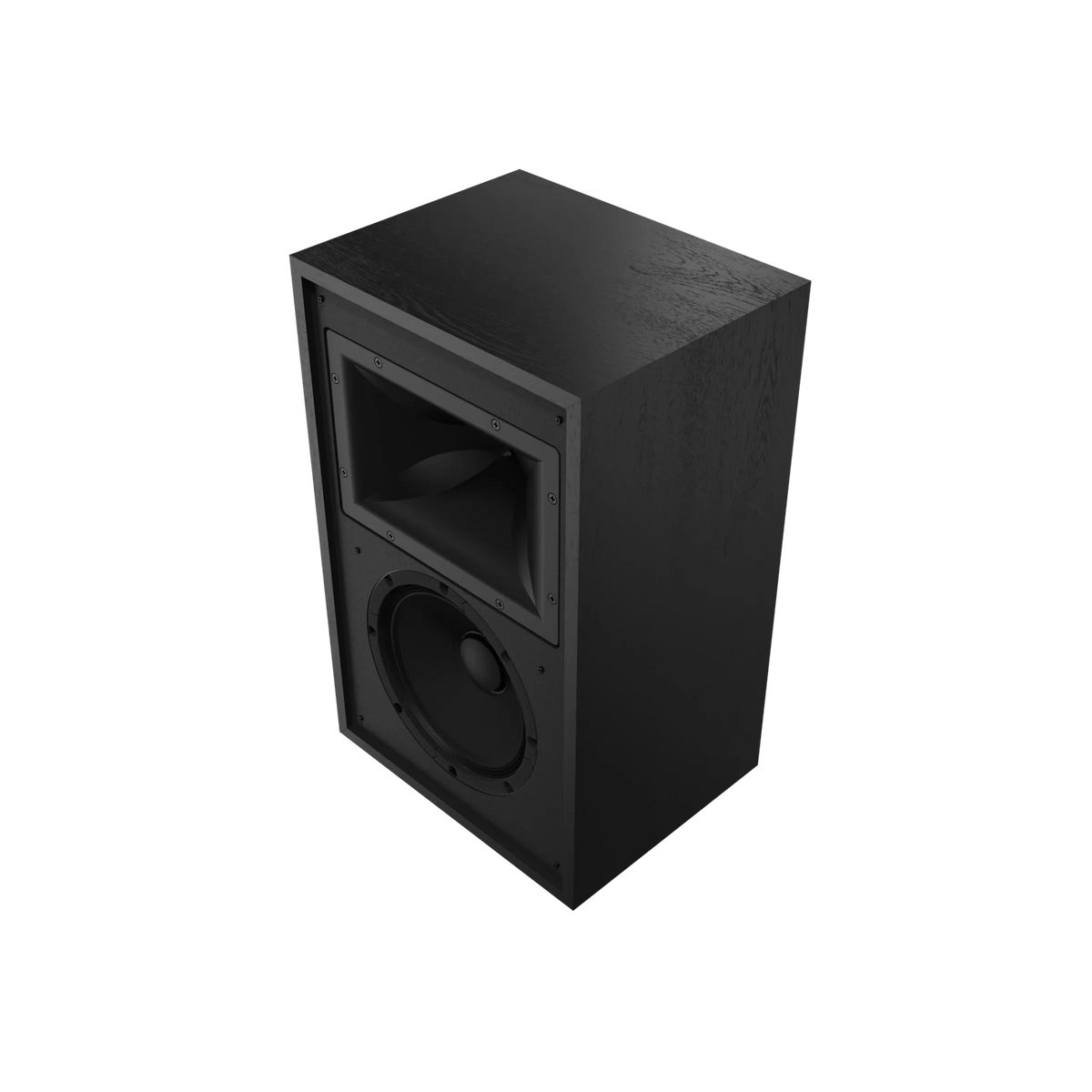

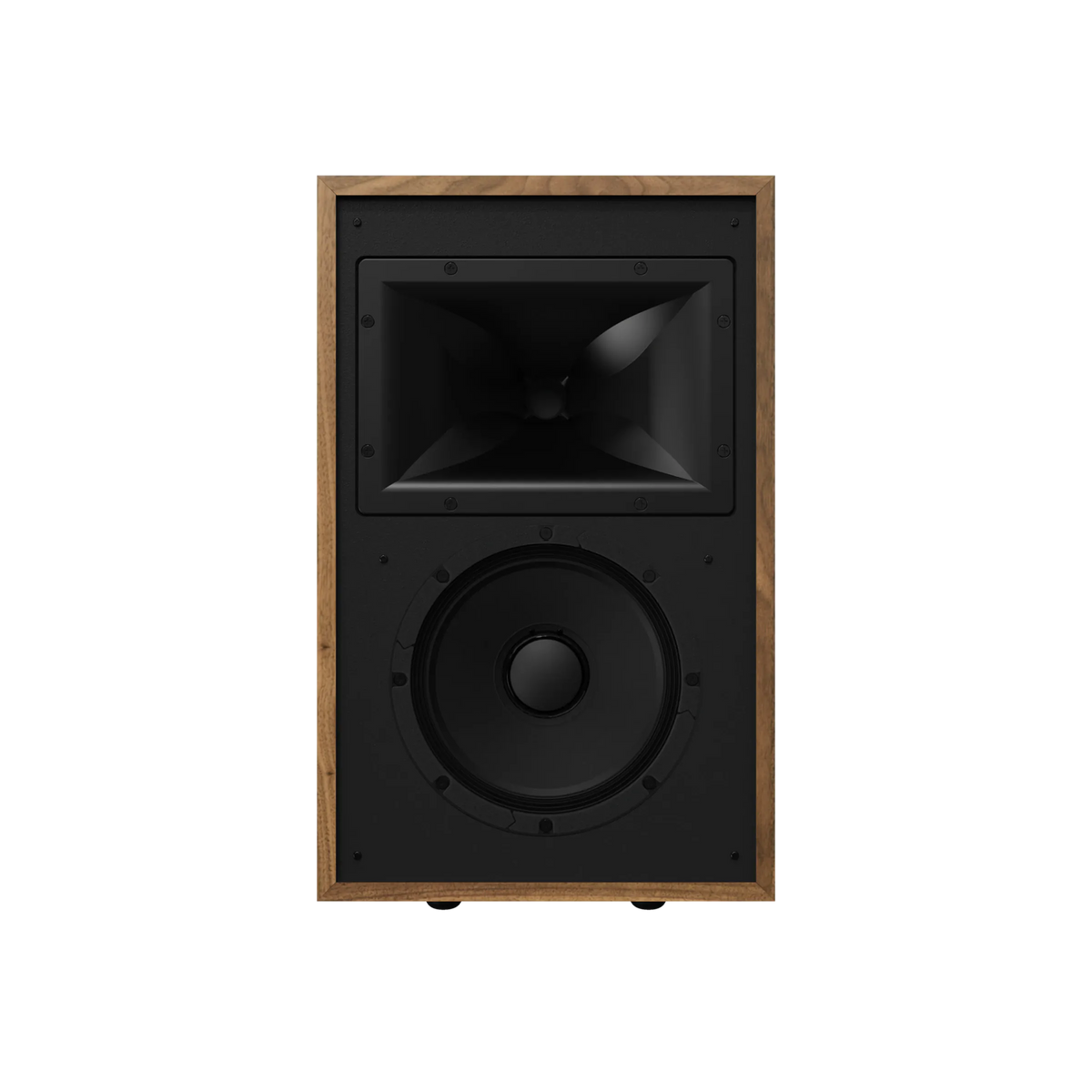

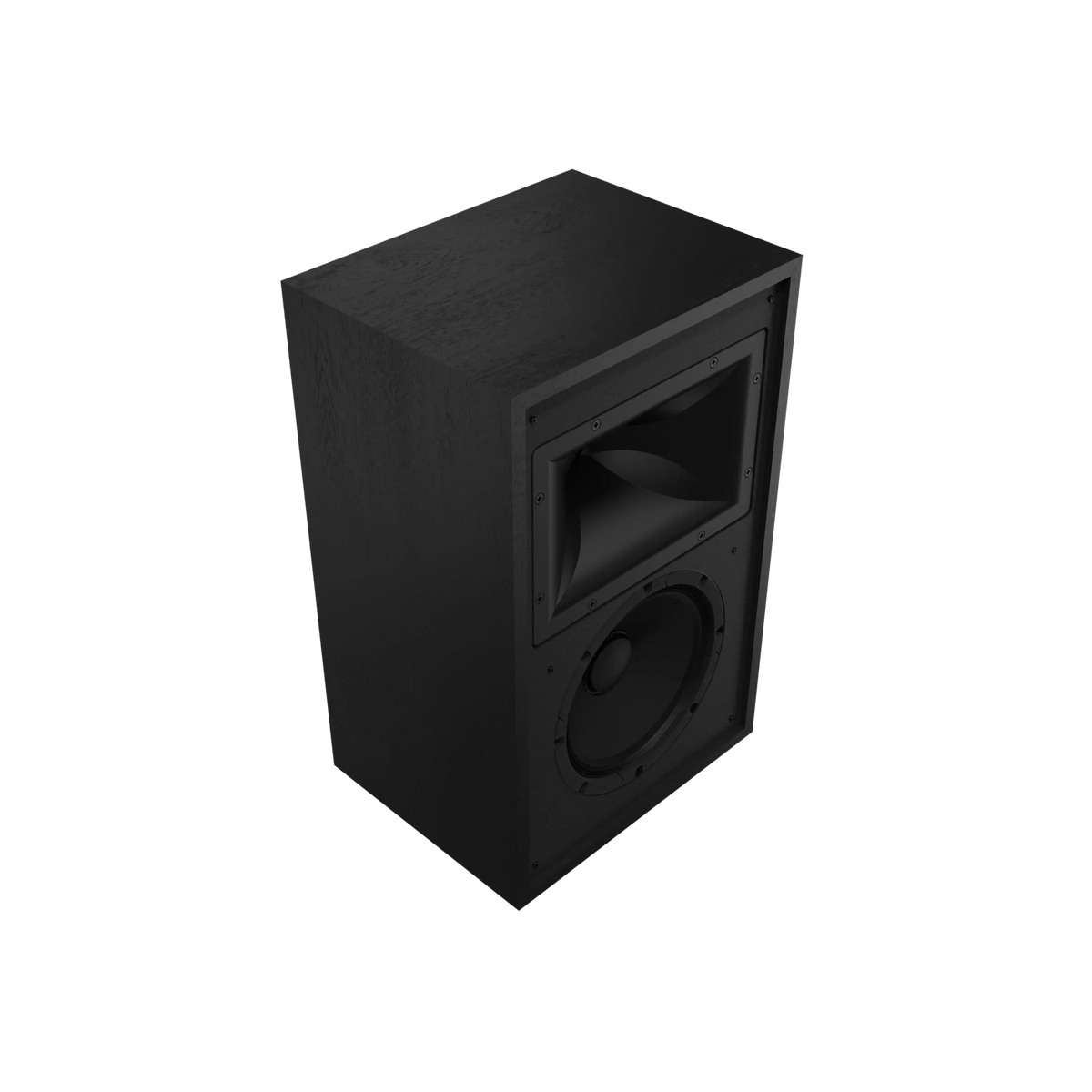

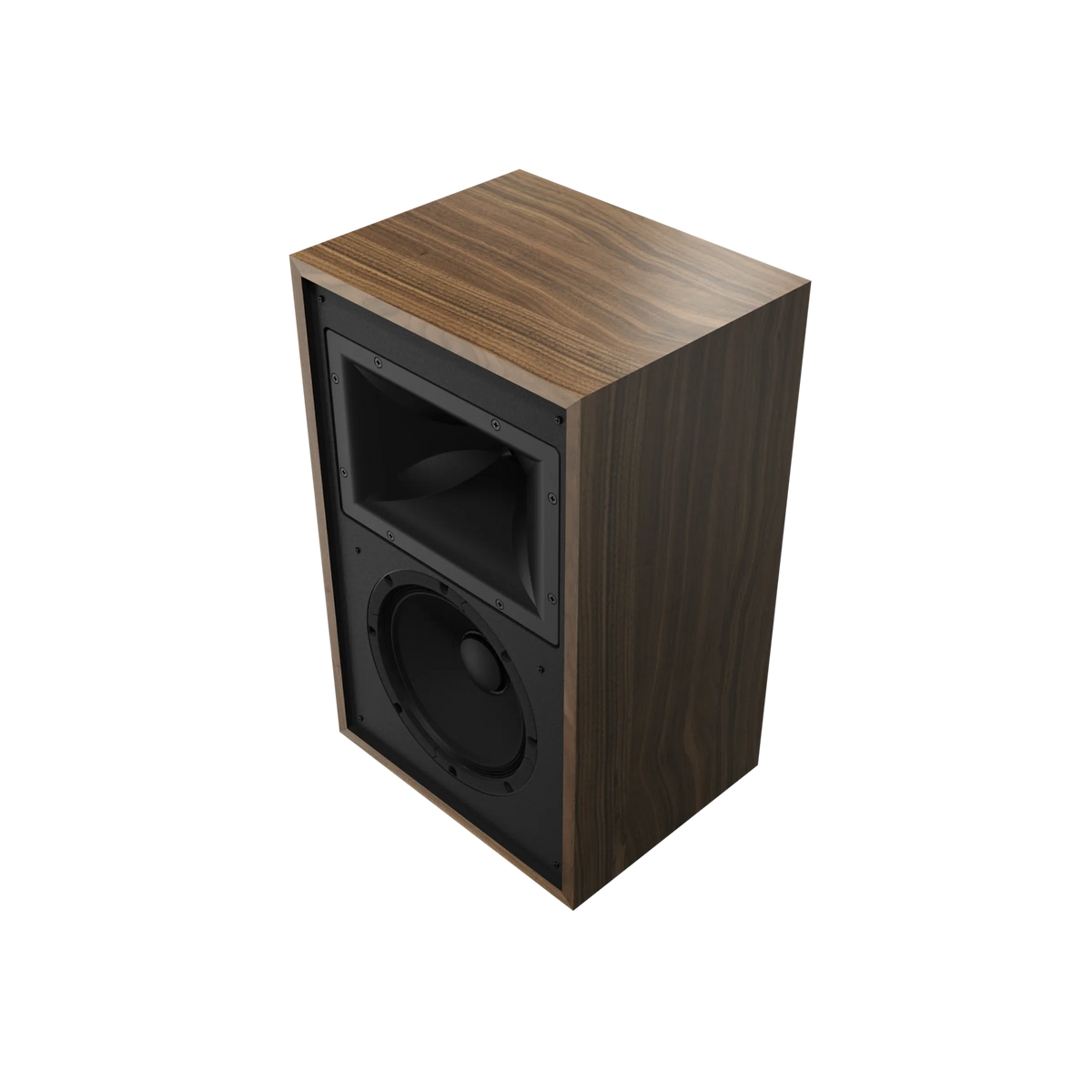

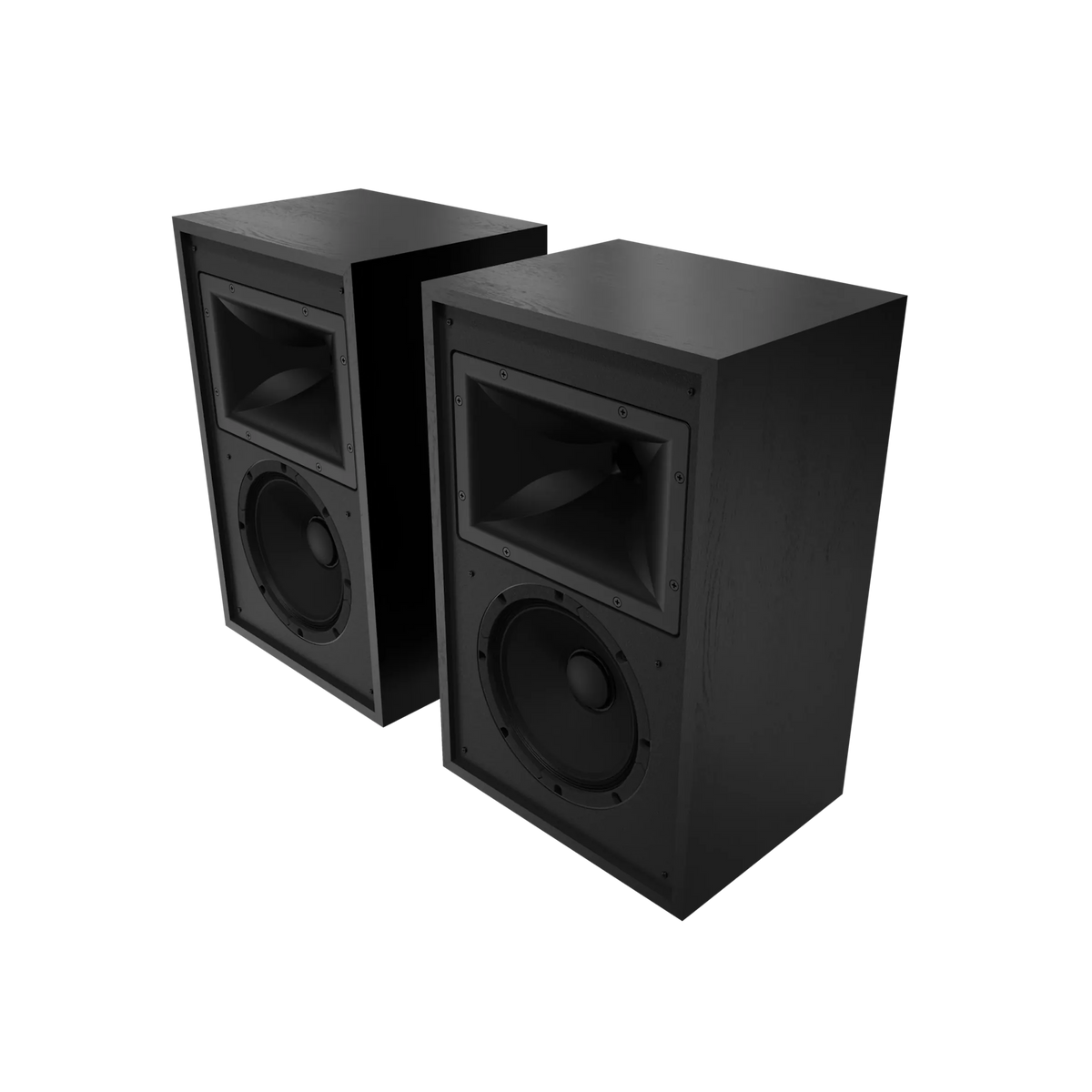

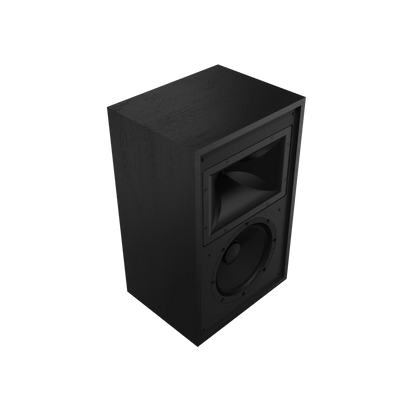

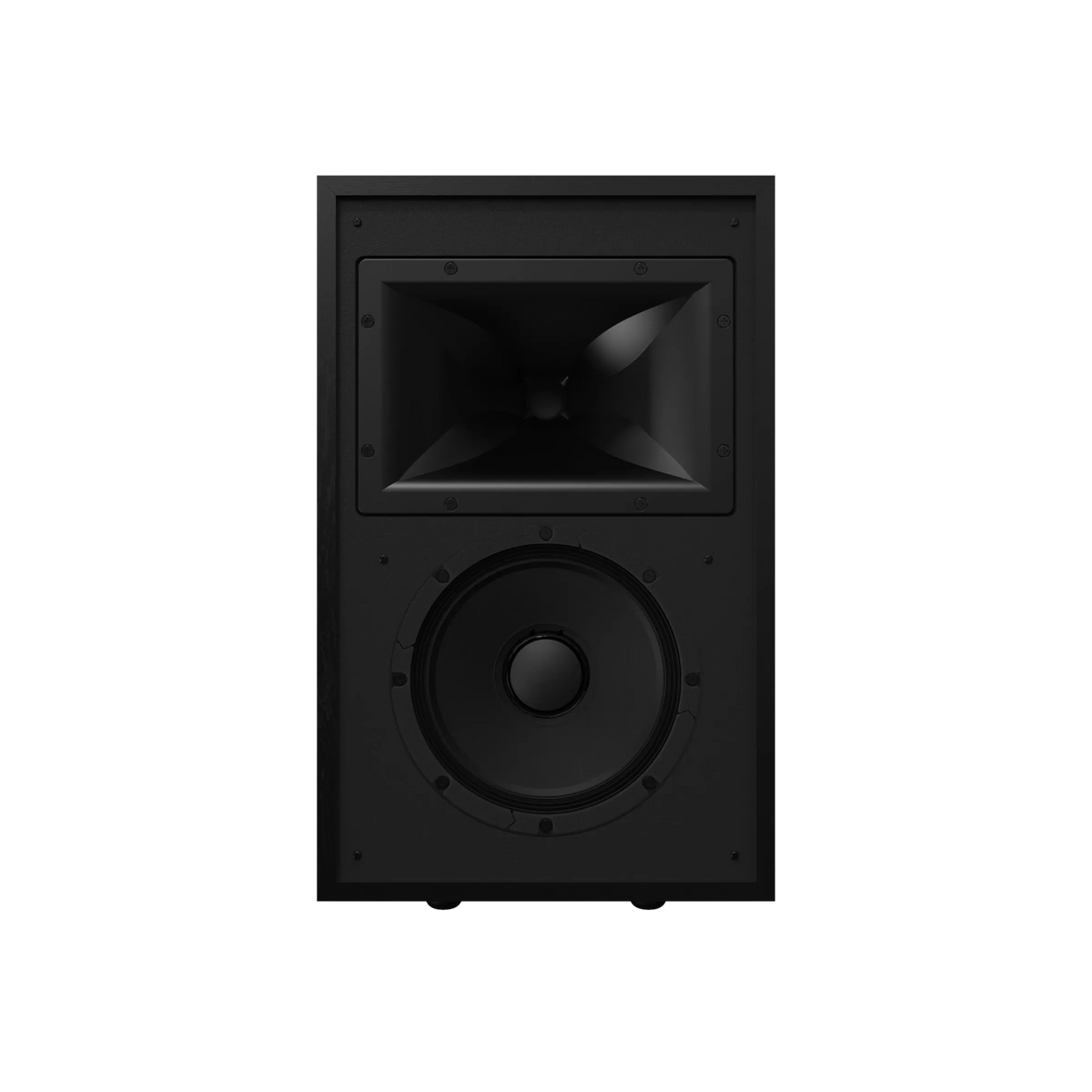

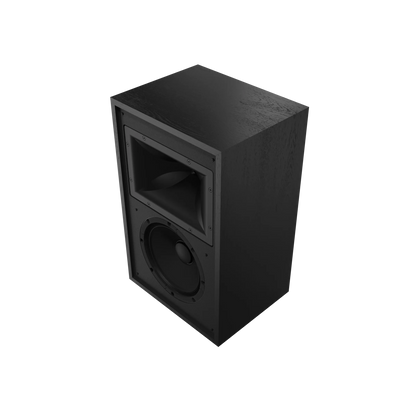

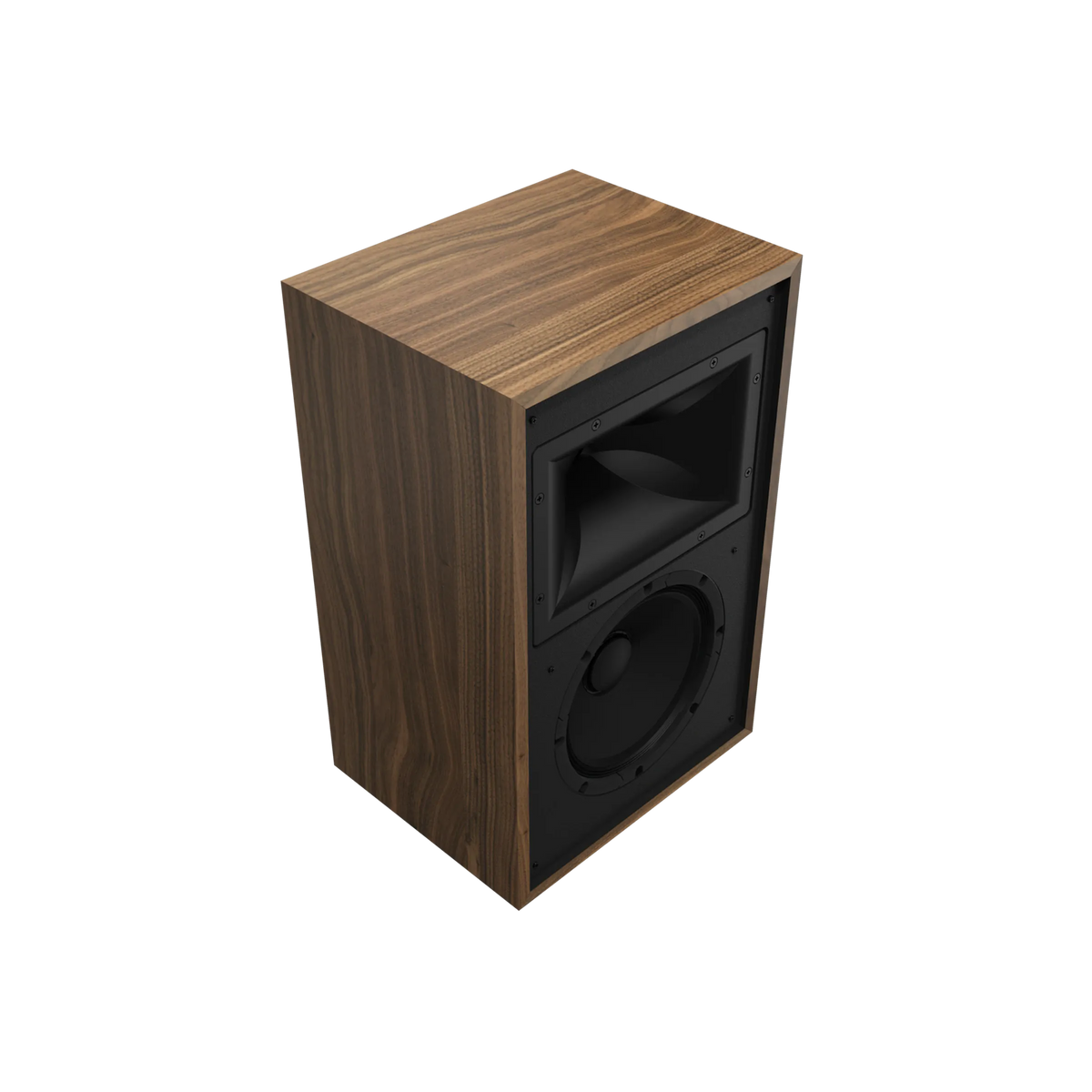

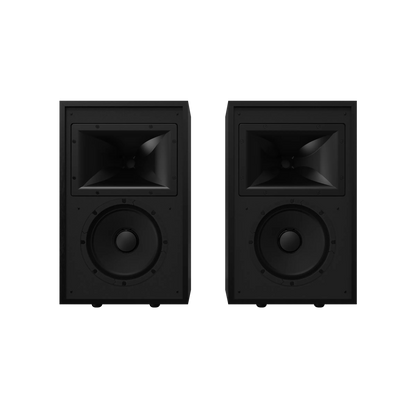

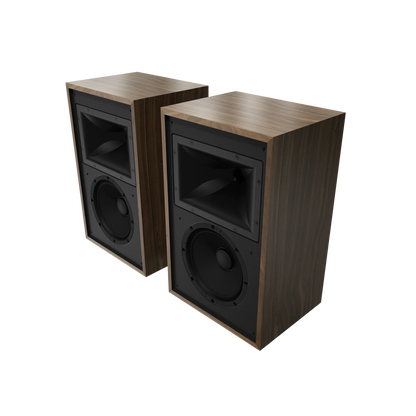

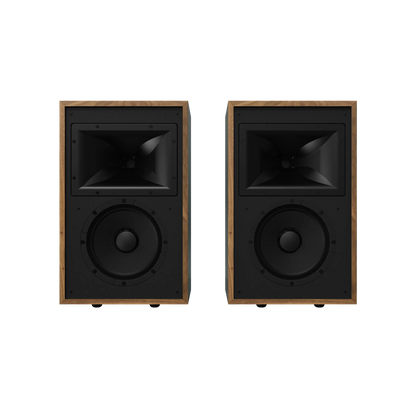

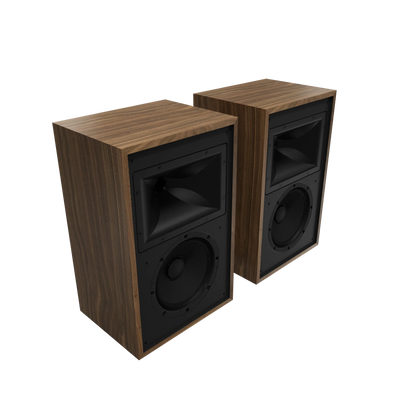

The Klipsch Rebellion is a two-way speaker design featuring a
highly efficient K-702 tweeter mounted to a K-703 Tractrix® horn
with Klipsch patented Mumps™ for distortion free, crystal-clear
highs. A new K-81-EP woofer delivers impressive, deep bass,

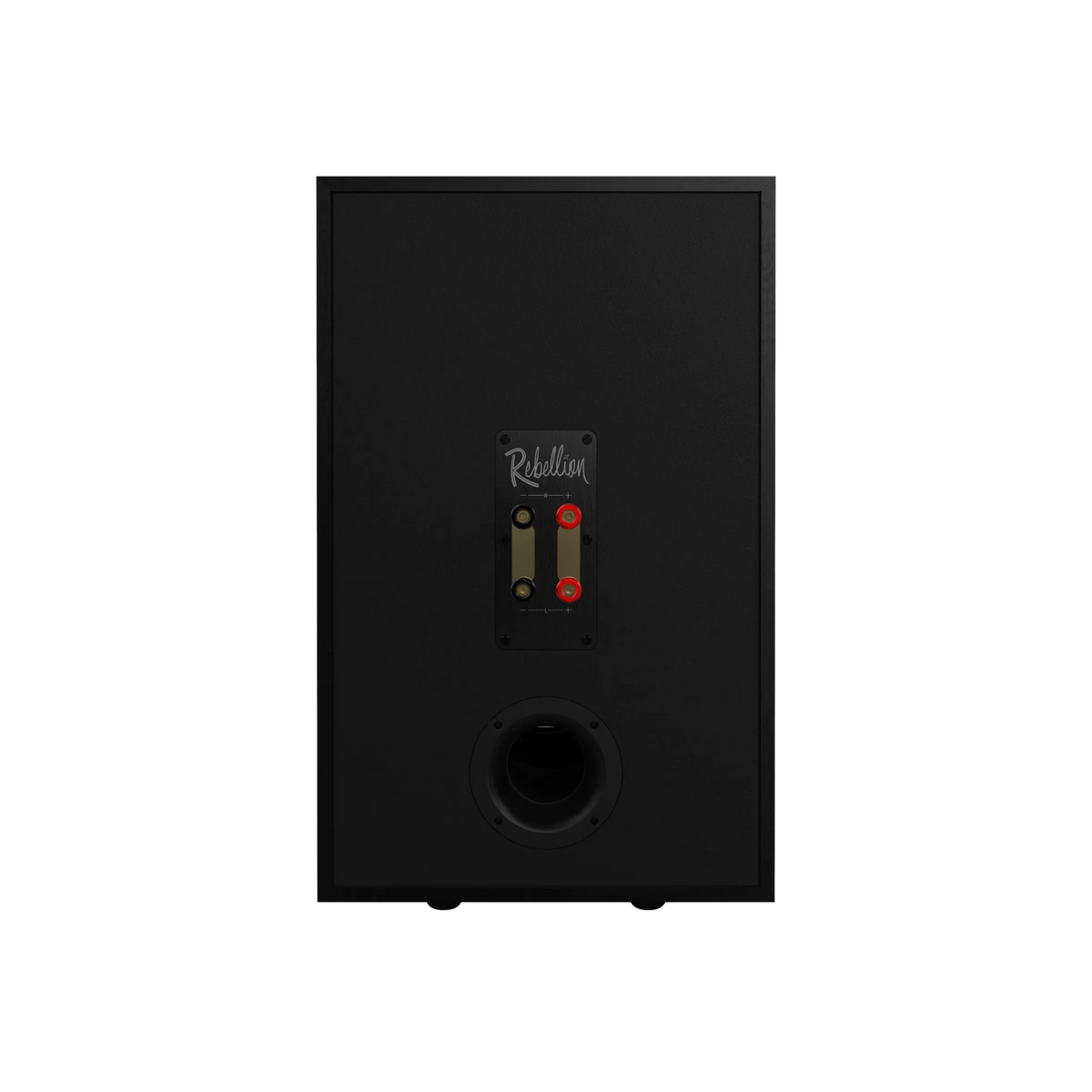

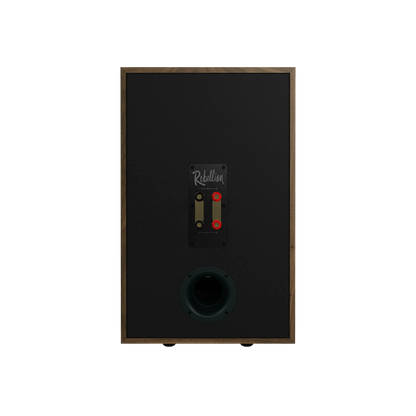

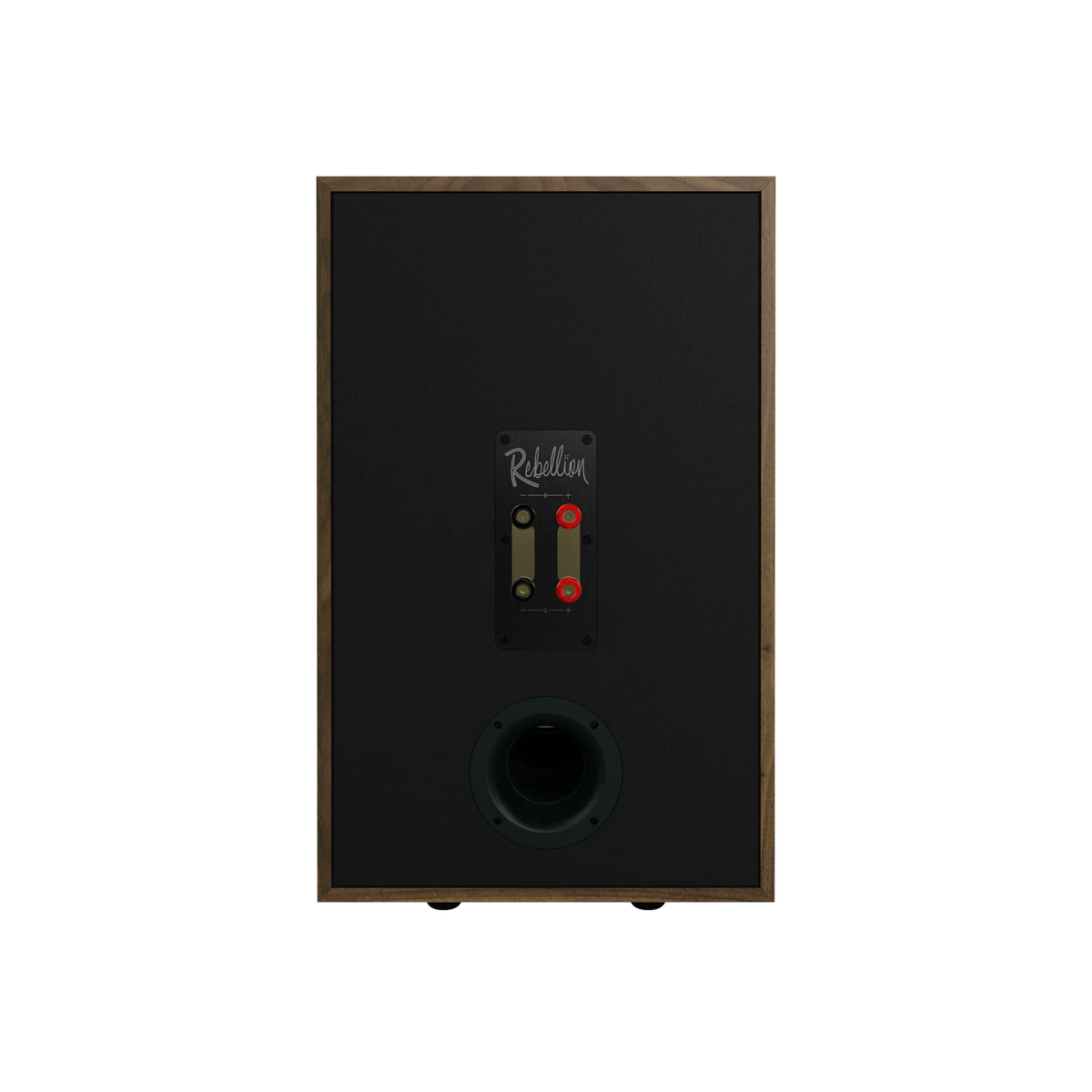

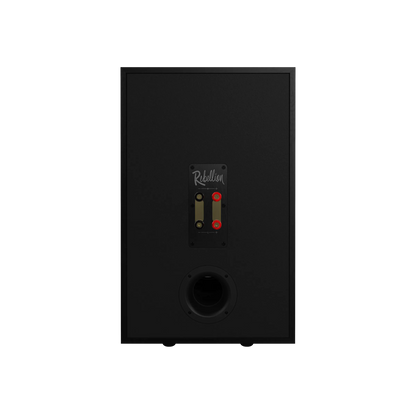

while a rear tractrix flare port allows for efficient air transfer
and reduces port noise. Combined into a compact cabinet, the
Klipsch Rebellion punches way above its weight class.
PROUDLY HANDCRAFTED IN HOPE

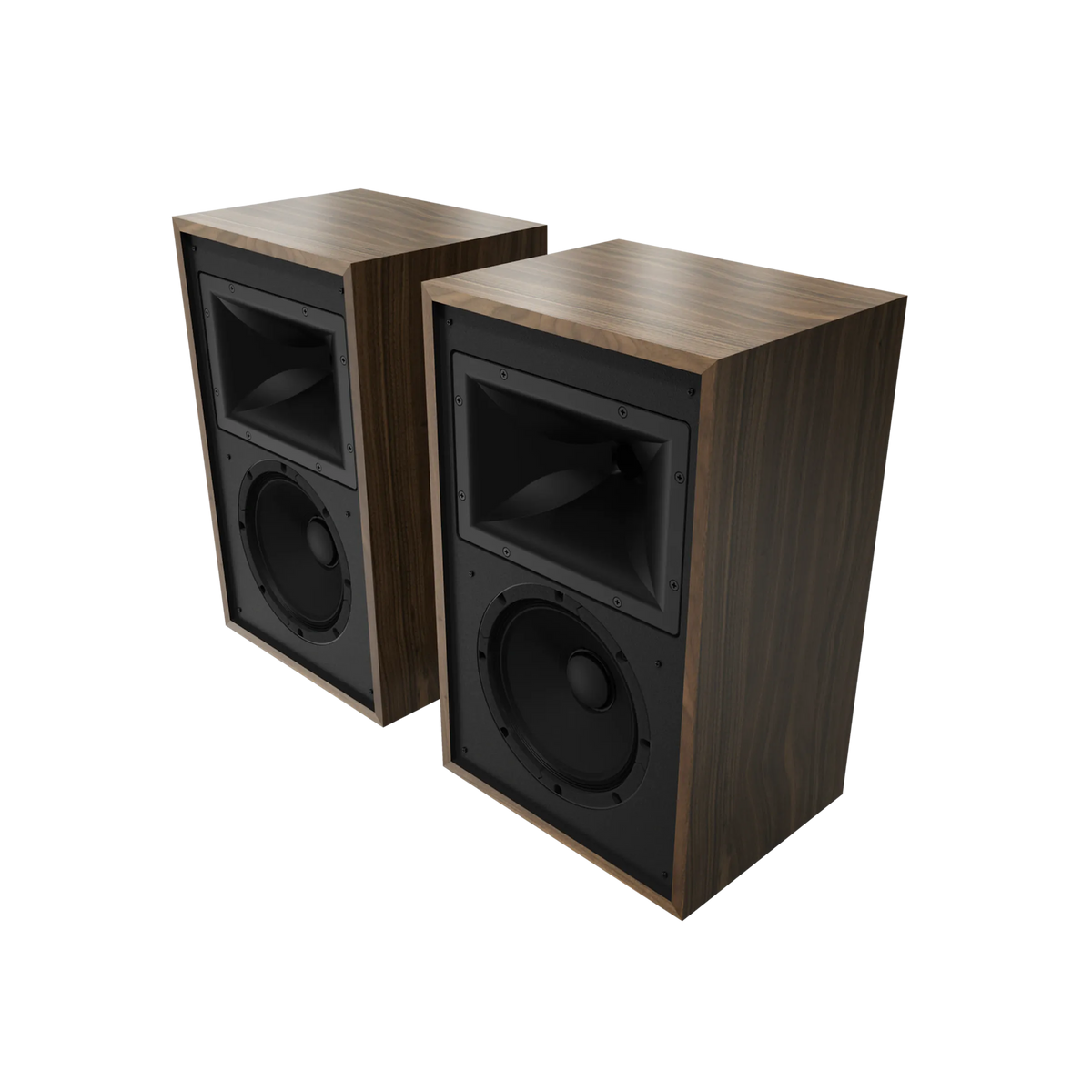

Quality assembled in Hope, Arkansas USA by proud craftspeople,
the Klipsch Rebellion is made like fine furniture – like every
premium Klipsch Heritage model since 1946. Book matched
veneers wrap the wood cabinets and real cloth grilles adorn
the façade of the loudspeaker, delivering a striking profile. An
industry-leading 10-year warranty is also included.
OUTSTANDING PRESENTATION

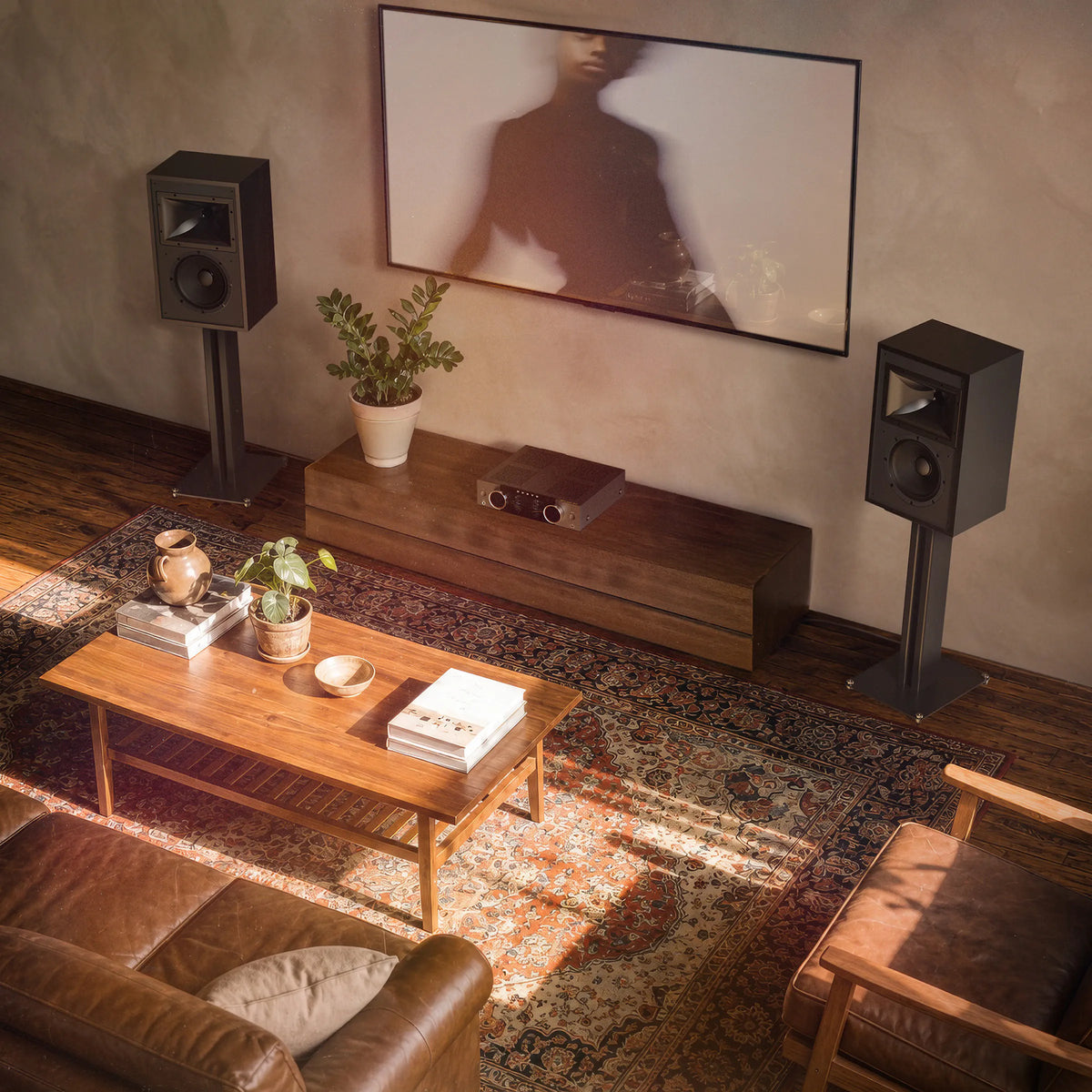

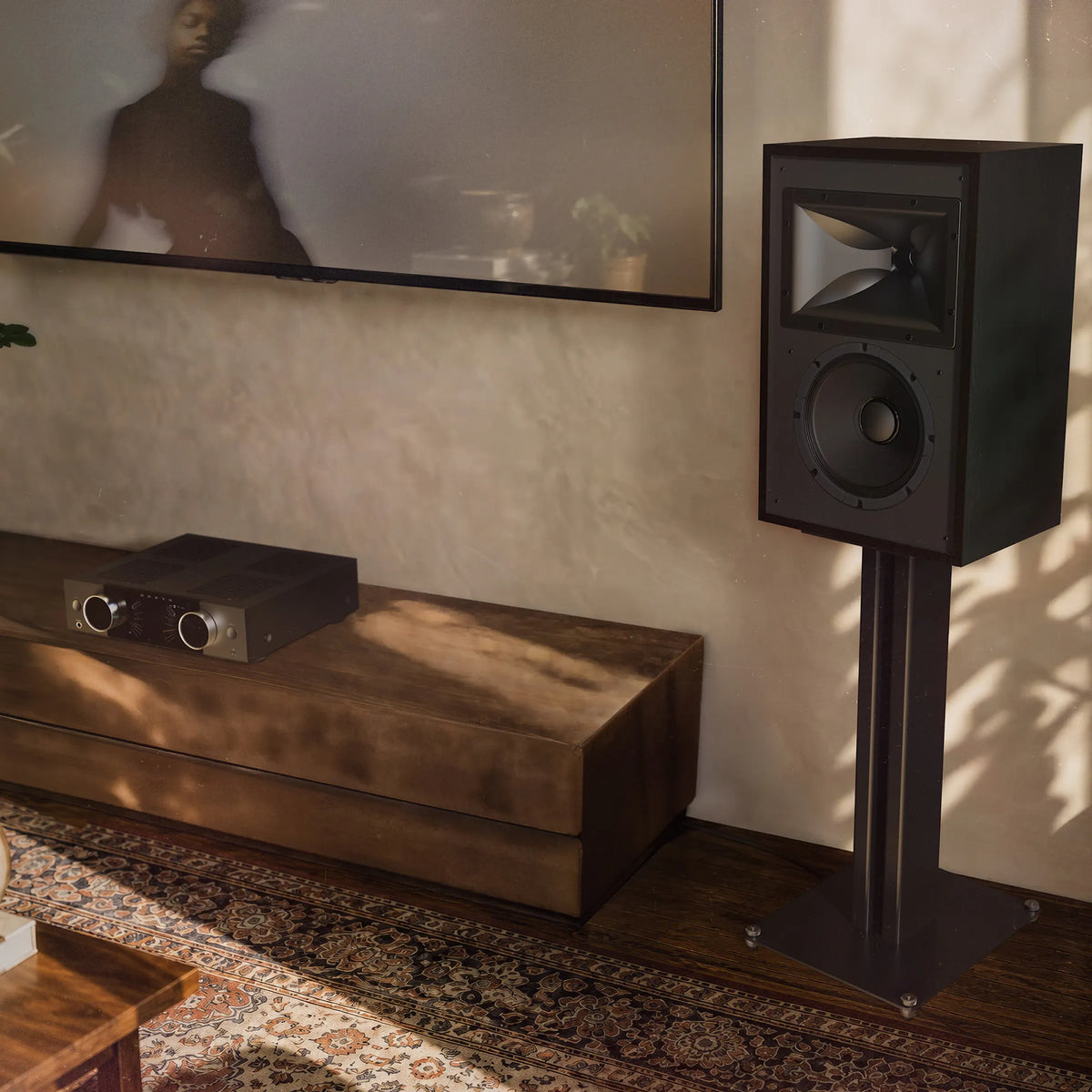

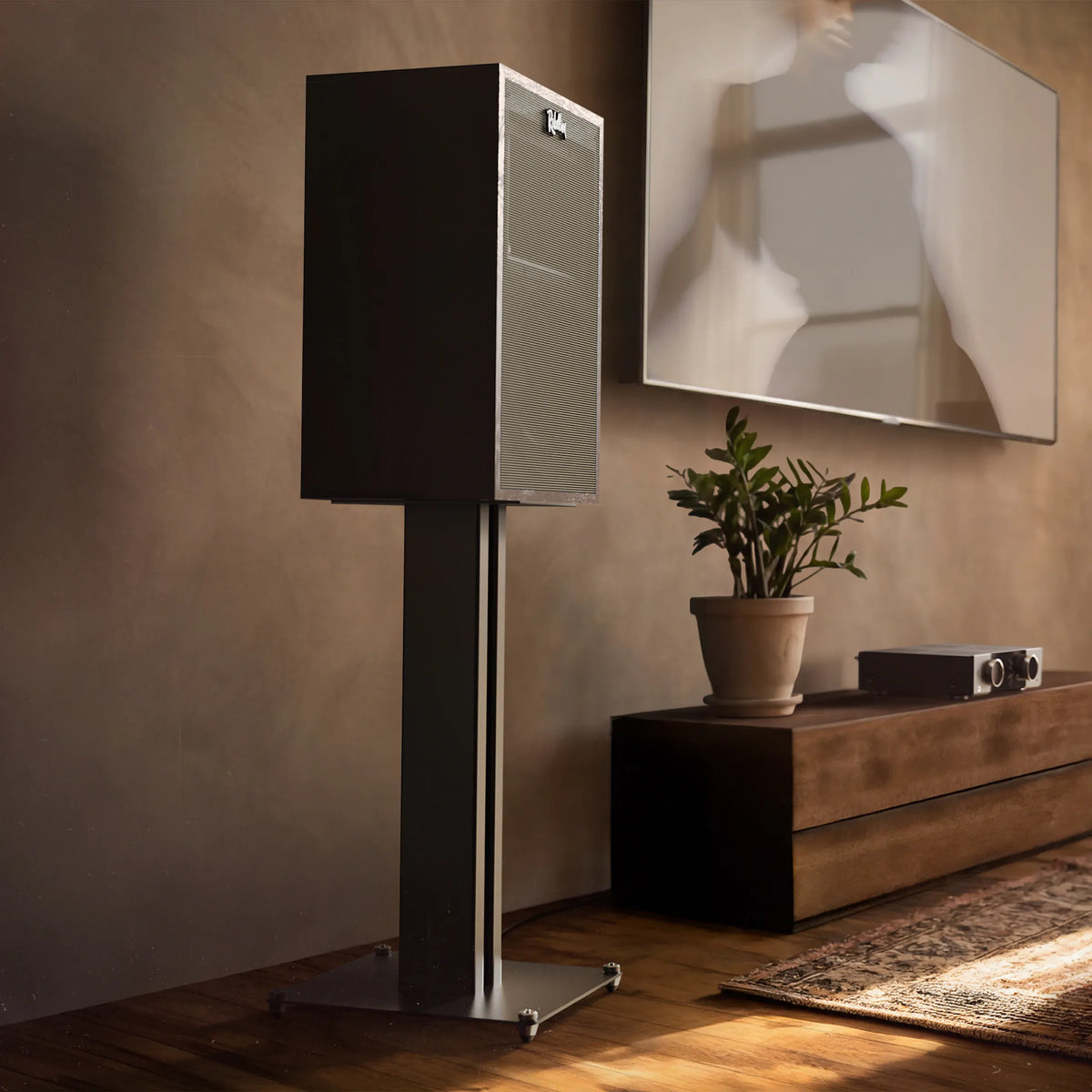

The Klipsch Rebellion is designed for the Klipsch KS-24 speaker
stands, delivering immersive, life-like sound at the perfect
height. A high-quality input panel and logo badge completes the
package. Ideal for two-channel stereo playback, or as part of a
Klipsch Heritage home theater system, the Rebellion is a worthy
addition to the Heritage lineup – premium performance and
luxury details.
S P E C I F I C AT I O N S
FREQUENCY RESPONSE: 60 Hz - 20kHz +/- 3dB
FREQUENCY RESPONSE: 45 Hz - 21kHz -10dB
POWER HANDLING: 200W
CALCULATED MAX. CONTINUOUS OUTPUT: 115db
SENSITIVITY: 95 db @ 2.83V
CROSSOVER POINT: 715 Hz
HORIZONTAL COVERAGE
PATTERN: 90 degrees, +/- 30 degress, 600Hz to 20kHz
VERTICAL COVERAGE
PATTERN: 60 degrees, +/-30 degress, 2.6kHz to 20kHz
NOMINAL IMPEDANCE: 8 ohm (3.3 ohm min. @ 170 Hz)
TRANSDUCERS: K-81-EP 8” Woofer; K-702 HF Driver
ENCLOSURE5: vented system
ENCLOSURE MATERIAL: 18mm Medium Density Fiberboard w/ real wood veneer
TERMINALS: 5 way binding posts
DIMENSIONS: 12" (30.48cm) W x 19.1" ( 48.48cm) H x 9.6" (24.28cm) D
NET WEIGHT: 32 lbs. (14.51kg) (Single)
SHIPPING WEIGHT: 70.5 lbs (31.97kg) (Pair)
