TAKE YOUR MOVIES AND MUSIC TO NEW HEIGHTS
Our proprietary speaker technologies are ideal for delivering the most immersive,
impactful 360° Dolby Atmos® listening experience. Controlled directivity and high-
performance ensure focus and precise aiming of high frequency energy.

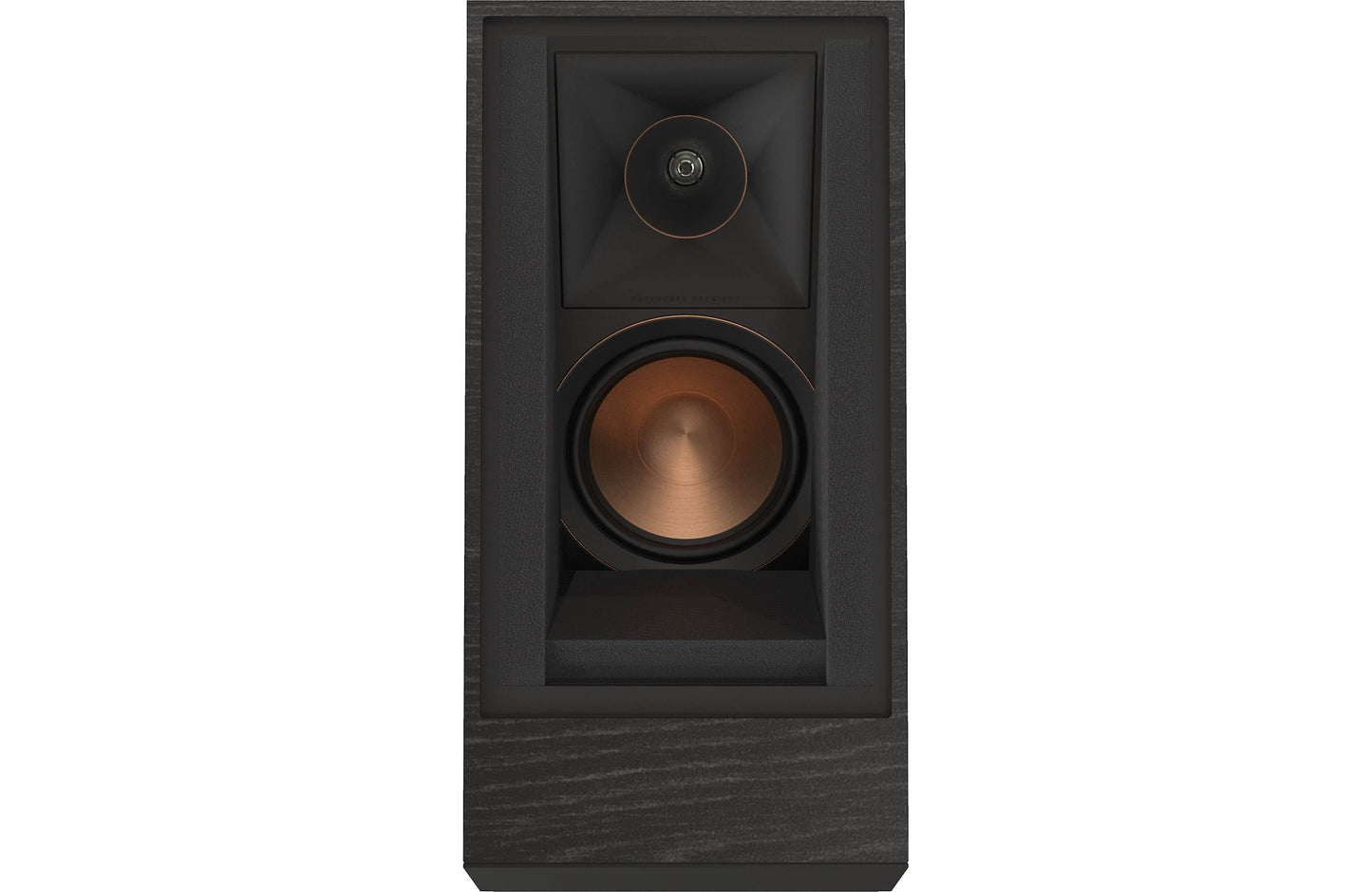

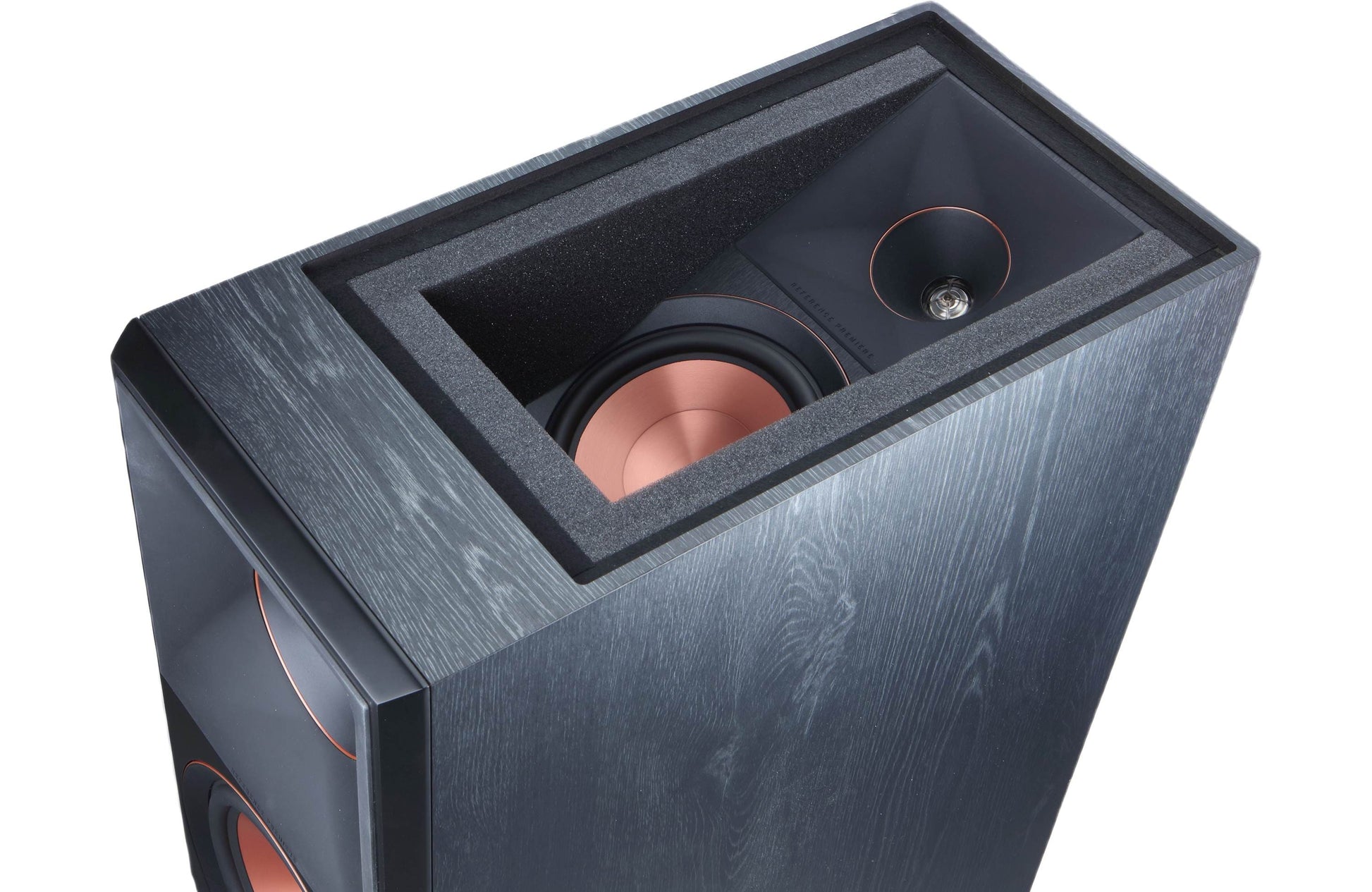

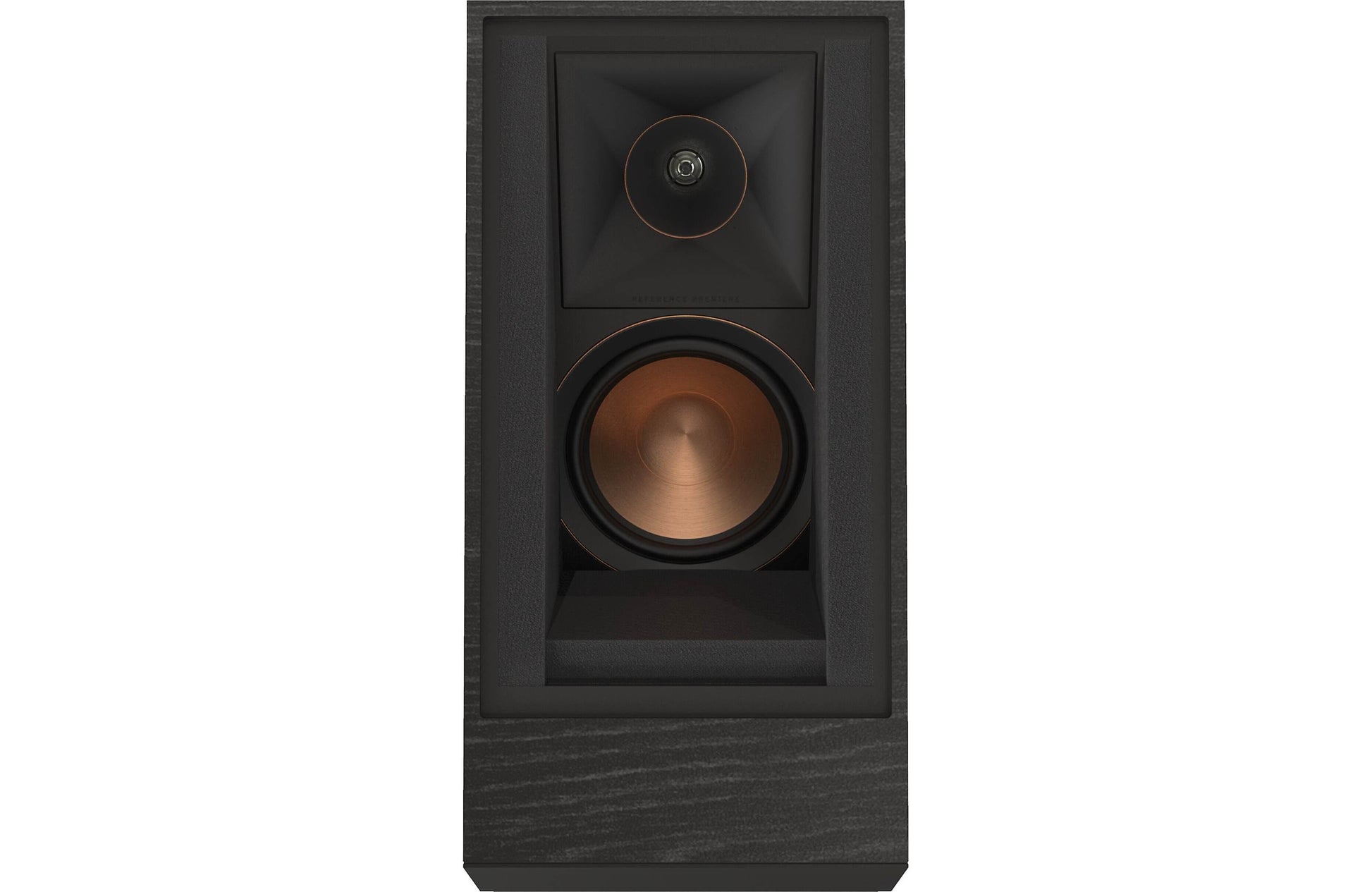

BUILT-IN ELEVATION SPEAKER

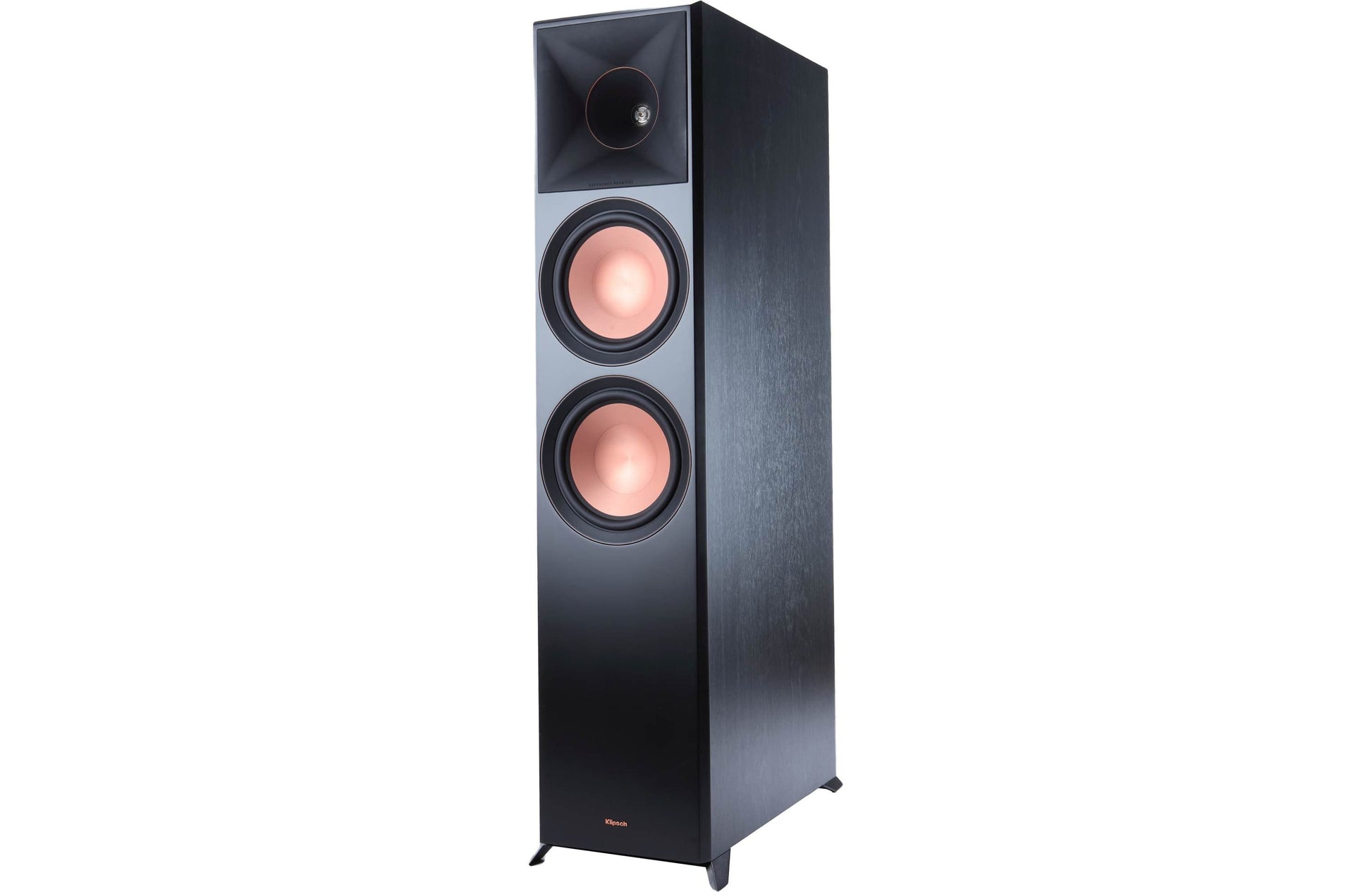

The RP-8060FA II full-range tower speakers features a high-performance 6.5”
2-way up-firing Dolby Atmos speaker integrated in the top for an awe-inspiring,
encompassing experience. It’s a perfectly matched set up that virtually disappears.
The integrated speaker terminals are placed low on the cabinet for convenience and
an unobtrusive connection.
90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN
Horn loading maximizes efficiently and increases detail while focusing high
frequencies towards the listening area. Proprietary Tractrix® geometry provides
the most efficient transfer of high frequency waves into the listening area. The
phase plug and compressed molded silicon face ensure smooth frequency response.
When combined, the cleanest, most natural sound possible is created. The second
generation increases horn size for a larger soundstage and enhanced directivity.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed
performance. LTS tweeters are a hallmark of previous Reference lines, making it a
core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The vented tweeter housing reduces standing waves that create unwanted
harmonics, resulting in enhanced detail and clarity in high frequency reproduction.
CERAMETALLIC WOOFERS – ALL NEW DESIGN
A signature feature on the Reference Premiere series, Cerametallic™ woofers are
exceptionally rigid and lightweight for minimal distortion and maximum efficiency.
New aluminum shorting rings reduce distortion as well as increased power handling
and the new motor structure improve transit response with more control with
greater speed and accuracy.

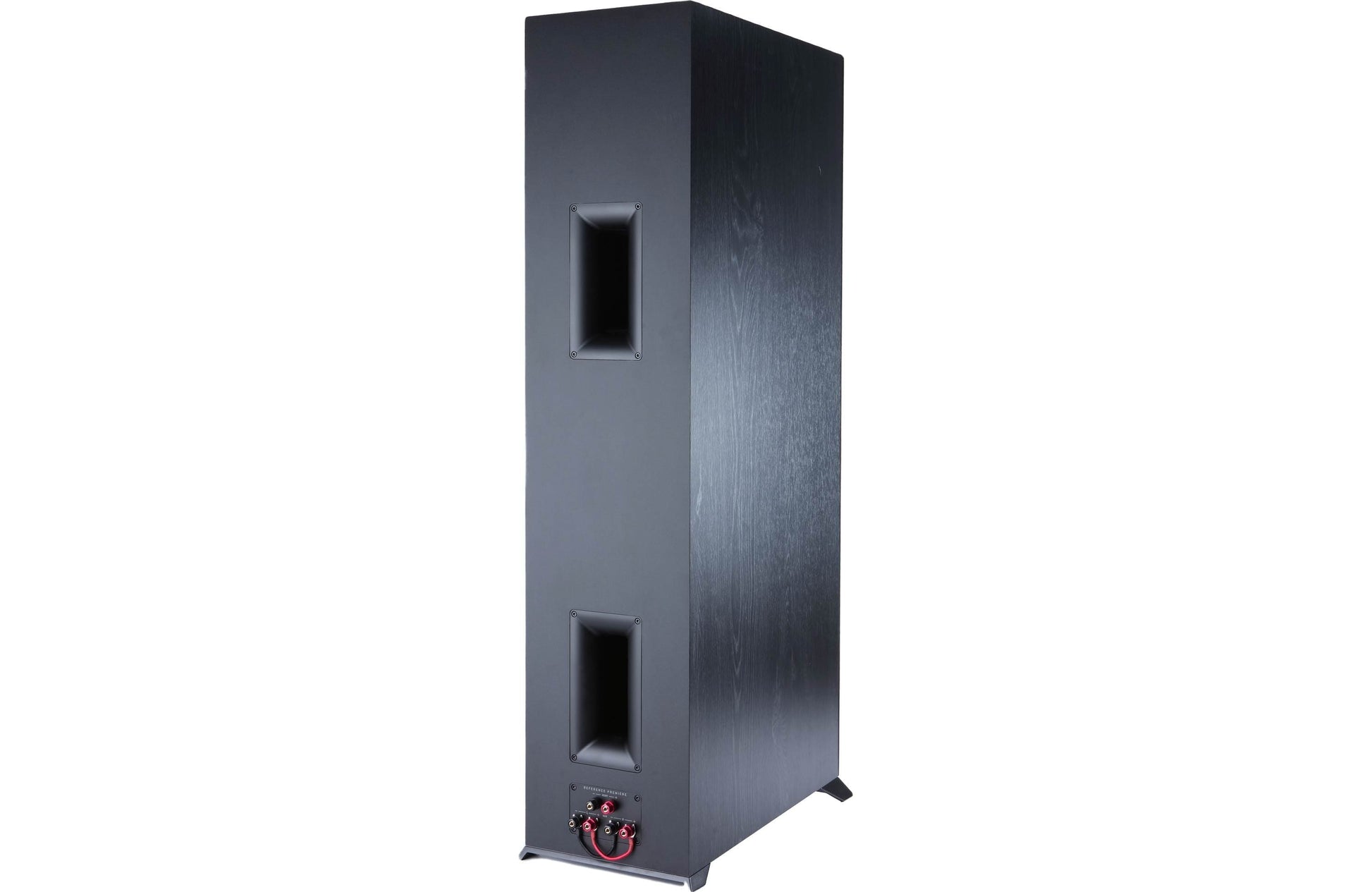

TRACTRIX PORTS
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most
efficient, fastest air transfer from the cabinet, which reduces port noise for punchier
low frequencies. Klipsch Tractrix ports have custom designed inner flares that help
reduce air turbulence entering the port. Less turbulent air helps reduce port noise
for cleaner, more powerful bass.
BI-WIRING / BI-AMPING CAPABILITY
Dual input terminals for bi-wiring / bi-amping capabilities. Bi-wiring separates high
and low frequency current into separate speaker cables, reducing intermodulation
distortion, for clearer midrange. Bi-amping allows for customization using outboard
crossovers when using separate amplifiers.
ADVANCED CABINET DESIGN
Additional bracing and a divided cabinet have been added to minimize cabinet
resonances and vibration, for the utmost transparency and clarity.

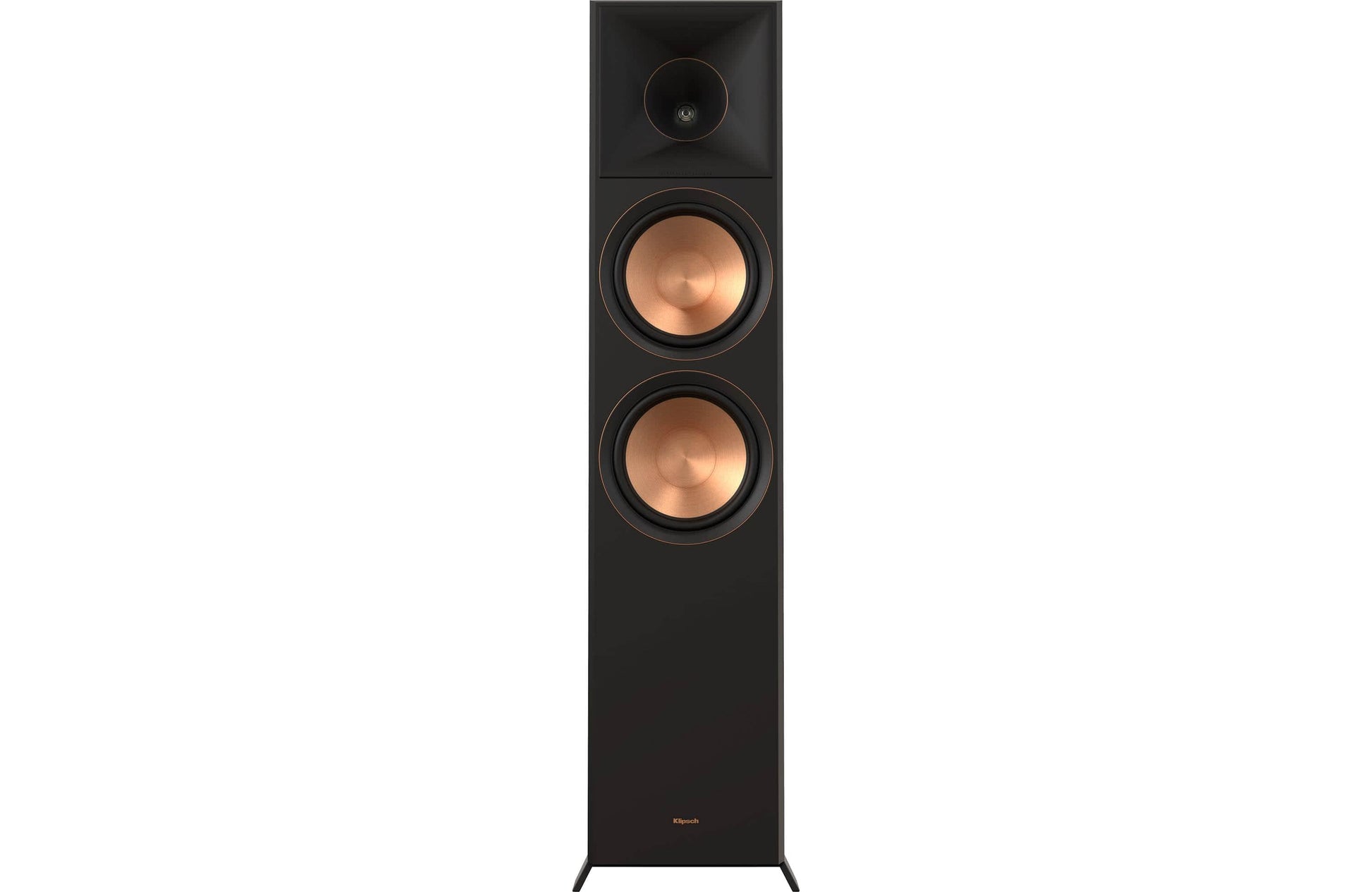

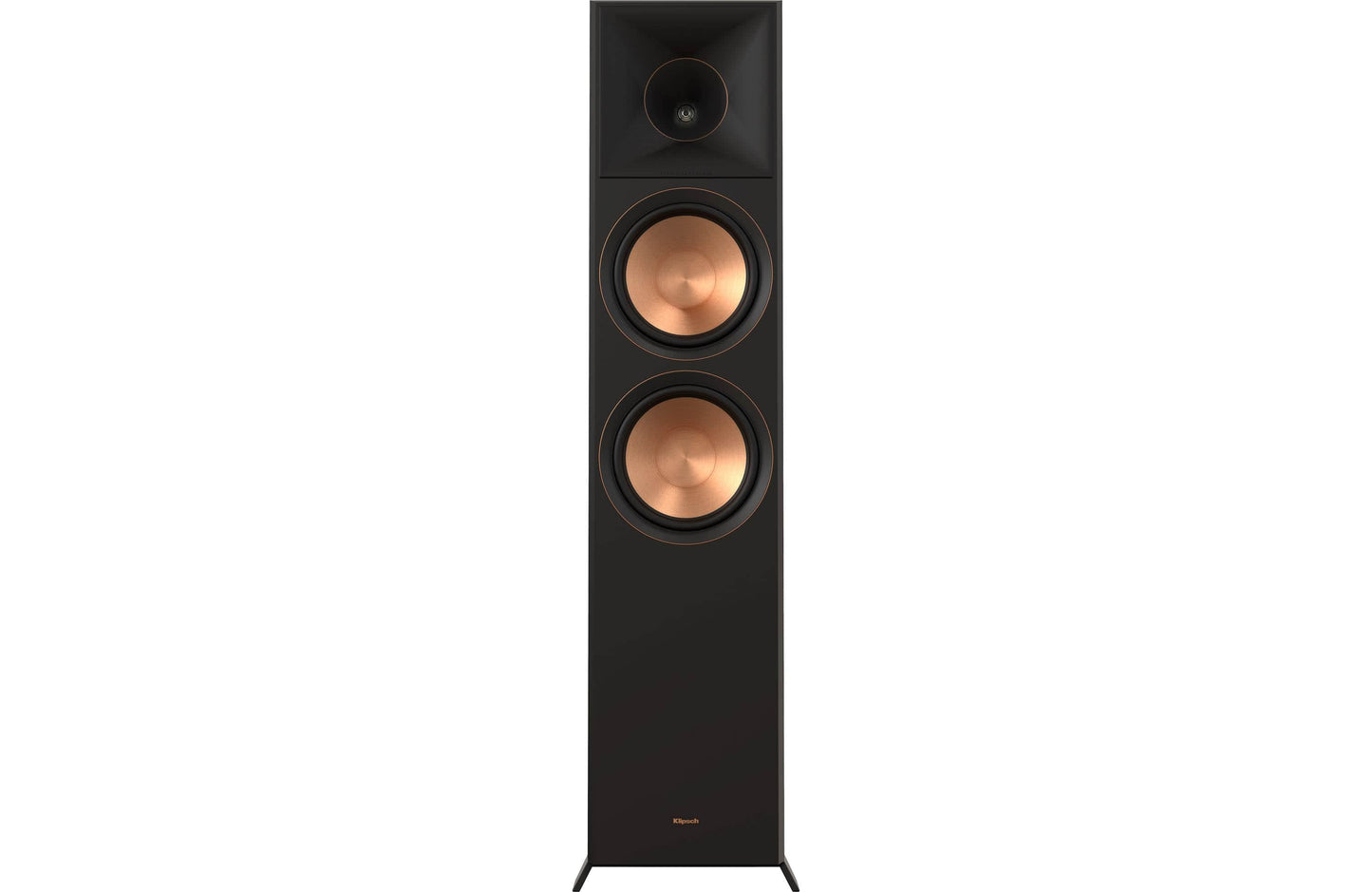

Specifications: Main Channel
FREQUENCY RESPONSE 35-25kHz +/- 3dB
SENSITIVITY* 98dB @ 2.83V / 1m*
POWER HANDLING (CONT/PEAK) 150W / 600W
NOMINAL IMPEDANCE 8 Ohms Compatible
CROSSOVER FREQUENCY 1630Hz
HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid
Cross-Section Expanded Tractrix® Horn
LOW FREQUENCY DRIVER Dual 8” Cerametallic Cone Woofers with Faraday rings
ENCLOSURE MATERIAL MDF (Internally Braced)
ENCLOSURE TYPE Bass Reflex via dual chamber rear-firing Tractrix® Ports
INPUTS Dual aluminum binding posts / bi-wire / bi-amp
HEIGHT INCHES (MM) 43.11" (109.5 cm)
WIDTH INCHES (MM) 10.84" (27.5 cm)
DEPTH INCHES (MM) 20.80 (52.8 cm)
PRODUCT WEIGHT LBS (KG) 75.7 lb (34.35kg)
FINISH Ebony, Walnut
INCLUDED ACCESSORIES Injection molded feet & screws
Specifications: Height Channel
FREQUENCY RESPONSE Conforms to Dolby Atmos Specifications
SENSITIVITY Conforms to Dolby Atmos Specifications
POWER HANDLING 100W / 400W
NOMINAL IMPEDANCE 8 ohms Compatible
CROSSOVER FREQUENCY 2kHz
HIGH FREQUENCY DRIVER 1" Titanium LTS Tweeter with Hybrid Tractrix Horn
LOW FREQUENCY DRIVER 6.5" Cerametallic Cone Woofer
ENCLOSURE MATERIAL MDF
ENCLOSURE TYPE Acoustic Suspension
INPUTS Single aluminum binding posts
