Flexible setup options
Use as a streamer, a DAC, a pre-amplifier or all three!
Idea 1 - Streaming DAC

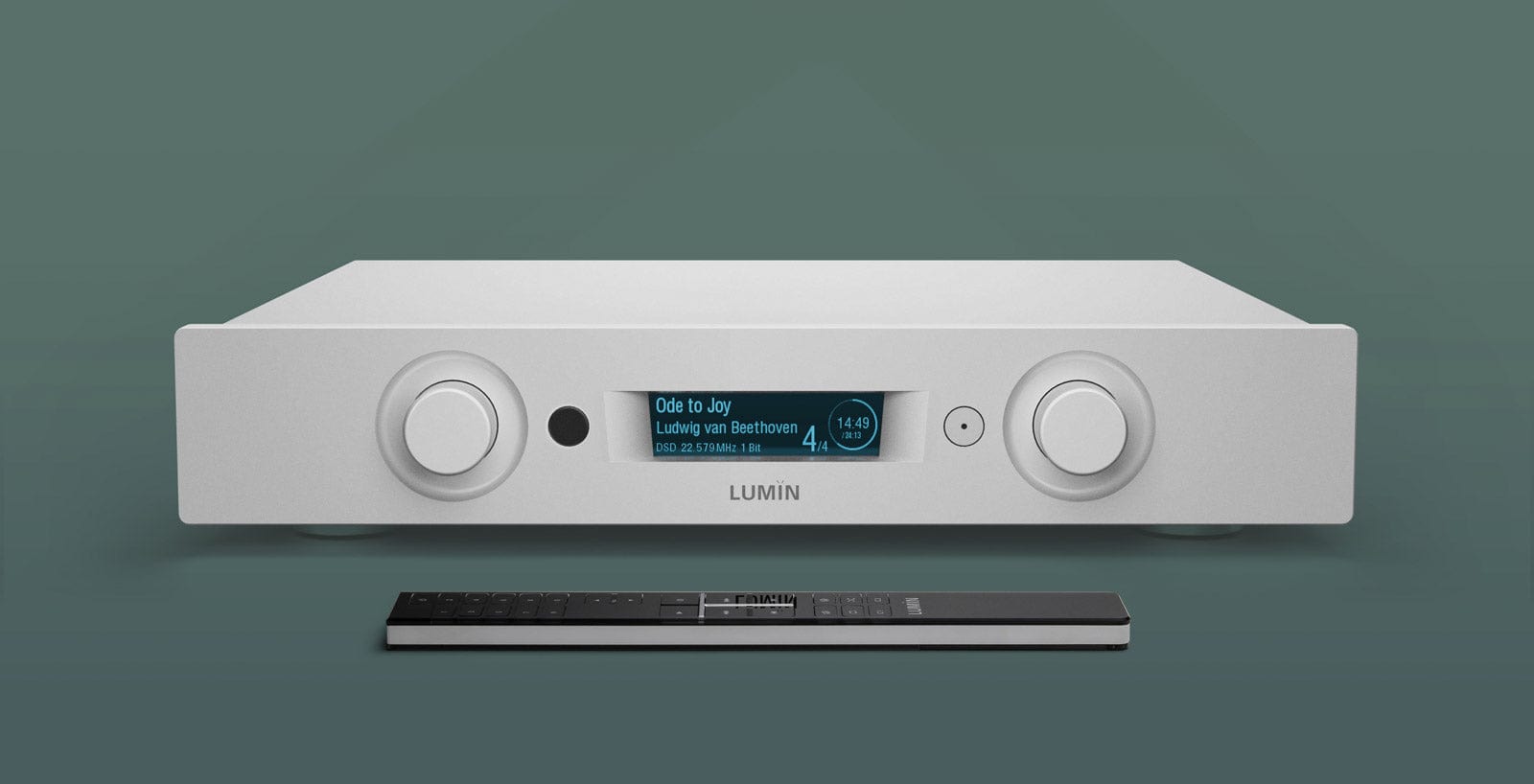

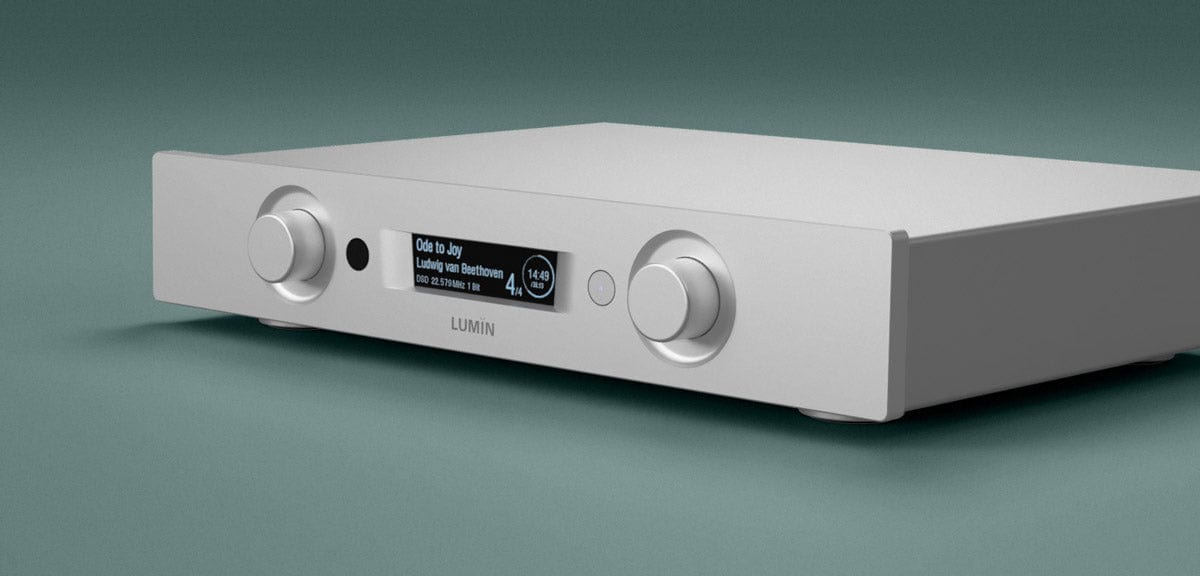

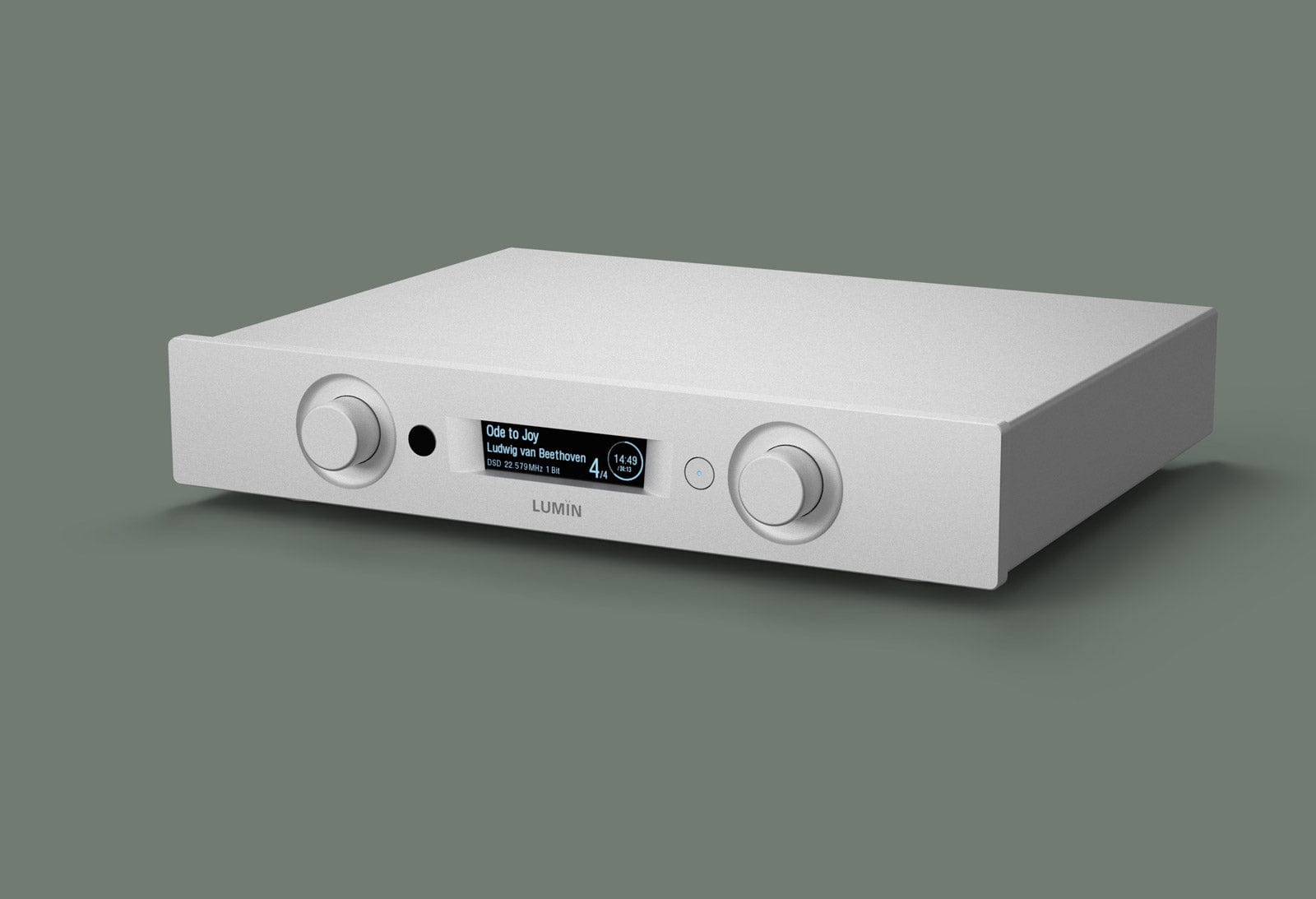

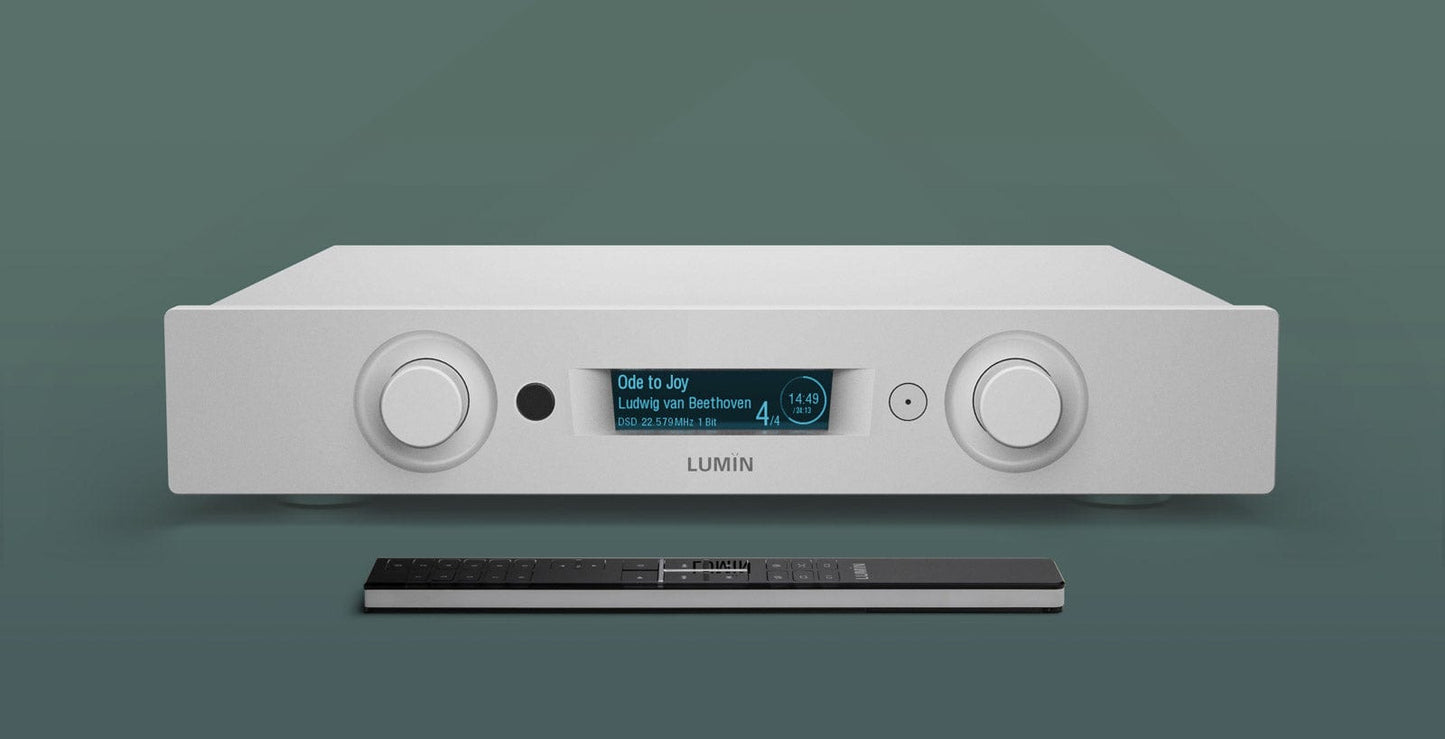

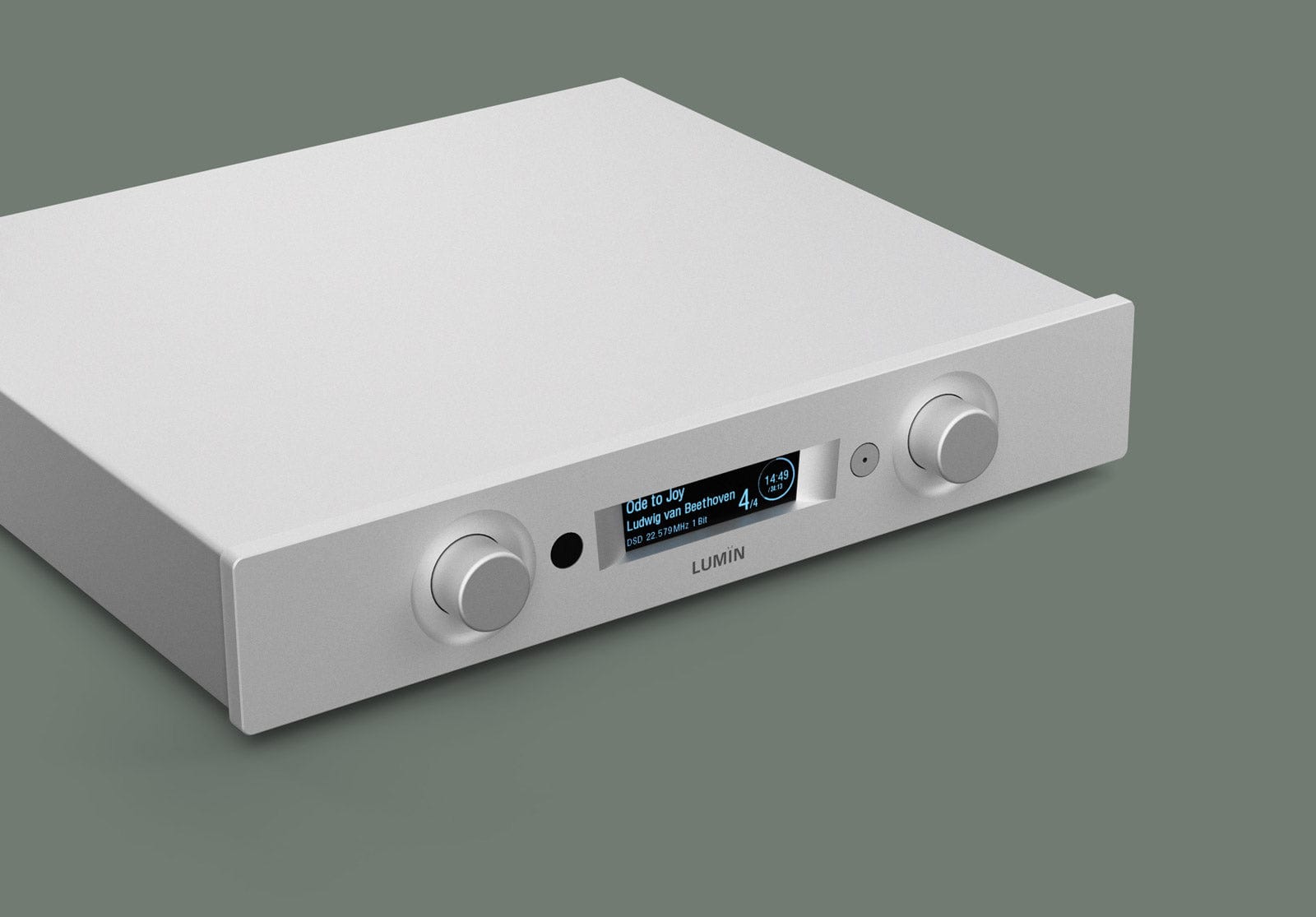

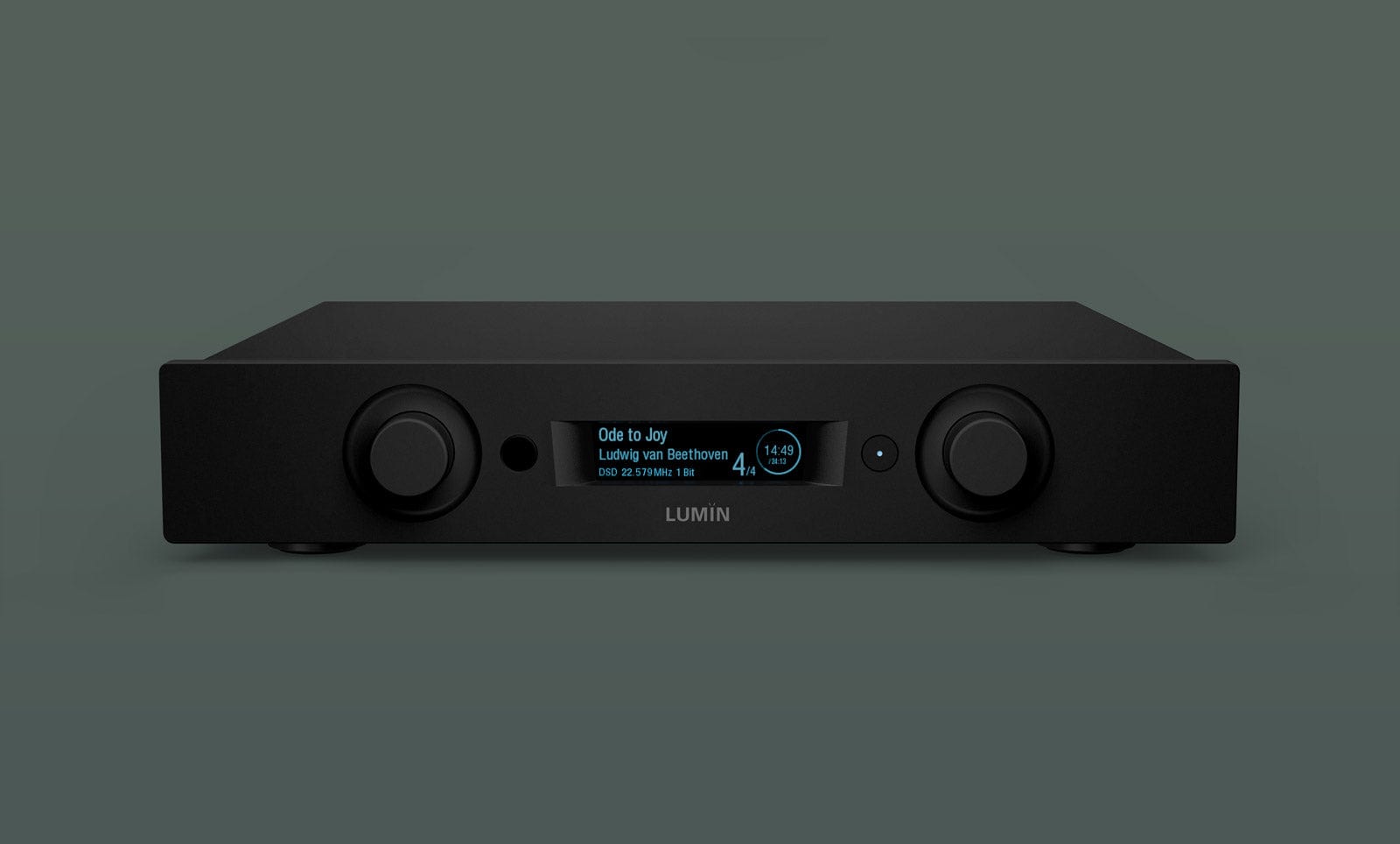

LUMIN P1 Mini can be used like all other LUMIN players. With its DSD512/PCM384 support, Femto Clock System, Fibre Networking, toroidal power supply, and Leedh Processing, it's packed with incredible components.
Idea 2 - Hi-Fi Hub
Connect all your stereo sources to LUMIN P1 Mini and attach a power amplifier and you've got everything you need for an incredible music system.
Idea 3 - 2-channel TV System
No need for an AV Receiver. Simply attach your HDMI sources to your TV and P1 Mini to your TV. With HDMI ARC, all your audio comes through your main speakers.
P1 Mini Specification highlights
-
Network playback:
- Up to DSD512
- Up to 384 kHz, 16–32-bit, Stereo
- MQA Full Decoding
-
Upsampling rates & bit depths:
- DSD128 upsampling option for all files
- PCM 384kHz upsampling option for all files
-

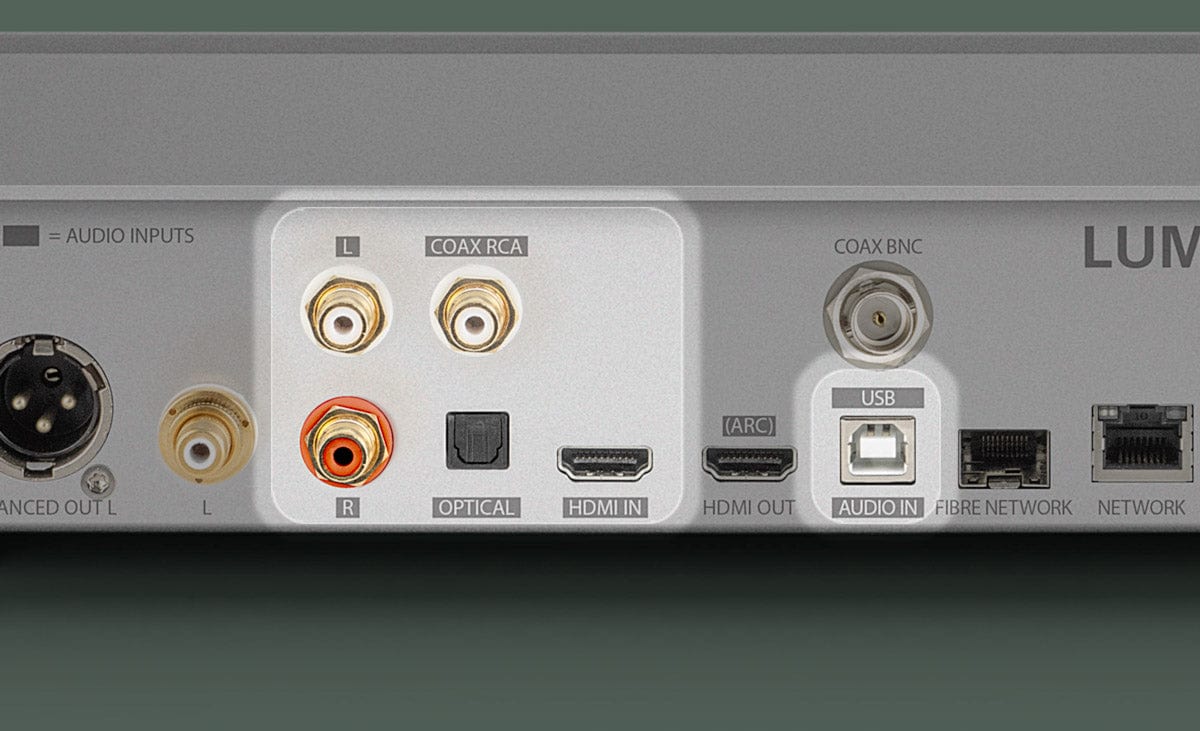

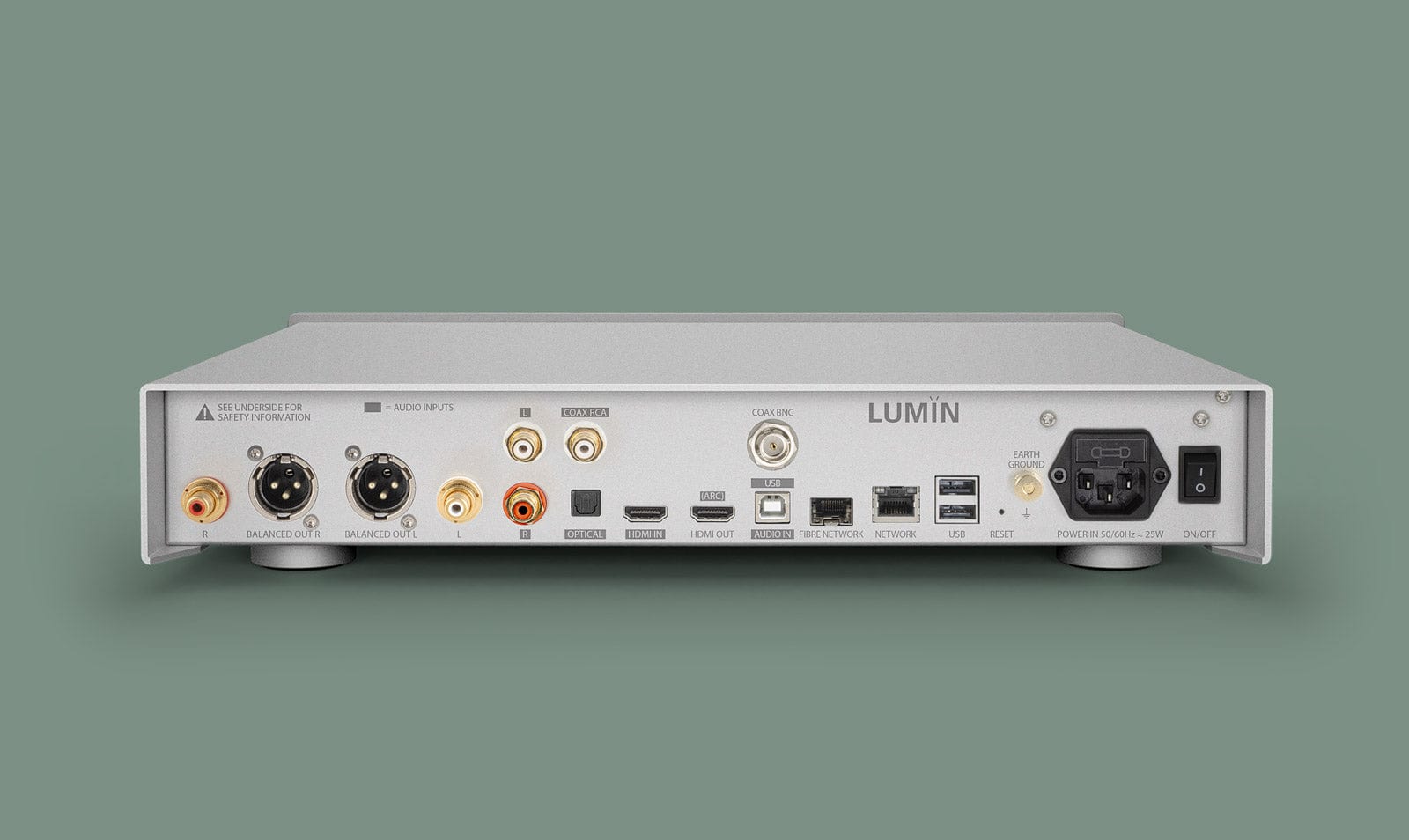

Digital Input:
-
USB:
- USB Audio Class 2 Compatible
- WINDOWS 10 (Release 1703 or above) / Mac OSX or above
- DoP 128 support
- PCM 44.1–384 kHz, 16 / 32-bit, Stereo
-
OPTICAL/SPDIF:
- PCM 44.1 kHz–192 kHz, 16–24-bit
- DSD64 (DoP64, DSD over PCM)
-
HDMI:
- PCM 2.0 Audio support
- 4K Video Passthrough
-
Digital Output:
-
USB:
- Native DSD512 support
- PCM 44.1–384 kHz, 16–32-bit, Stereo
-
BNC SPDIF:
- PCM 44.1 kHz–192 kHz, 16–24-bit
- DSD64 (DoP64, DSD over PCM)
-
HDMI:(HDMI Passthrough and ARC support)
- PCM 2.0 Audio support
- 4K Video Passthrough
- ARC (Audio Return Channel) support
-
Analogue Input:
-
Analog Output:
- Dual ESS SABRE32 ES9028Pro DAC chips
- Fully balanced layout with high-quality components
- Femto Clock System with precision FPGA distribution
-
Optical Network:
- Industry-standard Gigabit SFP
- 1000Base-T Gigabit Ethernet
- Adapter may be needed for your particular switch/cables
- Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
-
Power Supply:
- Internal toroidal linear
- Low-noise linear regulator
-
Physical:
-
Finish:

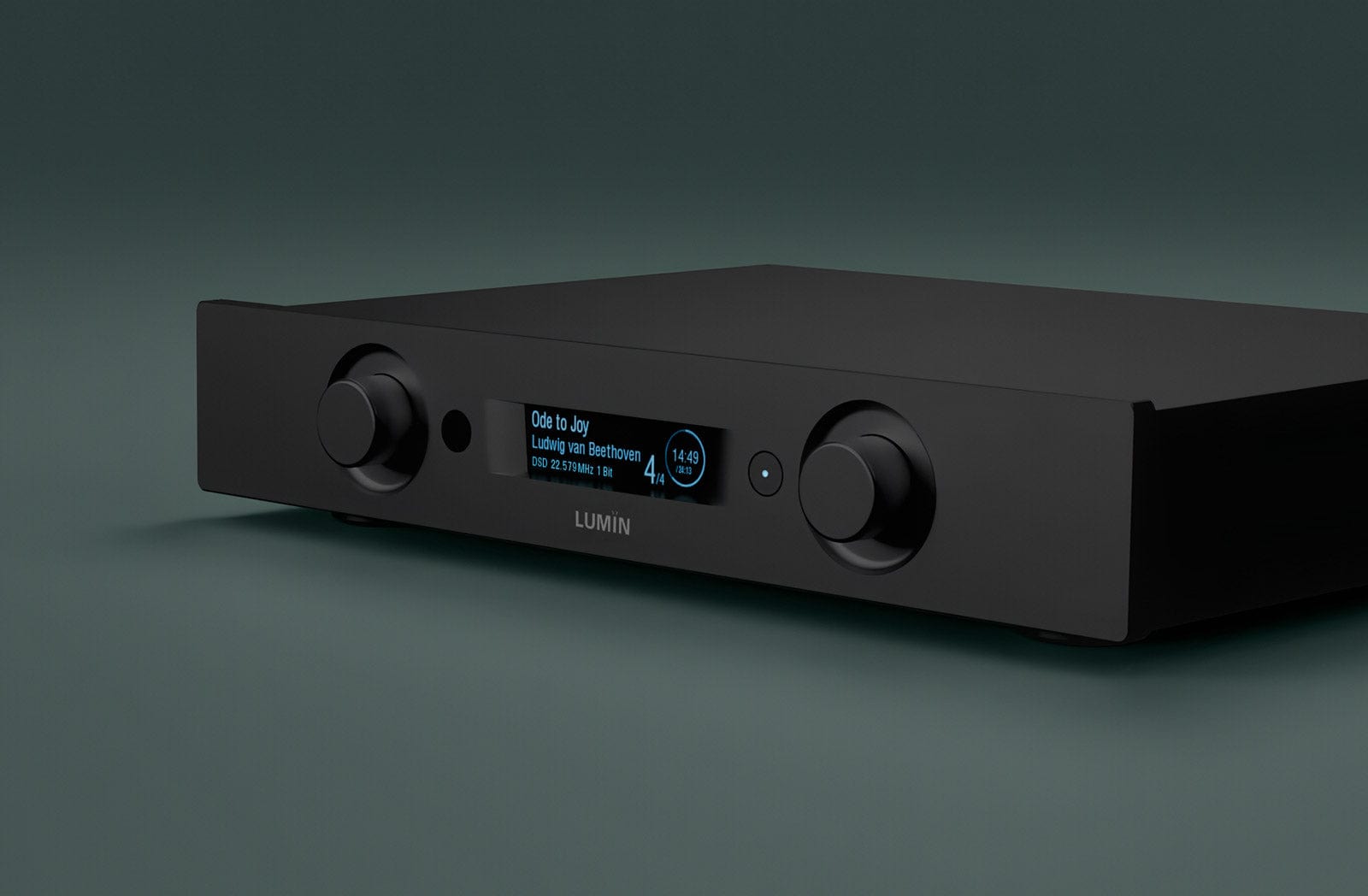

- Black anodised aluminium
- Raw anodised aluminium
Lumin (solid aluminium chassis):
- 400mm (W), 314mm (D), 77mm (H), 7kg
Specification for all current-gen LUMIN streamers
-
Streaming Protocol:
- UPnP AV protocol with audio streaming extension (OpenHome)
- Roon Ready
- TIDAL Connect
- Spotify Connect
- Flac lossless Radio stations
- AirPlay-compatible
- Gapless Playback
- On-Device Playlist
-
App Features:
- Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
- Tidal MAX and MQA icons to identify high-res music
- Qobuz high-res icons to identify high-res music
- Volume control
- High-resolution artwork
- Artwork caching
- Search
- Multiple tag handling
- Composer tag support
- Album-grouping in playlist
- Automatic internet links to artists/album/songs
- Saving and restoring of playlists (including Tidal and Qobuz)
-
Supported Audio File Formats:
- DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
- PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
- Compressed (lossy) Audio: MP3
- MQA
-
Input:
- Gigabit Ethernet Network (1000BASE-T) RJ45
- Shared USB port can also be used for storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
-
Analogue Audio Outputs:
- XLR balanced, 6Vrms, pin 2 Hot
- RCA unbalanced, 3Vrms
-
Supported Control Devices:
- Apple devices. iOS 11.0 or later (List of supported devices)
- Android devices. Android 4.0 (Ice Cream Sandwich) or later required
- Apple Silicon. macOS 11 or later. (Download the iOS App from the iOS App Store)
- Chromebook. Google Play Store required.
-
Other:
- Leedh Processing lossless digital volume control
- Programme of Continuous Development – Firmware-upgradable for further features and enhancements
