X1 Specification
-
DSD Support:
- Up to DSD512 22.6MHz, 1-bit
-
PCM Support:
- Up to 768kHz, 16–32-bit, Stereo
-

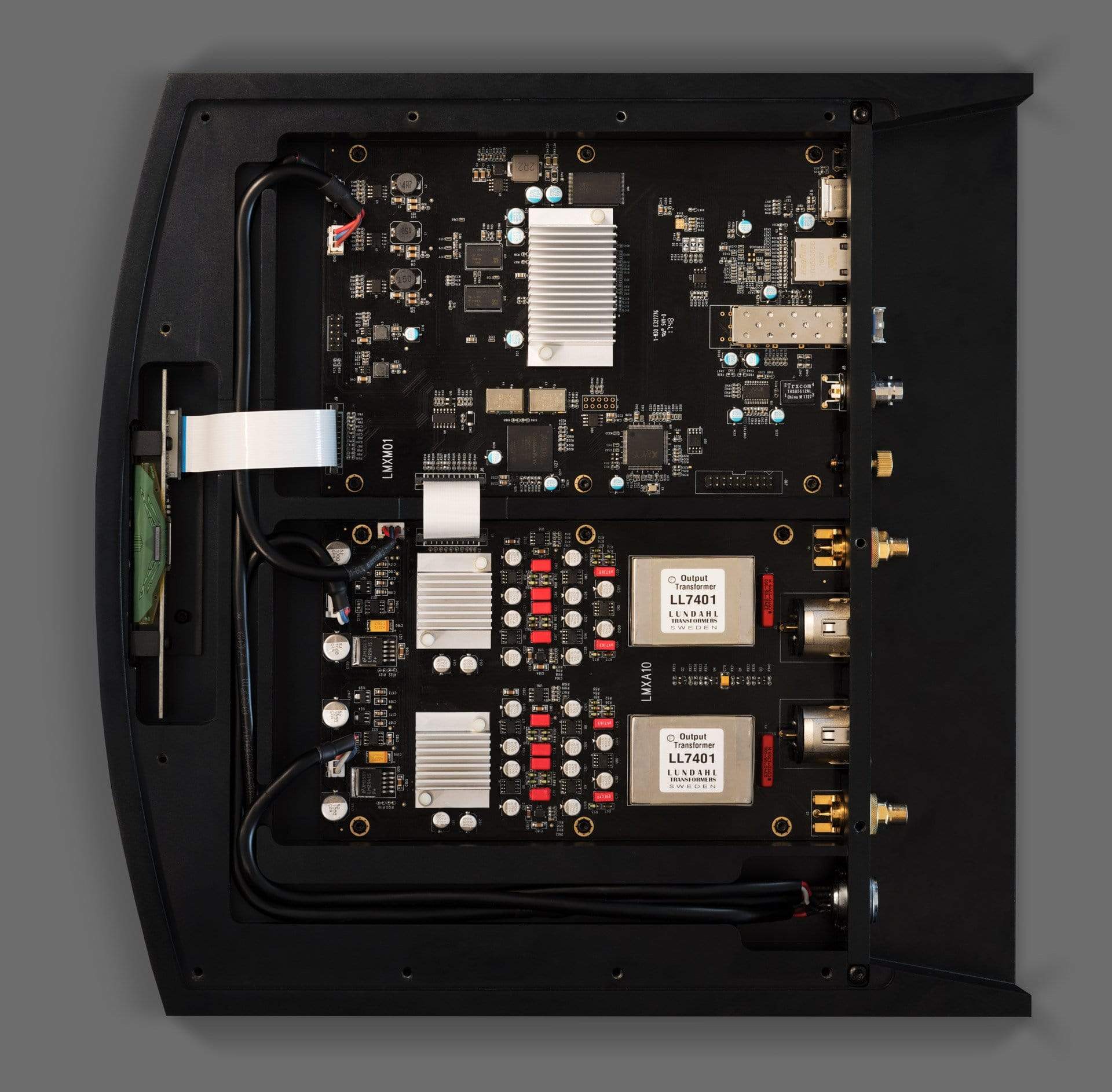

Analog Output Stage:
- Dual ESS SABRE32 ES9038Pro DAC chips
- Fully balanced layout with high-quality components
- Output connectors coupled with dual LUNDAHL LL7401 output transformers
- Femto Clock System with precision FPGA distribution
-
Upsampling rates & bit depths:
- DSD128 upsampling option for all files
- PCM 384kHz upsampling option for all files
-

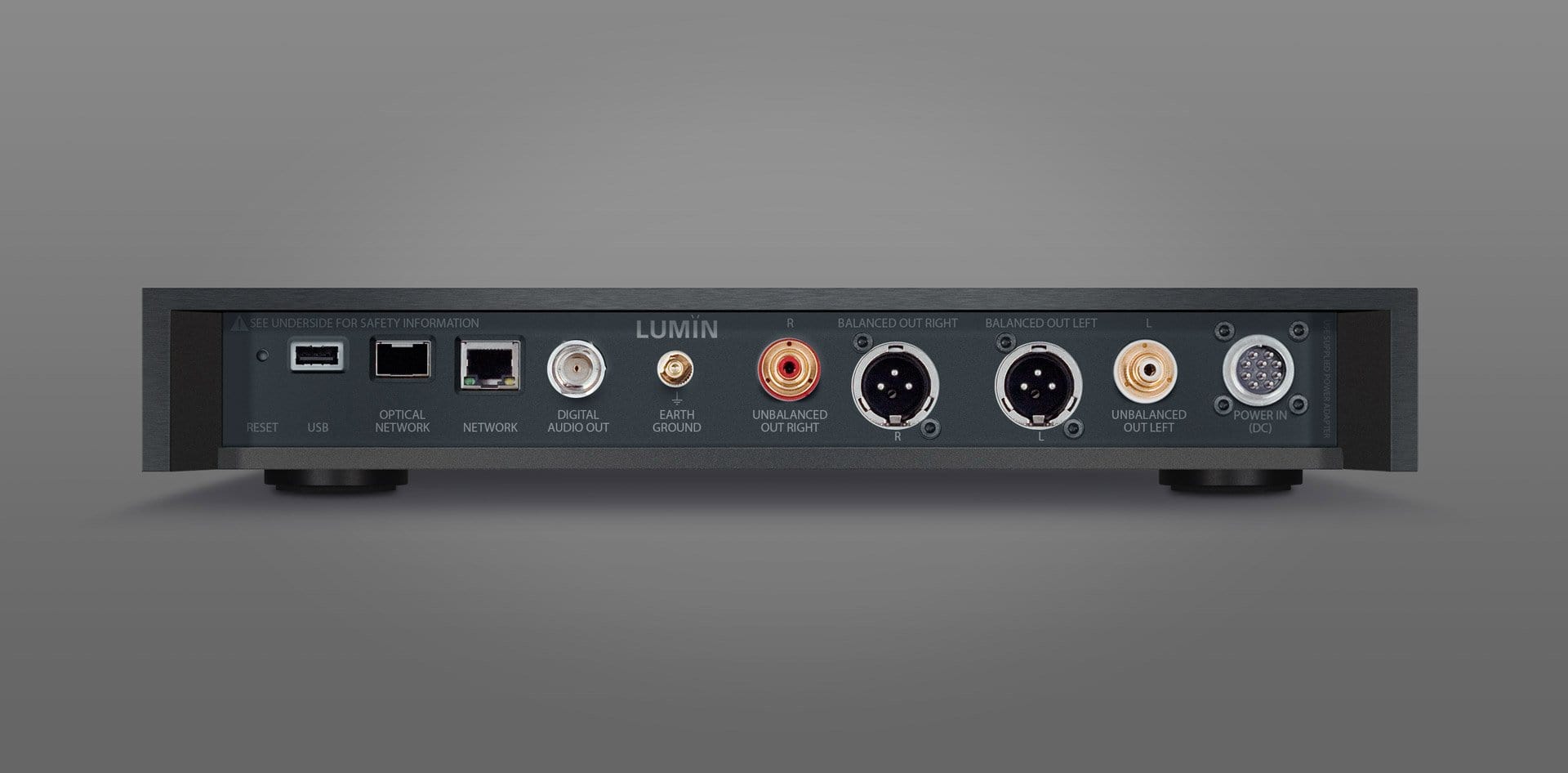

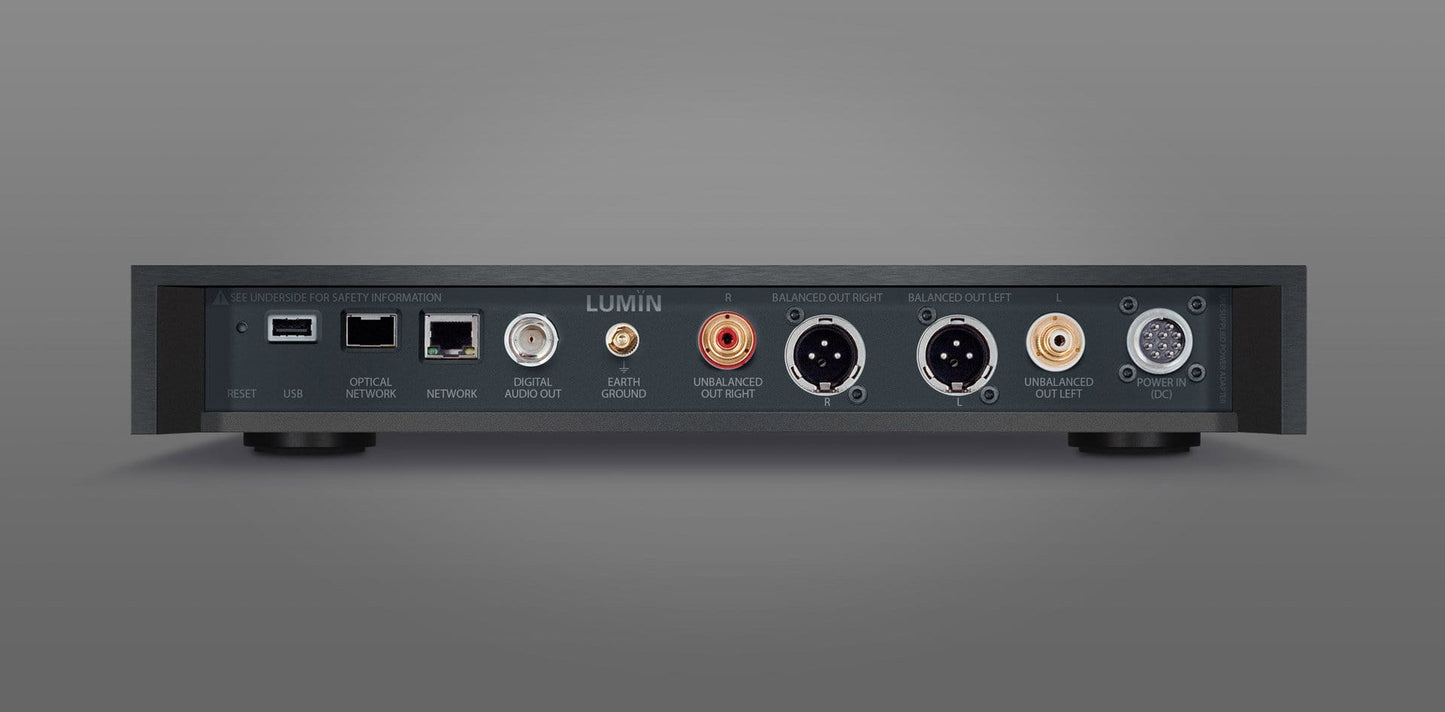

Digital Output Stage:
-
USB:
- Native DSD512 support
- PCM 44.1–768kHz, 16–32-bit, Stereo
-
BNC SPDIF:
- PCM 44.1kHz–192kHz, 16–24-bit
- DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
-
-
Optical Network:
- Industry-standard SFP
- 1000Base-T Gigabit Ethernet
- Adapter may be needed for your particular switch/cables
- Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
-
Power Supply:
- External solid billet cnc dual-toroidal
- Separate digital & analogue circuitry
- Low-noise linear regulator
- 9-pin Output Connector
-
Physical:
-
Finish:
- Black anodised brushed aluminium (with matching PSU)
- Raw brushed aluminium (with matching PSU)
Lumin (solid aluminium chassis):
- 350mm (W), 345mm (D), 60mm (H), 8kg
-

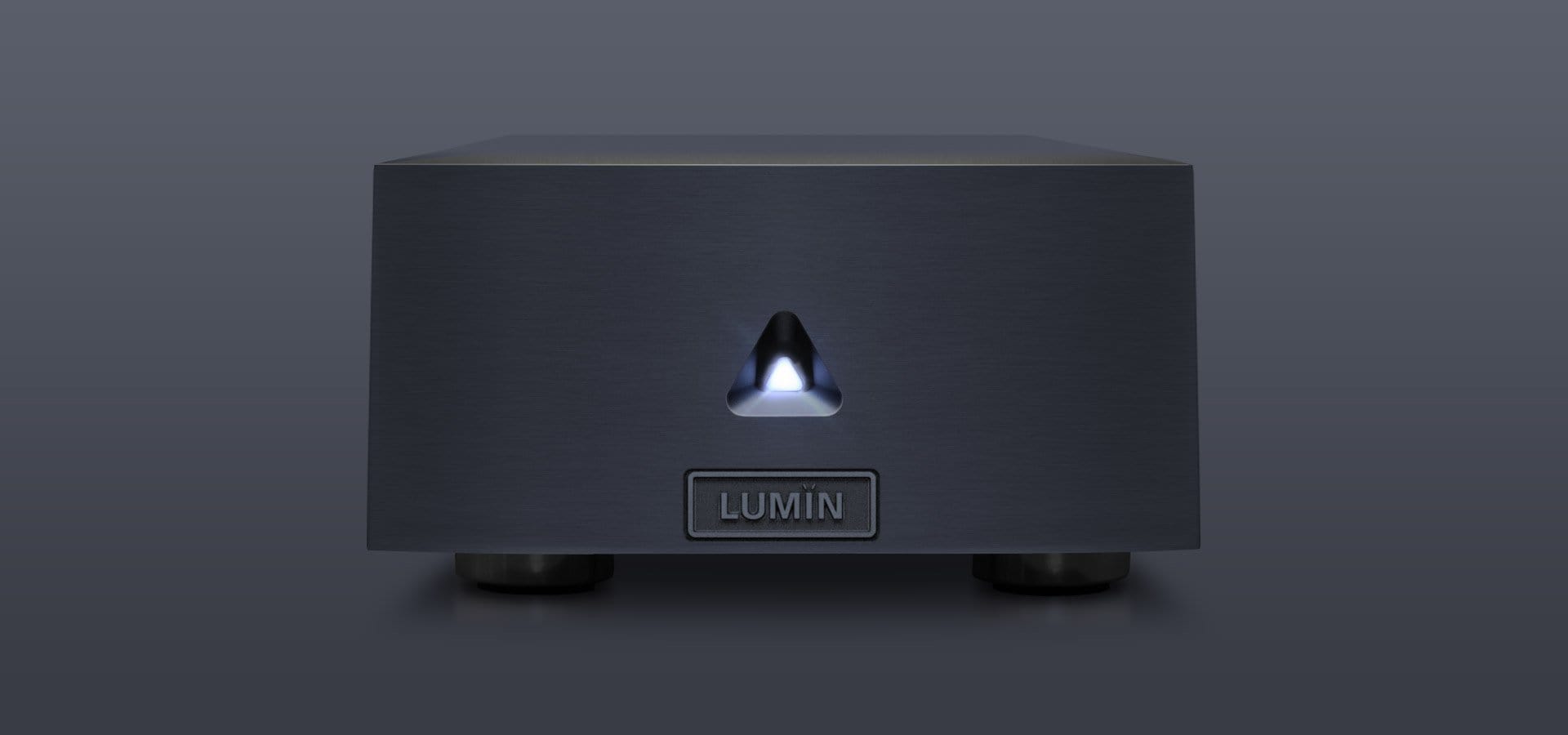

PSU (solid aluminium chassis):
- 106mm (W), 334mm (D), 60mm (H), 4kg
-
