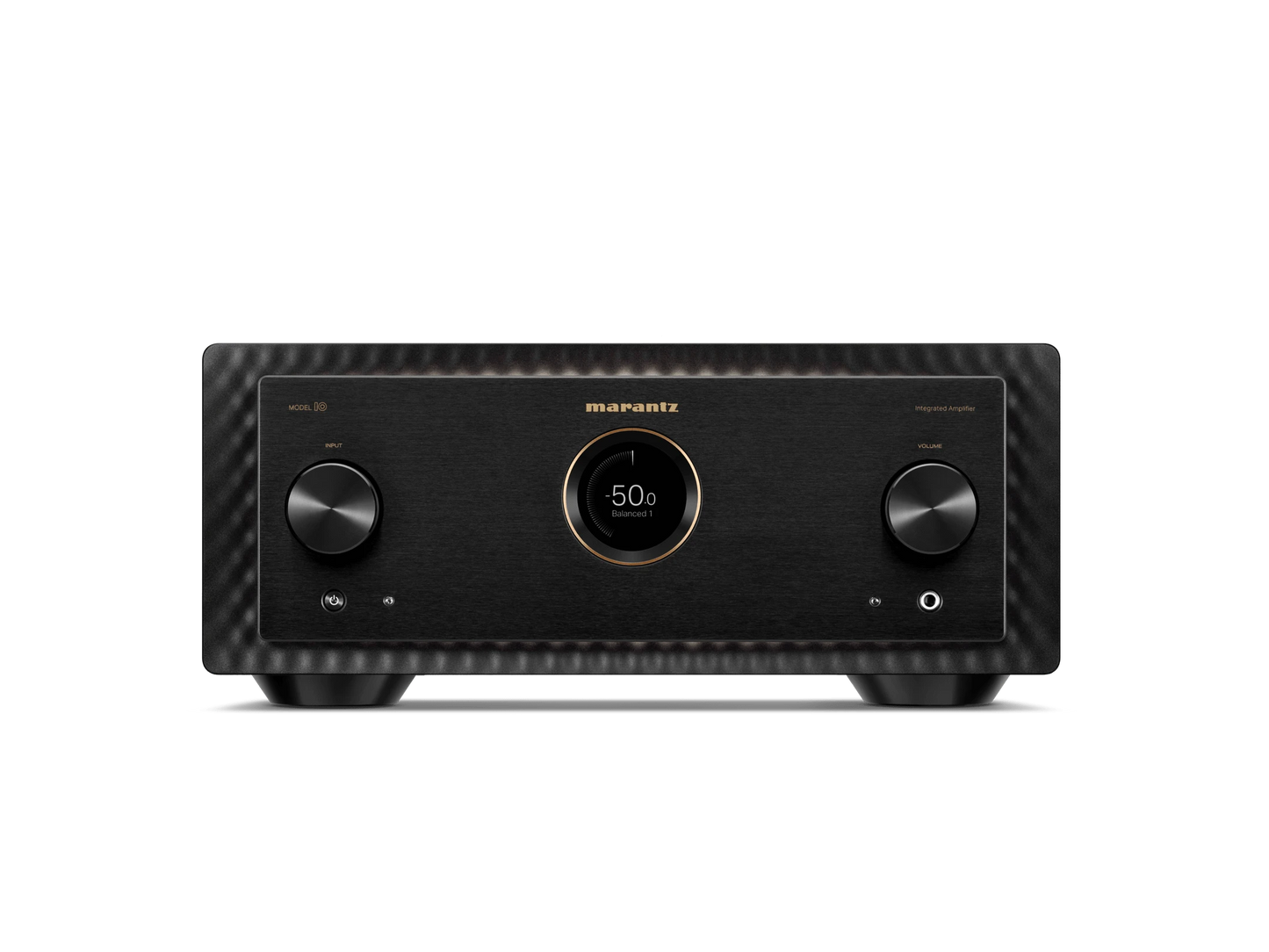

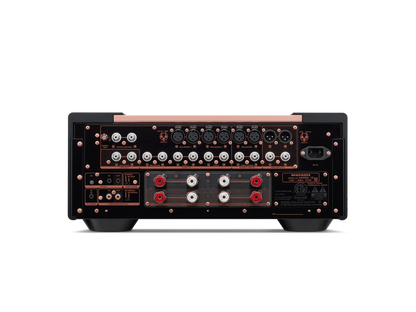

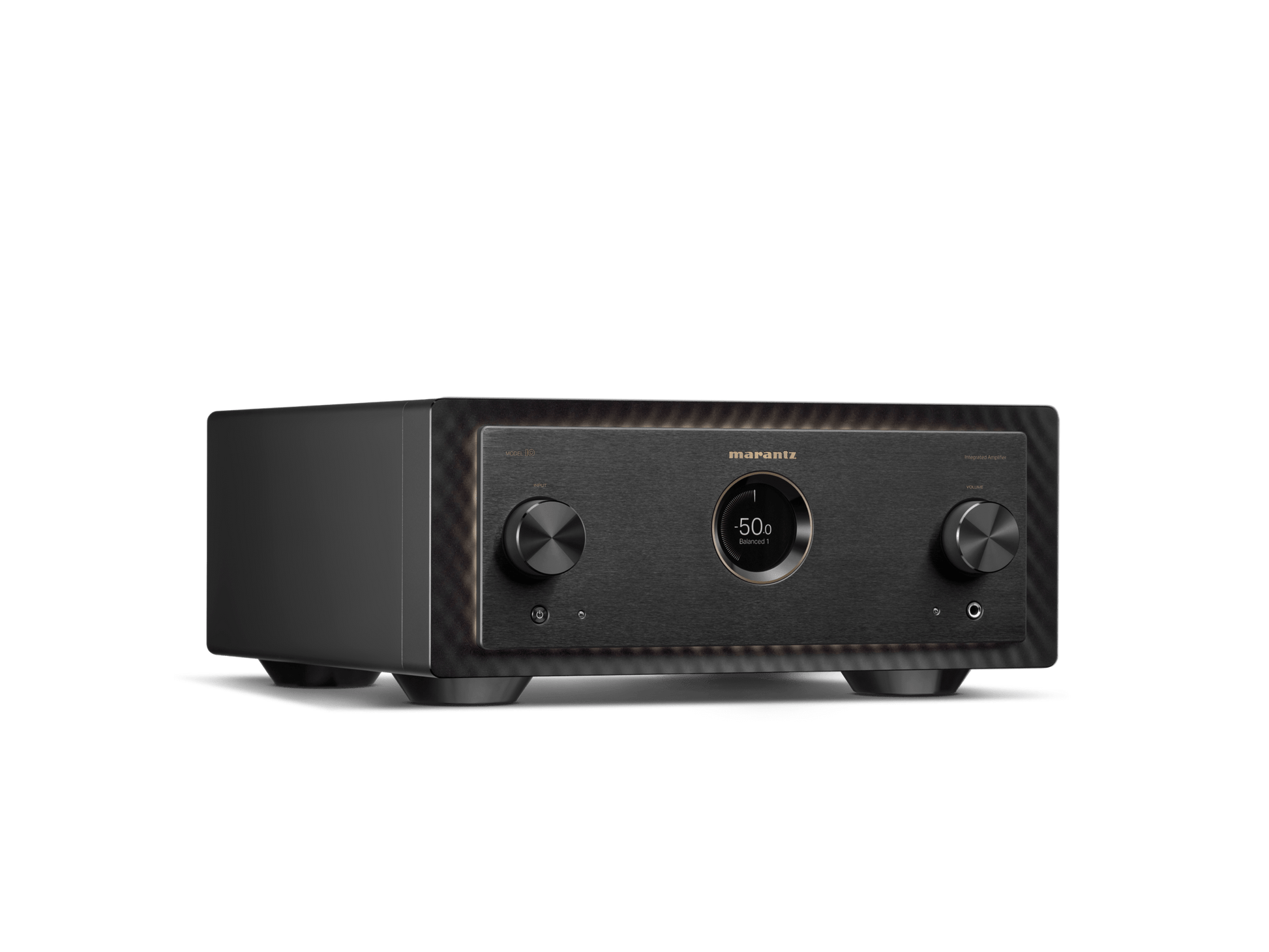

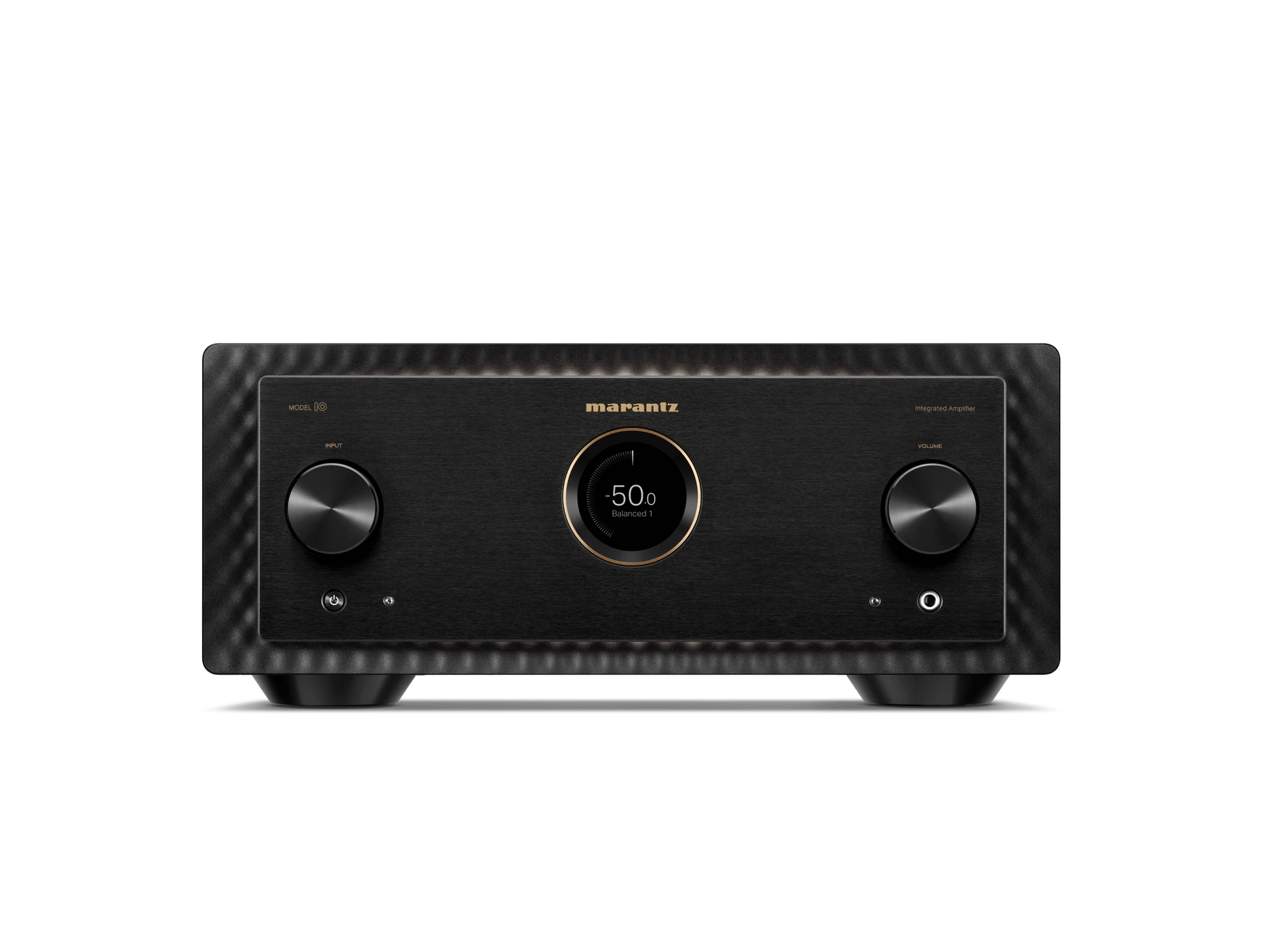

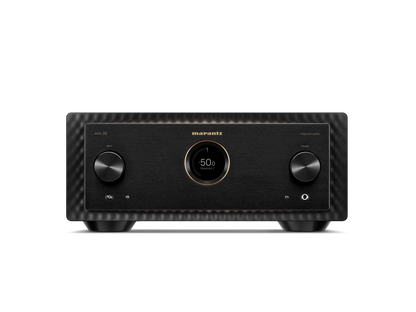

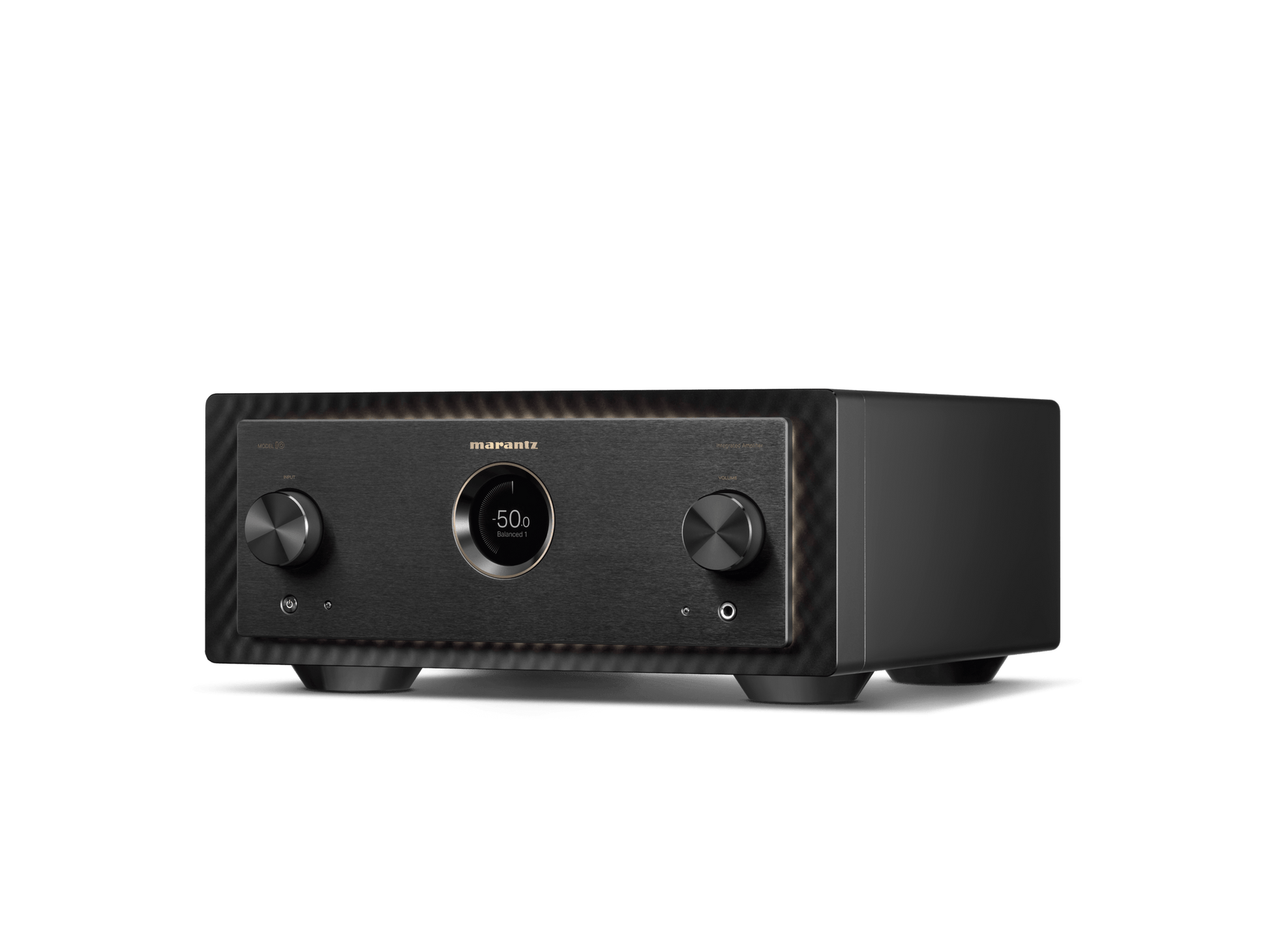

Stereo Amplifier Marantz Black Marantz Model 10

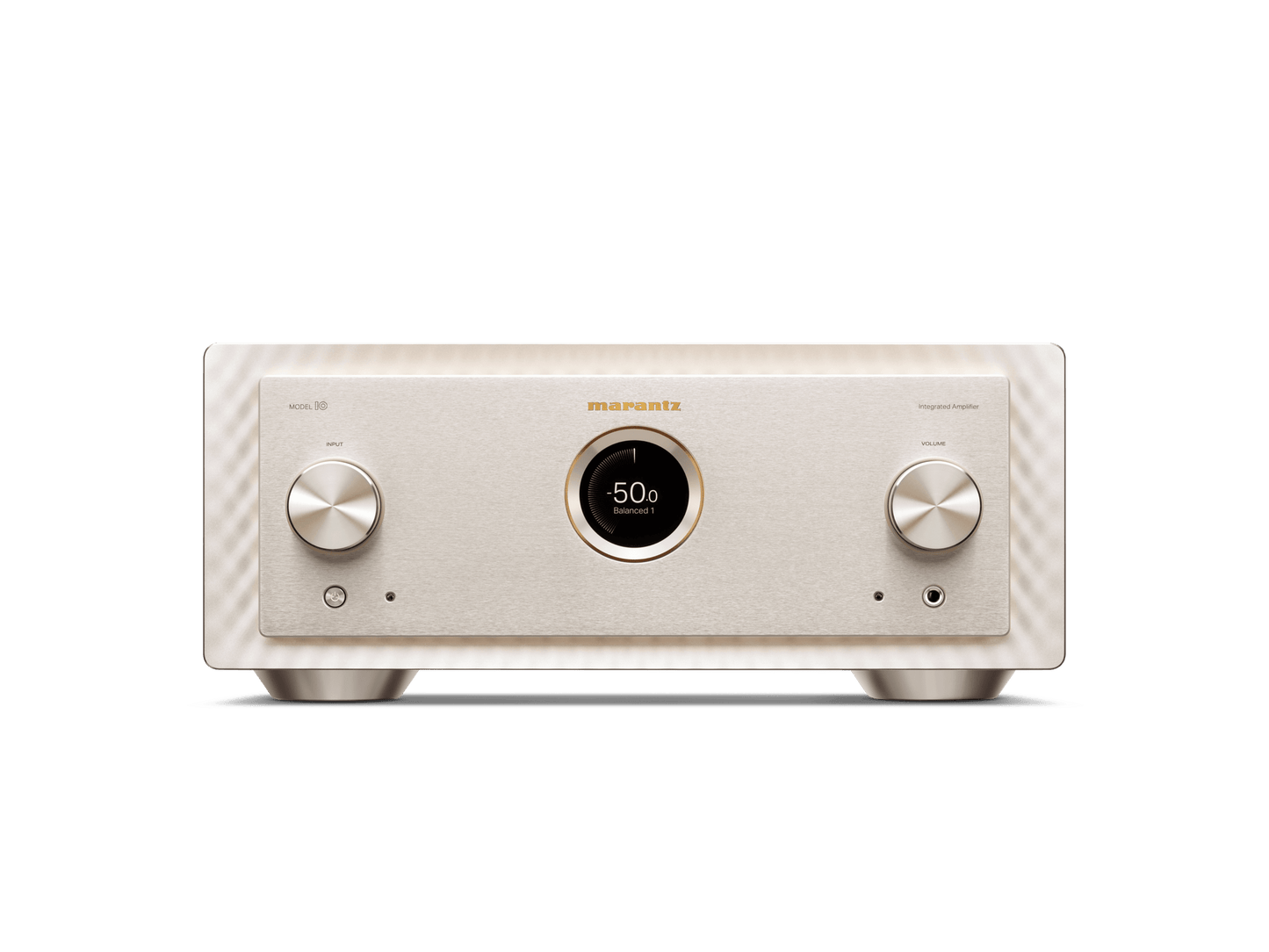

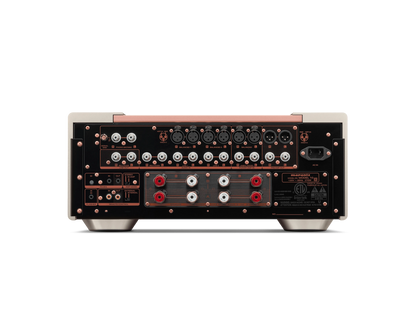

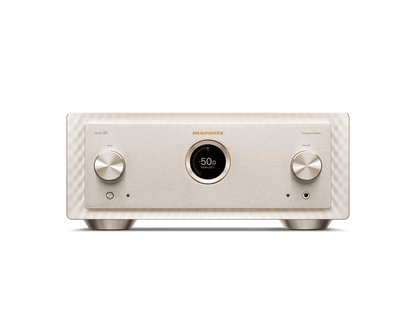

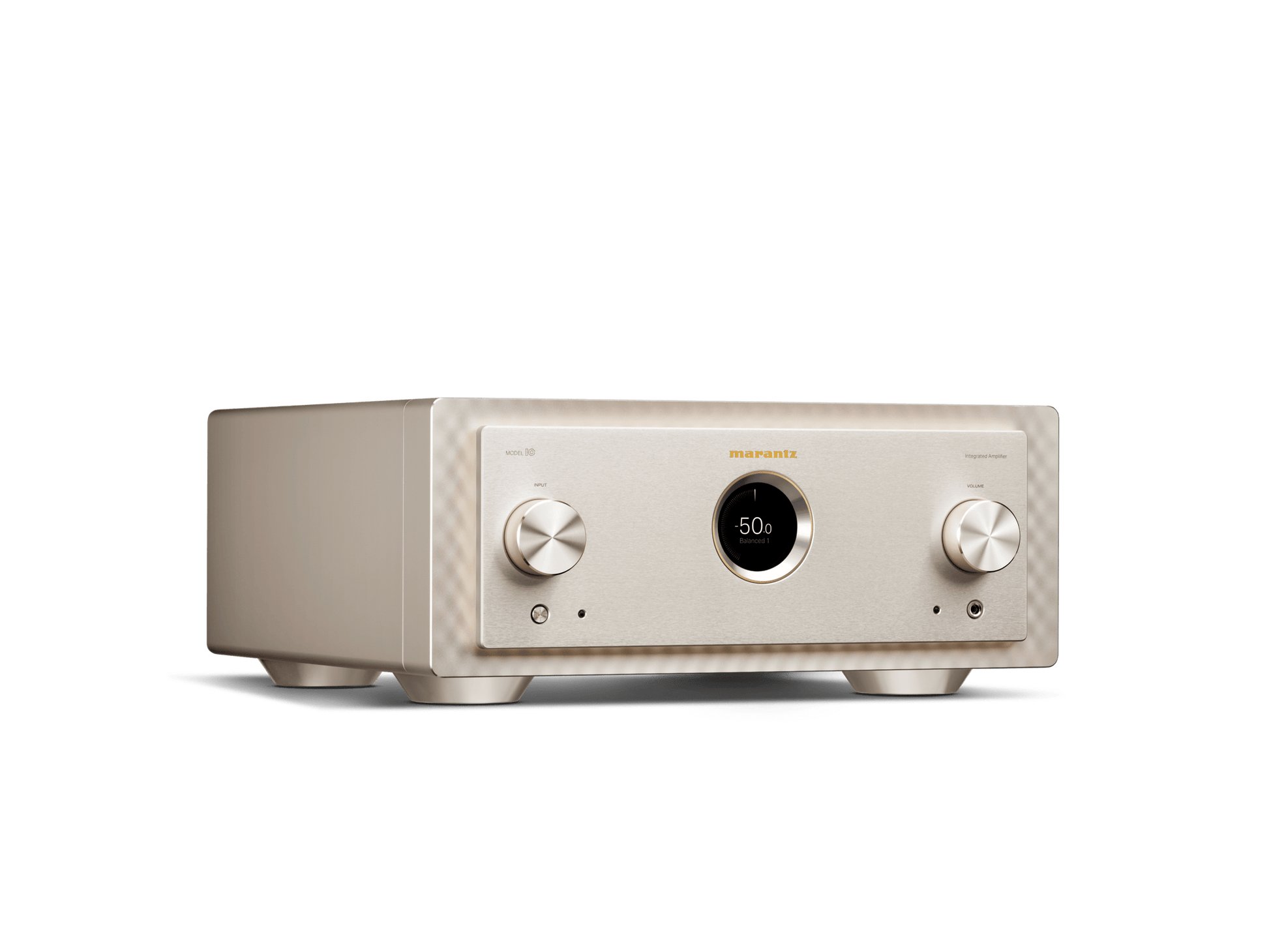

Stereo Amplifier Marantz Champagne Marantz Model 10

Marantz Model 10

Sale
Regular price $28,995.00

Tax included.

MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.

2 Channels
250 Watts per Channel
All-New Marantz SMPS
Fully balanced dual mono amplifiers
Phono MM/MC
Copper-plated chassis

MODEL 10

From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and all new HDAM modules, MODEL 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.

MODEL10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail, lower distortion, and higher dynamic range than ever before.

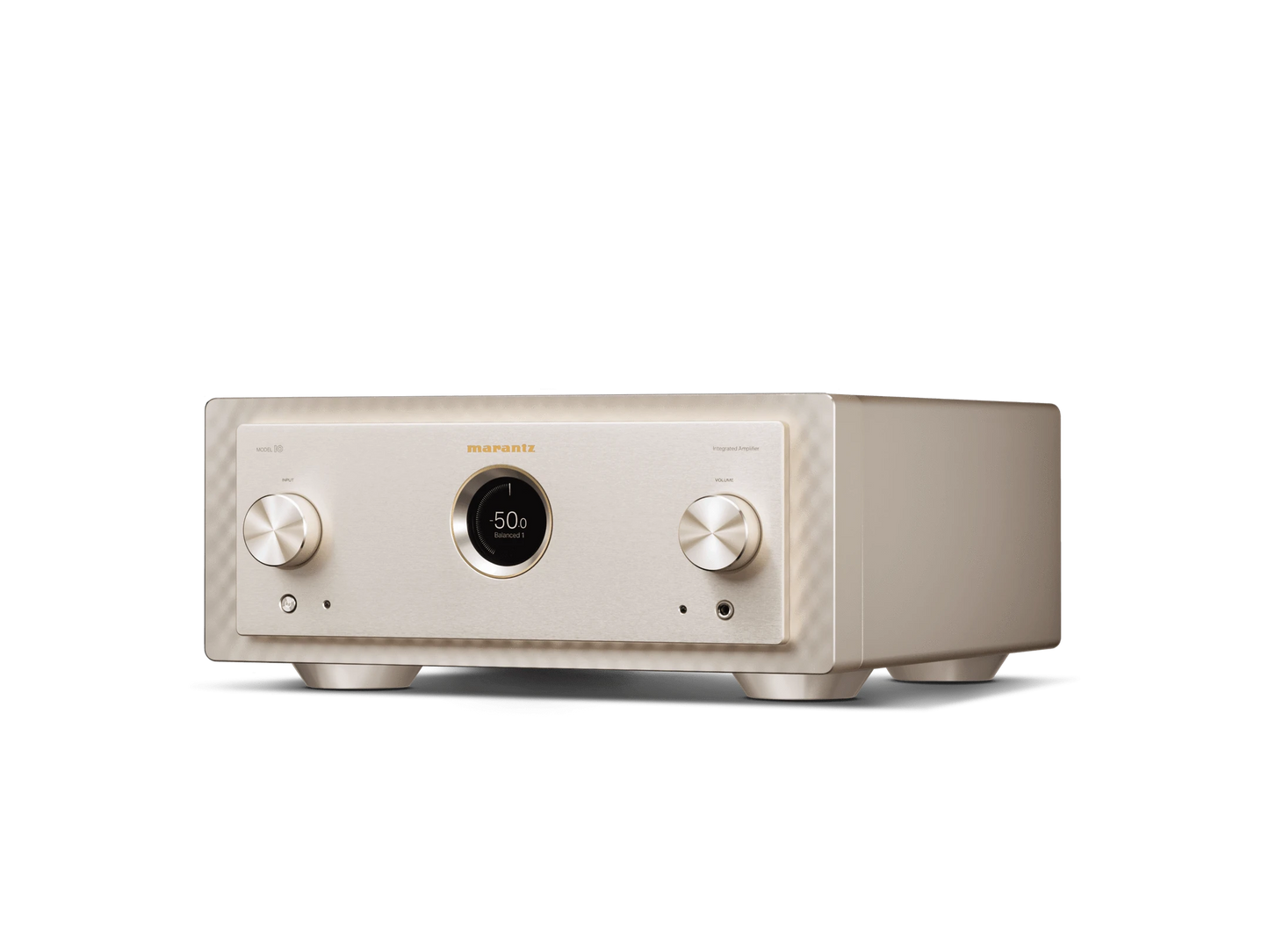

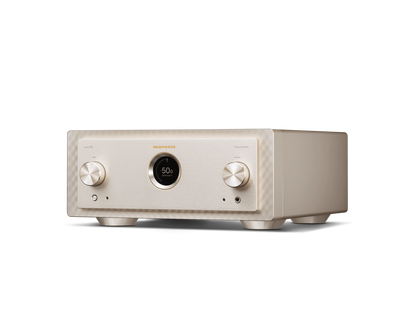

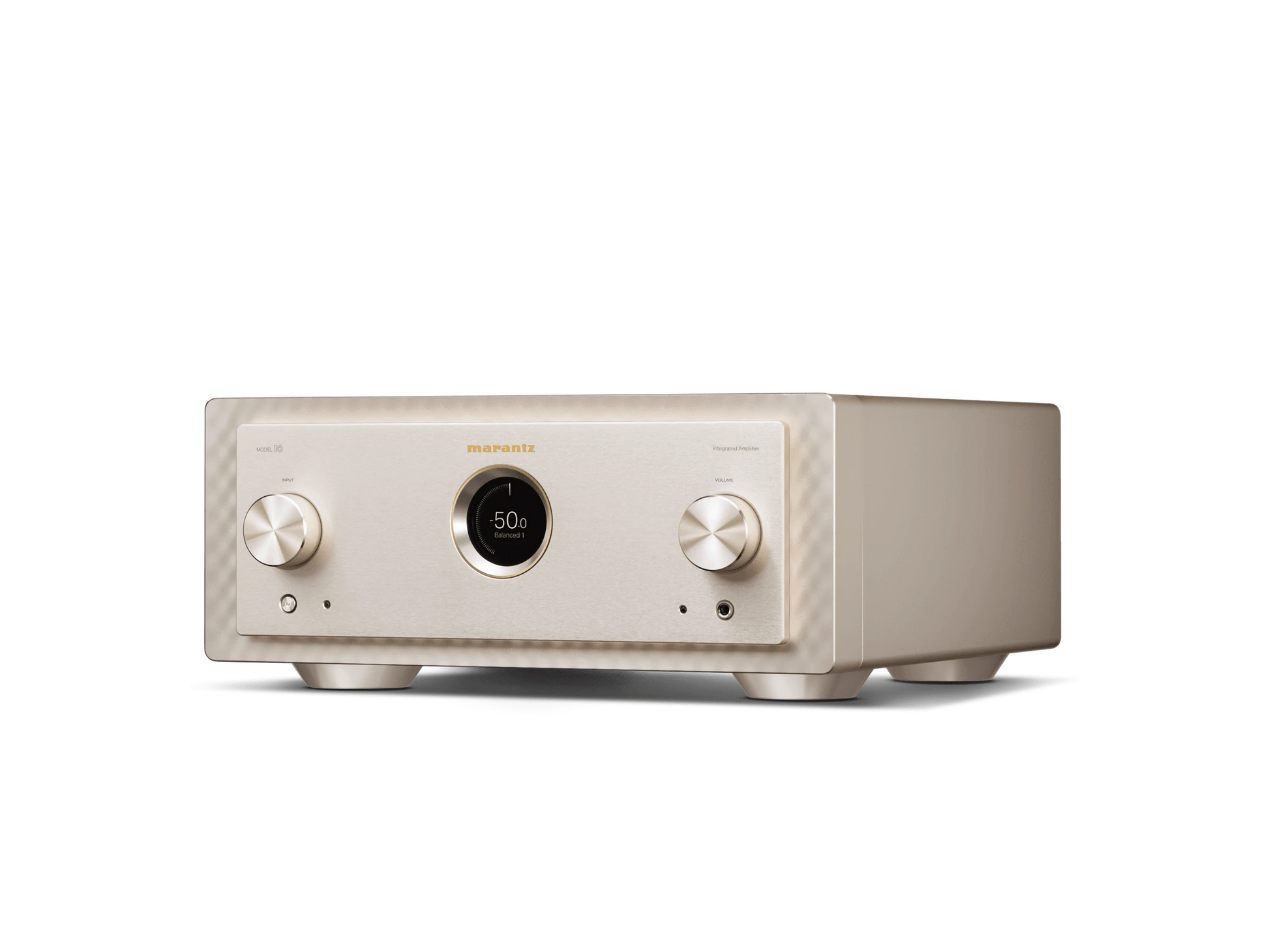

Designed with a brushed aluminum front, MODEL 10 is encased in a copper-plated, triple-layered chassis with illuminated mesh cover grille. Lighting inside the amplifier showcases the circuit boards, high-quality components, and specially designed transformer case. In a nod to the Marantz design DNA, MODEL10’s porthole houses a HD TFT Color Display for volume and input selection, along with a digital level meter that behaves like vintage analog meters.

MODEL 10 was conceived and engineered in our facilities in Shirakawa, Japan to deliver the highest performance.

Details & Specifications

General

Unit (W × H × D mm) 440 × 192 × 473
Cabinet Size 440 × 192 × 422
Net weight 33.7kg
Packaging Dimensions (W × H × D mm) 600 × 379 × 540
Packaging gross weight 39.0kg
Carton Color 1 Color (Material color: Brown Printing: Black)
Panel Color Black / Marantz Champagne
Front (Center) Panel Anodized machined aluminum
Back-shell AAnodized machined aluminum
Front panel illumination Yes (All sides, Dimmer)
Side cover Aluminum (Thickness: Max 15.8mm)
Top cover Aluminum (Thickness: 6mm)
Top cover (Centor) ventilation hole material Stainless mesh
Interior ilumination Yes, dimmable
Rear Panel Copper Plated
Chassis Material Copper Plated
Bottom Layer / Bottom plate Triple layer Copper plated
Front panel illumination Yes (All sides, Dimmer)
Volume Knob Solid aluminum (Bearing construction)
Input Selector Solid aluminum (Bearing construction)
Foot Solid Alminum Copper plated (H: 18.5mm)
Heatsink for Power Amplifier Extruded Aluminum

Audio

Rated Output Power 250W + 250W
(8ohm,20Hz-20kHz,THD 0.05 %)
500W + 500W
(4ohm,20Hz-20kHz,THD 0.05 %)
Speaker Impedance 4~16ohm
Frequency Response 5Hz~60kHz +0dB/-3dB
20Hz~20kHz +0dB/-0.3dB
Total Harmonic distortion 0.005%
(125W, 8ohm, 20-20kHz)
(CCIF IMD, DFD IMD)
Damping Factor 500 (8ohm, 20Hz-20kHz)
Input Sensitivity: Phono input MM: 3.6 mV / 36 kohm
MC (Low): 400 μV / 33 ohm
MC (Mid): 400 μV / 100 ohm
MC (High): 400 μV / 390 ohm
RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input MM : 80mV
MC : 8mV
Input Sensitivity: CD/LINE/RECORDER 350 mV/41kohm (Unbalanced)
700 mV/36kohm
Input Sensitivity: Power Amp input Unbalanced: 1.58V / 41kohm (Gain : 29dB)
Balanced: 3.16V / 15kohm (Gain : 24dB)
SN Ratio PHONO (MM): 88dB
PHONO (MC): 76dB
CD: 122dB
Balanced: 122dB
Headphone Output Level 130mW / 32 ohms
Tone Control BASS : 50Hz ±10dB
TREBLE : 15kHz ±10dB
Power Consumption 270W
0.1W (at Standby)

Audio/ Video

Phono Input Yes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
PHONO (MC Low): 400 μV / 33Ω
PHONO (MC Mid): 400 μV / 100Ω
PHONO (MC High): 400 μV / 390Ω
PHONO (MM): 3.6 mV / 39kΩ

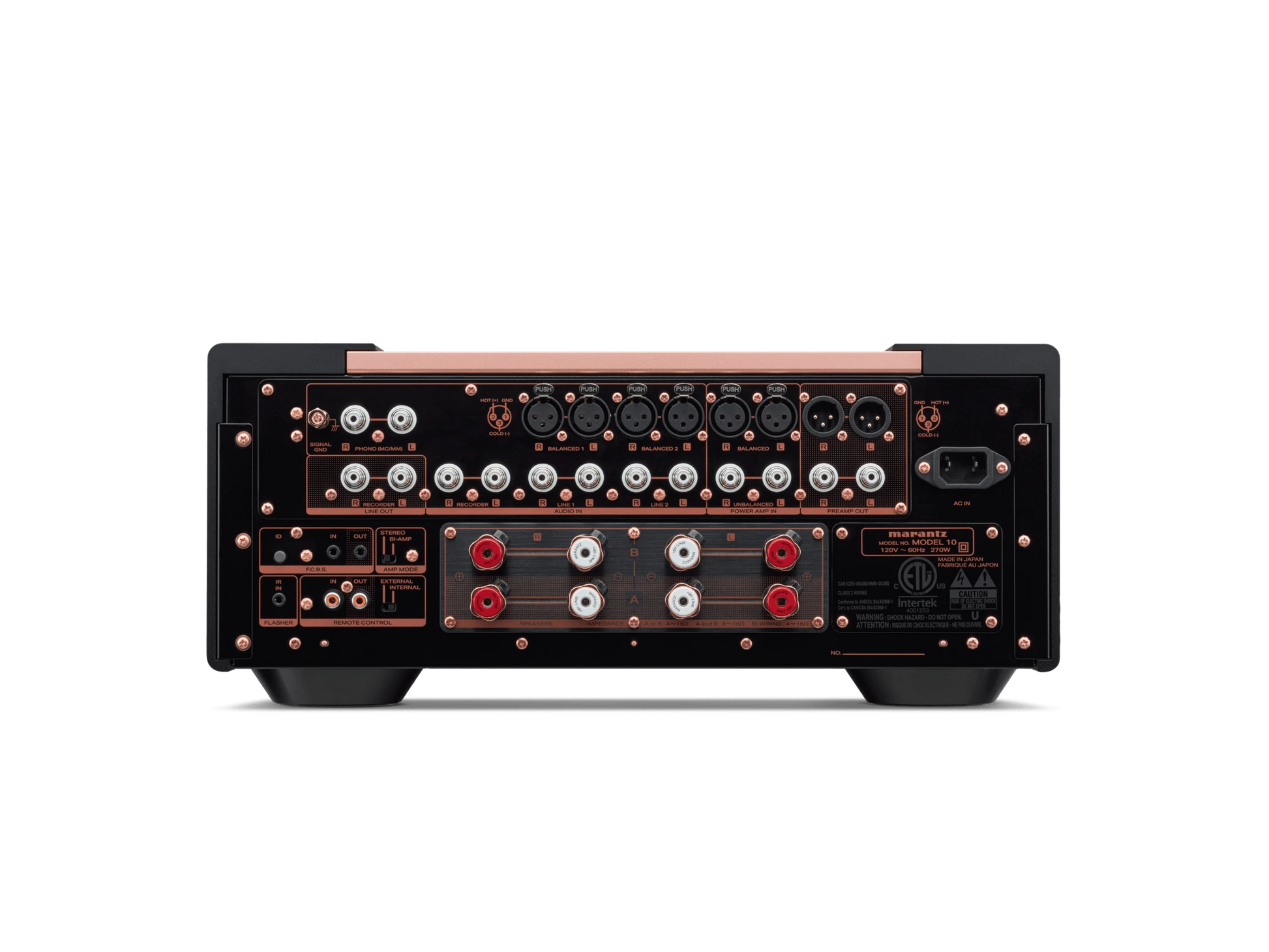

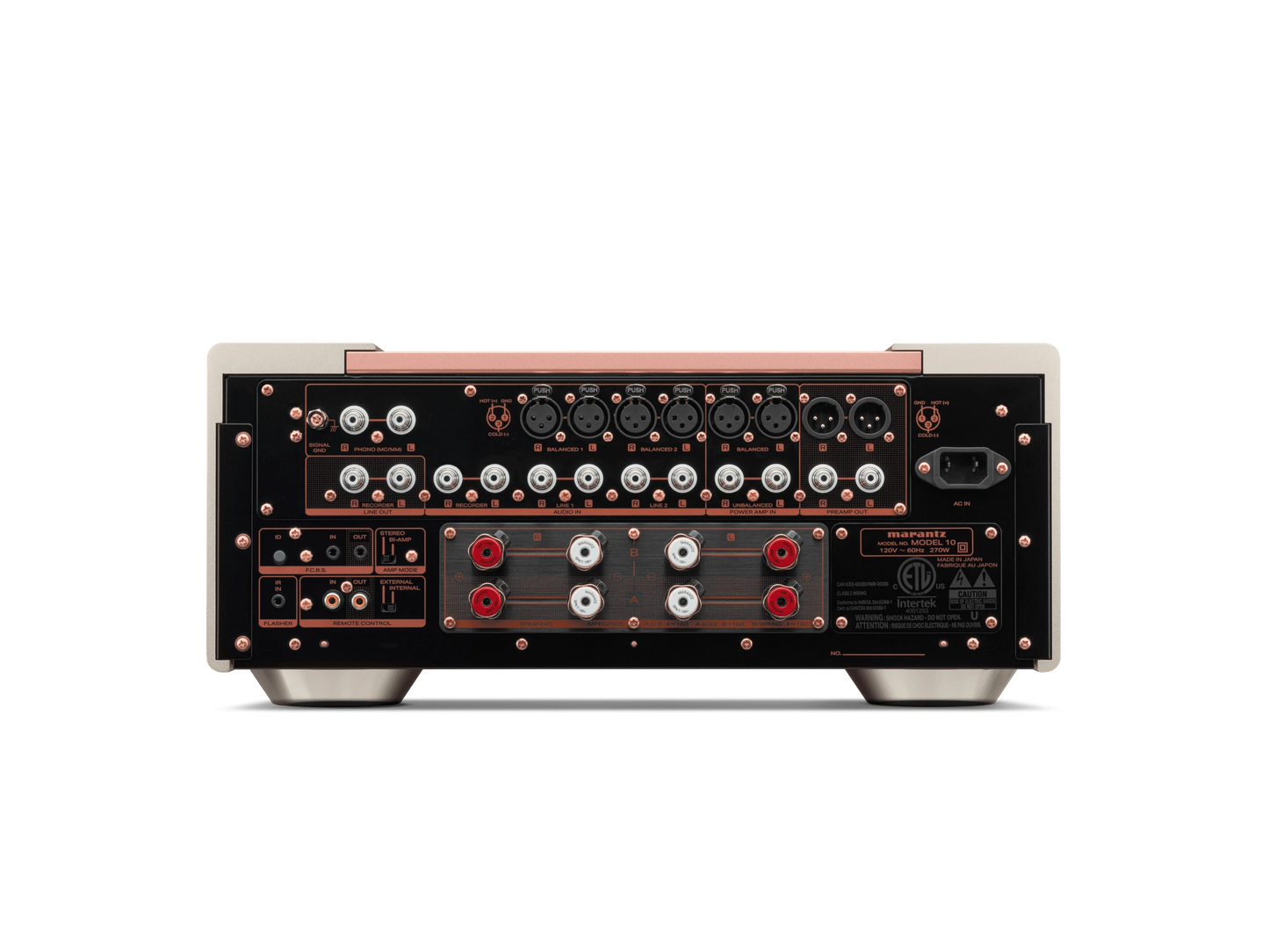

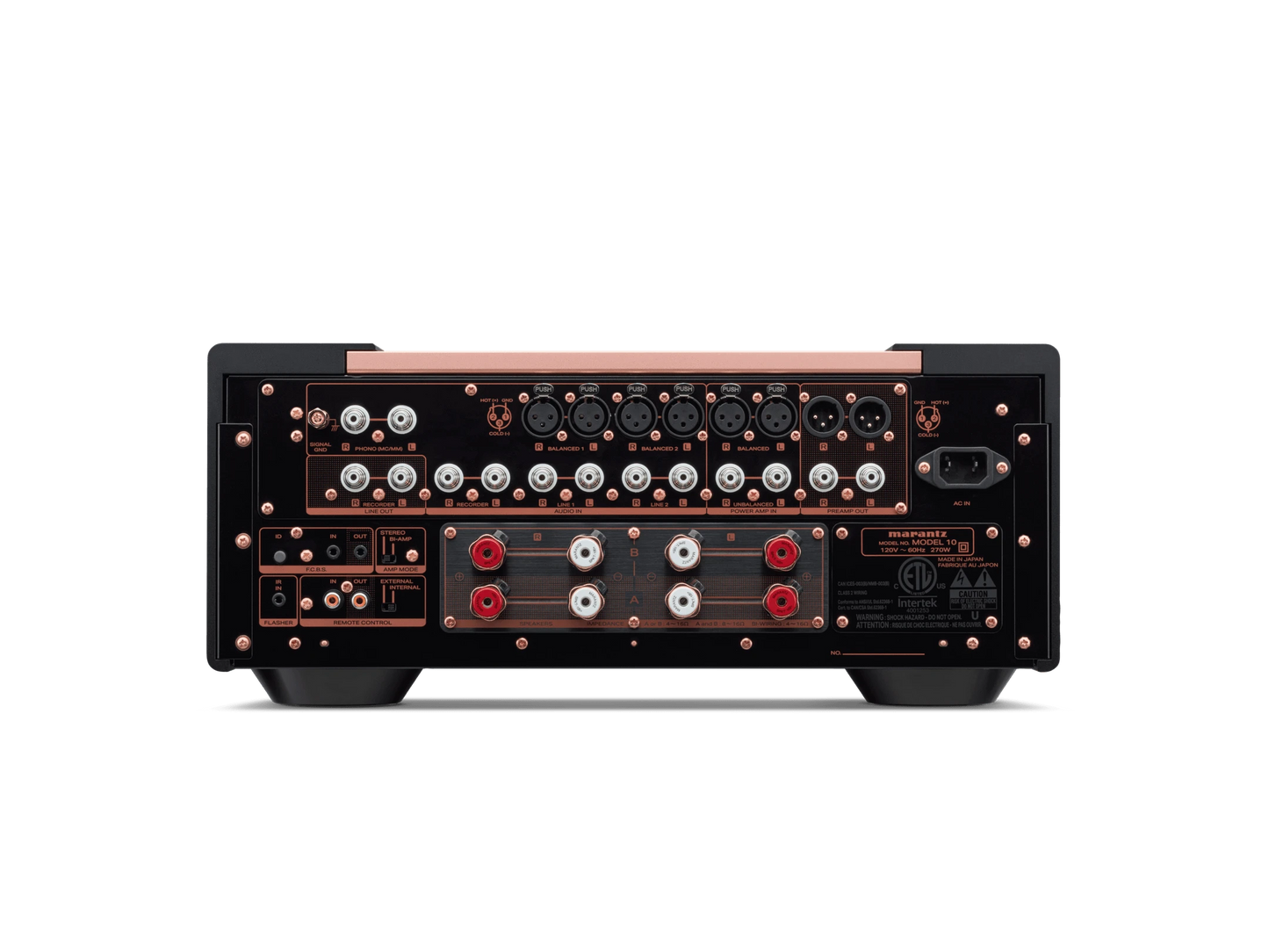

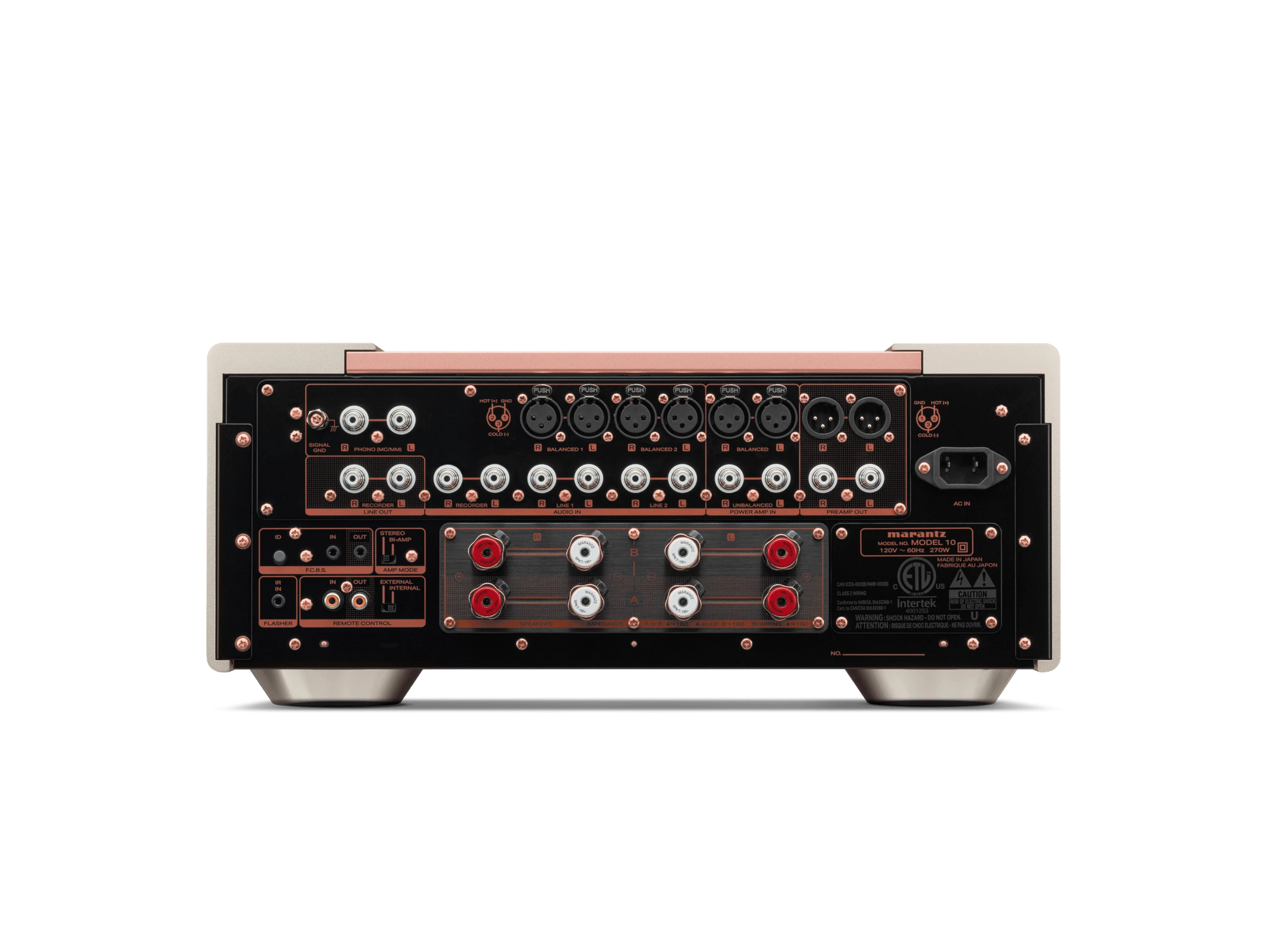

Analog Input (include Phono) / REC Out (RCA) 4 /1
(LINE1, LINE2, PHONO: Thick nickel plated independent terminals)
(RECORDER: Thick nickel plated independent terminals)
Balanced XLR input 2
Power Amp Direct Yes [RCA (Thick nickel plated independent terminals) / XLR]
Pre out Yes [RCA (Thick nickel plated independent terminals) / XLR]
2 sets of Speaker Output Yes (Bi-wiring)
Speaker Terminal Marantz Original SPKT-100+
2 (High quality and high-purity copper plated)
Headphone Output 1
(Turns off the speaker automatically when headphone is inserted)

Control/ Other

Remote Control Bus Terminal Yes (RC-5 In / Out)
Remote Internal / External Switch Yes
Flasher Input Yes
AC Inlet Yes
Other F.C.B.S.
(Floating Control Bus System)
Remote Controller 10 series Universal Remote control
Unit control (Button) Tact Switch : 1
POWER
Unit control (Knob) 2
VOLUME, INPUT SELECTOR
LED POWER: 1 White
Protection: 1 Orange
Illumination (Edge): White
Interior: White
Front Panel Display New HD TFT Color Display
Dimmer for Front Display 20 steps
Level meter Yes (HD Display)
Volume Display -infinity/-99.5dB - 0dB / 0.5 step (default)
0-100 / 0.5 step
switchable
Last Function Memory Yes
Auto Standby Mode Yes
Remote Controller RC004PMND
Battery Yes (AAA ×2)
Power Cord Yes
(ALL region / Audio Grade / OFC)
Other CoA card
