An Evolution 70 Years
in the Making
Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern.

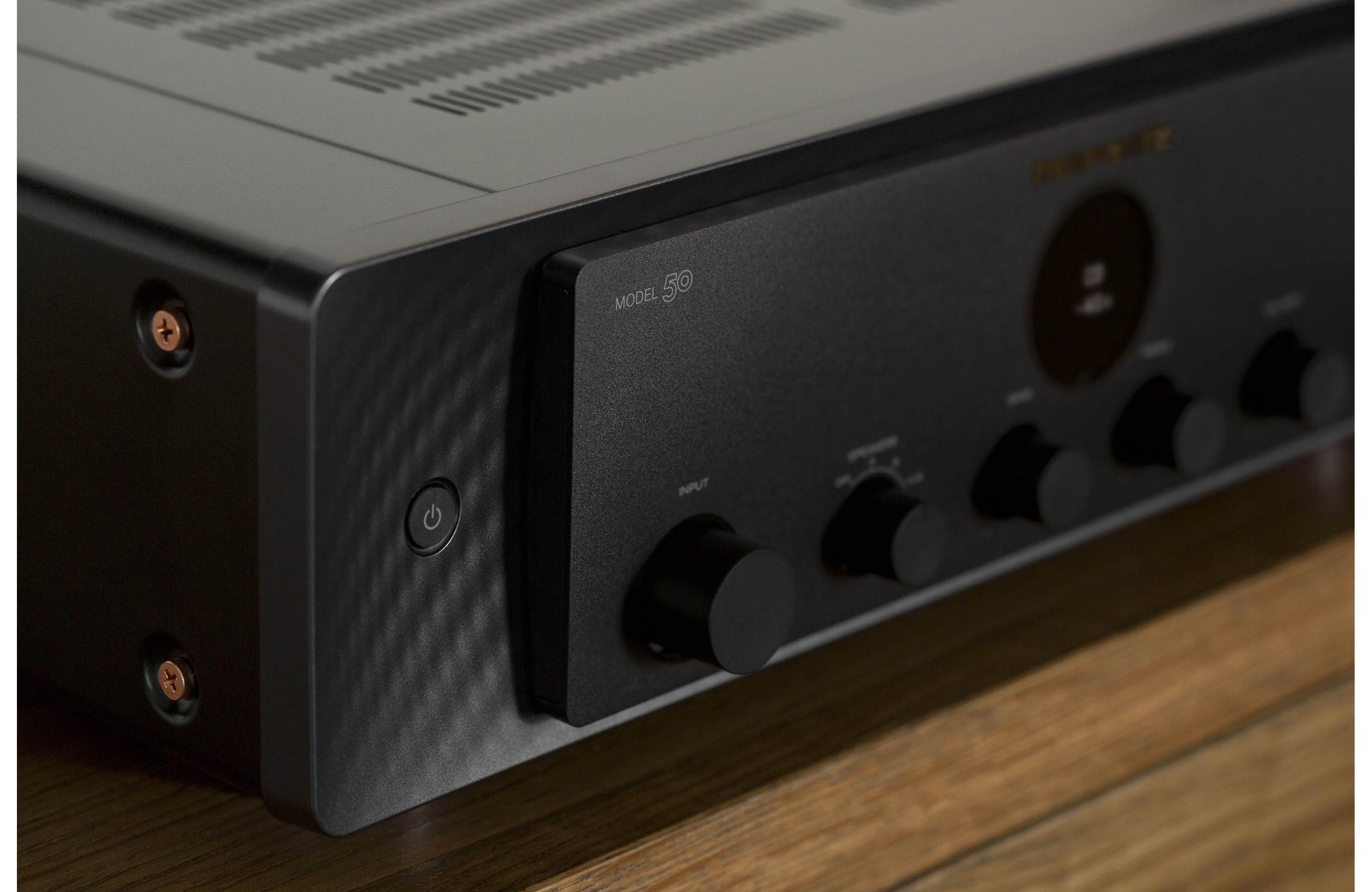

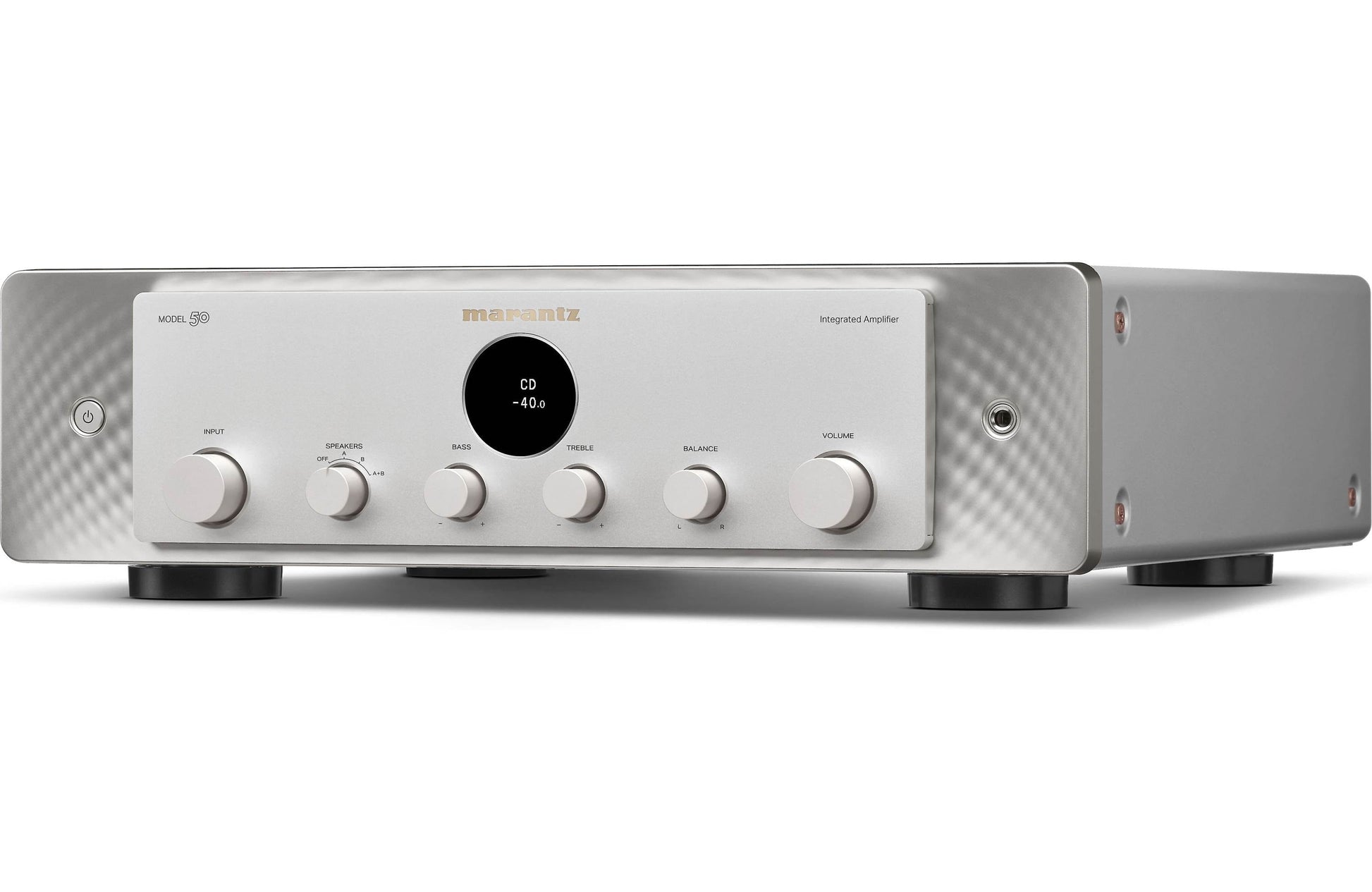

We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of our past.
With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.
The Marantz Sound Master meticulously tuned MODEL 50 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
The built-in MM phono stage works with your turntable to amplify the nuance and tone in your records. Using a new circuit without distortion-inducing coupling capacitors.
MODEL 50’s stereo preamp outputs add valuable flexibility to your audio system setup. Connect a subwoofer, add channels to your home theater, or multiply listening zones—the possibilities are endless.
Details & Specifications
Features
-
Channels 2
-
Current Feedback Topology Yes
-
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / Yes / -
-
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
-
HDAM version SA3, SA2
-
Power Transformer: Toroidal / El Yes / -
-
High Grade Audio Components Yes
-
Customised Components Yes
-
Symmetric PCB Layout Yes
-
Aluminium extrusion heat sink Yes
-
Balance / Bass / Treble / Loudness Yes / Yes / Yes / -
Others
-
Linear Drive Power Supply Yes
-
Liniear volume control Yes
-
Schottky diodes Yes
-
Input buffer amp (all inputs / CD only) - / -
-
Solid Heat Sinks Yes
-
System block shielding: Copper / metal / none none
-
Bottom Plate triple
-
Low noise OLED display Yes
-
Source Direct Yes
-
Power Amp direct Yes

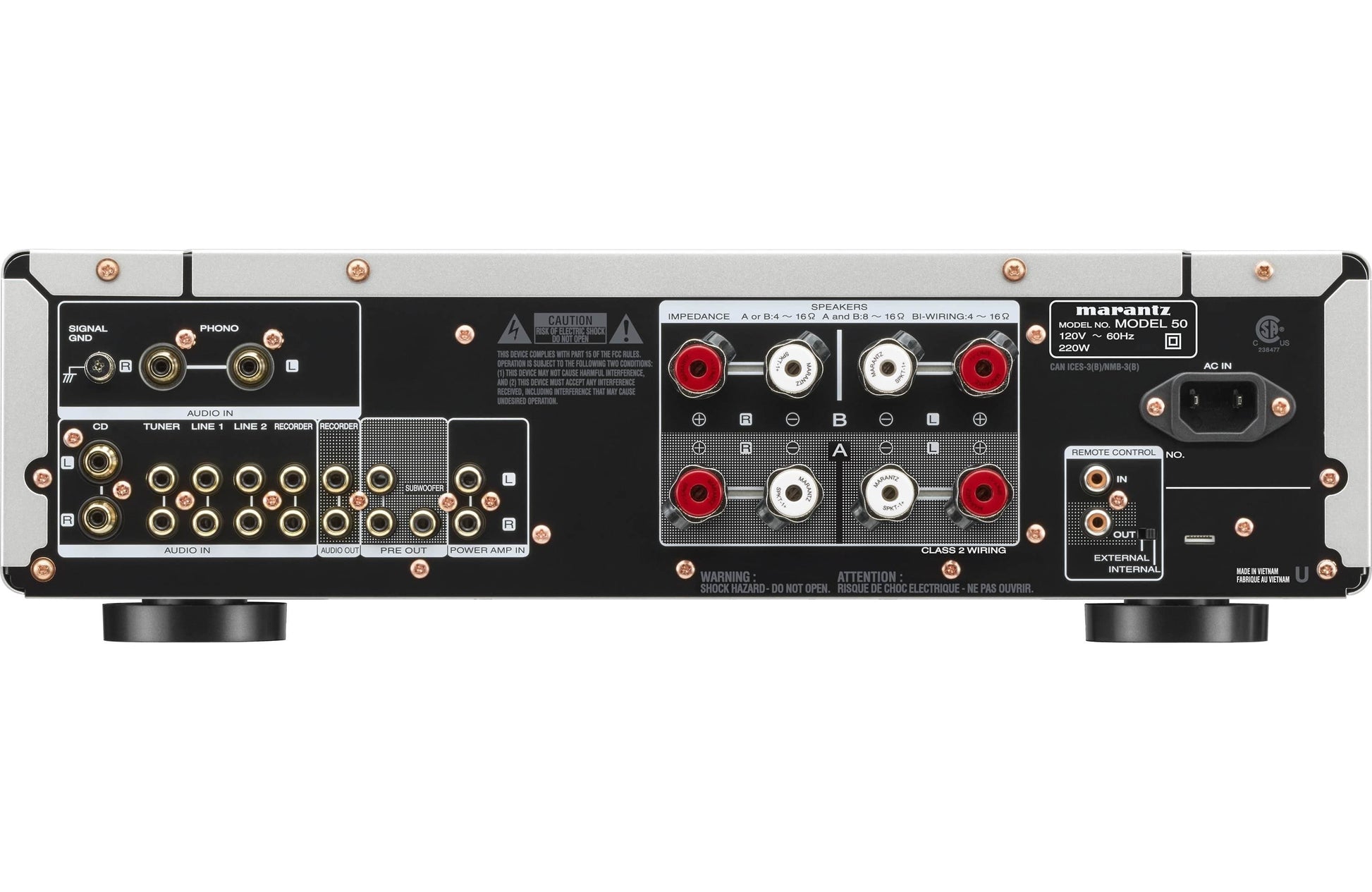

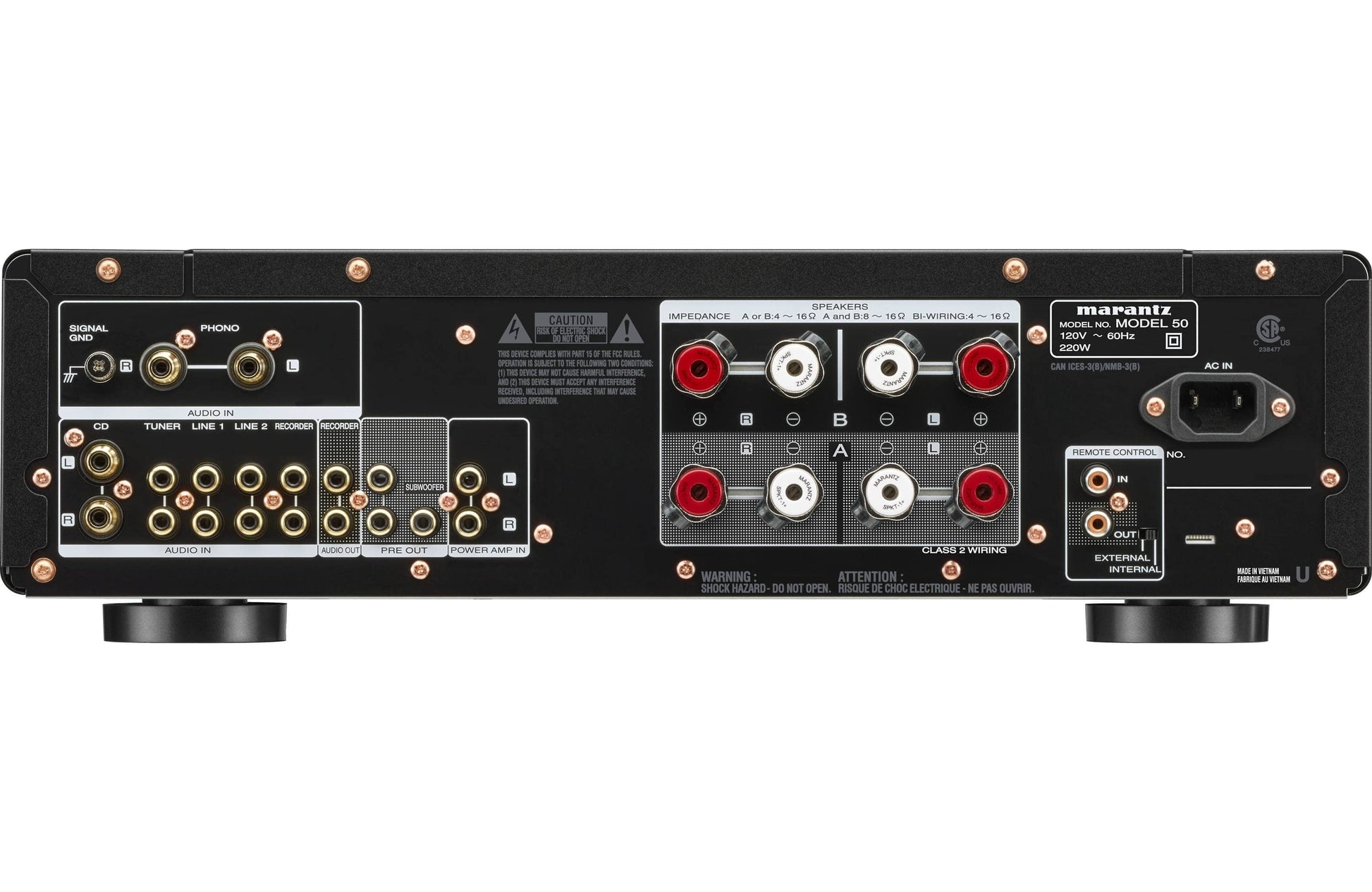

Inputs Outputs
-
Audio Inputs 6
-
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
-
Phono Input: MM / MC Yes / -
-
Audio Outputs 1
-
Balanced In / Out - / -
-
Pre-out / Main-in Yes + subwoofer / -
-
Power Amp Direct IN Yes
-
Gold Plated Cinch Yes
-

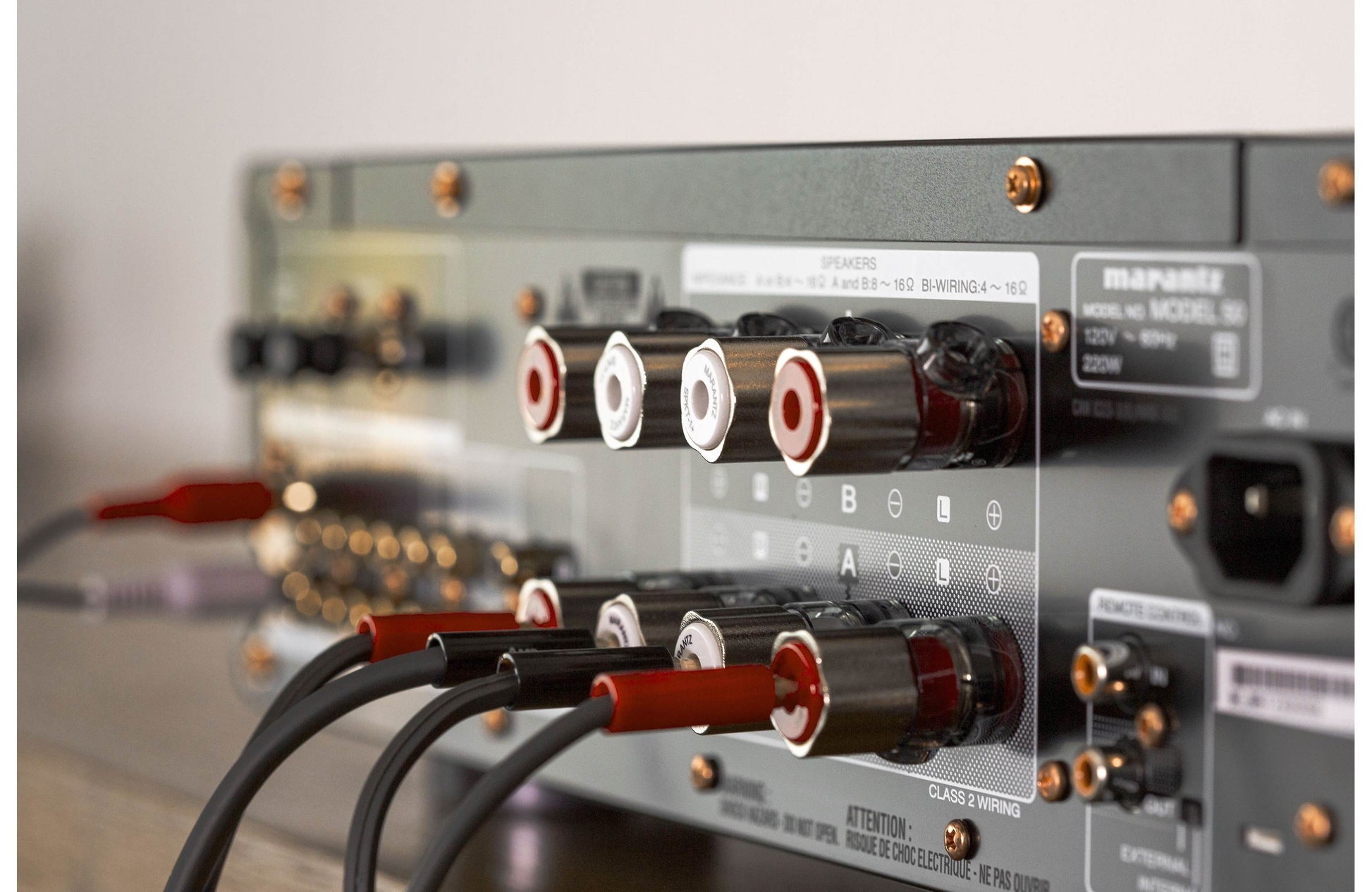

Speaker A / B Yes
-
Speaker Terminals Marantz SPKT-1+
-
Number of terminals 4
-
D-Bus Yes
-
Headphone Out Yes
Specifications
-
Power Output (8 / 4 Ohm RMS) 70 W / 100 W
-
Frequency Response 5 Hz–100 kHz
-
Total Harmonic Distortion 0.02 %
-
Damping Factor 100
-
Input Sensitivity: MM 1.4 mV / 47 kΩ
-
Signal to Noise Ratio: MM/MC 87 dB / -
-
Input Sensitivity: High level 185 mV / 16 kΩ
-
Signal to Noise Ratio: High level 116 dB (2 V input)
-
Input Sensitivity: Power Amp Direct IN 1.5 V / 15 kΩ
-
Signal to Noise Ratio: Power Amp Direct IN 125 dB
-
Treble Control ± 10 dB at 15 kHz
-
Bass Control ± 10 dB at 50 Hz
General
-

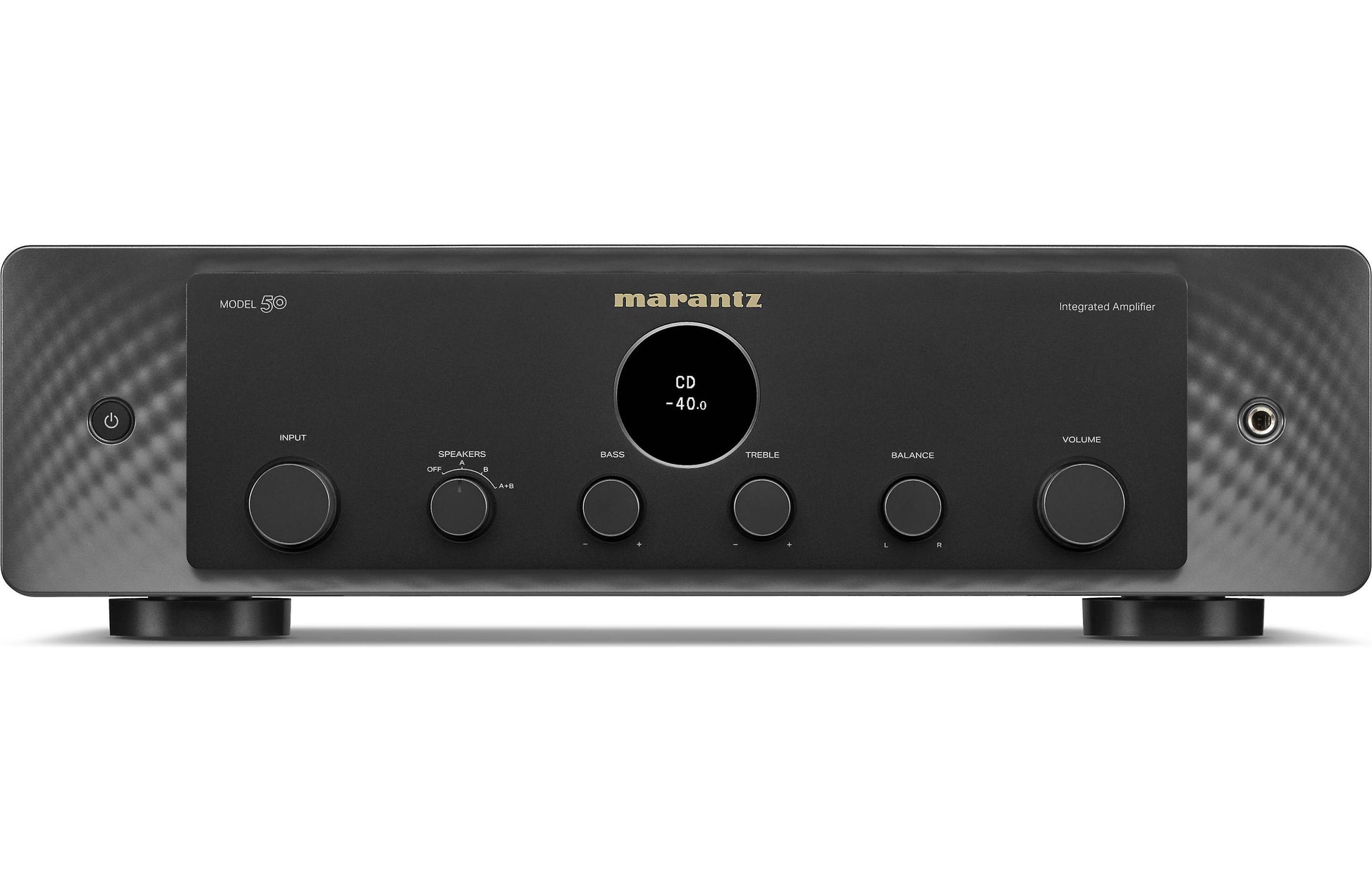

Available Colors: Gold / Silver / Black / Silver-Gold - / - / Yes / Yes
-
Metal Front Panel Yes
-
Power Consumption in W 220
-
Standby Consumption in W 0.3
-
Auto Power off Yes
-
Detachable Power Cable Yes
-

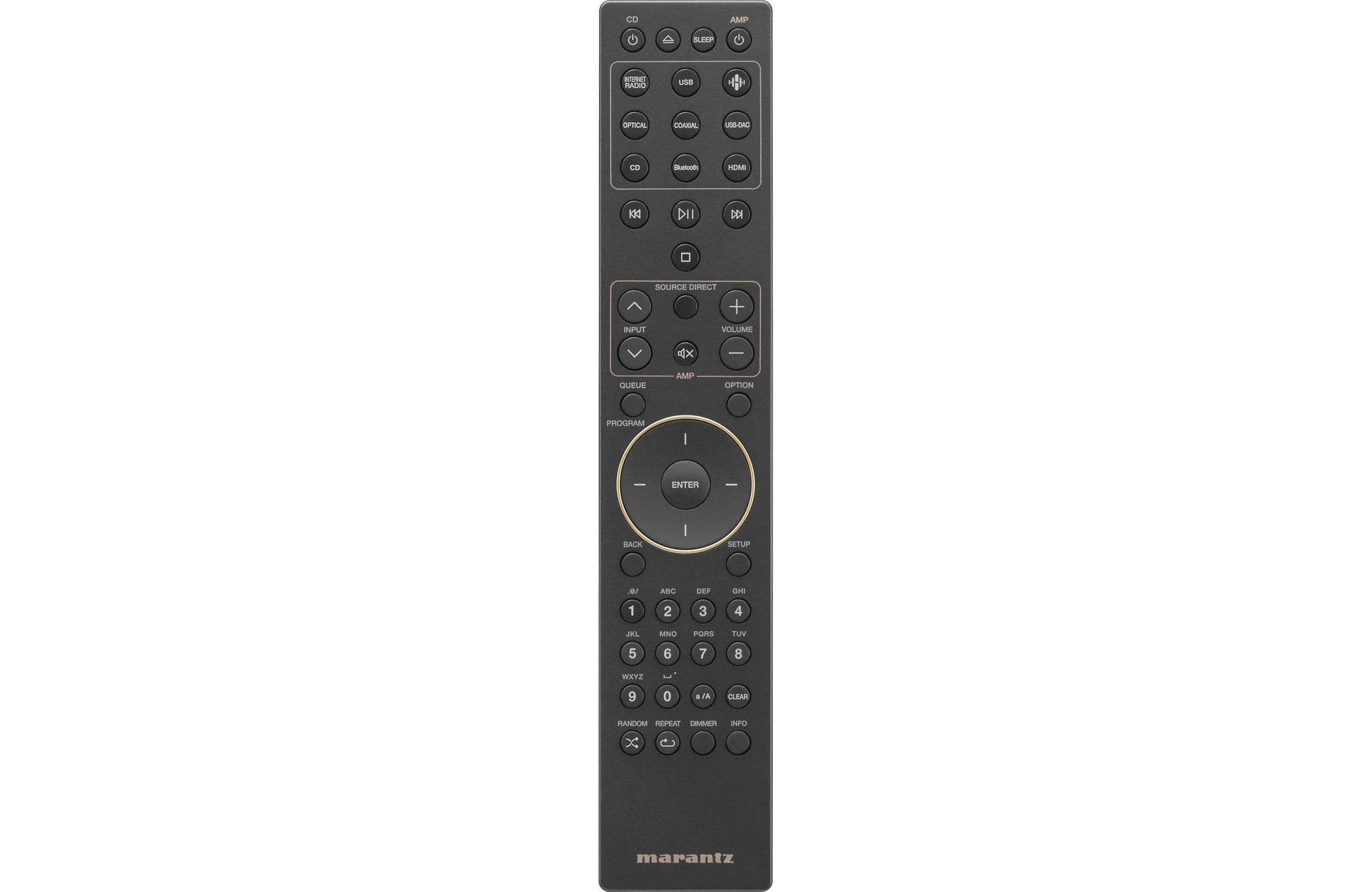

Remote Control RC003PMND
-
System Remote Function Yes
-
Maximum Dimensions (W x D x H) in mm 442 x 431 x 130
-
Weight in kg 14.2
-
Carton Maximum Dimensions (W x D x H) in mm 527 x 517 x 255
-
Carton Weight (inc. product) in kg 17.5
