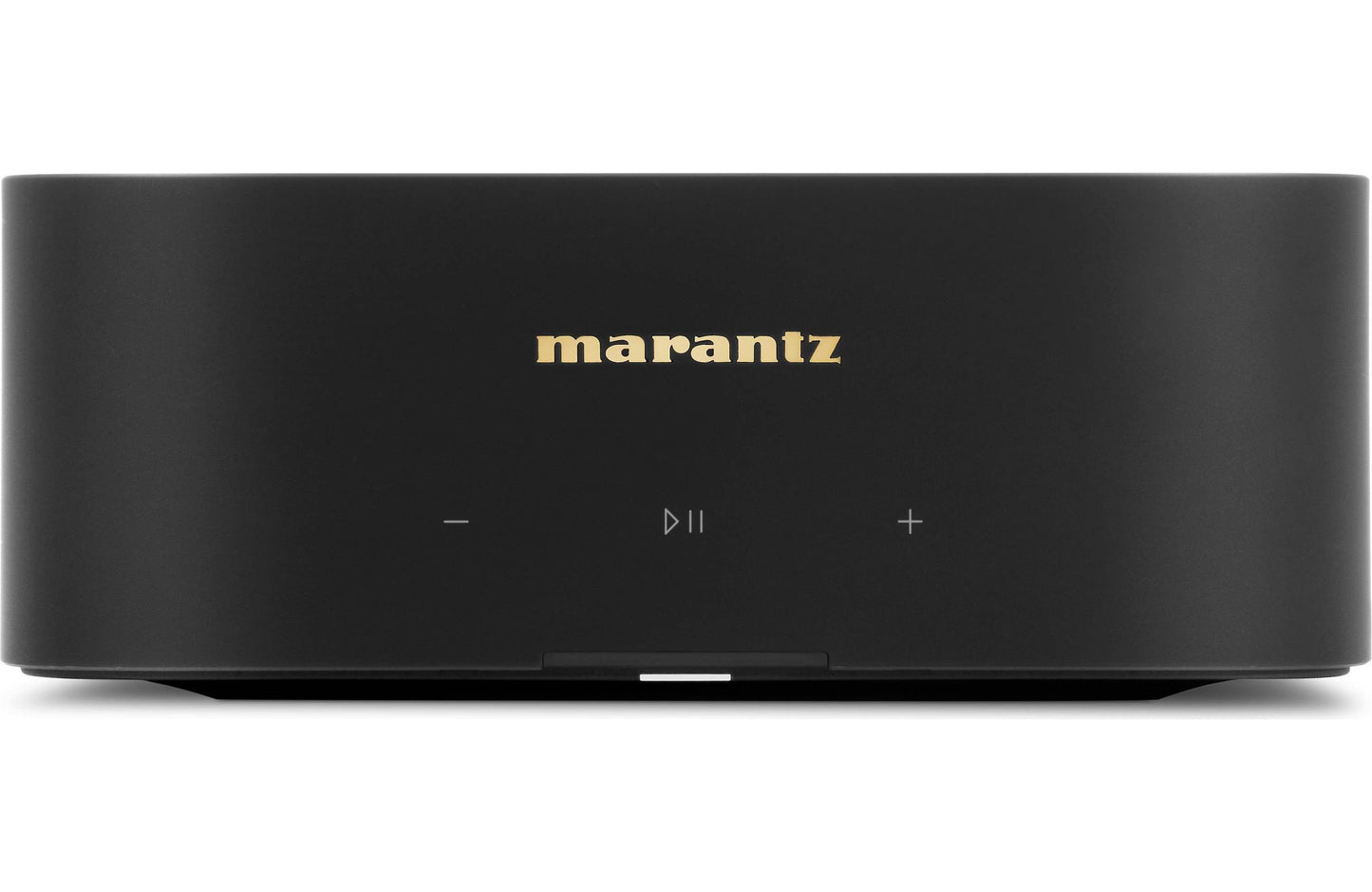

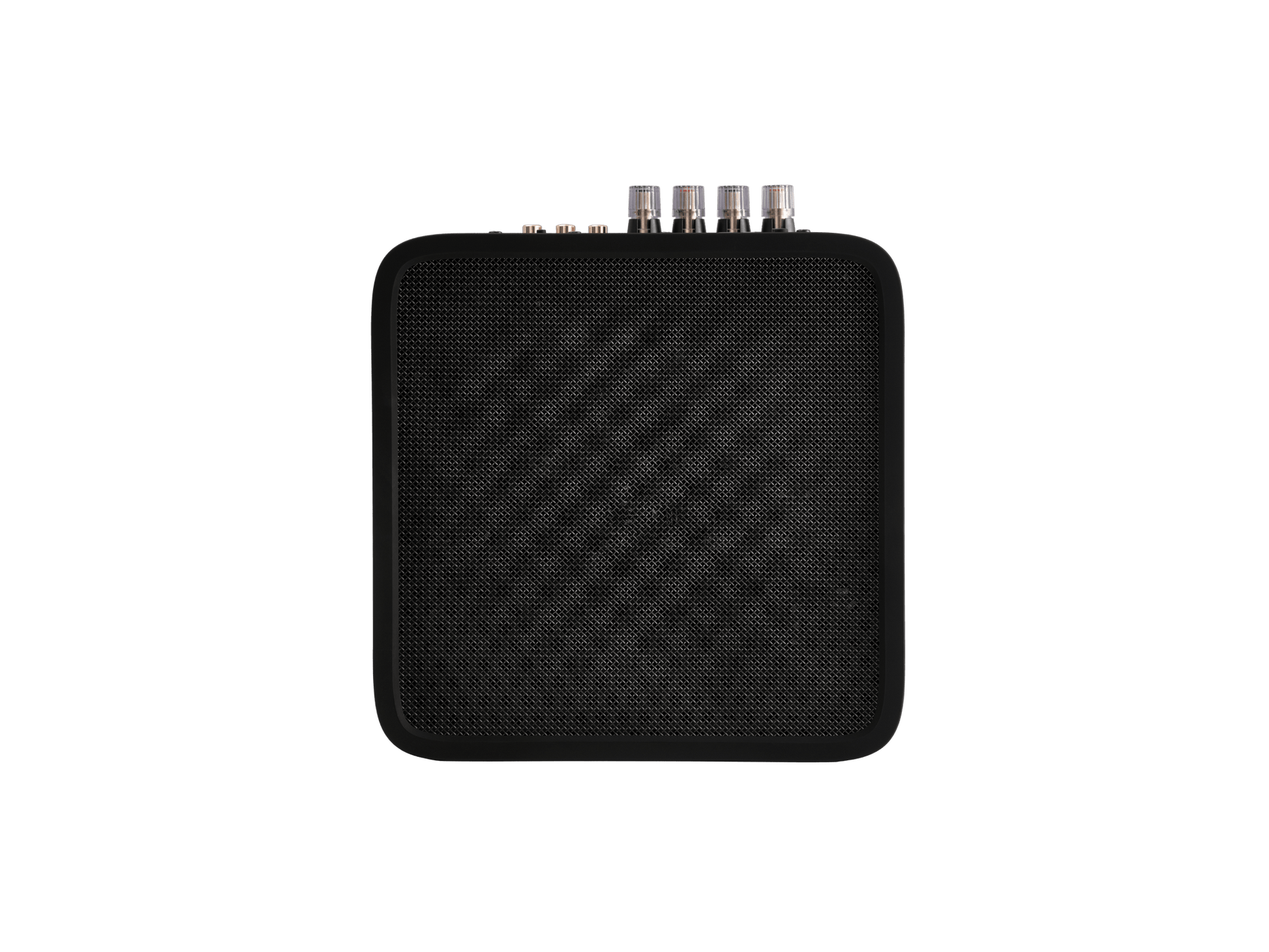

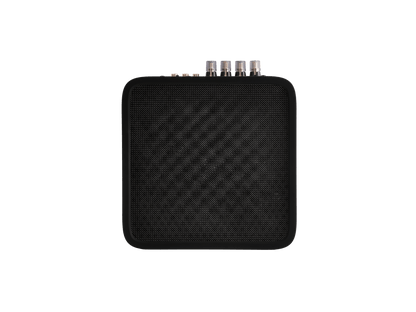

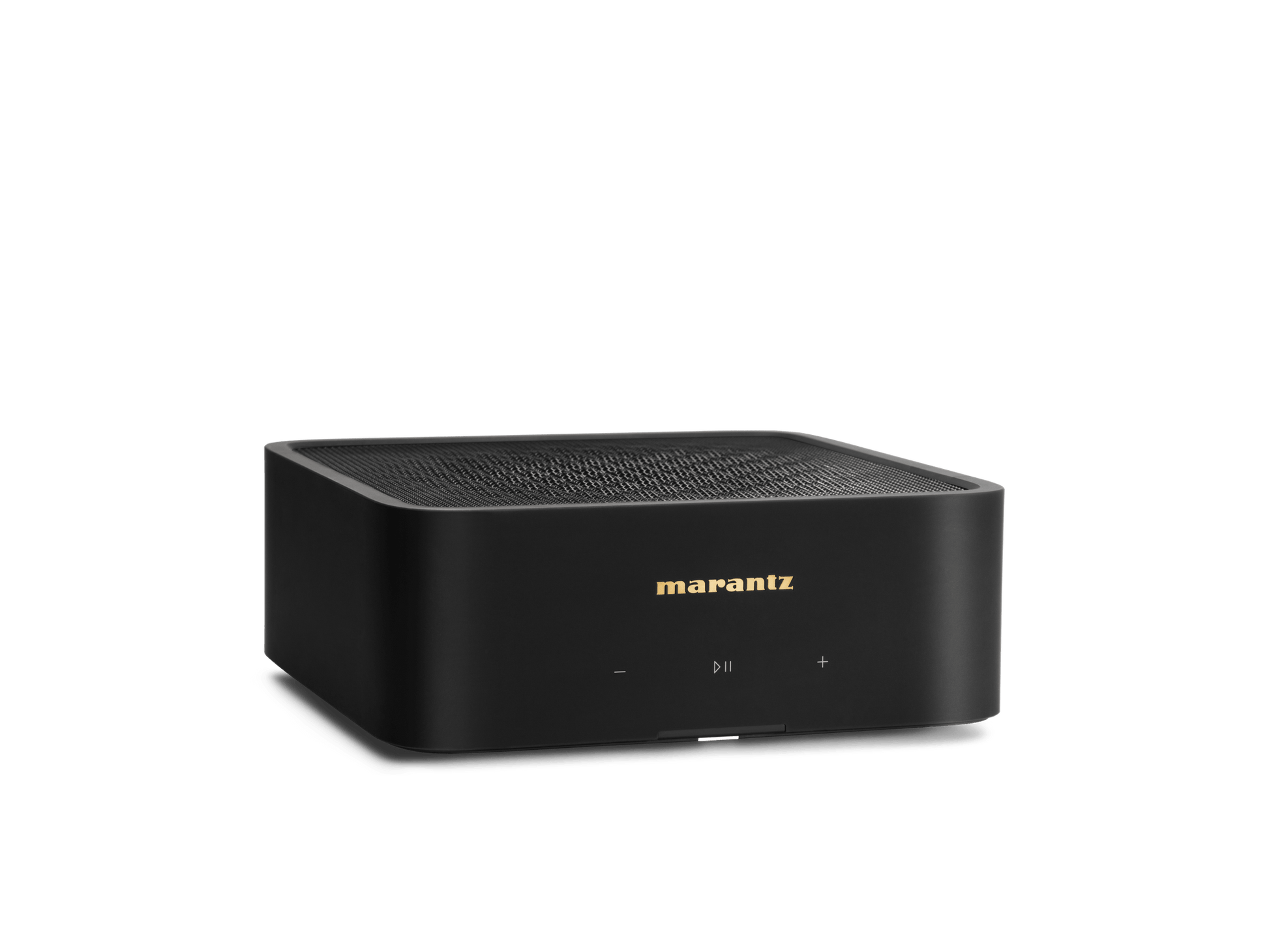

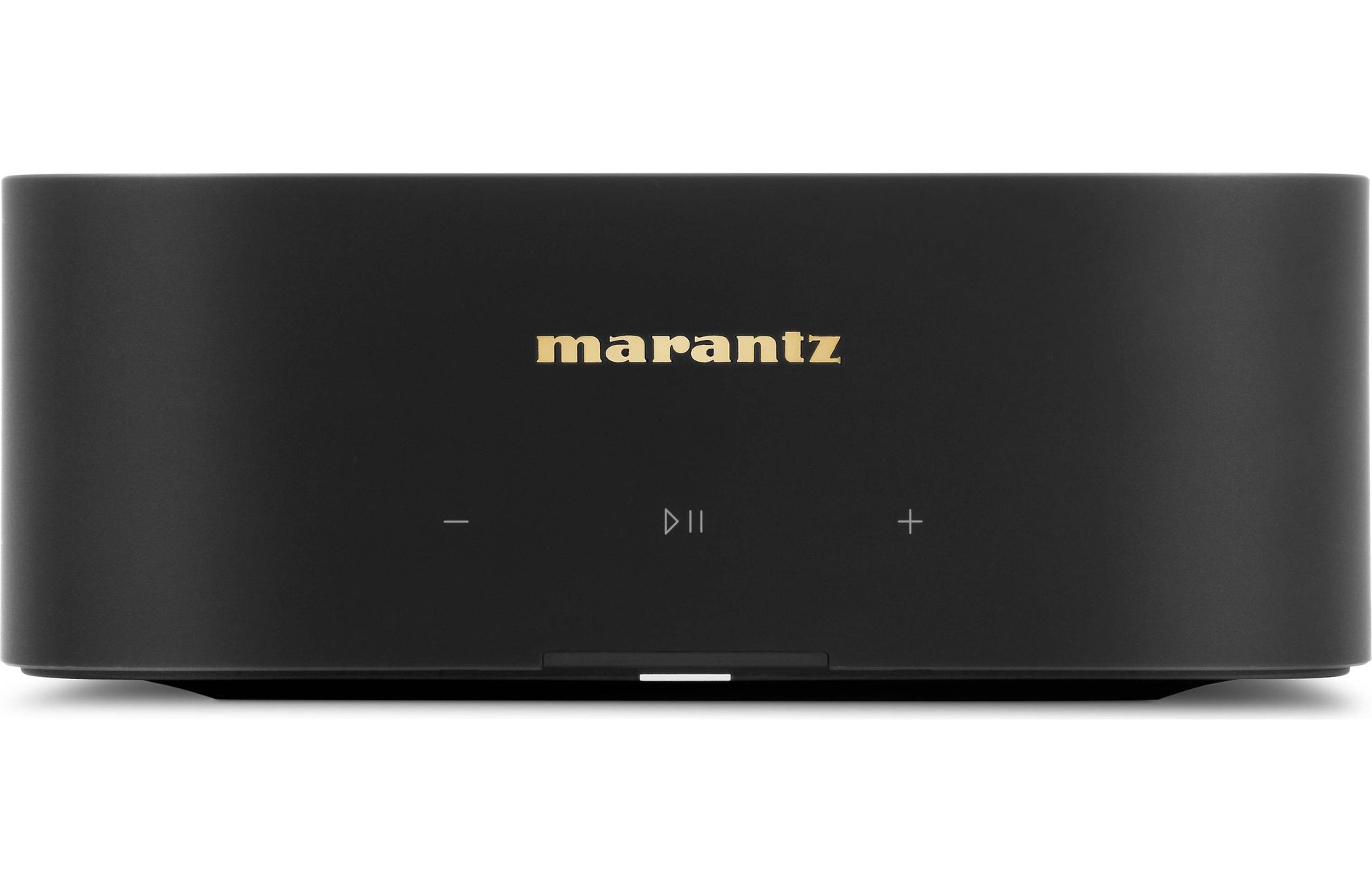

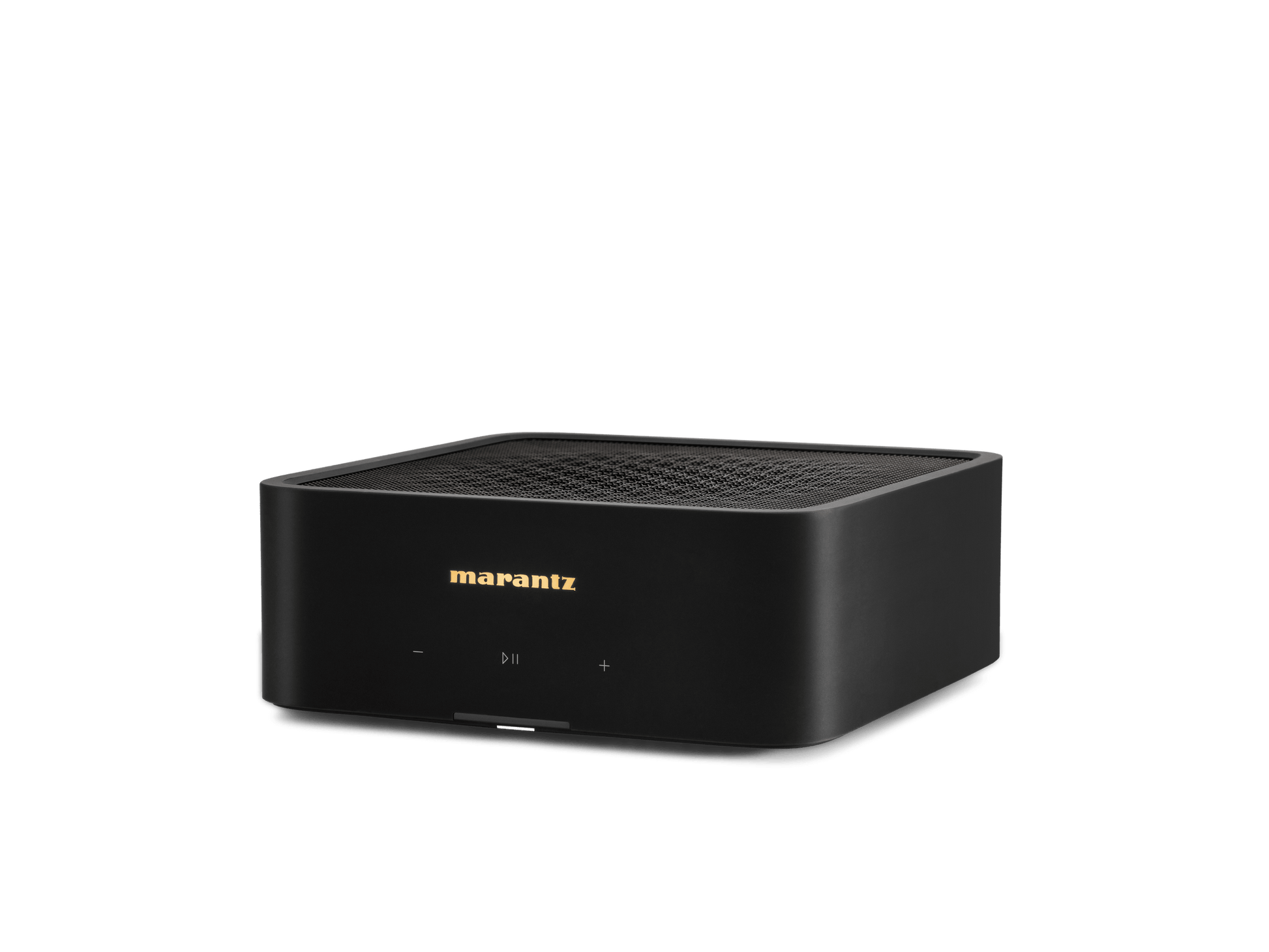

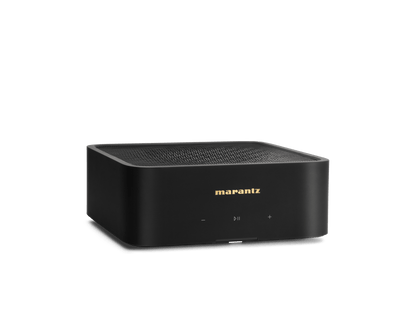

The New Shape of High-Performance Sound
Born from decades of Marantz heritage and engineering expertise, this new generation of wireless streaming amplifier transforms the way you listen to music and watch TV throughout your home .
MODEL M1’s 100W per channel of high-quality, low-distortion amplification delivers pristine sound anywhere, while a subwoofer output delivers room-filling scale in larger spaces.
However you choose to stream your high-resolution music, MODEL M1 has you covered, with support for HEOS, AirPlay2, Bluetooth, Spotify Connect, and more.
The expansive feature set yet diminutive size of M1 makes it the ideal partner for multi-room listening.
MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound.
Unveil superb sound from movies and TV programs with MODEL M1 using HDMI eARC and onboard Dolby Digital+ processing.
Details & Specifications
Amplifier
-
Power Amplifier Rated output & THD (8 ohm) 100 W+100 W (8 Ω, THD 0.05%)
-
Power Amplifier Rated output & THD (4ohm) 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%)
-
Frequency Response 20 Hz to 20 kHz : ±1 dB
-
Connected loudspeaker Impedance 4 – 16 Ω/ohms

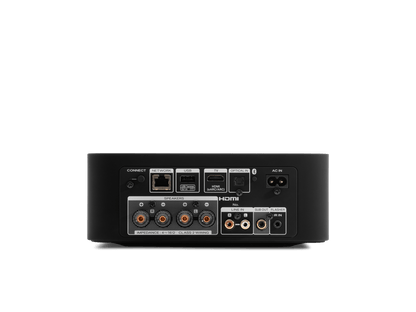

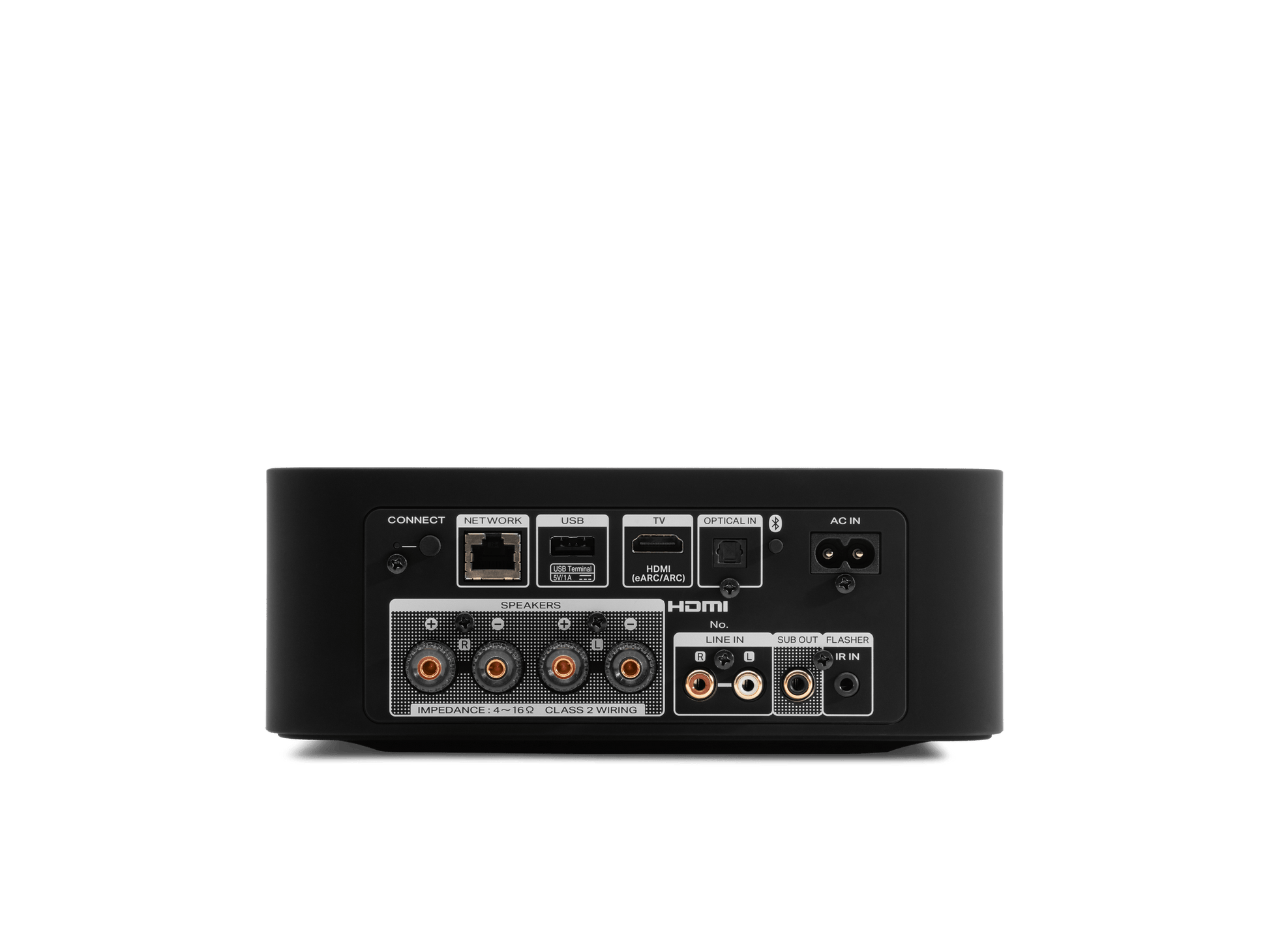

Audio Inputs / Outputs
-
Loudspeaker Binding Posts 4-way binding posts
-
Digital Inputs HDMI (eARC), TOSLINK
-
Analog Inputs RCA L/R
-
Subwoofer Out RCA Mono
Inputs Audio Options
-
Channel Assignments Stereo (Default), Dual Mono
-
Volume Limit 80-100%
-
Balance -15dB to +15dB
-
Adjustable High Pass / Low Pass Filters 40-250 Hz / 40-120 Hz
-
EQ Bass, Treble -5dB to +5dB
-
Sound Modes Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
-
TV Sound Grouping Yes
Audio Format Support
-
Decoding Dolby Digital +, Dolby Digital, LPCM, DSD
-
Stereo PCM / Multi-channel PCM Yes / Yes
-
Stereo File Formats (HEOS network share or USB) WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
-
Bluetooth Receive BT 4.2.X
-
Bluetooth Trasmit No
-
AirPlay AirPlay 2
-
Spotify Spotify Connect
Music Services and Sources
-
Music Services Supported (HEOS®, subject to change and local availability) Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
-
Music stored on mobile device Yes (iOS, Android or Kindle Fire)
-
NAS (Network Attached Storage) Network share
-
USB Storage Device Playback Yes (FAT32, NTFS formatted drives)
Networking & Control
-
Wired Connectivity Ethernet
-
Wireless Connectivity Dual band, 802.11 a/b/g/n/ac
-
IR Input 3.5mm
-
IR Learning Yes
-
Control System Compatibility via TCP/IP Creston, Control4, AMX
-
HEOS® App iOS, Android, Kindle Fire
General
-
Product Color Black
-
User Interface Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
-
Dimensions (W x D x H) Inches 9.41 x 3.31 x 8.54
-
Dimensions (W x D x H) mm 239 x 84 x 217
-
Weight (lbs) 4.84
-
Weight (kg) 2.2
