CONNECTIVITY

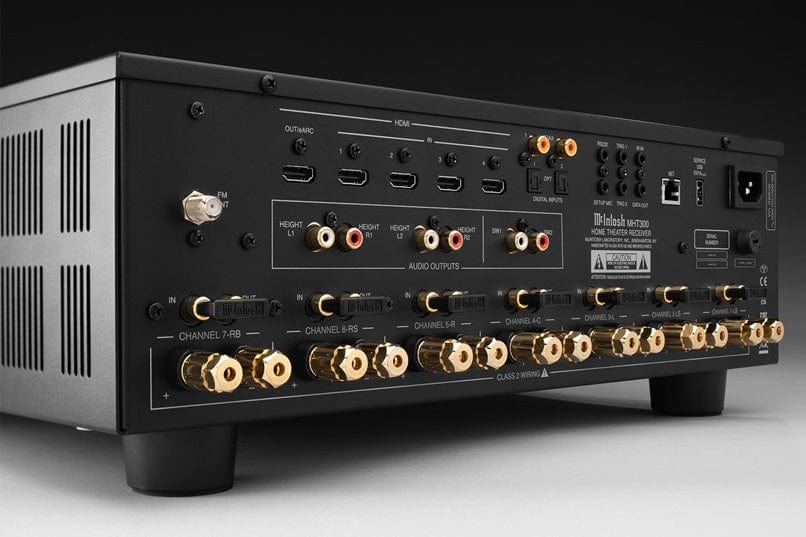

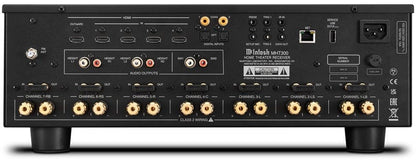

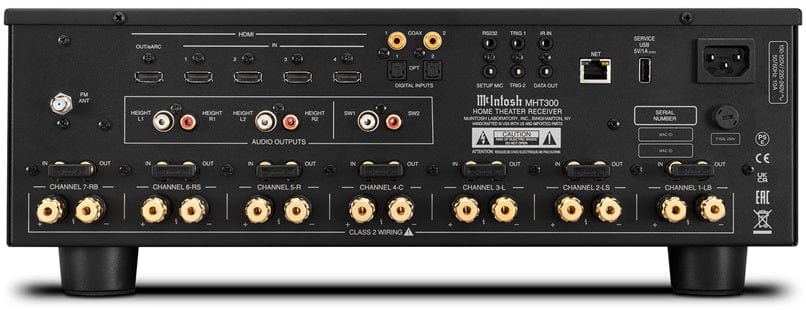

The MHT300 has 4 HDMI inputs and 1 HDMI output. Each HDMI port is HDCP 2.3 compliant and support 8K/60Hz and 4K/120Hz. All ports have 40Gbps of bandwidth and are compatible with High Dynamic Range (HDR) formats Dolby Vision™, HDR10 and HLG; 4:4:4 color spacing; Rec. 2020; and 3D video pass-through.
The HDMI output features enhanced Audio Return Channel (eARC) functionality. Audio Return Channel allows a compatible TV to send audio data to the audio video processor over the HDMI cable, eliminating the need for separate audio cables. eARC offers improved bandwidth so higher resolution audio formats such as DTS-HD Master Audio™, DTS:X®, Dolby TrueHD, and Dolby Atmos can be sent through the HDMI cable, allowing the MHT300 to deliver the best possible sound quality.2 Two coax and 2 optical digital audio inputs are included to connect additional audio devices, while 2 subwoofer outputs will let you have as much bone rattling bass as you want in your theater.
Seven premium 32-bit Digital-to-Analog Converters (DACs) provide audiophile grade processing. Bass and treble tone controls are included to help fine tune the audio to your personal preferences. Sturdy 5-way speaker binding posts will firmly connect your speaker cables so you do not have to worry about them coming loose.
EASY SETUP
Setup and configuration are easily performed via computer interface. To save time, your installer can pre-configure your unit before bringing it to your home and then simply load the configuration file at installation. Similarly, you or your integrator could backup your configuration file onto a computer or USB stick for safe keeping; then you could even experiment with different configurations to listen for better performance safe in the knowledge that you could reinstall the original setup. The MHT300 can be operated via the included remote control, or your integrator can easily incorporate it into your home automation system via RS232 control protocol.

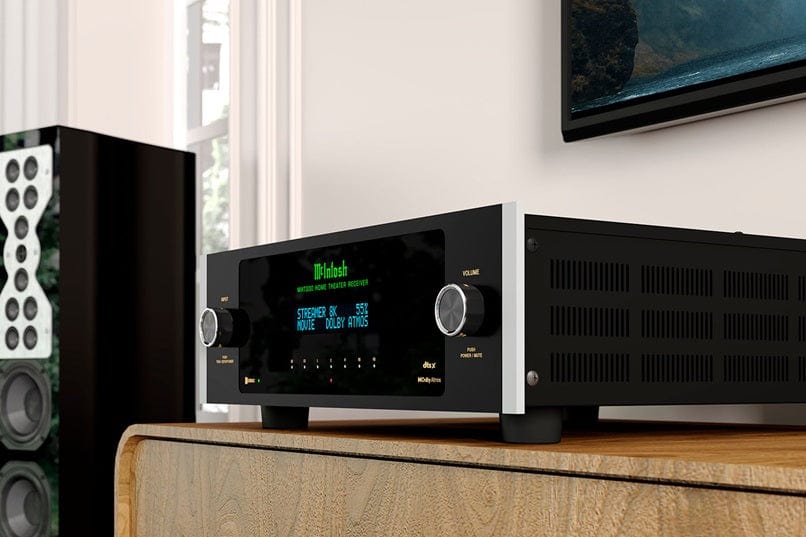

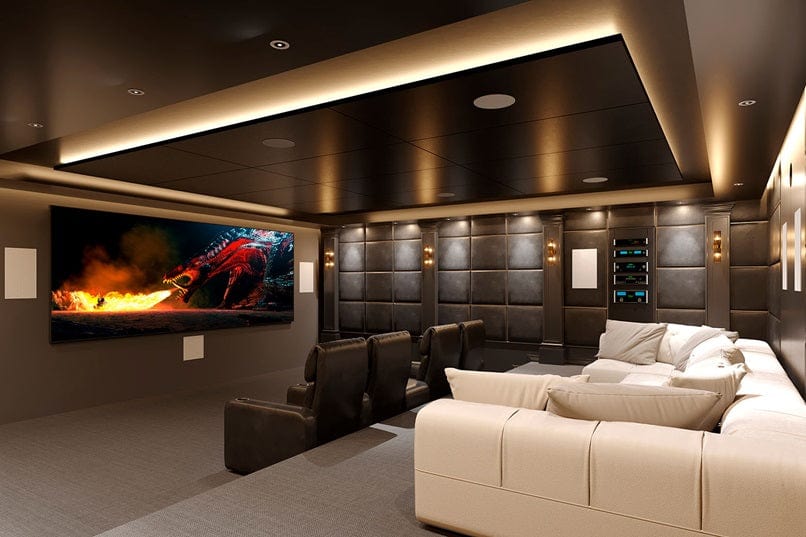

A work of art that can be placed front and center in your home theater for all to enjoy, the MHT300 can also be placed in hidden or out-of-the-way A/V equipment rack thanks to the included rack mounting brackets and its 3U rack size.
OTHER FEATURES INCLUDED WITH THE MHT300:
- Power Guard® signal overload technology that prevents overdriving and damaging your speakers
- Sentry Monitor™ short-circuit protection circuit that disengages the output stage should current ever approach unsafe operating levels and then resets automatically when operating conditions return to normal
- Power Control to automatically turn other connected McIntosh components on and off
- Eco-friendly on/off signal sensing that turns the unit off if no input signal has been detected for a set amount of time and – perhaps more conveniently – automatically turns the MHT300 on when it senses a signal from your home theater
- An FM Tuner for enjoying free over-the-air radio broadcasts

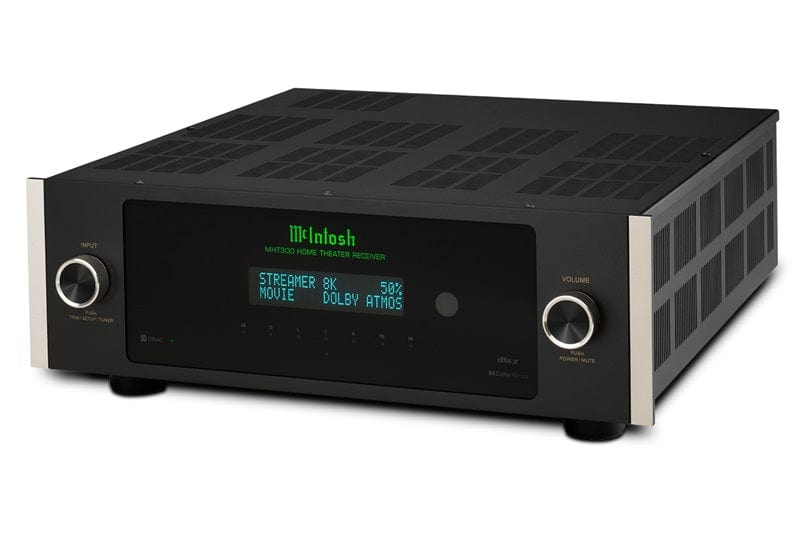

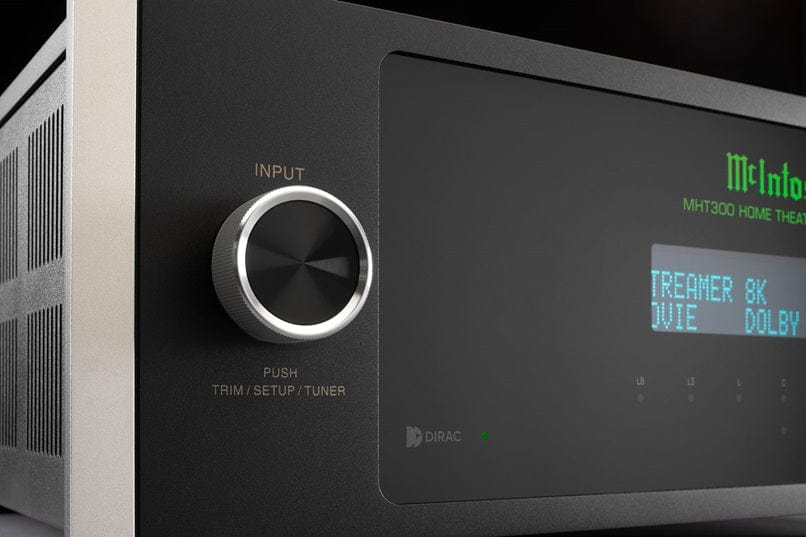

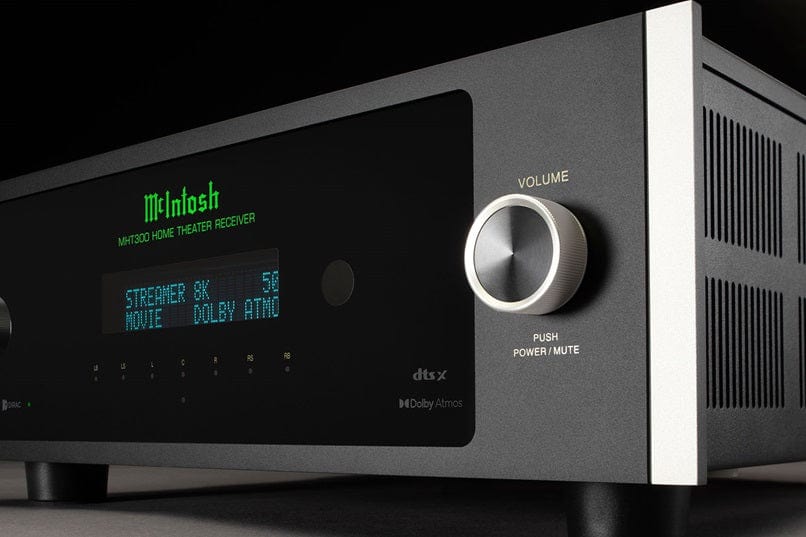

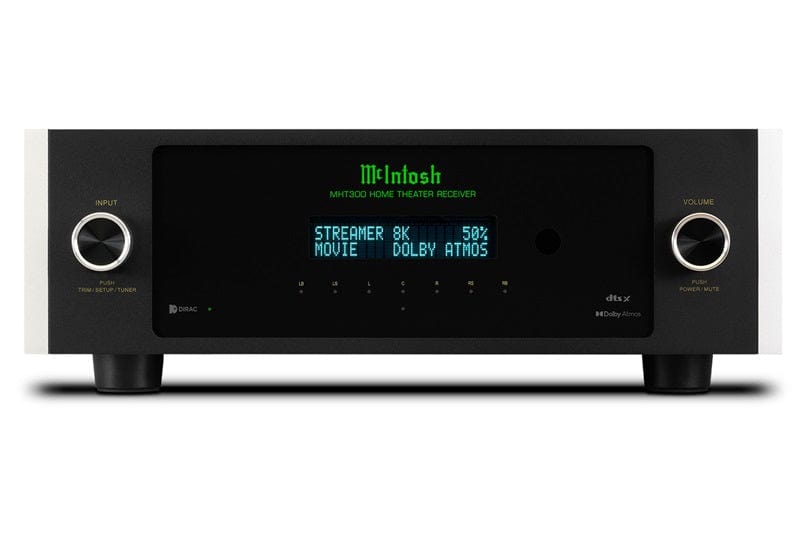

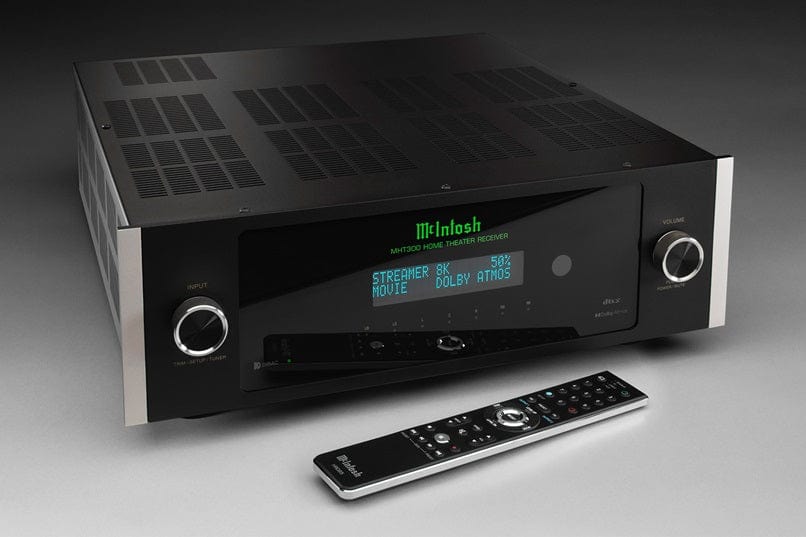

The MHT300 AVR includes many McIntosh design cues including a black glass front panel, an illuminated McIntosh logo, rotary control knobs, and a familiar form factor highlighted by silver trim.
Specifications
Connectivity
-
- Multi-Channel Outputs Balanced
- 0
-
- Multi-Channel Inputs Unbalanced
- 0
-
- Multi-Channel Outputs Unbalanced
- 11.2
-
- Stereo Inputs Balanced
- 0
-
- Stereo Inputs Unbalanced
- 0
-
- Stereo Outputs Unbalanced
- 0
-
- Digital Coaxial Input
- 2
-
- Digital Coaxial Output
- 0
-
- Digital Optical Input
- 2
-
- AES/EBU Balanced Input
- 0
-
- HDMI Input
- 4
-
- HDMI Output
- 1
-
- USB
- 1 Type A
-
- Component Input
- 0
-
- Component Output
- 0
-
- Composite Input
- 0
-
- Composite Output
- 0
-
- Subwoofer 2 Output
- Yes
(discrete signal from subwoofer 1)
-
- Network Connection
- 1
-
- Max # of audio channels in Zone A
- 11.2
-
- Additional Zone Outputs
- 0
-
- Advanced Connections
- Ethernet Web interface and firmware update, IP-based control
HDMI Features
-
- Resolution and Refresh Rates
- 8K/60Hz and 4K/120Hz
-
- HDCP
- 2.3
-
- 4:4:4 Color
- Yes
-
- Rec. 2020 (BT.2020)
- Yes
-
- 3D video pass-through
- Yes
-
- Dynamic Lip-sync
- No
-
- ARC
- Yes
-
- eARC
- Yes
-
- Video Scaling
- No
-
- High Dynamic Range (HDR)
- Dolby Vision, HDR10+ and HLG
-
- Quick Media Switching (QMS)
- No
-
- Auto Low Latency Mode (ALLM)
- No
-
- Quick Frame Transport (QFT)
- No
-
- Variable Refresh Rate (VRR)
- No
Processing
-
- Total Harmonic Distortion (DSP Bypass)
- 0.05%
-
- Dolby Processing
- Dolby Atmos, Dolby Surround Upmixer
-
- DTS Processing
- DTS-X, Neural:X Surround Upmixer
-
- Auro Processing
- No
-
- Pure Stereo DSP Bypass Mode
- No
-
- MPEG-H Audio
- No
-
- 360 Reality Audio
- No
-
- IMAX Enhanced
- No
-
- Room Correction
- Dirac Live
Electronic Specifications
-
- Power Output per Channel
- 150 Watts into 4 Ohms with ALL Channels Driven
120 Watts into 8 Ohms with ALL Channels Driven
-
- Number of Channels
- 7.2 (expandable to 7.2.4)
-
- Total Harmonic Distortion
- 0.05%
-
- S/N below rated output
- 85dB (95dB below rated output)
-
- Dynamic Headroom
- 4dB
-
- Damping Factor
- 8 Ohms: >100
4 Ohms: >50
-
- Rated Power Band
- 20Hz to 20kHz
-
- Frequency Response
- +0, -0.5dB from 20Hz to 20kHz
Control
-
- Third Party Control
- RS232, Web IP, IR Input
-
- Tone Controls
- Bass and Treble
-
- OSD Overlay on HDMI Output
- Volume Only
-
- Input-Output Format Indicators
- 0
-
- Control of McIntosh Sources
- Yes, by handheld remote, 1 Data Out, 2 Power Control Trigger jacks
General Specifications
-
- Channel Formats
- 7.2 (5.2.2), 7.1, 5.1, Stereo (expandable to 7.2.4)
-
- Microphone and stand included
- Yes
-
- Network Features
- Ethernet Setup
-
- Unique Crossover Frequency, Each Speaker
- Yes
-
- Special Features
- FM Tuner
Rear panel USB for firmware updating
-
- Circuit Configuration
- Closed loop digital switching
-
- Circuit Design
- Digital
-
- Output Type
- Direct Coupled
-
- BTU Rating
- 1000 BTU/h
Weights & Dimensions
-
- Unit Dimensions (W x H x D)
- 17-1/2" (44.45cm) x 6-3/16" (15.7cm) x 20" (50.8cm)
-
- Unit Weight
- 27 lbs (12.2 kg)
-
- Shipping Weight
- 43.5 lbs (19.7 kg)
