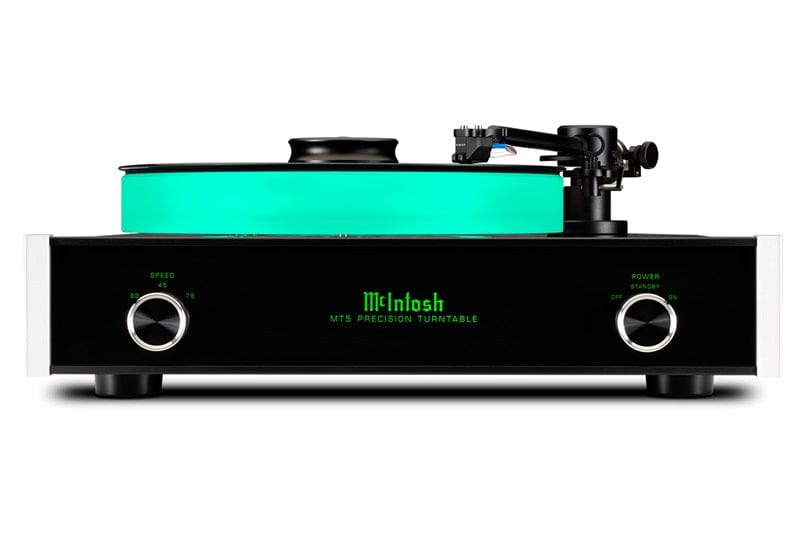

McIntosh MT5 Precision Turntable

  • Sale
  • Regular price $19,995.00
Tax included.

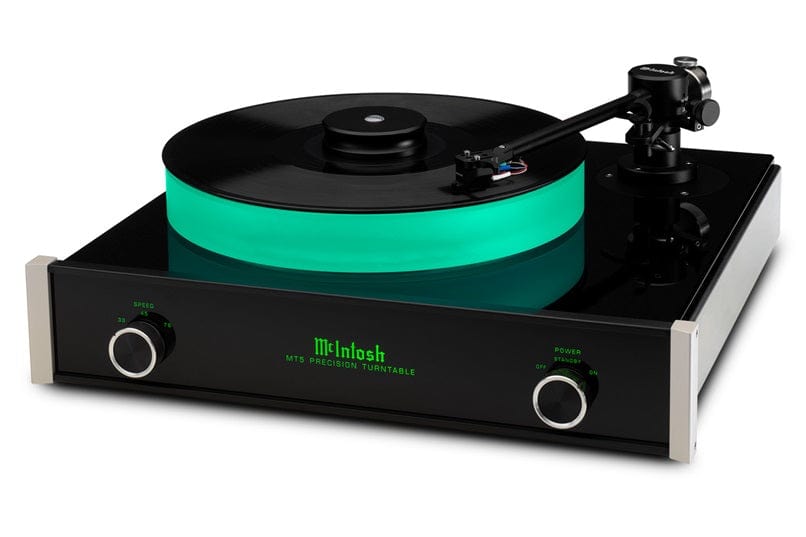

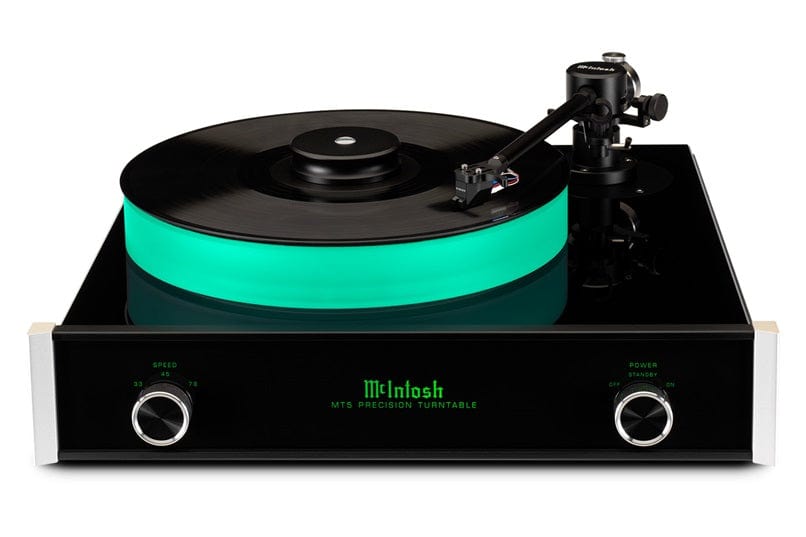

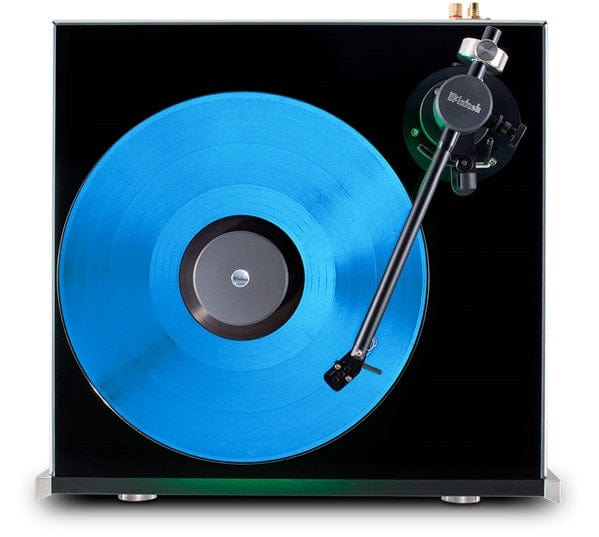

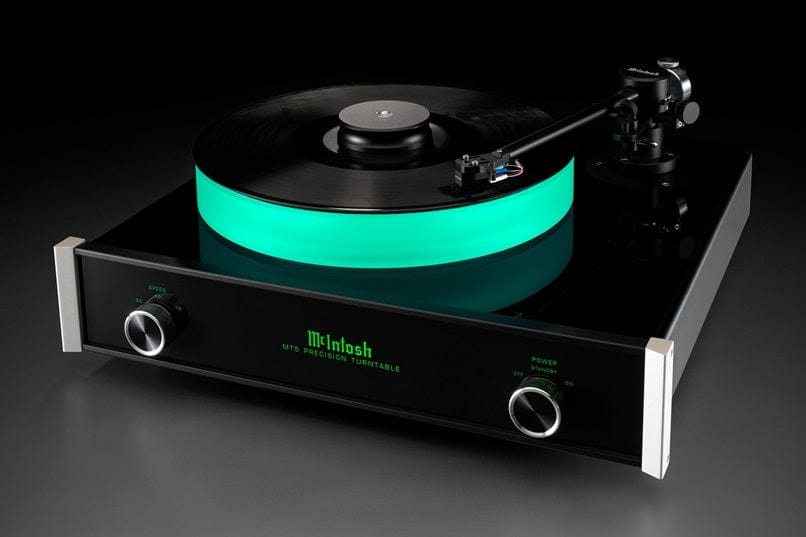

The McIntosh MT5 Precision Turntable is a complete turntable package that is more than the sum of its parts. Engineered to exacting McIntosh standards, each piece contributes to deliver a superb performance. The illuminated, magnetically suspended platter produces an inviting glow that's sure to be a conversation starter among friends and guests alike.

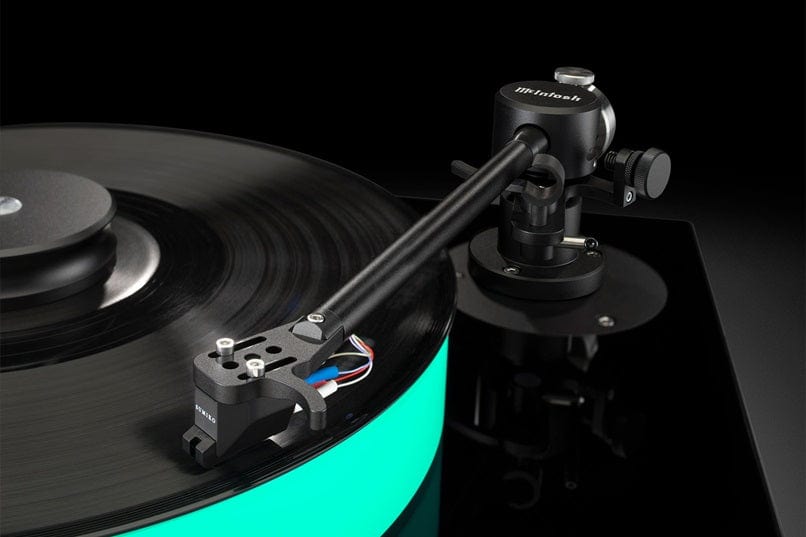

The MT5 comes equipped with a high performance platter and motor drive assembly, precision tone arm and a Sumiko Amethyst cartridge, a next-gen high output moving magnet phono pickup. Topped off with a nude line-contact diamond, the stylus couldn't be more nimble. Reaching every nook and cranny of your record grooves and handling that information with the utmost grace, Amethyst competes favorably with similarly priced moving coil designs. It is shockingly quiet and thus as transparent as can be, skillfully tracing even the most complicated passages your record collection has to offer. Expect effortless dynamic handling, depth and clarity over a black background, impeccably realistic transience, and images that leap from your soundstage but remain naturally positioned.

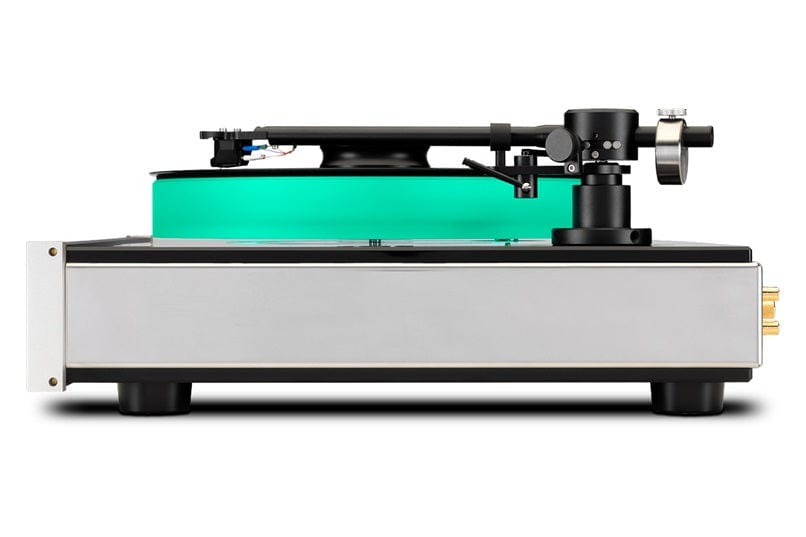

The MT5 is factory adjusted for perfect playback. Tracking force, anti-skate force, cartridge overhang and arm height are all preset for maximum performance. Advanced magnetic platter bearings and a precise belt drive motor spins records with absolute stability and quiet, assuring a pleasurable vinyl listening experience. The custom tone arm and cartridge track records with minimum friction using magnetic antiskate and horizontal, tone-arm bearings. While the construction of the MT5 is meticulous, the setup is simple. In a few easy steps, you’ll be ready to enjoy your favorite vinyl recordings.

While maintaining complementary McIntosh styling, the MT5 takes full advantage of the chassis materials used to suppress noise, resonance and coloration so the only sound produced is that which is on your records. A clear, form-fitting dust cover is included to protect the MT5's moving parts, along with your valued records.

Specifications

Cartridge Specifications

  • Cartridge Type
    Moving Magnet
  • Output Level
    2.5 mV at 5 cm/s
  • Load Impedance
    47K Ohms recommended (Preamp MM Input)
  • Frequency Response
    12Hz to 35kHz
  • Channel Separation
    30dB at 1kHz
  • Compliance
    12 x 10-6 cm/dyne
  • Recommended Tracking Force
    2.0 g
  • Channel Difference
    Less than 0.5dB at 1kHz
  • Total Mass
    6.5 g
  • Stylus
    Extended Line Contact
  • Cantilever Material
    Aluminum

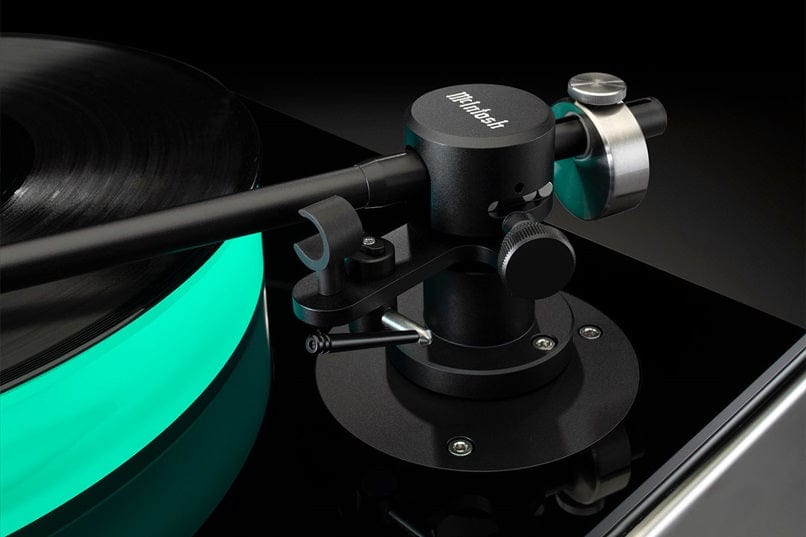

Tonearm Specifications

  • Bearing
    Magnetic Sapphire and Ceramic
  • Arm Tube
    Dural-Aluminum
  • Counterweight
    Eccentric
  • Adjustments
    Vertical Tracking Angle, Antiskate, Azimuth

Turntable Specifications

  • Playback Speeds
    33-1/3, 45 and 78 rpm
  • Motor Type
    DC Motor with Stainless Steel Brushes
  • Speed Control
    Servo System
  • Platter
    Silicon Acrylic
  • Platter Bearing
    Magnetic Suspended Ceramic
  • Signal To Noise Ratio
    36dB - 41dB
  • Wow & Flutter
    0.15% - 0.20%

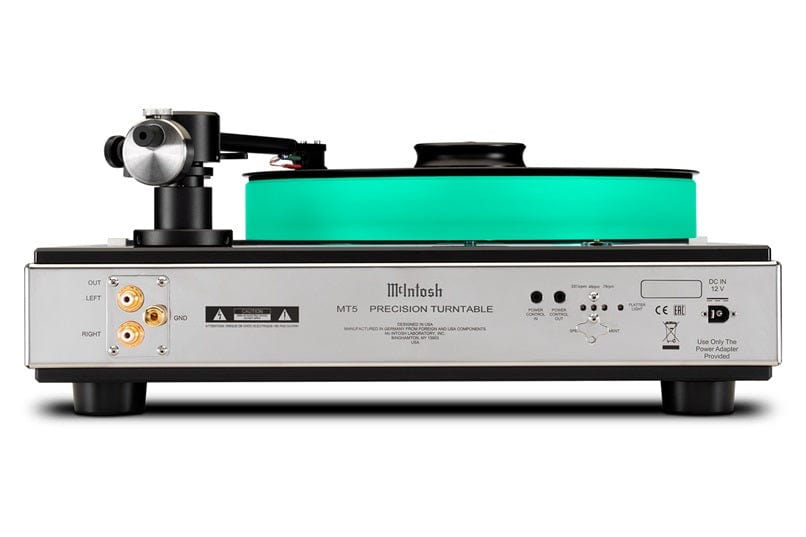

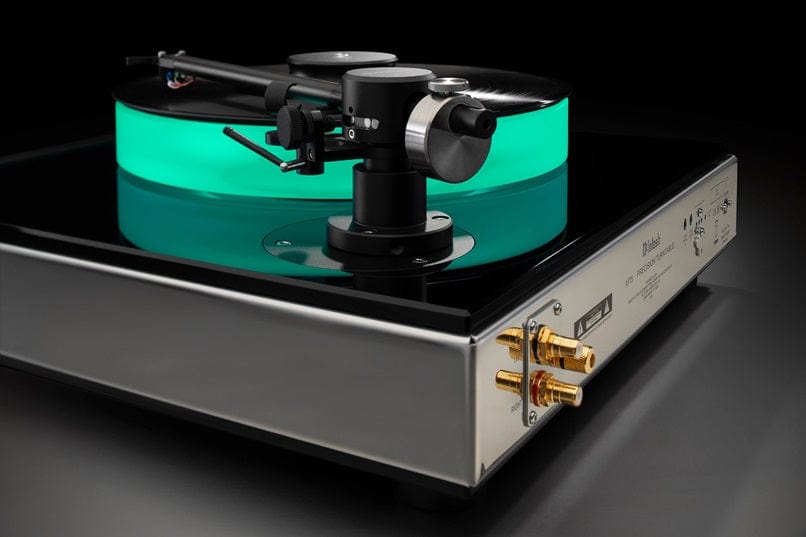

Connectivity

  • Stereo Outputs Unbalanced
    1

Control

  • Power Control Input
    1
  • Power Control Output
    1
  • Platter Light
    Yes
  • Speed Control Fine Adjustment
    Yes

General Specifications

  • Dust Cover Included
    Yes

Weights & Dimensions

  • Unit Dimensions (W x H x D)
    17-1/2" (44.45cm) x 7" (17.8cm) (7-1/2" (19.0cm) with dust cover) x 19" (48.26cm)
    Note: Tone Arm Height will vary depending on the type of Cartridge installed.
  • Unit Weight
    31.5 lbs (14.3 kg)
  • Shipping Weight
    38 lbs (17.2 kg)
