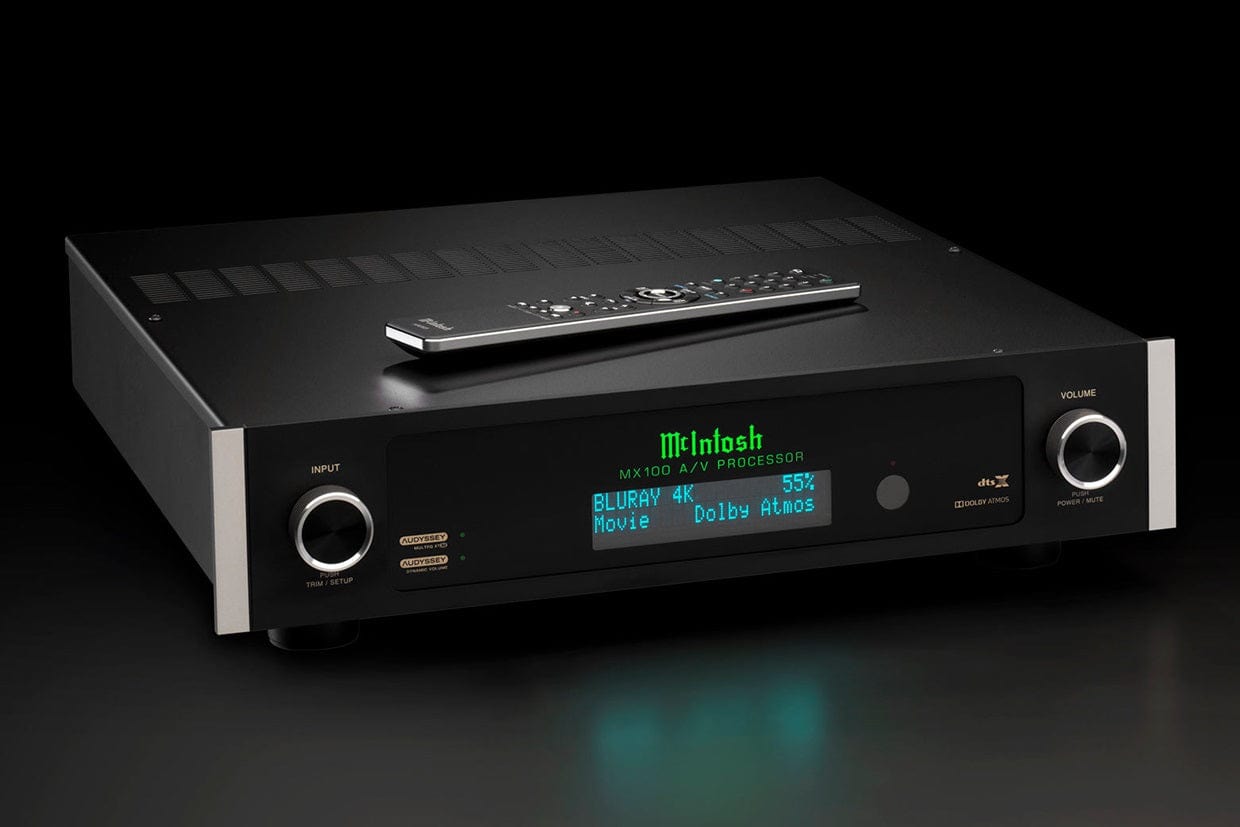

Setup is easily performed via computer interface. To save time, your installer can pre-configure your unit before bringing it to your home and then simply load the configuration file at installation. Similarly, you or your integrator could backup your configuration file onto a computer or USB stick for safe keeping; then you could even experiment with different configurations to listen for better performance safe in the knowledge that you could reinstall the original setup. The MX100 can be fully operated via the remote control, or your integrator can easily incorporate it into your home automation system via RS232 control protocol.
Additionally, the MX100 has received Connects with Control4 Certification from Control4®, a leading global provider of smart home automation solutions, with the implementation of their Simple Device Discovery Protocol (SDDP), allowing it to be effortlessly integrated into Control4 automation systems to further enhance the user experience. It has also received Works with Crestron Home certification from Crestron, a global leader in advanced smart home technology. Crestron Home unlocks the full potential of a smart home. It’s the complete package for any size project, delivering a simpler, smarter user experience for homeowners, remarkably fast configuration and deployment for integrators, and the confidence that comes with renowned, best-in-class Crestron control hardware.

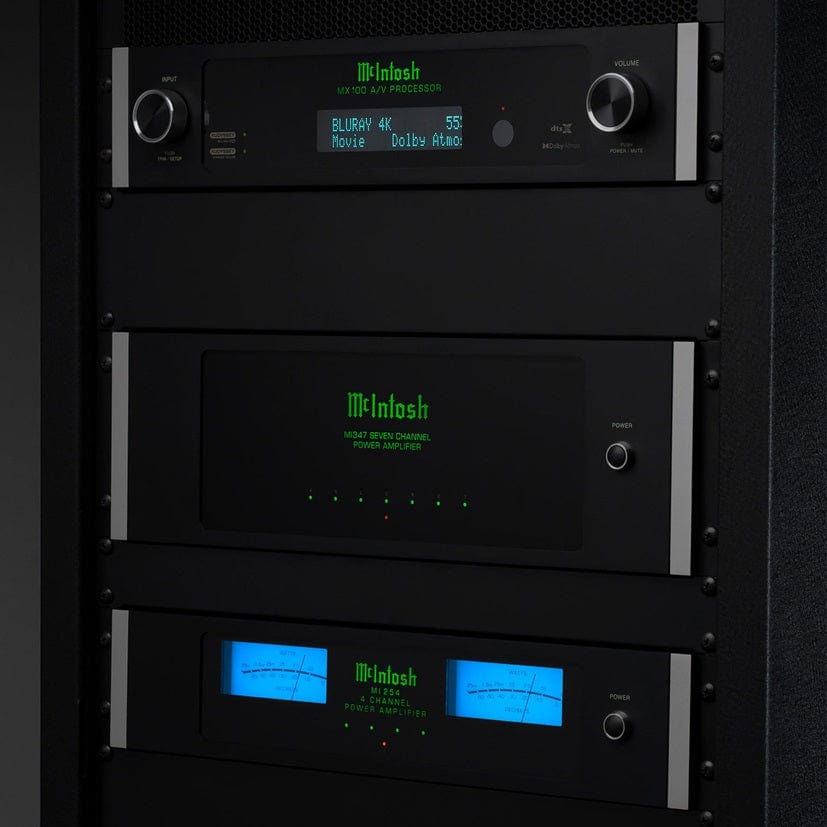

The MX100 can be used with any combination of McIntosh home theater amplifiers, such as the MI347 7-Channel Amplifier – which is rack mountable just like the MX100, the MC255 5-Channel Amplifier, or the MC257 7-Channel Amplifier among others. If you're using additional surround sound or ceiling speakers, add the MI254 4-Channel Amplifier or MI128 8-Channel Amplifier (both also rack mountable) to completely power your home theater with McIntosh power.

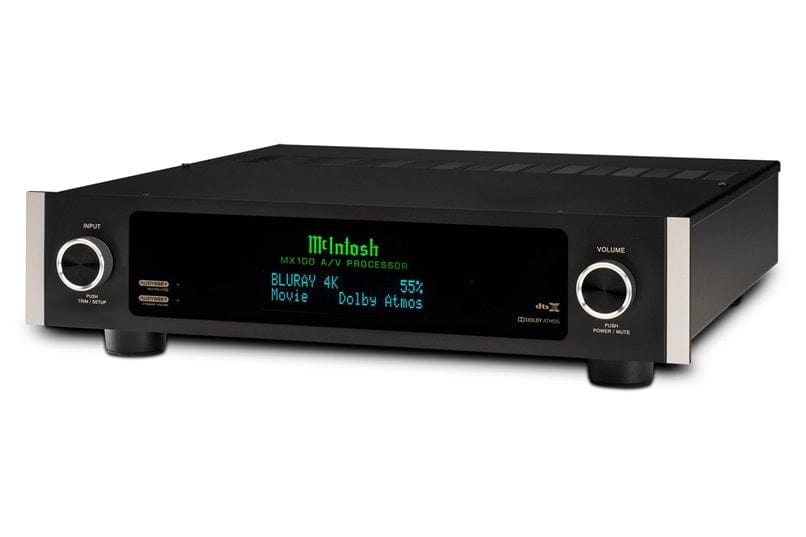

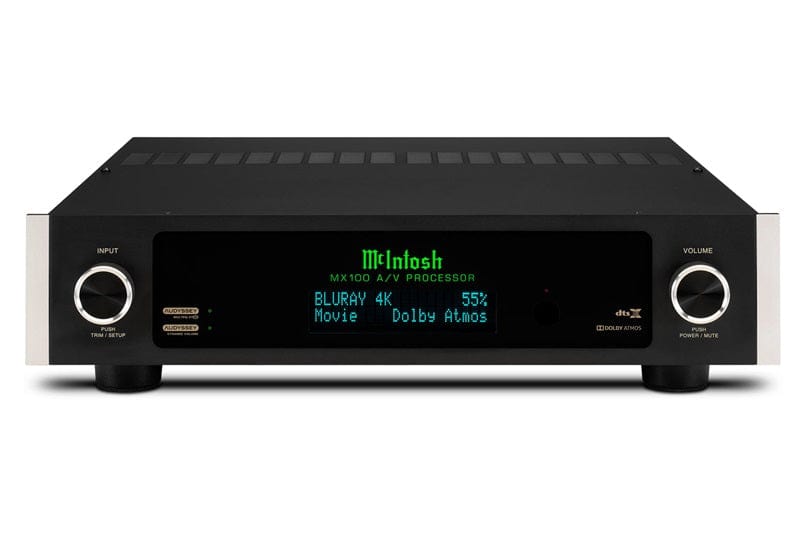

While having a streamlined design, the MX100 still includes many McIntosh design cues including a black glass front panel, an illuminated McIntosh logo, rotary control knobs, and a familiar form factor highlighted by silver trim.
Specifications

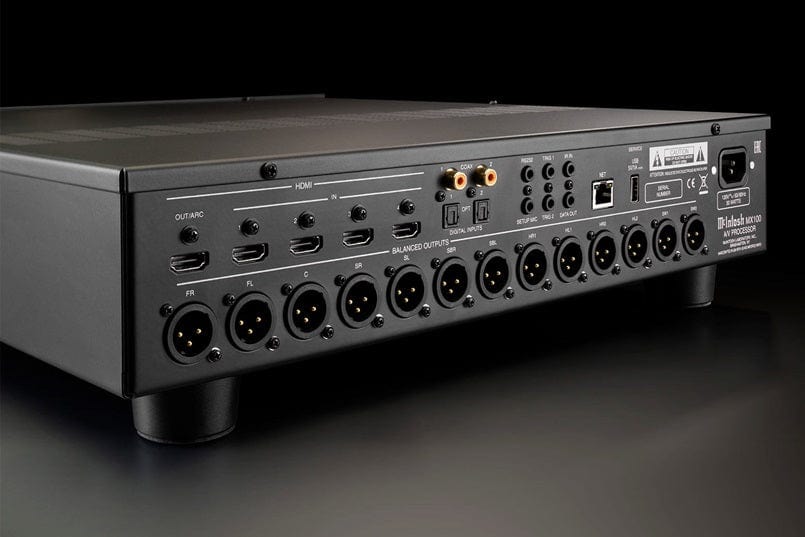

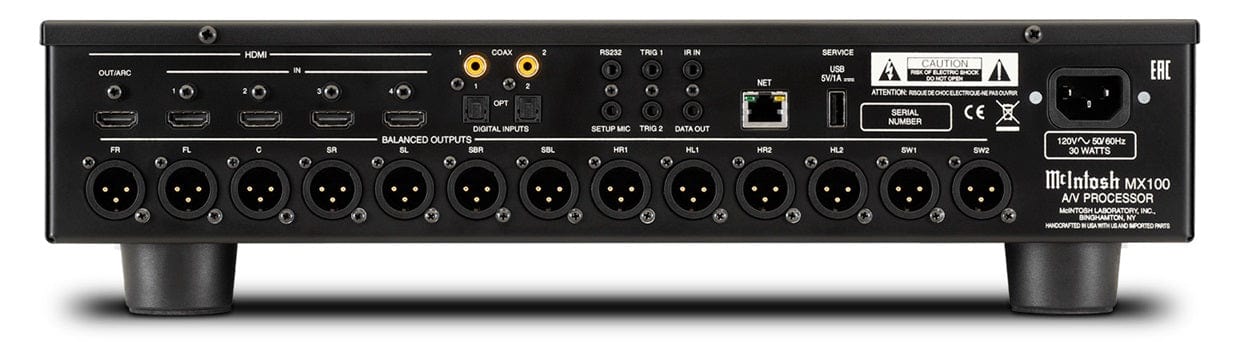

Connectivity
-
- Multi-Channel Outputs Balanced
- 11.2
-
- Multi-Channel Inputs Unbalanced
- 0
-
- Multi-Channel Outputs Unbalanced
- 0
-
- Stereo Inputs Balanced
- 0
-
- Stereo Inputs Unbalanced
- 0
-
- Stereo Outputs Unbalanced
- 0
-
- Digital Coaxial Input
- 2
-
- Digital Coaxial Output
- 0
-
- Digital Optical Input
- 2
-
- AES/EBU Balanced Input
- 0
-
- HDMI Input
- 4
-
- HDMI Output
- 1
-
- USB
- 1 Type A
-
- Component Input
- 0
-
- Component Output
- 0
-
- Composite Input
- 0
-
- Composite Output
- 0
-
- Subwoofer 2 Output
- Yes
(discrete signal from subwoofer 1)
-
- Network Connection
- 1
-
- Max # of audio channels in Zone A
- 13
-
- Additional Zone Outputs
- 0
-
- Advanced Connections
- Ethernet Web interface and firmware update, IP-based control
HDMI Features
-
- Resolution and Refresh Rates
- 4K/60Hz
-
- HDCP
- 2.2
-
- 4:4:4 Color
- Yes
-
- Rec. 2020 (BT.2020)
- Yes
-
- 3D video pass-through
- Yes
-
- Dynamic Lip-sync
- No
-
- ARC
- Yes
-
- eARC
- Yes
-
- Video Scaling
- No
-
- High Dynamic Range (HDR)
- Dolby Vision, HDR10 and HLG
-
- Quick Media Switching (QMS)
- No
-
- Auto Low Latency Mode (ALLM)
- No
-
- Quick Frame Transport (QFT)
- No
-
- Variable Refresh Rate (VRR)
- No
Processing
-
- Total Harmonic Distortion (DSP Bypass)
- 0.005%
-
- Dolby Processing
- Dolby Atmos, Dolby Surround Upmixer
-
- DTS Processing
- DTS-X, Neural:X Surround Upmixer
-
- Auro Processing
- N/A
-
- Pure Stereo DSP Bypass Mode
- No
-
- MPEG-H Audio
- No
-
- 360 Reality Audio
- No
-
- IMAX Enhanced
- No
-
- Room Correction
- Audyssey MultEQ XT32, Dynamic EQ / Dynamic Volume
Control
-
- Third Party Control
- RS232, Web IP, IR Input
-
- Tone Controls
- Bass and Treble
-
- OSD Overlay on HDMI Output
- Volume Only
-
- Input-Output Format Indicators
- 0
-
- Control of McIntosh Sources
- Yes, by handheld remote, 1 Data Out, 2 Power Control Trigger jacks
General Specifications
-
- Channel Formats
- 11.2 (7.2.4), 7.1, 5.1, Stereo
-
- Microphone and stand included
- Yes
-
- Network Features
- Ethernet Setup
-
- Unique Crossover Frequency, Each Speaker
- Yes
-
- Special Features
- Rear panel USB for firmware updating
-
- BTU Rating
- 75 BTU/h
Weights & Dimensions
-
- Unit Dimensions (W x H x D)
- 17-1/2" (44.45cm) (19" (48.3cm with mounting ears)) x 4-5/16" (11cm) (including feet) x 21" (53.3cm) (including front panel and cables)
-
- Unit Weight
- 17 lbs (7.7 kg)
-
- Shipping Weight
- 39.5 lbs (18 kg)
