Monitor Audio Anthra W10 – SoundHub

Monitor Audio Anthra W10

  • Sale
  • Regular price $3,800.00
Tax included.

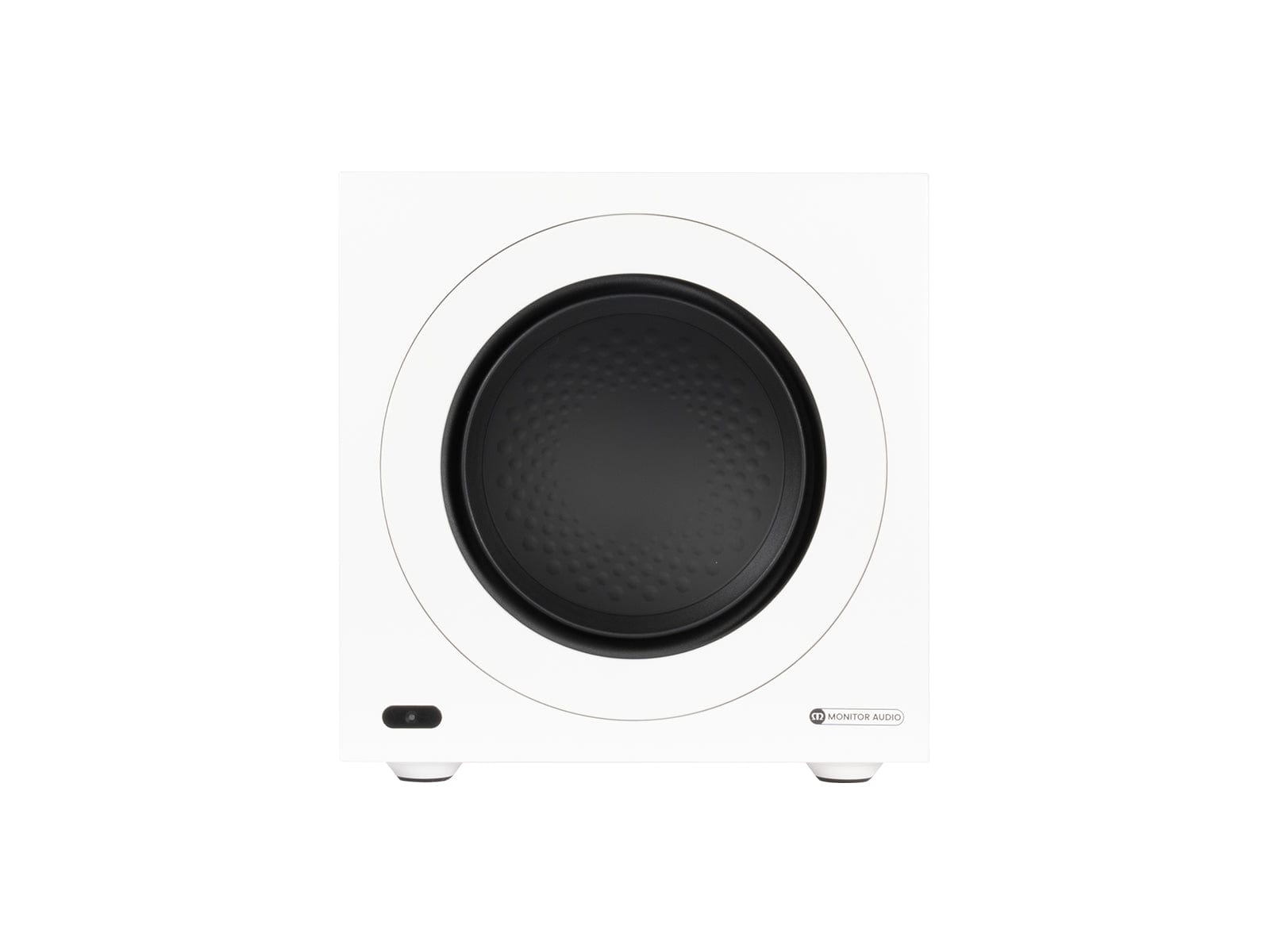

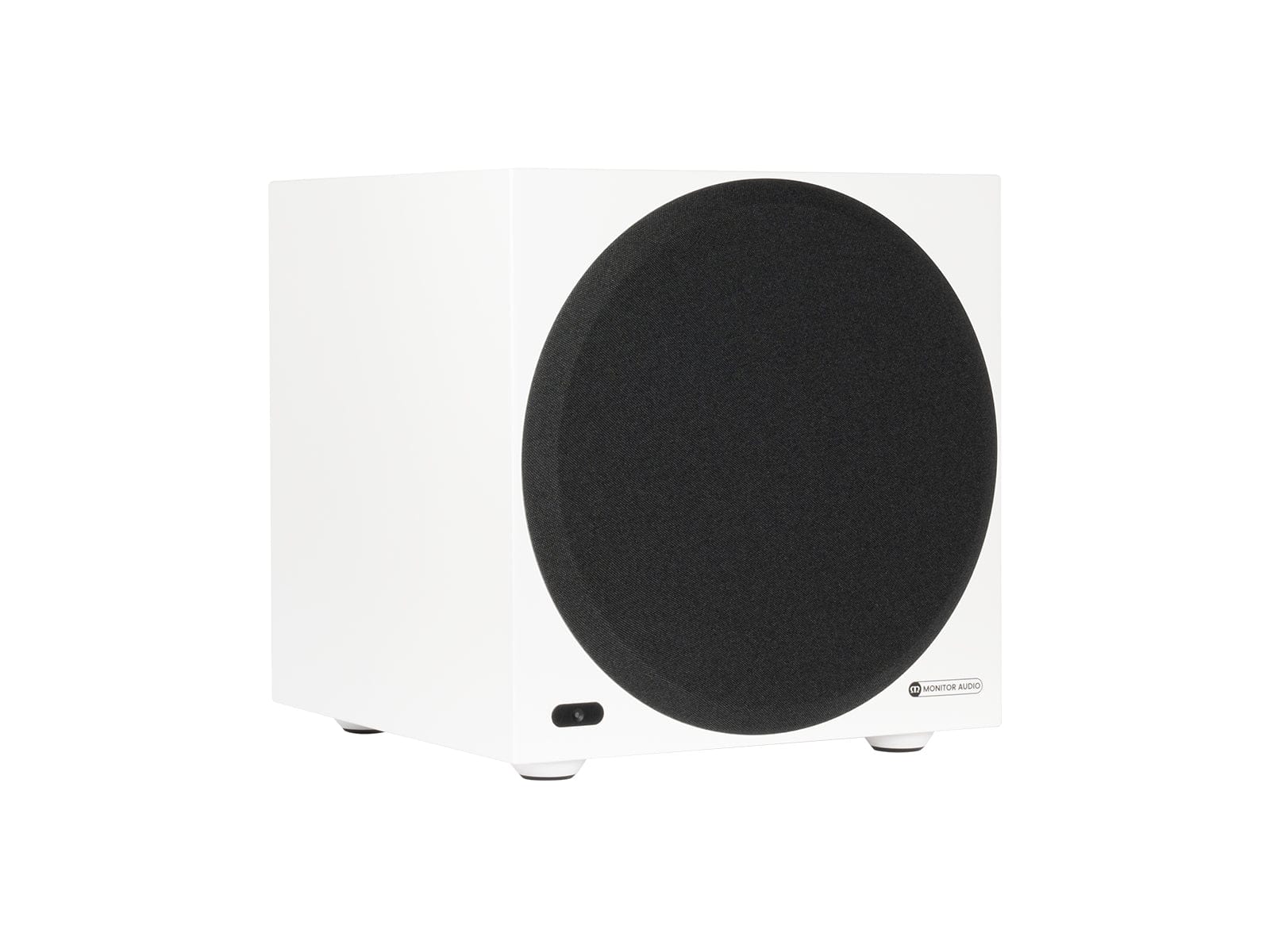

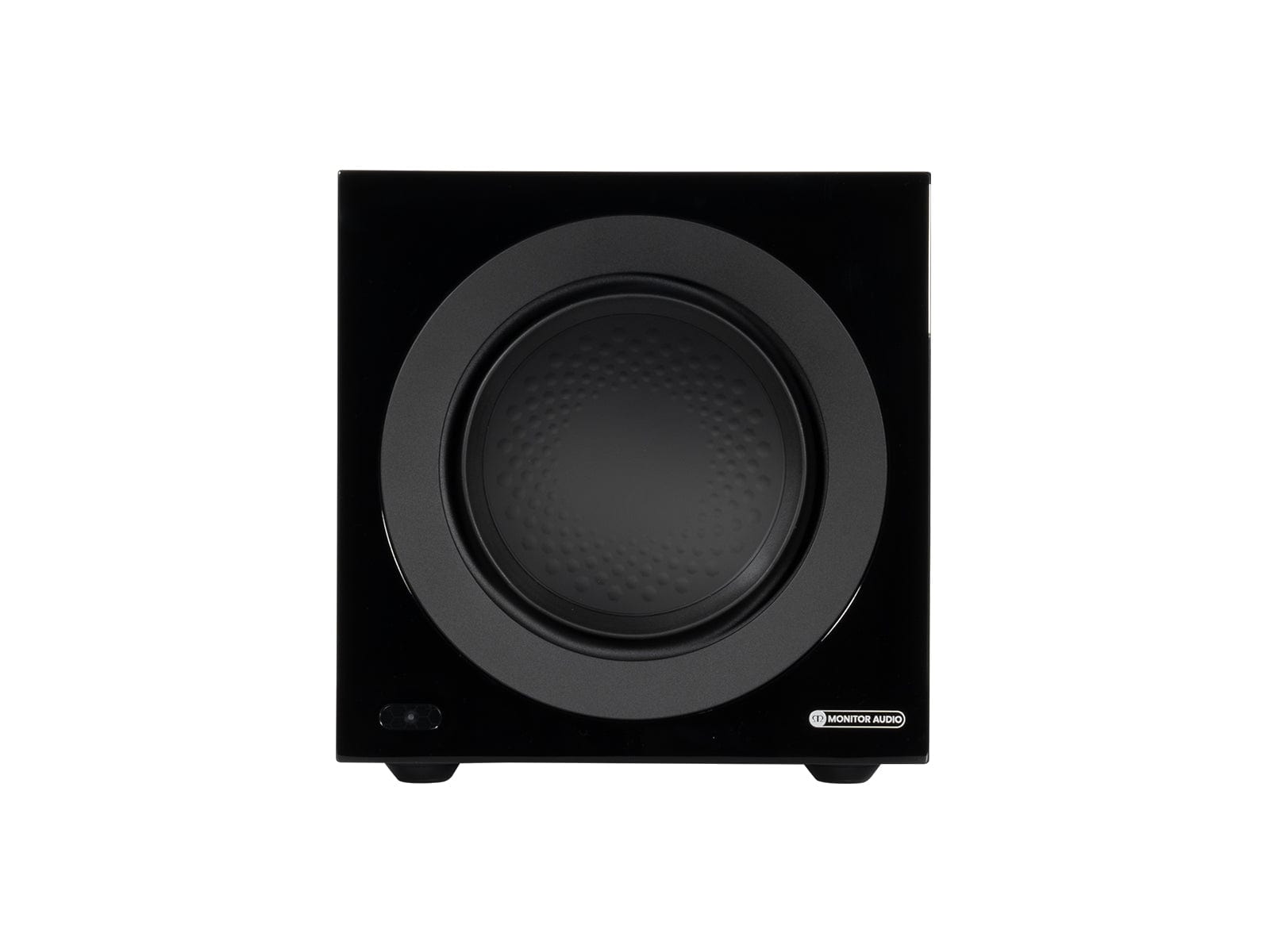

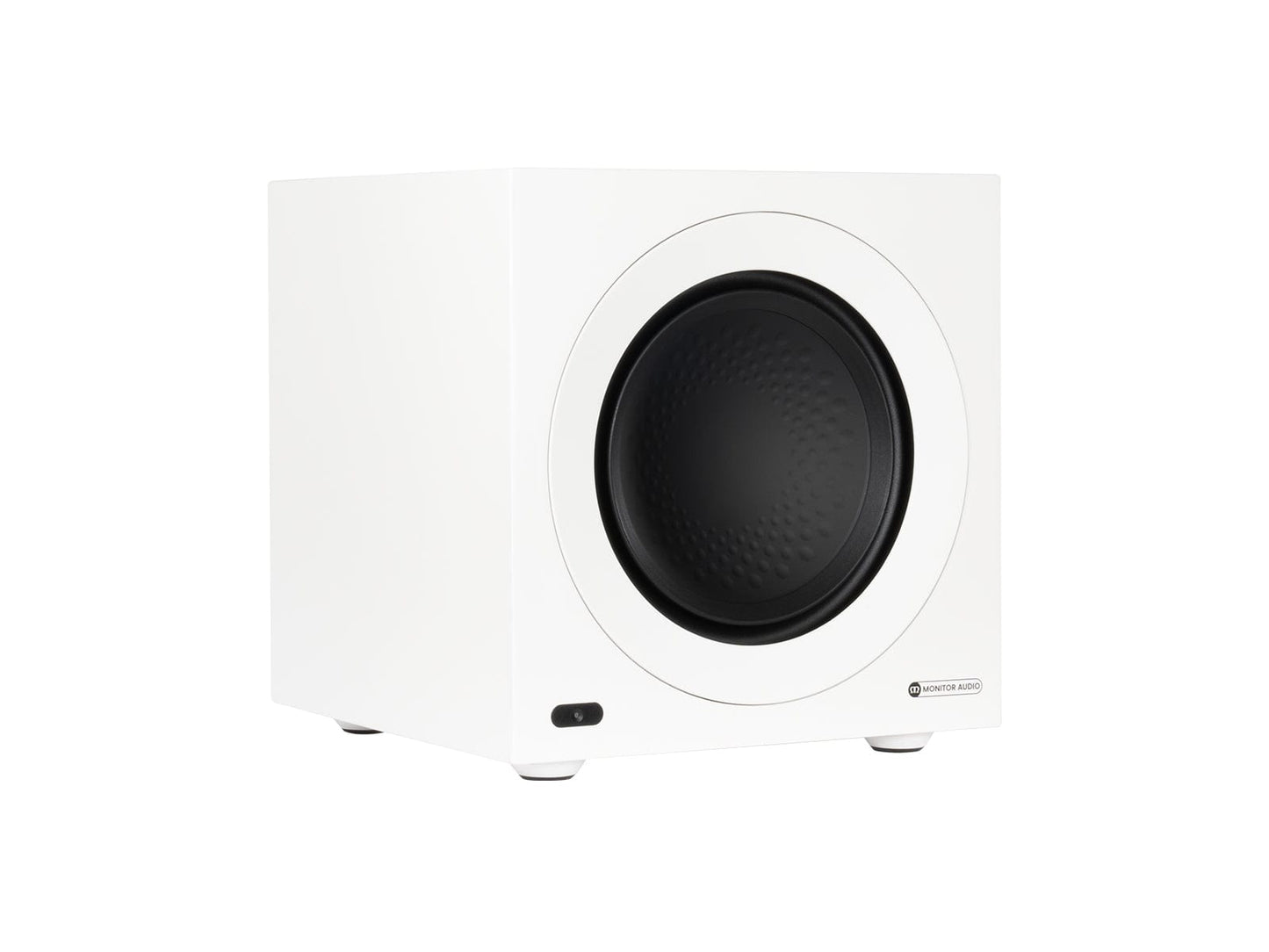

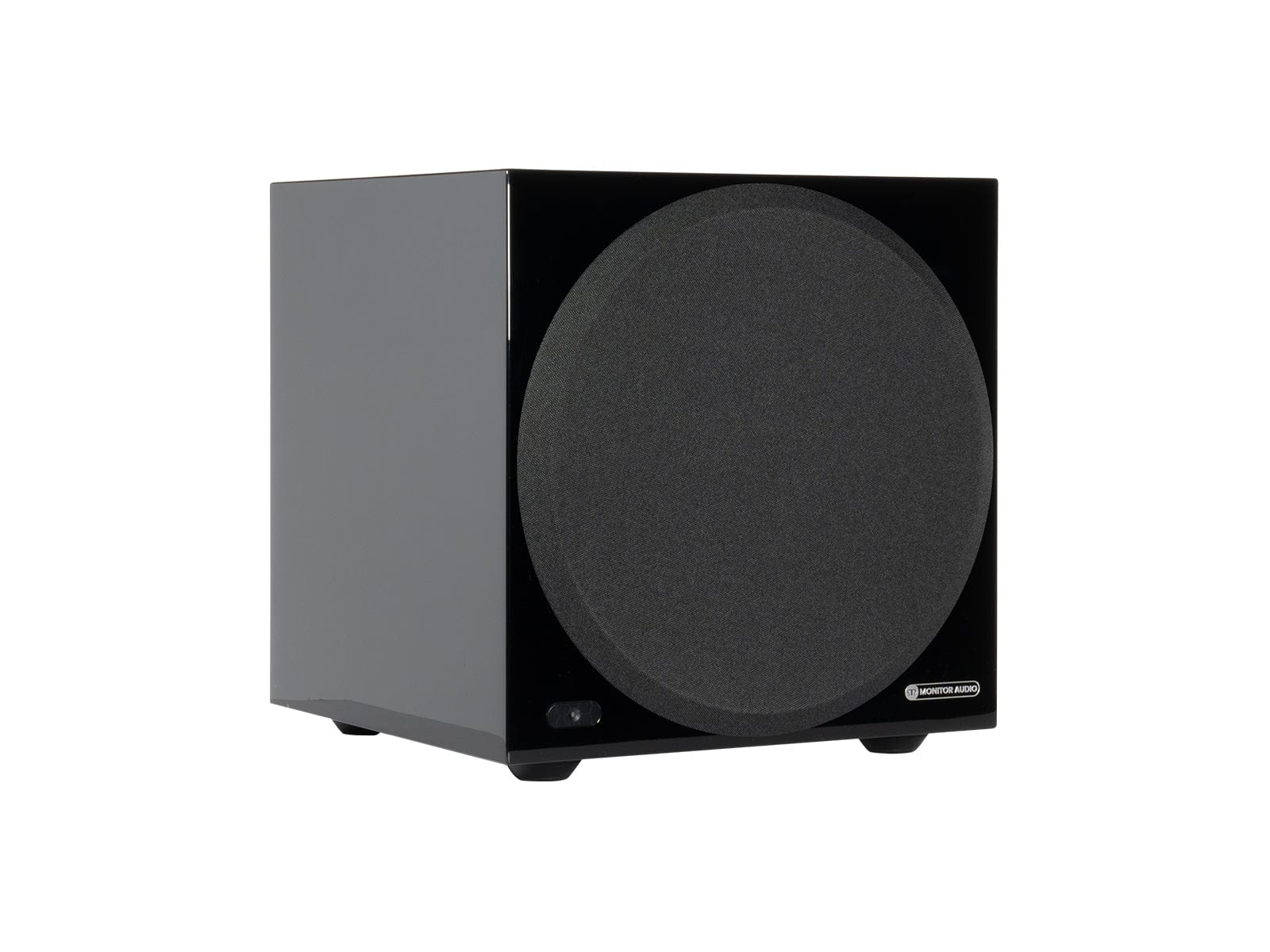

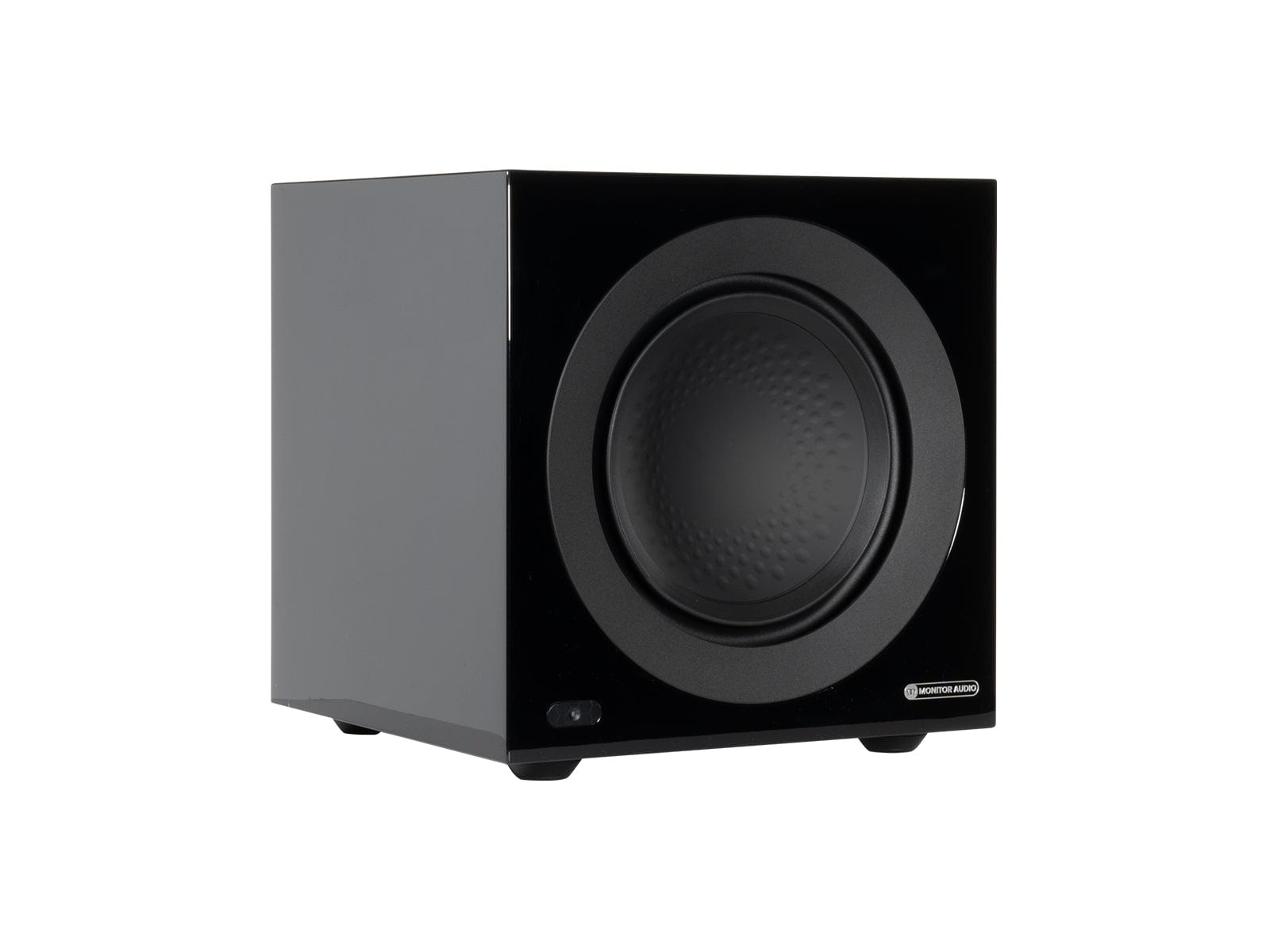

The W10 is the most compact model within the Anthra subwoofer series. It features a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.



Engineered to deliver deep, agile bass in small to mid-sized spaces, the Anthra W10 subwoofer features a 500 Watt Class-D amplifier driving a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W10 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

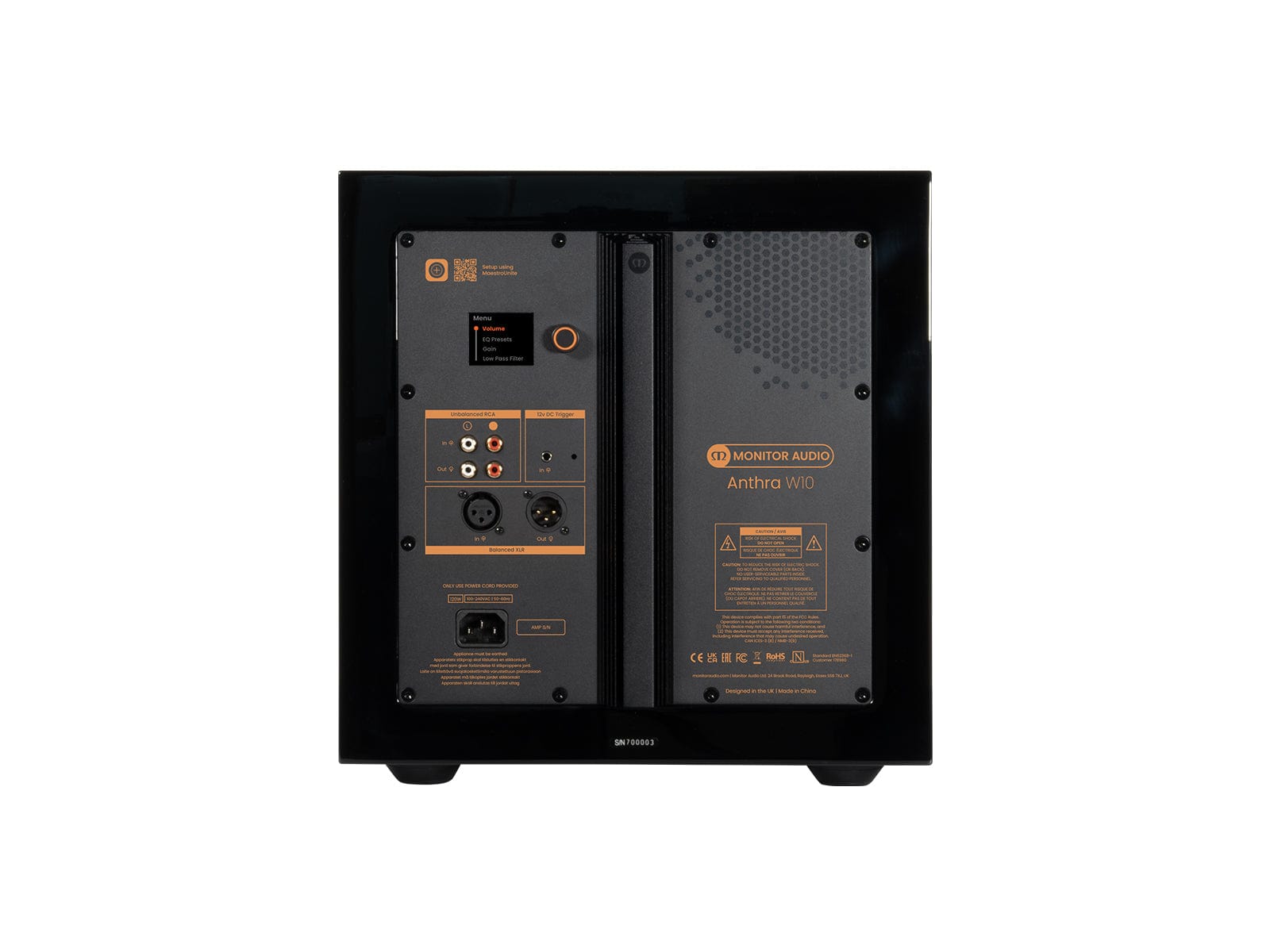

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

Key Features

  • 1 x 10” (25cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
  • 1 x 500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
  • Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
  • 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
  • RCA inputs (left/right. The left Input is LFE)
  • RCA outputs allows daisy chain of up to 4 Anthra subwoofers
  • XLR inputs for professional installation connectivity option
  • XLR outputs allows daisy chain of up to four Anthra subwoofers
  • Available in Gloss Black and Satin White finishes
  • MaestroUnite Setup for Monitor Audio Anthra Subwoofers allows a user complete bespoke setup. Available to download from the App Store and Google Play.
System Format

Active – Sealed Cabinet

Drive Unit Complement

1x 10" (254 mm) High Linear-Excusion Triple Suspension Driver

Amplifier Classification

High-Efficiency Class-D

Lower Frequency Limit

-6dB @17Hz

Upper Frequency Limit

(LPF Off) -6dB @400Hz

Driver Excursion (pk-pk)

50 mm

DSP

28 Bit 50 MIPS Configuratable through MaestroUnite

Analogue Digital Conversion

Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals

Amplifier Output Power, 240Vac

Instantaneous: 500 W*
Continuous short-term: 425 W**

LED UI Control

Brightness, On-Off

Phase Control

0-360 Degrees measured at LPF Crossover

Low Pass Filter

20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct

Custom EQ

Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)

Volume Level

Wide adjustable input gain to allow maximum output from a wide range of input signals

Inputs

Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR

Outputs

Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input

Mains Input Voltage

Universal Mains, 85-265VAC

External Dimensions (without feet) (HxWxD)

321 x 321 x 321 mm

Power Consumption

120 W

Cabinet Construction

Braced 18 mm thick MDF with 36 mm front baffle

Grille

Cloth covered magnetically attached Grilles

Weight

22.2 kg

* Maximum RMS output for an instantaneous signal
