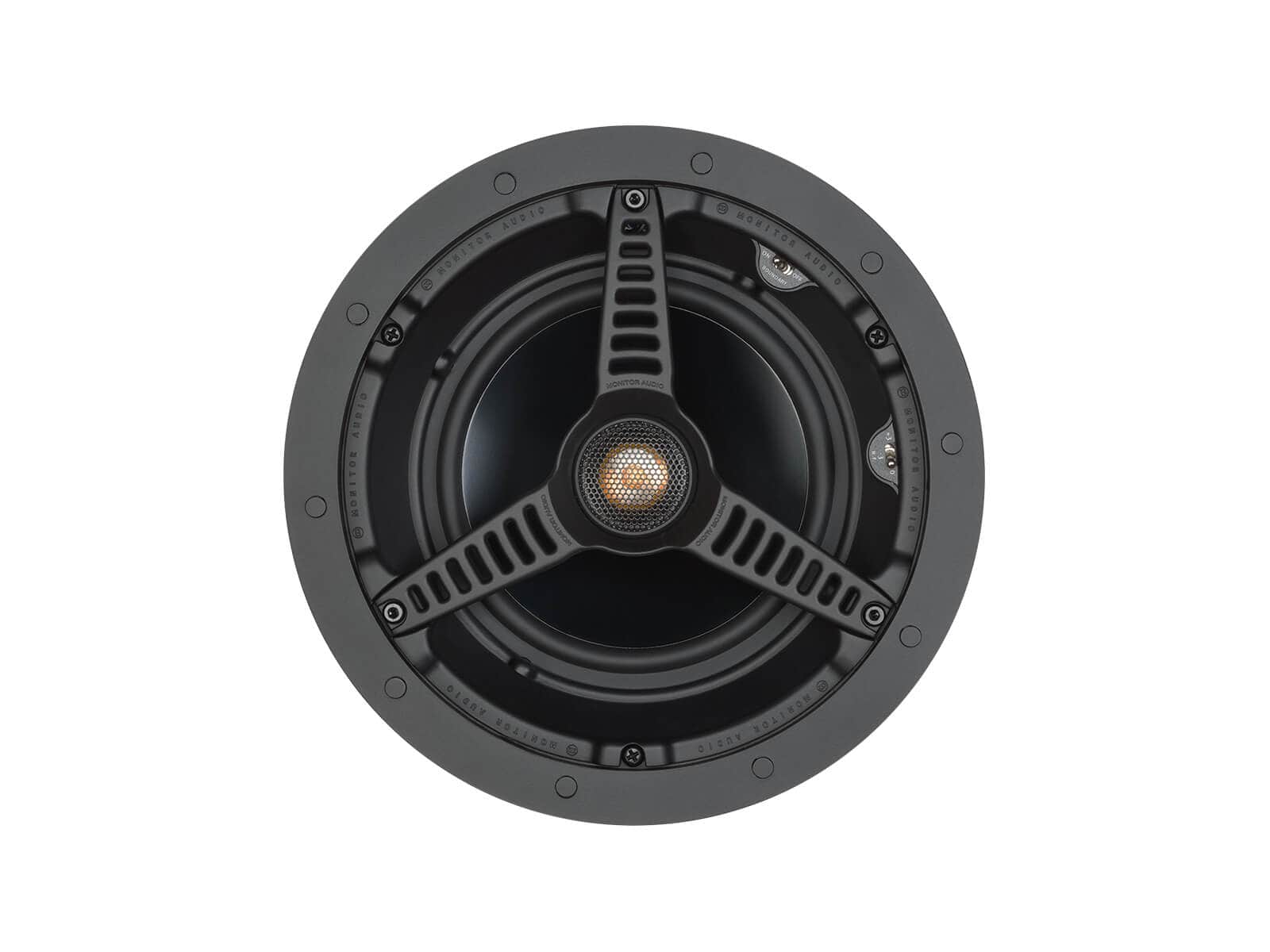

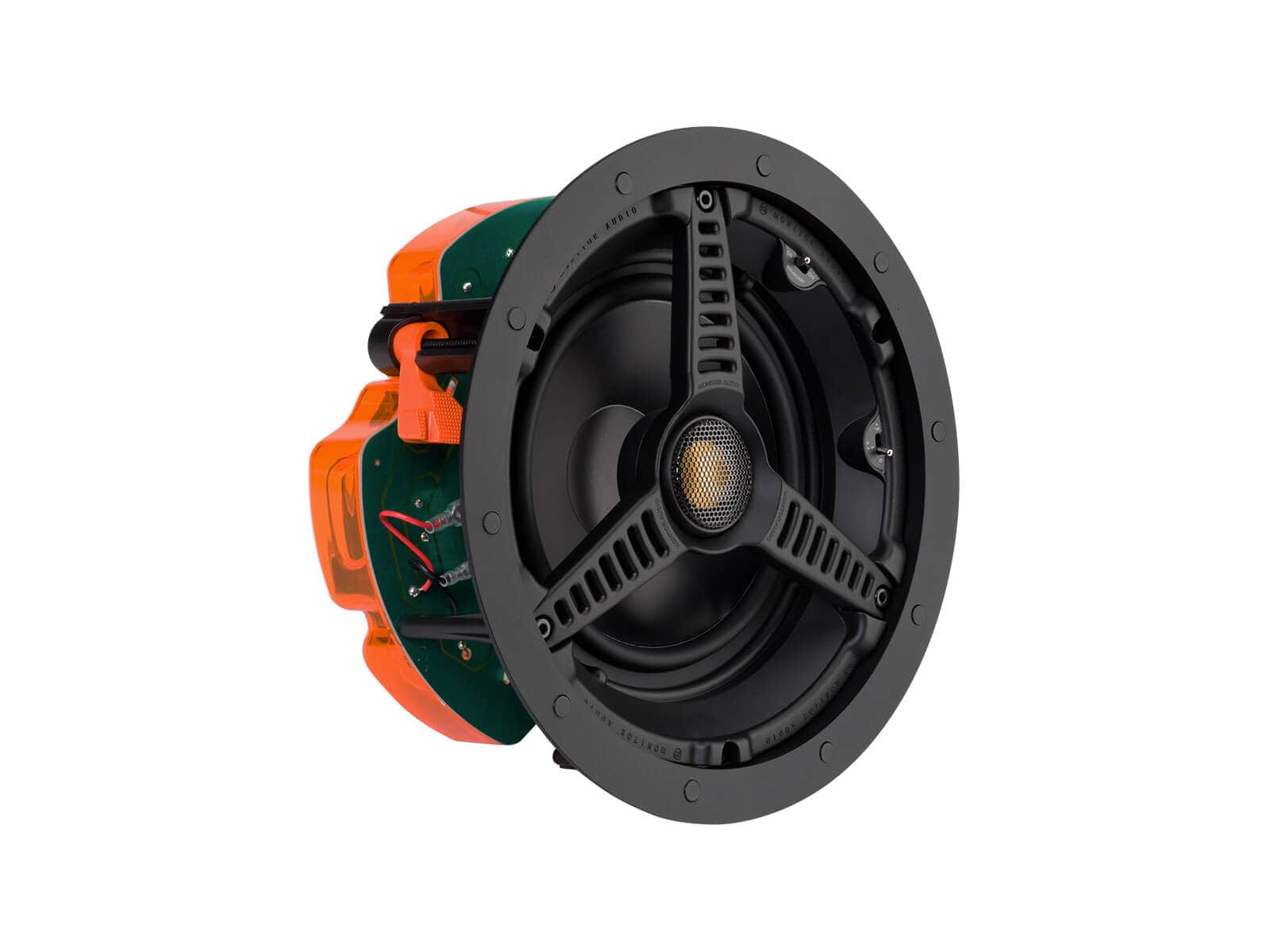

A 6 1/2 inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models.
Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

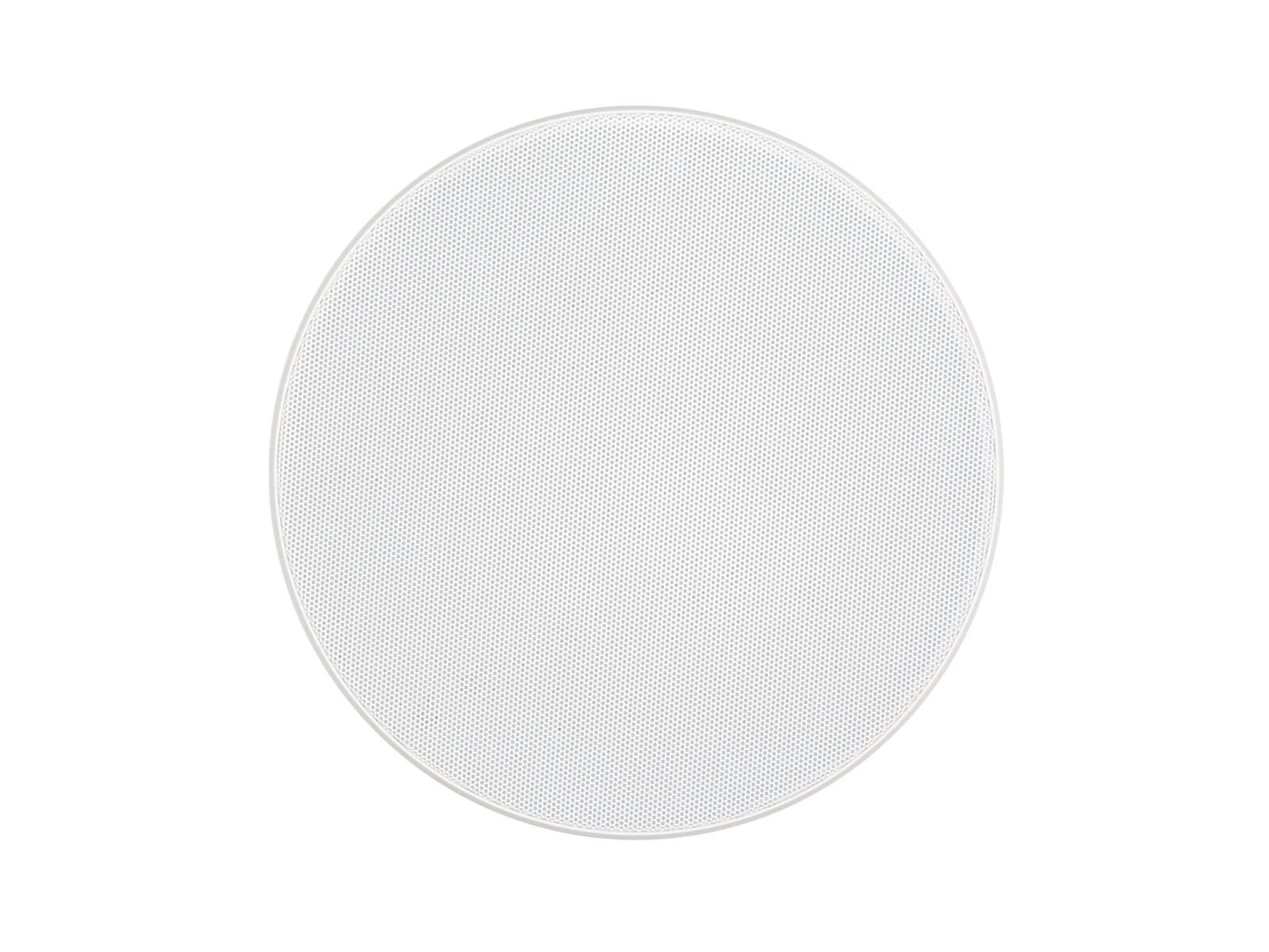

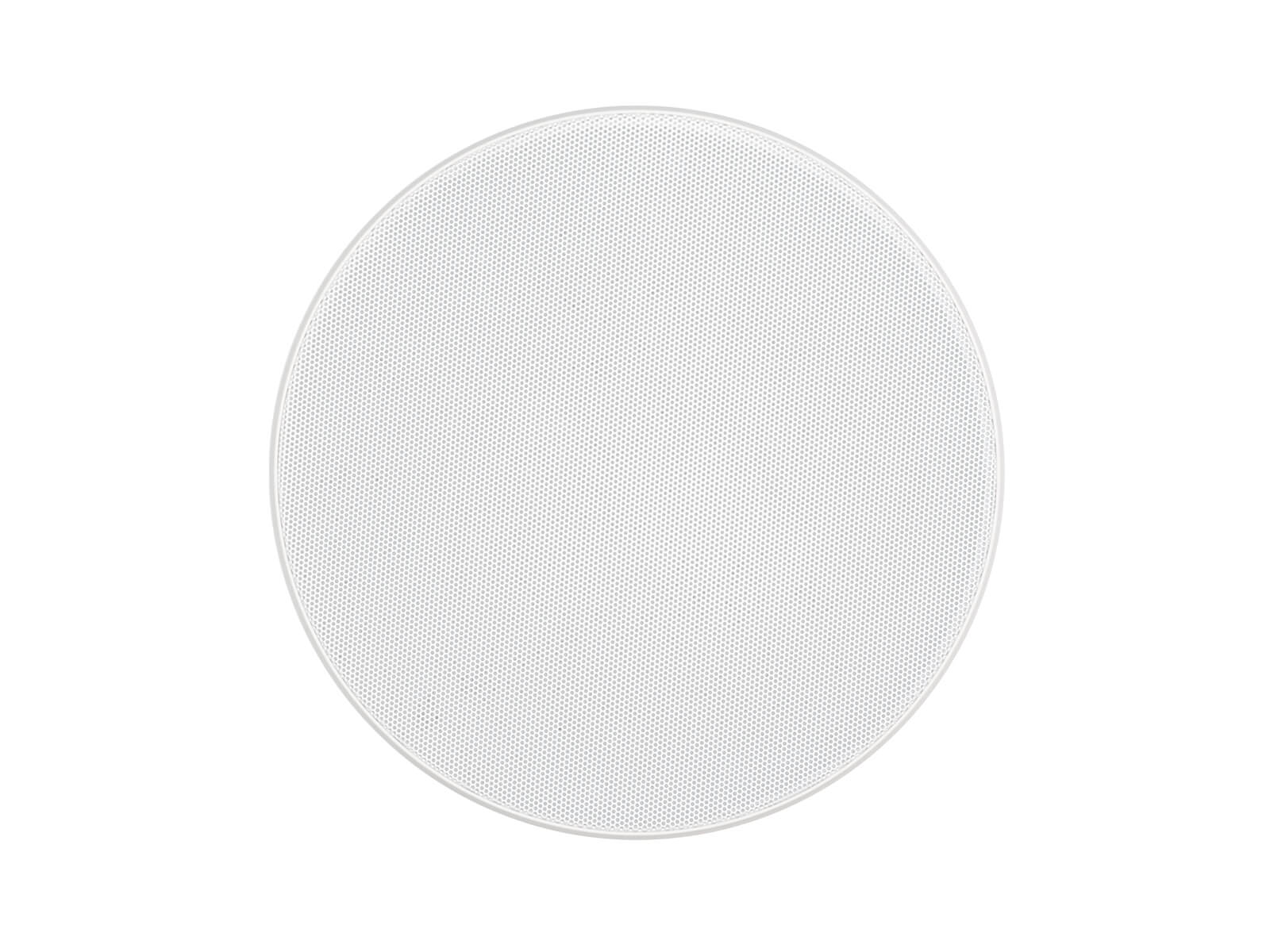

Optional square or premium grille can be used with this model.
Frequency Response
60 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
88.5 dB
Maximum SPL
108 dBA
Power Handling (RMS)
75 W
Recommended Amplifier Requirements
20 – 75 W
Drive Unit Complement
6 1/2" C-CAM cone bass driver
1” C-CAM pivoting Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
250 mm (913/16")
Overall Depth (Including Grille)
120 mm (43/4")
Mounting Depth
116 mm (49/16")
Cut-Out Hole Diameter
211 mm (81/4")
Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
2.04 kg (4 lb 8 oz)
Pre-Construction Bracket
Sold As
Single Unit
