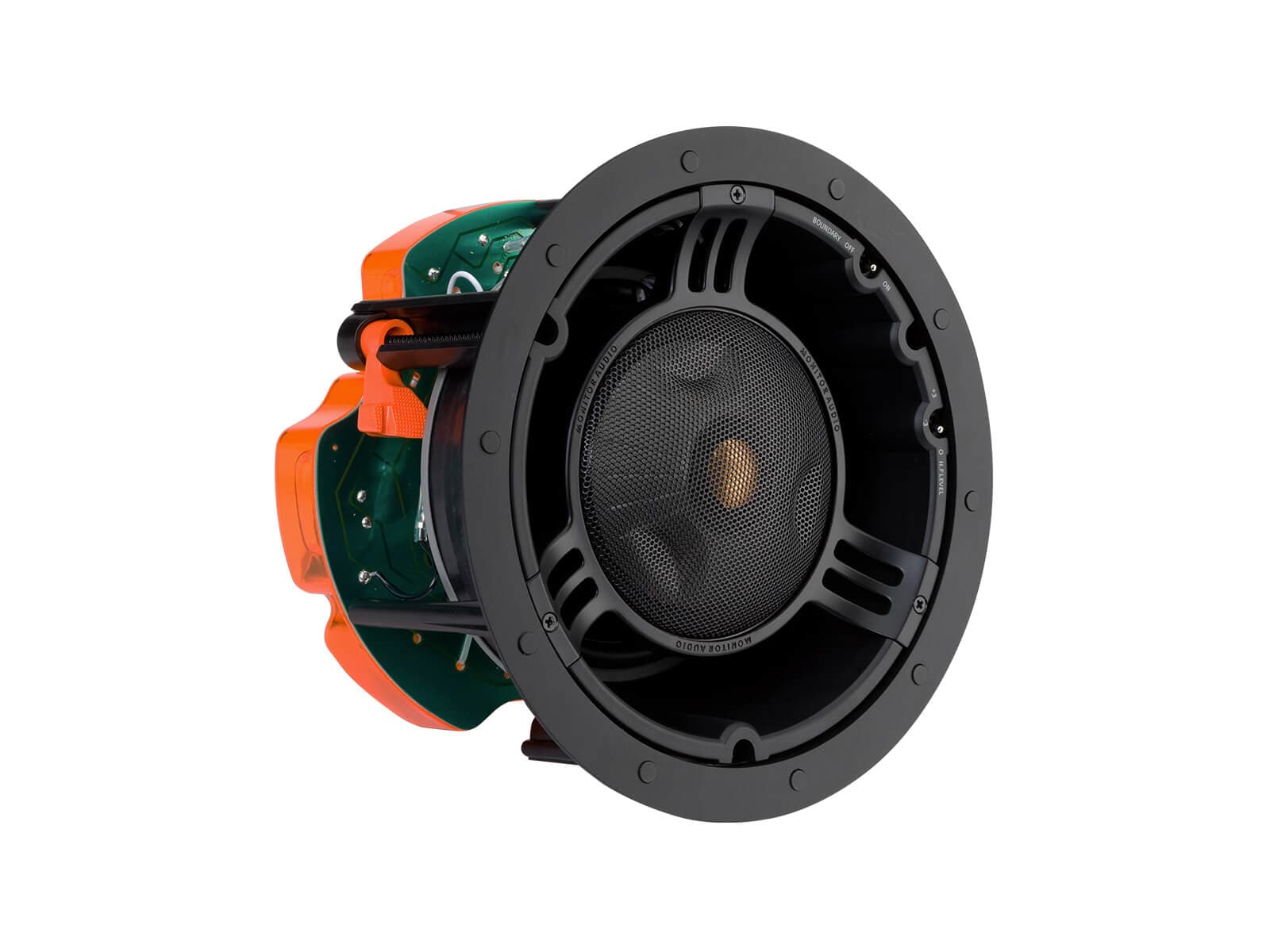

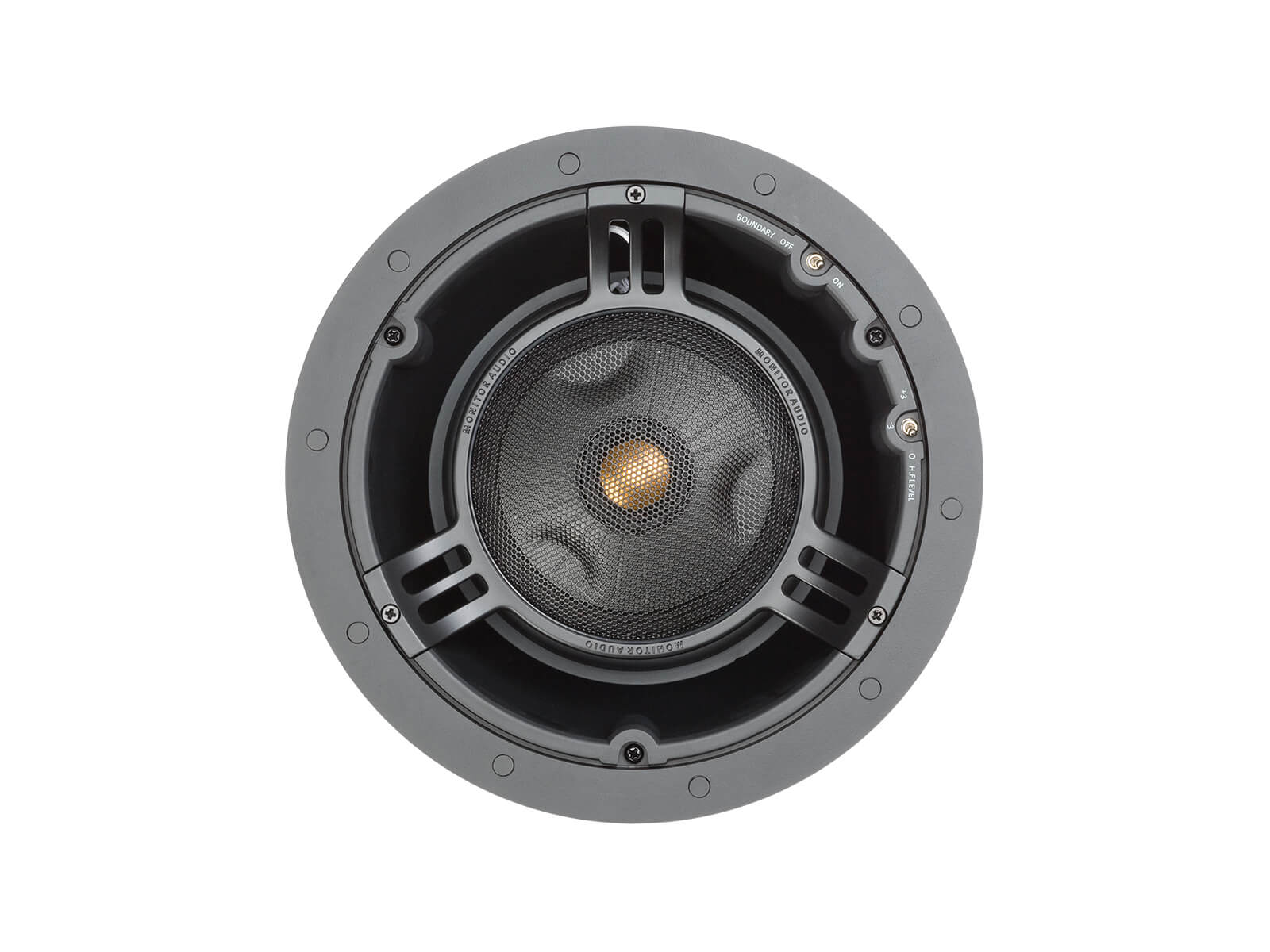

Features a 6 1/2 inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.
True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

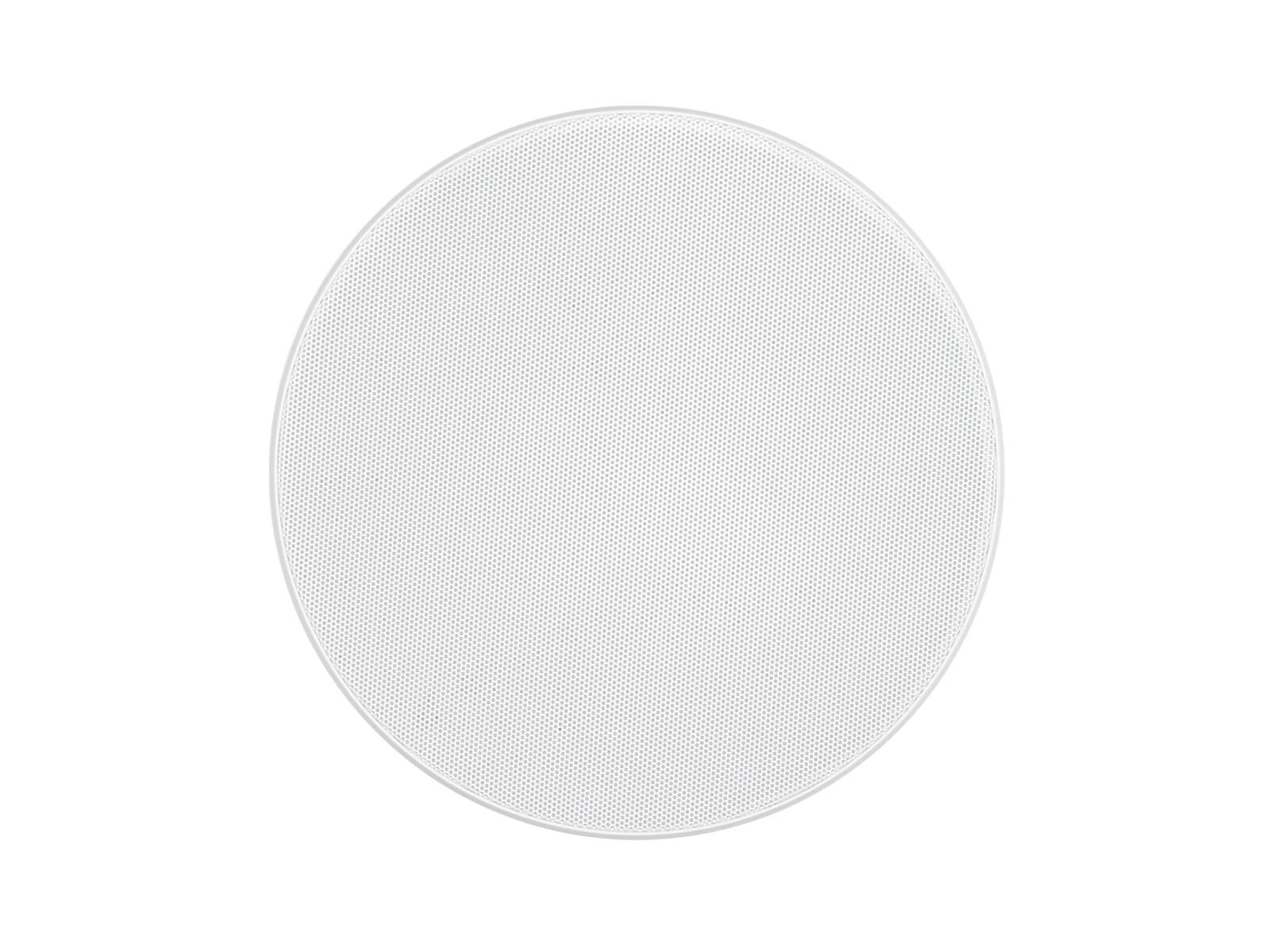

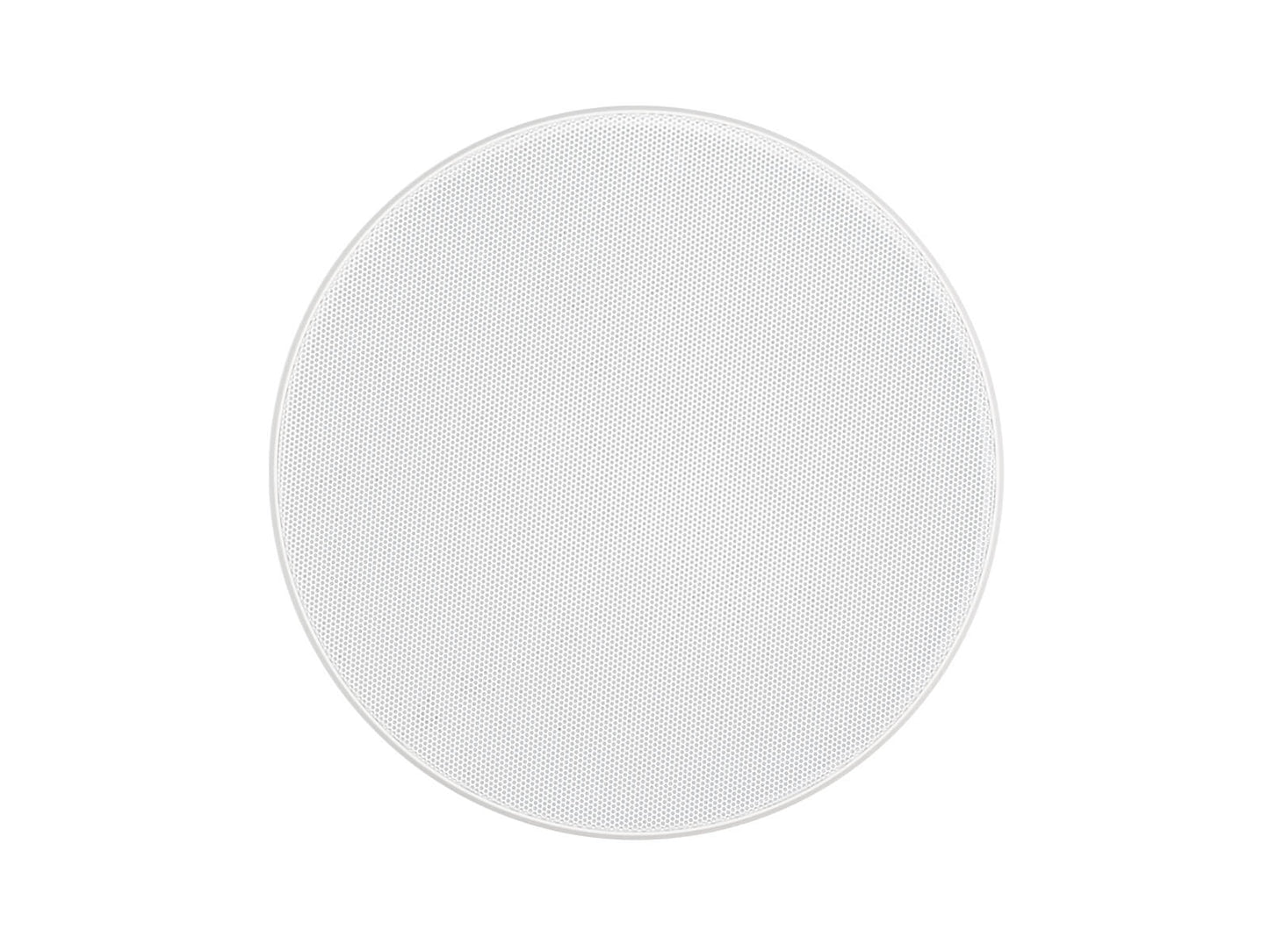

Optional square or premium grille can be used with this model.
Frequency Response
60 Hz – 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
88.5 dB
Maximum SPL
108 dBA
Power Handling (RMS)
85 W
Recommended Amplifier Requirements
20 – 85 W
Drive Unit Complement
6 1/2" C-CAM cone bass driver, pivoting IDC module housing:
4" C-CAM RST inverted mid range driver
1" C-CAM Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
250 mm (913/16")
Overall Depth (Including Grille)
154 mm (61/16")
Mounting Depth
150 mm (57/8")
Cut-Out Hole Diameter
211 mm (81/4")
Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")
Fixing Type
3 position Tri-Grip dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
2.54 kg (6 lb 10 oz)
Pre-Construction Bracket
Sold As
Single Unit
