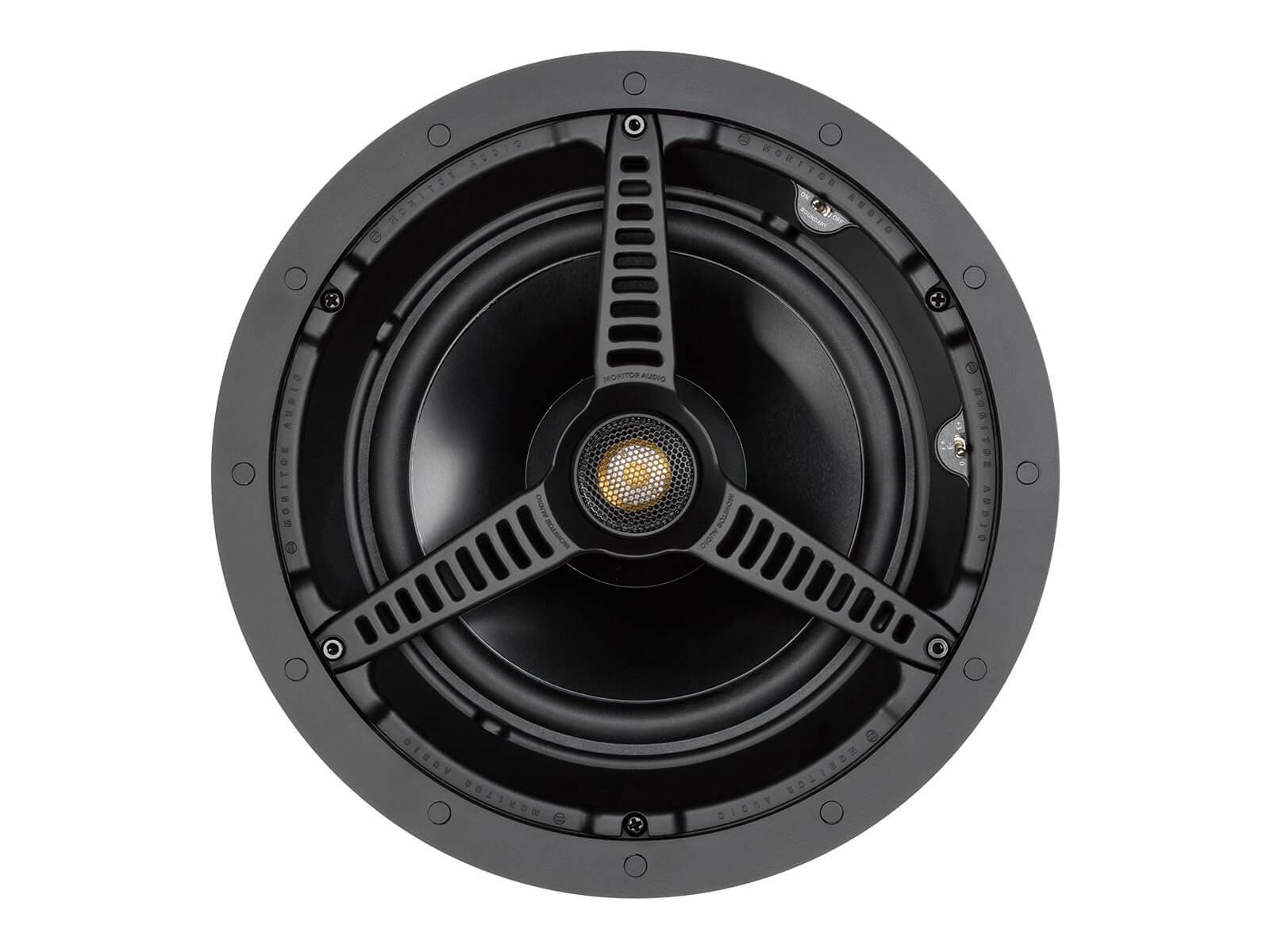

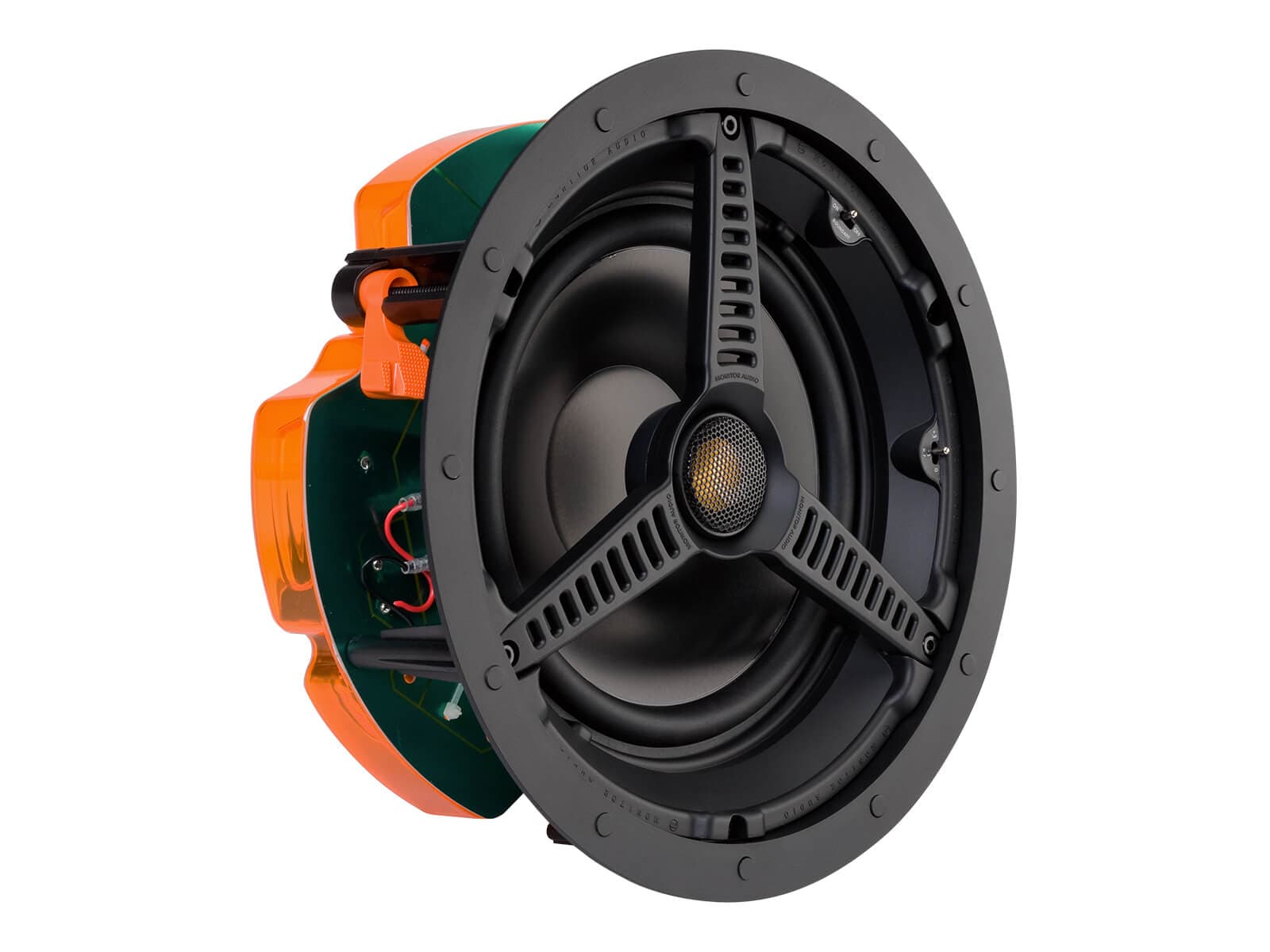

An 8-inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity than the 2-way models.
Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

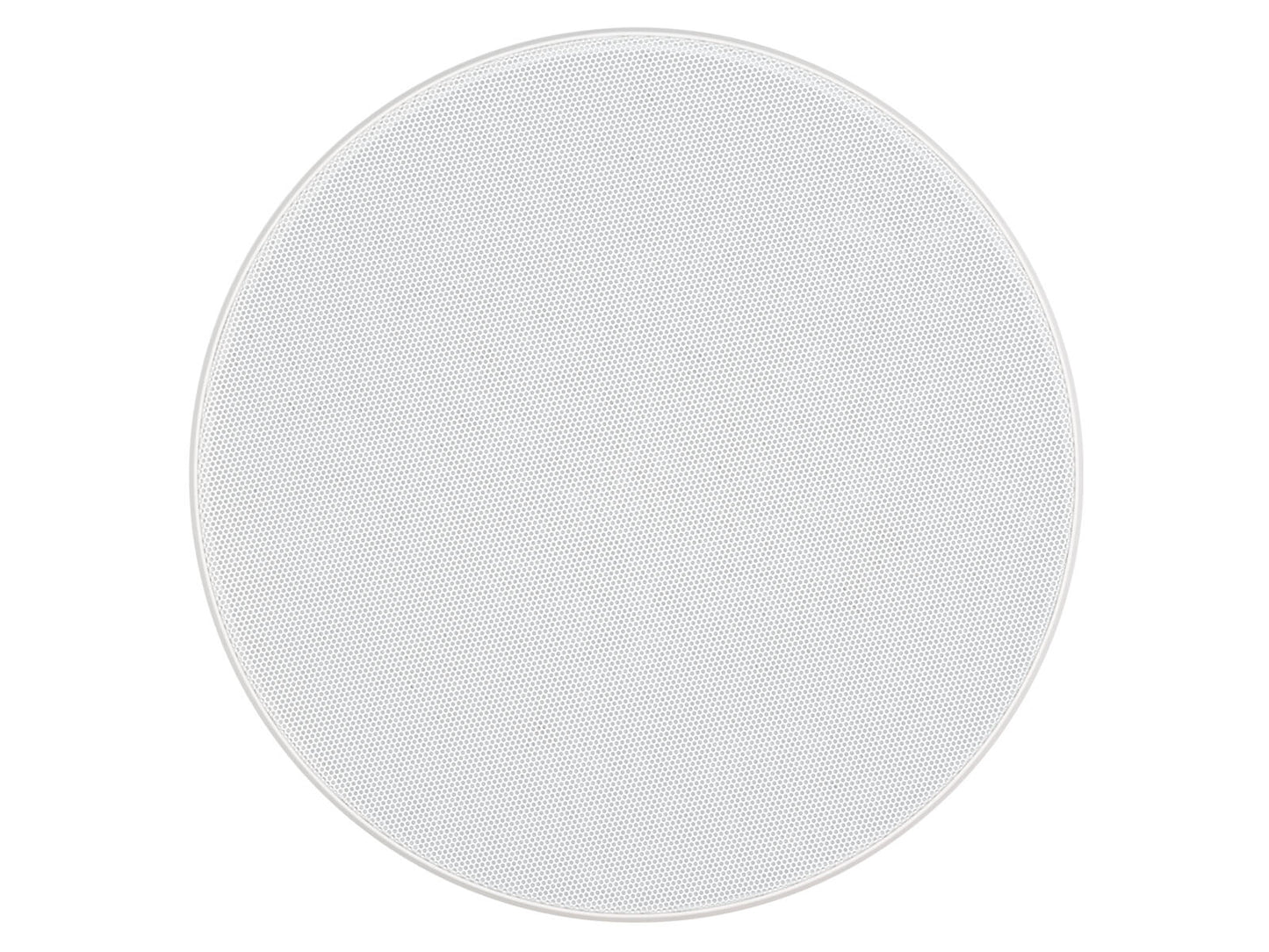

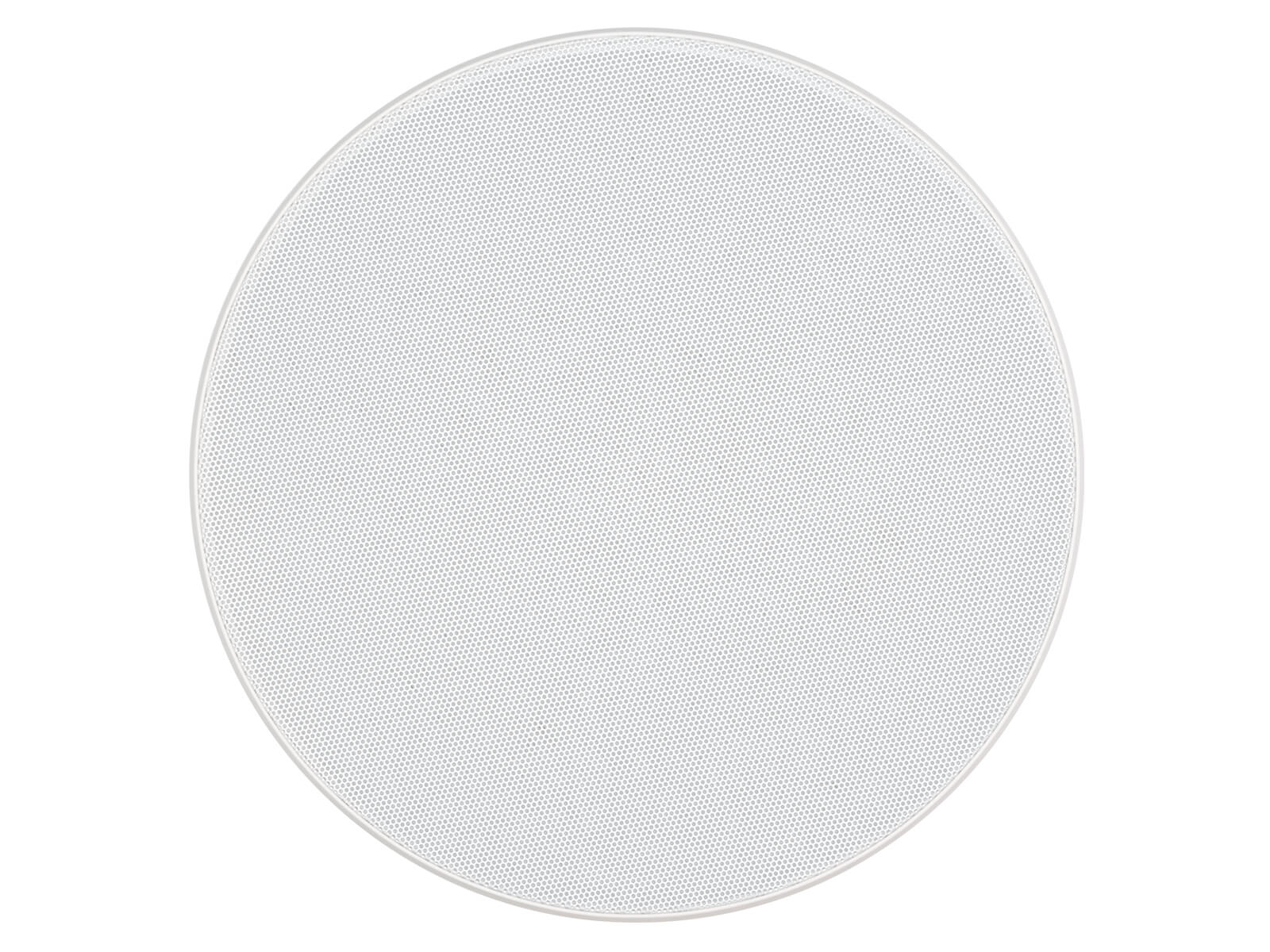

Optional square grille can be used with this model.
50 Hz – 30 kHz
Power Handling (RMS)
Recommended Amplifier Requirements
30 – 120 W
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
285 mm (111/4")
Overall Depth (Including Grille)
126 mm (415/16")
122 mm (413/16")
Cut-Out Hole Diameter
247 mm (93/4")
Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")
3 position Tri-Grip dog fixings
Mineral filled ABS, RoHS compliant
2.8 kg (6 lb 2 oz)
