Monitor Audio C380IDC 3 Way In-Ceiling Speaker – SoundHub

Monitor Audio C380IDC 3 Way In-Ceiling Speaker

  • Sale
  • Regular price $880.00
Tax included.

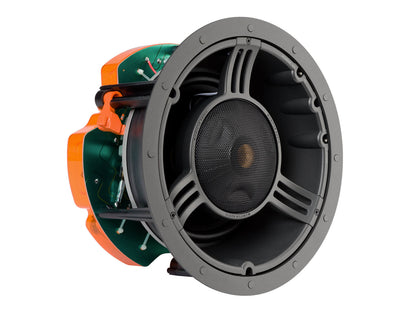

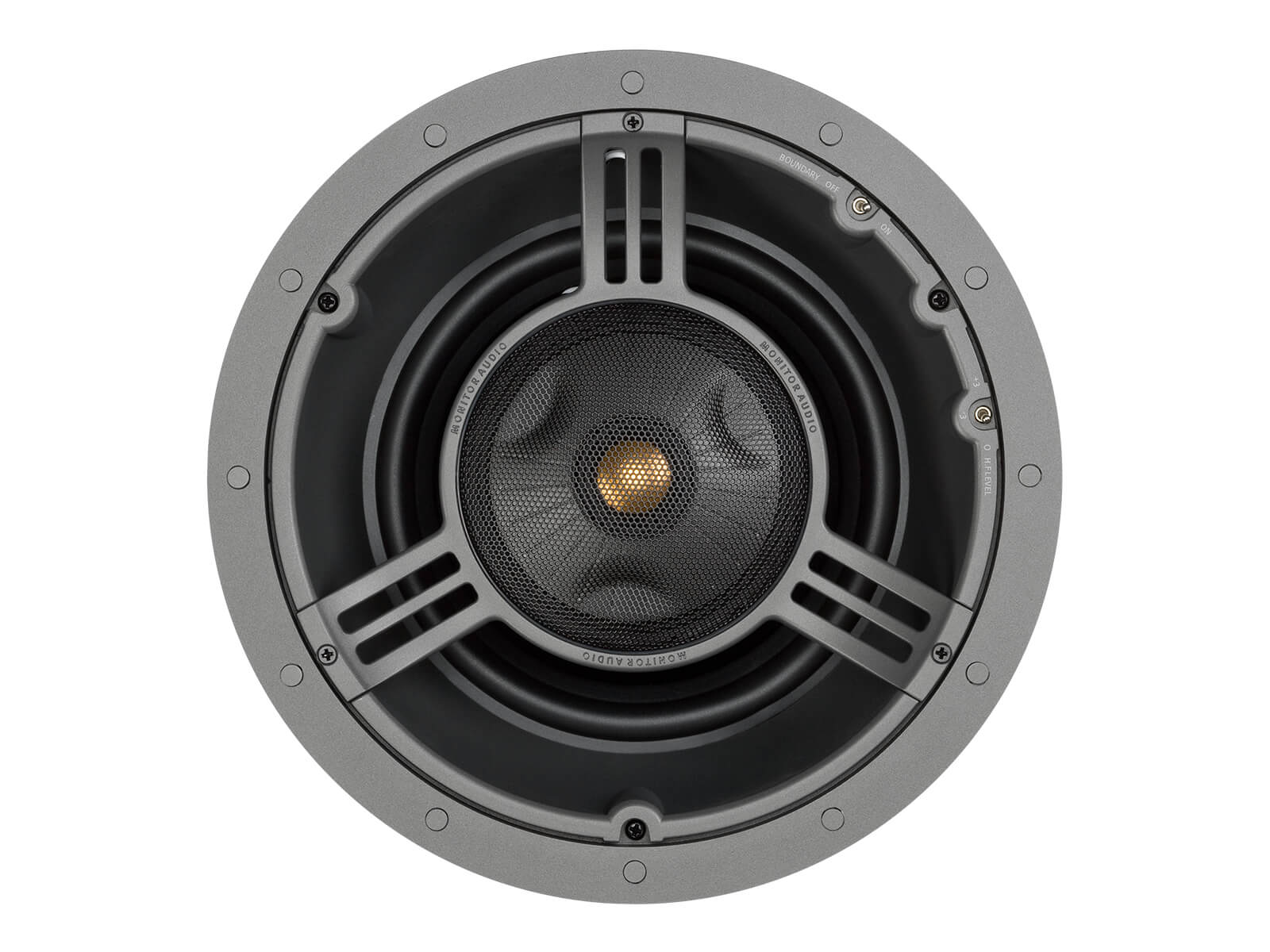

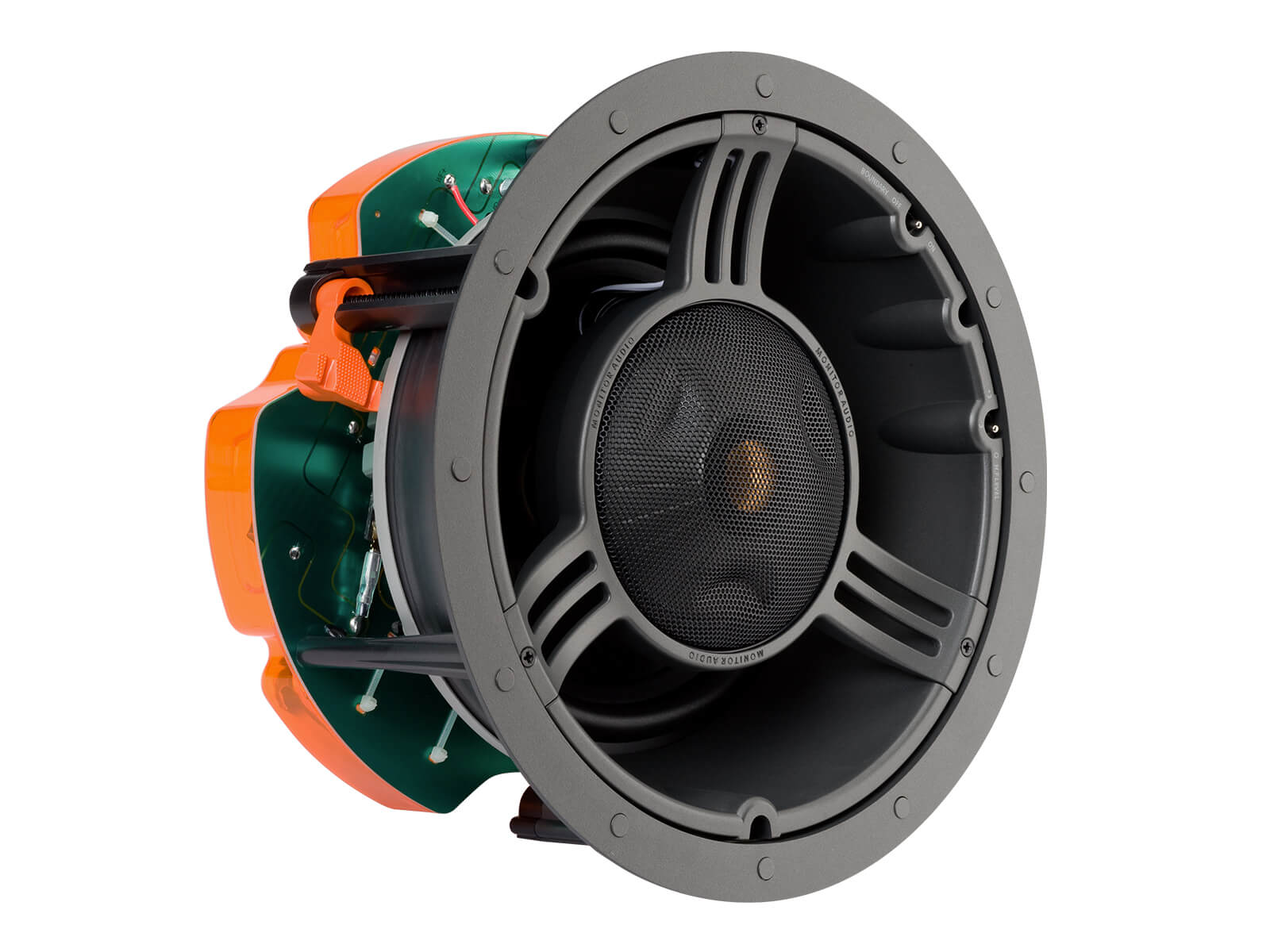

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.

3-way design provides deeper bass, higher system output and greater power handling.

Optional square grille can be used with this model.

Frequency Response

45 Hz – 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

90 dB

Maximum SPL

112 dBA

Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 – 150 W

Drive Unit Complement

8” C-CAM cone bass driver featuring RST pivoting IDC module housing:
4” C-CAM RST inverted mid range driver
1” C-CAM Gold Dome tweeter

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)

285 mm (111/4")

Overall Depth (Including Grille)

161 mm (65/16")

Mounting Depth

157 mm (63/16")

Cut-Out Hole Diameter

247 mm (93/4")

Optional Square Grille - Outer Dimensions

285 x 285 mm (111/4")

Fixing Type

3 position Tri-Grip dog fixings

Construction Material

Mineral filled ABS, RoHS compliant

Weight

3.64 kg (8 lb)

Pre-Construction Bracket

CB8 Pre-Construction Bracket (Green)

Back Box

CMBOX-R

Sold As

Single Unit
