Monitor Audio CF-230 In-Ceiling Speaker

  • Sale
  • Regular price $690.00
Tax included.

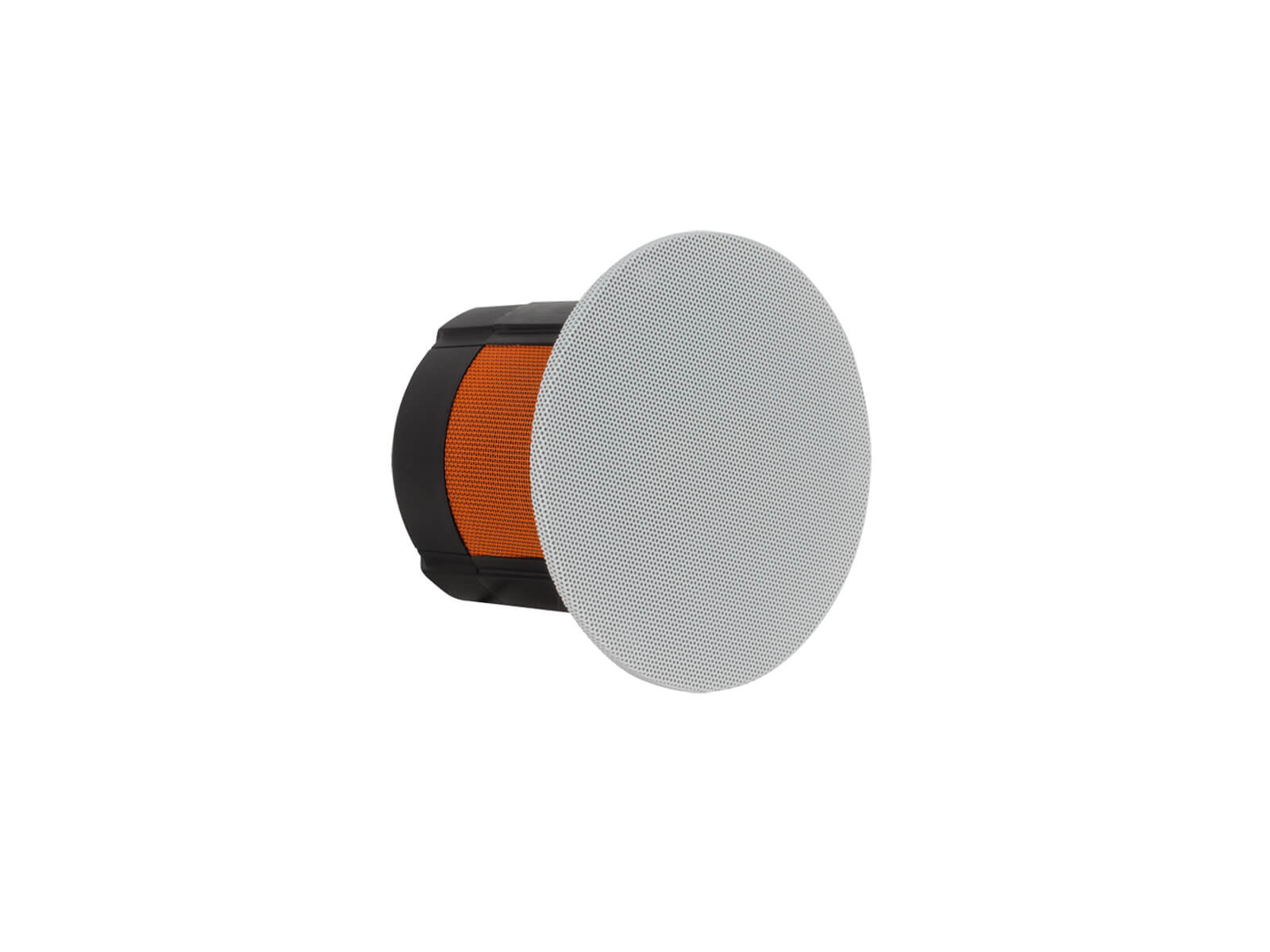

The CF230 is Monitor Audio’s most visually discreet speaker system, providing an abundance of design possibilities for integrators, architects and installers. Its ingeniously designed retrofit and pre-construction make it a dream to install, while its C-CAM-based driver array delivers the superb audio this British maker is famed for.

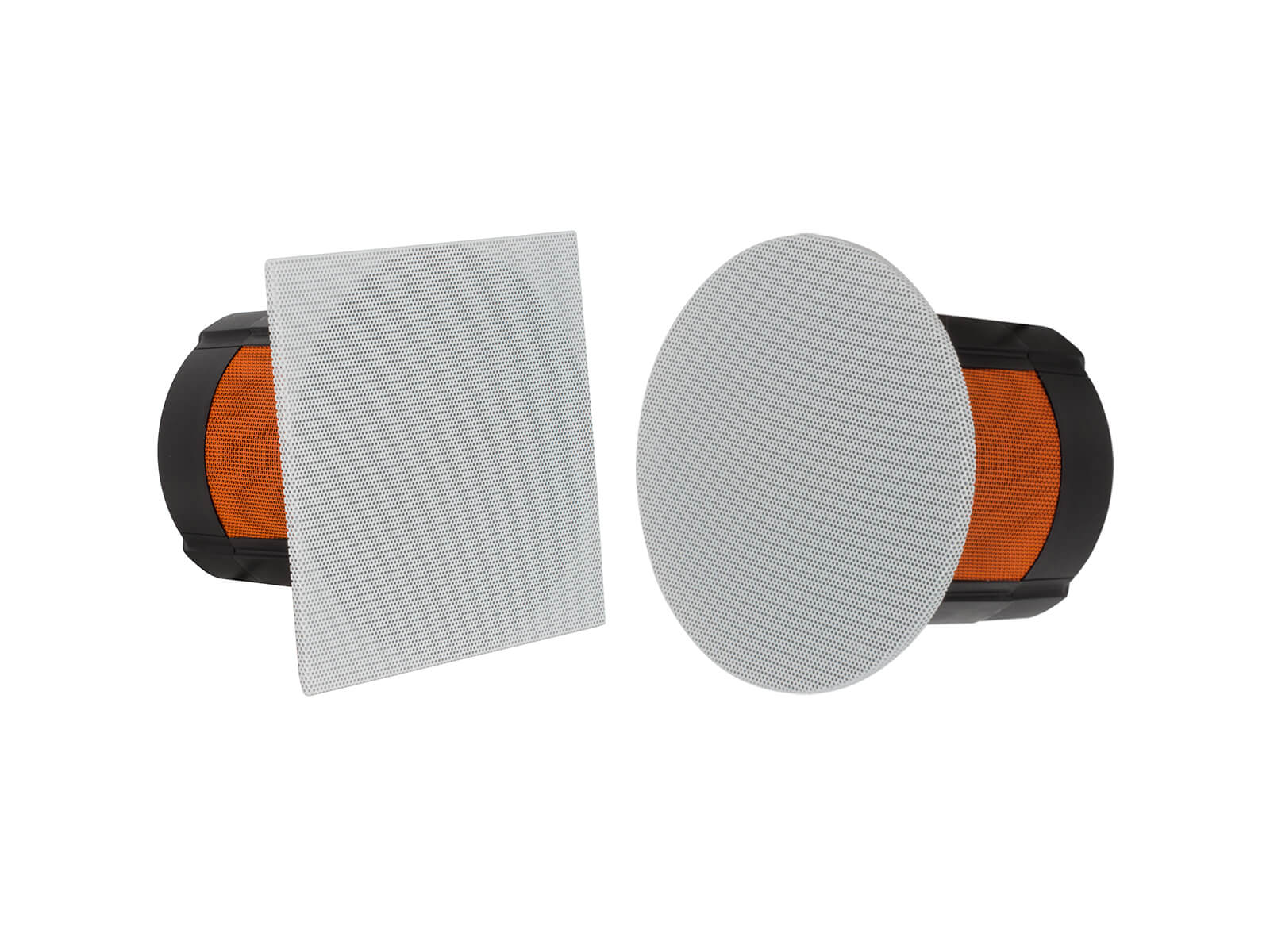

Choose from a beautifully flush fit or discreet, trimless retrofit. Round and square options are on offer, while further choice is provided by the option of ceiling mounting or fitting into a standard stud wall construction.

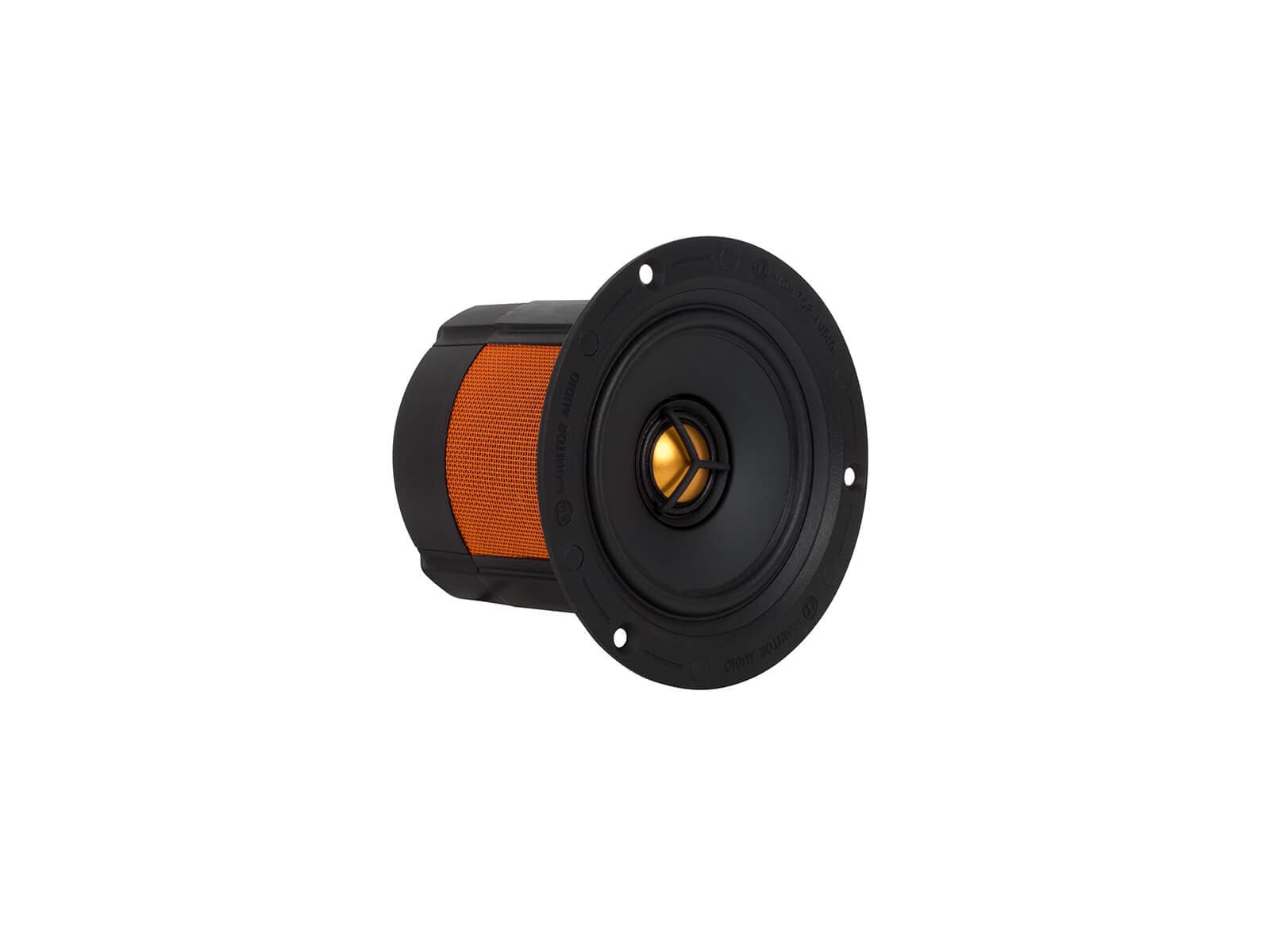

Used on its own, or in multiples, the CF230 presents beautiful sounding audio from its specially designed coincident driver. Featuring Monitor Audio’s innovative C-CAM metal cone technology and housing both the bass-midrange driver and tweeter within a single assembly unit, the result is superb quality sound from an incredibly compact driver.

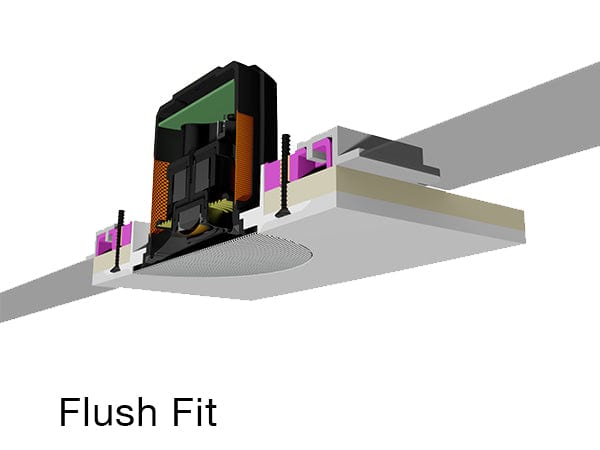

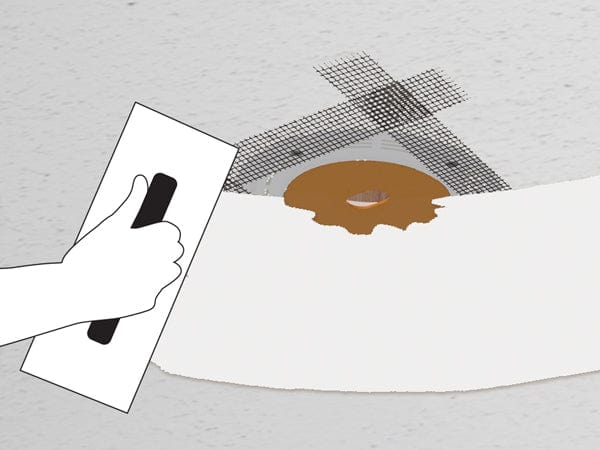

In a pre-construction set-up, the CFB3-R & CFB3-SQ enable a seamless, flush fit appearance. You get clean lines, with no shadow-creating edges, and paint the grille to match the ceiling and the speaker disappears even further into the background.

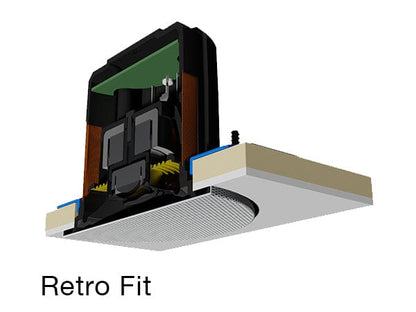

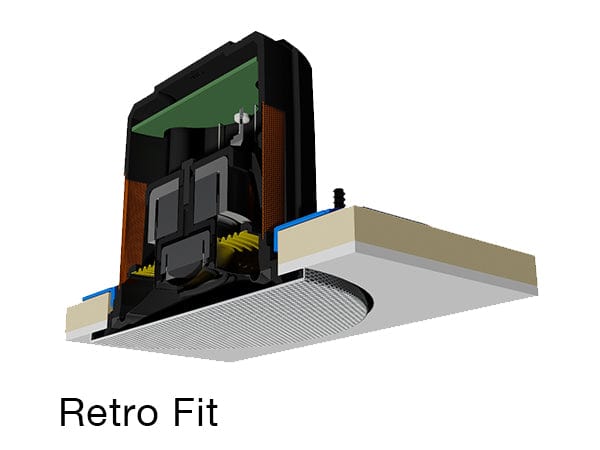

The CFB3-KIT retrofit installation kit cleverly provides a firm fixing behind plasterboard/Sheetrock and requires just three screws to complete the fit. Forget cutting out huge chunks of material, and say goodbye to expensive bracket assemblies.

Add a subwoofer and the result is deep bass to further enhance the already impressive sound. Designed specifically for this model, the driver and chassis is a one-piece moulding, which saves space and enables maximum driver size compared to grille size. The completely enclosed rear assembly, and its fine mesh prevents ingress of dust and residual building materials.

The CF230’s ability to fit into any environment opens up numerous system possibilities. Available in mono or stereo formations, the CF230 provides consistent coverage in a room of around 3m², with a ceiling height of around 2.4m. It’s easy to drive, and its impedance of 8 Ohms means that a single stereo amplifier, such as the Monitor Audio IA150-2, can comfortably power a brace of CF230s.

Journey beyond a four-speaker set-up and a multi-channel amplifier, such as Monitor’s own eight-channel A150-8C, works impeccably well. Whatever the size of the space, the CF230 set-up remains compact, whilst sonically covering a wider area than a conventional in-ceiling speaker, saving on cost as well as visual impact.

Designed and built by people who intimately understand the world of home technology, the CF230 is a shoo-in for any custom speaker project.



Frequency Response (-6 dB)

100 Hz – 25 kHz

Sensitivity (1W@1M)

82.5 dB

Nominal Impedance

8 ohms

Maximum SPL

98 dBA (each – full range)
103.3 dBA (each – Using crossover)

Power Handling (RMS)

30 Watts (full range – IEC268-5 rating)
100 Watts Music program (Using High Pass crossover filter @120 Hz)

Recommended Amplifier Requirements

10-30 Watts (full range)
10-100 Watts (Using High Pass crossover filter @120 Hz)

Drive Unit Complement

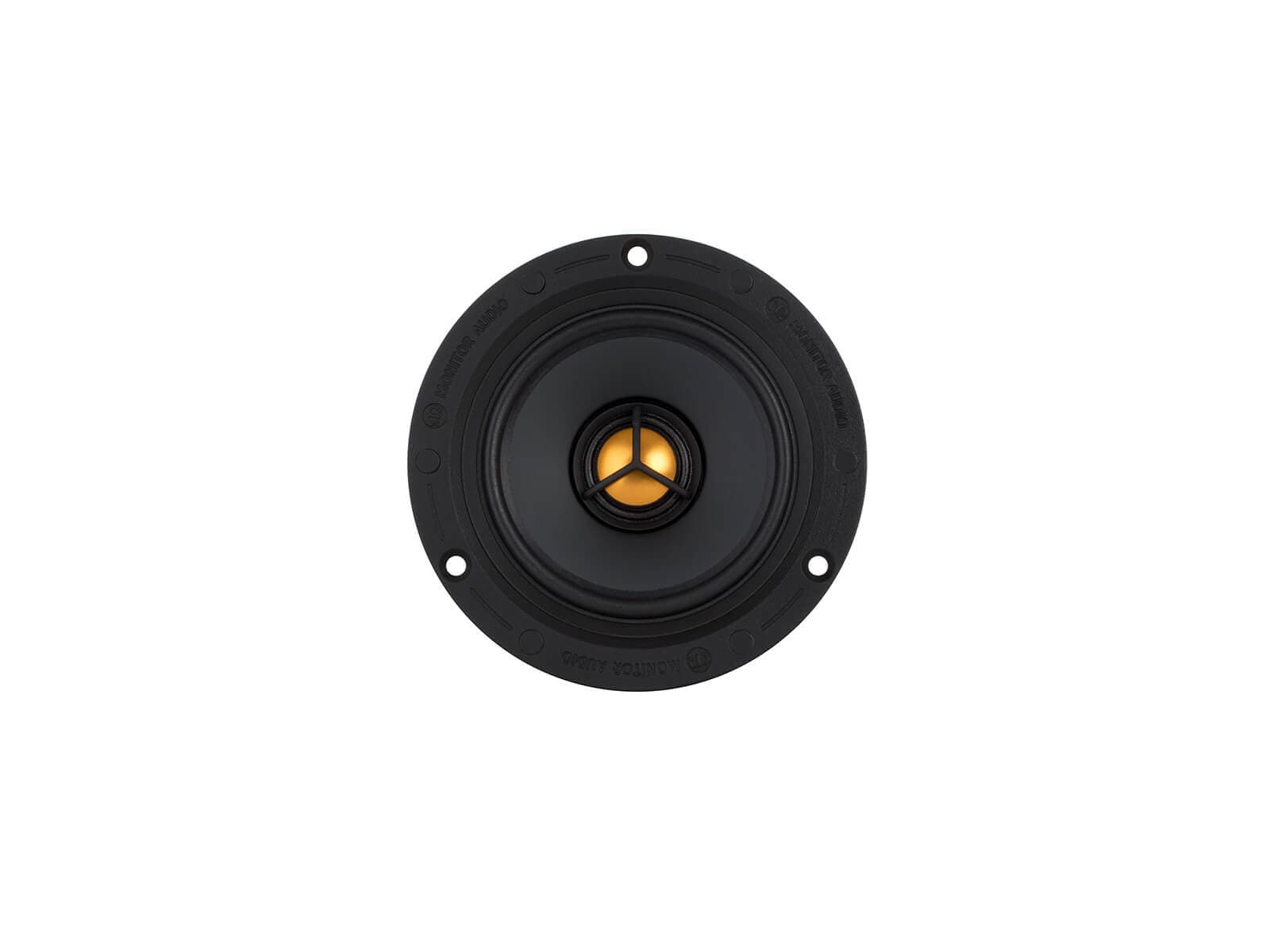

3" Bass/mid-range driver, featuring C-CAM cone. Coincident mounted 19 mm tweeter with C-CAM Gold Dome

Overall Diameter (Including Grille)

112 mm (47/16")

Mounting Depth

81.5 mm (3 3/16")

Cut-Out Hole Diameter

Flush 120 mm (43/4")
Retrofit 90 mm (39/16")

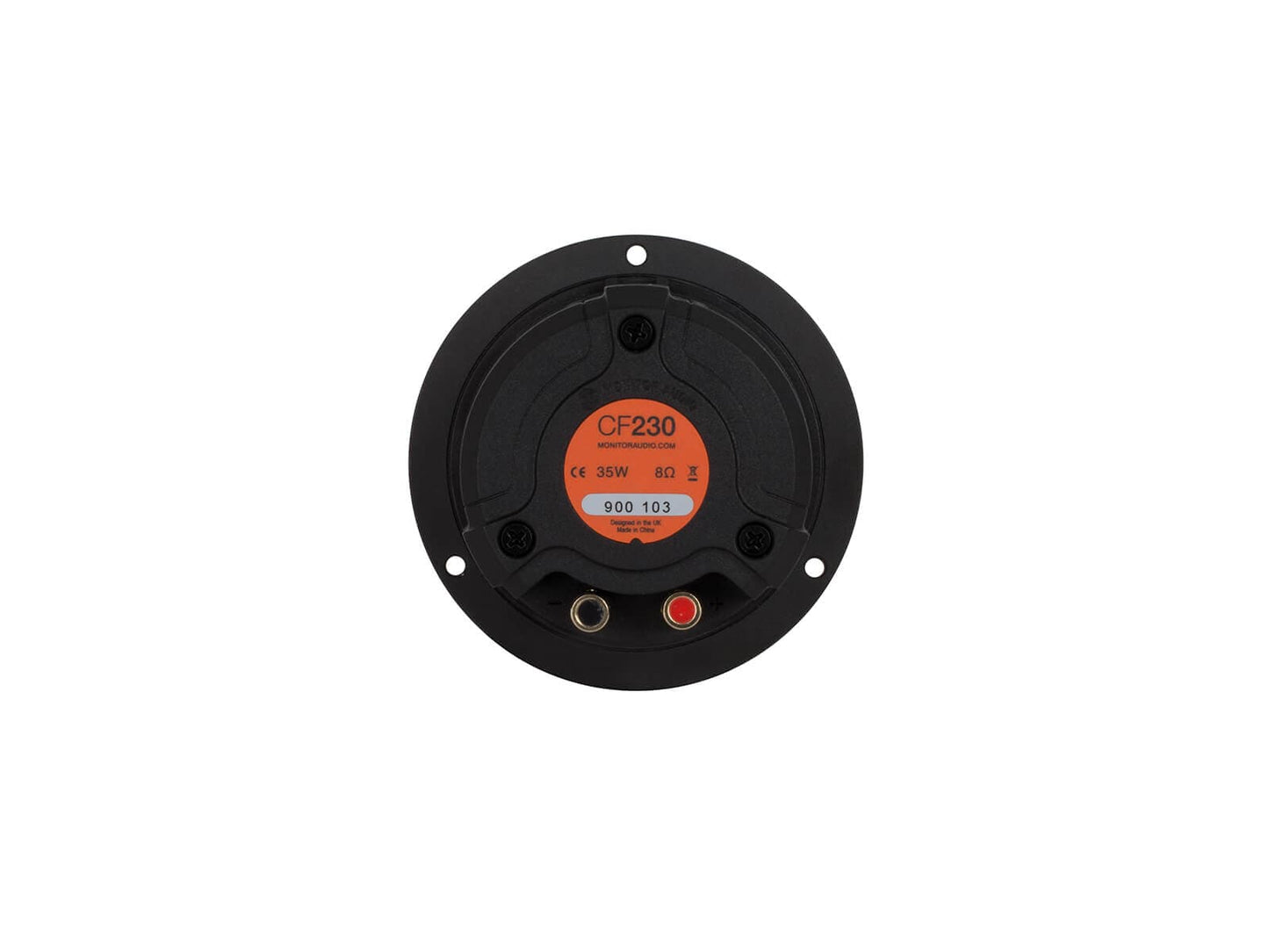

Connection

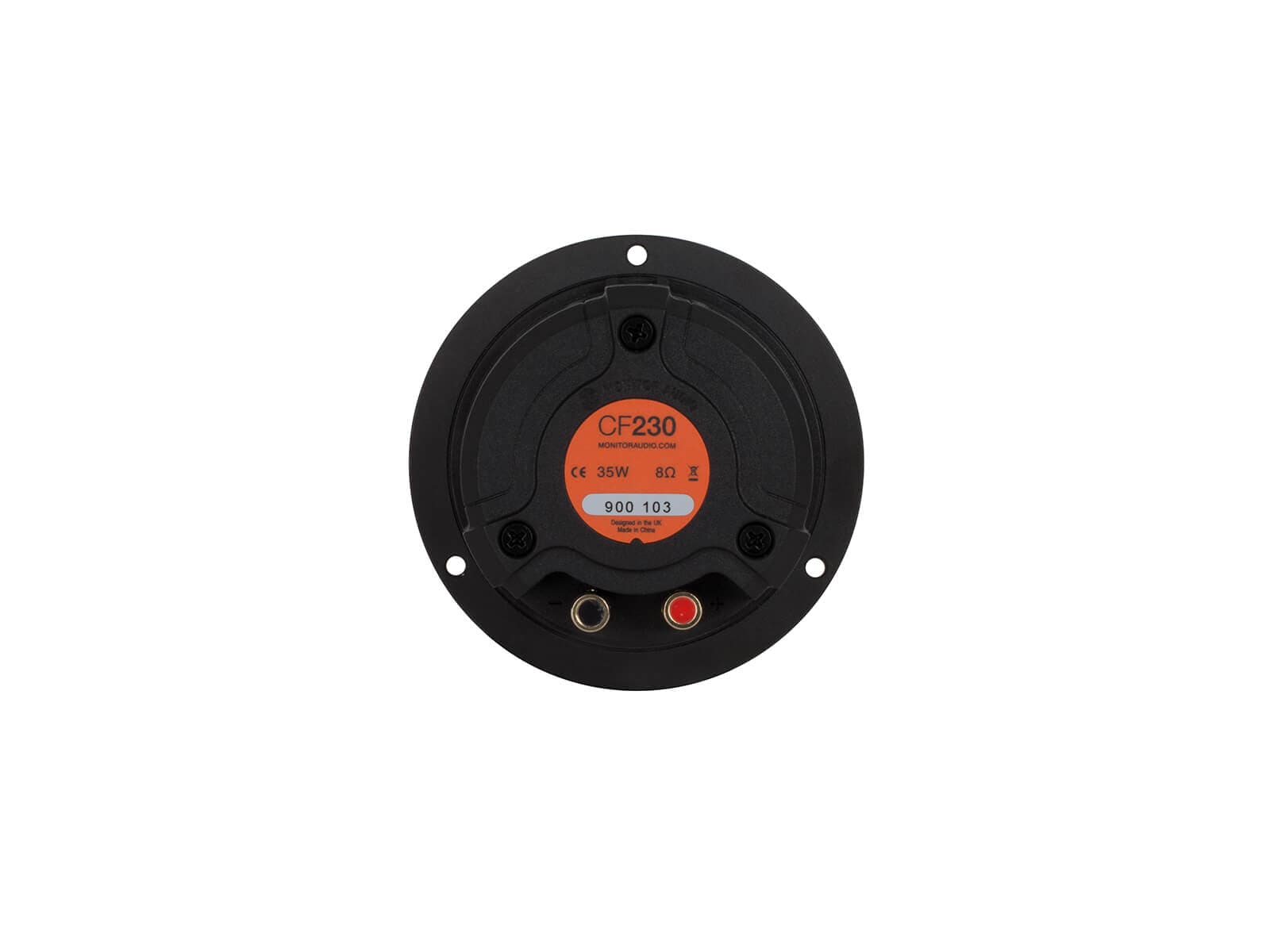

Sprung push type terminals – Gold plated

Weight

0.44 kg (1 lb)

Colour / Finish

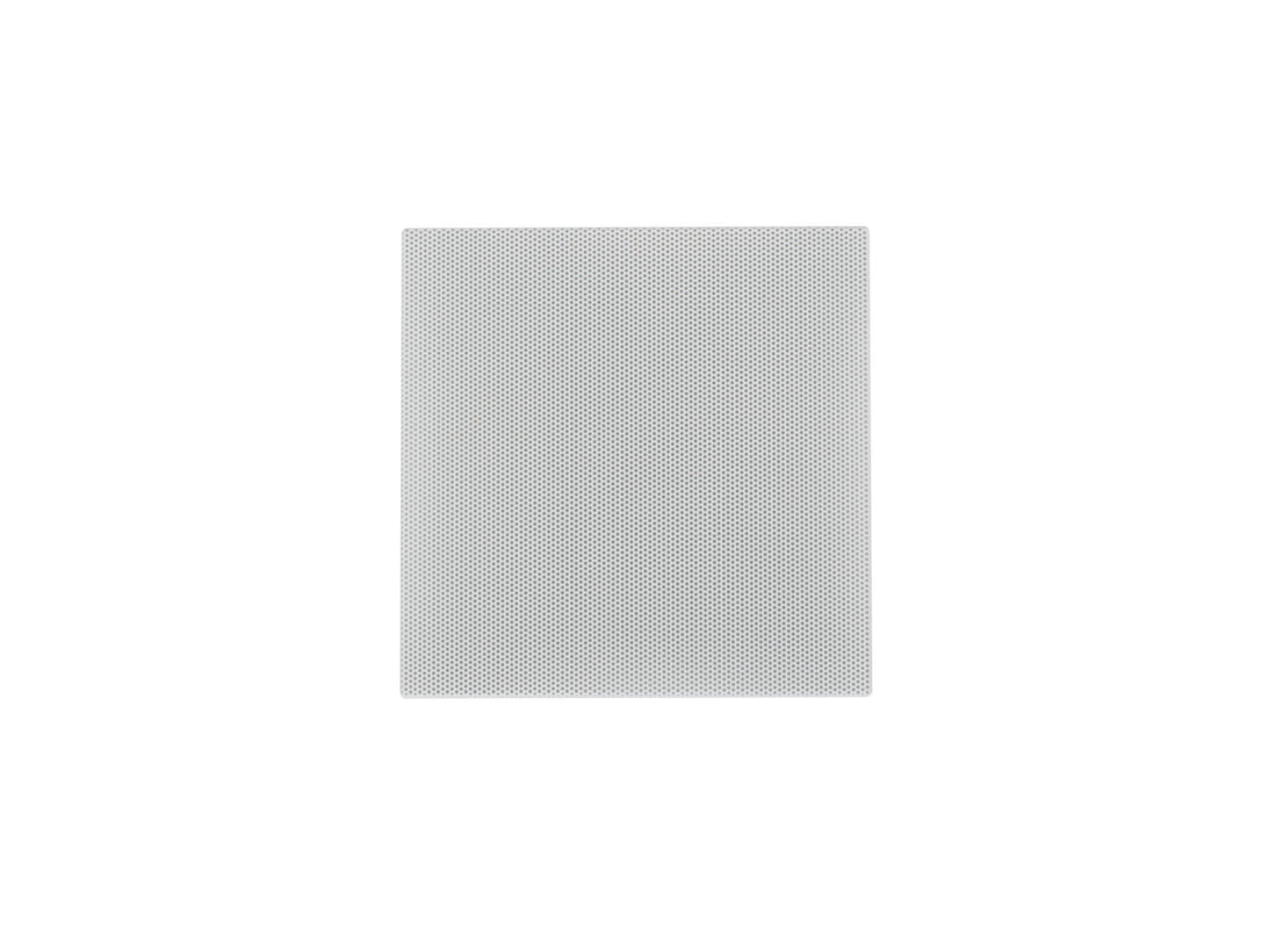

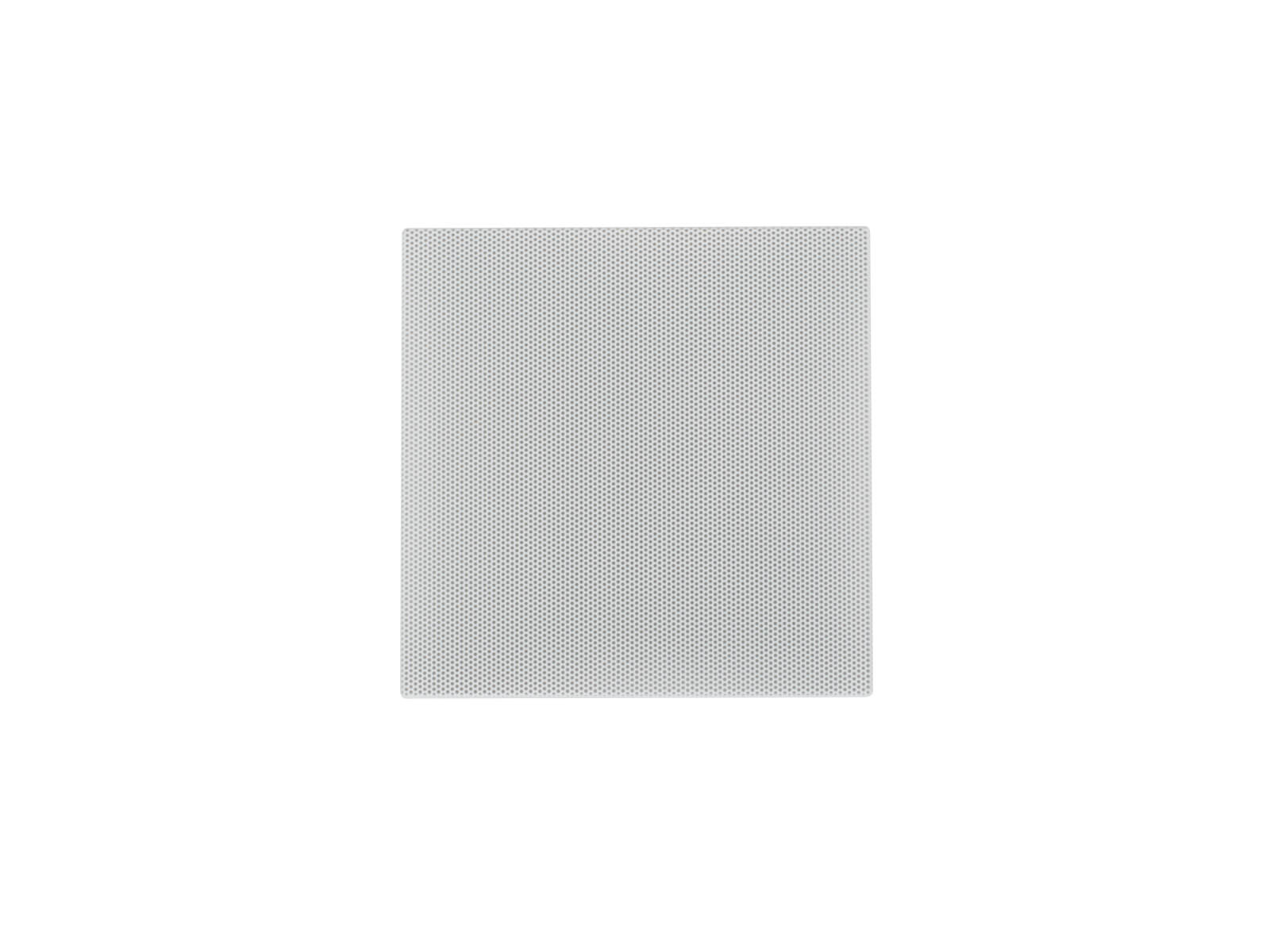

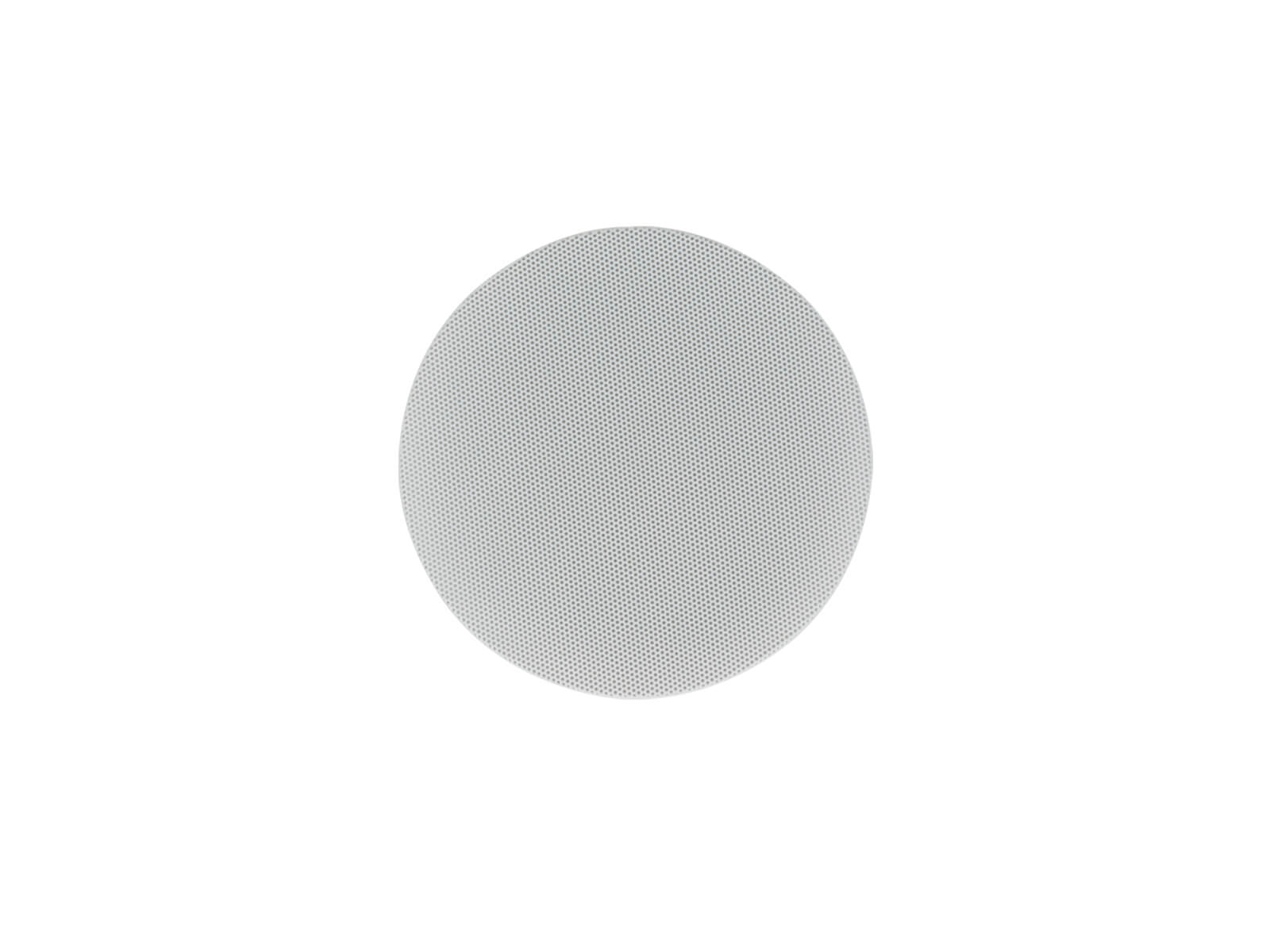

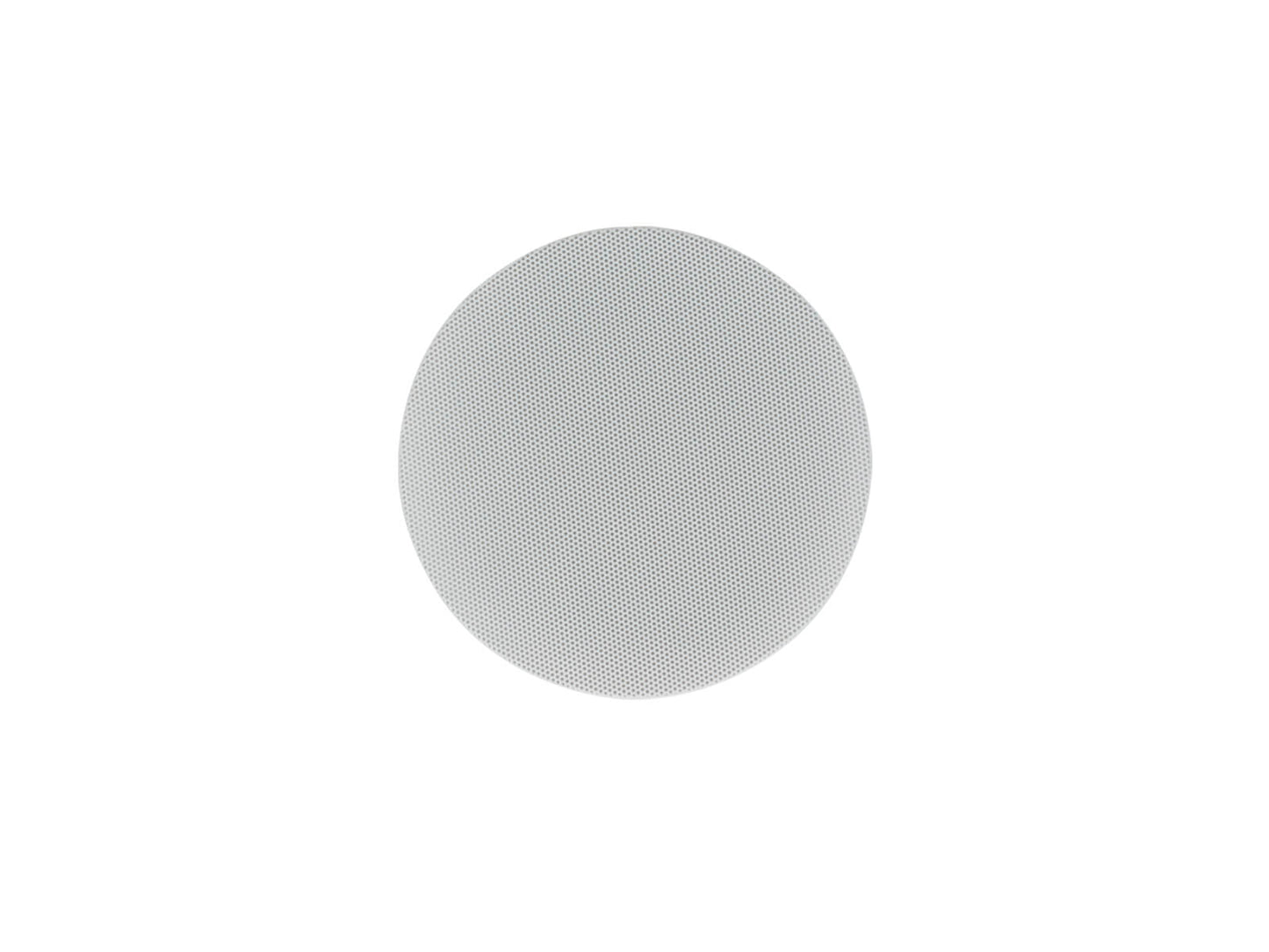

White grille - paintable

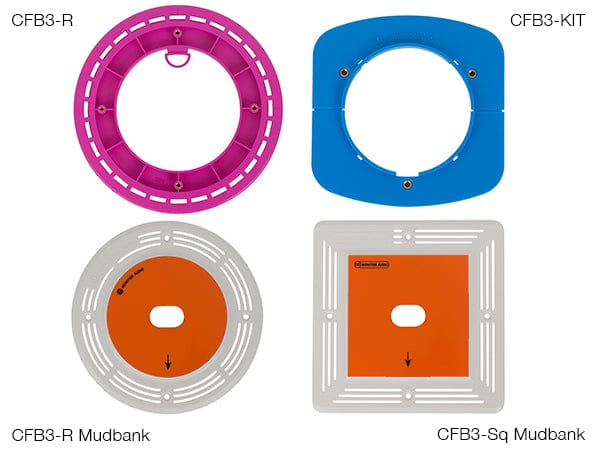

Pre-Construction Bracket

Flush Fit - CFB3-R Pre-Construction Bracket (round) and CFB3-SQ Pre-Construction Bracket (square)
Retrofit - CFB3-KIT Bracket
Pre-construction bracket – Pink (included in above kits)

Sold As

Single Unit
