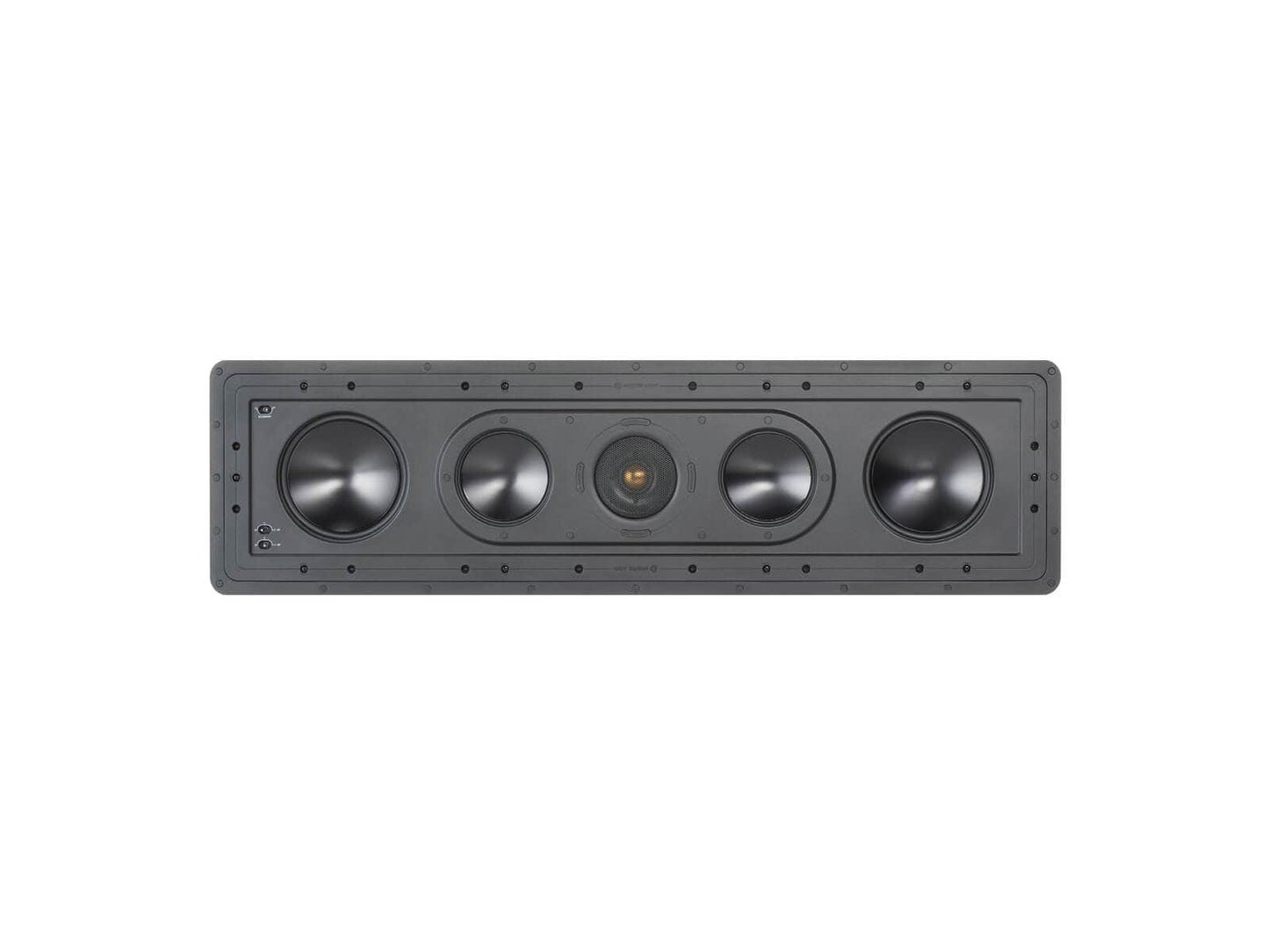

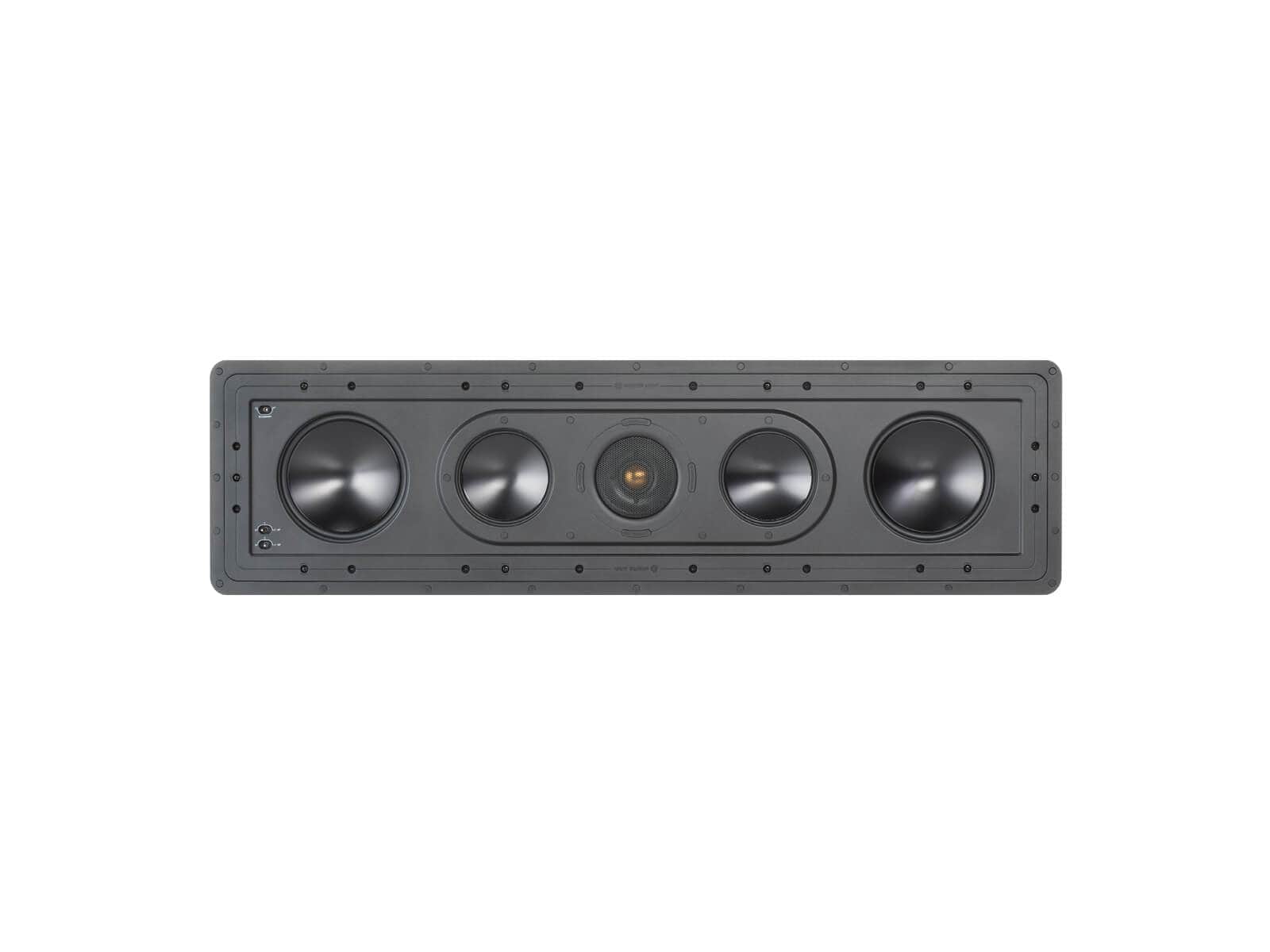

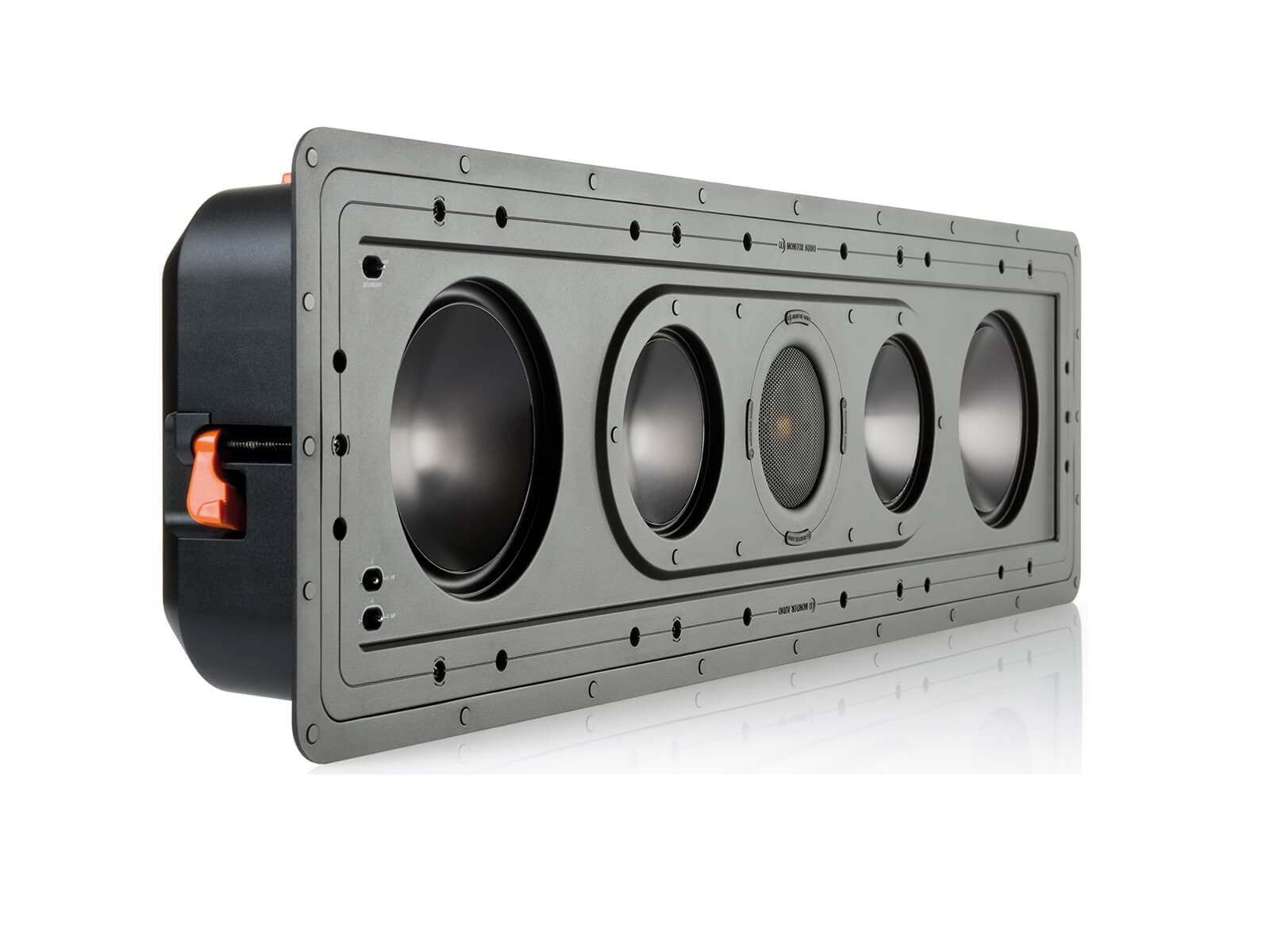

Monitor Audio CP-IW260X In-Wall Speaker – SoundHub

Monitor Audio CP-IW260X In-Wall Speaker

  • Sale
  • Regular price $2,100.00
Tax included.


The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

The CP-IW260X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material deployed in dual 6.5" bass drivers and twin 4" mids astride a Gold Dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.

Important: Do not paint the CP-IW260X and CP-IW460X grilles, as spare scrims are not supplied.

Technology

  • Dual 4" C-CAM mid-range drivers – featuring underhung voice coil

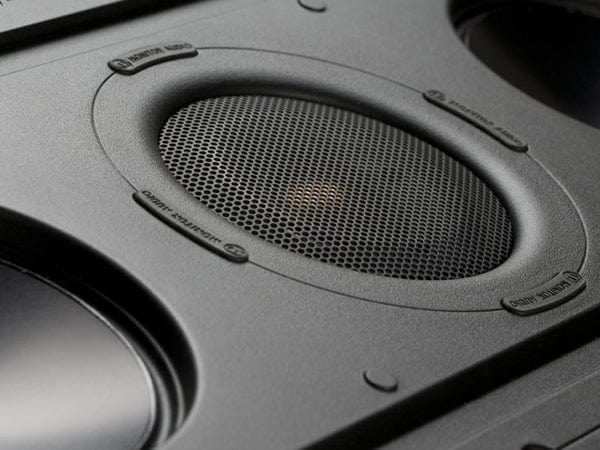

  • 25 mm (1") C-CAM Gold Dome tweeter

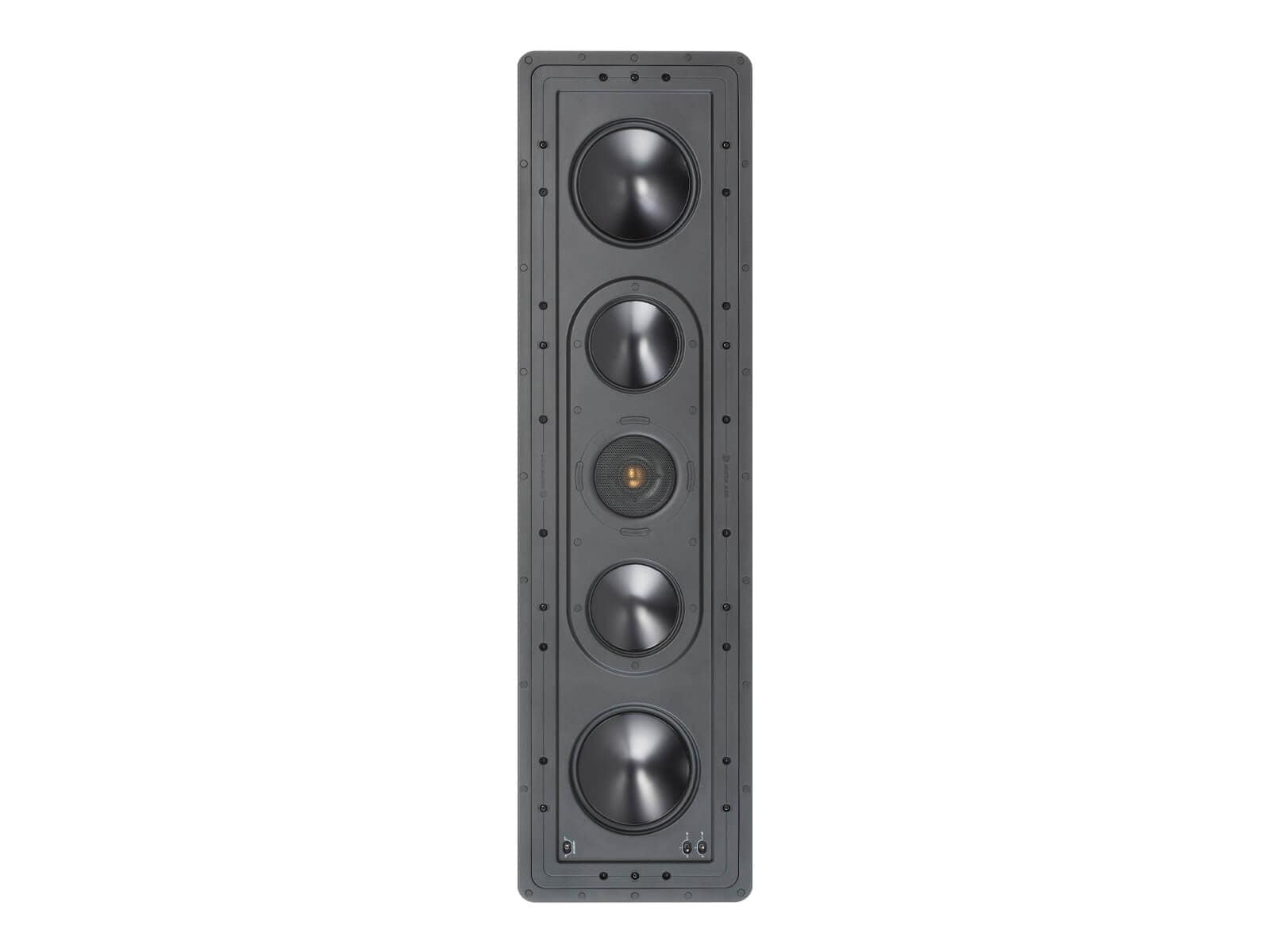

  • Portrait or landscape orientation
  • Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
  • Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
  • High overall efficiency and maximum SPL for powerful home theatre installations
  • High power handling
  • Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
  • High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

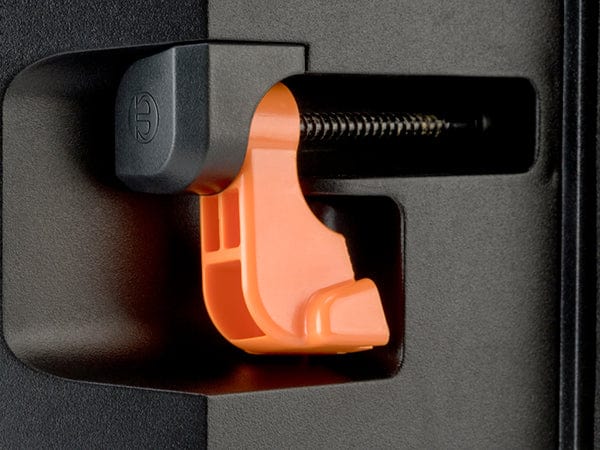

  • Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
  • Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing
Frequency Response

50 Hz – 30 kHz (-6 dB typical in room response)

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

113.8 dBA

Power Handling (RMS)

150 W

Recommended Amplifier Requirements

60 – 150 W

Crossover Frequency

L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave

Drive Unit Complement

2 x 6.5" C-CAM Bass drivers
2 x 4" C-CAM Mid-range drivers
1 x 25 mm (1") C-CAM Gold Dome tweeter

Adjustment Controls

Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D)

907 x 257 mm (353/4 x 101/8")

Overall Depth (Including Grille)

102 mm (4")

Cut-Out Dimensions

880 x 230 mm (3421/32 x 9")

Mounting Depth

96 mm (33/4")

Fixing Type

10 x Tri-Grip Dog leg fixings

Construction Material

Cast Polymer enclosure (RoHS2 Compliant)

Weight

11.98 kg (26 lb 6 oz)

Pre-Construction Bracket

WB12 Pre-Construction Bracket (Green)

Sold As

Single Unit
