Monitor Audio CP-WT380IDC 3 Way In-Wall Speaker

  • Sale
  • $1,100.00
Tax included.

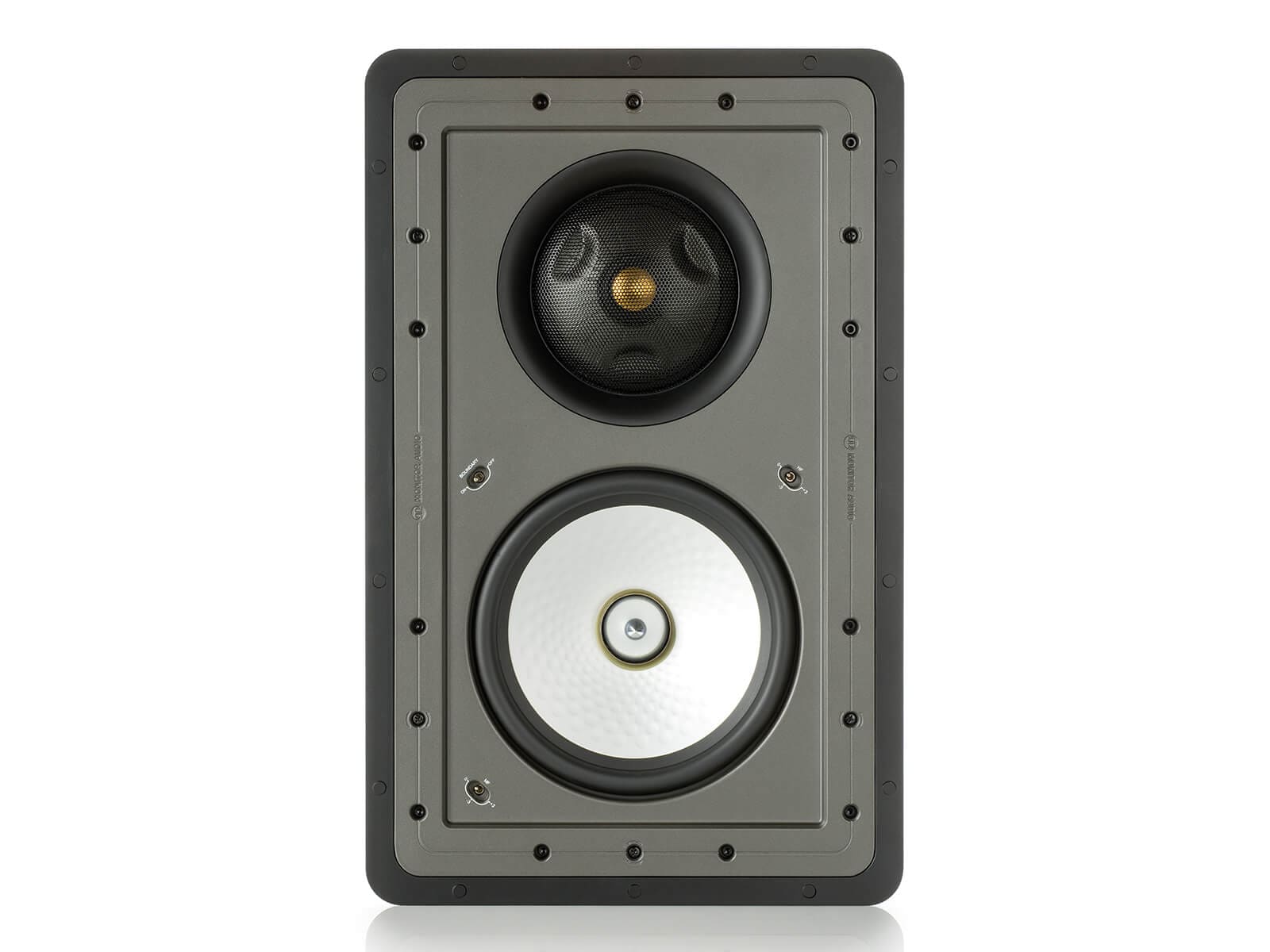

Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-WT380IDC represents the highest level of new CP performance.

Technology

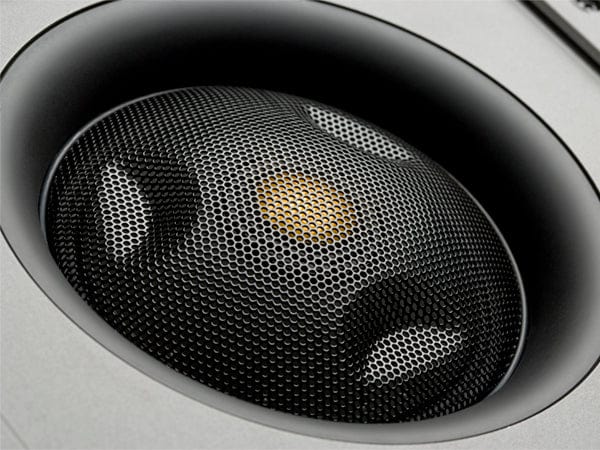

  • Pivoting IDC C-CAM gold dome tweeter.
  • Pivoting module consisting of IDC midrange driver and C-CAM Gold Dome tweeter.
  • C-CAM bass driver featuring Rigid Surface Technology (RST).
  • High overall efficiency.
  • High frequency level adjustment (+/-3 dB).
  • Midrange frequency level adjustment.
  • Boundary compensation controls.
  • Die-cast aluminium front baffle.

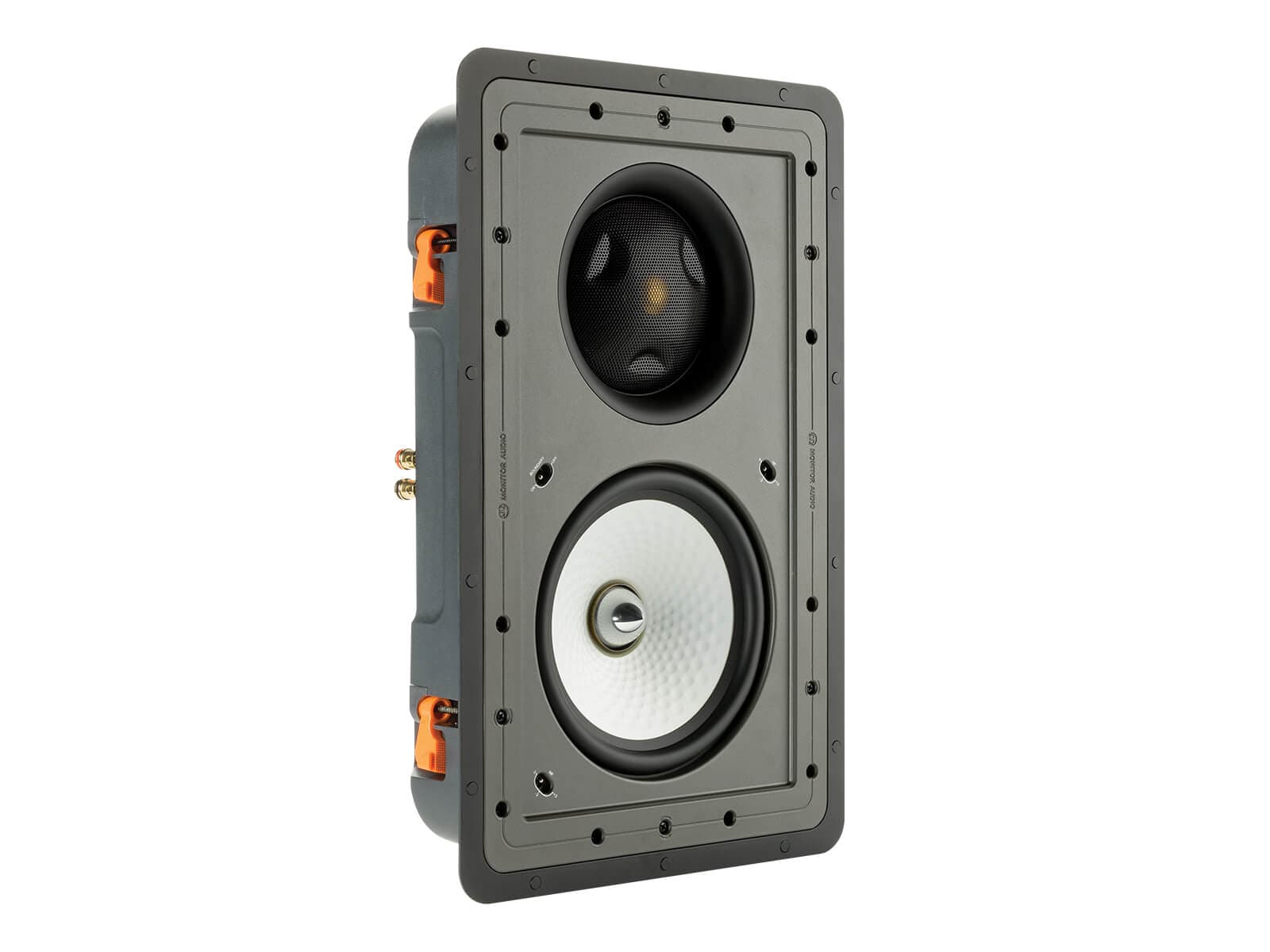

  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

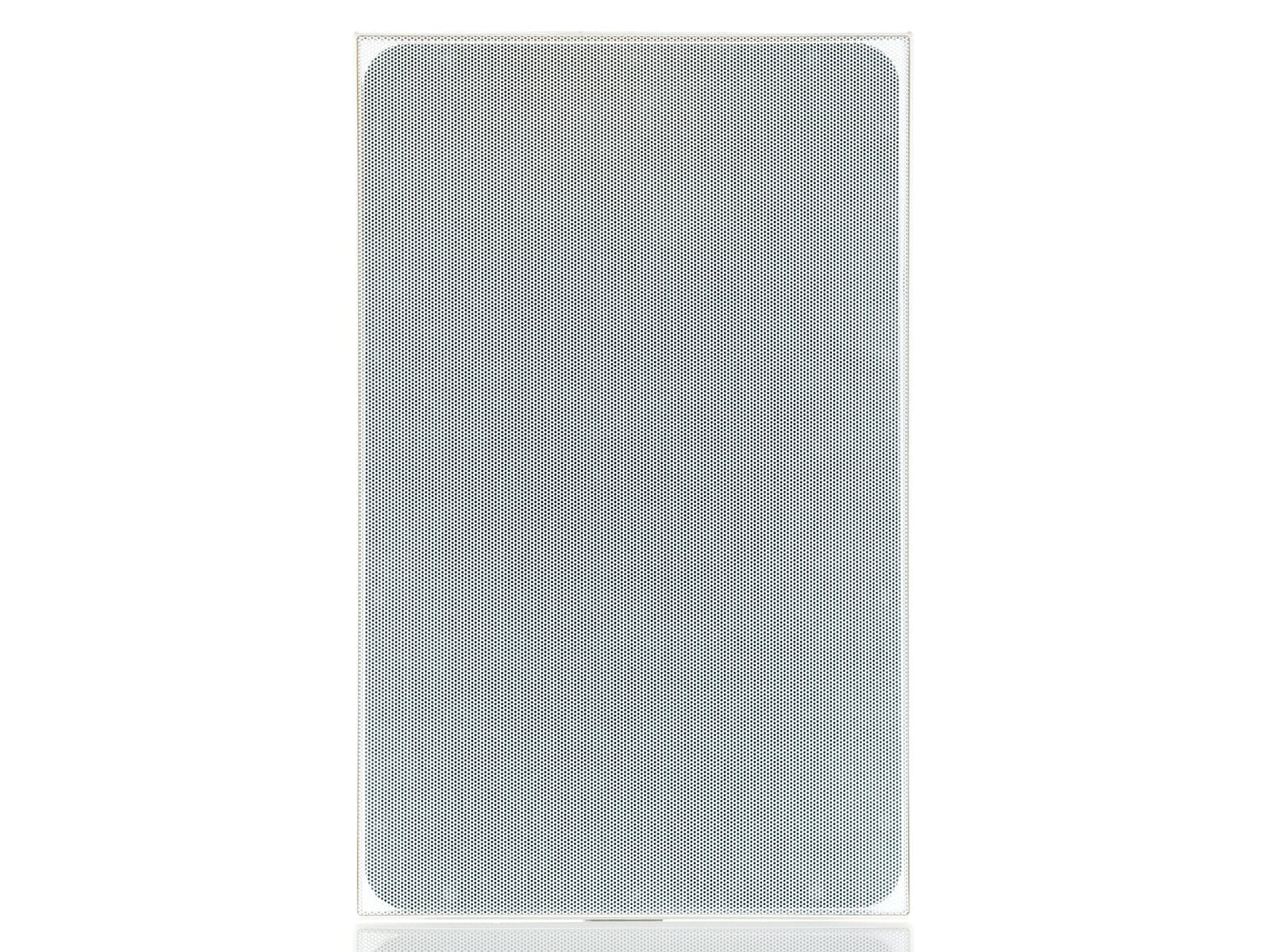

  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.

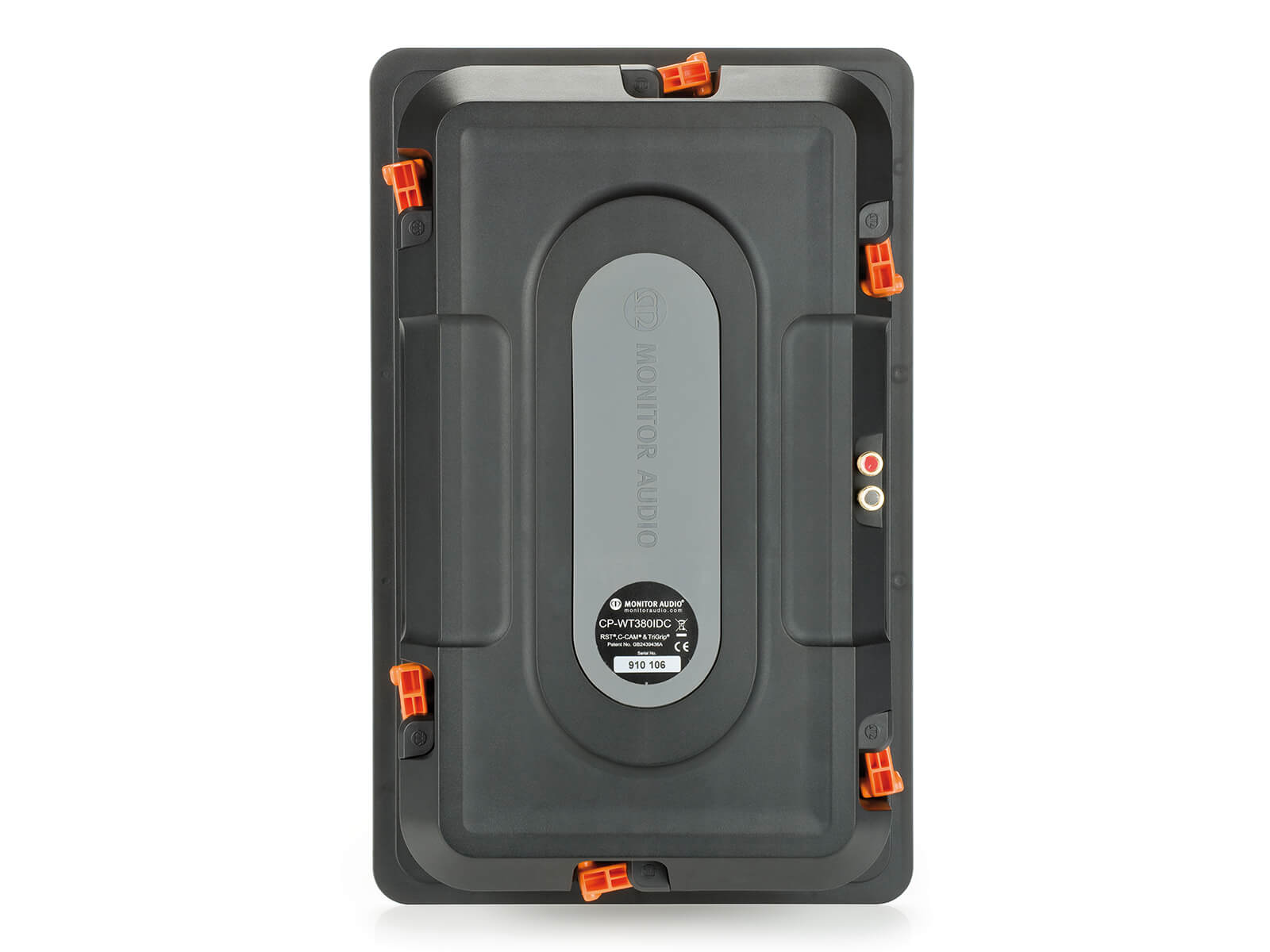

  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Frequency Response

50 Hz – 30 kHz

Nominal Impedance

6 ohms

Sensitivity (1W@1M)

89 dB

Maximum SPL

109.6 dBA

Power Handling (RMS)

120 W

Recommended Amplifier Requirements

30 – 120 W

Crossover Frequency

Bass low pass: 300 Hz @ 6 dB / Octave
Mid: 300 Hz @  6 dB / Octave
& 3 kHz @ 12 dB / Octave

Drive Unit Complement

3-Way
8" C-CAM RST cone bass driver
4" C-CAM IDC cone mid range driver
1" C-CAM Gold Dome tweeter
(tweeter & midrange driver combined in a pivoting module)

Adjustment Controls

HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+3 dB/ 0 dB/ -3 dB)
Boundary Compensation Switch

Overall Dimensions (H x W x D)

472.5 x 303.5 mm (185/8 x 1115/16")

Overall Depth (Including Grille)

106 mm (43/16")

Cut-Out Dimensions

438 x 269 mm (171/4 x 109/16")

Mounting Depth

99 mm (37/8")

Fixing Type

6 position Tri-Grip dog leg fixings

Construction Material

Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight

5.62 kg (12 lb 6 oz)

Pre-Construction Bracket

WB10 Pre-Construction Bracket (Light Brown)

Sold As

Single Unit
