The flagship Gold 500 6G is engineered to deliver the very highest levels of performance. It features the latest MPD III high-frequency transducer alongside an HDT, C-CAM 3-inch mid-driver and twin 8-inch bass drivers.
The Gold 500 6G is the flagship model of the new Gold Series 6G. It represents the highest-levels of performance and system design at the price point, and within this competitive market segment. Designed to house the latest MPD III high-frequency transducer alongside the new 3-inch mid-driver and powerful twin 8-inch bass drivers, each of which benefit from the latest HDT, C-CAM cone technology and hugely powerful motor systems. The Gold 500 6G is a worthy flagship for such a prestigious range; a formidable acoustic treat for the ears as well as the eyes.
Key Features
- Three-way design
- 1 x MPD III high-frequency transducer
- 1 x 3-inch mid-driver featuring HDT, C-CAM cone technology
- Steel mid-pod enclosure with die-cast aluminium baffle
- 2 x 8-inch bass drivers featuring HDT, C-CAM cone technology
- New crossover design utilising carefully selected high-quality capacitors
- Ported cabinet design using HiVe II port technology and through-bolt technology
- All-new cast aluminium outriggers and plinth/spike assembly featuring a new steel plate for greater structural integrity and improved stability

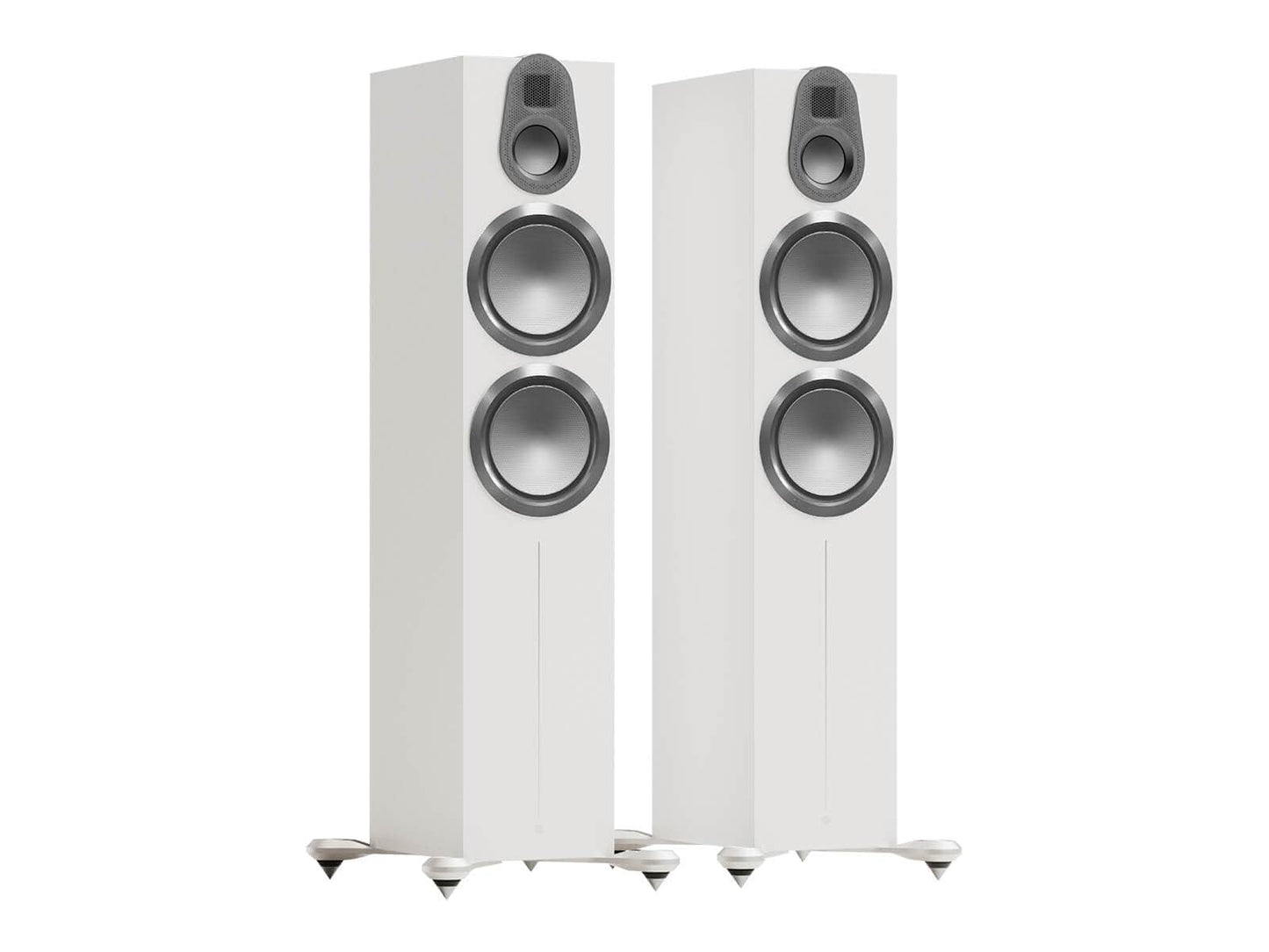

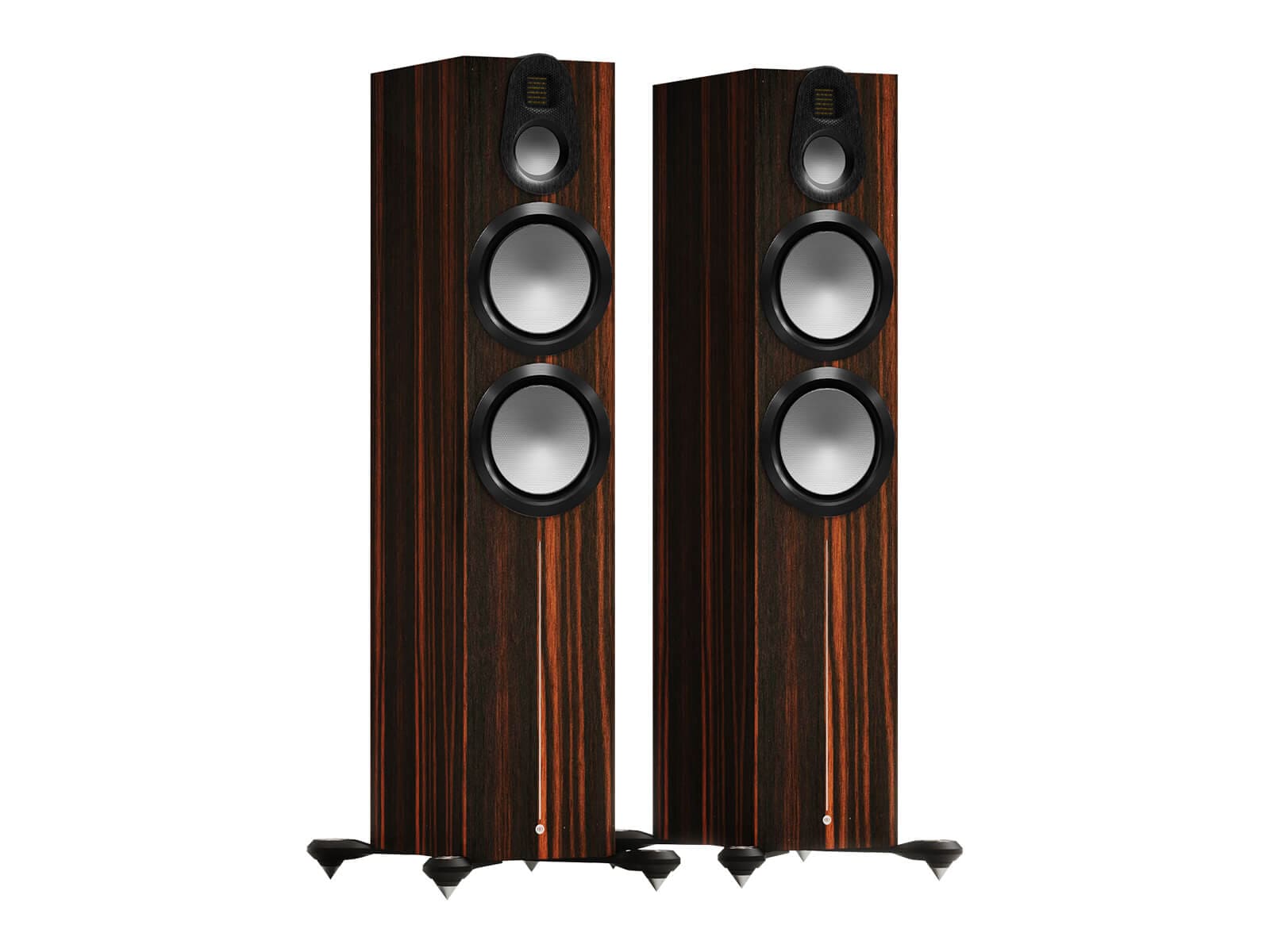

- Finishes available: Macassar wood veneer, High-Gloss Black and Satin White

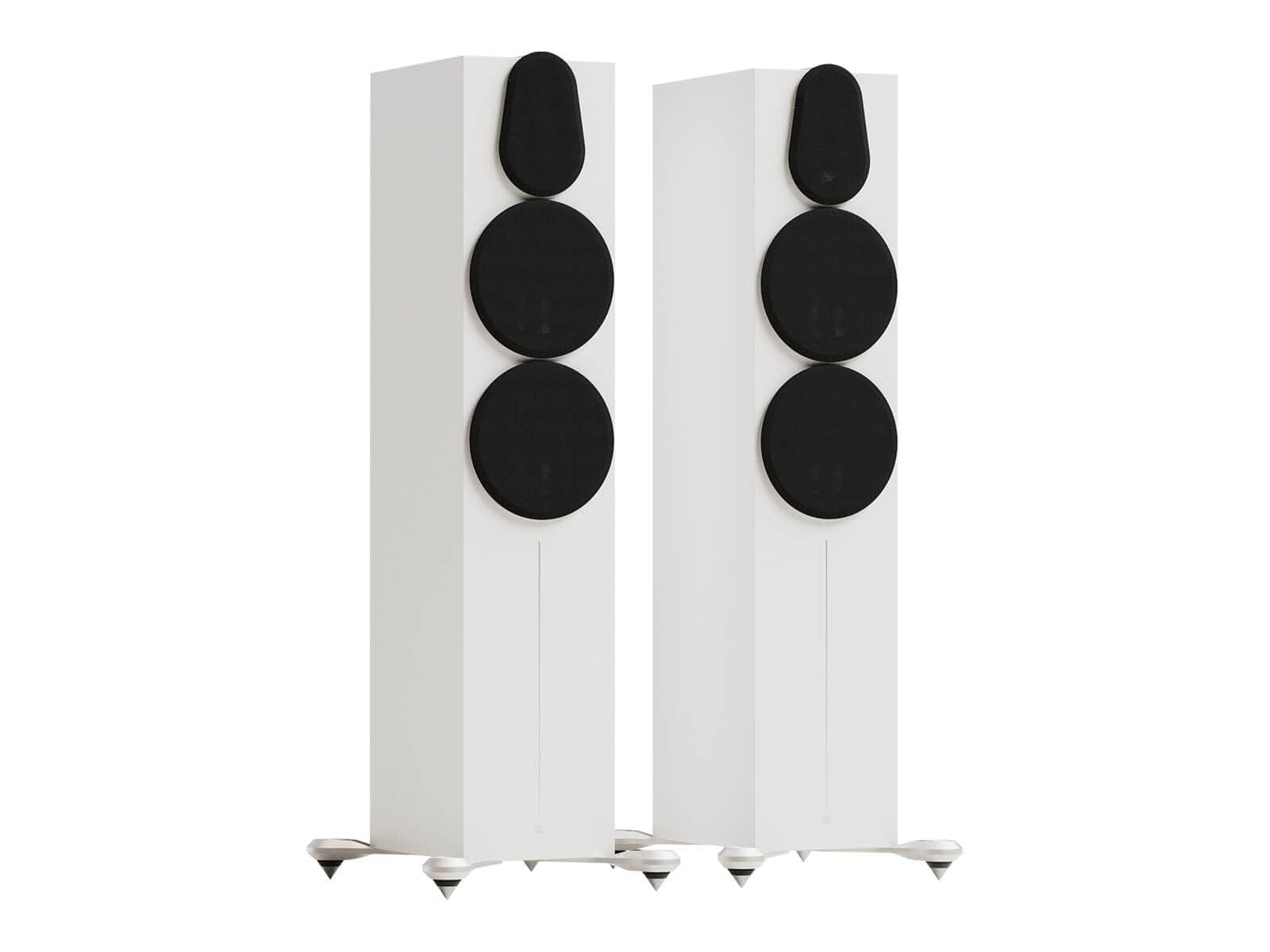

- Individual driver ‘Magnetic grilles’ included
System Format
3-way
Sensitivity (2.83v @ 1m, Free-Field)
88.5 dB
Sensitivity (2.83v @ 1m, Installed)
N/A
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
130 – 600 W
Continuous Power Handling (CTA 426-B)
300 W
Nominal Impedance
4 Ohms
Minimum Impedance (20Hz to 20kHz)
4 Ohms @ 150 Hz
Drive Unit Complement
2 x 8” (203 mm) HDT C-CAM Bass Drivers
1 x 3” (76 mm) HDT C-CAM Mid-Range Driver
1 x MPD III Tweeter
Frequency Response Free-Field (-6dB)
44 Hz – 60 kHz
Frequency Response, In-Room (-6dB)
25 Hz – 60 kHz
Maximum Peak SPL (AES75, Z-weighted)
122 dB
Bass Alignment
HiVe II Ported
Port Tuning Frequency
33 Hz
Crossover Frequency
LF/MF: 700 Hz
MF/HF: 2.6 kHz
External Dimensions with all accessories fitted (H x W x D)
1155 x 383 x 475 mm (451/2 x 151/16 x 1811/16”)
Weight (each)
26.5 kg (58 lb 7 oz)
Sold As
Pair
