Monitor Audio Platinum In-Wall Speaker 3G

  • Sale
  • $7,600.00
Tax included.

Platinum In-Wall 3G

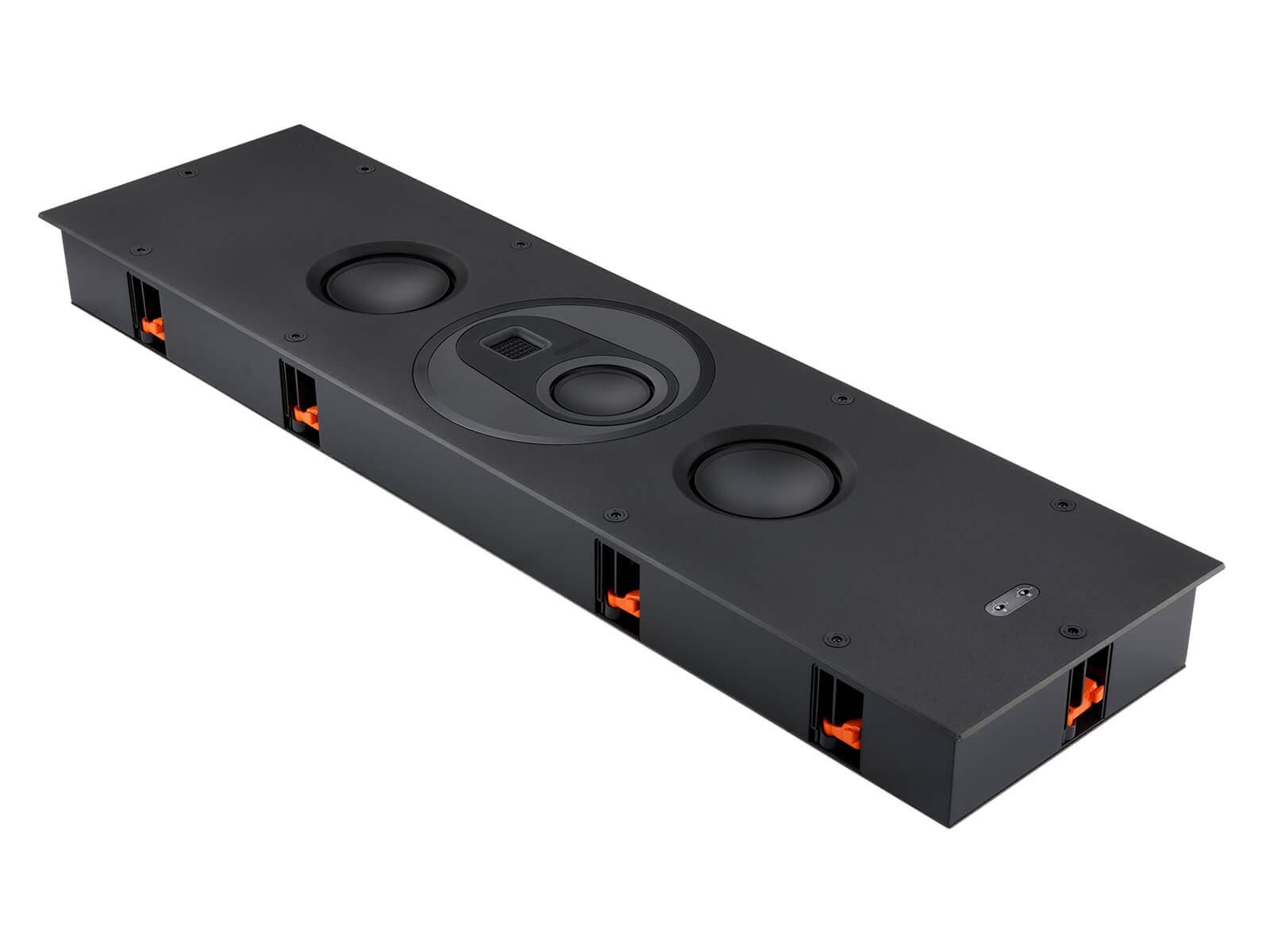

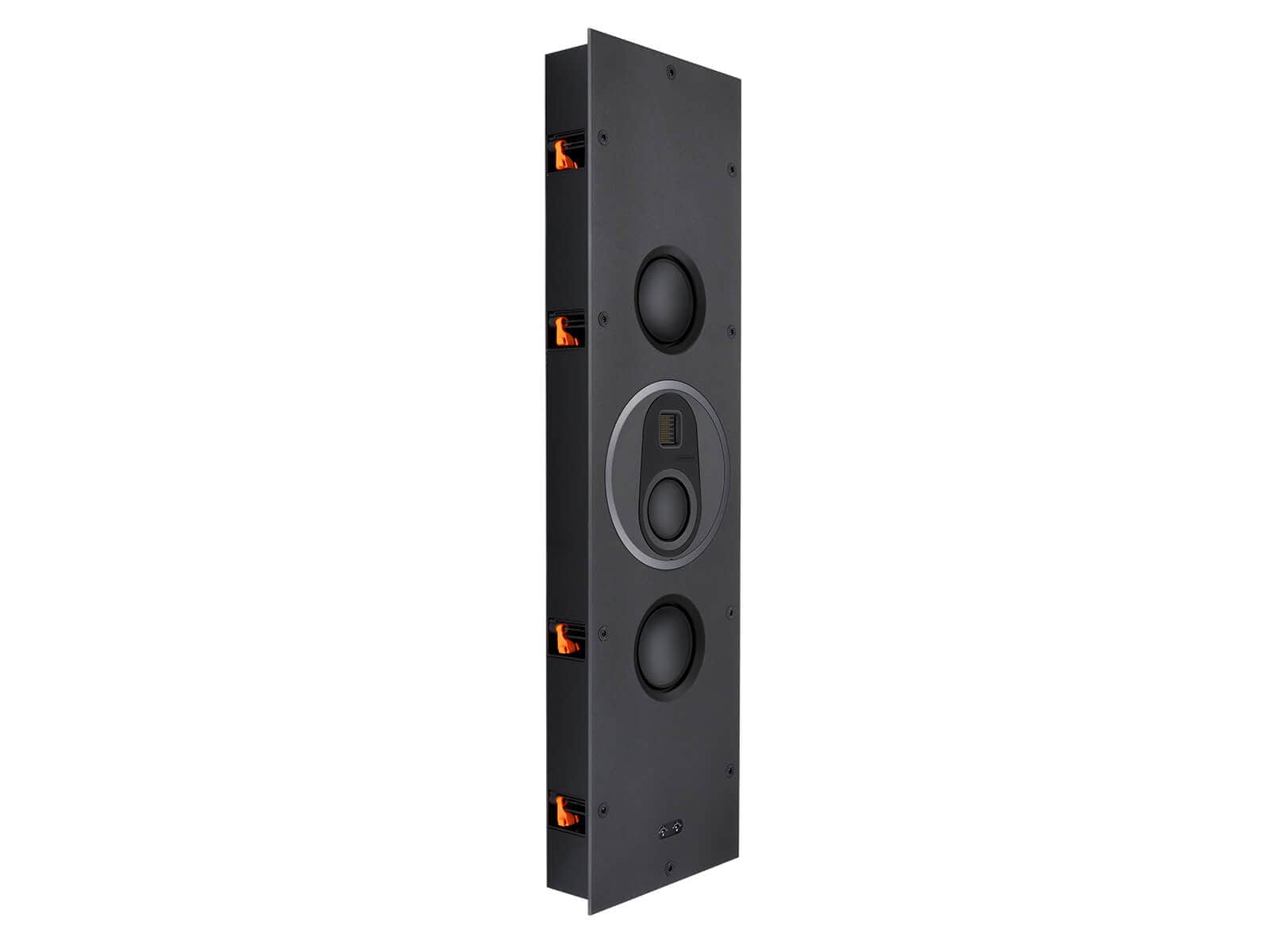

The Platinum In-Wall 3G is a three-way architectural In-Wall loudspeaker that features an MPD III tweeter, 4” RDT III midrange driver and twin 6" RDT III bass drivers. It can be used either horizontally or vertically anywhere within a high-performance home theatre or two-channel stereo system.

Platinum In-Wall 3G is Monitor Audio’s flagship high-performance, architectural, in-wall speaker. It is designed for use in high-end audio and movie systems, where accurate, clear and lifelike sound is required. With the minimum of room intrusion but with maximum scale and sonic impact.

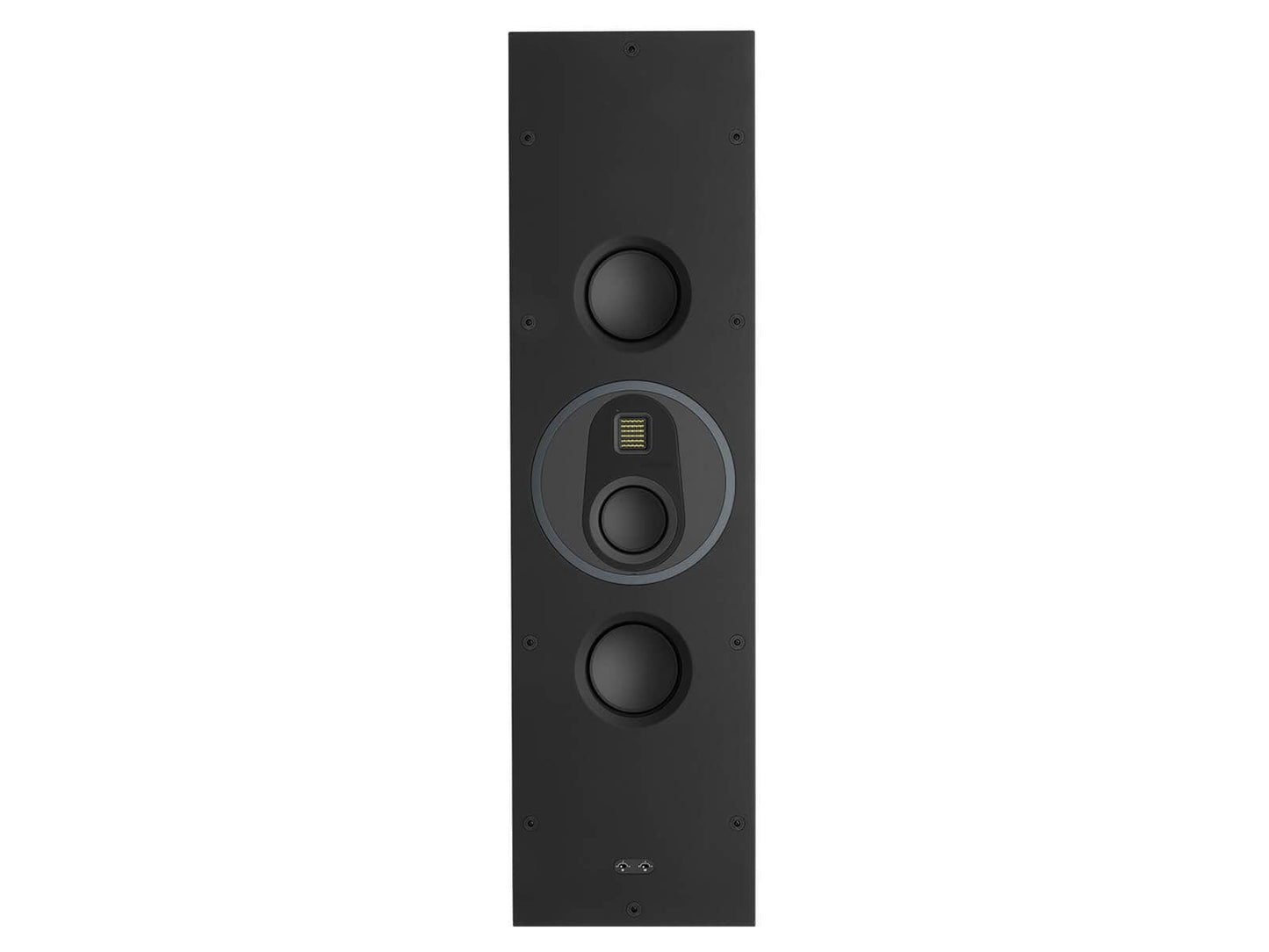

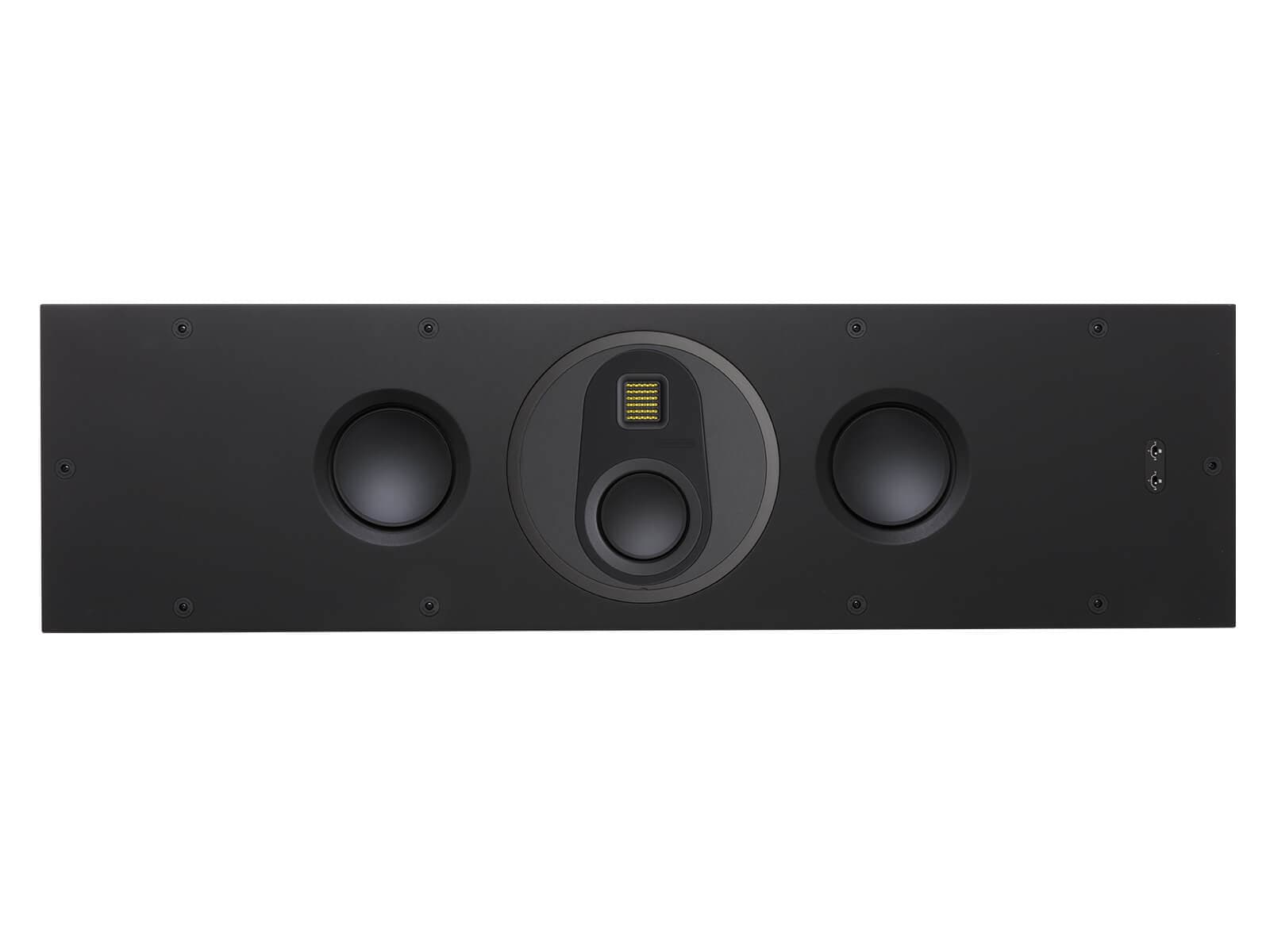

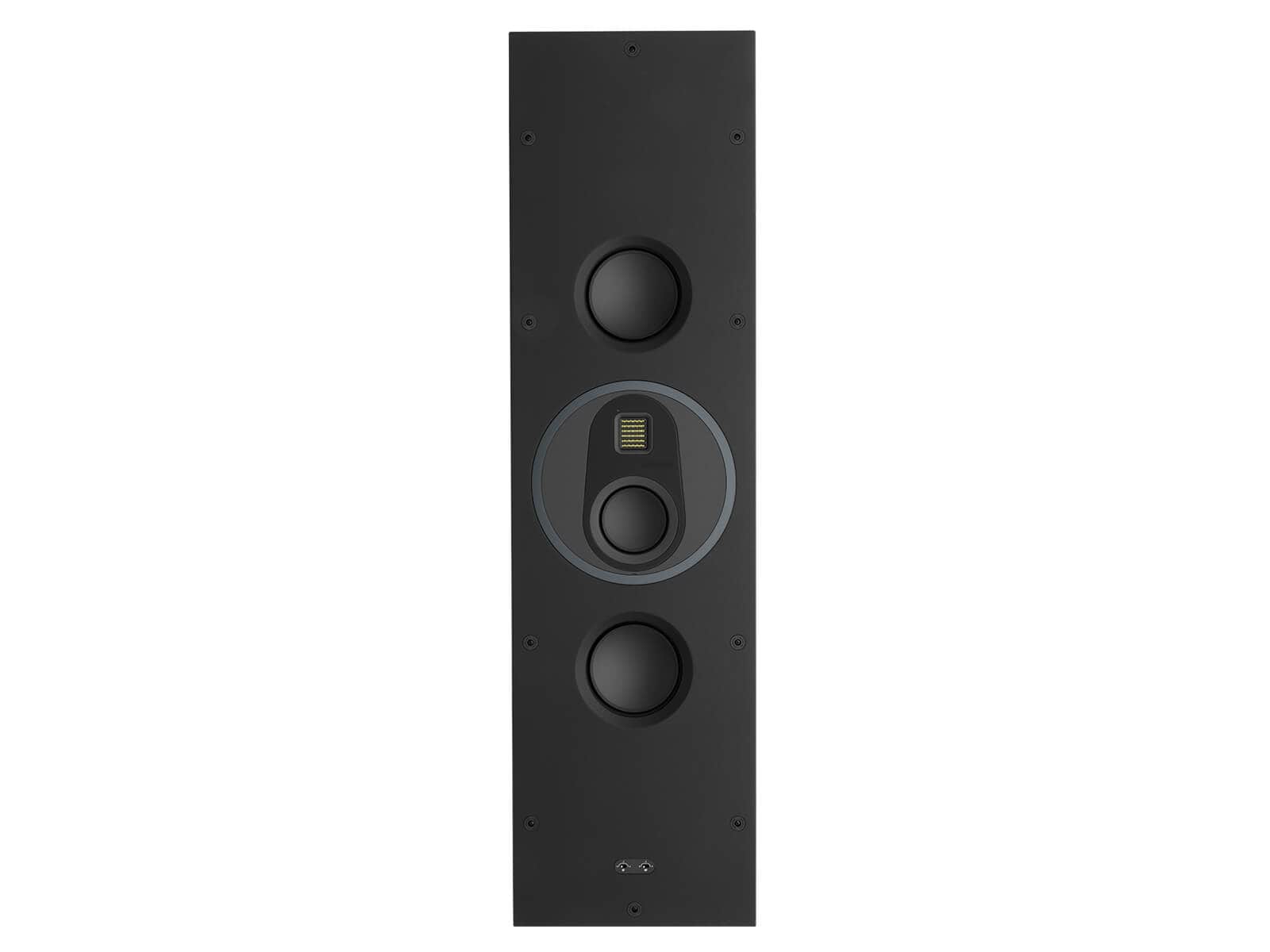

Platinum In-Wall 3G can be installed either vertically or horizontally, which means it can be used on any channel within a system and is ideal for LCR applications and for seamless tonal accuracy within a theatre system.

Key Features

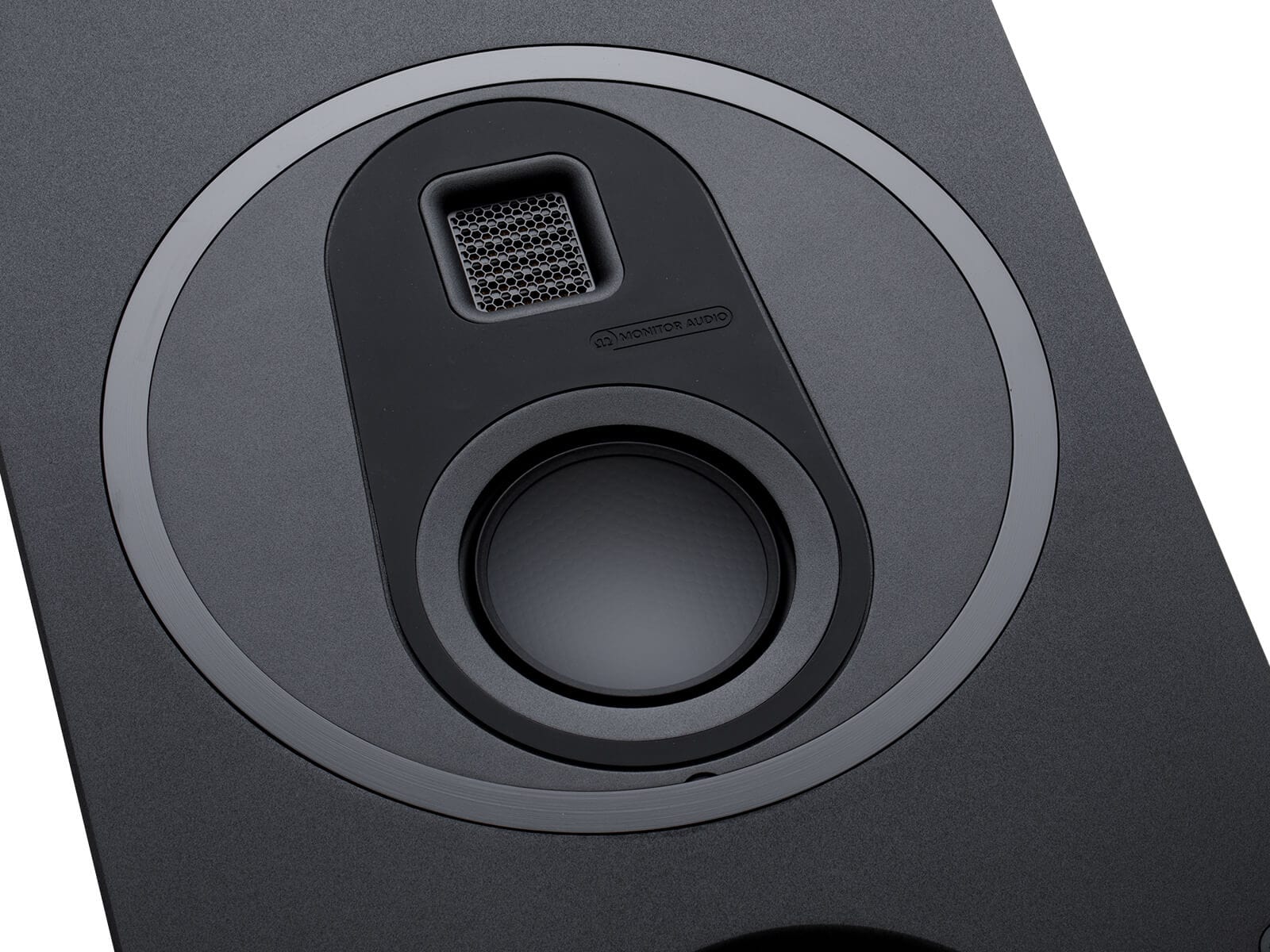

  • 1 x MPD III high-frequency transducer for a larger, clearer, and more lifelike sound
  • 1 x 4” RDT III mid-bass driver for incredible levels of clarity and scale
  • 2 x 6” RDT III bass drivers for exceptional weight and depth
  • Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
  • Bespoke speaker terminals and footings
  • Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
  • Rigid cabinet construction made from 25 mm MDF with steel back
  • Extensive internal bracing using thick MDF cross bracing techniques



System Format

3-Way

Frequency Response, Free-Field (-6dB)​

41 Hz – >60 kHz​

Frequency Response, In-Room (-6dB)

27 Hz – >60 kHz​

Sensitivity (2.83 Vrms @ 1m, Free-Field)​​

88 dB

Nominal Impedance

4 Ohms

Minimum Impedance

4.1 Ohms​ @ 1.6 kHz​

Continuous Power Handling​ ​(RMS into 4 Ohms, Pink Noise with 6dB Crest Factor)

300 W​

Recommended Amplifier Power​ (RMS into 4 Ohm, Music Signal)

150 – 600 W​

Bass Alignment

Sealed

Port Tuning Frequency

N/A

Crossover Frequency

LF/MF: 825 Hz​
MF/HF: 3 kHz​

Drive Unit Complement

2 x 6” RDT III bass driver,
1 x 4” RDT III mid-range driver,
1 x MPD III tweeter​​

External Dimensions (Including Grille and Terminals (H x W x D))

1207 x 332 x 105.5 mm (479/16 x 131/16 x 44/16”)

Cut-Out Dimensions

1175 x 300 x 97.5 mm (461/4 x 1113/16 x 313/16“)

Weight (each)

27.7 kg (61 lb)
