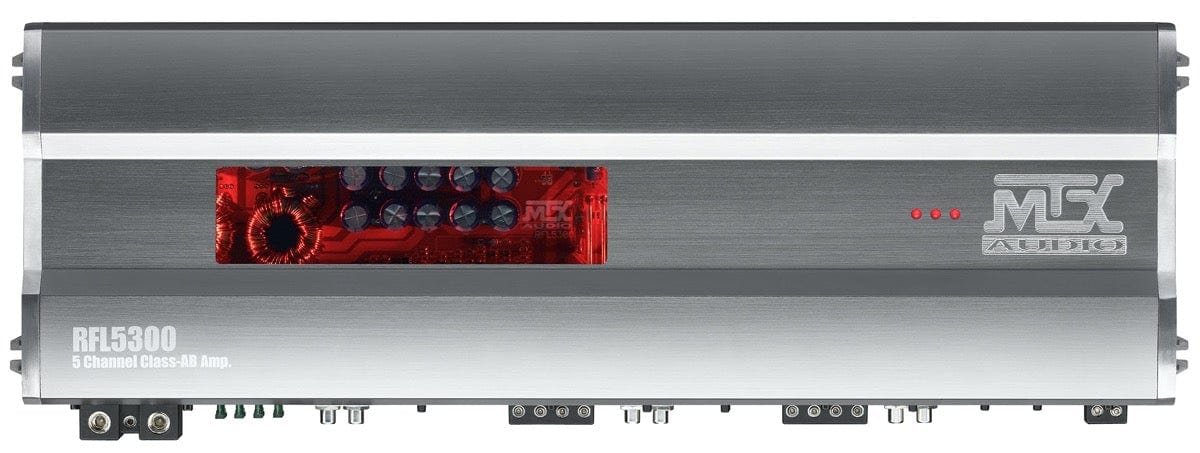

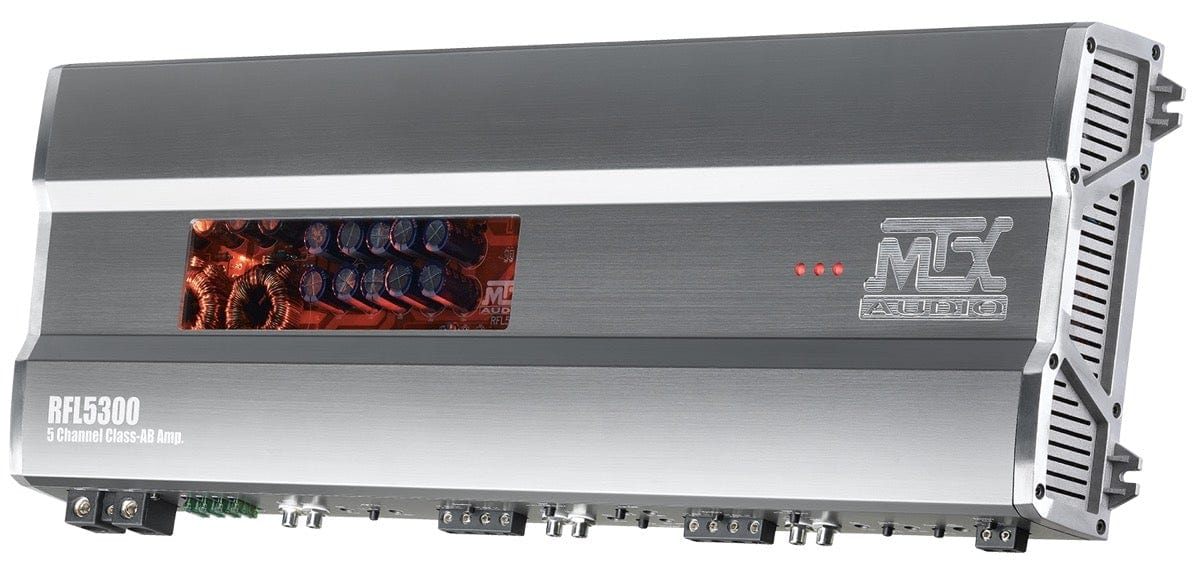

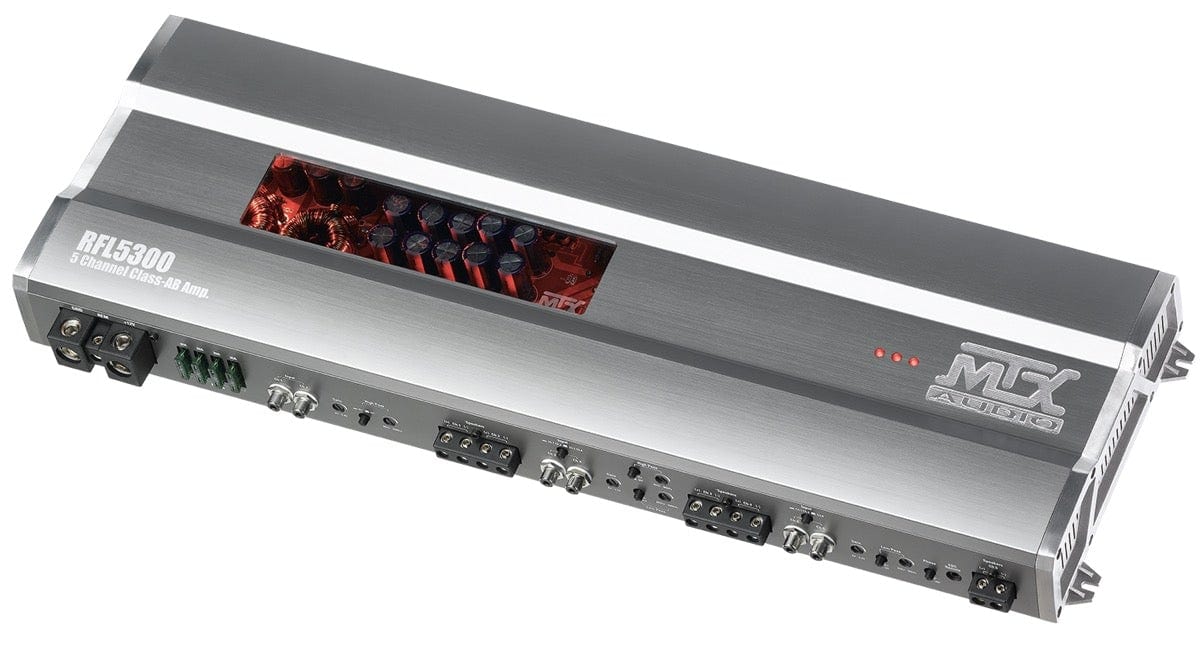

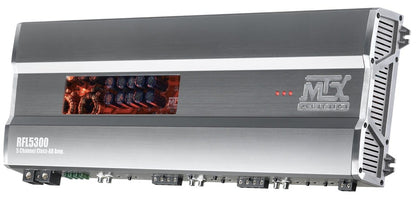

The RFL5300 amp is the most prestigious, most powerful, most reliable 5 channel amplifier MTX has ever made! Designed to be the reference, the benchmark for amplification. The RFL5300 will satisfy every car audio fanatic.
• Exceptional sound quality thanks to class-AB topology.
• High quality components (Sanken hi-fi grade transistors).
• All aluminium construction with backlit window to admire the high-end components.
• Triple power supply converter (One per amp) to better manage current and power.
• A whole installation in a single amplifier: simplicity and efficiency (3 amps + an active filter).
• Flexibility of the active filter capable of doing everything (3 active channels or front-rear-sub).

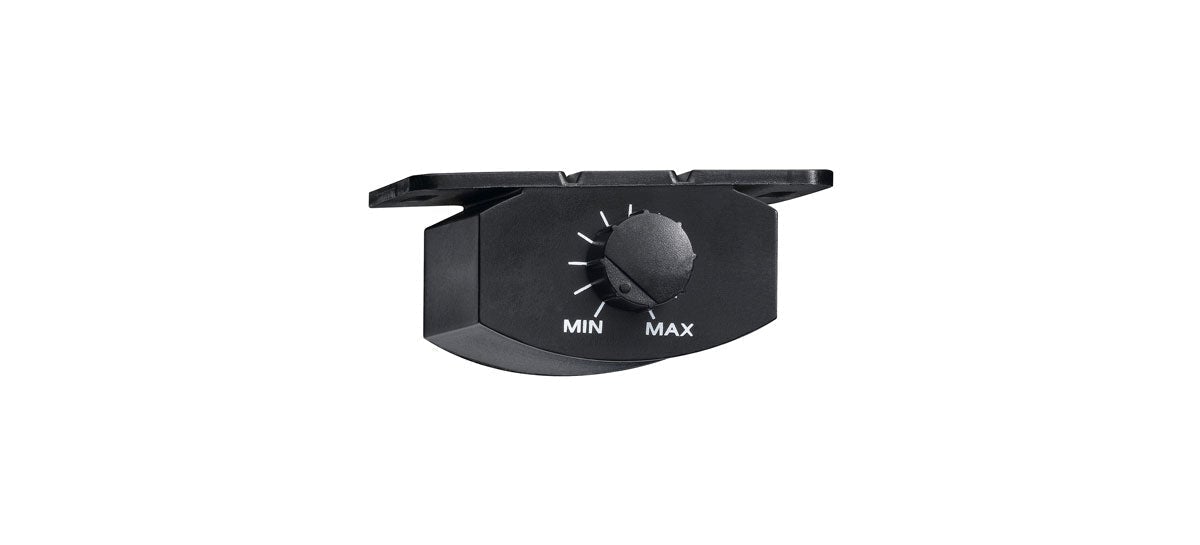

• EBC remote level control included.
• Ø50mm2 power terminal block
Specifications:
• Class AB 5 channel amplifier
• CEA2006 certified output power :
- 4 channel : 4x120W RMS @ 2Ω THD+N ≤1%
- 4 channel : 4x80W RMS @ 4Ω THD+N ≤1%
- 4 channel : 2x240W RMS bridged @ 4Ω THD+N ≤1%
- mono channel : 1x370W RMS @ 2Ω THD+N ≤1%
- mono channel : 1x250W RMS @ 4Ω THD+N ≤1%
• Active crossover channel 1 and 2 :
- High Pass (HPF) 12dB/oct variable from 40Hz to 5000Hz
• Active crossover channel 3 and 4 :
- High Pass (HPF) 12dB/oct variable from 40Hz to 800Hz
- Low Pass (LPF) 12dB/oct variable from 40Hz to 5000Hz
- Band Pass (PBF) is the sum of the LPF and HPF
• Active crossover channel 5 :
- Low Pass (LPF) 24dB/oct variable from 40Hz to 800Hz
• Signal/Noise ratio (1 Watt) : > 98dB
• THD+Noise (Distortion) (1 Watt) : ≤ 0,05%
• Frequency response (±1dB) : 10Hz-90000Hz
• RCA input sensitivity : 200mV - 6V
• EBC (External Bass Control) included
• Dimensions : 626mm x 204mm x 59mm
Recommended configurations :
• Front and subwoofer (2 way kit+midbass+sub)
• Full system (front+rear+sub)
• Full active (tweeters+mids+sub)
Download product manual here
