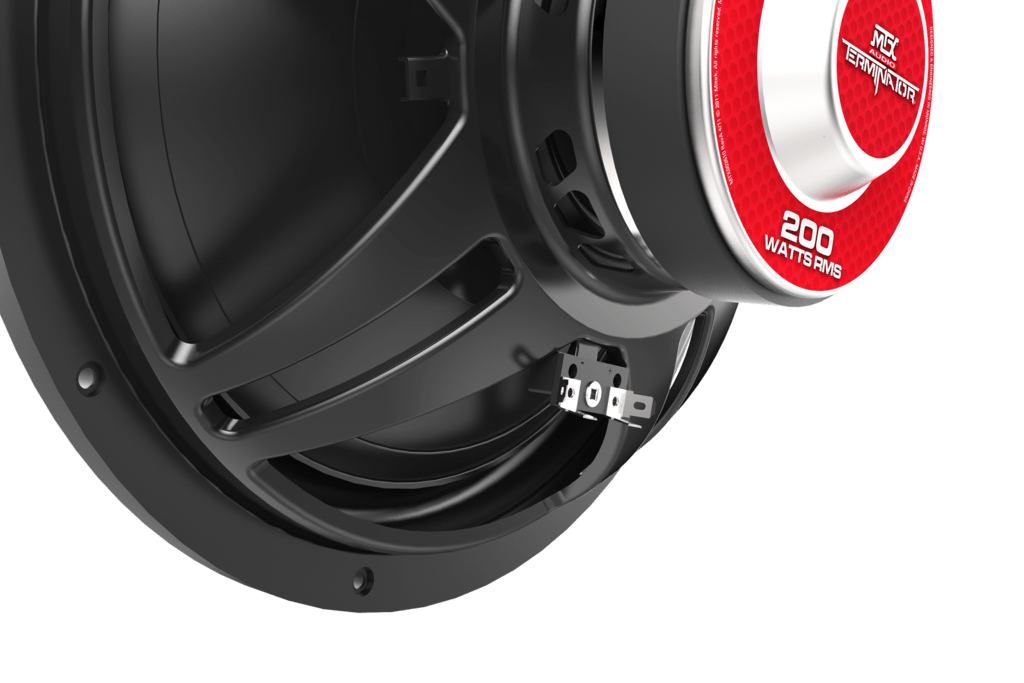

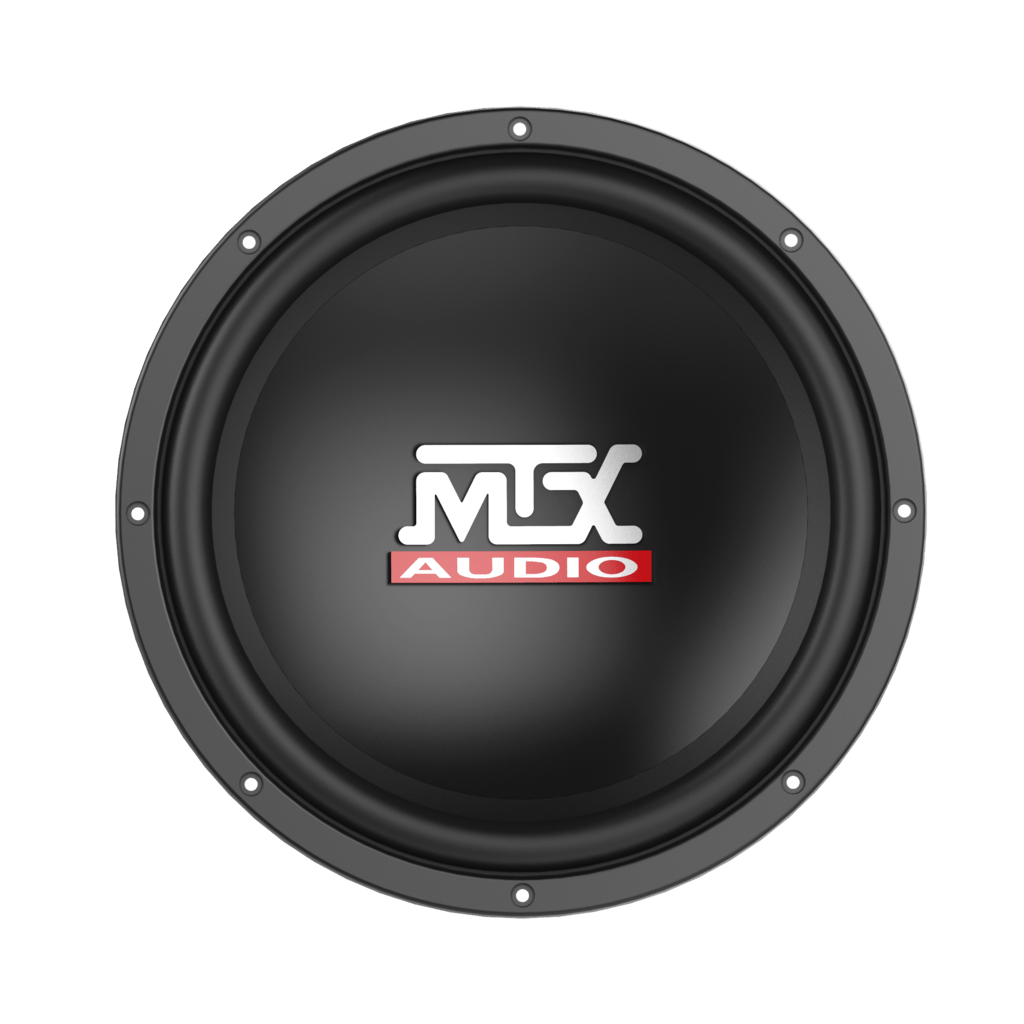

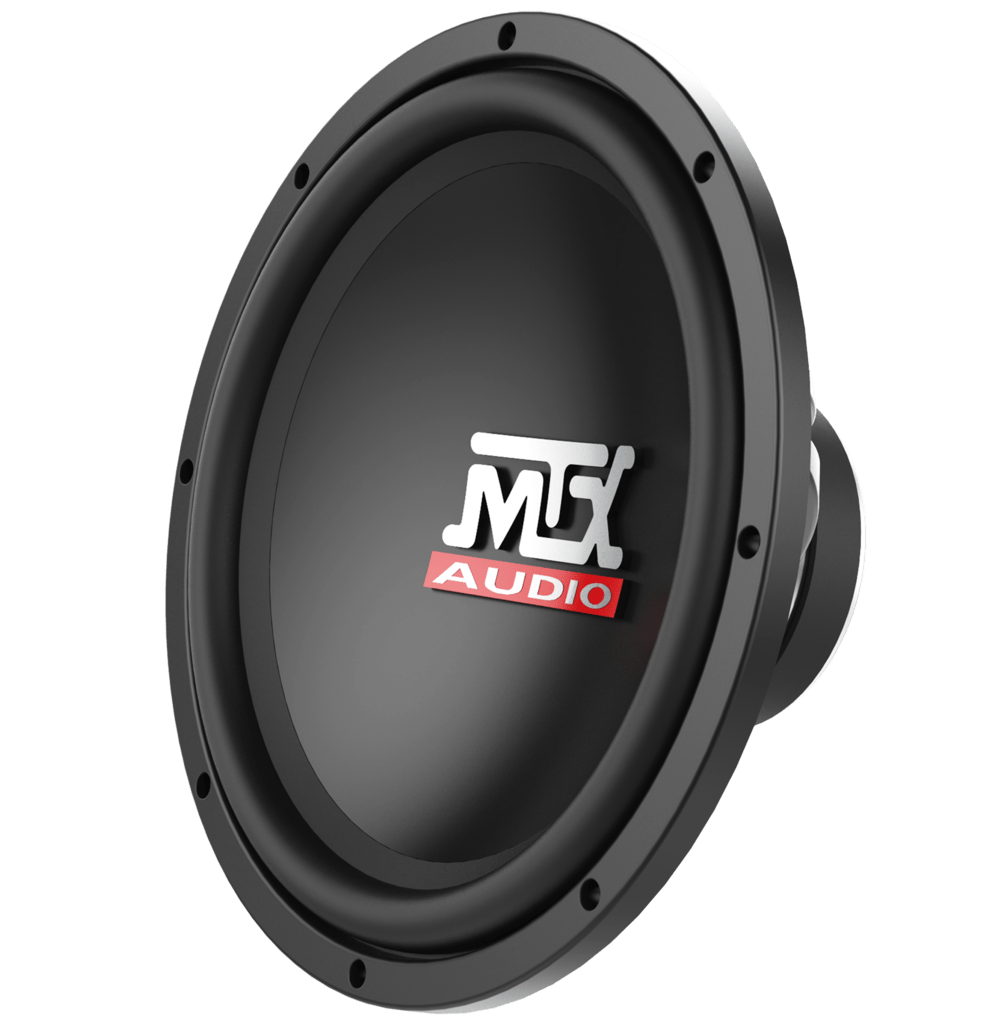

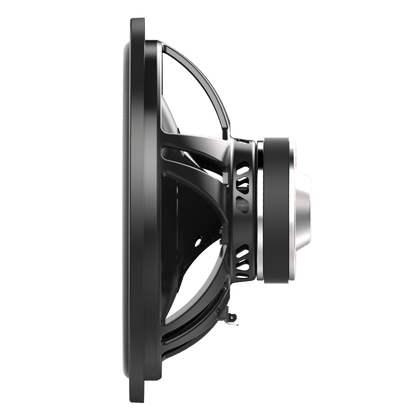

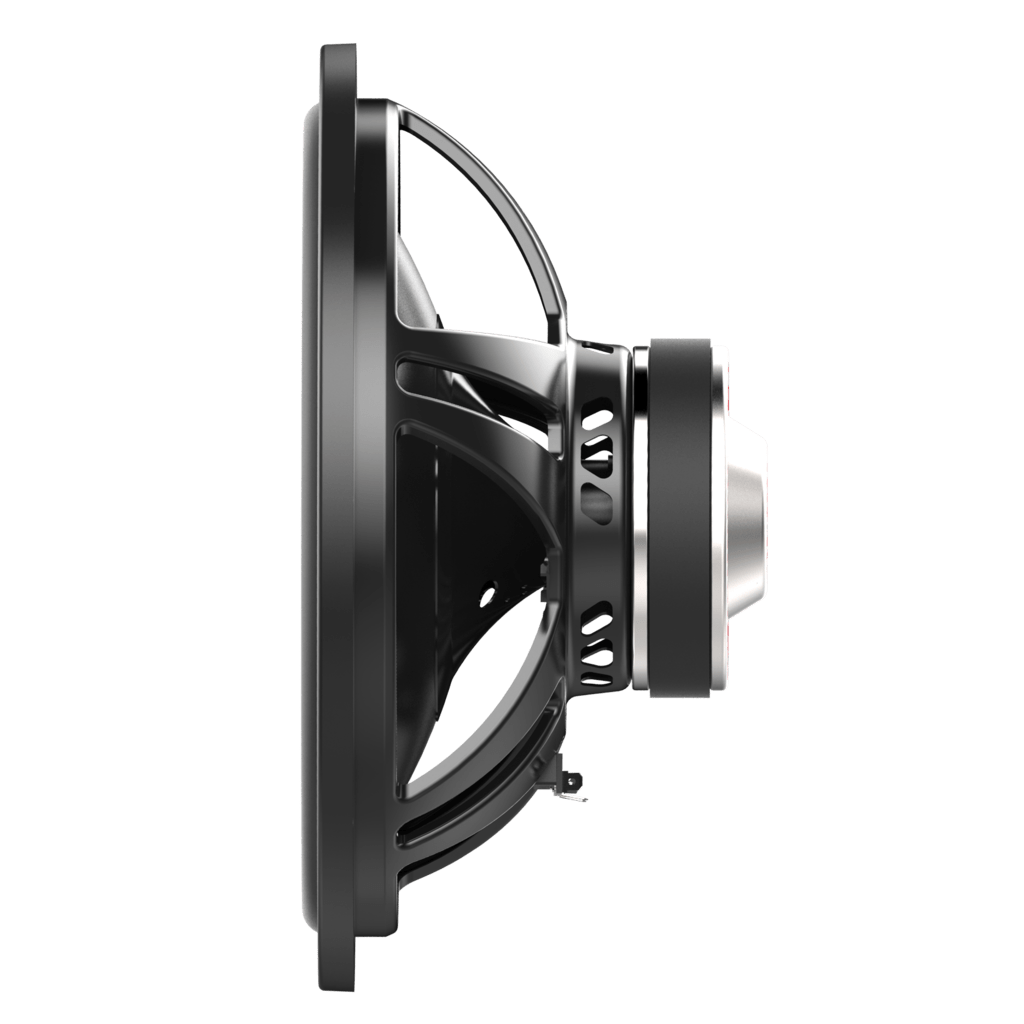

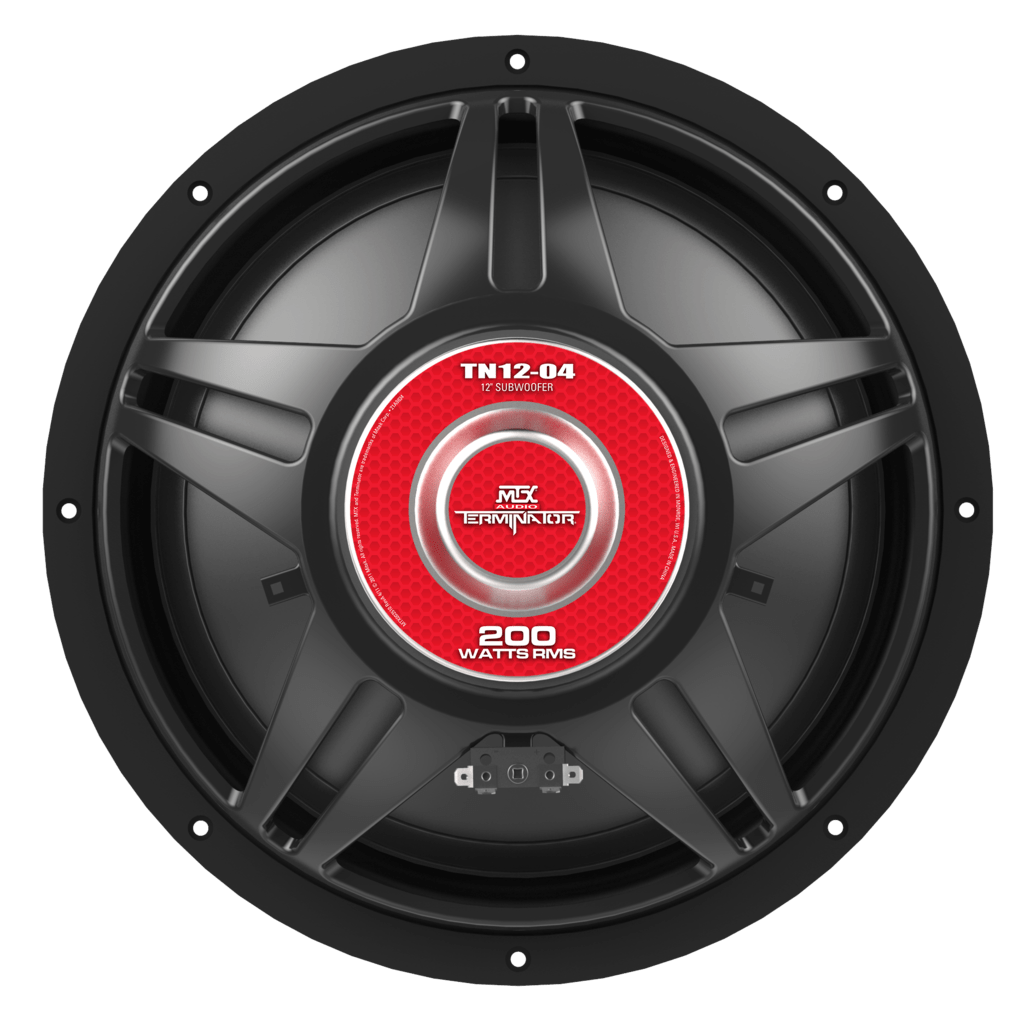

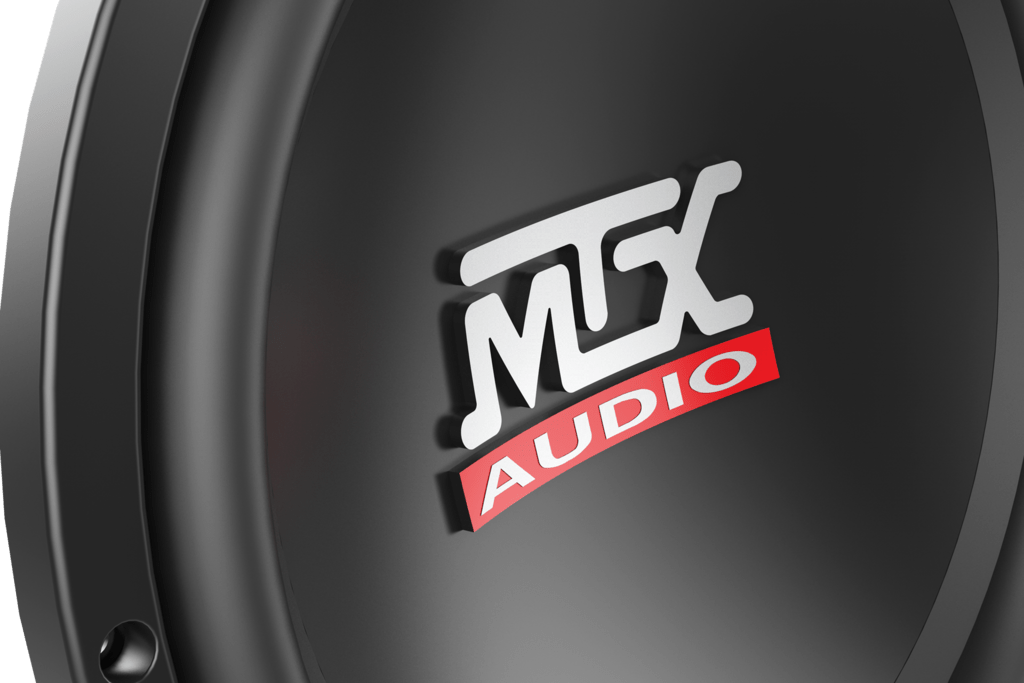

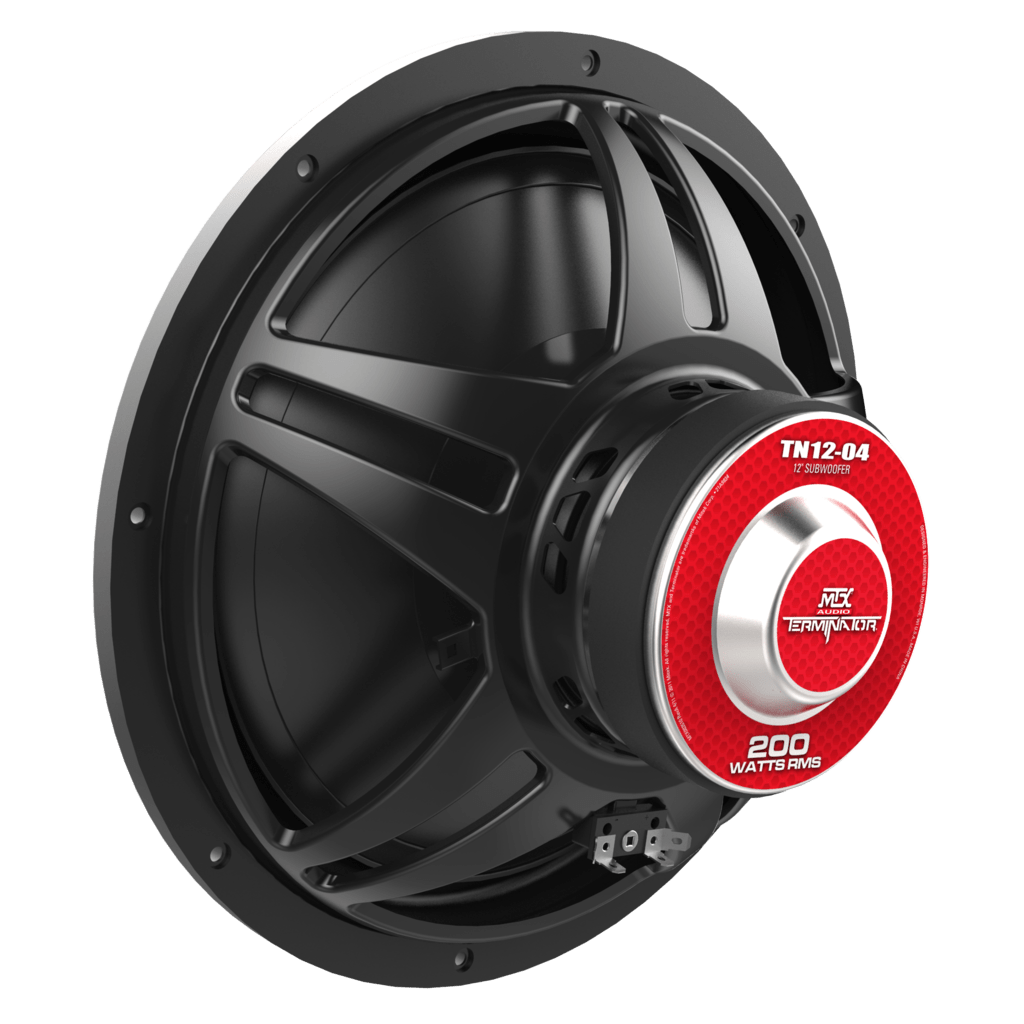

MTX Audio Terminator Series 200W 12" Subwoofer - TN12-04

  • Sale
  • $152.00
  • Regular price $179.00
Tax included.


The classic Terminator Car Audio Subwoofer bangs out bass in rigs all over the world. Its economical price made it our most popular entry level sub over the last several years. And the Terminator still outperforms any sub in its class.

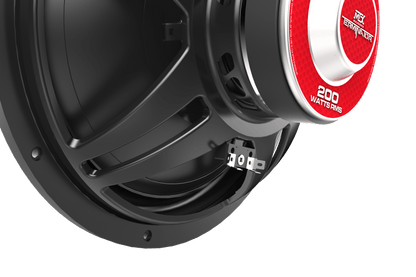

The MTX TN12-04 is a 12" single voice coil, 4 Ohm, 200 watt Car Audio Subwoofer that is economically priced but not short on performance.


Spider Plateau Venting is characterised by vents that surround the voice coil between the motor structure and the spider, the area of the woofer that gets the hottest. Air is directed in and out of this key area allowing the woofer to handle lots of power while keeping the voice coil cool. This translates to an all around better performing subwoofer. MTX subwoofers are designed to handle a large amount of power and produce maximum bass. With Spider Plateau Venting, cool air is sucked through these large vents, from all angles, directly onto the voice coil as the cone moves forward. As the cone moves backward, it pushes warm air out, forcing it off of the voice coil.

Features:

  • ALDS Asymmetrical Linear Drive System with a Flat Progressive Spider and Extended Pole Piece for Smooth, Linear, Piston like Drive
  • Exclusive Spider Plateau Venting Cooling System Cools at the Voice Coil Rubber Surround for Greater Durability and Longevity of the Sub

Specifications:

Recommended Amp Power (RMS) 100 - 200
Frequency Response 24Hz - 160Hz
Impedance
Sensitivity 86.4dB
Voice Coil 1.50" (3.81 cm)
Magnet Weight 27 oz.
Mounting Depth 5.44"
Cut Out Diameter 11.08
Volume Displacement (cu in) 30.92 cu in
Sealed Enclosure Net Volume 1.25 cu ft
Vented Enclosure Net Volume 2.00 cu ft



Download product manual here
