Plinius Toko Digital Audio Player – SoundHub

Plinius Toko Digital Audio Player

  • Sale
  • Regular price $0.00
Tax included.


PRICE ON APPLICATION

The Toko digital audio player is equally at home with a conventional CD in its slot loaded transport or when connected to an Ethernet network, you can connect the Toko to your other DLNA compatible components, for example a P.C.

FEATURES

RC5 INPUT

The RC5 input allows for connection to wired remote interfaces so it can be used as part of an automated system, or if it is required to be located out of the line of sight from a standard remote.

BURR BROWN DAC

The DAC and interface receiver are high performance Burr Brown components with a proven record of quality digital sound reproduction.
The chosen DAC allows playback of popular file types up to 24bit/192ks/s.

ALUMINIUM CONSTRUCTION

The aluminium chassis, lid and panels provide a non-magnetic housing to eliminate unwanted magnetic fields that can interfere with the sensitive audio signals.

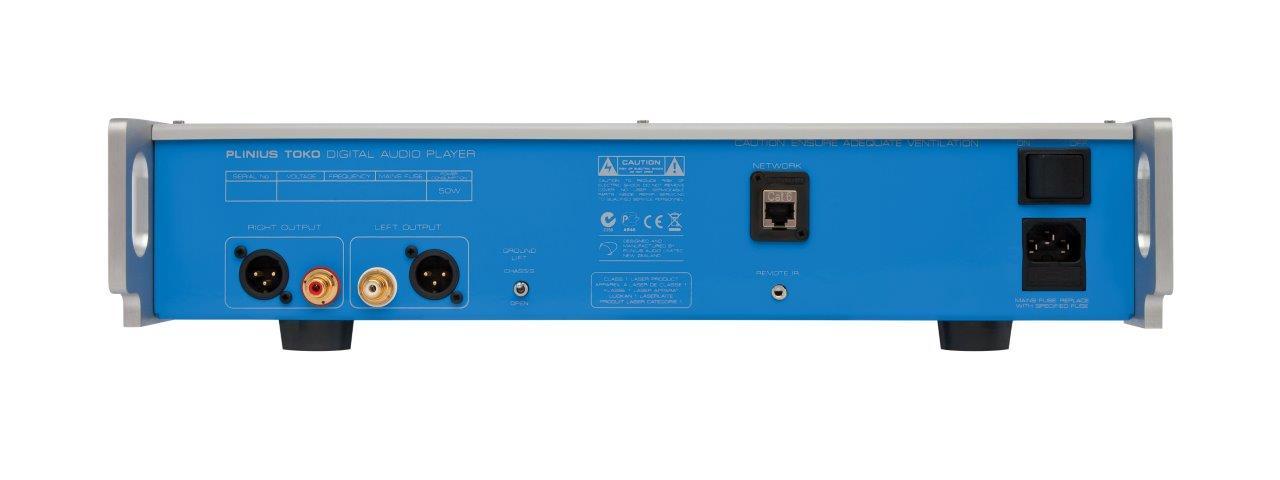

WBT AND NEUTRIK CONNECTORS

High quality WBT RCA and Neutrik XLR output connectors ensure a high performance, low distortion interface between your cables and the player.

Compact Disc Slot

Primarily designed as a network player, a compact disc transport is also on board to allow playback of standard CD’s

File Formats

Playback is supported for FLAC, LPCM, AIFF ALAC and MP3 including Gapless.

Network Input

The RJ45 connector allows network connection for playback of digital music over a home network. Network input was chosen as the most suitable way to transfer digital audio due to ease of setup, ability for wireless communication and advantages over S/PDIF and USB.

SPECIFICATIONS

SUPPORTED AUDIO FILE SERVER DLNA Digital Media Servers
SUPPORTED PLAYBACK CONTROL DLNA Digital Media Controllers, DLNA Mobile Digital Media Controllers, UPnP smartphone applications, iPad/iPod applications
DAC CAPABILITY 24 bit, 192ks/s
AUDIO CODEC SUPPORT FLAC (up to 24/192), LPCM (up to 24/192), AIFF, MP4
CONNECTIVITY 10/100 Ethernet
ANALOGUE OUTPUT 1 x RCA stereo pair 1 x XLR stereo pair
Frequency Response 20Hz to 20kHz ±0.2dB
SIGNAL to Noise Ratio -100dB at rated input level, A Weighted
DISTORTION <0.01% THD at rated input level
INPUT 1 x RJ45 connector
MAXIUM OUTPUT LEVEL 2V RMS into 10k or higher
OUTPUT SOURCE IMPEDENCE Typically 100R
POWER/CURRENT CONSUMPTION 60W 0.22A (53W) Idle
Height 105mm (4")
Width 450mm (17 3/4")
Depth 400mm (15 3/4")
Weight 10kg (22lbs)
